USER MANUAL 3-Side Shave IPX7 TAURUS

Line drawing of a pair of electric shakers with no text or symbols

EN. Instructions for use

FR. Mode d'emploi

Diagram of a hand holding a small object with internal components, showing a pipe outlet and a cross-section view (no text or symbols)

Fig. 4

Technical illustration of a mechanical assembly with gears and a coin, labeled Fig. 5 (no text or symbols on the diagram itself)

Fig. 6

Fig. 7 sewing machine oil

ES

(Original instructions)

SHAVER

3-SIDE SHAVE IPX7

DESCRIPTION

1 Protective cap
2 Individually floating heads
3 Shaving unit
4 Shaving unit release button
5 ON/OFF Button
6 Charge light indicator
7 Sideburn trimmer
8 Trimmer release slider
9 USB cable
10 Cleaning brush

USE AND CARE:

Do not use the appliance if its accessories are not properly fitted.

Do not use the appliance if its accessories attached to it are defective. Replace them immediately.

Do not use the appliance if on/off switch doesn't work. Disconnect the battery charger from the mains when not in use, before undertaking any cleaning task make any adjustment or accessory change.

Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

Pay special attention when assembling and removing the accessories, as the blades are sharp. Be careful and avoid direct contact with the blades' cutting edges.

Do not use the appliance with pets or animals.

Do not open the battery/ies under any circumstances whatsoever.

Recharge the battery/ies only with the charger supplied by

the manufacturer. A charger that is suitable for one typ of battery may cause explosion or fire hazard when used with other battery/ies.

Use the device only with the battery/ies for which has been specifically designed. The use of any other battery/ies can cause an explosion or fire hazard.

CHARGING THE BATTERY:

Caution: a new battery is not fully charged and must therefore be charged before the appliance is used for the first time.

Charge the battery at an atmospheric temperature of between 5 and 35°C.

Connect the charger (9) to the jack using the socket on the appliance. The socket is located at the lower part of the appliance.

Plug the charger (9) into the mains.

The pilot light (6) will come on to indicate that the charger is charging the battery.

Approximately 8 hours are needed for a complete charger of the battery. Never attempt to overcharge the battery (although it is recommended that the first charge of the battery be of 8 hours in duration).

When the battery is charged disconnect the charger from the mains supply.

NB: Do not use the appliance while it is connected to the mains.

INSTRUCTIONS FOR USE BEFORE USE:

Make sure that all products' packaging has been removed.

Before using this product for the first time, it is important to make a full charge of batteries.

USE:

Remove the protective cover (1)

Make sure that the blades are correctly aligned.

Turn the appliance on, by using the on/off button.

Move the shaving heads over the skin using gentle circular movements.

Go against the direction of the facial hair growing, or shave in the same direction if your skin is sensitive

For trimming the sideburns and moustache, push down the pop-up trimmer slider (7) and move it downwards applying gentle pressure.

Once you have finished using the appliance:

Turn the appliance off using the on/off button.

Clean the appliance.

Put on the protective cover.

CLEANING:

Disconnect the battery charger from the mains and allow it to cool before undertaking any cleaning task.

Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

During the cleaning process,

take special care with the blades, as they are very sharp.

If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to us.

For a deep cleaning:

Press the realease button to open the shaving unit. (Fig. 2)

Rinse de shaving head and hair chamber directly with water. (Fig. 3)

For a deep cleaning, remove the shaving unit pulling it outwards.

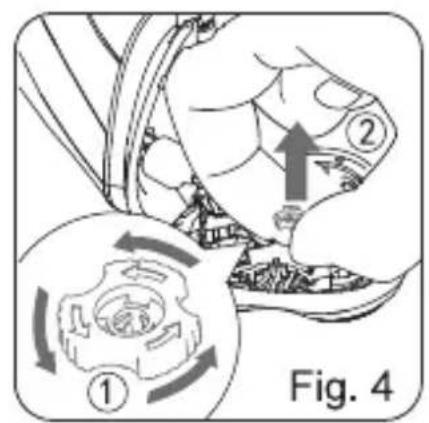

Then turn the lock counterclockwise: (1) pulling it up (2) to unlock and remove the retaining frame. (Fig. 4)

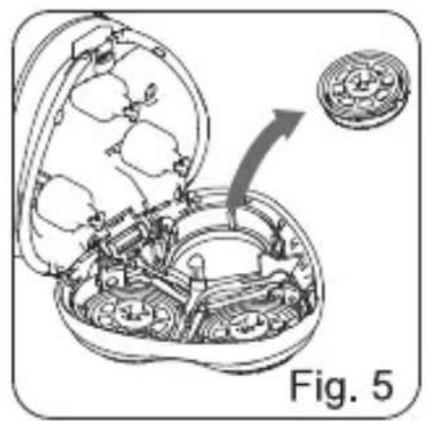

Then remove and clean one set of blade assembly (2) at a time. (Fig. 5)

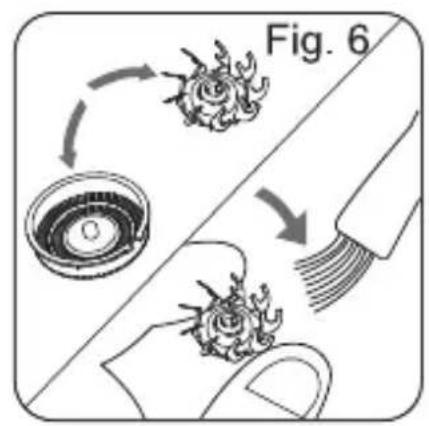

Separate the blade and ring blade, and clean both parts under water or by brush (J) (Fig. 6)

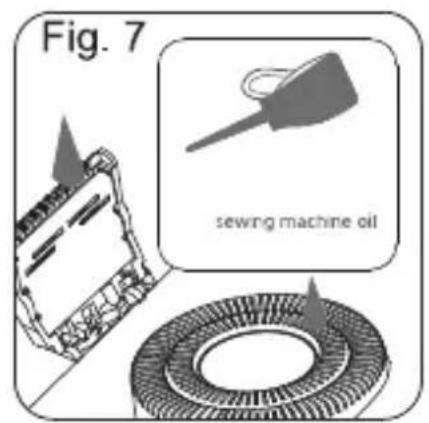

After cleaning the blade

assembly set, it is reccomend to lubricate them with some lubricating oil. Then install them on the shaving unit and switch it on and off a few times. Regular oiling enhances the run time of the product. (Fig. 7)

Attention: Do not clean more than one cutter at a time, since they are all matching sets. If you accidentally interchange the cutters, it could influence the shaving results.

SUPPLIES:

Supplies for your appliance model can be acquired from distributors and authorised establishments.

Always use original supplies, designed specifically for your appliance model.

For optimal shaving performance, we advise you to replace the shaving heads every two years.

HOW TO REMOVE THE BATTERIES FROM THE INTERIOR OF THE DEVICE:

CAUTION: It is important

that the batteries are fully discharged prior to its withdrawal from the apparatus.

CAUTION: the appliance must be disconnected from the supply mains when removing the batteries.

To remove the batteries, once the life of the appliance, proceed as follows:

Open the top shell of the apparatus, removing previously with the help of a screwdriver fixing screws.

Identify the battery wires and cut their (Red and Black). To avoid risks of a short circuit with a possible residual battery load, first cut the Red wire and protect it by using insulating tape, then proceed to cut the Black wire proceeding in the same way.

Safely remove the battery from its housing.

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us. You can download this instruction manual and its updates at http://taurus-home.com/
