USER MANUAL 3 Side Shave Plus TAURUS

Line drawing of a multi-pin electric shaver with three leads and a power button (no text or symbols)

B C D E J 100% A F G 100% H 234 I

Illustration of a hand holding a device with an arrow indicating upward and downward motion (no text or symbols)

Illustration of a hand holding a medical device with an arrow indicating rotation (no text or symbols present)

Diagram illustrating insect behavior with labeled parts and directional arrows indicating movement or movement.

Fig. 4

Diagram of a mechanical device with internal components and an arrow indicating direction (no text or symbols)

Fig. 5 Fig. 6

Diagram showing a flower with a curved arrow and a bowl with a small circle, no text or symbols present.

Illustration of a hand holding a flower with a curved arrow pointing to a leafy plant (no text or symbols)

Fig. 8 Fig. 7

Diagram showing a lock icon and a car interior with a magnified view of the lock and a warning symbol.

Illustration of a mechanical device with internal gears and a handle, no text or symbols present

Fig. 9

Diagram showing a water tap with a circular diagram and a car handle, likely illustrating a water safety or cleaning concept.

Fig. 10 Fig. 11

Diagram showing a cross-section of a biological or mechanical structure before and after transformation, with no visible text or symbols.

Diagram illustrating a dental implant procedure with cross-sectional views and labeled steps

Español

AFEITADORA 3-SIDE SHAVE PLUS

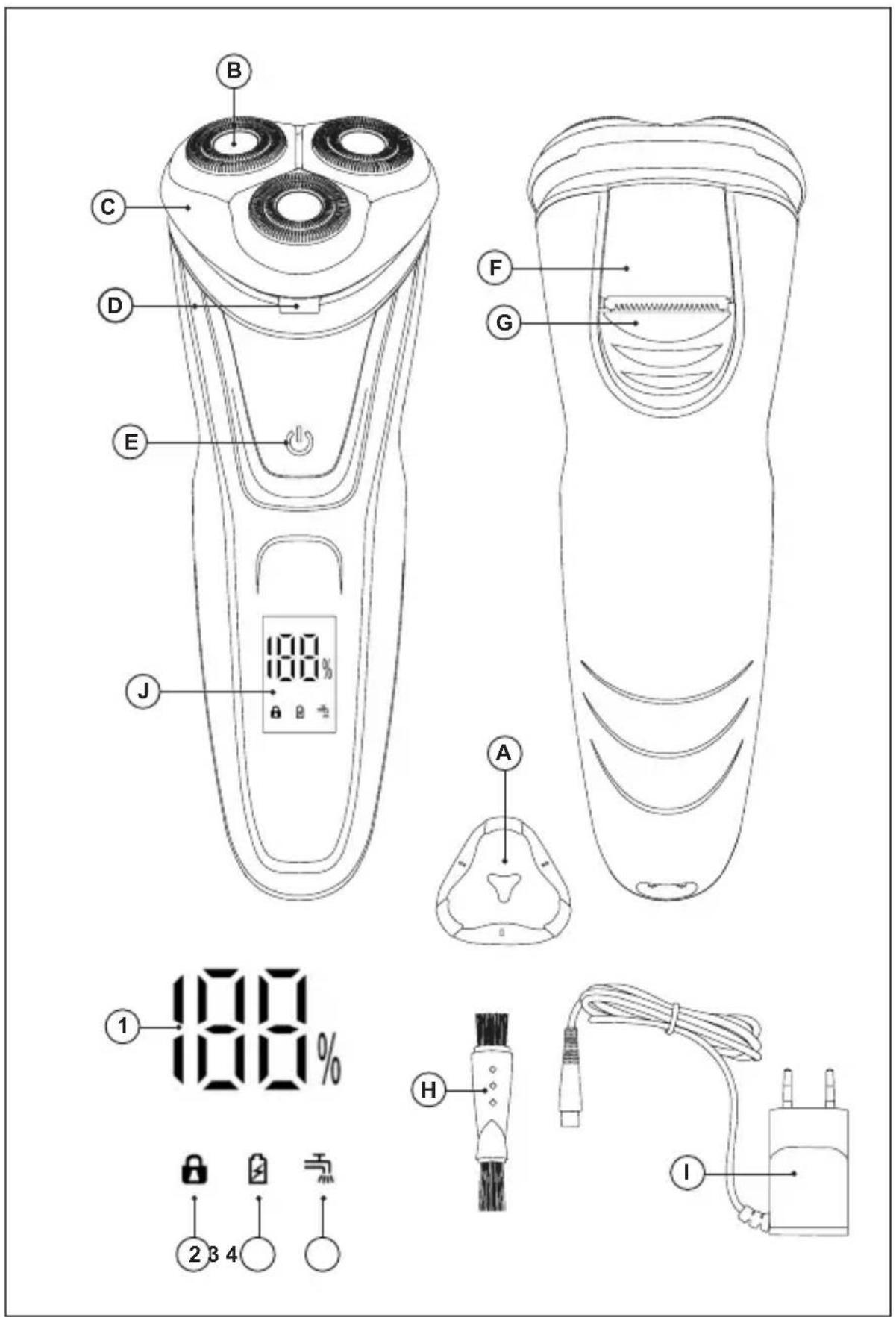

DESCRIPCIÓN

A Protective cap.
B Individually floating heads
C Shaving unit
D Shaving unit release button
E ON/OFF Button
F Sideburn trimmer
G Trimmer release slider
H Cleaning brush
I Power cord
J LED display
1 Battery indicator %
2 Travel lock
3 Charging icon
4 Cleaning reminder

USE AND CARE:

• Fully extend the appliance's power cable before each use.
• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if its accessories attached to it are defective. Replace them immediately.
• Do not use the appliance if on/off switch doesn't work.
• Disconnect the power cord from the mains when not in use, before undertaking any cleaning task make any adjustment or accessory change.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken

parts or anomalies that may prevent the appliance from operating correctly.

• Pay special attention when assembling and removing the accessories, as the blades are sharp. Be careful and avoid direct contact with the blades' cutting edges.
• Do not use the appliance with pets or animals.
• Do not open the batteries under any circumstances whatsoever.
• Recharge the batteries only with the charger supplied by the manufacturer. A charger that is suitable for one typ of battery may cause explosion or fire hazard when used with other batteries.
• Use the device only with the batteries for which has been specifically designed. The use of any other batteries can cause an explosion or fire hazard.

CHARGING THE BATTERY:

• Charge the battery at an atmospheric temperature of between 4 and 40°C.
• Connect the power cord (I) to the jack using the socket on the appliance. The socket is located at the lower part of the appliance.
• Plug the power cord (I) into the mains.
• The battery charge % will blink and the charging icon (3) will be shown on the LED display (J) to indicate that the charger is charging the battery.
• Approximately 2 hours are needed for a complete charger of the battery.
• When the battery is fully charged, disconnect the power cord from the mains supply.

HOW TO CHECK THE BATTERY'S CHARGE LEVEL:

- When you press the On/Off button (E), the LED display (J) will show the percentage of the battery charge.

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that all products' packaging has been removed.
• Before using this product for the first time, it is important to make a full charge of batteries.

USE:

• The appliance can be used directly connected to the mains or by using his batteries.

• Remove the protective cover (A)

• Make sure that the blades are correctly aligned.

• Turn the appliance on, by using the on/off button.
• Move the shaving heads over the skin using gentle circular movements.
• Go against the direction of the facial hair growing, or shave in the same direction if your skin is sensitive.
• For trimming the sideburns and moustache, push down the pop-up trimmer slider (G) and move it downwards applying gentle pressure. (Fig. 1)
• NB: The LED display will turn off after 8 seconds of operation.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Turn the appliance off using the on/off button.
• Unplug the appliance from the mains.
• Clean the appliance.
• Put on the protective cover.

TRAVEL LOCK

• To block the appliance, press the On/Off button (E) for 3 seconds and a padlock will blink on the display along with a beep. (Fig. 7)
• To unlock, press and hold the On/Off button (E) and after three seconds the appliance will start. During those 3 seconds, a padlock (2) will blink along with a beep. (Fig. 7)

CLEANING:

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.
• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.
• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.
• Never submerge the appliance in water or any other liquid or place it under running water.
• During the cleaning process, take special care with the blades, as they are very sharp.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to us.

FOR A DEEP CLEANING:

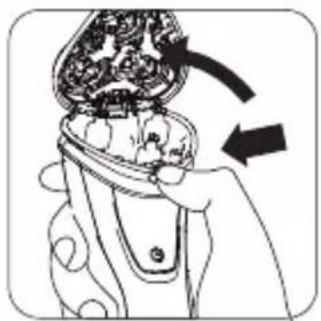

• Press the release button to open the shaving unit. (Fig. 2)

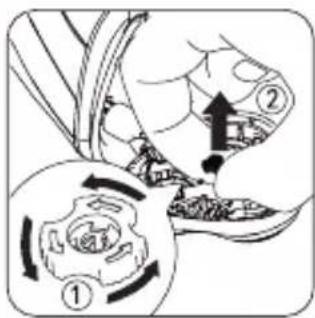

• Turn the lock counterclockwise and then pull upwards to remove the retaining frame. (Fig. 3)

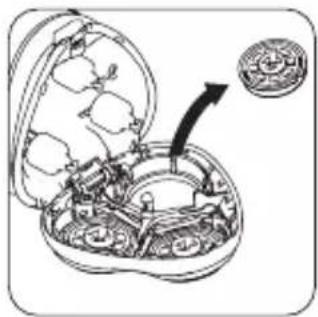

- Remove and clean one shaving head (B) at a time. (Fig. 4 & 5)

- Clean the cutter with brush (H) (Fig. 6) and install them on the shaving unit.

- Put the retaining frame back into the shaving unit and turn the safety lock clockwise.

- Attention: Do not clean more than one cutter at a time, since they are all matching sets. If you accidentally interchange the cutters, it could influence the shaving results.

FOR A QUICK CLEANING:

- Press the release button to open the shaving unit. (Fig. 2)

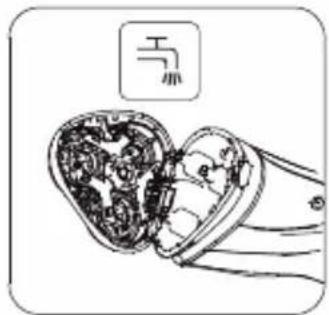

- Rinse the shaver head under the tap. (Fig. 8)

- The appliance has a cleaning reminder function.

- If the appliance has been used for more than 90 seconds, the remaining battery% and the cleaning reminder icon (4) will be shown on the screen for about 3 seconds, after the appliance is turned off.

SAFETY PROTECTOR SENSOR

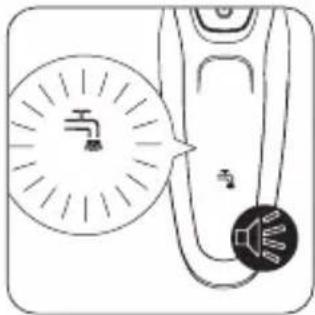

- The safety protector sensor prevents the product from operating if it detects an excess of beard hair on the shaver heads. In this case, the cleaning reminder icon (4) will appear on the screen accompanied by beeps for about 8 seconds and it will be necessary to carry out a complete cleaning to continue shaving. (Fig. 9).

SUPPLIES:

- Supplies for your appliance model can be acquired from distributors and authorised establishments.

- Always use original supplies, designed specifically for your appliance model.

- For optimal shaving performance, we advise you to replace the shaving heads every two years.

- To replace the shaver head:

- Press the release button to open the shaving unit. (Fig. 2)

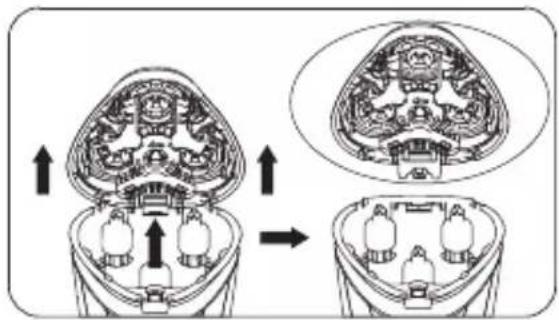

- Pull the shave unit upwards. (Fig. 10)

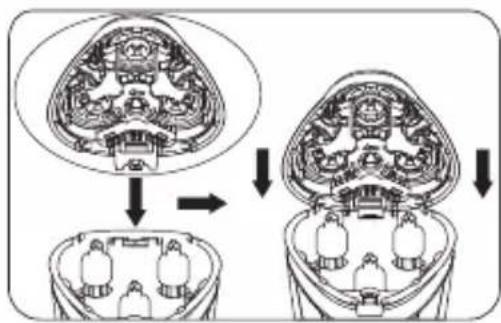

- Put the new shaving unit. (Fig. 11)

HOW TO REMOVE THE BATTERIES FROM THE INTERIOR OF THE DEVICE:

- CAUTION: It is important that the batteries are fully discharged prior to its withdrawal from the apparatus.

• CAUTION: the appliance must be disconnected from the supply mains when removing the batteries.
• To remove the batteries, once the life of the appliance, proceed as follows:
• Open the top shell of the apparatus, removing previously with the help of a screwdriver fixing screws.
• Identify the battery wires and cut their (Red and Black). To avoid risks of a short circuit with a possible residual battery load, first cut the Red wire and protect it by using insulating tape, then proceed to cut the Black wire proceeding in the same way.
• Safely remove the battery from its housing.

Français

RASOIR

3-SIDE SHAVE PLUS

DESCRIPTION

SENSOR SICHERHEITSSCHUTZ

SCHEERAPPARAAT 3-SIDE SHAVE PLUS

BESCHRIJVING

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://taurus-home.com/

You can also request related information by contacting us. You can download this instruction manual and its updates at http://taurus-home.com/
