USER MANUAL RS17-70E Fein

Mechanical tool with a circular head and mechanical arms, no visible text or symbols

RS17-70E ( ^** ) 7 222 ...

		RS17-70 E (**)
		7 222 ...
P_1	W 1700
P_2	W	1
I		~ (a. c.)
v_0	m/s 9 – 27
l_1	mm 815
l_2	mm 20 – 40
∅ √	mm 80
	kg 4,3
L_pA	dB 94,1
K_pA	dB 3,0
L_wA	dB 102,3
K_wA	dB 3,0
L_pCpeak	dB 107,9
K_pCpeak	dB 3,0
a_h	m/s ^2	5,9
K_a	m/s ^2	1,5

0

de 10 pt 40 tr 70 sl 100 et 131 th 160 en 15 el 45 hu 75 sr 105 lt 136 ja 166 fr 20 da 50 cs 80 hr 110 lv 141 hi 171 it 25 no 55 sk 85 ru 115 zh(CM) 146 ar 180 nl 30 sv 60 pl 90 uk 120 zh(CK) 151 es 35 fi 65 ro 95 bg 125 ko 155

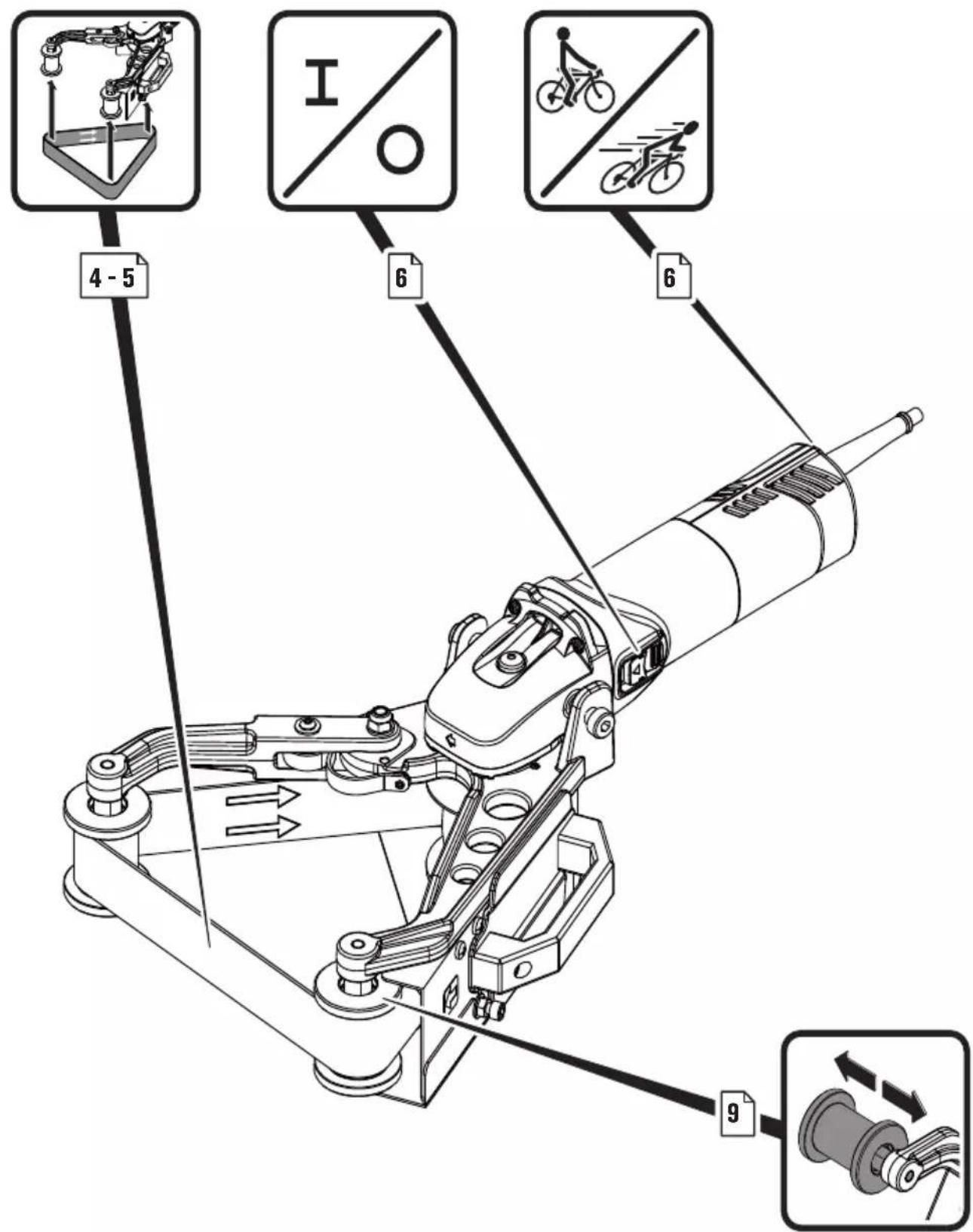

4 - 5 6 6 9

Illustration of a hand making a peace sign (no text or symbols on the hand or background)

i+ 8

9

Diagram illustrating robotic arm manipulation with labeled hand positions and warning indicators

Technical diagram showing mechanical assembly with a labeled component 'FattyGreen' and a plus symbol indicating a positive adjustment.

Translation of the Original Instructions.

Symbols, abbreviations and terms used.

Symbol, character Explanation
	Make sure to read the enclosed documents such as the Instruction Manual and the General Safety Instructions.
	Observe the instructions in the text or graphic opposite!
	Do not touch the rotating parts of the power tool.
	Before commencing this work step, pull the mains plug out of the socket. Otherwise there will be danger of injury if the power tool should start unintentionally.
	Use eye protection during operation.
	Use ear protection during operation.
	Additional information.
	Gripping surface
	Confirms the conformity of the power tool with the directives of the European Community.
	Confirms the conformity of the power tool with the directives of Great Britain (England, Wales, Scotland).
	Applies only for China:The duration of environmental protection under normal use of the product is 10 years.
	This sign indicates a possible dangerous situation that could cause severe or fatal injury.
	Worn out power tools and other electrotechnical and electrical products should be sorted separately for environmental-friendly recycling.
	Product with double or reinforced insulation
	Switching on
	Switching off
	Locked
	Not locked
~ (a. c.) Alternating current
	Low sanding-belt speed
	High sanding-belt speed
	See section “Operating Instructions”
	Grease sliding surfaces as required
(**) May contain numbers and letters
*** Partially in delivery scope
(Ax - Zx) Marking for internal purposes

Character Unit of measurement, international		Unit of measurement, national	Explanation
P_1	W	W	P o
P_2	W	W	O u
v_0	m/s m/s Sanding-belt speed
UV	V	R	a t
fHz Hz Frequency
M...	mm mm Size of metric thread
∅	mm mm Diameter of a round part
l_1	mm mm Sanding-belt length
l_2	mm mm Sanding-belt width
∅ √	mm mm Maximum pipe diameter
	kg	kg	Weight according to EPTA-Procedure 01
L_pA	dB	dB	Sound pressure level
L_wA	dB	dB	Sound power level
L_pCpeak	dB	dB	Peak sound pressure level
K...			Uncertainty
a	m/s2	m/s2	Vibrational emission value according to EN 62841 (vector sum of three directions)
a_h	m/s2	m/s2	Vibrational emission value (sanding)
	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s2	m, s, kg, A, mm, V, W, Hz, N, °C, dB, min, m/s2	Basic and derived units of measurement from the international system of units SI.

For your safety.

WARNING

Read all safety warnings and all instructions. Failure to follow the

warnings and instructions may result in electric shock, fire and/or serious injury.

Save all warnings and instructions for future reference.

Do not use this power tool before you have thoroughly read and completely understood this Instruction Manual and the enclosed "General

Safety Instructions" (document number

3 41 30 465 06 0). The documents mentioned should be kept for later use and enclosed with the power tool, should it be passed on or sold.

Please also observe the relevant national industrial safety regulations.

Intended Use:

Hand-guided pipe sander for:

• Dry belt grinding of metal pipe surfaces
• Polishing of metal pipe surfaces

in weather-protected environments with the application tools and accessories recommended by FEIN.

Use only with firm footing.

The power tool is intended for operation by skilled personnel at non-permanent everyday use.

This power tool is also suitable for use with AC generators with sufficient power output that correspond to the Standard ISO 8528, design type G2. This Standard is particularly not complied with when the so-called distortion factor exceeds 10 %. When in doubt, please refer to the generator instruction/specification guide. All other types of use are considered as not intended for.

The operator is solely liable for any damage caused by use not as intended for.

Foreseeable improper use

For safe operation of the power tool and to exclude misuse, the following is prohibited:

• Unauthorized modifications
• Improper use, particularly (but not exclusively) for the processing of wood, mineral materials, magnesium, plastics, fiber-reinforced composites.
• Non-observance of the operating instructions

Special safety instructions.

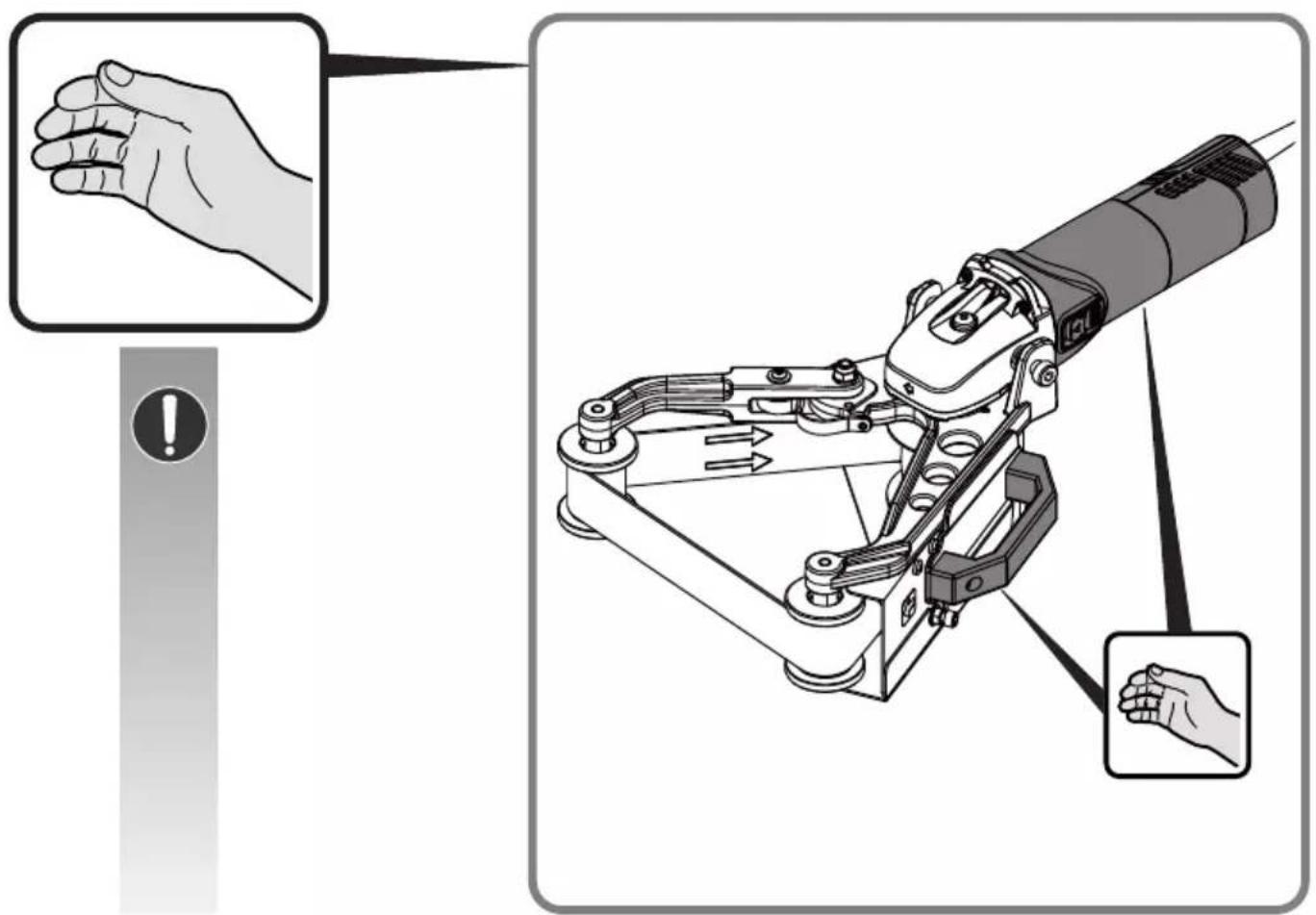

Hold the power tool by the insulated gripping surfaces, as the grinding surface can run into the machine's own power cord. Damaging a "live" wire can make exposed metal parts of the power tool "live" and shock the operator.

While working, do not wear loose clothing, jewellery or open, long hair. Despite protective devices, loose objects can be snagged or caught by moving parts and lead to injury.

Do not use worn, torn or heavily clogged grinding belts. Handle grinding belts carefully and store them according to the manufacturer's instructions. Do not bend or fold grinding belts! Damaged grinding belts can tear, be flung away and injure someone.

Secure the work piece firmly. A work piece that is gripped tightly in a clamping device or vice, is more secure than if held by hand.

Hold the power tool firmly. High reaction torque can briefly occur.

Do not rivet or screw any name-plates or signs onto the power tool. If the insulation is damaged, protection against an electric shock will be ineffective.

Do not use accessories which are not specifically designed and recommended by the power tool manufacturer. Safe operation is not ensured merely because an accessory fits your power tool.

Clean the ventilation openings on the power tool at regular intervals using non-metal tools. The blower of the motor draws dust into the housing. An excessive accumulation of metallic dust can cause an electrical hazard.

Further safety warnings

Do not direct the power tool against yourself, other persons or animals. Danger of injury from sharp grinding belts.

Never lay the power tool down until the grinding belt has come to a complete stop. The grinding belt can come into contact with the surface, causing you to lose control over the power tool.

Never touch the running grinding belt. Danger of injury. Avoid body contact with grounded surfaces, such as from pipes, heaters, stoves and refrigerators. There is an increased risk of electric shock when your body has contact to grounded surfaces. Under certain conditions, components of the machine can become electrostatically charged.

The surface being worked can become very hot. Do not touch it with your hands.

Wear personal protective equipment. Depending on application, use face shield, safety goggles or safety glasses. Where appropriate, wear dust mask, hearing protectors, gloves and workshop apron capable of stopping small abrasive or workpiece fragments. The eye protection must be capable of stopping flying debris generated by various operations. The dust mask or respirator must be capable of filtrating particles generated by your operation. Prolonged exposure to high intensity noise may cause hearing loss.

Warning! Danger of fire and explosion! When grinding metals (e.g., aluminium or magnesium), dust develops that may be combustible or explosive. Do not operate the machine near flammable materials. Sparks could cause these materials to ignite.

Pay attention that other persons are not put at risk from sparking. Remove flammable materials in close vicinity. Sparking occurs when grinding metal.

Use a stationary extraction system and frequently blow out the ventilation slots. When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power tool. The total insulation of the power tool can be impaired.

Always use the protective devices attached on the machine. The protective devices must be securely mounted to the machine in order to achieve maximum safety. The protective devices are supposed to protect the user from grinding particles thrown from the machine and from accidental contact with the grinding belt.

Keep bystanders a safe distance away from work area. Anyone entering the work area must wear personal protective equipment. Fragments of workpiece or of a broken accessory may fly away and cause injury beyond immediate area of operation.

Keep the power cord away from the grinding belt.

When losing control over the machine, the power cord can be cut through or get caught, and your hand or arm can come in contact with the grinding belt.

Do not run the power tool while carrying it at your side. Your clothing may get caught through accidental contact with the grinding belt and cause injuries.

Make sure that the grinding belt is mounted in accordance with the manufacturers instructions. Mounted grinding belts must be able to rotate freely. Incorrectly mounted grinding belts can become loose during operation and be thrown from the machine.

Do not operate the power tool with wet or moist hands. Before putting into operation, check the mains connection and the mains plug for damage.

Recommendation: The tool should always be supplied with power via a residual current device (RCD) with a rated current of 30 mA or less.

Handling hazardous dusts

For work procedures with this power tool where material is removed, dusts develop that can be hazardous to one's health.

Contact with or inhaling some dust types, e. g. asbestos and asbestos-containing materials, lead-containing coatings, metal, some wood types, minerals, silicate particles from materials containing stone, paint solvents, wood preservatives, antifouling paints for vessels, can trigger allergic reactions to the operator or bystanders and/or lead to respiratory infections, cancer, birth defects or other reproductive harm. The risk from inhaling dusts depends on the exposition. Use dust extraction matched appropriately for the developing dust, as well as personal protective equipment and provide for good ventilation of the workplace. Leave the processing of asbestos-containing materials to specialists.

Wood and light-metal dust, hot mixtures of grinding dust and chemical materials can self-ignite under unfavourable conditions or cause an explosion. Avoid sparking in the direction of the dust collector as well as overheating of the power tool and the materials being sanded, empty the dust collector/container in time,

observe the material manufacturer's working instructions, as well as the relevant regulations in your country for the materials being worked.

Hand/arm vibrations

The vibration emission level given in this information sheet has been measured in accordance with a standardised test given in EN 62841 and may be used to compare one tool with another. It may be used for a preliminary assessment of exposure.

The declared vibration emission level represents the main applications of the tool. However, if the tool is used for different applications, with different accessories or poorly maintained, the vibration emission may differ. This may significantly increase the exposure level over the total working period.

An estimation of the level of exposure to vibration should also take into account the times when the tool is switched off or when it is running but not actually doing the job. This may significantly reduce the exposure level over the total working period.

Identify additional safety measures to protect the operator from the effects of vibration such as: maintain the tool and the accessories, keep the hands warm, organisation of work patterns.

Operating Instructions.

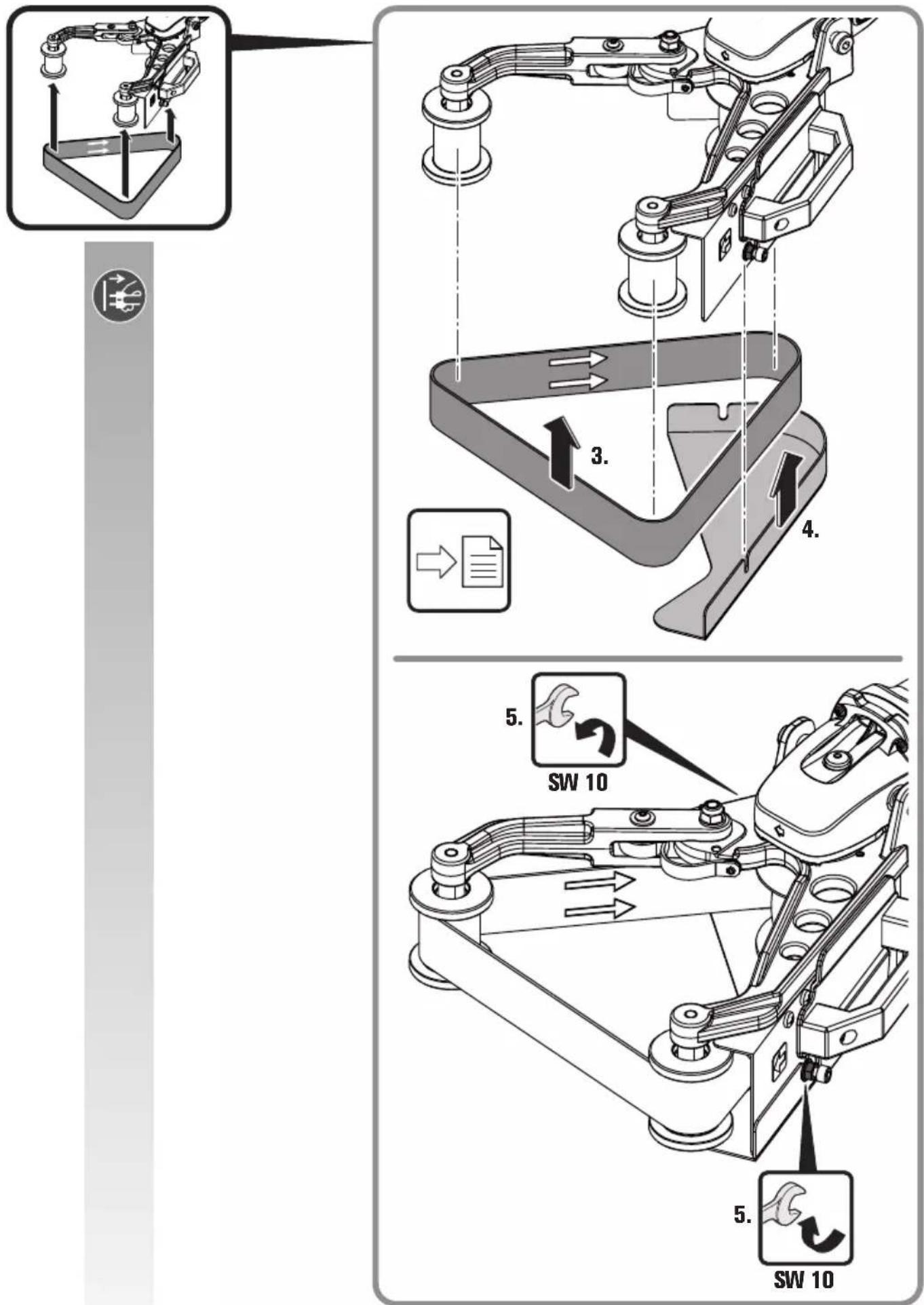

Replacing the grinding belt (see pages 4-5)

Pay attention that the arrow directions on the inside of the sanding belt and the housing of the power tool correspond.

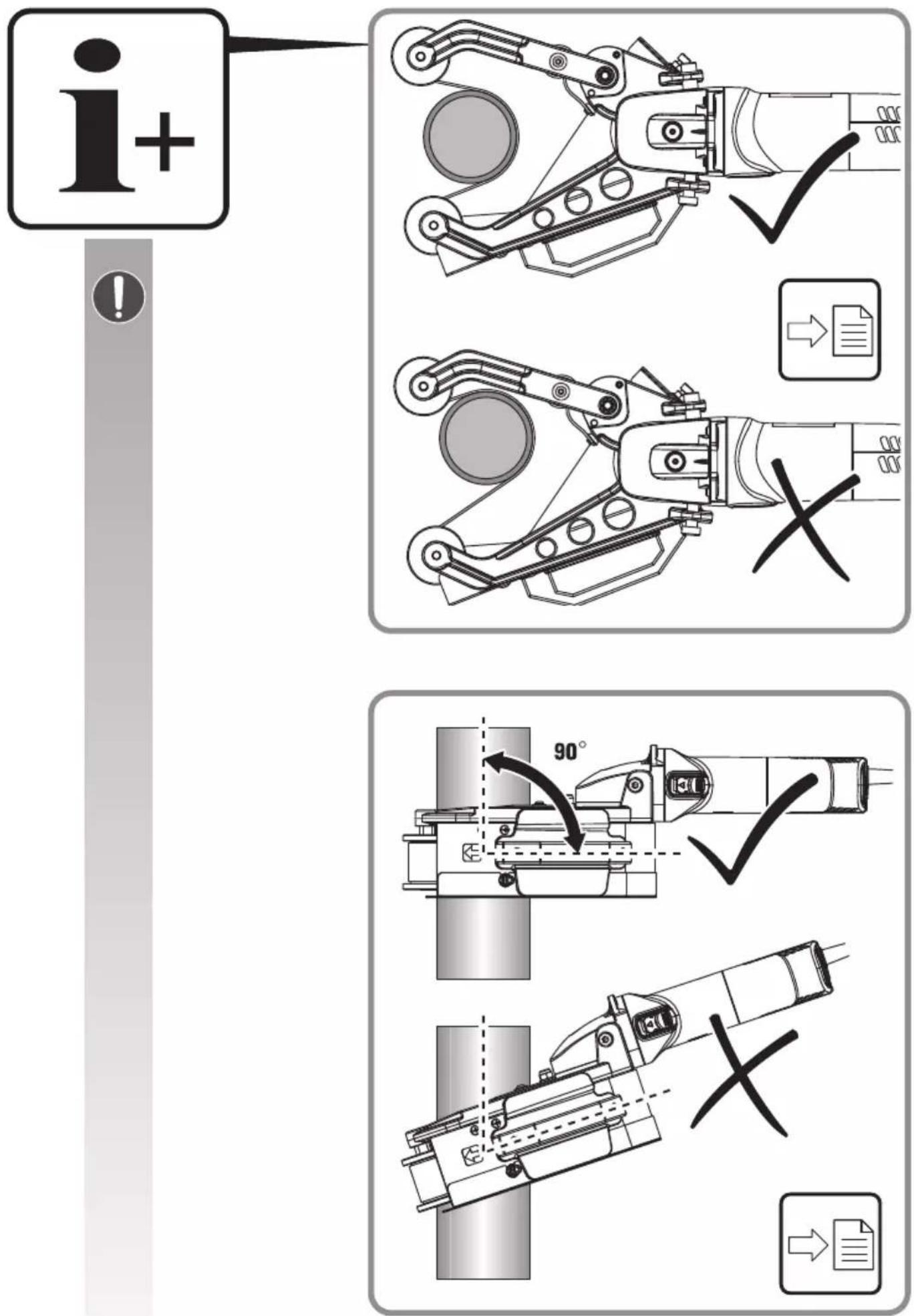

Pipe processing (see page 8)

Heavy vibrations of the power tool may indicate a defect. The power tool must be checked.

Guide the machine with the sanding belt against the pipe subject to sanding until the pipe is covered about halfway by the sanding belt.

Always hold the machine with both hands and at a right angle to the pipe (also applies for pipe arcs).

Sand the pipe uniformly applying a continuous length motion.

Features

The restarting protection prevents the power tool from automatically restarting if the power supply is interrupted during operation. In this case, switch off the power tool, check the power supply and then switch the power tool on again.

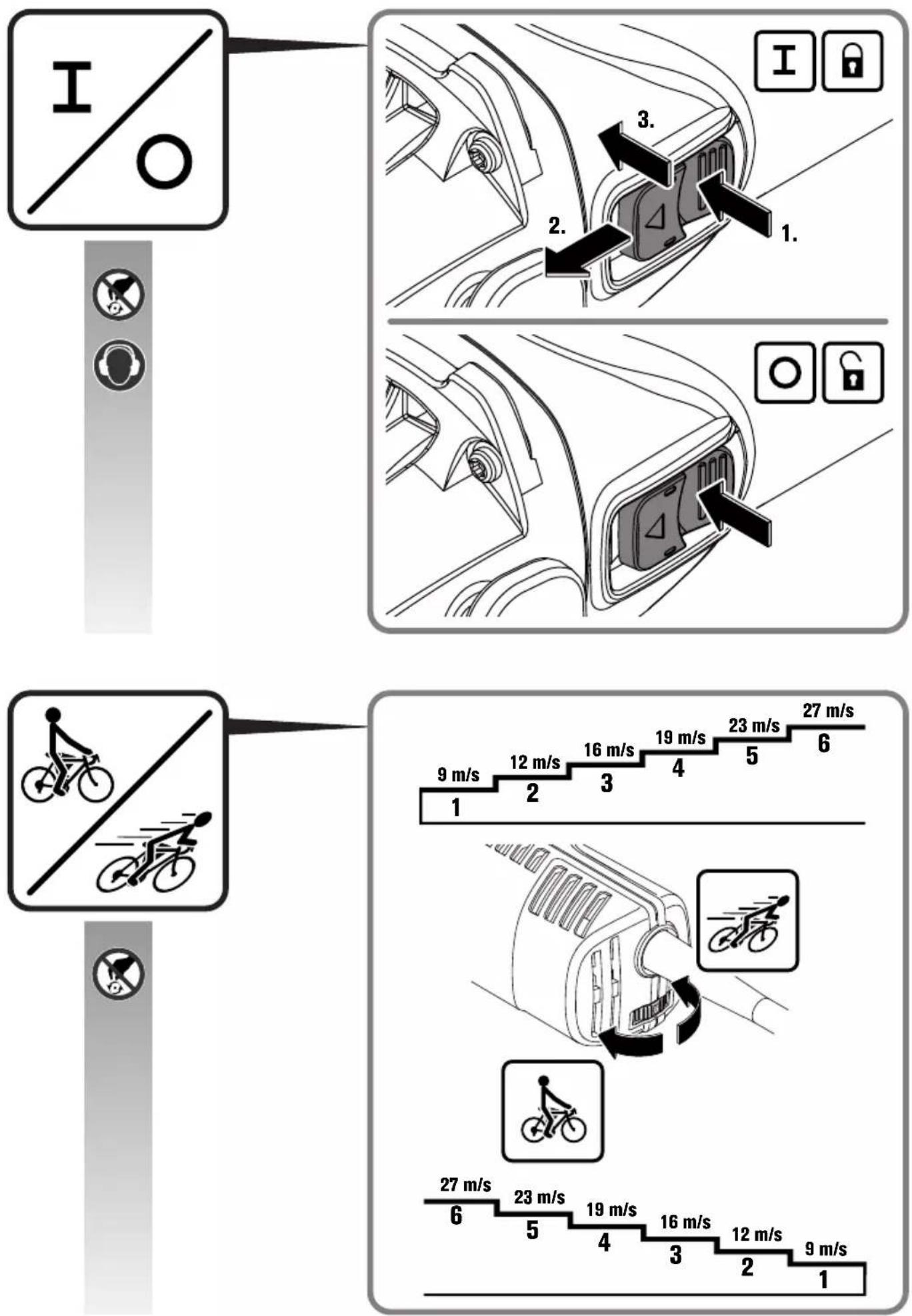

The electronic speed preselection enables the speed to be adapted to the respective application and the respective application tool.

Repair and customer service.

Please observe that power tools may only be repaired, maintained and inspected by qualified electricians, as improper maintenance can result in considerable hazards for the user.

When working metal under extreme operating conditions, it is possible for conductive dust to settle in the interior of the power

tool. The total insulation of the power tool can be impaired. Blow out the interior of the power tool via the ventilation slots frequently with dry and oil-free compressed air, and connect a residual current device (RCD) on the line side.

Renew stickers and warning indications on the power tool when aged and worn.

Products that have come into contact with asbestos may not be sent in for repair. Dispose of products contaminated with asbestos according to the applicable country-specific regulations for such disposal.

When the machine's power supply cord is damaged, it must be replaced by the manufacturer or their representative.

For FEIN power tools and accessories in need of repair, please contact your FEIN after-sales service. The address can be found on the Internet under www.fein.com.

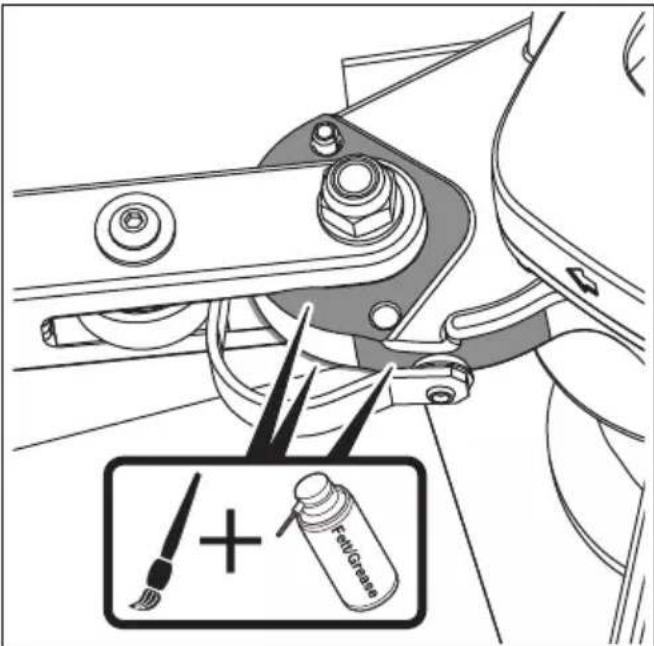

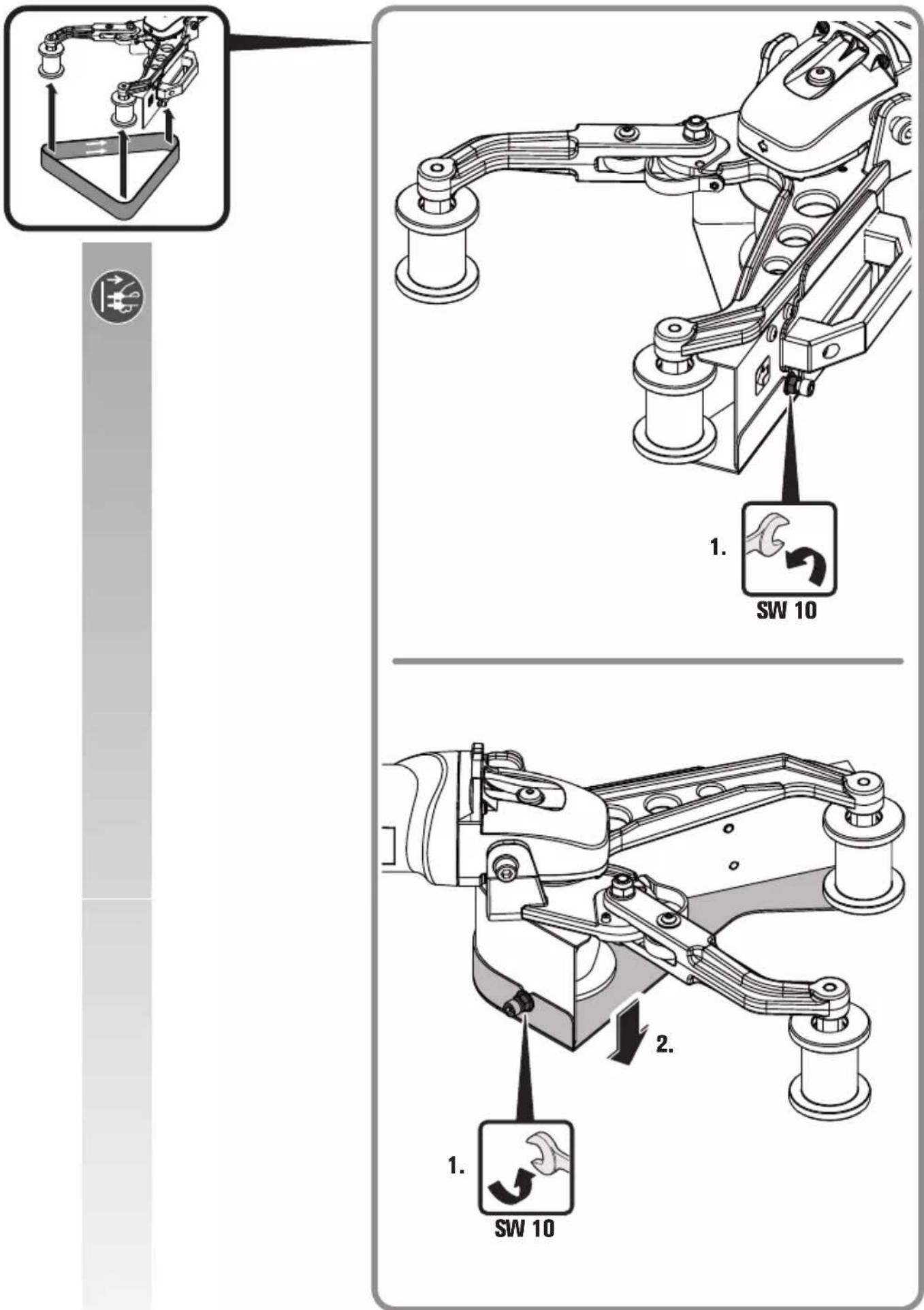

If necessary, clean and lubricate the sliding surface of the tensioning arm.

Technical diagram showing mechanical assembly with labeled components and a battery icon labeled 'Ferr/Greene'

Use only original spare parts.

The current spares parts list for this power tool can be found on our website at www.fein.com.

If required, you can change the following parts yourself:

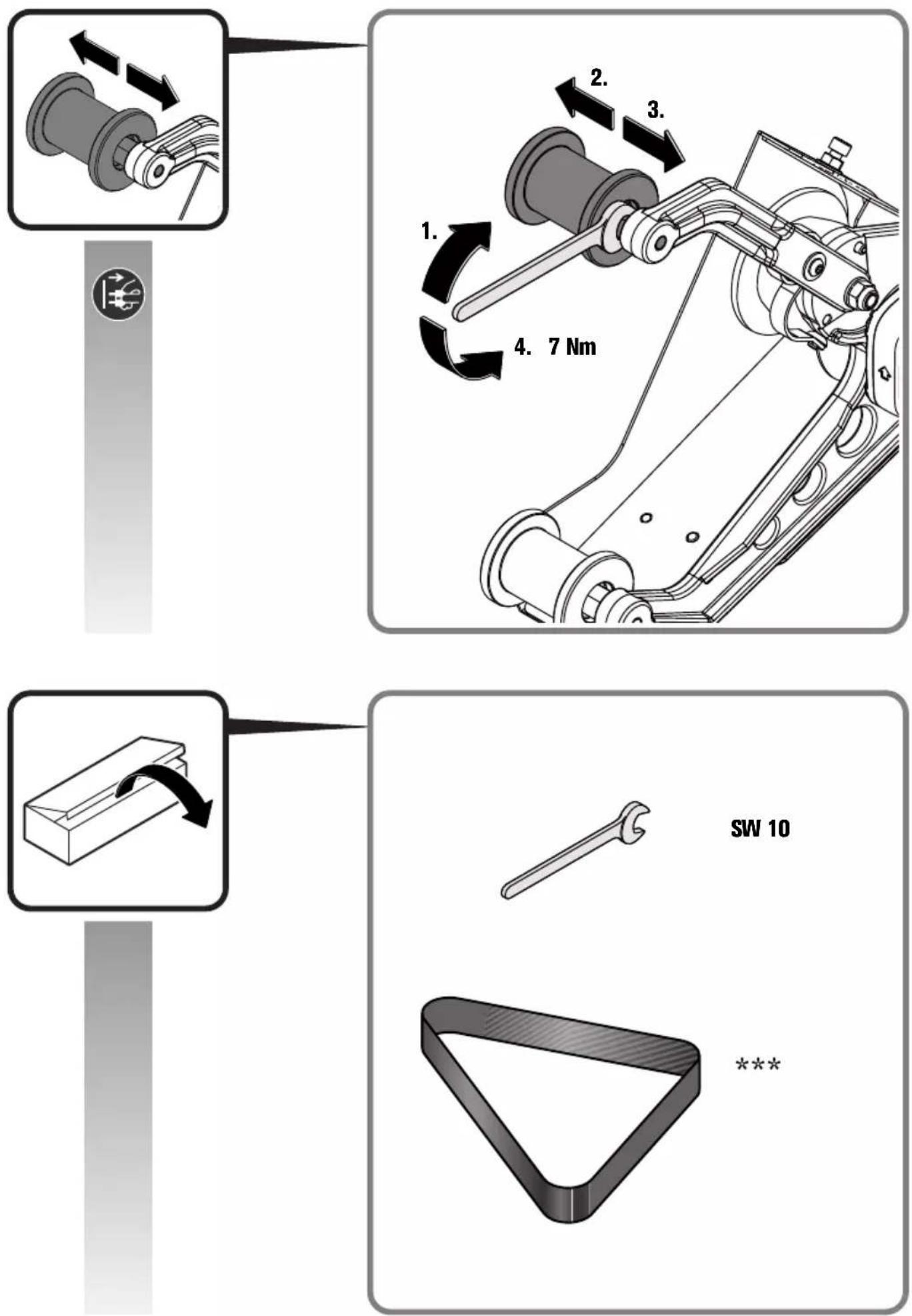

Sanding belt, deflection rollers

Warranty and liability.

The warranty for the product is valid in accordance with the legal regulations in the country where it is marketed. In addition, FEIN also provides a guarantee in accordance with the FEIN manufacturer's warranty declaration.

The delivery scope of your power tool may include only a part of the accessories described or shown in this Instruction Manual.

Declaration of conformity.

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU- or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.

FEIN declares itself solely responsible for this product conforming with the relevant provisions given on the last page of this Instruction Manual.

Technical documents at:

C. & E. Fein GmbH

Hans-Fein-Straße 81

73529 Schwäbisch Gmünd-Bargau, Germany

Environmental protection, disposal.

Packaging, worn out power tools and accessories should be sorted for environmental-friendly recycling. Due to their ingredients and properties, grinding belts must generally be disposed of properly as hazardous waste in accordance with regional disposal regulations.

Selection of accessories

Use only original FEIN accessories. The accessories must be intended for the power tool type.

• Sanding belt /Fleece belt ISO 2976 - 40 x 815
• Sanding belt /Fleece belt ISO 2976 - 20 x 815
• Deflection roller with collar
• Deflection roller without collar

Technical diagram showing mechanical assembly with a labeled component 'FattyGrease' and a plus symbol indicating a positive charge.

FattyGrease

Technical diagram showing mechanical assembly with a labeled component 'FattyGrease' and a plus symbol indicating a positive charge.

FattyGrease

Solamente use recambios originales.

FattyGrease

FattyGrease

Technical diagram showing mechanical assembly with a labeled component 'Foal/Grease' and a plus symbol indicating a positive charge.

Brug kun originale reservedele.

Technical diagram showing mechanical assembly with a labeled component 'Ferr/Gauss' and a plus symbol indicating a positive charge.

Bruk kun originale reservedeler.

Den aktuelle reservedelslisten for dette elektroverk- tøyet finner du på internettet under www.fein.com.

Technical diagram showing mechanical assembly with a labeled component 'Foxt/Grease' and a plus symbol indicating a positive charge.

Technical diagram showing mechanical assembly with a paintbrush and a fuel gun labeled 'Fuel/Grease' in a box

Technical diagram showing mechanical assembly with a labeled component 'Ferr/Gross' and a plus symbol indicating positive charge.

FattyGrease

Technical diagram showing mechanical assembly with a labeled component 'Foxt/Grease' and a plus symbol indicating a positive charge.

FattyGrease

Technical diagram showing mechanical assembly with a labeled component 'FattyGrease' and a plus symbol indicating a positive charge.

FattyGrease

Technical diagram showing mechanical assembly with labeled components and a 'Fatty/Grease' label

Uporabljajte izključno originalne nadomestne dele.

Technical diagram showing mechanical assembly with labeled components and a battery icon labeled 'Ferr/Grease'

Upotrebljavajte samo originalne rezervne delove.

Technical diagram showing mechanical assembly with a labeled component 'Foxt/Grease' and a plus symbol indicating a positive charge.

Koristite samo originalne rezervne dijelove.

Najnoviji popis rezervnih dijelova ovog električnog alata možete naći na internetu, na adresi www.fein.com.

Technical diagram showing mechanical assembly with a labeled component 'FattyGrene' and a plus symbol indicating addition or release.

Technical diagram showing mechanical assembly with a labeled component 'FattyGrene' and a plus symbol indicating addition or release.

Technical diagram showing mechanical assembly with a labeled component 'FattyGrene' and a plus symbol indicating addition or release.

Technical diagram showing mechanical assembly with a labeled component 'Foxt/Grease' and a plus symbol indicating positive charge.

Technical diagram showing mechanical assembly with a paintbrush and a labeled component 'Ferr/Grease' in a box.

Naudokite tik originalias atsargines dalis.

Technical diagram showing mechanical assembly with labeled components and a 'Ferr/Grease' icon

Technical diagram showing mechanical assembly with a labeled component 'FattyGrease' and a plus symbol indicating a positive charge.

只能使用原厂备件。

China RoHS Status Certificate

中国 RoHS 认证概况

Table of Toxic and Hazardous Substances/Elements and their Content

as required by China's Management Methods for Controlling Pollution by Electronic Information Products

有毒有害物质 / 成分及其含量表

Technical diagram showing mechanical assembly with a labeled component 'FattyGrease' and a plus symbol indicating a positive charge.

只能使用原廠備件。

Technical diagram showing mechanical assembly with a labeled component 'FettiGauss' and a plus symbol indicating a paintbrush.

정품 부속품만을 사용하십시오.

Technical diagram showing mechanical assembly with a labeled component 'Felt/Grease' and a plus symbol indicating positive charge.

Technical diagram showing mechanical assembly with a labeled component 'Ferr/Gauss' and a plus symbol indicating a positive charge.

純正交換パーツのみを使用してください。

Technical diagram showing mechanical assembly with a labeled component 'FetuOvrase' and a plus symbol indicating a positive charge.

Fet/Gross

This CE declaration is only valid for European Union and EFTA (European Free Trade Association) countries and only for products intended for the EU or EFTA market. After placing the product on the EU market the UKCA mark loses its mark validity.

EN 62841-1:2015 + AC:2015

EN 62841-2-4:2014

EN 55014-1:2017 + A11:2020

EN 55014-2:2015 + AC:2016

EN 61000-3-2:2019

EN 61000-3-3:2013 + A1:2019

EN 63000:2018

2006/42/EG, 2014/30/EU,

2011/65/EU

U. Hergosell

i. V. S. Böhm i. V. Dr. M. Hergesell

Director of Quality Director of Product

Management Development

The UKCA declaration is only valid for the Great Britain market (England, Wales and Scotland) and only for products intended for the Great Britain market. After placing the product on the Great Britain market the CE mark loses its mark validity.

EN 62841-1:2015 + AC:2015

EN 62841-2-4:2014

EN 55014-1:2017 + A11:2020

EN 55014-2:2015 + AC:2016

EN 61000-3-2:2019

EN 61000-3-3:2013 + A1:2019

EN 63000:2018

Supply of Machinery Regulations 2008,

EMC Regulations 2016, The Restriction of the Use of Certain Hazardous Substances in Electrical and

Electronic Equipment Regulations 2012

U. Hergosell

i. V. S. Böhm i. V. Dr. M. Hergesell

Director of Quality Director of Product

Management Development
