USER MANUAL Fairmont 50 Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green leaf-like graphic design with three triangular sections (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

INHALTSVERZEICHNIS

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SICHERHEITSHINWEISE

100% 500mm

3D rendered image of a gray ergonomic lift platform with multiple slatted ribs and wheels (no text or symbols)

Congratulations on your purchase. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety instructions 14

Required tools 15

Scope of delivery 15

Installation 16

After installation 20

Cleaning and care 20

Troubleshooting 21

TECHNICAL DATA

Article number 10045417, 10045418, 10045419
Dimensions (H x W) 107 x 50 cm

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SAFETY INSTRUCTIONS

• Follow the installation instructions carefully to ensure that the unit is properly attached to the wall.
• To avoid a possible fire hazard, it is important that the appliance is installed in accordance with the specifications given in the instructions.
• The radiator is intended for indoor use only. Do not place the heater in a shower, steam room or any other place where it may be exposed to water.

Child safety tips

- Please note that you are 100% responsible for the safety of your child at home. As soon as the radiator is installed, it can become a danger for children, as

(a) that radiator is not designed to support unreasonable additional weight, such as that of a child; and
b) the radiator becomes hot during use.

- For this reason, children must not climb on, reach for or play with the radiator or the heating rails as this can lead to accidents or injuries, e.g. due to heat, falling down or tearing the radiator off the wall.

Installation instructions

• Observe all local regulations for sanitary installations and buildings.
• Close the main water pipe.
• Read these instructions carefully to ensure proper installation.
• Make sure that the parts listed below are included in the scope of delivery.

Instructions for use

- The radiator must only be filled with water that has a temperature below 100^ C.

Temperature: 0^ C < t < 100^ C

- If the temperature exceeds 48 °C , place a warning sign near the product to prevent accidents due to burns or fire.

Note: If the ambient temperature drops below 1^ C, drain the water to prevent freezing.

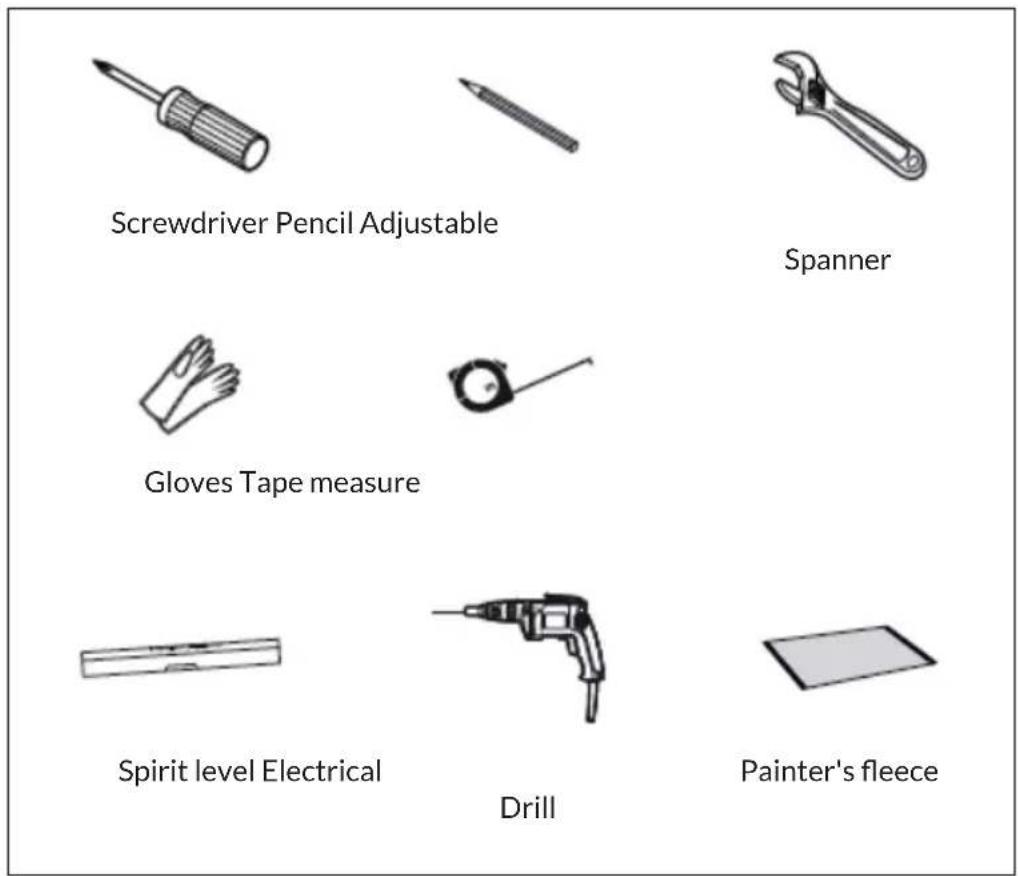

REQUIRED TOOLS

Screwdriver Pencil Adjustable Spanner Gloves Tape measure Spirit level Electrical Drill Painter's fleece

SCOPE OF DELIVERY

Radiator (1x) Long screw (4x) Dowel (4x)
	[72A6]
	Wall mount (4x) Rubber washer (2x)
	Air vent (1x) Blanking plug (3x)

INSTALLATION

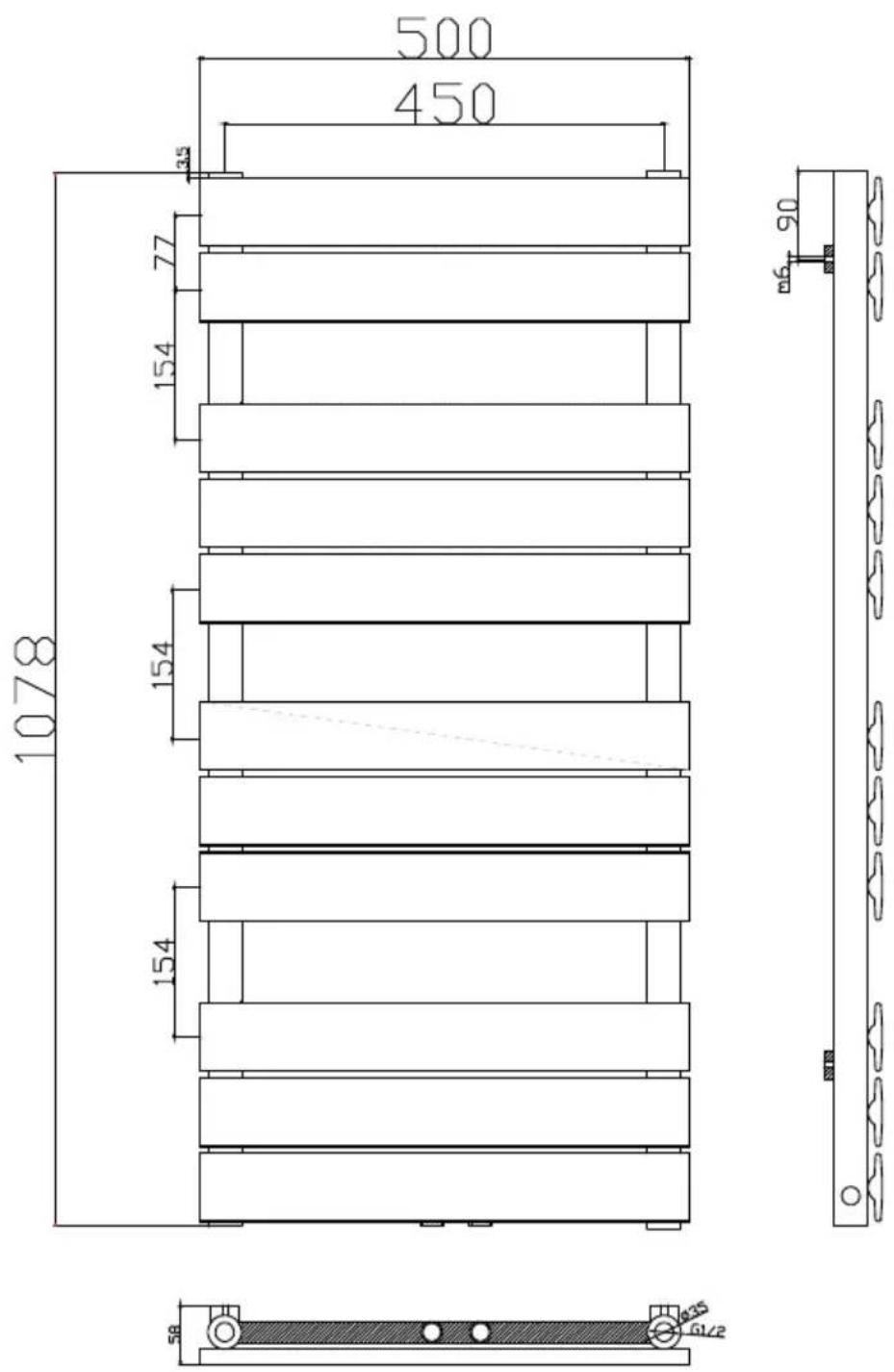

Dimensions of the Fairmont radiator

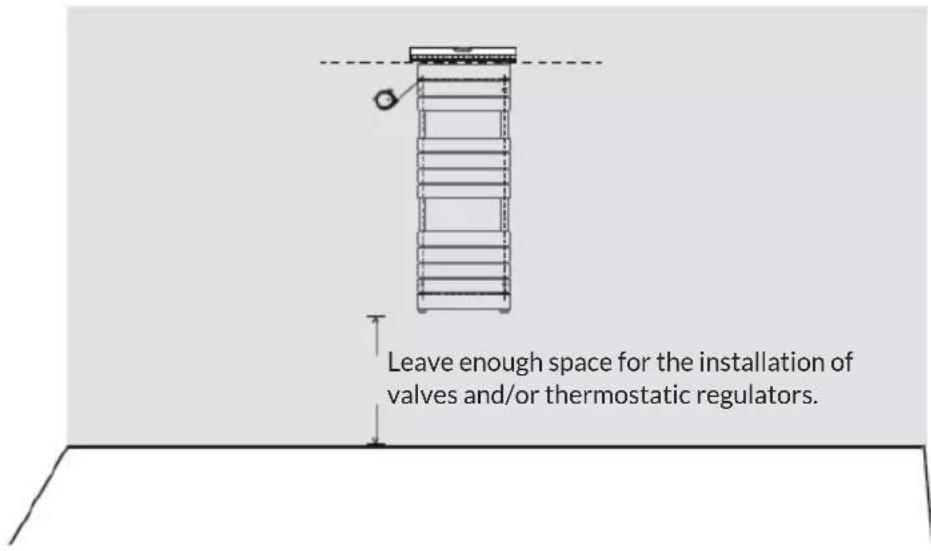

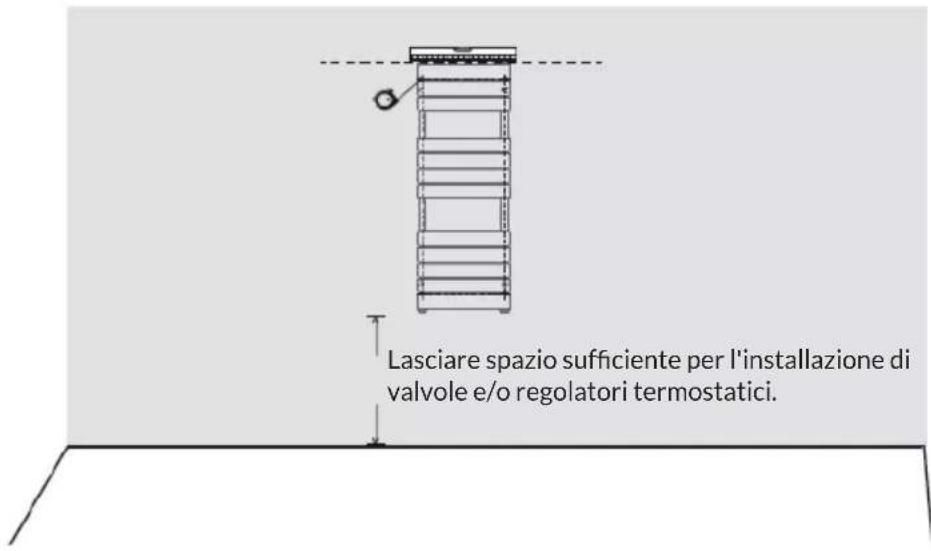

Step 1

Leave enough space for the installation of valves and/or thermostatic regulators.

• Position the radiator in the desired place, check the horizontal alignment and mark four equal positions for the brackets.
• Make sure that the radiator is mounted vertically.
• Before installation, place a painter's fleece on the floor to prevent the loss of small parts.

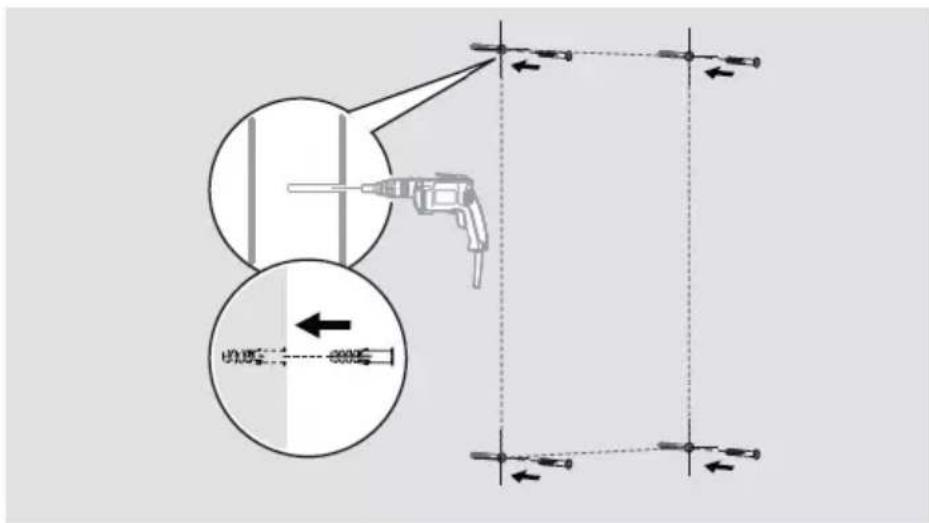

Step 2

300m

- Drill holes in the wall and insert dowels.

Note: For false ceilings or stud walls, you can purchase other fixings at a DIY store.

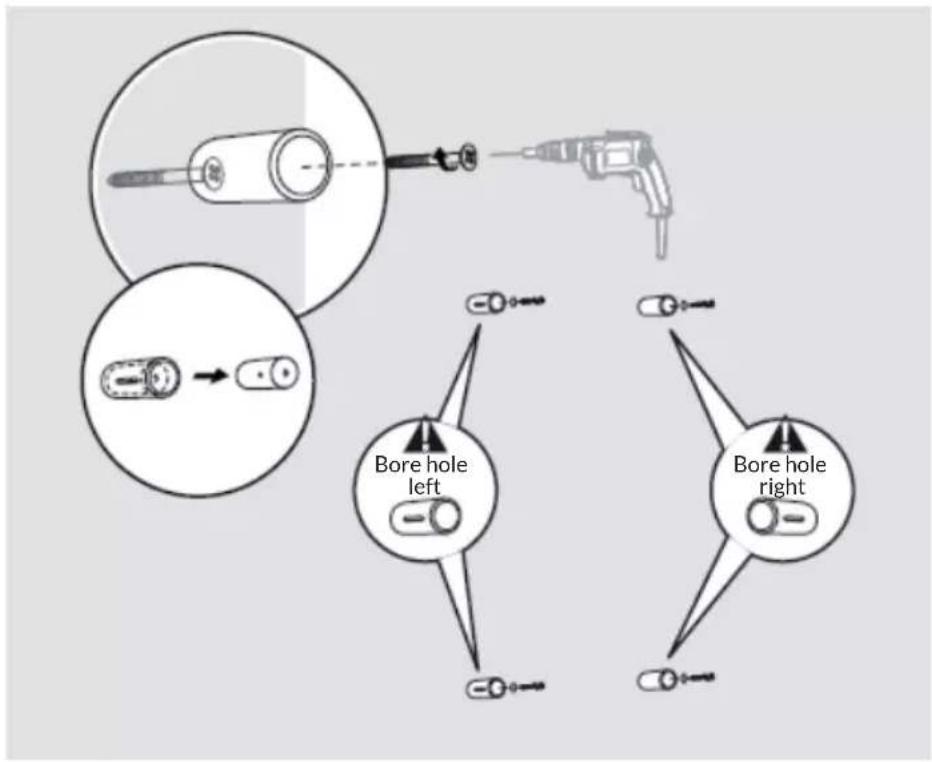

Step 3

• Separate the two bracket parts and attach the larger one to the wall.

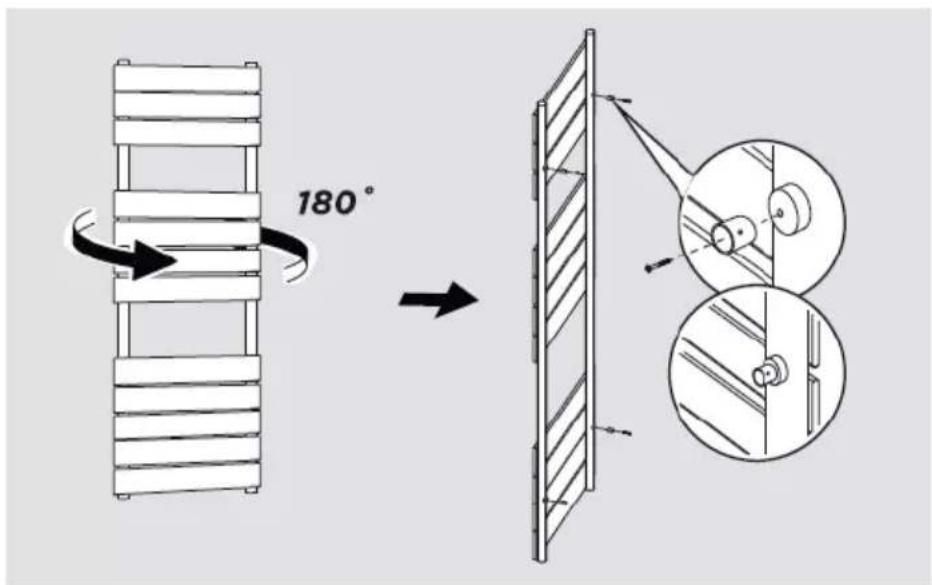

Step 4

180°

• Attach the smaller bracket piece to the back of the radiator.

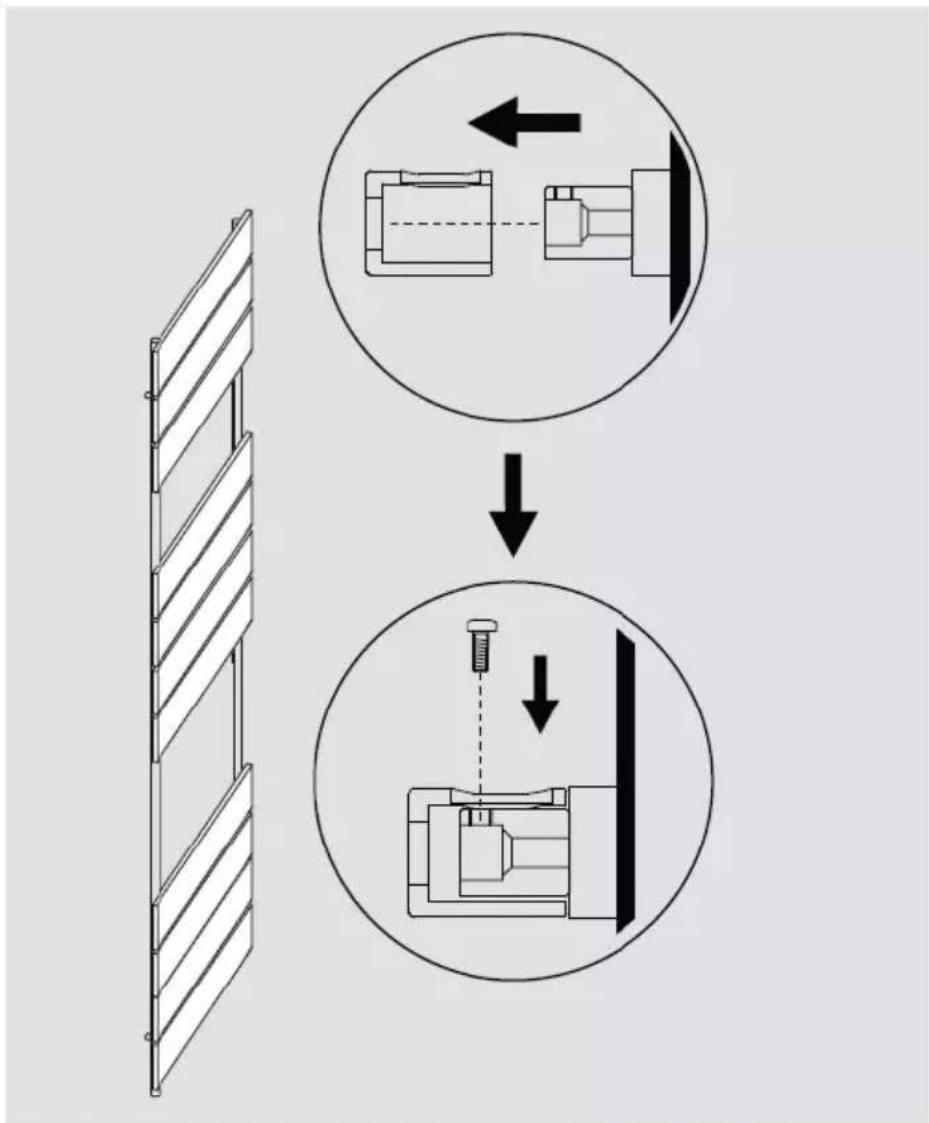

Step 5

• Attach the radiator to the wall by aligning the brackets and tighten the small screw when it is in position.
• Connect the radiator to your central heating system.

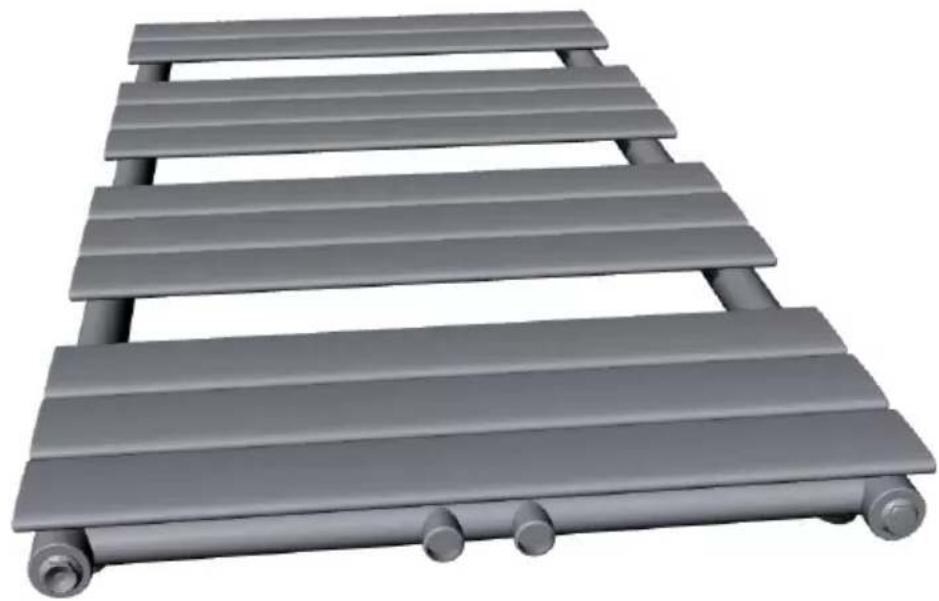

Option

3D rendered image of a gray ergonomic lift platform with multiple slatted ribs and wheels (no text or symbols)

- Optionally, you can also connect the radiator through the bottom to your central heating system.

AFTER INSTALLATION

• Use a screwdriver to open the air vent. Open the valve and let the water flow into the radiator.
• Check all connections for leaks.
• When the water comes out of the air vent, there is no more air in the pipe.
• Close the air vent with a screwdriver and turn the valve open. The radiator is now ready for operation.

CLEANING AND CARE

• Wipe the surface clean with a soft damp cloth.
• Never use abrasive cleaners on this product as these will damage the surface.
• Radiators are made of steel and should therefore not be cleaned with corrosive or abrasive cleaning agents.

TROUBLESHOOTING

If your radiator is not working, knowing basic radiator troubleshooting can save you the stress and hassle that a non-working radiator can bring. Here, you will find a guide to solving the most common problems associated with radiators.

Problem Cause Solution
Cold spots on the radiator	The water is not flowing properly through the radiator	Make sure that there is no air in the radiator. "Bleed" the radiator to release the air.
		Make sure that the valve is fully open so that the water can flow freely. Some radiators require a diversion to allow the water to flow properly around the unit.
Radiator leak The valve nut is loose. Tighten the valve nut.
Whistling noises or hissing water	The radiator was not correctly aligned during installation.	New installation
Clanking noise The radiator has been installed in a location that does not allow for expansion of the pipes.		New installation
