Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 16

Required Tools 17

Scope of Delivery 17

Installation 18

After Installation 22

Cleaning and Care 22

Troubleshooting 22

Manufacturer & Importer (UK) 23

TECHNICAL DATA

Item number Dimensions (H x W)
10041809 120 x 30 cm - single layer
10041810 120 x 30 cm - single layer
10041811 120 x 30 cm - single layer
10041812 120 x 45 cm - single layer
10041815 180 x 45 cm - single layer
10041816 180 x 45 cm - single layer
10045381 60 x 100 cm - single layer
10045382 60 x 100 cm - single layer
10045383 60 x 100 cm - single layer
10045384 120 x 30 cm - double layer
10045385 120 x 30 cm - double layer

SAFETY INSTRUCTIONS

• Follow the installation instructions carefully to ensure that the unit is properly attached to the wall.
• To avoid a possible fire hazard, it is important that the appliance is installed in accordance with the specifications given in the instructions.
• The heater is intended for indoor use only, do not place the heater in a shower, steam room or any other place where the appliance may be exposed to water.

Child safety tips

- Please note that you are 100% responsible for the safety of your child at home. As soon as the radiator is installed, it can become a danger for children, as

(a) that radiator is not designed to support unreasonable additional weight, such as that of a child; and

b) the radiator becomes hot during use.

- For this reason, children must not climb on, reach for or play with the radiator or the heating rails as this can lead to accidents or injuries, e.g. due to heat, falling down or tearing the radiator off the wall.

Installation instructions

• Observe all local regulations for sanitary installations and buildings.
• Close the main water pipe.
• Read these instructions carefully to ensure proper installation.
• Make sure that the parts listed below are included in the scope of delivery.

Instructions for use

- The radiator must only be filled with water that has a temperature below 100^ C.

$$ \text { Temperature: } 0 ^ {\circ} \mathrm{C} < t < 1 0 0 ^ {\circ} \mathrm{C} $$

- If the temperature exceeds 48 °C , place a warning sign near the product to prevent accidents due to burns or fire.

Note: If the ambient temperature drops below 1^ C, drain the water to prevent freezing.

REQUIRED TOOLS

spanner

Screwdriver Pencil Adjustable

Rubber mallet Gloves Tape measure

Spirit level Electrical
drill
Clean rag

SCOPE OF DELIVERY

Venting valve (x1)

Blanking plug (x3)

Washer (x8)

Silicone- seal (x4)

Depending on your order:
Radiator (x1)

Wall mount (x4)

Wall plug (x8)

Long screw (x8)

INSTALLATION

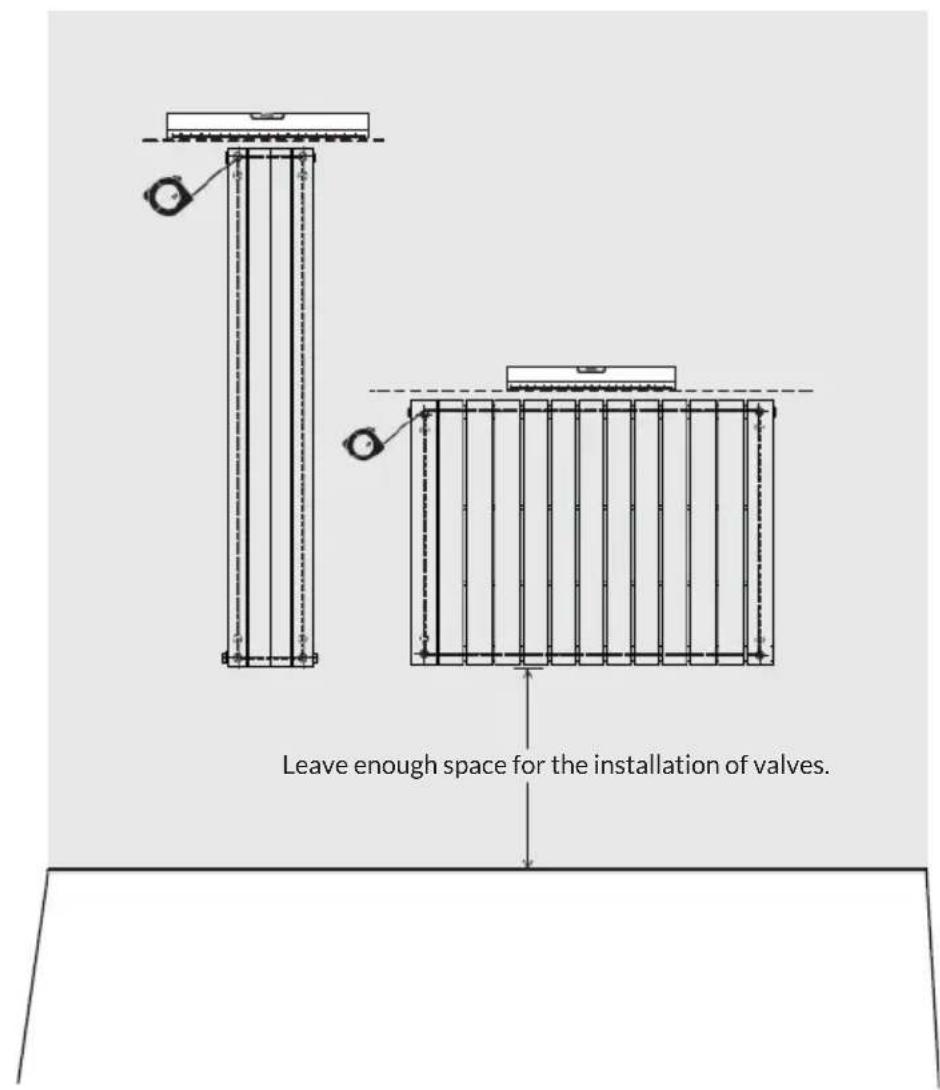

Step 1

Leave enough space for the installation of valves.

• Position the radiator at the desired location (orientate yourself by the labels above and below) and mark four equal positions for the brackets.
• Before installation, place a painter's fleece on the floor to prevent the loss of small parts.

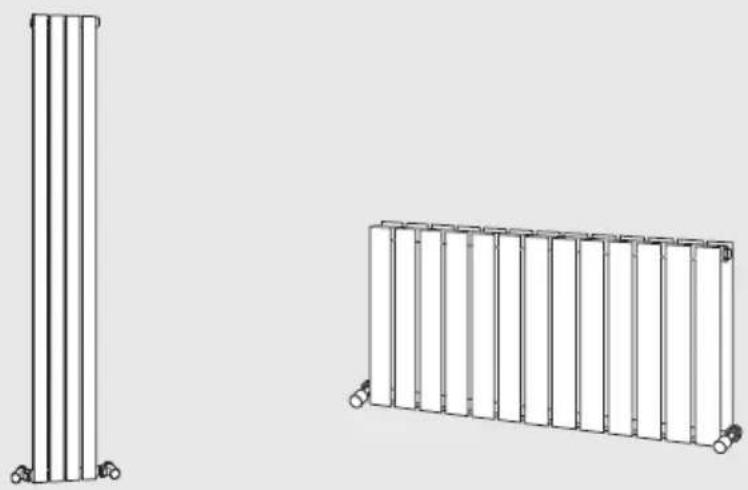

• These instructions can be used for both vertical and horizontal radiators. Please note that a vertical radiator cannot be hung horizontally. Similarly, a horizontal radiator should not be hung vertically.

Step 2

Technical diagram showing two mechanical assembly configurations with dimension annotations and directional arrows indicating movement or force.

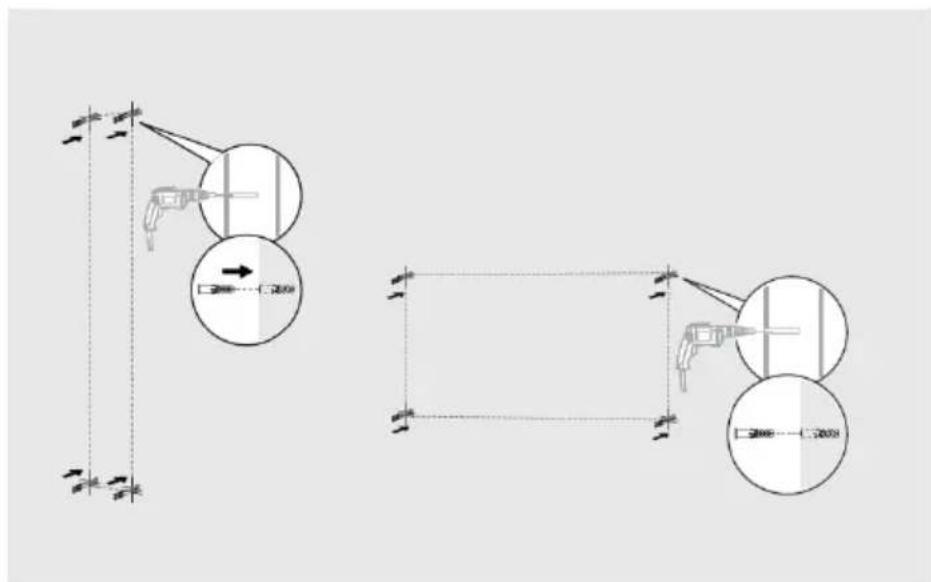

- Drill holes in the wall and insert dowels.

Note: For false ceilings or stud walls, you can purchase other fixings at a DIY store.

Step 3


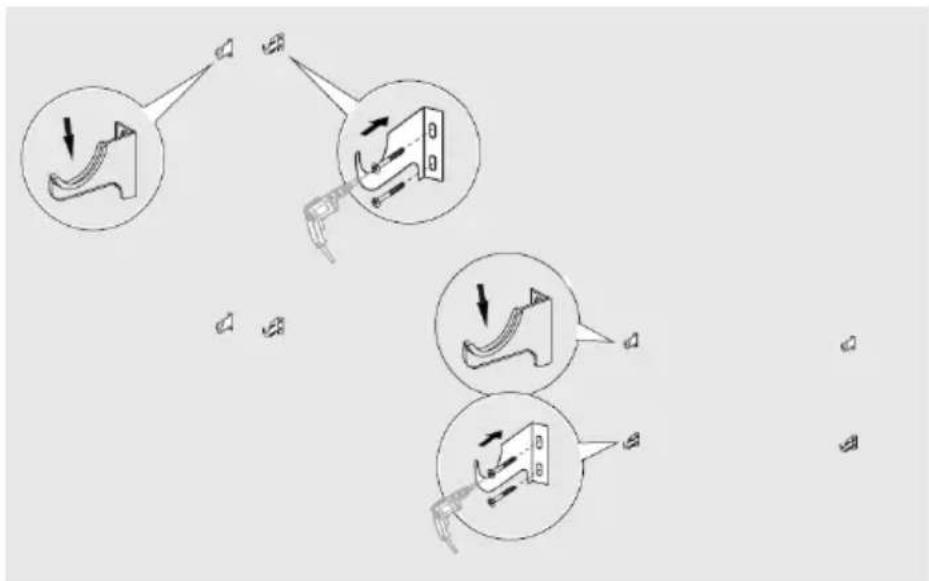

- Fix the brackets to the wall so that the round pipe on the back of the radiator sits horizontally above the brackets. Place the silicone seal on the hook part of the bracket.

Step 4

Diagram of a vertical structure with arrows indicating direction, no text or symbols present

Note: Note that the lower horizontal rail is fitted with a deflection block.

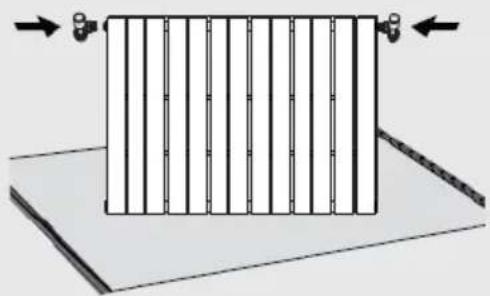

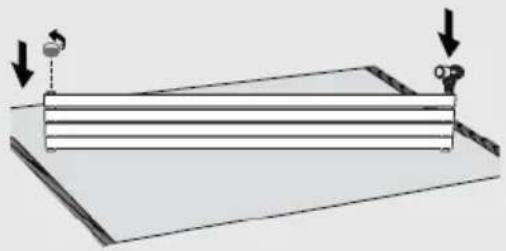

Wrap PTFE tape around the blanking plug and vent valve and screw them tight to the top of the radiator with a spanner.

Simple line drawing of a mechanical setup with two downward arrows and a horizontal bar on a flat base (no text or symbols)

Diagram of a rectangular structure with vertical bars on a base, showing directional arrows and circular symbols (no text or labels)

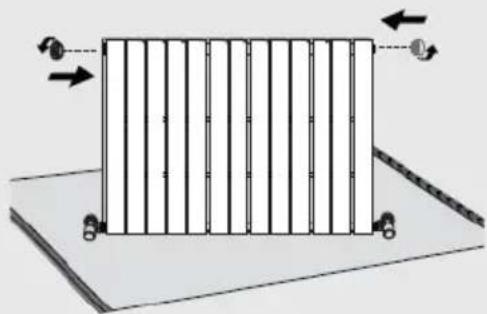

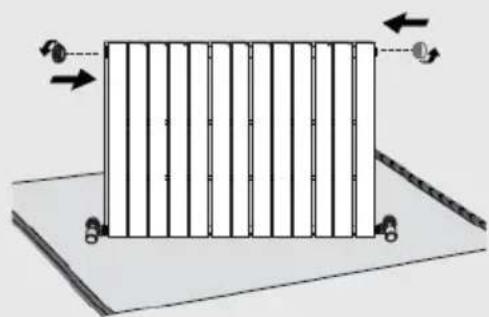

Tip: Stick the PTFE tape into the radiator in the opposite direction to the direction in which the valves are screwed in.
- Stick PTFE tape on the threads of the valves and screw the valves into the bottom of the radiator. Then tighten them with a spanner.

Step 5

Technical diagram showing structural components with magnified views of mechanical parts, including bracket and frame assembly details.

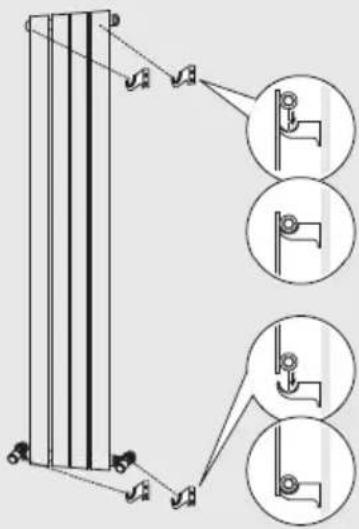

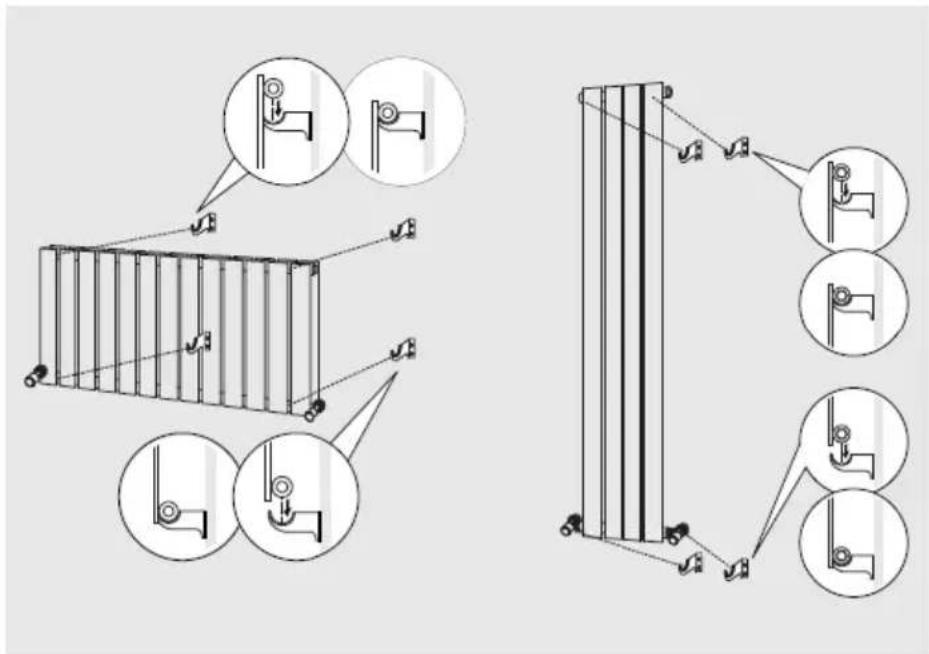

- Lift the radiator onto the brackets so that the pipes on the back of the radiator are horizontal and connect the valves to the house wiring.

Step 6

Technical line drawing of a vertical heating radiator and its side-mounted heat exchanger (no text or symbols)

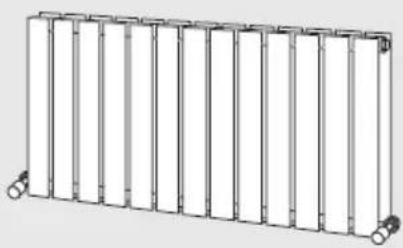

- After connecting the valves to the house plumbing, turn on the water and bleed the radiator to fill it with water.

Note: Fill your system with inhibitor fluid after installation.

AFTER INSTALLATION

• Use a screwdriver to open the air vent. Open the valve and let the water flow into the radiator.
• Check all connections for leaks.
• When the water comes out of the air vent, there is no more air in the pipe.
• Close the air vent with a screwdriver and turn the valve open. The radiator is now ready for operation.

CLEANING AND CARE

• Wipe the surface clean with a soft damp cloth.
• Never use abrasive cleaners on this product as they will damage the surface.
• Radiators are made of steel and should therefore not be cleaned with corrosive or abrasive cleaning agents.

TROUBLESHOOTING

If your radiator is not working, knowing basic radiator troubleshooting can save you the stress and hassle that a non-working radiator can bring. Here, you will find a guide to solving the most common problems associated with electric radiators.

Problem Cause Solution
Cold spots on the radiator	The water is not flowing properly through the radiator	Make sure that there is no air in the radiator. "Bleed" the radiator to release the air.
		Make sure that the valve is fully open so that the water can flow freely. Some radiators require a diversion to allow the water to flow properly around the unit.
Radiator leak The valve nut is loose. Tighten the valve nut.
Whistling noises or hissing water	The radiator was not correctly aligned during installation.	New installation
Clanking noise The radiator	or has been installed in a location that does not allow for expansion of the pipes.	New installation

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom
