Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints on installation and use to avoid technical damages. Any failure caused by ignoring the items and cautions mentioned in the operation and installation instructions are not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and more product information.

QR code image containing encoded data, no visible human-readable text

CONTENTS

Safety Instructions 10

Scope of Supply 12

Use 13

Cleaning and Care 14

MANUFACTURER & IMPORTEUR (UK)

Hersteller:

Importer for Great Britain

Berlin Brands Group UK Limited

PO Box 42

272 Kensington High Street

London, W8 6ND

United Kingdom

SAFETY INSTRUCTIONS

WARNING

Risk of suffocation! This stove is for outdoor use only and shall not be used in a building, garage or any other enclosed area.

Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• This rocket stove is not for commercial use.
• This rocket stove should only be used by adults and all children and pets should be kept at a safe distance.
• Do not use petrol, white spirit, lighter fluid, alcohol or other similar chemicals to light a fire as a rapid increase in temperature could damage the stove. This stove is only suitable for use with charcoal, untreated wood or dry logs. Do not use coal.
• Do not use the stove on decking or any other flammable surfaces such as dry grass, wood chips, leaves.
• Always empty this stove after use. Leave a thin layer of ash to protect the bottom. Do not remove ashes or charcoal until they are completely and fully extinguished.
• Do not touch the stove until it is completely cooled unless you are wearing heat resistant gloves as it is hot when in use.
• Do not handle or move the stove when in use as it is hot. Grasp the oven by the handles.
• Do not attempt to store the stove until all ashes and charcoals are completely extinguished.
  • Always use a safety tool and heat resistant gloves when adding or moving fuel.
• Do not leave a burning fire unattended.
• Fire hazard-hot embers may emit while in use.
• Do not overload the stove with fuel. Do not add additional fuel until the fire burns down. If an portion of the stove is growing red, it is overloaded.
• Do not burn fuel directly on the stove base.
• Do keep the fuel away from the wall of the stove as the high temperature may damage it.
• Avoid breathing smoke from the fire and avoid getting it into your eyes.
  • Always thoroughly inspect the stove before use.
• A slight discolouration of finish may occur after use.

Warning sign with hazard symbols and four quadrants showing vehicle, house, campfire, and tree icons

CAUTION!

DO NOT USE SPIRIT OR PETROL FOR LIGHTING OR RE-LIGHTING!

Special instructions for stoves

• The appliance becomes very hot and must not be moved during operation.
• Do not use the appliance in closed rooms.
• Do not use spirit or petrol for ignition or reignition.
• Keep children and pets away from the appliance.

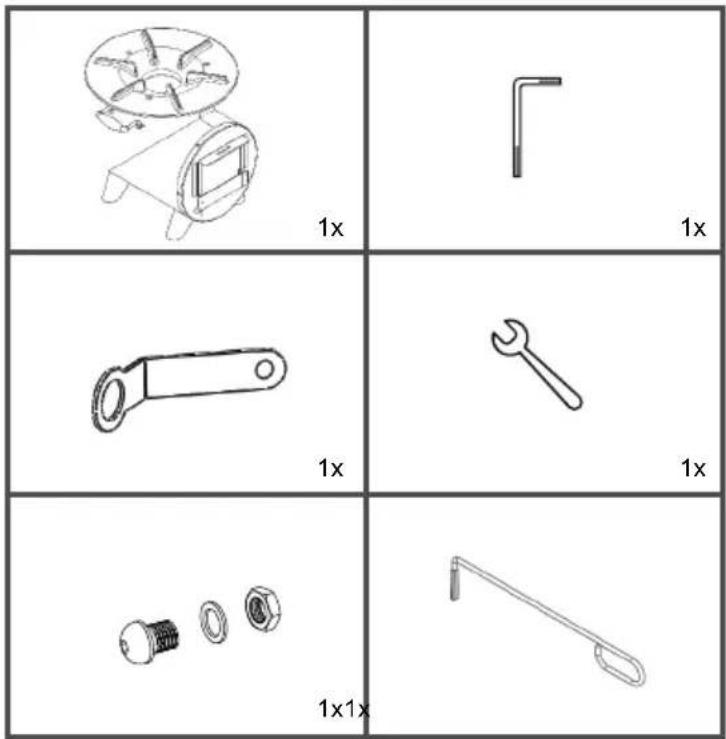

SCOPE OF SUPPLY

Technical line drawing of a mechanical device with a circular top and cylindrical base (no text or symbols)

mounting the latch

USE

Light a fire

1. Make sure that the stove is placed on a firm, flat, level and heat-resistant surface, away from combustible objects.
2. Place paper or dry firewood in the centre of the combustion chamber.

Note: Do not place fuel directly on the bottom of the combustion chamber, but always on the paper or firewood.

1. Light the paper or firewood.

Note: Start a small fire first and then let it slowly grow bigger. If the heat develops too quickly and too strongly, cracks may appear in the structure.

Stoking the fire

Add more fuel to slowly increase the heat. Do not overload the combustion chamber with fuel. Three small logs are sufficient.

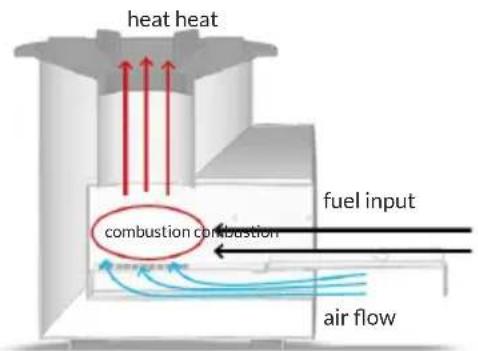

heat heat combustion combustion fuel input air flow

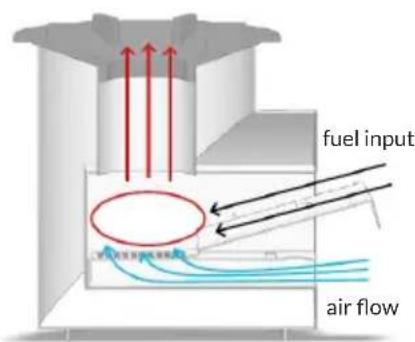

fuel input air flow

Use the poker tool when rearranging the logs.

Extinguish the fire

To extinguish the stove, do not add any more fuel or smother the fire with sand. Never extinguish the fire with water!

Use as a stove

• Setting up the oven: Make sure that the oven is placed on a level and stable surface.
  • Preparing the stove: Fill the fuel container via the chute with the desired fuel (e.g. wood, pellets or coal). For smaller fuels such as pellets, you can angle the chute upwards. If you have larger pieces, leave the chute folded

down.

• Regulating the temperature: The temperature in the stove can be regulated by the amount of fuel and the ventilation. The air supply can be regulated by the flaps on the stove. The wider they are open, the higher the temperature.
• Under the fuel supply flap is a ventilation flap that you can open or close. When the fuel supply flap is open, you can keep the ventilation flap closed. If the fuel supply flap is closed, you must open the ventilation flap.

CLEANING AND CARE

CAUTION

Danger of burns! Allow the stove to cool completely before inspecting or cleaning it for damage.

Inspect the stove for damage

Check the stove regularly for damage to ensure product safety and a longer service life.

1. Check all parts to make sure they are tight.
2. Check the components for damage.
3. If you find damage to a component, have the stove repaired before continuing to use it.

Cleaning

• Make sure that the fire is completely extinguished when you no longer use the stove.
• Make sure the fire is completely extinguished and the stove has cooled down before removing the ashes.
• Use a damp cotton cloth to remove soot. Clean the interiore regularly to ensure a long service life.

Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents, as these can damage the product.
• Clean the outside with water and a mild dishwashing liquid.
• For stubborn stains, use a citrus-based cleaner and a nylon brush.
