USER MANUAL Trino Blumfeldt

Dear customer, Congratulations on the purchase of your device. Please read the following instructions carefully and follow them to prevent potential damage. We accept no liability for damage caused by disregarding the instructions or improper use. Please scan the QR code to access the latest operating instructions and for further information about the product. CONTENTS Safety instructions 12 Scope of delivery 14 Individual parts 14 Assembly 15 Use 17 Cleaning and care 18 MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Berlin Brands Group UK Ltd PO Box 1145 Oxford, OX1 9UW United Kingdom12

SAFETY INSTRUCTIONS WARNING Risk of suffocation! The re bowl is intended for outdoor use only. It must not be used in buildings, garages or other enclosed areas. Toxic fumes can form, which lead to suffocation.

• The re bowl is not suitable for commercial purposes.

• The re bowl may only be used by adults. Children and pets must keep a safe distance.

• Do not use petrol, methylated spirits, lighter uid or alcohol for lighting.

• Do not use the re bowl until it has been fully assembled and all parts are rmly seated.

• Do not use the re bowl on surfaces made of wood or other combustible materials.

• Empty the re bowl after each use. Leave a thin layer of ash in it to protect the soil. Only remove the ash when the coal has burnt down completely and the ash has cooled down.

• Do not touch the re bowl until it has cooled down completely. Wear heat- resistant gloves during operation.

• Do not stow away the re bowl until it has cooled down completely and the ashes have been disposed of.

• Always use tools and heat-resistant gloves when adding fuel or moving the re bowl.

• Do not leave the re bowl unattended during use.

• Hot embers may fall from the re bowl during use.

• Do not overload the re bowl with fuel. Only add new fuel when the re has burnt down.

• Keep the fuel away from the wall of the re bowl as the wall can be damaged by high temperatures.

• Do not breathe in the smoke and do not let it get into your eyes.

• Inspect the re bowl for damage before use.

• Use may cause the metal surface to discolour slightly.13

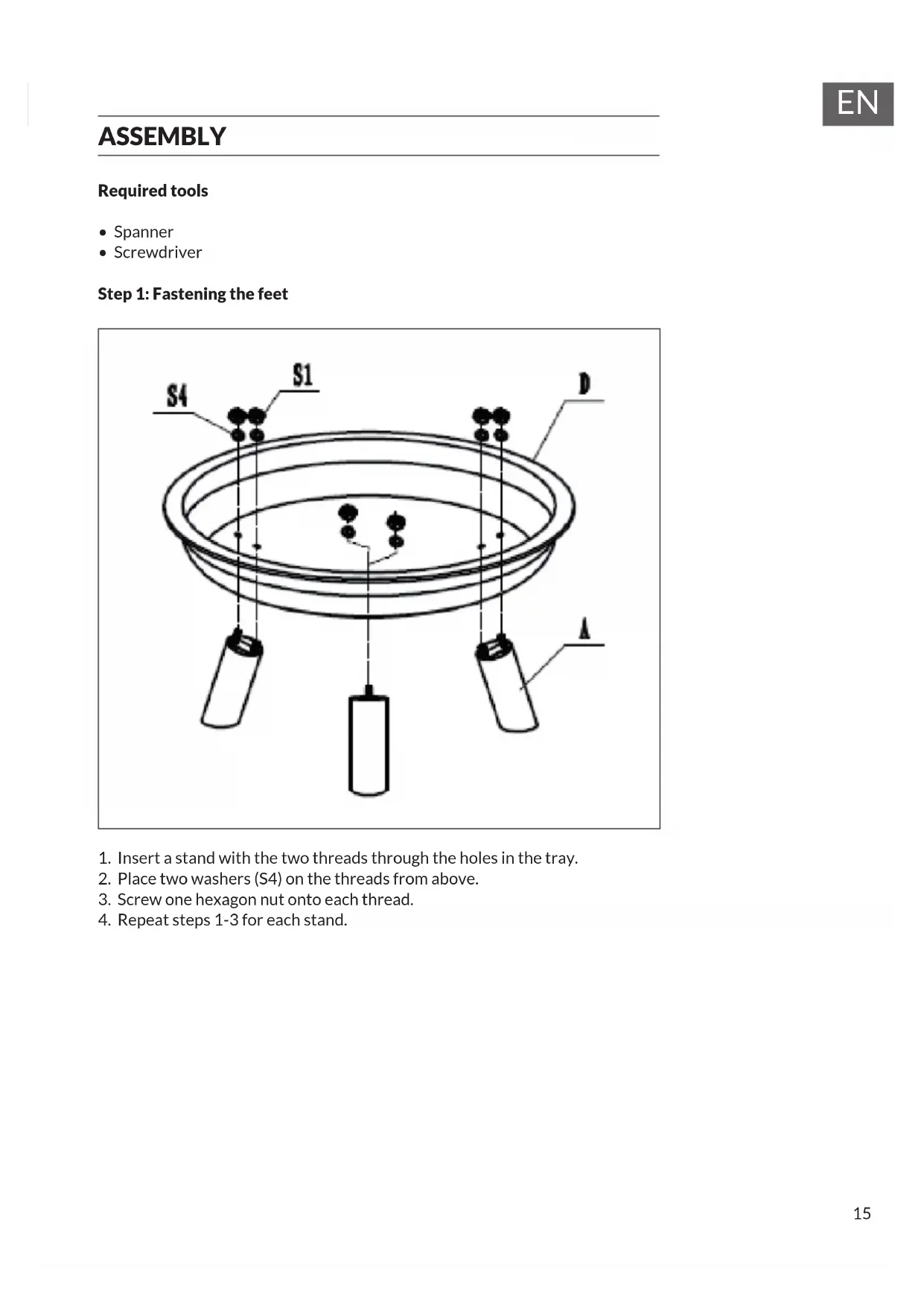

ASSEMBLY Required tools

• Screwdriver Step 1: Fastening the feet

1. Insert a stand with the two threads through the holes in the tray.

2. Place two washers (S4) on the threads from above.

3. Screw one hexagon nut onto each thread.

4. Repeat steps 1-3 for each stand.16

1. Insert the screws (S2) from the inside through the holes in the side of the

2. Place the locknuts (S3) on the handles and screw the screws (S2) against

them until they are tight. Step 3: Set up Place the re bowl on a at and rm surface.17

1. Make sure that the re bowl is placed on a rm, at, level and heat-

resistant surface, away from ammable objects.

2. Place paper or dry rewood in the centre of the re bowl base.

Note: Do not place fuel directly in the re bowl, but always on the paper or rewood.

3. Light the paper or rewood.

Note: Start a small re rst and then let it slowly grow bigger. If the heat develops too quickly and too strongly, cracks may appear in the construction. Stoking the re

• Add more fuel to slowly increase the heat. Do not overload the re bowl with fuel. Three small logs are sufcient.

• Use the poker tool when shifting the logs. Delete To extinguish the re bowl, do not add any more fuel or smother the re with sand. Never extinguish the re with water!18

CAUTION Risk of burns! Allow the re bowl to cool down completely before inspecting it for damage or cleaning it. Inspecting the re bowl for damage Check the re bowl regularly for damage to ensure product safety and a longer service life. 1 Check all parts to make sure they are tight. 2 Check the components for damage. 3 If you notice damage to any component, have the re bowl repaired before continuing to use it. Cleaning

• Make sure that the re is completely extinguished when you stop using the re bowl.

• Make sure that the re is completely extinguished and the re bowl has cooled down before removing the ashes.

• Use a damp cotton cloth to remove soot. Clean the re bowl regularly to ensure a long service life. Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents as they may damage the product.

• Clean the outside with water and a mild dishwashing detergent.

• For stubborn stains, use a citrus-based cleaner and a nylon brush.19
