USER MANUAL Merano Blumfeldt

Dear Customer, Congratulations on purchasing this device. Please read the following instructions carefully and follow them to prevent possible damages. We assume no liability for damage caused by disregard of the instructions and improper use. Scan the QR code to get access to the latest user manual and more product information. CONTENTS Safety Instructions 10 Individual Parts 12 Assembly 12 Cleaning and Care 14 MANUFACTURER & IMPORTER (UK) Manufacturer: Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany. Importer for Great Britain: Chal-Tec UK limited Unit 6 Riverside Business Centre Brighton Road Shoreham-by-Sea BN43 6RE United Kingdom10

SAFETY INSTRUCTIONS WARNING Risk of suffocation! This re bowl is for outdoor use only and shall not be used in a building, garage or any other enclosed area. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• This re bowl is not for commercial use.

• This re bowl should only be used by adults and all children and pets should be kept at a safe distance.

• Do not use petrol, white spirit, lighter uid, alcohol or other similar chemicals to light a re as a rapid increase in temperature could damage the re bowl. This re bowl is only suitable for use with charcoal, untreated wood or dry logs. Do not use coal.

• Do not use this re bowl until it is completely assembled and all parts are securely fastened and tightened.

• Do not use the re bowl on decking or any other ammable surfaces such as dry grass, wood chips, leaves.

• Always empty this re bowl after use. Leave a thin layer of ash to protect the bottom. Do not remove ashes or charcoal until they are completely and fully extinguished.

• Do not touch the re bowl until it is completely cooled unless you are wearing heat resistant gloves as it is hot when in use.

• Do not handle or move the re bowl when in use as it is hot.

• Do not attempt to store the re bowl until all ashes and charcoals are completely extinguished.

• Always use a safety tool and heat resistant gloves when adding or moving fuel.

• Do not leave a burning re unattended.

• Fire hazard-Hot embers may emit while in use.

• Do not overload the re bowl with fuel. Do not add additional fuel until the re burns down. If an portion of the re bowl is growing red, it is overloaded.

• Do not burn fuel directly on the re bowl base.

• Do keep the fuel away from the wall of the re bowl as the high temperature may damage it.

• Avoid breathing smoke from the re and avoid getting it into your eyes.

• Always thoroughly inspect the re bowl before use.

• A slight discolouration of nish may occur after use.11

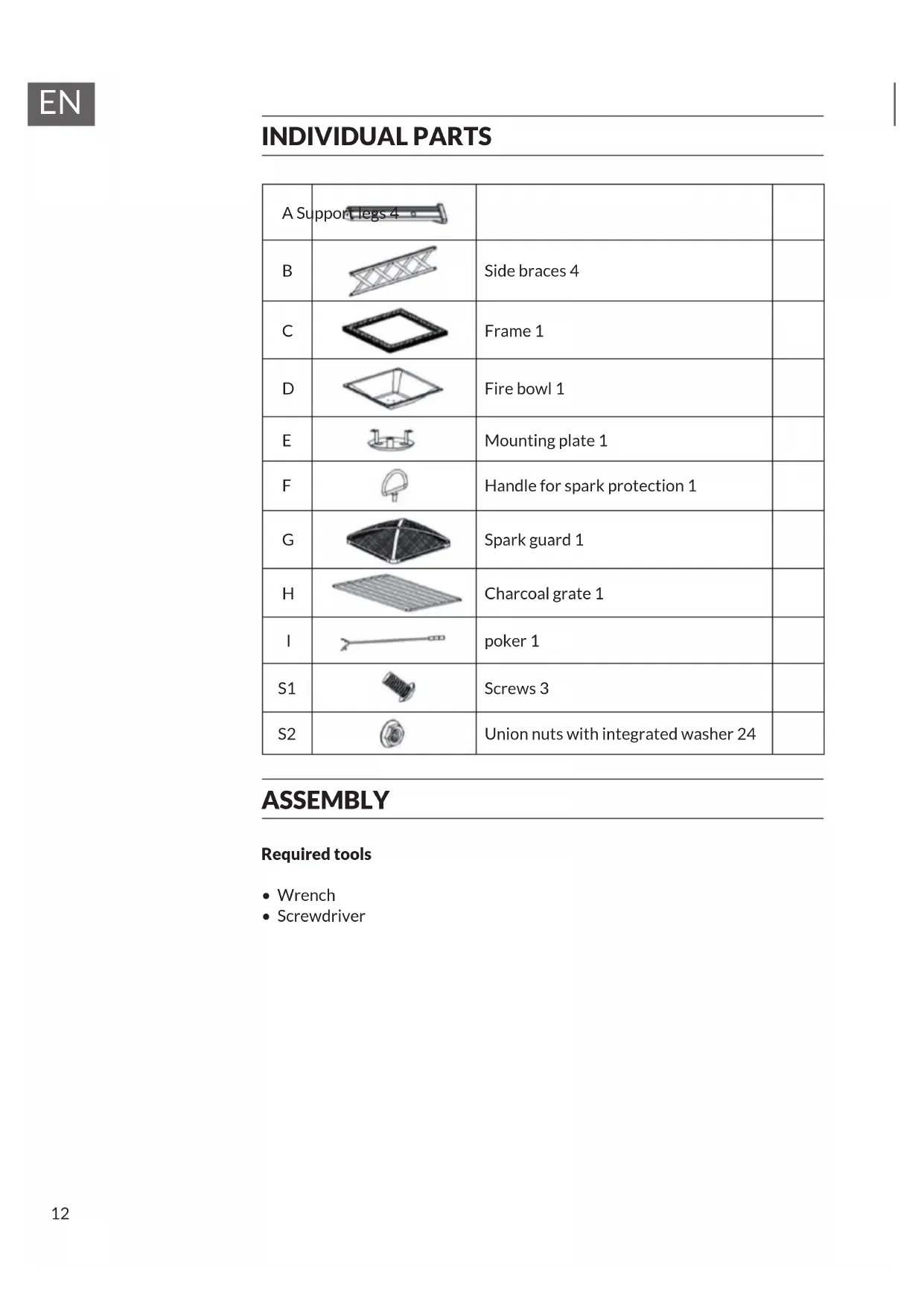

INDIVIDUAL PARTS A Support legs 4

Union nuts with integrated washer 24 ASSEMBLY Required tools

Place the legs (A) on the struts (B) and screw the legs with the nuts (S2). Place the frame and fasten it with the nuts (S2).

Place the mounting plate (E) on the re bowl (D) and fasten the mounting plate from above with the screws (S1) and from below with the nuts (S2). Then place the re bowl inside. Insert the grate (H). Attach the handle to the spark guard by screwing a nut (S2) against it from below.14

Always use the poker (I) to remove the spark arrester. Never touch the spark arrester with bare hands!

CAUTION Danger of burns! Allow the re bowl to cool completely before inspecting or cleaning it for damage. Cleaning

• Make sure that the re is completely extinguished when you no longer use the re bowl.

• Make sure the re is completely extinguished and the re bowl has cooled down before removing the ashes.

• Use a damp cotton cloth to remove soot. Clean the re bowl regularly to ensure a long service life. Note: The surface may discolour after repeated use.

• Do not use oven cleaner or scouring agents, as these can damage the product.

• Clean the outside with water and a mild dishwashing liquid.

• For stubborn stains, use a citrus-based cleaner and a nylon brush.15
