Flame Locker - Fireplace Blumfeldt - Free user manual and instructions

USER MANUAL Flame Locker Blumfeldt

Abstract green circular logo with three curved segments (no text or symbols)

Abstract green circular logo with two leaf-like shapes (no text or symbols)

Abstract green circular logo with three leaf-like shapes forming a Y-shape (no text or symbols)

QR code image containing encoded data, no visible human-readable text

SICHERHEITSHINWEISE

WARNUNG

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

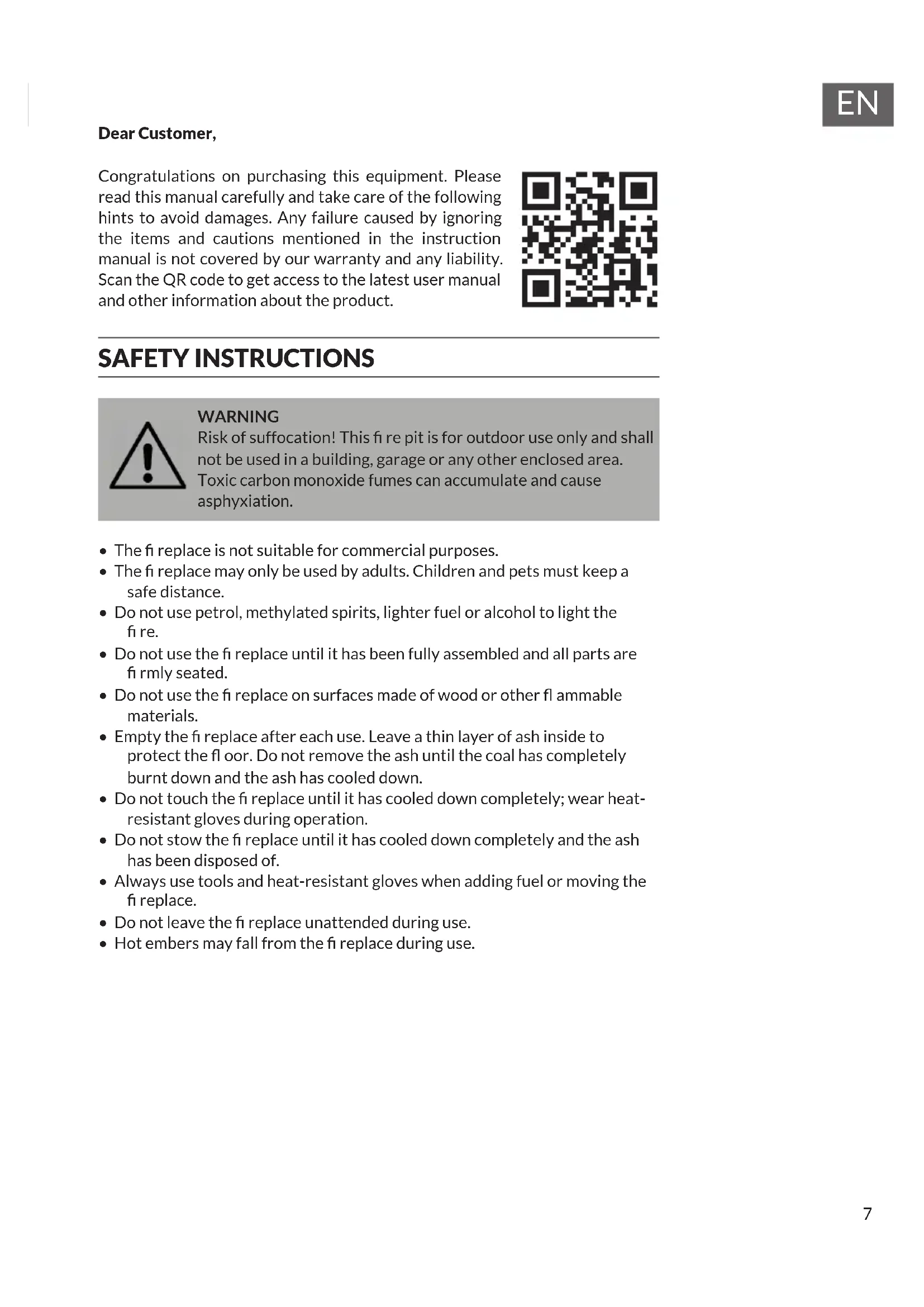

Dear Customer,

Congratulations on purchasing this equipment. Please read this manual carefully and take care of the following hints to avoid damages. Any failure caused by ignoring the items and cautions mentioned in the instruction manual is not covered by our warranty and any liability. Scan the QR code to get access to the latest user manual and other information about the product.

QR code image containing encoded data, no visible human-readable text

SAFETY INSTRUCTIONS

WARNING

Risk of suffocation! This fire pit is for outdoor use only and shall not be used in a building, garage or any other enclosed area. Toxic carbon monoxide fumes can accumulate and cause asphyxiation.

• The fi replace is not suitable for commercial purposes.
• The fi replace may only be used by adults. Children and pets must keep a safe distance.
• Do not use petrol, methylated spirits, lighter fuel or alcohol to light the fire.
• Do not use the fi replace until it has been fully assembled and all parts are firmly seated.
• Do not use the fi replace on surfaces made of wood or other fl ammable materials.
• Empty the fi replace after each use. Leave a thin layer of ash inside to protect the floor. Do not remove the ash until the coal has completely burnt down and the ash has cooled down.
• Do not touch the fi replace until it has cooled down completely; wear heat-resistant gloves during operation.
• Do not stow the fi replace until it has cooled down completely and the ash has been disposed of.
• Always use tools and heat-resistant gloves when adding fuel or moving the fi replace.
• Do not leave the fi replace unattended during use.

• Hot embers may fall from the fi replace during use.

• Do not overload the fireplace with fuel. Do not add new fuel until the fire has burned down. If part of the fireplace glows red, it is overloaded.

• Keep the fuel away from the wall of the fireplace as the wall may be damaged by high temperatures.
• Do not inhale the smoke and do not let it enter your eyes.
• Inspect the fireplace for damage before use.
• Use may cause the metal surface to discolour easily.

SINGLE PARTS

Part Quantity Description Picture
A 1 Fire basket
B 4 Leg
C 1 Chimney
D 1 Ash drawer

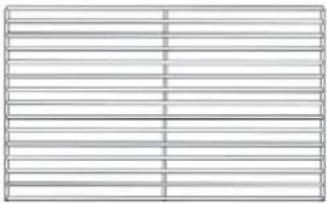

E 1 Carbon lattice
F 4 Nut
G 4 Screw
H 8 Screw M8

ASSEMBLY

1	2

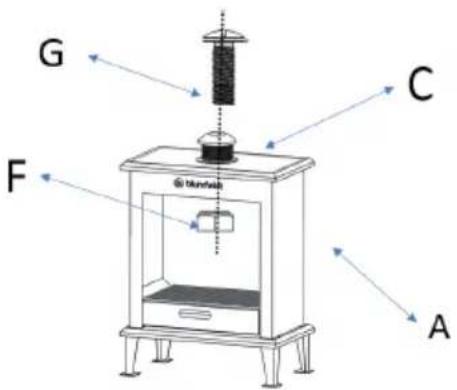

Attach the feet (B) to the fire basket (A) with screws (H).	Fasten the fireplace (C) to the fire basket (A) with screws (G) and nuts (F).
3	4
Place the ash drawer (D) in the fire basket (A). Place the carbon grid (E) on the ash drawer (D).	The garden fireplace is now fully assembled and can be used.

Lighting instructions

Place logs on the coal grid.

Note: Make sure that the wood lies centrally on the grille and does not reach to the edge of the grille. The wood should not be stacked too high.

Then place light, dry wood chips under the logs.

MANUFACTURER & IMPORTER (UK)

Manufacturer:

Chal-Tec GmbH, Wallstrasse 16, 10179 Berlin, Germany.

Importer for Great Britain:

Chal-Tec UK limited

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Chère cliente, cher client,

QR code image containing encoded data, no visible human-readable text

CONSIGNES DE SÉCURITÉ

MISE EN GARDE

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Esti mado cliente:

QR code image containing encoded data, no visible human-readable text

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom

Genti le Cliente,

QR code image containing encoded data, no visible human-readable text

AVVERTENZE DI SICUREZZA

AVVERTENZA

PRODUTTORE E IMPORTATORE (UK)

Produttore:

Chal-Tec GmbH, Wallstraße 16, 10179 Berlino, Germania.

Unit 6 Riverside Business Centre

Brighton Road

Shoreham-by-Sea

BN43 6RE

United Kingdom
