USER MANUAL ACCJ7R3B Lorex
EN
Welcome!
Thank you for your purchase of the junction box.
Here's how to get started.
Contents
1 Package contents Section
2 Junction box dimensions
3 Installing the junction box
4 Installing cameras to the junction box
1 Package contents

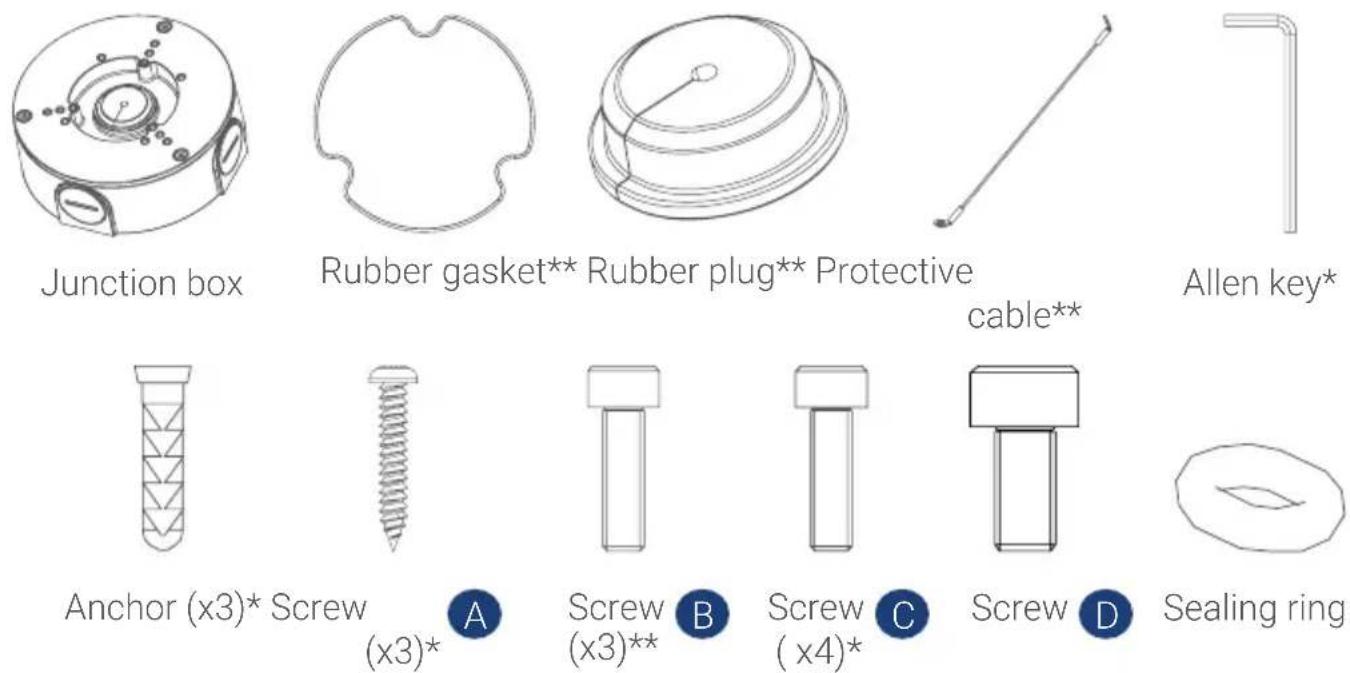

*These items are included inside the junction box.
**These items are pre-attached to the junction box.
2 Junction box dimensions


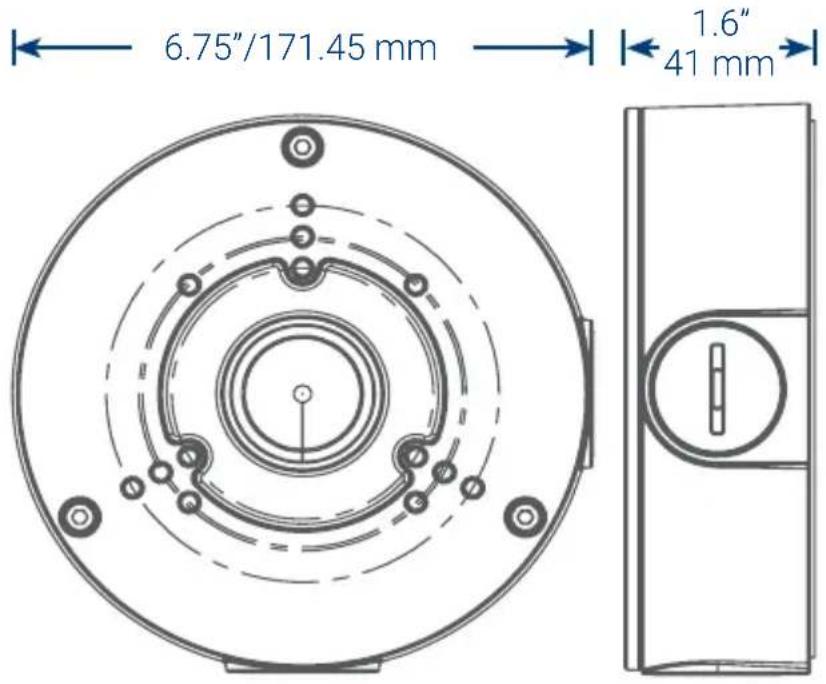

6.75"/171.45 mm 1.6" 41 mmWeight: 0.37kg/0.8lbs
3 Installing the junction box
IMPORTANT:
• Make sure to install in an area that can support the total weight of the camera and accessories.
- If using conduit, you must use thread seal tape to ensure a proper seal. Conduit size: G^3/_4
4 Installing cameras to the junction box


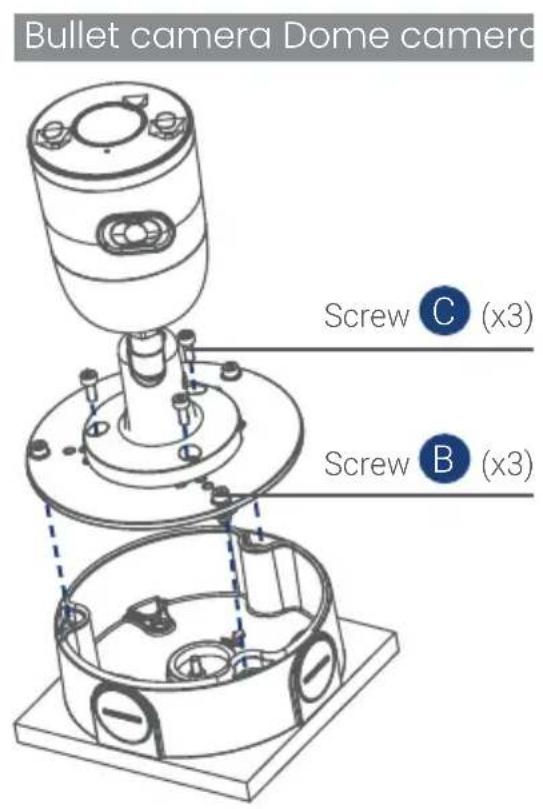

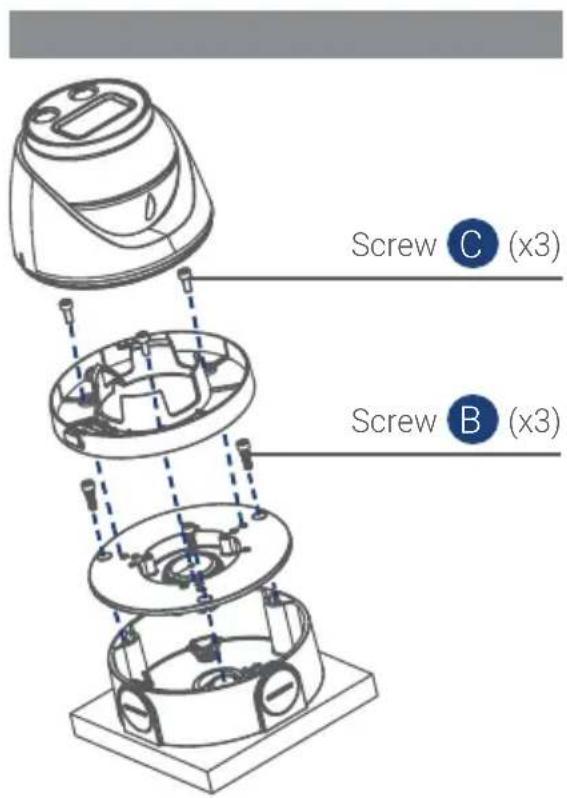

Bullet camera Dome camera Screw C (x3) Screw B (x3)

