BB1811 - Baby monitor Lorex - Free user manual and instructions

Product type	Baby video monitor
Brand	Lorex
Model	BB1811
Connection technology	2.4 GHz wireless
Maximum range	300 m in open field
Parent unit screen	2.8 inch LCD
Screen resolution	320 x 240 pixels
Camera	Wide-angle lens, infrared night vision
Night vision	Infrared LED, range 5 m
Ambient temperature sensor	Built-in, displayed on parent unit
Two-way audio	Built-in talk-back
Power supply	5V/1A power adapter for each unit
Parent unit battery	Rechargeable lithium-ion, up to 8 hours
Parent unit dimensions	120 x 70 x 30 mm
Parent unit weight	150 g
Camera dimensions	80 x 60 x 50 mm
Camera weight	100 g
Additional features	Night light, lullabies, sound level indicator
Care and cleaning	Wipe with a soft, dry cloth. Do not use abrasive products.
Safety	Compliant with CE regulations. Do not expose to moisture.
Spare parts and repairability	Power adapter and battery available as spare parts.
General information	User manual downloadable from the manufacturer's website.

Frequently Asked Questions - BB1811 Lorex

How to install the Lorex BB1811 monitor?

Place the camera in the baby's room, plug in the power adapter. Turn on the parent unit, it should automatically connect to the camera. If not, press the 'PAIR' button on the back of the camera then 'LINK' on the parent unit.

What is the range of the monitor?

The range is 300 meters in open field. Indoors, it may be reduced by walls and obstacles.

How to activate night vision?

Night vision activates automatically when ambient brightness decreases. The infrared LEDs turn on for a range of up to 5 meters.

Can I use multiple cameras with this monitor?

Yes, the BB1811 supports up to 2 cameras. You can switch between them with the 'CAM' button on the parent unit.

How to charge the parent unit?

Use the included power adapter to plug in the parent unit. The lithium-ion battery fully recharges in about 3 hours.

What to do if the image is blurry?

Check that the camera lens is clean (wipe with a soft cloth). Ensure the camera is at an appropriate distance (not too close to the baby). Adjust the focus by turning the lens ring if available.

How to clean the monitor?

Use a soft, slightly damp (not wet) cloth to wipe surfaces. Do not use solvents or abrasive products. Do not immerse the devices in water.

Is the temperature sensor accurate?

Yes, the built-in sensor measures the room's ambient temperature with an accuracy of ±1°C. It displays the temperature on the parent unit.

What to do in case of interference with other devices?

Keep the monitor away from Wi-Fi routers, microwaves, and other 2.4 GHz devices. Change the transmission channel on the camera via the parent unit menu.

Where can I download the user manual?

The manual is available for free in PDF format on notice-facile.com or directly on Lorex's website.

USER MANUAL BB1811 Lorex

Two wireless home devices: a white ILOREX Baby phone with antenna and a white ILOREX Baby device with a photo of a newborn baby (no visible text or symbols on devices)

Safety Precautions

- Adult assembly is required. Keep small parts away from children when assembling.

- This product is not a toy. Do not allow children or infants to play with it.

- This video monitor is not a substitute for responsible adult supervision.

- Test the video monitor before use. Become familiar with its functions.

- Keep the cords out of reach from children and infants.

- Never use extension cords with power adapters.

- Only use the chargers and power adapters provided. Do not use other chargers or power adapters as this may damage the device and battery pack.

- Only insert batteries/battery pack of the same type.

• Insert batteries with the correct polarity.

• Do not mix new and used batteries.

- Do not mix alkaline, standard, and rechargeable batteries.

- Remove exhausted batteries from the product.

- Keep all batteries away from children and infants.

- Dispose or recycle batteries in accordance with local laws, which may vary by location.

- Do not cover the video monitor with a towel or blanket.

• Do not use the video monitor near water.

• Do not install the video monitor near a heat source.

- Do not touch the plug contacts with sharp or metal objects.

- Keep this user's guide for future reference.

To Avoid Injury to Children & Infants:

• MAKE SURE to keep the camera and all power cords are least 3ft / 1m away from cribs and out of reach of your child.

- Use the included cable clips to help keep power cords away from your child.

Table of Contents:

ENGLISH

Product Includes ......2

Monitor Overview ......2

Camera Overview ......3

Getting Started ....4

Optional - Wall Mounting the Camera .....7

Using Your Baby Monitor ....8

Using the Menu....8

Talking to Your Baby 9

Adjusting Volume 9

Adjusting Screen Brightness....9

Turning on the Night-Light....10

Changing Channels....10

Video Off Mode (Audio Only Mode) .....11

Enabling VOX Mode (Voice Trigger) ..... 12

Pairing Additional Cameras ......13

Disabling Channels 15

Technical Specifications ......16

Camera 16

Monitor....16

Troubleshooting ....17

Need Help? ......17

Product Includes

Line drawing of a camera device with no visible text or symbols on the device itself

Simple line drawing of a power adapter with cable (no text or symbols on the device itself)

Screws & Anchors

Cable Clips

x1

Simple line drawing of a power adapter with a cable (no text or symbols on the device itself)

x1
*Contents may vary by model

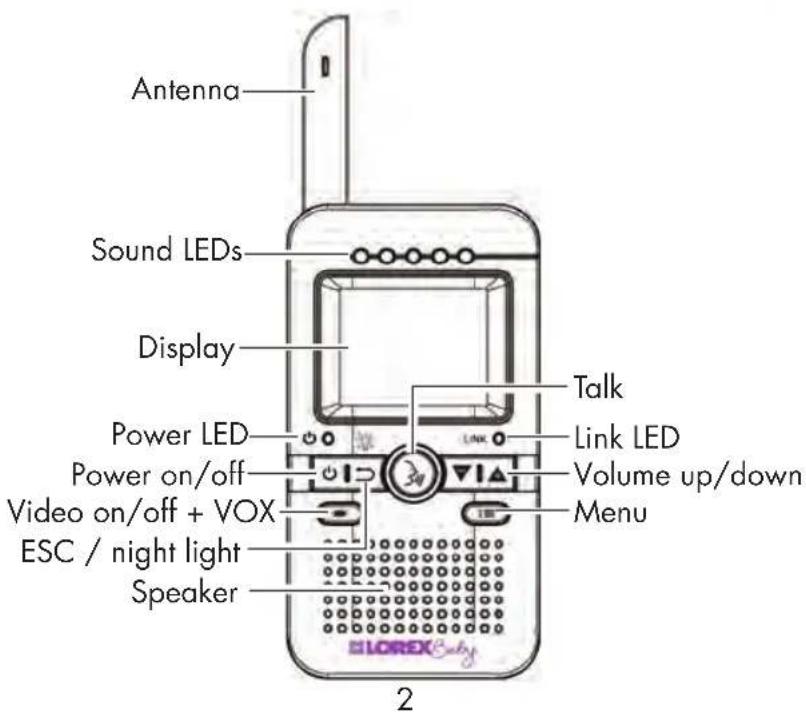

Monitor Overview

ENGLISH
Camera Overview

Getting Started

1

Connect the power adapter to the camera.

Line drawing of a vacuum cleaner connected to a power outlet cable (no text or symbols)

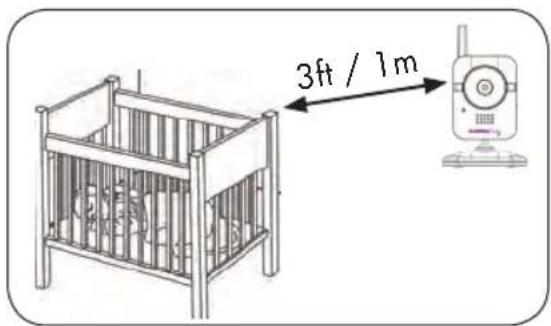

Make sure all power cables are at least 3ft / 1m away from the crib and out of reach of your child.

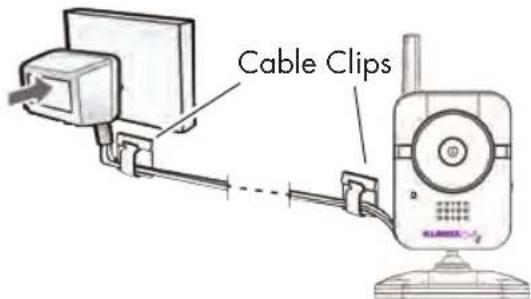

Use the included cable clips to help keep power cords away from your child.

2

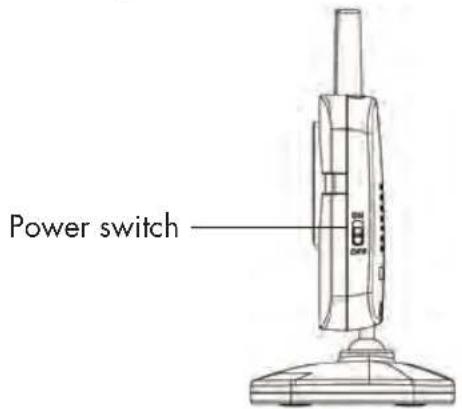

Slide the power switch to ON.

3

Press down on the battery compartment door and slide it off the monitor.

Diagram of a device with a downward arrow indicating flow or movement (no text or symbols present)

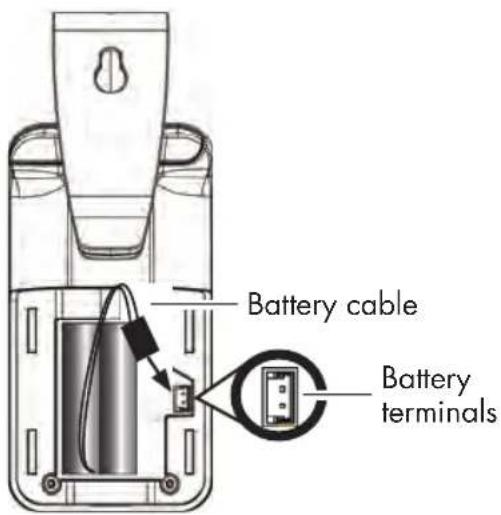

4 Connect the battery cable to the monitor.

ENGLISH

The battery cable only connects one way. Do not force the battery cable.

5 Replace the battery compartment door.

6 Connect the power adapter to the monitor.

7 Press and hold the power button to turn on the monitor.

Tips

• It is recommended to charge the battery for 6 hours before first use.
• For overnight monitoring, it is recommended to connect the power adapter. When fully charged, the monitor will stay on up to 4 hours in normal mode or 7 hours on Video OFF mode (see page 11).

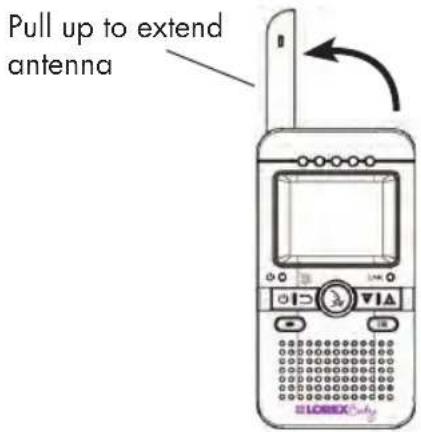

• For better reception, pull up the antenna on the monitor.

Optional - Wall Mounting the Camera

Before permanently mounting the camera:

• Determine where you will get the best view of your baby.
• Ensure the power cable is long enough to power the camera.

Make sure all power cables are at least 3ft / 1m away from the crib and out of reach of your child.

Use the included cable clips to help keep power cords away from your child.

1

Drill 2 holes in the wall with centers exactly 48mm apart.

2

Tap anchors into holes with a hammer. Insert screws 2/3 of the way.

3

Align the mounting points with the screws and push the camera down.

Using Your Baby Monitor

The monitor shows the following icons during use:

Icon Meaning
	Signal strength
	Selected channel
	Battery full*
	Battery low
Out of Range	Camera out of range or off

Icon Meaning
	Talk activated
	Sequence mode activated
	Night-light activated
	Night vision activated
	VOX mode activated

*When battery is charging, icon will fill up.

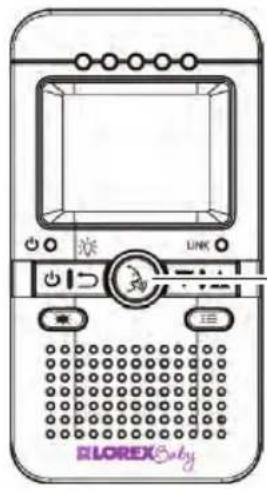

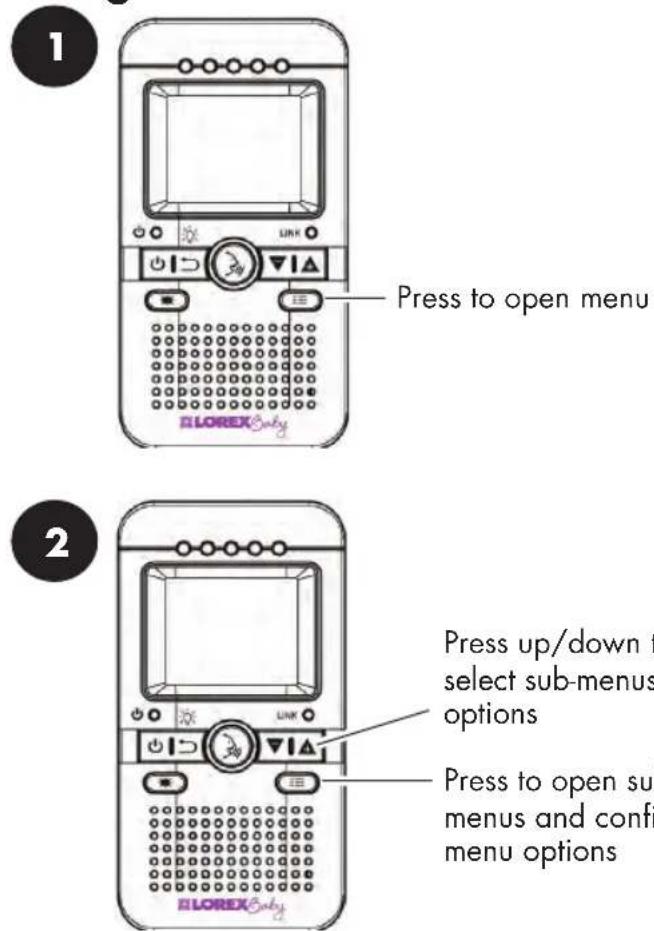

Using the Menu

Talking to Your Baby

Line drawing of a retro-style mobile phone with control buttons and keypad (no readable text or symbols)

Press and hold to talk to the selected camera

Adjusting Volume

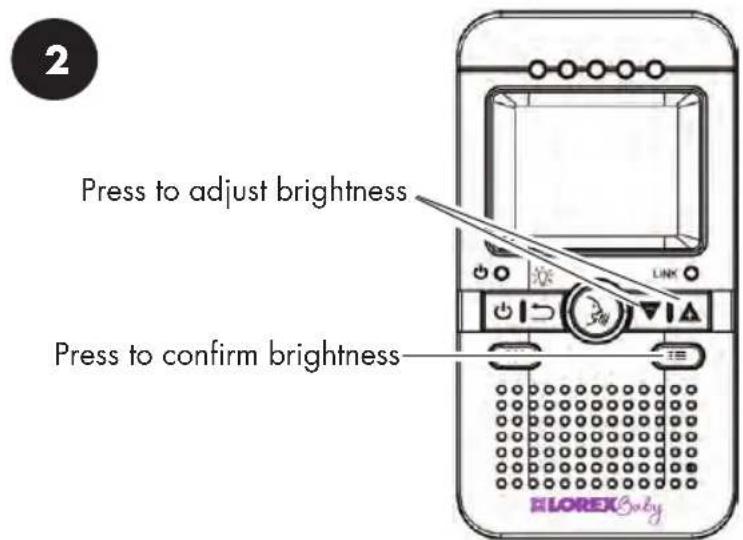

Adjusting Screen Brightness

Press to open menu. Then, press again to select Brightness sub-menu

Line drawing of a retro Freebox with control buttons and display screen (no text or symbols)

3 Press to exit menu.

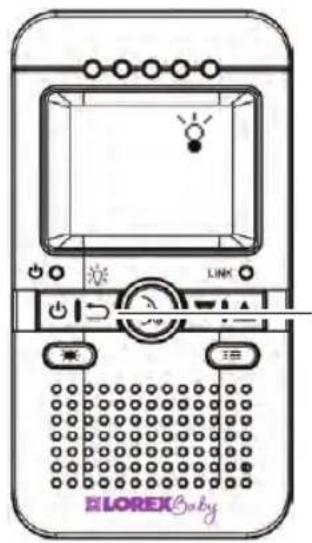

Turning on the Night-Light

Press and hold until appears on the screen to turn on the night-light for the currently selected camera

Press and hold until goes away to turn off the night light

Changing Channels

To connect additional cameras to the monitor, see "Pairing Additional Cameras" on page 13.

Video Off Mode (Audio Only Mode)

Press to turn the screen off and monitor sound only.

The monitor will play sound from the selected channel only.

ENGLISH

Notes

• If Sequence mode is enabled, the monitor will play sound from the channel that is currently selected.
• VOX mode will override Video Off mode. See "Enabling VOX Mode (Voice Trigger)" on page 12 for details.

Press any button to turn the screen back on.

Enabling VOX Mode (Voice Trigger)

In VOX mode, the monitor's screen and speaker will turn off after a minute unless sound is detected at the selected sensitivity level. This conserves battery power, and alerts you only when needed.

To activate VOX mode:

While VOX is activated, the monitor's screen and speaker will turn off after a minute unless sound is detected above the preset sensitivity level. Press any button to turn the screen back on. When VOX is on, a VOX icon is shown on the screen.

VOX mode will not work while Sequence mode is activated.

To deactivate VOX mode:

1 Press and hold until the ico VOX goes away.

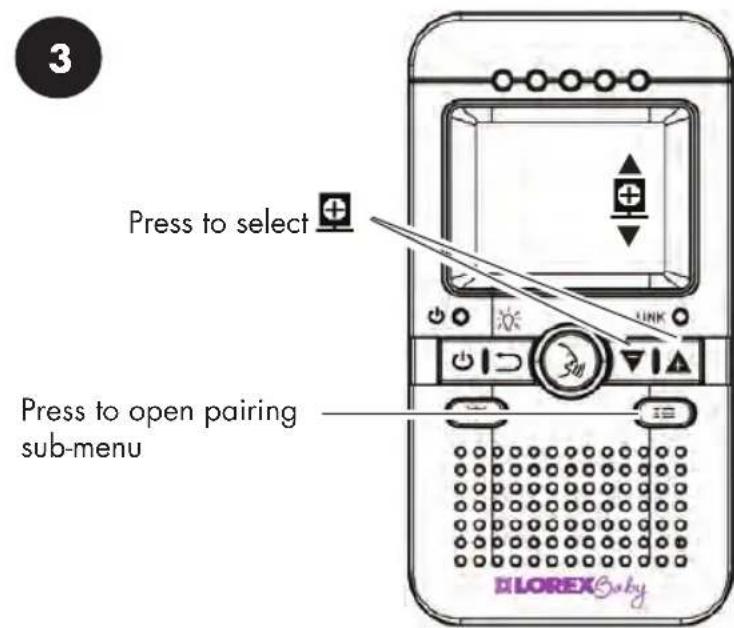

Pairing Additional Cameras

The camera(s) included have already been paired with the monitor. If you have purchased additional add-on cameras (model# BB1811AC1), OR if your monitor and camera are not paired up, follow the steps below.

ENGLISH

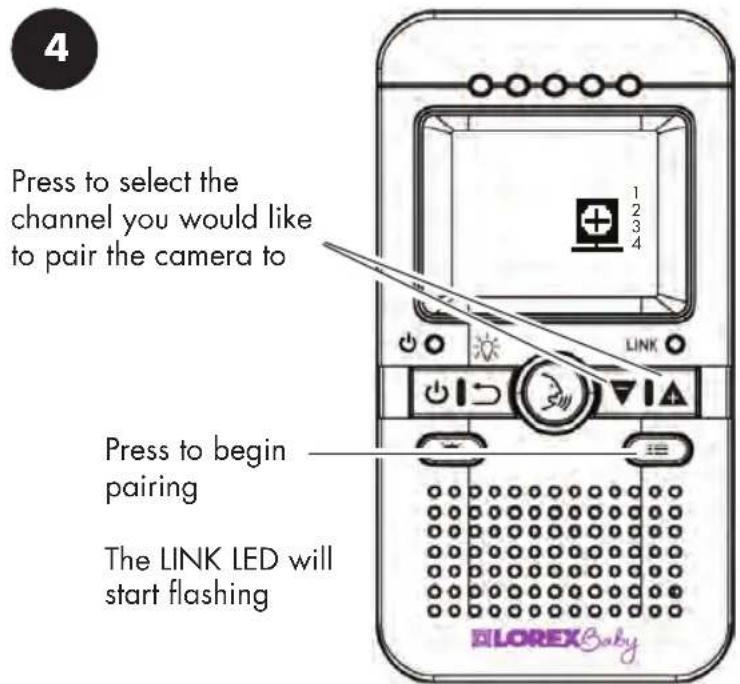

To pair a camera to your monitor:

1 Place the camera and monitor next to each other. Make sure the camera and monitor are turned on.

If a camera is already connected to this channel, the new camera will replace the existing camera.

Images from the camera are immediately shown on the monitor once the camera is successfully paired.

5 Press twice to exit menu.

Notes

• Immediately move the camera away from the monitor to avoid speaker feedback.
  • The monitor can connect up to 4 cameras.

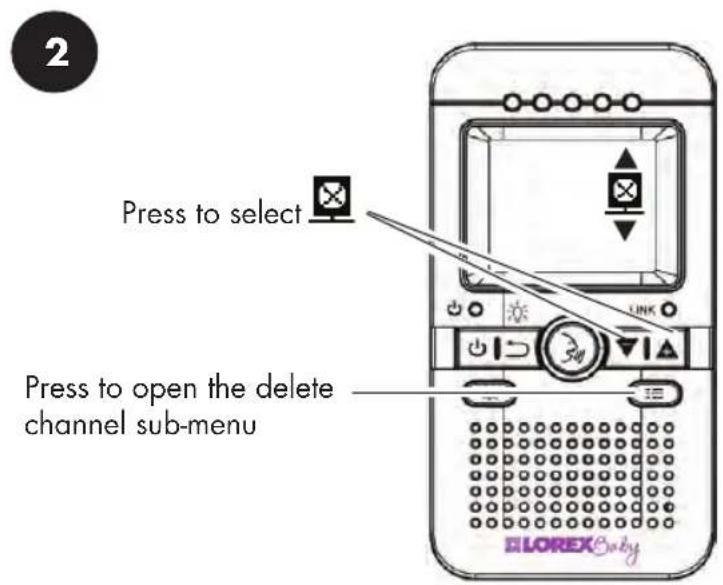

Disabling Channels

You can disable empty channels so they do not appear on the monitor when changing channels manually or using Sequence Mode.

To disable channels:

3 Press ▼ to select the channel you would like to delete and press ≡ to confirm.

If a camera is paired to a channel, a * will appear next to the channel number.

4 Press twice to exit menu.

Technical Specifications

Camera

Frequency 2.4GHz
Maximum Range	Up to 450ft / 138m outdoors*Up to 150ft / 46m indoors*
Image Sensor 1/5"	Color CMOS
Lens 3.0mm F2.5
IR LED 6 pcs
Power Adapter 6.0V DC 800mA
Weight 0.3lbs / 0.1kg

Monitor

Frequency 2.4GHz
Display 1.8" TFT Color LCD
Power Adapter 6.0V DC 800mA
Battery NiMH Rechargeable Battery3.6V DC 750mAh
Battery Life Up to 4 hours in normal modeUp to 7 hours in Video Off
Weight 0.4lbs / 0.2kg

*Based on unobstructed line of sight. Actual range will vary based on surroundings.

Troubleshooting

Problem Solution
No video displayed on the monitor	Press and hold the button to power on the monitor.Monitor is out of batteries. Plug in the monitor power adapter.Video Off or VOX mode is on. Press any button to turn the screen back on.
Monitor screen keeps turning off	VOX mode is on. See “Enabling VOX Mode (Voice Trigger)” on page 12 for details on disabling VOX mode.The monitor battery is low. Plug in the monitor power adapter
The camera is not detected; “Out of Range” is shown on the monitor	Wrong channel selected. To change the channel, see “Changing Channels” on page 10.Make sure the camera is powered on.The camera and monitor may be out of range. Extend the antennas on the monitor or move the monitor and camera closer together.For optimal performance, avoid placing the monitor and camera near televisions, computers, cordless/mobile phones, or other electrical equipment.You may need to pair the camera and the monitor again. See “Pairing Additional Cameras” on page 13 for details.
Feedback / squealing noise coming from the monitor	Your camera and monitor may be too close to each other. Move them further apart.Press to lower the monitor volume.

ENGLISH

Need Help?

Product Support is available 24/7 including product information, user guides, quick start guides, and FAQ's at www.lorexbaby.com/support

CLEANING

Clean the monitor and camera with a slightly damp cloth or an anti-static cloth. Never use cleaning agents or abrasive solvents.

• Do not clean any part of the product with cleaners with thinners or other solvents and chemicals. This may cause permanent damage to the product, which is not covered by the Warranty. When necessary, clean it with a damp cloth.
• Keep your camera and monitor away from hot, humid areas or strong sunlight, and do not get it wet.
• Every effort has been made to ensure high standards of reliability for your baby monitor. However, if something does go wrong, please do not try to repair it yourself. Contact Customer Service for assistance.

DISPOSAL OF THE DEVICE

At the end of the product life cycle, you should not dispose of this product with normal household waste, but take the product to a collection point for the recycling of electrical and electronic equipment. The symbol on the product, user's guide, and/or box indicates this.

Some of the product materials can be re-used if you take them to a recycling point. By reusing some parts or raw materials from used products you make an important contribution to the protection of the environment.

Please contact your local authorities in case you need more information on the collection points in your area. Dispose of the battery pack in an environmentally-friendly manner according to your local regulations.

NOTICES

WARNING: Any changes or modifications not expressly approved by the grantee of this device could void the user's authority to operate the device.

FCC NOTICE

This equipment has been certified and found to comply with the limits regulated by the FCC part 15, subpart C. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception (which can be determined by turning the equipment on and off), the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna
- Increase the separation between the equipment and receiver
- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected
- Consult the dealer or an experienced radio or television technician for assistance

CAUTION: To maintain compliance with the FCC(IC)'s RF exposure guidelines, place the camera at least 20cm (7.87in) from nearby persons.

The video monitor has been tested and meets the FCC(IC) RF exposure guidelines when used with the belt clip supplied with or designated for this product. Use of other accessories may not ensure compliance with FCC(IC) RF exposure guidelines.

CANADA/IC NOTICE

This device complies with Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of the device.

Under Industry Canada regulations, this radio transmitter may only operate using an antenna of a type and maximum (or lesser) gain approved for the transmitter by Industry Canada. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that necessary for successful communication.

LOREX Baby

SWEET PEEK MINI MONITEUR VIDÉO POUR BÉBÉ

GUIDE DE L'UTILISATEUR

Version 1.0

Two white wireless home devices: a remote camera with antenna and a digital display showing a sleeping baby (no text or symbols visible on device body)

Mesures de sécurité

Simple line drawing of a plug connected to a cable, labeled 'Bloc d'alimentatio' (no other text or symbols)

Simple illustration of a cylindrical battery with a red wire and label 'Piles' (no additional text or symbols)

Line drawing of a vacuum cleaner connected to a power outlet cable (no text or symbols)

Technical line drawing of a mechanical component with a downward arrow indicating force or direction (no text or symbols)

Two electronic devices: a white LOREX Baby phone with antenna and a white LOREX Baby digital device displaying a photo of a sleeping baby (no visible text or symbols on device body)

Simple line drawing of a mobile phone charger with cable and connector (no text or symbols)

Simple line drawing of a plug connected to a cable (no text or symbols)

Line drawing of a vacuum cleaner connected to a power outlet cable (no text or symbols)

Line drawing of a mechanical device with a downward arrow indicating motion or force (no text or symbols)

Copyright © Lorex Technology Inc. 2013
