User Manual

D441 Series

Thank you for purchasing this product. Lorex Corporation is committed to providing one customer with a high quality, reliable security solution. This manual refers to the following models: D441A62T For the latest online manual, downloads and product updates, and to learn about our complete line of accessory products, please visit our website at:

lorex.com

WARNING

RISK OF ELECTRIC SHOCK DO NOT OPEN

WARNING: TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER. NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated 'dangerous voltage' within the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING: TO PREVENT FIRST OR SHOCK HAZARD, DO NOT EXPOSED THIS UNIT TO RAIN OR MOISTURE.

Table of contents

1 Important Safeguards 1

1.1 General Precautions.... 1
1.2 Installation 1
1.3 Service
1.4 Use 3

2 Package Contents.... 4

3 Recorder Overview 5

3.1 Front Panel 5
3.2 Back Panel 5

4 Basic System Setup.... 7

4.1 STEP 1: Connect cameras....7
4.2 STEP 2: Connect router 7
4.3 STEP 3: Connect mouse 7
4.4 STEP 4: Connect monitor 8
4.5 STEP 5: Connect power 8
4.6 STEP 6: Lorex Setup Wizard.... 9
4.7 STEP 7: Upgrade Firmware to Latest Version (If Available) 9
4.8 Quick Access to System Information....10

5 Camera Installation....11

5.1 Installation Tips 11
5.2 Ensuring Accurate Person/Vehicle Detection 11
5.3 Installing Cameras 12
5.4 Connecting Camera Extension Cables 13

6 Using the Mouse ....14

7 Using the On-Screen Display 15

7.1 Navigation Bar....15
7.2 Quick Menu 15
7.3 Camera Toolbar....16

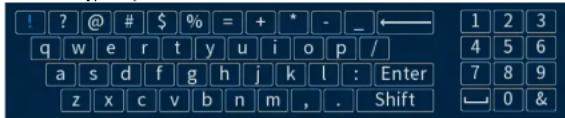

7.4 On-Screen Keypads 17

8 Recording 18

Table of contents

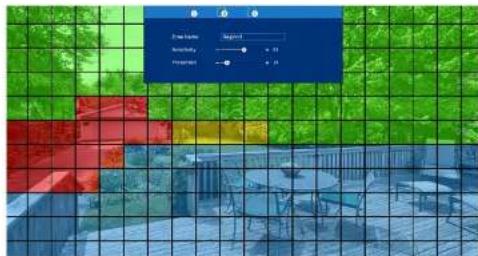

11 Motion Detection ....34

11.1 Configuring Motion Detection 34
11.2 Search for Person/Vehicle Detection Events 39

12 Active Deterrence....40

12.1 Automatic Deterrence Settings 40
12.2 Manually Activate Deterrence Features....42

13 Managing Passwords and User Accounts ....43

13.1 User Accounts 43

13.1.1 Changing Passwords 43
13.1.2 Adding Users....44
13.1.3 Modifying Users 45
13.1.4 Deleting Users 45

13.2 Account Groups 45

13.2.1 Adding Groups....45
13.2.2 Modifying Groups 46
13.2.3 Deleting Groups 47

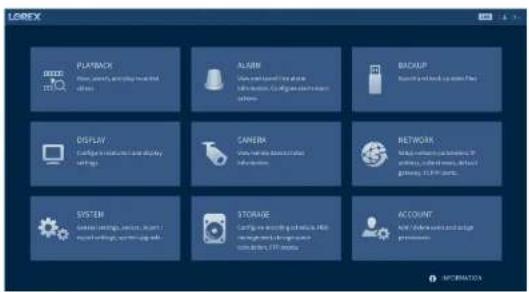

14 Using the Main Menu.... 48

14.1 Playback 48
14.2 Alarm 48

14.2.1 Searching Alarm Event Logs 48
14.2.2 Video Loss....49
14.2.3 System Warnings 50

14.3 Backup....52

14.4 Display....52

14.4.1 Setting the Recorder's Output Resolution....52
14.4.2 Listen-In Audio....52
14.4.3 Menu Transparency 53
14.4.4 General Display Settings 54
14.4.5 Customize Split-Screen Views....54
14.4.6 Configuring Sequence Mode....55

14.5 Camera....56

Table of contents

14.7.8 Upgrading Firmware Manually....69

14.7.9 Automatic Firmware Upgrades 70

14.8 Storage....70

14.8.1 Configuring Hard Drive Overwrite 70

14.8.2 Configuring Recording File Length....71

14.8.3 Configuring Pre-Recording 71

14.8.4 Setting the Snapshot Schedule 72

14.8.5 Formatting the Hard Drive 73

14.8.6 Configuring Hard Drive Type....73

14.8.7 Recording Calculator (REC Estimate)....74

14.8.8 FTP (Advanced) 75

14.9 Account....75

14.10 Information....75

14.10.1 Version Info 76

14.10.2 Log 76

14.10.3 Event Status Info 76

14.10.4 HDD Info 77

14.10.5 Online Users....77

14.10.6 Load 78

14.10.7 Network Test 78

14.10.8 BPS 79

14.11 Copying Settings to Another Channel....79

15 Connecting Remotely using the Lorex Home Mobile App ....80

16 Smart Home & Voice Assistance 81

17 Pan/Tilt/Zoom (PTZ) Cameras 82

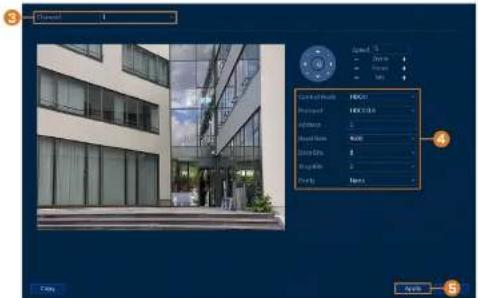

17.1 Connecting PTZ Cameras to the Recorder....82

17.2 Basic PTZ Controls 83

17.3 Advanced PTZ Controls....84

17.4 Presets 85

17.5 Tours 85

17.6 Patterns 85

Table of contents

22.6 Storage 102
22.7 Special Features 102
22.8 Smart Home 103
22.9 Connectivity 103
22.10 Additional Specifications 103

23 Notices 104

23.1 FCC/IC 104
23.2 CE 104
23.3 Modification 104
23.4 RoIIS 104
23.5 ICES-003 104

Important Safeguards1

In addition to the careful attention devoted to quality standards in the manufacturing process your product, safety is a major factor in the design of every instrument. However, safety is responsibility too. This sheet lists important information that will help to ensure your enjoyment proper use of the product and accessory equipment. Please read them carefully before operations and using your product.

1.1 General Precautions

1. All warnings and instructions in this manual should be followed.
2. Remove the plug from the outlet before cleaning. Do not use liquid aerosol detergents. U water-dampened cloth for cleaning.
3. Do not use this product in humid or wet places.
4. Keep enough space around the product for ventilation. Slots and openings in the storage net should not be blocked.
5. It is highly recommended to connect the product to a surge protector to protect from data caused by electrical surges. It is also recommended to connect the product to an uninterable power supply (UPS), which has an internal battery that will keep the product running, the event of a power outage.

CAUTION

Maintain electrical safety. Power line operated equipment or accessories connected to this product should bear UL listing mark or CSA certification mark on the necessary itself and should not be modified so as to defe safety features. This will help avoid any potential hazard from electrical shock or fire. If in doubt, contact q service personnel.

1.2 Installation

1. Read and Follow Instructions: All the safety and operating instructions should be read before the product is operated. Follow all operating instructions.
2. Retain Instructions: The safety and operating instructions should be retained for future reference.
3. Heed Warnings: Comply with all warnings on the product and in the operating instructions.

4. Polarization: Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other.

5. Power Sources: This product should be operated only from the type of power source indicated on the marking label. If you are not sure of the type of power supplied to your consult your video dealer or local power company. For products intended to operate from very power, or other sources, refer to the operating instructions.

6. Overloading: Do not overload wall outlets or extension cords as this can result in the risk of fire or electric shock. Overloaded AC outlets, extension cords, frayed power cords, damage or cracked wire insulation, and broken plugs are dangerous. They may result in a shock hazard. Periodically examine the cord, and if its appearance indicates damage or deteriorating insulation, have it replaced by your service technician.
7. Power-Cord Protection: Power supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them. Pay particular attention cords at plugs, convenience receptacles, and the point where they exit from the product.
8. Surge Protectors: It is highly recommended that the product be connected to a surge pro tor. Doing so will protect the product from damage caused by power surges. Surge prot should bear the UL listing mark or CSA certification mark.
9. Uninterruptible Power Supplies (UPS): Because this product is designed for continuous, 2-7 operation, it is recommended that you connect the product to an uninterruptible power supply. An uninterruptible power supply has an internal battery that will keep the product in the event of a power outage. Uninterruptible power supplies should bear the UL listing mark or CSA certification mark.
10. Ventilation: Slots and openings in the case are provided for ventilation to ensure reliable operation of the product and to protect it from overheating. These openings must not be b/c covered. The openings should never be blocked by placing the product on a bed, sofa, other similar surface. This product should never be placed near or over a radiator or heater. This product should not be placed in a built-in installation such as a bookcase or less proper ventilation is provided and the product manufacturer's instructions have been followed.
11. Attachments: Do not use attachments unless recommended by the product manufacturer a they may cause a hazard.
12. Water and Moisture: Do not use this product near water — for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement, near a swimming pool and
13. Heat: The product should be situated away from heat sources such as radiators, heat registers, stoves, or other products (including amplifiers) that produce heat.
14. Accessories: Do not place this product on an unstable cart, stand, tripod, or table. The product

1.3 Service

1. Servicing: Do not attempt to service this product yourself, as opening or removing covers may expose you to dangerous voltage or other hazards. Refer all servicing to qualified s personnel.

2. Conditions Requiring Service: Unplug this product from the wall outlet and refer servicing to qualified service personnel under the following conditions:

3. When the power supply cord or plug is damaged.

4. If liquid has been spilled or objects have fallen into the product.
   • If the product has been exposed to rain or water.
   • If the product has been dropped or the cabinet has been damaged
5. If the product does not operate normally by following the operating instructions. Adjustly those controls that are covered by the operating instructions. Improper adjustment of er controls may result in damage and will often require extensive work by a qualified

6. When the product exhibits a distinct change in performance. This indicates a need for service.

7. Replacement Parts: When replacement parts are required, have the service technician verify that the replacements used have the same safety characteristics as the original parts. Use placements specified by the product manufacturer can prevent fire, electric shock, or other hazards.

8. Safety Check: Upon completion of any service or repairs to this product, ask the service technician to perform safety checks recommended by the manufacturer to determine that the act is in safe operating condition.

1.4 Use

1. Cleaning: Unplug the product from the wall outlet before cleaning. Do not use liquid cleaners
2. Product and Cart Combination: When product is installed on a cart, product and cart condition should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the product and cart combination to overturn.
3. Object and Liquid Entry: Never push objects of any kind into this product through open as they may touch dangerous voltage points or "short-out" parts that could result in a f

Package Contents2

Your security recorder package includes the following components:

1080p HD Security DVR Power Adapter Ethernet Cable USB Mouse HDMI Cable

NOTE Hard drive size, number of channels, and camera configuration may vary by model. Please refer to your pack for specific details. Check your package to confirm that you have received the complete system, including all packets shown above.

Recorder Overview3

3.1 Front Panel

Diagram of a black electronic device with labeled ports and indicators, showing ports 1, 2, and 3.

1. LED Indicators:

2. IIDD: Glows to indicate hard drive is in normal state. Turns off when there is a drive error.
   • POWER: Glows to indicate the system is on.
   • □□NETWORK: Glows when network is in normal state. Turns off when there is a work error.

3. Info / Panic Button:

• From live view, press once to open the System Information screen.
- Press and hold for 3 seconds to activate the warning lights and sirens on all connection cameras.

1. USB Port: Connect a USB mouse (included) to control the system, or a USB flash drive (included) for data backup or manual firmware updates.

3.2 Back Panel

Recorder Overview3

1. USB Port: Connect a USB mouse (included) to control the system, or a USB flash drive (included) for data backup or manual firmware updates.
2. DC 12V: Connect the included power adapter.
3. ON/OFF Switch: Turns the DVR on/off.
4. VGA: Connect a VGA monitor (not included) to view the system interface.

Basic System Setup4

4.1 STEP 1: Connect cameras

Test your cameras prior to selecting a permanent mounting location by connecting the camera and cables to your recorder locally. Push and twist the BNC connector clockwise to secure the BNC port.

NOTE

This step is for verification of the camera image only. It is recommended to connect cameras to a nearby p adapter for this step. The Lorex Setup Wizard that runs at startup will assist you in naming and organizing cameras, so it is also recommended to leave cameras connected until the wizard asks you to install cameras permanent mounting location.

Wireless surveillance camera connected to a device via cable, with power outlet and switch visible (no text or symbols)

NOTE

- Before selecting a permanent mounting location for your cameras, see 5 Camera installation, page 11 for important notes and installation tips. - The extension cable must be a single stretch of cable between the recorder and camera. You cannot come multiple extension cables to each other.

4.2 STEP 2: Connect router

Connect the recorder to your router using the included Ethernet cable.

Basic System Setup4

Diagram showing a computer mouse connected to an external network device with ports and cables (no text or symbols visible)

4.4 STEP 4: Connect monitor

Connect the recorder to a monitor using the included HDMI cable (supports up to 4K resol

Two connected devices: a monitor and a network device with ports and cables (no visible text or symbols)

OR

Connect the recorder to a monitor using a VGA cable (not included - supports up to 1080 resolution).

Two electronic devices: a desktop computer and a black server with ports and indicator lights (no visible text or symbols)

Basic System Setup4

Two connected devices: a white power outlet and a black router with USB ports (no visible text or symbols)

4.6 STEP 6: Lorex Setup Wizard

When you first power up your recorder, the Lorex Setup Wizard will begin. The Wizard w you configure core system settings and set up your cameras. It is recommended to review 5 era Installation, page 11 before choosing a permanent mounting position for your cameras.

NOTE For detailed mounting instructions for your particular camera model, refer to your camera's document lanes.com.

You will also create a password that will be used to access the unit from now on. For finance, it is recommended that you record your password in a secure location.

Basic System Setup4

4.8 Quick Access to System Information

Perform one of the following actions to bring up the system information window. This wind contains vital system information including the model number, serial number, and device ID.

Device ID: L17620000000000 Device Model: DB4A8 Firmware Version: 5000B IP Version: 3.2.7.2017 Build Date: 01-04-2019 SN: 4L085014272047 IP Address: ELEPT23.154 MAC Address: 3x14x14x14xRS1 Domain Name: DOSS Setup in not available 1000 Capacity: 5G10826 Video Provider: NTSC Client Port: 55000 HTTP Port: 80

To quickly open a window that displays important system information:

• From the Live View display, right-click to open the Quick Menu, then click Info. OR
• Press the front panel button on the recorder.

NOTE Do not press and hold the button. The front panel button doubles as a panic button that activates warm in and cirrus for deterrence cameras if held for 3 seconds.

Camera Installation

The following chapter provides general setup instruction and installation tips for security came. Ensure that you review 5.2 Ensuring Accurate Person/Vehicle Detection, page 11 for channels you are planning to use Person/Vehicle detection on.

NOTE

Cameras differ in terms of mounting instructions. Please see your camera's documentation at lorex.com for specific installation instructions.

5.1 Installation Tips

General camera installation tips that apply to all camera models. Please review before selecting permanent mounting location for your cameras.

• Test the cameras before permanent installation. Plan where you will route the wiring for a camera and where you will aim the camera.
• Point the camera where there is the least amount of obstructions (e.g., tree branches).
• Mount the camera where the lens is away from direct and intense sunlight.
• Plan your cable wiring so that it does not interfere with power lines or telephone lines.
• Secure cabling so that it is not exposed or easily cut.
• Mount the camera in an area that is visible, but out of reach.
• Avoid pointing the camera at a glass window to see outside. This may result in a bright ring in the night vision image, as the light from the night vision LEDs may reflect off
• Adjust the camera angle so that it covers an area with high traffic.
• In "high-risk" locations, have multiple cameras point in the same area. This provides came redundancy if a vandal attempts to damage one of your cameras.
• For outdoor rated cameras, installation in a sheltered location is recommended to ensure the camera lens remains clear of rainwater and other precipitation.

5.2 Ensuring Accurate Person/Vehicle Detection

The following are important camera installation notes to ensure accurate Person/Vehicle detecti For full camera mounting instructions, see your camera's documentation at lorex.com.

- Choose a location where objects of interest will be no further than 50ft (\~15m) from the camera.

a 1 a d a l . 1 + . b + . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Pure diagram of a mechanical or architectural component with green arrows indicating direction, no text or symbols present.

• Install the camera between 8-16ft (2.5-5m) off of the ground.

NOTE

Accuracy of Person/Vehicle detection will be influenced by multiple factors, such as the object's distance from camera, the size of the object, and the height and angle of the camera. Night vision will also impact the a of detection.

5.3 Installing Cameras

1. Mount the cameras to the desired mounting surface according to the instructions that cam with the cameras (visit lorex.com for the most up-to-date documentation). Choose a firm mounting surface that can support the full weight of the camera.

NOTE

If you wish to mount cameras to drywall, it is recommended to use the included drywall anchors.

1. Adjust the camera stand to ensure that the camera has a satisfactory view of the area y would like to monitor. Stand configuration depends on the mounting surface you have ch (see below for suggested stand configurations).

5.4 Connecting Camera Extension Cables

The extension cable must be a single stretch of cable between the recorder and camera. Yo connect multiple extension cables to each other. For all extension cable options, including maximum extension cable length, refer to your camera's documentation at lorex.com.

1. Connect the male power connector on the BNC extension cable to the female power con on the camera. Connect the BNC connector to the camera.
2. Connect the female power connector on the BNC extension cable to the power adapter.
3. Connect the BNC connector to one of the Video Input ports on the rear panel of the recorder.
4. Plug the camera power adapter to a power outlet.

Using the Mouse6

The mouse is the primary control device for the system. Connect the included mouse to the port on the front or rear panel.

1 2 3

1. Left-button:

- In live view, while in a split-screen display mode, click an individual channel to view full-screen. Click again to return to the split-screen display mode. - While navigating menus, click to open a menu option.

1. Right-button:

- During live view, right-click anywhere on the screen to open the Quick Menu. - Within system menus, right-click to exit menus.

1. Scroll wheel: In live view, use the scroll wheel to zoom in/out.

Using the On-Screen Display

Use the system's on-screen display to navigate menus and configure options and settings.

NOTE To access the on-screen display, you must connect the included mouse and a monitor (not included) to the i See 4 Basic System Setup, page 7 for full instructions.

7.1 Navigation Bar

The Navigation Bar along the bottom of the recorder's Live View display allows you to act the Main Menu and control basic functions of the recorder.

To show the Navigation Bar:

• Hover the mouse pointer near the bottom of the Live View screen.

NOTE You can also lock the Navigation Bar to have it displayed at all times. See below for details. 1 2 3 4 5 6 7 8 9 10 11 12 03-07-2019 05:36:02PM

1. Main Menu: See 14 Using the Main Menu, page 48 for full instructions on using the Main Menu.
2. Viewing Modes: Select how many channels are shown on screen during live viewing.
3. Previous / Next Channel(s): Display previous / next channel(s) in single or quad channel viewing mode.
4. Sequence Mode: Start or stop Sequence Mode. In Sequence Mode, the system display will automatically cycle through connected channels every few seconds.
5. Playback: Opens the Playback Menu. This allows you to search for video recordings save on the recorder's hard drive. For details on using the Playback menu, see 9 Playback.
6. Information: Displays system information, such as model number, device ID, IP address,

• Right-click anywhere on the Live View screen.

Main Menu Playback Pan/Tilt/Zoom View 1 View 4 View 8 View 9 Previous Channel(s) Next Channel(s) Info Sequence Disable Beep Manual Record Image Settings

1. Main Menu: See 14 Using the Main Menu, page 48 for full instructions on using the Main Menu.
2. Playback: Opens the Playback Menu. This allows you to search for video recordings saw on the recorder's hard drive. For details on using the Playback menu, see 9 Playback.
3. Pan/Tilt/Zoom: Control and configure settings for Pan-Tilt-Zoom (PTZ) cameras. For full instructions on connecting and using PTZ cameras, see 17 Pan/Tilt/Zoom (PTZ) Cameras, page 82.
4. Viewing Modes: Select how many channels are shown on screen during live viewing.
5. Previous / Next Channel(s): Change the display to the previous / next channel(s).
6. Info: Displays system information, such as model number, device ID, IP address, etc.
7. Sequence: Start or stop Sequence Mode. In Sequence Mode, the system display will automatically cycle through connected channels every few seconds.
8. Disable Beep: Temporarily disable the current audible warning.

NOTE Audible warnings can be given for a wide range of events, such as hard drive issues, network connectivity, motion detection events and more. Disabling the current audible alarm using the Quick Menu will silence

1. Instant Playback: Plays back recent video from the selected channel. By default, instant playback is set to play the last 5 minutes of recorded video. See 14.7.1 Configuring General tem Settings, page 64 to set a custom playback length.
2. Digital Zoom: Click to enable digital zoom. Click-and-drag over the camera image to zoo in on the selected area. Right-click to return to the full camera image. You can then re zoom in on a different area, or click the icon again to disable zoom.
3. Real-time Backup: Click to start recording the current channel manually. Click again to a recording and save the video file to a USB flash drive (not included).
4. Snapshot: Save a snapshot of the current camera image to a USB flash drive (not include 5. Mute/Unmute: Click to mute/unmute listen-in audio.
5. Warning Light — Deterrence Cameras Only: Click to manually turn on the camera's warning light for 10 seconds.
6. Siren — Deterrence Cameras Only: Click to manually turn on the camera's siren for 10 seconds.

7.4 On-Screen Keypads

The Full Keypad is used to input alphanumeric characters, such as in user name or password fields. The Number Keypad is used to input numeric characters only, such as in the time of fields.

To use the Full Keypad:

- Using the mouse, click on a field where alphanumeric characters are entered, such as the name and password fields.

• The Full Keypad opens:

! ? @ # $ % = + * - _ ← q w e r t y u i o p / a s d f g h j k l : Enter z x c v b n m , . Shift 1 2 3 4 5 6 7 8 9 ← 0 &

• Click Shift to switch between uppercase and lowercase characters.
  • Right-click to close the Full Keypad.

Recording

By default, the system is set to immediately record video from connected cameras continuous 24 hours a day. You can customize the recording settings according to your needs.

8.1 Video Recording Types

The system supports the following recording types:

• Continuous recording: Normal, continuous recording. A icon is shown in the bottom left-hand corner of the camera image when continuous recording is in progress.
• Motion recording: Motion-triggered video recording. A icon is shown in the bottom left-hand corner of the camera image when motion is detected.

8.2 Configuring Recording Quality

The system uses two video recording streams: a Main Stream and a Sub Stream. The Main Stream records high quality video to your system's hard drive. The Sub Stream records low lution video for efficient streaming to devices over the Internet. You can customize the vide ity settings for these streams according to your needs.

To configure recording quality:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click CAMERA. Click the RECORDING tab on the side panel, then Recording on the top panel.

Size Settings Super Size Type: Creatinizer Composition: 14.000 Resolution: (1000x1000x1000) Trade Type: CNT Trade Type: CNT Trade Count: 268 Trade Date: 2013 Sub-Size Type: Sub-Value Composition: 14.000 Resolution: (57.718x495) Trade Type: CNT Trade Type: CNT Trade Count: 268 Trade Date: 2013 Audio Setting Audio Setting

Recording8

1. Configure the following settings. Except where noted, options for Main Stream and Sub Stream are the same:

- Super Codec: (Main Stream only) Click to create (i) / disable (j) Super Codec. This setting will help reduce system requirements for unimportant recordings to maximize hard drive storage.

- Video: (Sub Stream only) Click to enable ( ) / disable ( ) Substream video.

CAUTION

Disabling Substream video will prevent you from viewing the system remotely over the Internet. You should disable the Substream only if you plan on viewing and configuring the system locally.

• Type: For the Main Stream, you can set different recording quality settings for Continuous, MD (Motion Detect), and Alarm recording. Select the type of recording you want to
• Resolution: Select the resolution the selected camera will be recorded at. Higher resolutions create a more detailed image, but take up more hard drive space to record and more bandwidth to stream to connected computers or mobile devices.
• Frame Rate (FPS): Select the frame rate in Frames Per Second (FPS) that each stream record at. A higher frame rate provides a smoother picture, but will require more stop and bandwidth.
• Bit Rate Type: Select CBR (Constant Bit Rate) or VBR (Variable Bit Rate) to determine the bit rate type. If you select VBR, select the Quality from 1 (lowest) to 6 (highest).
• Bit Rate (Kbps): Select the bit rate for each recording stream. Higher hit rates provide ter image quality, but will require more storage and bandwidth.

5. Click Apply.

1. (OPTIONAL) Click Copy to apply the settings for the current channel to one or more other channels (see 14.11 Copying Settings to Another Channel, page 79 for full instructions on ing the copy function).

8.3 Setting the Recording Schedule

Recording8

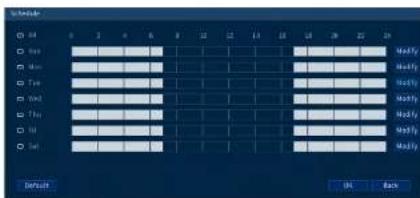

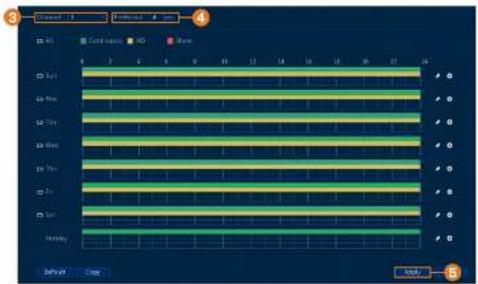

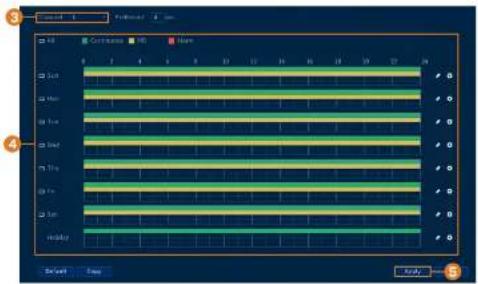

1. Click STORAGE. Click the SCHEDULE tab on the side panel, then Record on the top panel.

3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1. Under Channel, select the channel you would like to configure or select All.

2. Configure the schedule as needed:

3. Check Continuous, MD (Motion Detection), or Alarm to select the recording type you would like to configure.

4. Click-and-drag on each day to customize the recording schedule. The schedule is set up a grid, which each block representing one hour.
5. Click beside 2 or more days to link schedules ( ). This allows you to quickly change multiple schedules at once.
   • To make line adjustments to a schedule, this will allow you to set exact start and end times for a schedule.
   • To disable all recording of the selected type on the selected mode, click

Recording8

To set options for manual recording:

1. From the Live View display, right-click to open the Quick Menu, then click Manual Re

RECORD Main Universe: All 1 2 3 4 5 6 7 8 Auto Manual Map Top Drawn Auto Manual Map Drawn Drawn Drawn Drawn Apply Help

1. Under Main Stream, select how the system will record the Main Stream for each channel

• Auto: Main Stream recording will follow the recording schedule.
- Manual: The system will record the Main Stream continuously as long as this option checked.
- Stop: The system will not record the Main Stream for this channel. This option is no recommended.

1. Under Sub Stream, select how the system will record the Sub Stream for each channel.

• Auto: Sub Stream recording will follow the recording schedule.
- Manual: The system will record the Sub Stream continuously as long as this option is checked.
- Stop: The system will not record the Sub Stream for this channel. This option is not recommended.

1. Under Snapshot, select Enable to enable snapshot recording on each channel. Or, select Disable to disable snapshot recording.

5 Click Ann

Recording8

1. Click Apply.

Playback

Search through and playback recorded video files on the system.

9.1 Playing Back Video from the Hard Drive

To play back recorded video:

1. From the Live View display, right-click to open the Quick Menu, then click Playback.

Screenshot of a video editing software interface with timeline, layers, and control panels labeled in Chinese

1. Use the calendar on the right to select the day to playback.

2. Check the channels you want to play back. Click the icons to the right of each channel to choose the video quality for Main Stream, for Sub Stream).

3. Click inside the video bar to select the playback time. The system will begin playing bc co from the selected time.

9.2 Playback Controls

Playback9

1. Viewing Modes:

• Bookmark List: Shows all bookmarked recordings for a single channel on the selected date.
- File List: Shows all available recordings for the selected date and channel(s) in format.
• ✗ Fullscreen: Shows video in fullscreen. Right-click to return to split-screen viewing

1. Zoom Playback Bar: Select the scope of the playback bar.
2. Recording Type Filters: Click to show/hide recording types.

3. Playback Bar: Click inside the bar to select a playback time.

4. Playback Controls:

• / Play / Pause
- Stop
• Play Backwards
• Previous Frame: Go to the previous frame when video is paused.
• Next Frame: Go to the next frame when video is paused.
- Slow Playback: Click repeatedly to slow the video down by half speed up to 16: slower than normal. Click again to return to regular speed.
- Fast Playback: Click repeatedly to double the speed of the video up to 16× fast normal. Click again to return to regular speed.
• Volume / Mute: Hover over to reveal the volume bar, where you can set the vol for audio in playback. Click to mute/ummute.

NOTE

Audio recording must be enabled to capture audio in playback recordings. For full instructions on ebling audio recording, see 18 Connecting Audio Devices, page 87.

To hear recorded audio, you must be viewing an audio enabled camera in single channel. You must so be using an HDMI monitor with built-in speakers, or connect an external speaker to the record order to hear audio.

- Digital Zoom: Click to enable digital zoom. Click-and-drag over the camera image to zoom in on the selected area. Right-click to return to the full camera image. You can repeat to zoom in on a different area, or click the icon again to disable zoom.

Playback9

9.3 Playing Back Video from a USB Drive

If you have video files saved to a USB flash drive (not included), you can play them back the system.

For full instructions on backing up video to a USB flash drive, see 10 Backup, page 29.

To play back video from a USB flash drive:

1. Connect the USB thumb drive (not included) with video files on it into a free USB po recorder.

2. From the Live View display, right-click to open the Quick Menu, then click Playback

Screenshot of a video editing software interface with timeline controls and playback controls

1. Click the dropdown and select From IO Device.

Exterior view of a modern building with green leafy plants and curved roof (no signage or text visible)

Playback9

To perform a Smart Search:

1. From the Live View display, right-click to open the Quick Menu, then click Playback.

Screenshot of a video editing software interface with timeline, layers, and control panels labeled in Chinese

1. Use the calendar on the right to select the day to playback.
2. Check a single channel you want to play back. Click the icon to the right of the channel to choose the video quality (for Main Stream, for Sub Stream).
3. Click inside the video bar to select the playback time. The system will begin playing because from the selected time.
4. Click to configure an area for Smart Search.
5. The camera image appears with a grid overlay. Click or click-and-drag to add / remove from the grid. Solid blue areas mark the area of the image that will be searched for n events.
6. Click to begin Smart Search.

9.5 Video Clip Backup

Playback9

1. Use the calendar on the right to select the day to playback.

2. Check the channels you want to play back. Click the icons to the right of each channel to choose the video quality for Main Stream (for Sub Stream).

3. Click inside the video bar to select the playback time. The system will begin playing basic co from the selected time.

Screenshot of a video editing timeline interface with numbered UI elements and track controls

1. Click mark the beginning of the video clip, then click again to mark the end of the eo clip.

2. Click to open the backup menu.

BIOPIP File Format Name Type) Left Space/Total Space Device Status J Web (25.00 GB) 7.42 GB/7.09 GB Ready J Web Type Start Time End Time Save(R) J Web C 04:00:2020/04/23:59 PM 04:00:2020/04/24:59 PM 11:36 Backup

1. Select a filetype for your backup file.

Backup

Backup video files to external USB flash drive (not included).

10.1 Formatting the USB Flash Drive

It is recommended to format your USB thumb drive (not included) before using it with the

Prerequisite:

- Connect a USB flash drive (not included) to a free USB port on the unit.

To format a USB flash drive:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click BACKUP.

File Name: 10.3176.128 Format: 1.4 (2) / 10.3176.128 (New Text) File Edit Remove Process ID: 1 Type HD Start Time: 03:26:2019 12:30:30 AM Full Time: 03:26:2019 12:30:30 AM File Format: All Add Bonus 1 - Channel Type Start Time End Time Size(S) 1 - 0 10.3176.128 (New Text) 03:26:2019 (New Text) 2500 1 - 0 10.3176.128 (New Text) 03:26:2019 (New Text) 2500 1 - 0 10.3176.128 (New Text) 03:26:2022 (New Text) 38.00 Ttl:534/Boxx/Normal Back

1. Click Format next to the Device Name.
2. Select a format mode:

Backup10

1. Click BACKUP.

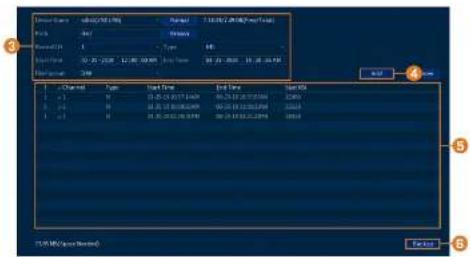

D:\Users\Name: cd02\7011799\Format: 1.0000 (2.0000/8.0000/Total) File Edit View Insert Pass Apply Print Pass Print Pass Print Pass Print Add Create 1 - [C:\Users\Name] Type Start Date End Date Save Date 1 - <1> H 03.25.12.2017.14.24 06.25.12.2017.15.24 22.800 1 - <2> H 03.25.12.2018.06.24 06.25.12.2018.15.24 22.819 1 - <3> H 03.25.12.2019.16.24 06.25.12.2019.16.24 22.834 T:\MSCI\Current\Reported Exit

1. Configure the following:

2. Device Name: Select the USB device you would like to back up files to.
   • Path: Click Browse to locate a folder path on the USB drive to save your files to.

3. Record CH: Select the channel you would like to search or select All to search all
   channels.
4. Type: Select the recording type you would like to search for or select All to search all re-
   cording types
5. Start Time / End Time: Select the start and end time for your search.

6. File Format: Select DAY to save files to save files to .day format. You can playback .day
   files using the Lorex video player software.

7. Click Add. A list of files that match your search criteria appears.

8. Check files you would like to backup.

9. Click Backup

NOTE

HD video file saved on the custom movie take on a large amount of debt, except. The size of video file

Backup10

1. Double-click one of the files on the left to begin playback.

Screenshot of a photo editing software interface showing a landscape photo with a blue lake and garden pavilion (no text or symbols visible)

OR

Click to open a back up video file in another location

1. Use the Lorex Player controls to control playback or select other files for playback.

NOTE

For a full overview of Lorex Player controls, see 10.4.3 Lorex Player Controls, page 32.

10.4.2 Viewing Backed Up Files on Mac

1. Download and install the Lorex Player for Mac from the recorder's product page at lorex.com
2. Double-click the downloaded file in Safari to extract the Lorex Player app file.
3. Drag the Lorex Player app to your Desktop or Applications list. Double-click Lorex Player to open the application.
4. Double-click one of the files on the left to begin playback.

Backup10

1. Use the Lorex Player controls to control playback or select other files for playback.

NOTE

For a full overview of Lorex Player controls, see 10.4.3 Lorex Player Controls, page 32.

10.4.3 Lorex Player Controls

1. File List: Double-click to open a file.
2. Viewing Mode: Select between single-channel viewing and various split-screen options.
3. Hide/Show File List
4. Playback Controls:

E-21

Backup10

1. Display Area: Double-click a video file to expand. Click the controls inside the display area to do the following:

• View information about the video file.
• Start/slop a manual recording from the video file.
• Take a snapshot from the video file.
- ✗: Close the video file.

1. Add Files: Click to open backed up video files.
2. Export Files: Export a video file to a different format.
3. Digital Zoom: Click, then click-and-drag over a camera image to zoom in. Right-click to turn to the full image.
4. Drag: Click, then click-and-drag to move around a camera image that has been digitally zoomed in.
5. Fullscreen: Click to open the player in full screen. Press ESC to exit full screen.
6. Settings: Click to open the configuration menu for the player. From here you can control the default file formats and save locations for snapshots and control the aspect ratio.

LOREX File Name: 10.0000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000000 File Region: Size: 54 Size: 24 Color: Red Color Field: Color Mode: Color Color: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: Color Value: ColorValue

Motion Detection11

In addition to general motion detection, the system supports smart Person/Vehicle detection. B types of detection can be configured using the menu shown below.

11.1 Configuring Motion Detection

Set preferences for motion detection on each channel, and select channels you want to enable smart Person/Vehicle detection on.

CAUTION A maximum of 4 channels will support Person/Vehicle detection at once. By default, channels 1-4 hicle detection enabled.

To configure motion detection:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click ALARM. Click the MOTION tab on the side panel, then Motion Detect on the top panel.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1. Select a channel to configure motion detection for.

2. Click to enable (☐) / disable (☐) motion detection on the selected channel.

Motion Detection11

1. Click Setup next to Area to configure which areas of the image will be enabled for motion detection. A grid will appear on the monitor:

Select Image Select Image Preview Preview Preview

• The camera image appears with a red grid overlay. This means the entire image is set for motion detection.
• Click or click-and-drag to add / remove boxes from the active area. Cells that have I moved from the active area appear green.

• Hover near the top of the image to reveal zone selection. You can set up to 3 diff with different sensitivity and threshold values.
  • Right-click when finished.

• Click Setup next to Schedule to choose which days and times of the week to enable motion detection:

Setup Add 0 2 4 6 8 10 12 14 16 18 20 22 24 Add Add Time Time Modify Modify Modify Modify Modify

Motion Detection11

1. Choose how the system will react when motion is detected:

Show Message Record Channel PTZ Activation Sequence Snapshot Buzzer Send Email 2 3 4 5 6 7 8 Setup Post_REC 10 sec.

• Show Message: Check to enable an on-screen pop-up when one of your cameras detect motion. On-screen pop-up shows the channels an event occurred on and the type of c
• Send Email: Check to enable email alerts. You must configure email alerts before you be able to receive them (see 14.6.3 Configuring Email Alerts, page 61).
• Record Channel: Select the channels that will record when motion is detected on the elected channel. Set the length of recording following a video loss event in the Post_I field.
• PTZ Activation: Set connected PTZ cameras to start a tour, pattern, or go to a prese location.
• Sequence: Sequence mode will begin. Select the numbered tiles next to this option to clude the corresponding channels in the sequence.
• Snapshot: Select the numbered tiles next to this option to save a snapshot of the corresponding channels.
• Buzzer: Check to enable the system buzzer.

Motion Detection11

1. Click Smart Motion Detection to enable Person/Vehicle detection:

NOTE.

See 5.2 Ensuring Accurate Person/Vehicle Detection, page 11 for important camera installation notes related to channels with Person/Vehicle detection enabled.

Motion Detection11

Motion Detection11

- Click Enable to activate Person/Vehicle detection on the selected channel.

CAUTION

A maximum of 4 channels will support Person/Vehicle detection at once. By default, channels 1-4 have Person/Vehicle detection enabled.

• Select a Sensitivity level (a high sensitivity value will detect smaller objects than a lo value).
• Check Person/Vehicle.

• Click OK when finished.

• Click Apply

• (OPTIONAL) Click Copy to apply the settings for the current channel to one or more other channels (see 14.11 Copying Settings to Another Channel, page 79 for full instructions on ing the copy function).

11.2 Search for Person/Vehicle Detection Events

Search for Person/Vehicle detection on a specific channel or the entire system. You can also choose to back up events (USB flash drive required - not included).

To search for Person/Vehicle detection events:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click ALARM. Click the SMART SEARCII tab on the side panel, then SMD on the top panel.

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

Active Deterrence12

Lorex Active Deterrence cameras feature bright, customizable warning lights and remote-trigger sirens. The recorder allows you to customize automatic light-triggering when motion is detected to deter intruders (see 12.1 Automatic Deterrence Settings, page 40). You can also trigger the lights and sirens manually using the recorder or Lorex connectivity software (see 12.2 Manual Activate Deterrence Features, page 42).

For a complete list of compatible deterrence cameras, navigate to your recorder series at lorex.com/compatibility.

Exterior view of a white surveillance camera (no visible text or symbols)

12.1 Automatic Deterrence Settings

Set preferences for automatic warning light triggering on compatible Lorex deterrence cameras.

To configure deterrence settings:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click ALARM. Click the MOTION tab on the side panel, then Deterrence on the top panel.

Active Deterrence12

1. Click Setup next to Warning Light to configure preferences:

Warning Light Settings Duration 30 sec. Warning Light Stride Stride Frequency Low Refresh Apply Cancel

• Duration: Choose how long the warning light will stay on when motion is detected.
- Select Warning Light for a solid white light, or Strobe for a flashing light. If you select Strobe, set how quickly the light will flash under Strobe Frequency.

1. Click Setup next to Area to set an active area for automatic deterrence.

Outdoor garden scene with green patio, table, and fence under a grid overlay (no text or symbols visible)

Active Deterrence12

1. Click Setup next to Schedule to set the weekly schedule for automatic deterrence.

Standard 0 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 Top Down Up Up Down Up Down Up Down Set Default OK Back

• The default schedule is active during the night, between 5pm and 7am.
- Click Modify to change the schedule for the corresponding day of the week.
- Click OK when finished.

12.2 Manually Activate Deterrence Features

The system has multiple options for activating deterrence features.

To activate deterrence features on a single camera:

- Hover the mouse pointer near the top of the camera image in Live View to reveal the Toolbar. Click to activate the warning light or to activate the siren.

- Activate deterrence features using the Lorex Home app. For details, see 15 Connecting Remotely using the Lorex Home Mobile App, page 80.

To activate deterrence features on all connected cameras:

- Push and hold the front panel panic button on the recorder for 3 seconds.

Managing Passwords and User Accounts

Passwords are enabled by default and are required to access the Main Menu or connect to them using a computer or mobile device. You will be prompted to create a custom password you connect for the first time.

13.1 User Accounts

The system includes the following default accounts:

• admin: The administrator account has full access to the system, may configure all system tings, and can manage user accounts.
• user: User accounts are secondary accounts which can be assigned limited access to system settings and camera feeds.

13.1.1 Changing Passwords

You can change the system password of the administrator and user accounts.

To change an account password:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click ACCOUNT, then click the USER tab.
3. Click next to the account you want to change the password for

Modify User User Name: 40015 Modify Password: Out Password: ********** New Password: ********** Confirm Password: ********** User ID: 1234567 Group: admin Name: admin@user Auditing: Save Modify Cancel

Managing Passwords and User Accounts13

13.1.2 Adding Users

You can allow multiple users to log in to the system. When adding different users, you can what menus they have access to. For example, you may want your friend to monitor your while you are away, while not giving full access to your system.

To add a user:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click ACCOUNT, then click the USER tab.

Username Group Name Modality Delete Dataset NEC Address Profile user1 user2 user3 user4 user5 user6 user7 user8 user9 user10 user11 user12 user13 user14 user15 user16 user17 user18 user19 user20 user21 user22 user23 user24 user25 user26 user27 user28 user29 user30 user31 user32 user33 user34 user35 user36 user37 user38 user39 user40 user41 user42 user43 user44 user45 user46 user47 user48 user49 user50 user51 user52 user53 user54 user55 user56 user57 user58 user59 user60 user61 user62 user63 user64 user65 user66 user67 user68 user69 user70 user71 user72 user73 user74 user75 user76 user77 user78 user79 user80 user81 user82 user83 user84 user85 user86 user87 user88 user89 user90 user91 user92 user93 user94 user95 user96 user97 user98 user99 user100

3. Click Add User

FASUser User Name: LANTANA Processed: ******** Name: ******** Group: admin Time Period: Setup User MAC

1. Configure the following:

2. User Name: Enter a name for the user account.

3. Password: Enter a password for the user account. Enter the password again under Con-
   firm Password.
4. Memo: (Optional) Enter a description of the user account.
   • Group: Select the group you would like to assign to this user account. A user accou
   not be given permissions its group does not have.
5. Multiuser: Check to enable this user account to be used to login from more than on
   vice at the same time.
   • Authority: Check the permissions you would like the user account to have. Under the Sys-
   tem tab, select the menus the user account may access. Under the Playback tab, select
   which channels the user account may access recorded video from. Under the Covert t
   select the channels the user account may view live video from.

6. User MAC: Not supported — leave blank.

7. Click OK

NOTE

Now, you can log in to the system locally, or remotely using the user name and password y logging into the system with a user account, the user will only have access to the menus you

13.1.3 Modifying Users

Modify account details, such as account username or permissions.

To modify a user:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu

2. Click ACCOUNT, then click the USER tab.

3. Click next to the account you want to modify.

4. Update account details as needed, then click OK.

13.1.4 Deleting Users

n

Managing Passwords and User Accounts13

To add a group:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click ACCOUNT, then click the GROUP tab.

2 Group Name Ready OK Pass 1 Action ✓ ■ interpersonal pick 2 View ✓ ■ end pick NEW Drop

3. Click Add Group.

Modify Group Group name: Name: user group Authority System Playback Cancel All Account Storage Security System Event Security Info Network Device Maintenance Manual Control COMB COMB

Managing Passwords and User Accounts13

1. Update group details as needed, then click OK.

13.2.3 Deleting Groups

Remove a group.

To delete a group:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu

2. Click ACCOUNT, then click the GROUP tab.

3. Click next to the group you want to delete.

4. Click OK

Using the Main Menu14

To access the main menu:

- From the Live View display, right-click to open the Quick Menu, then click Main Menu. OR

- Click on the Navigation Bar, then click Main Menu.

LOREX PLATBACK ALARM BACKUP DISPLAY CAMERA NETWORK SYSTEM STORAGE ACCOUNT ACCESSORIES

14.1 Playback

See chapter 9 Playback, page 23 for details.

14.2 Alarm

Set preferences for alarm events such as video loss, motion detection, Person/Vehicle detection and system warnings. The Alarm menu is also used to set preferences for deterrence camera

14.2.1 Searching Alarm Event Logs

Search all channels for alarm events, including motion detection and video loss.

Using the Main Menu14

1. Enter a start and end time for your search.

2. Click Search.

3. Alarm events that match your search criteria are displayed:

- The Event column is formatted to show <[Event Type]: [Channel Number]>

- Click Details to see more information on the selected event.

- Motion events have more options than other alarm events. You can view the event by ing in the Playback column, or back up the video clip to a USB flash drive (no cluded) by clicking Backup.

14.2.2 Video Loss

Configure video loss settings and how the system reacts to a video loss event. Video loss 1 that video from one or more cameras was interrupted or disabled. It could be caused by a of factors, such as a loose or damaged connection, loss of power to a camera, or a block lens.

To configure video loss settings:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click ALARM. Click the MOTION tab on the side panel, then Video Loss on the top panel.

1. Select a channel to configure.

Using the Main Menu14

1. Click to set a weekly schedule for video loss events. By default, video loss events are at all times.

Modify Modify Modify Modify Modify Modify Modify Modify Modify Modify Modify Modify Modify Modify Default OK Finish

- Click or click-and-drag along the each of the yellow timelines to quickly add or remo time from each day's schedule in 15-minute segments.

- Click beside 2 or more days to link schedules ( ). This allows you to quickly change multiple schedules at once.

- To make fine adjustments to a schedule, click Modify. This will allow you to set exact start and end times for a schedule.

1. Choose how the system will react when video loss occurs:

• Show Message: Video loss error message will appear on the recorder's display.

- Record Channel: Select the numbered tiles next to this option to record video from all corresponding channels. Set the length of recording following a video loss event in the Post REC field.

- PTZ Activation: Set connected PTZ cameras to start a tour, pattern, or go to a prese location.

- Sequence: Sequence mode will begin. Select the numbered tiles next to this option to include the corresponding channels in the sequence.

- Snapshot: Select the numbered tiles next to this option to save a snapshot of the corresponding channels.

- Buzzer: The recorder will sound an audible alarm.

Using the Main Menu14

1. Click ALARM. Click the WARNING tab on the side panel, then HardDisk on the top panel.

Event Type No Disk Enable Show Message Send Email Abuzzer Apply

1. Choose the event type you want to set preferences for:

• No Disk: No hard drive detected.
- Disk Error: A hard drive error has been detected.
- Disk Full: The hard drive is full or almost full. Enter the percentage of disk space ranging that will trigger a warning next to Less Than. Disk Full warnings will not occur drive overwrite is enabled.
- All: Configure warnings for all hard drive events.

1. Click to enable ( ) / disable ( ) the selected event type.

2. Choose how the system will react when the selected event occurs:

3. Show Message: Error message will appear on the recorder's display.

4. Buzzer: The recorder will sound an audible alarm.

5. Send Email: Send an email notification with details on the event (requires email configuration — see 14.6.3 Configuring Email Alerts, page 61 for details).

6. Click Apply.

To set preferences for network events:

1. From the Live View display, right-click to once the Quick Menu, then click Main Menu

Using the Main Menu14

1. Choose how the system will react when the selected event occurs:

2. Show Message: Error message will appear on the recorder's display.

3. Record Channel: For Net Disconnection events only. Select the numbered tiles next to this option to record video from the corresponding channels. Set the length of recording following a network disconnection event in the Post_REC field.
4. Buzzer: The recorder will sound an audible alarm.

5. Send Email: Send an email notification with details on the event (requires email configuration — see 14.6.3 Configuring Email Alerts, page 61 for details).

6. Click Apply.

14.3 Backup

See chapter 10 Backup, page 29 for details.

14.4 Display

Set the system's monitor resolution, configure Sequence mode, and other display settings.

14.4.1 Setting the Recorder's Output Resolution

The first time you power up the system and complete the Lorex Setup Wizard, the system tomatically match the resolution of the connected monitor. You can set the recorder to a di output resolution at any time.

CAUTION

If you need to switch the monitor used with the system, make sure you set the recorder to an output resol parted by the new monitor before switching.

To change the output resolution:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click DISPLAY, then click the DISPLAY tab.

Using the Main Menu14

NOTE

Audio will only be heard if you are viewing an audio-enabled camera in single-channel view. You will also an HDMI monitor with built-in speakers, or an external speaker connected to the recorder's Audio Out port (see 18 Connecting Audio Devices, page 87 for details).

To set preferences for listen-in audio:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click DISPLAY, then click the DISPLAY tab.

Main Screen Output VGA/HDMI Time Display Channel Name Original Rate Live Audio Live Audio Volume 50 Transparency - + 0% Resolution 900x1000 Apply 3 4 5

1. Check Live Audio.
2. Set the desired volume for live audio.
3. Click Apply.

14.4.3 Menu Transparency

Set the level of transparency for system menus.

To set menu transparency:

Using the Main Menu14

1. Click Apply.

14.4.4 General Display Settings

Configure miscellaneous display settings.

To configure general display settings:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu

2. Click DISPLAY, then click the DISPLAY tab.

Main Screen Output VGA/HDAC Time Display Channel Name Original Rate Live Audio Volume Transparency Resolution 100x1080 Apply

1. Check to display system time during Live View.

NOTE

Disabling time display will not affect timestamps in recorded video.

1. Check to display channel names during Live View.

2. Check Original Rate to display camera images in their original proportions.

3. Click Apply.

Using the Main Menu14

1. Click DISPLAY, then click the VIEW tab.

true timing 3 1 4 0 4

1. Select the viewing mode you would like to coding text. Use the numbered dropdown menus in each viewing window to choose the channel that will appear in each window.

2. Click Apply.

NOTE You can also click-and-drag channels during Live View to change the display order. OK OK OK

Using the Main Menu14

1. Click DISPLAY, then click the SEQUENCE tab.

Channel Setup File Edit View Insert Help Add Modify Delete New Print More than Default OK

1. Click to enable (x) disable (.) Sequence mode.

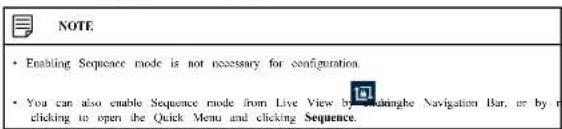

NOTE. • Enabling Sequence mode is not necessary for configuration. • You can also enable Sequence mode from Live View by clicking the Navigation Bar, or by clicking to open the Quick Menu and clicking Sequence.

1. Enter the time in seconds to remain on each channel or split screen during Sequence mode.
2. Choose how many channels will appear on screen when Sequence mode is triggered by tion detection (must be configured separately see 11 Motion Detection, page 34 for d
3. Select a viewing mode to configure. It is recommended to start with View 1 and make way to View 9. By default, all viewing modes are included in the Sequence mode cycle
4. Configure the order of channels shown on screen for each viewing mode. Uncheck channel channels groups that you want to remove from the Sequence mode cycle.

Using the Main Menu14

1. Click CAMERA, then click the IMAGE SETTINGS tab.

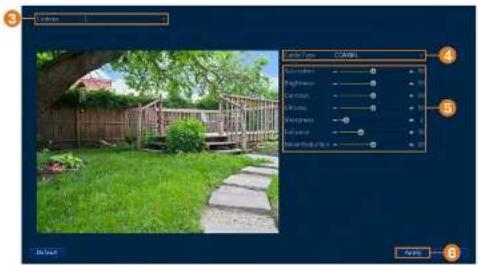

3 Layer Type: CMALL 1 Background: 2 Contour: 3 Ch lime: 4 Lightness: 5 Flatten: 6 Noise Ratio: 7 8 OK Cancel

1. Select the channel you want to configure.
2. Select COAXIAL for cameras connected using BNC cabling, or UTP for halun installations.
3. Configure the color settings for the selected channel
4. Click Apply.

14.5.2 Configuring Snapshot Recording

The system can be set to record snapshot images when a camera detects motion. These sna can be viewed through the Playback menu or attached to email alerts and push notifications. Snapshot tab in the Recording menu controls the quality and recording parameters for each camera.

To configure snapshot recording:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click CAMERA. Click the RECORDING tab on the side panel, then Snapshot on the top

panel.

Using the Main Menu14

1. Click Apply.

2. (OPTIONAL) Click Copy to apply the settings for the current channel to one or more other channels (see 14.11 Copying Settings to Another Channel, page 79 for full instructions on ing the copy function).

14.5.3 Changing On-Screen Overlay

Remove or change the location of the date/timestamps and channel names. You can also change channel names from this menu.

To change the on-screen overlay:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu

2. Click CAMERA. Click the OVERLAY tab on the side panel, then Overlay on the top panel.

Landscape photo of a garden with wooden fence, stone path, and trees (no visible text or symbols)

1. Select the channel you want to configure.

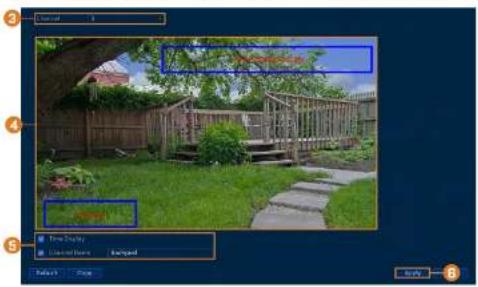

2. Click-and-drag the blue boxes on the camera image to adjust the location of the date/tim channel name.

3. Use the checkboxes to enable/disable overlays. If needed, use the text field next to Char

Using the Main Menu14

1. Click CAMERA. Click the OVERLAY tab on the side panel, then Privacy Masking on the top panel.

Outdoor garden scene with benches, trees, and a building under clear sky (no visible text or symbols)

1. Select the channel you want to configure.

2. Configure the following settings:

3. Preview: Check to set and preview privacy masks.
   • 1-4: Click the numbered boxes to create a corresponding privacy mask on the camera image.

4. Record: Check to include privacy masks in video recordings. Leave unchecked if you would like privacy masks only to show during Live View.

5. Active privacy masks are shown on the camera image. Click-and-drag to move a privacy or click-and-drag the edge of a privacy mask to resize it.

6. Click Apply.

14.5.5 Connecting Multi-Format Cameras (Cable Type)

The recorder works with multiple types of HD analog cameras. By default, the system is so

Using the Main Menu14

14.5.6 Camera Firmware Upgrade (CVI Upgrade)

Manually upgrade camera firmware. This is typically only necessary if directed to do so by technical support.

Prerequisite:

- Connect a USB flash drive (not included) to the recorder with the .bin camera firmware file(s) preloaded.

To manually upgrade camera firmware:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click CAMERA, then click the CVI UPGRADE tab.

Product 2 Material Design Tools Functional Elements Package 1.0 2.0 3.0 4.0 5.0 6.0 7.0 8.0 9.0 10.0 11.0 12.0 13.0 14.0 15.0 16.0 17.0 18.0 19.0 20.0 21.0 22.0 23.0 24.0 25.0 26.0 27.0 28.0 29.0 30.0 31.0 32.0 33.0 34.0 35.0 36.0 37.0 38.0 39.0 40.0 41.0 42.0 43.0 44.0 45.0 46.0 47.0 48.0 49.0 50.0 51.0 52.0 53.0 54.0 55.0 56.0 57.0 58.0 59.0 60.0 61.0 62.0 63.0 64.0 65.0 66.0 67.0 68.0 69.0 70.0 71.0 72.0 73.0 74.0 75.0 76.0 77.0 78.0 79.0 80.0 81.0 82.0 83.0 84.0 85.0 86.0 87.0 88.0 89.0 90.0 91.0 92.0 93.0 94.0 95.0 96.0 97.0 98.0 99.0 100.0

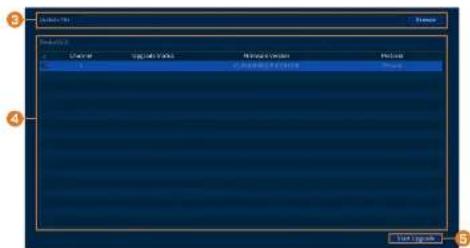

1. Click Browse to search for the .bin firmware file on the USB flash drive.
2. Check cameras you would like to upgrade using the selected firmware file.
3. Click Start Upgrade.

14.6 Network

Configure network parameters for your system.

Using the Main Menu14

1. Configure the following settings:

• IP Version: Select IPv4 or IPv6.

- DHCP: Click to enable (I) / disable (J) DHCP. It is recommended to enable DHCP to let the system automatically obtain an IP address from the router. If you are advanced user, disable DHCP to assign a static IP address to the system. To assign a IP address, configure the following:

• IP Address: Enter the IP address you would like to assign to the system. Make si no other device on your network is using the same IP address.
• Subnet Mask: Enter the subnet mask for your network.
  Default Gateway: Enter the gateway address for your network.
  • Preferred DNS: Enter the address of your primary DNS server.
  Alternate DNS: Enter the address of your secondary DNS server.

- MTU: (Advanced users only) Enter the value for the network card.

1. Click Apply.

14.6.2 Configuring System Ports (Connection)

Configure ports used by the system. If you are using DDNS connectivity, port forwarding is required for the HTTP Port (default: 80) and TCP Port (Client Port) (default: 35000).

NOTE

Port forwarding is not required unless you are using DDNS for remote access. Using mobile apps part forwarding or DDNS setup.

To configure system ports:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click NETWORK, then click the CONNECTION tab.

Using the Main Menu14

1. Click NETWORK, then click the EMAIL tab.

File Edit View Insert Help FTP Server: 100% (Windows Not App) Copy: 100% Paste Image CCCCCC AutoCAD File Edit View Insert Help Properties: Name: Size: 5 px Width: 5 px Vertical: 5 px Horizontal: 5 px Vertical Width: 5 px Vertical Top: 5 px Vertical Bottom: 5 px Vertical Left: 5 px Vertical Right: 5 px Vertical Center: 5 px Vertical Left: 5 px Vertical Right: 5 px Vertical Center: 5 px Vertical Left: 5 px Vertical Right: 5 px Vertical Center: 5 px Vertical Left: 5 px Vertical Right: 5 px Vertical Center: 5 px Vertical Left: 5 px Vertical Right: 5 px Vertical Center: 5 px Vertical Left: 5 px Vertical Right: -5 px Vertical Center: 5 px Vertical Left: 5 px Vertical Right: 5 px Vertical Center: 5 px Vertical Left: 5 px Vertical Right: 5 px Vertical Center: 5 px Vertical Left: 5 px Vertical Right: 5 px Vertical Center: 5 px Vertical Left: 5 px Vertical Right: 5 px Vertical Center: 5 px Vertical Left: 5px Vertical Right: 5px Vertical Center: 5px Vertical Left: 5px Vertical Right: 5px Vertical Center: 5px Vertical Left: 5px Vertical Right: 5px Vertical Center: 5px Vertical Left: 5px Vertical Right: 5px Vertical Center: 5px Vertical Left: 5px Vertical Right: 5px Vertical Center: 5px Vertical Left: 5px Vertical Right: 5px Horizontal Line Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color Field Color FLOW RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED RED Red LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED LED

1. Click to enable ( ) email alerts.

2. Configure the following:

If you want to use Lorex's email server (recommended):

• Mail Select: Select Lorex Mail.

- Receiver: Select up to 3 email addresses that will receive alerts. Enter each email add into the field Email Address below.

- Subject: Enter a subject line for email alerts.

- Attachment: Enable ( ) to include a image attachment of the camera.

NOTE

You must enable the Snapshot option for motion detection on each camera you would to receive attachments. For details, see 11 Motion Detection, page 34.

- Interval: Enter the interval in minutes between email alerts.

- Health Enable: Check to enable health check emails. Health check emails will be sent periodically to ensure that the system is functioning normally.

- Interval: Enter the interval in minutes for health check emails.

If you want to use your own email server (advanced):

- Mail Select: Select the mail server you want to use, or select Customize to use your own.

- SMTP Server: Enter the SMTP server address.

• Port: Enter the port used by the SMTP server

- User Name: Enter the SMTP user name.

- Password: Enter the SMTP password.

- Email Schedule: Click to setup a weekly schedule for email alerts.

- Receiver: Select up to 3 email addresses that will receive alerts. Enter each email add into the field Email Address below.

- Sender: Enter the sender's email address.

- Subject: Enter a subject line for email alerts.

- Attachment: Enable (1) to include a image attachment of the camera.

B

Using the Main Menu14

CAUTION

P2P connection is the primary method used for remote access to your security system using the Lorex Home. If you disable P2P connectivity, you will only be able to access your system over the Internet using DDNS.DDNS Setup (Advanced), page 96 for details.

To change P2P setting:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click NETWORK, then click the P2P SETTING tab.

To access your to identify managing your email, the PDF will be able to access your email and scanning your email, or make location of address, file, or email. Any email can also be deleted using only one for a purpose of use email. If you don't agree to create your email, please press your email Email: Download: Next - 4

1. Click to enable ( ) disable ( ) connectivity.

2. Click Apply.

14.7 System

Configure general system settings, such as date & time, time zone, and DST. It also allows check for firmware updates over the Internet and restore the system to default settings.

14.7.1 Configuring General System Settings

Configure miscellaneous system settings.

Using the Main Menu14

1. Configure the following:

• Device Type: Shows the model number of your system.
- Device No.: Select the remote control address of the system.
• Language: Set the system languages. Available options are English, French, and Spanish
• Video Standard: Select NTSC (North America) or PAL (Europe).
- Instant Playback: Select the amount of time (in minutes) the system will go back wh
stant playback is activated in live view.
- Auto Logout: Select the idle time (in minutes) before the system will logout the current
user.
- Navigation Bar: Check to enable the Navigation Bar that comes up when you left click
live
- Mouse Speed: Use the slider to adjust the mouse speed.

1. Click Apply.

14.7.2 Setting Date & Time

As part of the initial setup, you will set the system date & time. This menu allows you to the date & time, and configure settings for Daylight Savings Time (DST) and Network Prot Time (NTP).

CAUTION It is important to always ensure your system date and time are accurate. Inaccurate time stamps may render your footage unusable for court evidence.

To set system date and time:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu

2. Click SYSTEM, then click the DEFAULT tab.

System Type: 03-22-2021 05:41:45 PM System Name: Anemcylam_sinklMT-6380 Development: MHz/99V Color range: 0% Red color: 20-7459

Using the Main Menu14

1. Configure Daylight Savings Time (DST) settings:

2. DST: Click to enable ( ) / disable ( ) Daylight Savings Time.

3. DST Type: Select Week to set the start and end time based on a day and week (e.g., 2nd Sunday of March), or select Date to set the start and end time to a specific date.

4. Start Time / End Time: Set start and end times for DST. Format will change depend on your selection for DST Type.

5. Configure Network Time Protocol (NTP) settings:

• NTP: Click to enable a / disable by Network Protocol Time.
• Server: (Advanced users only) Enter a custom NTP server.
• Port: (Advanced users only) Enter a custom NTP port.

• Interval: Select how often the system will sync time with the NTP server.

• Click Apply.

14.7.3 Configuring Holidays

You can set certain days as holidays. Holidays have a special recording schedule.

NOTE Ensure you adjust the holiday recording schedule to your preferences. See 8.3 Setting the Recording Schedule. page 19 for details.

To configure holidays:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click SYSTEM. Click the GENERAL tab on the side panel, then Holiday on the top panel.

Using the Main Menu14

1. Click Add New Holiday.

Add New Holidays Holiday Name abc Regular Mode Once Always Holiday Range Date Week Start Time 03 - 25 - 2018 End Time 03 - 25 - 2018 Add More Add 5

1. Configure the following:

• Holiday Name: Enter a name for this holiday.
- Repeat Mode: Select Once for the holiday to occur only this year or Always for the holiday to be repeated each year.
• Holiday Range: Select Date to select a specific date, or select Week to select holidays
based on which week they fall on.
- Start Time / End Time: Set the start and end time for this holiday.
- Add More: Click to enable ( ) to configure another holiday.

1. Click Add

14.7.4 Configuring IP Filter

Configure permissions for external IP addresses attempting to access the unit.

To configure the IP filter:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu

2. Click SYSTEM, then click the SECURITY tab.

Using the Main Menu14

1. Configure the following:

• To add a single IP address to the selected filter type, enter it into Start Address, then click Add IP Address.
- To add a range of IP addresses to the selected filter type, enter the Start Address and End Address, then click Add IP Section.

1. Click Apply.

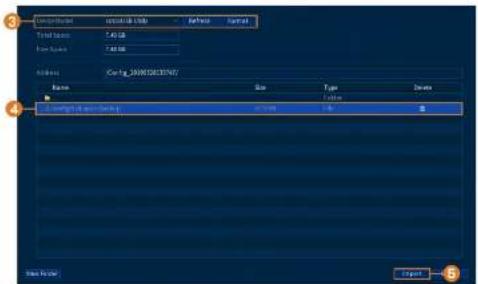

14.7.5 Save System Settings to a USB Flash Drive

The system allows you to save your current system configuration to a USB flash drive (not cluded). This is useful if you want to backup your current settings.

NOTE

This function only saves settings created in system menus. It does not save or backup any video.

Prerequisite:

- Connect a USB flash drive (not included) to a free USB port on the unit.

To save system settings:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click SYSTEM, then click the CONFIG BACKUP tab.

Video Project W3200 100% Default Product Total Image 7.92 KB Total Splice 7.92 KB Audio Volume Size Type Details ■ Selected Video and Audio Faster

Using the Main Menu14

1. Click SYSTEM, then click the CONFIG BACKUP tab.

Complications Special Tab Refinal Format Total Tabes: C: 40 GB Form Sets: C: 50 GB Address: File Size: SARSOCRDTV Name Size Type Device C:\Users\asp\Bending 100% Mode OK Save As... Export

1. Under Device Model, select the USB device where a system configuration has been saved
2. Click the folder with the configuration files you would like to restore. Configuration file ers are labeled Config and then the time and date the configuration was saved (e.g., Config_20140425103727).
3. Click Import to save your current system configuration.

14.7.7 Restoring Default Settings

Reset the system to default settings.

To restore default settings:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click SYSTEM, then click the DEFAULT tab.

Using the Main Menu14

To upgrade firmware manually:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click SYSTEM, then click the UPGRADE tab.

1.0000 Signature For the years, you have been written in this form that you are not to be able to write the following: If you have been written in this form, then you should write your name. Please note that you will write your name on the following:

1.0000 Signature

Form 1.0000 Signature Form 2.0000 Signature Form 3.0000 Signature Form 4.0000 Signature Form 5.0000 Signature Form 6.0000 Signature Form 7.0000 Signature Form 8.0000 Signature Form 9.0000 Signature Form 10.0000 Signature Form 11.0000 Signature Form 12.0000 Signature Form 13.0000 Signature Form 14.0000 Signature Form 15.0000 Signature Form 16.0000 Signature Form 17.0000 Signature Form 18.0000 Signature Form 19.0000 Signature Form 20.0000 Signature Form 21.0000 Signature Form 22.0000 Signature Form 23.0000 Signature Form 24.0000 Signature Form 25.0000 Signature Form 26.0000 Signature Form 27.0000 Signature Form 28.0000 Signature Form 29.0000 Signature Form 30.0000 Signature Form 31.0000 Signature Form 32.0000 Signature Form 33.0000 Signature Form 34.0000 Signature Form 35.0000 Signature Form 36.0000 Signature Form 37.0000 Signature Form 38.0000 Signature Form 39.0000 Signature Form 40.0000 Signature Form 41.0000 Signature Form 42.0000 Signature Form 43.0000 Signature Form 44.0000 Signature Form 45.0000 Signature Form 46.0000 Signature Form 47.0000 Signature Form 48.0000 Signature Form 49.0000 Signature Form 50.0000 Signature Form 51.0000 Signature Form 52.0000 Signature Form 53.0000 Signature Form 54.0000 Signature Form 55.0000 Signature Form 56.0000 Signature Form 57.0000 Signature Form 58.0000 Signature Form 59.0000 Signature Form 60.0000 Signature Form 61.0000 Signature Form 62.0000 Signature Form 63.0000 Signature Form 64.01.5x12

1. Click Browse.
2. Click on the .bin firmware file for your recorder.
3. Click Start.

14.7.9 Automatic Firmware Upgrades

Firmware upgrades provide enhanced functionality. The system will automatically check for firmware upgrades if it is connected to the Internet.

To configure automatic firmware upgrade:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click SYSTEM, then click the UPGRADE tab.

USE EXERCISE For the software package is the version of a software, which contains the original file name, author, and the information they are not to be used in the image. The file is not available for any other content. This is not possible to be extracted from the software. For the software package it allows it to be found. Browse Describe your profile Describe your profile to your computer Describe your profile to your desktop Describe your profile to your email Describe your profile to your email Describe your profile to your email Describe your profile to your email Describe your profile to your email Describe your profile to your email Describe your profile to your email Describe your profile to your email Describe your profile to your email Describe your profile to your email Describe your profile to your email Describe your profile to your email Describe your profile to your email Describe your profile to your email Describe your profile to your email Descart for Education

Using the Main Menu14

1. Click STORAGE, then click the BASIC tab.

1. Ensure IIDD Full is set to Overwrite to overwrite the oldest recordings when the hard drive is full.

1. Click Apply.

14.8.2 Configuring Recording File Length

Select how the system will store video files.

To configure recording length:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click STORAGE, then click the BASIC tab.

1. Next to Pack Mode, select Time Length for the system to package recording files based on recording length, or File Length to package based on file size. The field next to the dr will change between minutes and megabytes (MB) depending on your selection.

Using the Main Menu14

1. Click STORAGE. Click the SCHEDULE tab on the side panel, then Record on the top panel.

Add Delete Add Remove Add Delete Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Remove Add Import

1. Under Channel, select the channel you would like to configure or select All.
2. Set the duration for pre-recording in s
3. Click Apply
4. (OPTIONAL) Click Copy to apply the settings for the current channel to one or more other channels (see 14.11 Copying Settings to Another Channel, page 79 for full instructions on ing the copy function).

14.8.4 Setting the Snapshot Schedule

You can set a schedule for recording snapshots from the cameras.

To set the snapshot schedule:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click STORAGE. Click the SCHEDULE tab on the side panel, then Snapshot on the top panel.

Using the Main Menu14

1. Configure the schedule as needed:

2. Check Continuous, MD (Motion Detection), or Alarm to select the recording type you would like to configure.

3. Click-and-drag on each day to customize the recording schedule. The schedule is set up a grid, which each block representing one hour.

4. Click beside 2 or more days to link schedules ( ). This allows you to quickly change multiple schedules at once.
   • To make fine adjustments to a schedule, this will allow you to set exact start and end times for a schedule.
   • To disable all recording of the selected type on the selected key, click

5. Click Apply

6. (OPTIONAL) Click Copy to apply the settings for the current channel to one or more other channels (see 14.11 Copying Settings to Another Channel, page 79 for full instructions on ing the copy function).

14.8.5 Formatting the Hard Drive

If you install a new hard drive, you must format the hard drive using the system before y able to record.

To format hard drives:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click STORAGE, then click the HDD MANAGER tab.

Using the Main Menu14

- Read-only HDD: The system can playback data from this hard drive, but it will not record to it.

To configure hard drive types:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click STORAGE, then click the HDD MANAGER tab.

Save New Type Finish Player End Selected Player OK Finish Format Help Help

1. Under Type next to the hard drive you want to configure, select Read/Write or Read only.
2. Click Apply.

14.8.7 Recording Calculator (REC Estimate)

Use the recording calculator to get an estimate of your maximum recording time in days fo stalled hard drive, or how much hard drive space would be required to retain a specific an days.

To obtain a recording estimate:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click STORAGE, then click the REC ESTIMATE tab.

Using the Main Menu14

1. For Recording Days mode, click Select to choose your hard drive from a list to output the total number of days your hard drive can store. For Disk Requirement mode, enter a nun days to output the total amount of storage required.

14.8.8 FTP (Advanced)

Send recordings and/or snapshots to an FTP server.

To configure FTP settings:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click STORAGE, then click the FTP tab.

Preview 11.31.05.408 Label 22 Appearance Aromatic text Parameters Aromatic text Appearance (Recovery) Normal image 30 Image: spatial view (Subimage 1) Unfold 0 Width: 0.0 mm Size: 100 mm Combination Protein 1 Protein 2 Protein 3 Protein 4 Protein 5 Protein 6 Protein 7 Protein 8 Protein 9 Protein 10 Protein 11 Protein 12 Protein 13 Protein 14 Protein 15 Protein 16 Protein 17 Protein 18 Protein 19 Protein 20 Protein 21 Protein 22 Protein 23 Protein 24 Protein 25 Protein 26 Protein 27 Protein 28 Protein 29 Protein 30 Protein 31 Protein 32 Protein 33 Protein 34 Protein 35 Protein 36 Protein 37 Protein 38 Protein 39 Protein 40 Protein 41 Protein 42 Protein 43 Protein 44 Protein 45 Protein 46 Protein 47 Protein 48 Protein 49 Protein 50 Protein 51 Protein 52 Protein 53 Protein 54 Protein 55 Protein 56 Protein 57 Protein 58 Protein 59 Protein 60 Protein 61 Protein 62 Protein 63 Protein 64 Protein 65 Protein 66 Protein 67 Protein 68 Protein 69 Protein 70 Protein 71 Protein 72 Protein 73 Protein 74 Protein 75 Protein 76 Protein 77 Protein 78 Protein 79 Protein 80

1. Click to enable (I) / disable (C) FTP connection, and select either FTP or SFTP depending on your configuration.
2. Configure the following:

• Server: Enter the FTP server's address.
• Port: Enter the FTP port.
- Anonymous: Enable if your FTP server supports anonymous login.
- Username: Enter your FTP username.

Using the Main Menu14

14.10.1 Version Info

The Version sub-menu allows you to view information about the current firmware installed o system.

Windows Dennis 10 WIN:000000000000 Windows+Holding 197236 Windows+Windows 48.765 Windows Server 0.2.3.2017 Microsoft Windows 82.24.2019 USB 4.888.999.72397 IP address 11.197.10.133 WPC Server 96.288.8888888 Access Number 13161.1245.2.01.04.2019 IP地址 42.588.55 Windows Server 8.732 Windows Server 25.688 IP地址 88

To access the Version menu:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click INFORMATION, then click the VERSION tab.

14.10.2 Log

The Log menu allows you to search for system logs.

File Name: 0123457_0123457_0123457 File Edit View Insert Help Log Price • 2013-01-01 01:00:00 • 2013-01-02 01:00:00 • 2013-01-03 01:00:00 • 2013-01-04 01:00:00 • 2013-01-05 01:00:00 • 2013-01-06 01:00:00 • 2013-01-07 01:00:00 • 2013-01-08 01:00:00 • 2013-01-09 01:00:00 • 2013-01-10 01:00:00 • 2013-01-11 01:00:00 • 2013-01-12 01:00:00 • 2013-01-13 01:00:00 • 2013-01-14 01:00:00 • 2013-01-15 01:00:00 • 2013-01-16 01:00:00 • 2013-01-17 01:00:00 • 2013-01-18 01:00:00 • 2013-01-19 01:00:00 • 2013-01-20 01:00:00 • 2013-01-21 01:00:00 • 2013-01-22 01:00:00 • 2013-01-23 01:00:00 • 2013-01-24 01:00:00 • 2013-01-25 01:00:00 • 2013-01-26 01:00:00 • 2013-01-27 01:00:00 • 2013-01-28 01:00:00 • 2013-01-29 01:00:00 • 2013-01-30 01:05:34 • 2013-01-31 34:54.54 • 26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/26/

Using the Main Menu14

File Edit View Help [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ] [ ]

To access the Event Status menu:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click INFORMATION, then click the EVENT STATUS tab.

The following alarms are shown in the Event Status menu:

• No HDD: No Hard drive is detected.
• Disk Full: Hard drive is full.
- Net Disconnection: System is not connected to the network.
- IP Conflict: More than one device on the network is using the same IP address.
- MAC Conflict: More than one device on the network is using the same MAC address.
• Video Loss: Shows disconnected channels.
- Motion: Shows channels with active motion alarms.

14.10.4 HDD Info

Information related to the hard drives installed in the system, including capacity, status, and

Using the Main Menu14

Lab Name: 9 Lab Type: Open Status: No

To access the Online Users menu:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click INFORMATION. Click the NETWORK tab on the side panel, then Online User on the top panel.

14.10.6 Load

The Load menu shows you the network traffic your system is sending and receiving.

To access the Load menu:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click INFORMATION Click the NETWORK click on the side panel than LOAD on the line

Using the Main Menu14

1. Click INFORMATION. Click the NETWORK tab on the side panel, then Network Test on the top panel.

14.10.8 BPS

The BPS menu shows the bitrates of connected cameras. The bitrate is the amount of data cra is sending to the system.

To access the BPS menu:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click INFORMATION, then click the BPS tab.

14.11 Copying Settings to Another Channel

Some areas of the main menu allow you quickly copy over the settings from one channel multiple other channels on the system.

To copy channel settings:

1. Configure at least one channel to your preference.
2. Click Apply to save the settings for that channel.
3. Click Copy

Connecting Remotely using the Lorex Home Mobile App

You can connect to your security system over the Internet using our free Lorex Home app and Android devices. Securely connect to your system from anywhere with no recurring fees live viewing.

Mobile app interface displaying a photo editing app with a woman in a reception area, alongside a smartphone displaying a close-up of the app.

The Larex Home app allows you to:

• View live video from cameras
- Play back recorded video from the hard drive
- Manually record video clips or take a snapshot of live video
- Activate deterrence features including warning lights and sirens ^4
- Set preferences for push notifications, informing you of motion detection and other system events

For full setup instructions and advanced support for the app, click here to open the Lorex Home instruction manual.

Smart Home & Voice Assistance16

The recorder is compatible with third-party smart home solutions, including Amazon Alexa® Google Assistant®. You can use these services to take your security experience to the next with smart home options that make accessing your system even easier.

For compatibility information, as well as full instructions on setup and use, visit lorex.com/SmartHome.

To enable Smart Home services on the recorder:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu

2. Click CAMERA, then click the VOICE ASSISTANCE tab.

1. Click to enable (1) disable (2) write assistance.

2. Check channels you would like to enable for use with smart home services.

CAUTION

Channels enabled for use with smart home services will automatically enable the channel's audio functions and will activate audio recording on audio-enabled cameras. Audio recording and / or use of listen-in auto without consent is illegal in certain jurisdictions. Lorex Corporation assumes no liability for use of its products that does not conform with local laws.

1. Click Apply.

Pan/Tilt/Zoom (PTZ) Cameras17

Pan/Tilt/Zoom (PTZ) cameras are specialty cameras that move according to commands given the recorder. You can move PTZ cameras manually using the recorder's on-screen display, on ate preset locations and patterns for the camera to follow automatically.

Exterior view of a modern security camera with visible lens and control buttons (no text or symbols)

17.1 Connecting PTZ Cameras to the Recorder

Lorex HD PTZ cameras connect to your recorder just like any other camera with no need special wiring — these cameras can accept PTZ commands directly through the video cable. If you are using a standard definition PTZ camera, you will need to run the camera's RS4 bling to the recorder in order to send PTZ commands.

To connect standard definition PTZ cameras:

Diagram showing two labeled components (1 and 2) connected to a device with ports, cables, and connectors.

Pan/Tilt/Zoom (PTZ) Cameras17

STEP 2: Camera configuration

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click CAMERA, then click the IMAGE SETTINGS tab.

Control Property Building Area Building Size Building Width Property Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Balance Cash

1. Select the channel you want to configure.
2. Configure the highlighted fields as needed.

NOTE

For Lorex HD PTZ cameras, there is no need for configuration — leave all fields at their default value third-party PTZ cameras, select Serial next to Control Mode. For the correct settings to use in the remaining fields, please reference your camera documentation.

1. Click Apply
2. (OPTIONAL) Click Copy to apply the settings for the current channel to one or more other channels (see 14.11 Copying Settings to Another Channel, page 79 for full instructions on ing the copy function).

Pan/Tilt/Zoom (PTZ) Cameras17

Speed 5 - Zoom + - Focus + - Iris + 1 2 3 4 5

1. Navigation Controls: Click the directional arrows to move the PTZ camera manually.
2. Zoom-to-Area: Click, then click-and-drag to draw a box on the camera image. The PTZ era will zoom in to the selected area.

3. Mouse Tracking: Click to enable/disable mouse tracking. When enabled, click-and-drag in the direction you would like the PTZ camera to move. The camera will follow the path mouse cursor.

4. PTZ Settings:

- Speed: The speed of PTZ camera movement. A higher value means the camera will run faster.

• Zoom: Optical zoom level. Click + to zoom in, and - to zoom out.
• Focus: Manually control focus level. Click + to focus on objects further from the camera, or - to focus on objects closer to the camera.

• Iris: Controls the amount of light coming through the lens. Click + to allow more light, or - for less.

• Advanced: Expand to show advanced options. For a full overview, see 17.3 Advanced PTZ Controls, page 84.

17.3 Advanced PTZ Controls

Using advanced options for PTZ cameras, including presets, tours, patterns, etc.

NOTE

Ensure you have completed initial setup of your PTZ camera in order to control the camera using the record 17.1 Connecting PTZ Cameras to the Recorder for more details.

1. No.: Enter the ID number for a preset, tour, or pattern you want to activate.
2. Preset: Move the camera to the preset number specified in the No. field. For instructions on setting up preset locations, see 17.4 Presets, page 85.
3. AutoPan: Set the camera to rotate 180° back and forth.
4. Tour: Perform the tour number specified in the No. field. For instructions on creating a tour, see 17.5 Tours, page 85.
5. Flip: Rotate the camera 180° from its current position.
6. Pattern: Perform the pattern number specified in the No. field. For instructions on creating a pattern, see 17.6 Patterns, page 85.
7. Reset: Move the camera to the home position.
8. AutoScan: Move the camera between a predetermined left and right point. For instructions creating an autoscan, see 17.7 AutoScan, page 86.
9. Configuration: Click to open the configuration menu, where you can configure presets, to patterns and autoscans.
10. OSD Menu: Click to open the camera's OSD menu. This may not be supported on all models.
11. Auxiliary Settings: Not supported.

17.4 Presets

Presets will save a camera position for quick retrieval.

To add preset locations:

1. From the Live View display of your PTZ camera, right-click to open the Quick Menu, click Pan/Tilt/Zoom.

2. The PTZ controls open. Click to open advanced PTZ controls, then click

3. Click the Preset tab.

4. Enter the number of the preset you want to create under Preset.

5. Move the camera to the desired position and click Set.

To go to a preset location:

- Under No., select the number of the preset you want to go then click

Pan/Tilt/Zoom (PTZ) Cameras17

To add patterns:

1. From the Live View display of your PTZ camera, right-click to open the Quick Menu, click Pan/Tilt/Zoom.

2. The PTZ controls open. Click to open advanced PTZ controls, then click .

3. Click the Pattern tab.

4. Under Pattern, enter the number of the pattern you want to create.

5. Move the camera to the desired starting position, then click Start

6. Using the on-screen controls, move the camera in any pattern you wish. When finished, End.

To run a pattern:

• Under No., select the number of the pattern you want to go or then click

17.7 AutoScan

An autoscan automatically cycles between a left and right point.

To configure autoscan:

1. From the Live View display of your PTZ camera, right-click to open the Quick Menu, click Pan/Tilt/Zoom.

2. The PTZ controls open. Cl# to open advanced PTZ controls, then click .

3. Click the Border tab.

4. Move the camera into the desired left position and click Left.

5. Move the camera into the desired right position and click Right

To run autoscan:

- Click

Connecting Audio Devices18

The system supports Lorex HD audio cameras, which transmit audio through the same coax used for video connection. The system can also record one audio channel using the AUDIO port on the rear panel. You must have a self-powered microphone or an audio camera with RCA type audio connection to use this port.

NOTE

Use of an external microphone allows you to record audio on Channel 1 of the system. It cannot be moved to a different channel.

The second RCA-type connector on the back panel is the AUDIO OUT port, which can be to connect a self-powered speaker that will play audio from the system (requires audio-capab camera or self-power microphone).

Back panel of a audio recording device showing ports, connectors, and audio icons (no text or symbols)

To enable audio recording using a Lorex HD audio camera:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click CAMERA. Click the RECORDING tab on the side panel, then Recording on the top panel.

Connecting Audio Devices18

1. Click Audio Setting, then configure the following:

- Audio Recording: Click to enable ( ) / disable □ audio recording.

CAUTION Audio recording and / or use of listen-in audio without consent is illegal in certain jurisidic Corporation assumes no liability for use of its products that does not conform with local la

• Audio Format: Choose the desired format for audio recording (G711a or AAC recommended).
  • Audio Source: Select HDCVI.

• Click OK

• Click Apply.

• (OPTIONAL) Click Copy to apply the settings for the current channel to one or more other channels (see 14.11 Copying Settings to Another Channel, page 79 for full instructions on ing the copy function).

To enable audio recording using an external microphone:

1. From the Live View display, right-click to open the Quick Menu, then click Main Menu
2. Click CAMERA. Click the RECORDING tab on the side panel, then Recording on the top

panel.

Connecting Audio Devices18

1. Click Audio Setting, then configure the following:

• Audio Recording: Click to enable ( ) / disable ( ) audio recording

CAUTION Audio recording and / or use of listen-in audio without consent is illegal in certain jurisdictions. Lore Corporation assumes no liability for use of its products that does not conform with local taxes.

• Audio Format: Choose the desired format for audio recording (G711a or AAC recommended).
  • Audio Source: Select NORMAL.

• Click OK

• Click Apply.

Replacing the Hard Drive19

The system comes with a pre-installed 3.5" SATA hard drive. You can replace the hard drive one up to a maximum size of 10TB.

19.1 Removing the Hard Drive

CAUTION

Make sure that the system is OFF and the power adapter is disconnected before removing/installing a hard d

To remove the hard drive;

1. Power off the system, and unplug all cabling from the system.
2. Tum the recorder over. Remove the bottom panel screws (6×).

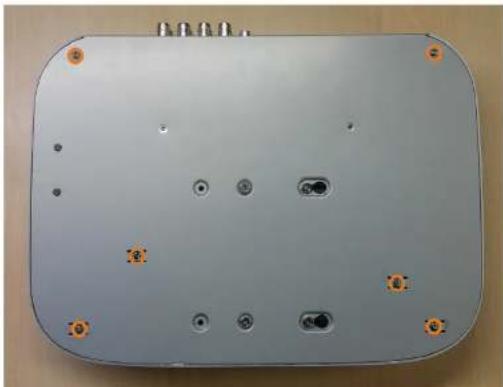

Front view of a gray electronic device casing with multiple circular ports and mounting holes (no visible text or symbols)

Replacing the Hard Drive19

1. Tum the recorder over carefully, then remove the top panel.

CAUTION

The wiring to the front panel button and USB port runs along the top panel of the recorder. When sep the top panel, rest it carefully beside the bottom panel as shown below.

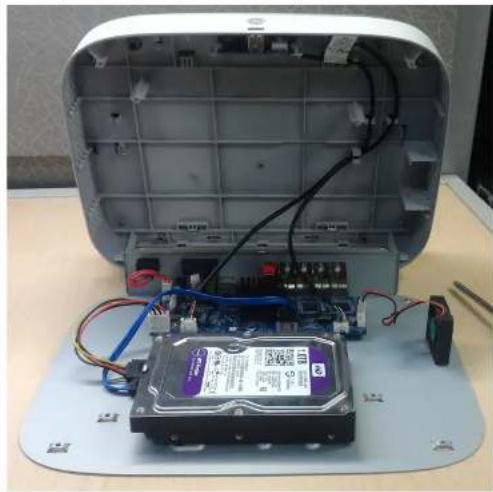

Laptop with open case showing internal components including a hard disk, circuit board, and cable (no visible text or symbols)

Replacing the Hard Drive19

1. Remove the power and SATA cables from the hard drive.

Close-up of a WDO Apple hard disk with visible circuit board and wiring, no readable text or symbols on the device itself.

1. Carefully pick up the hard drive to lift the bottom panel, being mindful of the sharp cc the bottom panel. Remove the hard drive screws (4×) from the bottom panel. Hold onto hard drive so it remains in place when all screws have been removed.

Replacing the Hard Drive19

19.2 Installing a New Hard Drive

CAUTION

Make sure that the system is OFF and the power adapter is disconnected before removing/installing a hard d

To install a new hard drive:

1. Insert the 2 hard drive screws closest to the SATA and power ports on the hard drive en them half way.

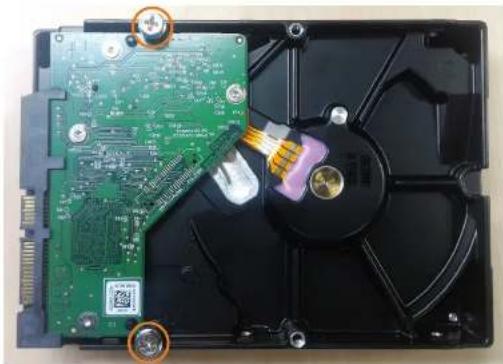

Internal view of a hard disk drive showing green circuit board, drive casing, and internal components (no text or symbols visible)

1. Power off the system, and unplug all cabling from the system.
2. Turn the recorder over. Remove the bottom panel screws (6×).

Replacing the Hard Drive19

1. Tum the recorder over carefully, then remove the top panel.

CAUTION

The wiring to the front panel button and USB port runs along the top panel of the recorder. When sep the top panel, rest it carefully beside the bottom panel as shown below.

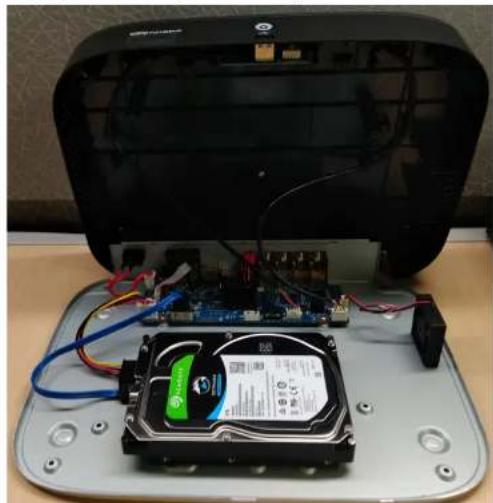

Interior view of an open electronic device showing a hard disk drive with visible circuitry and wiring (no text or symbols)

Replacing the Hard Drive19

1. Carefully pick up the bottom panel with the hard drive, being mindful of the sharp edge the bottom panel. Slide the 2 pre-inserted screws into the locked position, then tighten t1 screws. Insert and tighten the 2 remaining hard drive screws.

Hand pressing a button on a gray electronic device with multiple screw holes (no visible text or symbols)

1. Connect the power and SATA cables to the hard drive.

Close-up of a hard disk drive with visible circuit board and wiring (no readable text or symbols)

DDNS Setup (Advanced)20

Setting up DDNS connectivity allows you to view your recorder from any computer or com mobile device with Internet access.

NOTE

The primary connectivity option for the recorder uses the Lorex Home app to connect to your system over internet without the need for port forwarding or DDNS registration.

- For instructions on using the Lorex Home app for mobile devices, see 15 Connecting Remotely using the Lorex Home Mobile App, page 80.

20.1 STEP 1: Port Forwarding

If you are using DDNS, you must port forward the HTTP and Client Ports (default: 80 and

35000) on your router to your recorder's IP address before you can remotely connect to yo system:

- Manually port forward the required ports on your router to your recorder's IP address by lowing your router manufacturer's instructions. For more information on port forwarding, so the reference guides on lorex.com.

20.2 STEP 2: Create a Lorex Account

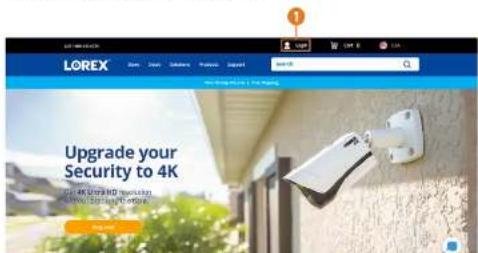

LOREX Upgrade your Security to 4K

DDNS Setup (Advanced)20

1. Select Create an Account.

NOTE.

If you have already set up an account, select I Have a LOREX Account and log in. Proceed directly to , page

1. Enter basic information for account setup.
2. Click Create an Account.

20.3 STEP 3: Activate Your Warranty

Activate the manufacturer's warranty on your recorder.

To activate your product warranty:

My Warranties 1 2 3 4 Activate a New Warranty New web: www.warranties.com www.warranties.com (www.warranties.com) Send to: www.warranties.com Cancel Save New Warranties

1. From your Lorex account, click the WARRANTIES tab.
2. Click Activate Warranty.
3. Enter your product information (attaching bill of sale optional).
4. Click Save Warranty.
   Once submitted your warranty information will be summarized under My Warranties

DDNS Setup (Advanced)20

Cloud | DDNS 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 49 50 51 52 53 54 55 56 57 58 59 60 61 62 63 64 65 66 67 68 69 70 71 72 73 74 75 76 77 78 79 80 81 82 83 84 85 86 87 88 89 90 91 92 93 94 95 96 97 98 99 100

1. From your Lorex account, click the DDNS tab.

2. Click Set up a New DDNS.

3. Select your recorder warranty from the dropdown next to Warranty. Enter the rest of your product information.

NOTE • The Device Name can be any name of your choice (for example, "Store Security System"). • You can find your recorder's MAC Address in the system information window on the recorder. From the Live View display, right-click and click Info. 📄 link the Navigation Bar.

1. Click Add Device.

Once submitted, your DDNS account information will be summarized under My DDNS Dces. Make a note of your DDNS URL, Username and Password, as they will be needed to complete DDNS setup.

DDNS Setup (Advanced)20

1. Configure the following:

2. DDNS Type: Select Lorex DDNS.

3. Domain Name: Enter the first part of the DDNS domain that you requested during se
4. User ID: Enter the username provided in the DDNS confirmation email.

5. Password: Enter the password provided in the DDNS confirmation email.

6. Click Apply.

You will now be able to access your system remotely using DDNS. Enter the full domain name into a web browser (e.g., http://www.tornsmithsecurity.lorcxddns.net) and login using the provided credentials.

NOTE

If your system uses an HTTP port other than 0, you will need to add a colon to the end of y name and enter the port number (e.g., http://www.tomsnithsecurity.lorxidhs.net:1)

Troubleshooting21

When a malfunction occurs, it may not be serious or difficult to correct. The following charts solutions to most common problems. Please refer to the topics below before calling Lo Technical Support.

Error Possible Causes Solutions
System is not receiving power, orCable from power adapter is loose or is unplugged.	· Confirm that all cables are connected correctly.· Confirm that the power adapter is securely connected to the back of the unit.
Cables are connected, but system not receiving sufficient power.	· Confirm that the system is powered on (LED indicators on the front should be ON).· If the unit is connected through a power bar or surge protector, try bypassing the bar and connecting the power directly to the wall outlet.· Confirm that there is power in the outlet:· Connect the power cable to another outlet.· Test the outlet with another device (each as a lamp or phone charger).
Hard drive is not detected by the hard drive cables are loose or properly connected.	· Remove the housing and check that hard drive cables are firmly connected.
	There is no hard drive in the system. Open the housing and install compatible hard drive. Make sure to format the drive after installing. For details, see 14.8.5 Formatting the Hard Drive, page 73.
Hard drive is full (0%) and the is no longer recording.	· Underwrite is not enabled. If hard drive overwrite is not enabled, the system will stop recording when the hard drive is full. For instruction on positioning hard drive

Troubleshooting21

Error Possible Causes Solutions
Mouse not detected by system.	Mouse cable is not firmly connected to the system, or the bus is not connected to the system.	Firmly connect the mouse cable to some of the USB ports.
	System needs to be reset. Power	off the system to disceanset power cable. Firmly connect a USB mouse to one of the USB ports. Reconnect the power cable to the 12V DC port on the rear plane
There is no picture on selected channels / camera picture is not being displayed.	Camera cables are loose or have come disconnected.	Check the camera video cable and connections.Disconnect and reconnect the cable at the system and at the cameraIry moving the camera to an other channel or use another cable.
The image on the recorder appo but does not have sound.	Camera does not feature a microphone for audio recording.	The recorder supports audio recording, but requires audio-enabled cameras with a built-in microphone, or an external microphone to be connected. See 18 Connecting Audio Device, page 87 for details on using audio-enabled devices.
The system keeps during motion detection.	Motion detection is enabled and buzzer is activated.	See 11 Motion Detection, page 14 for full instructions on configuring motion detection options. You will need to uncheck the Buzzer option to prevent the recorder from keeping every time motion is detected.
I am not receiving email notifications.	Email notification is disabled. Ensure you have configured email notification. For full instructions, see 14.6.3 Configuring Email Alerts, page 61.
	Email notification is enabled, but you have not entered your own SMTP information.	If you want to use your own SMTP server, you must cater your SMTP server address. SMTP port, user-

Technical Specifications22

22.1 General

Video Transmission Technology HD	Analog
Channels 16 Channels

22.2 Inputs/Outputs

Video Input(s) 16 × 1 V/p - p . CVBS.	75ohms, BNC Type
Video Outputs(s) 1 × VGA, 1 × HDMI
Audio Input(s) 1 ch: RCA
Audio Output(s) 1 ch: RCA

22.3 Display

Display Output Resolution Up to 4K
Live Display 1, 4, 8, 9, 16
Live Display Speed (Max) 450fps NTSC, 400PAL.
OSD	Op/Off
System Navigation	USB Mouse

22.4 Recording

Recording Resolution	1080p, 720p, 960H, D1, CIF
Recording Frame Rate	1080p @ 15fps (NTSC)720p/960/D1/CIF @ 25/30fps (PAL/NTSC)
Recording Schedule	Per Channel by Continuous/Motion/Advanced Motion (Person/Vehicle)/Alarm/Day/T
Back-up File Format	DAV / AVI / MP4 file
Video Compression	H.265 / H.264

22.5 Playback

Technical Specifications22

22.8 Smart Home

Amazon Alexu Yes
Google Assistant Yes
Streaming Options Chronecast, Apple TV, Amazon Echo Show, Google Home Hub

22.9 Connectivity

Mobile Viewing Android, iOS
Compatible App Larex HomeTM
PC/MAC Remote Viewing Yes/Larex Home
Email Notification Text and Snapshot
Network Interface 10/100 Base-TX, R345
DDNS Yes (Optional)
USB Interface USB 2.0 × 2

22.10 Additional Specifications

FW Upgrade USB/Network
Watchdog Function	Yes
Power Consumption	< 10W (without HDD)
Supply Voltage	12V:2A
Unit Dimensions ( W × D × H)	12.5 × 9.6 × 2.1^ ( 328 × 245 × 53mm)
Unit Weight	2.75Ibs (1.20kg) (without HDD)
Operating Temperature	14^ - 131^ F/ - 10^ = 55^ C
Humidity	10 ~ 90% RII

Notices23

This product has been certified and found to comply with the limits regulated by FCC, EM LVD. Therefore, it is designated to provide reasonable protection against interference and will cause interference with other appliance usage. However, it is imperative that the user follows guidelines in this manual to avoid improper usage, which may result in damage to the prod electrical shock and fire hazard injury.

23.1 FCC/IC

This equipment has been tested and found to comply with the limits for a digital device, p to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection ag harmful interference in a residential or commercial installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the struction manual, may cause harmful interference to radio communications.

23.2 CE

This product and the supplied accessories are marked with "CE" and comply with the applicable European standards listed under Low Voltage Directive 2006/95/EC and the EMC-rective 2004/108/EC.

23.3 Modification

Any changes or modifications not expressly approved by the grantee of this device could vo user's authority to operate the device.

This product is fully compliant with the European Union Restriction of the Use of Certainous Substances in Electrical and Electronic Equipment ("RoHS") Directive (2002/95/EC). The RoHS directive prohibits the sale of electronic equipment containing certain hazardous substances such as lead, cadmium, mercury, and hexavalent chromium, PBB, and PBDE in the European Union.

23.5 ICES-003

LOREX®

Website

www.lorextechnology.com

Copyright

© 2019. Lorex Corporation

All rights reserved worldwide. Names and marks appearing herein are either registered trademarks or trademarks of Lorex Corporation and/or its subsidiaries. All other trademarks, trade names or company names referenced herein are used for identification only and are the property of their respective owners.

Legal disclaimer

As our product is subject to continuous improvement, Lorex Corporation & subsidiaries reserve the right to modify product design, specifications & prices without notice and without incurring any obligation.E&OF.
