Toscana - Coffee machine Prixton - Free user manual and instructions

Product type	Espresso coffee machine
Brand	Prixton
Model	Toscana
Category	Coffee machine
Type of coffee used	Ground coffee and capsules (with accessory)
Number of simultaneous cups	1 or 2
Steam function	Yes, for cappuccino
Steam wand	Yes, with integrated cleaning
Filter holder	Yes, for 1 or 2 cups
Capsule filter	Included accessory
Drip tray	Removable
Indicator lights	On, 1 coffee, 2 coffees, steam
Automatic preheating	Yes
Extraction time	15 seconds (1 cup), 28 seconds (2 cups)
Water tank	Removable, manual filling
Cleaning	Cleanable steam wand, water-washable parts
Safety	Manual stop, do not use without water
Warranty	2 years
After-sales service	www.prixton.com
Included accessories	Filter holder, 1 and 2 cup filters, tamping tool, brush, capsule holder

Frequently Asked Questions - Toscana Prixton

How to prepare a coffee with the Toscana machine?

Add one scoop (7 g) of ground coffee per cup into the filter. Press firmly with the tamping tool. Insert the filter holder, place the cups and press the 1 or 2 coffee button.

How to froth milk for a cappuccino?

Use cold milk (100 ml) in a metal cup. Activate steam, insert the 5 mm wand into the milk and turn the steam wheel. Double the volume then heat to 60°C. Clean the wand after use.

Can I use capsules with this machine?

Yes, replace the filter holder with the supplied capsule holder. Insert the capsule, then insert the holder into the machine.

What to do if the coffee flows too slowly?

This may be due to coffee ground too finely or tamped too hard. Use a coarser grind and press less firmly.

What to do if the coffee flows too quickly?

This may be due to coffee too coarse or not tamped enough. Use a finer grind and press more firmly.

How to clean the steam wand?

After use, wipe the wand with a damp sponge. For internal cleaning, turn the steam wheel and press the 1/2 coffee button to let hot water flow.

The machine does not heat, what to do?

Check that the water tank is filled and correctly installed. Plug in the appliance and press the on/off button. Wait until the indicator lights stop blinking.

What is the warranty of the machine?

The machine is guaranteed for 2 years from the date of purchase. In case of problem, contact customer service via www.prixton.com.

How to get the user manual?

The manual is available for free download in PDF format at www.notice-facile.com or on the manufacturer's website.

Why does the machine stop during use?

Check the water level. Do not operate the appliance without water. If the problem persists, contact after-sales service.

USER MANUAL Toscana Prixton

Important safeguards

When using electrical appliances, basic safety precautions should always be followed to reduce the risk of fire, electric shock, and/or injury to persons, including the following:

1. Read all instructions.
2. Close supervision is necessary when any appliance is used by or near children Children should be supervised to ensure that they do not play with the appliance
3. Do not touch hot surfas. Use hand les or knobs. Care must be taken, as burns can occur from touching hot parts or

from spilled, hot liquid

1. To protec t aga in st fire. elect ric shock . and injury to person s, do n ot immerse cord, plug, or espresso maker in water or other liquid.
2. Unplug from outlet when the espresso maker is not in use and before cleaning Allow to cool before putting on or taking off parts and before cleaning the appliance
3. Appliance must be operated on a flat surface away from the edge of counter lo prevent accidental lipping.
4. Be certa in filte r hol der is secrey in place when brewing espresso. Scalding may occur if the filter holder is removed during the brewing cycle.
5. WARNING : To reduce the risk of fire or electric shock, do not remove the top or bottom covers. No user-serviceable parts are inside. Repair should be done by authorized service personnel only.
6. Do not use appliance for other than intended use.

This appliance is intended for household use only

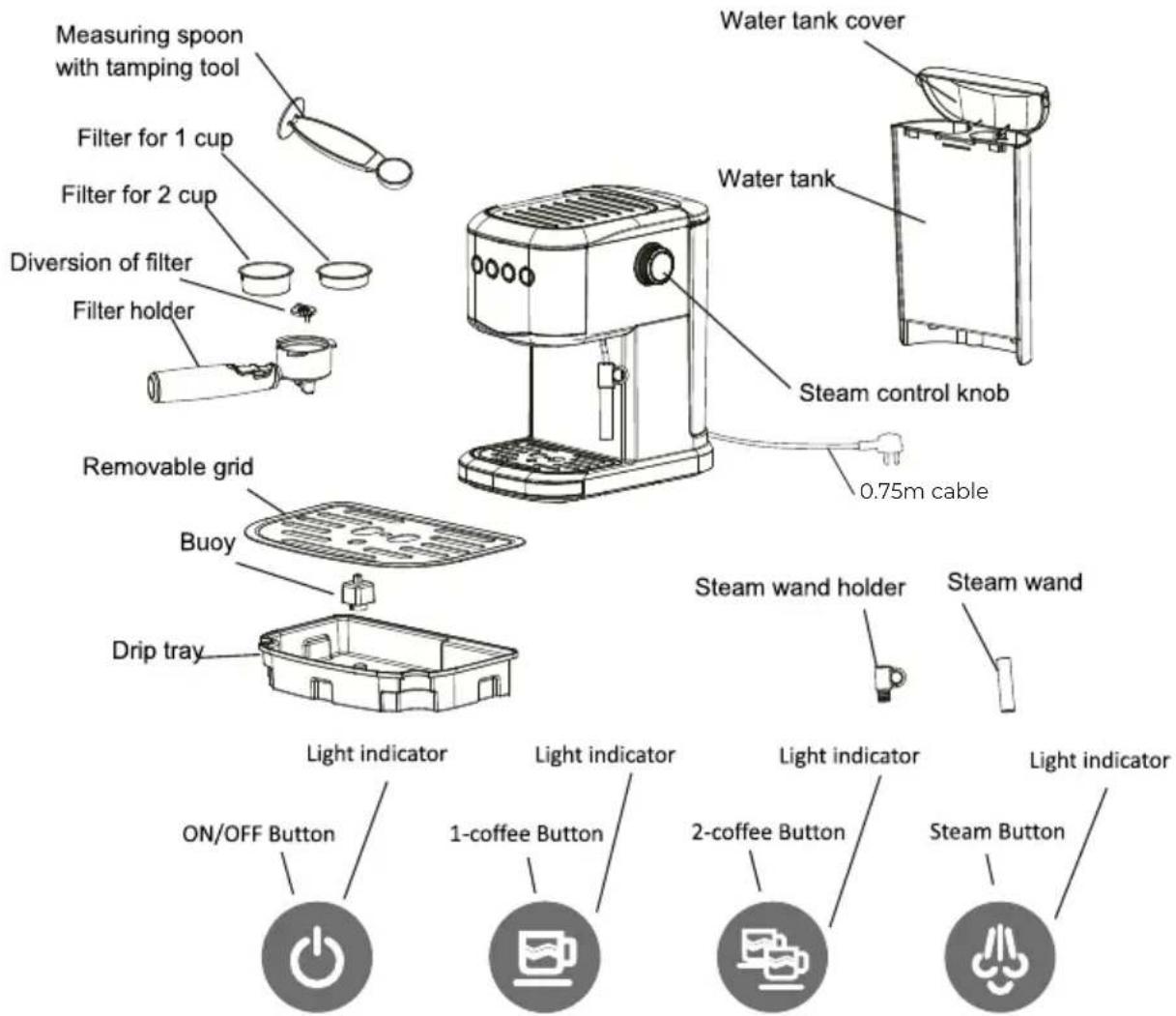

Parts and features

Before use

• Remove all packaging elements.

• Inspect all parts of the appliance for visual damage. Unwind the power cord completely and inspect it for damage. Do not use the app liance if it or its cord have been damaged or are not working properly. In case of damage, contact the official Technical Support Service for advice, repairs or returns.

• Fill the removable water tank to the MAX fill line with cold water and replace securely on the back of unit.

Note: Do not exceed the maximum line of water marked on the tank.

. Do not use the machine without water tank or water tank installed

1. Plug in the unit and press the ON/OFF button to turn unit ON. The light indicator will stay bright.
2. The machine will start warming up and the light indicator of 1-coffee and 2-0Jffee will start Hashing until the pre-heating process is over.Once the appliance has reached its optimal temperature. The light will stay bright.
3. Place filter for 1 or 2 cup in the filter holder. Insert filter holder until it slides all the way to the back and cannot be

pushed in any further. (No ground coffee in filter)

1. Press the1-coffee or 2-coffee button, hot water will come out from the machine, use the water to clean filters or cups. The water will stop when the light flashing.

Note: The maximum water delivery time of 1-coffee is 15 seconds

The maximum water delivery time of 2-coffee is 28 seconds

This appliance is intended for household use only

How to use

Making coffee

1. Ad d 1 spoon (7g) of ground coffee for each cup being made. Press ground coffee firmly with tamping tool and use a brush or a cloth to clear the filter's edge.

Note; Filter for 1 cup needs 1 spoon. Filter for 2 cup needs 2 spoons.

If the ground coffee is pressed too tightly, the coffee flows out slowly and the crema becomes thick. If the ground coffee is pressed too loose, the coffee flows out quickly and crema is insufficient and the color is light.

1. Insert filter holder until it slides all the way to the back and cannot be pushed in any further. Place 1 or 2 empty cup on the removable grid
2. When the light indicator of 1-coffee or 2-coffee stays bright, press the 1-coffee or 2-coffee button in order to prepare 1 or 2 cup coffee.
3. After making the coffee, press the on/off button to turn the machine off
4. Take the filter holder out through anticlockwise. Wash parts again with warm water. Rinse and dry thoroughly.

Frothing milk/ making cappuccino

1. When the light indicators of 1-0Jffee and 2-coflee stop Hash ing and keep bright, press the steam button. Once the light indicator of steam stops flashing g, the machine is ready.
2. Fill a metal or ceramic cup with cold milk (100ML). A stainless steel cup and skim milk are recommended.
3. Tum the steam control knob to the steam mark, release some steam to clean the steam wand, then turn the steam control knob slowly in anti-clockwise for stopping steam.
4. Hold cup underneath frothing nozzle, introduce the steam nozzle 5 mm Turn the steam control knob to the steam mark, steam will come out from the frothing nozzle.

5. After doubling the milk capacity, introduce the steam nozzle deep into the cup. And keep heating the milk to the desired temperature (60L')

6. Then turn the steam control knob slowly in anti-clockwise for stopping steam Press the steam button again for stop heating.

Note: Do not steam more than 60 seconds.

Clean steam frothing nozzle with wet sponge immediately after steam stops generating, but care not to be hurt! For clean the inner of frothing nozzle, turn the steam control knob on and press the 1/2coffee button, then hot

water will flow out and wash the frothing nozzle

1. Pour the frothed milk into the espresso prepared. Now the cappuccino is ready.

Note: If you want to make coffee after /rolhing milk, please cool down the boiler first.

a After pressing the steam button again for stop heating, press the 2-coffee button, the hot water will flow out b Once the light indicator off. press the 2-coffe button again for stopping water flowing out.

c. Now you could start to make coffee.

Tips for making Espresso

-For best results, use fresh-ground, dark, espresso roast coffee.

• If espresso pre-ground coffee is used, store the unused portion in an airtight container and keep in a cool, darl< area for up to one week

The glind of the coffee will affect the lasts of the coffee and how the appliance works. If the glind is too coarse, waler will flow too fast through the coffee and result in a weaker flavor.

If the grind is too fine, the flavor may be too strong or bitter, and the grounds may clog the filter.

• For hotter espresso, preheat the filter holder, the ground espresso filter, and the pod filler by first brewing water into the cups for a few seconds and then emptying the brewed water

• CAUTION Bum Hazard. The metal parts of the filter holder may be hot

• Espresso beans may be ground in a coffee grinder. For best results, use a coffee grinder on the fine setting. If grinding espresso in a store or using a burr mill, then use a setting that is one to two notches coarser than the espresso setting.

• Grind your espresso so that it looks brittle, like salt or sand. It is too fine if it looks like powder and feels like flour II the

coffeel is ground too fine, then the water will not flow through the coffee.

• Always use cold water to make coffee. Warm water or other liquids could cause damage to the appliance

-Filtered water will make the best-tasting coffee.

Clean and maintenance

1. Cut off power source and let the coffee maker cool down completely before cleaning.

2. Clean housing of coffee maker with moisture-proof sponge often and clean water tank, drip tray and removable shelf regularly then dry them.

Note: Do not clean with alcohol or solvent cleanse r. Never immerse the housing in water for cleaning

Clean all the accessories in the water and dry thoroughly,

Troubleshooting

Problem	Probable cause/Solution
Machine is noisy when operating.	• Is the water reservoir empty? • Is the water reservoir properly fitted into position? • Is the filter holder properly fitted into position?
Espresso does not have any or enough crema.	• Coffee is old or dry. Use freshly roasted and ground coffee. • Coffee not compacted firmly enough. Tamp coffee grounds with more pressure. • Coffee grind is too coarse. Use a finer grind of pre-ground coffee or grind the coffee beans to a finer texture.
Difficult to froth milk	• Always use fresh, cold milk (skim milk is recommended). • Use a cold, stainless steel cup and move the cup slightly up and down while frothing. • Clean the frothing nozzle. • Trying to froth too much milk; reduce amount of milk in cup
Espresso tastes burnt.	• Change the type of coffee being used. Experiment with various types and brands of coffee beans. • Appliance has not been rinsed after descaling.
No steam from the steam nozzle.	Steam nozzle is blocked.

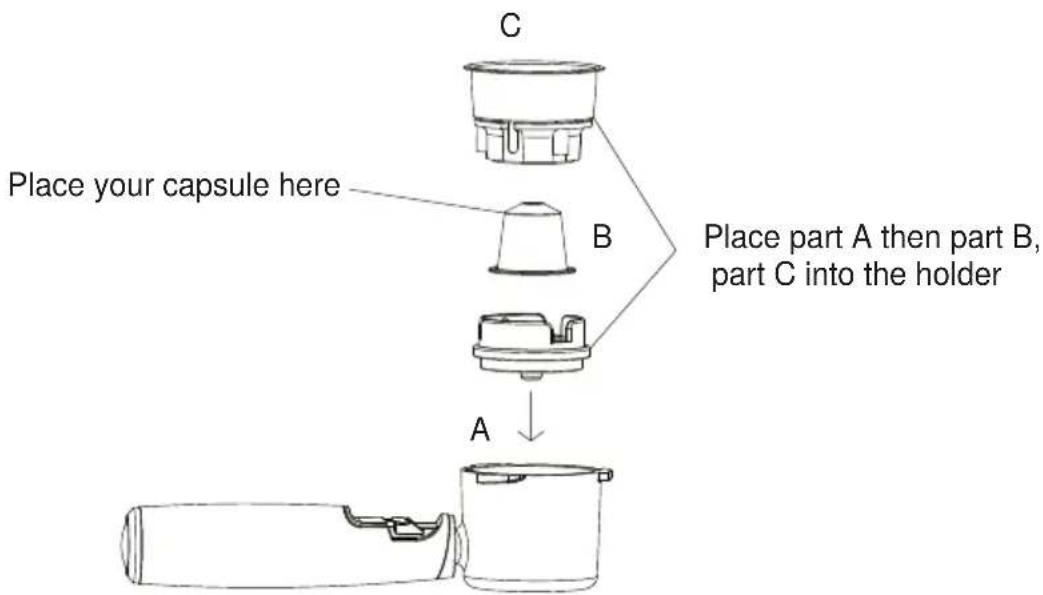

Accessories of capsule

How to use Capsule accessories:

1. Change the filter holder to the Capsule holder.
2. Put your coffee capsule into the right position.
3. Insert the holder to the machine.

Environment friendly disposal

You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal center.

Warranty policy

This product is guaranteed for 2 years from the date of purchase. When you have a problem that you can not solve, you must access the web www.prixton.com and click on the contact option to send us your assistance form.

These technical and electrical specifications are those of typical units and may be changed without prior notice in order to provide improved equipment.

Simplified eu declaration of conformity

We, La Trastienda Digital located in Avenida Cervantes 49, modulo 25, Basauri 48970, Bizkaia hereby declare that the following goods, imported and selling at European market:

BRAND	MODEL NAME DESCRIPTION		CATEGORY
PRIXTON	TOSCANA	ESPRESSO COFFEE MACHINE	HOME

Are in compliance with the EC Council Directive of 2014/53/EU (EM DIRECTIVE) and harmonized standards and with the board of the 16th of April 2014.

The complete text of the UE Declaration of conformity is available anytime at this website address:

www.prixton.com

LA TRASTIENDA DIGITAL

Environment friendly disposal

You can help protect the environment! Please remember to respect the local regulations: hand in the non-working electrical equipment to an appropriate waste disposal center.
