USER MANUAL FH Crux Dual UFESA

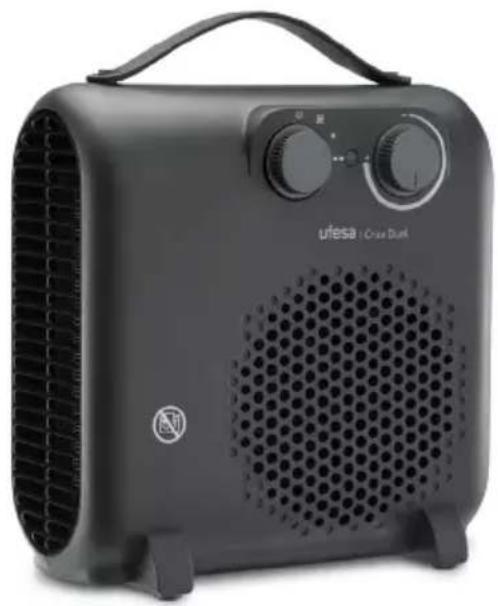

Black industrial air conditioner unit with hexagonal grille and control knobs (no visible text or symbols)

Black industrial air heater with hexagonal ventilation grille and control knobs (no visible text or symbols)

WE WOULD LIKE TO THANKS YOUR FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

DESCRIPTION

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. If the cable is damaged it must be replaced by the manufacturer, its customer service department or by qualified persons to avoid a hazard.

WARNING: In order to avoid overheating, do not cover the heater. Heater must be not located immediately below socket outlet. Do not use this heater in the immediate surroundings of a bath, a shower

or a swimming pool. Do not use this heater if it has been dropped; Do not use if there are visible signs of damage to the heater. Use this heater on a horizontal and stable surface or fix it to the wall, as applicable. Children under 3 should be kept away from the appliance unless they are constantly supervised. Children aged from 3 years and less than 8 years shall only switch on/off the appliance provided that it has been placed or installed in its intended normal operating position and they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children aged from 3 years and less than 8 years shall not plug in, regulated and clean the appliance or perform user maintenance.

Do not use this heater in small rooms when they are occupied by persons not capable of leaving the room on their own, unless constant supervision is provided. To reduce the risk of fire, keep textiles, curtains, or any other flammable material a minimum distance of 1 m from the air outlet.

CAUTION: Some parts of the appliance can become very hot and cause burns. When children and vulnerable people are present special attention should be paid.

This symbol means that the product should not be covered.

This appliance is intended for use at a maximum altitude of 2000m above sea level.

IMPORTANT WARNING

This device is intended solely for domestic use. Before connecting the product to the mains, check that your mains voltage is the same as or is within the limits indicated on the product label. Keep this appliance out of the reach of children and people with disabilities. Do not move the device while in use. Do not leave the power on if you will not be in the same room where the appliance is. Keep the appliance clean. Do not allow any object into the ventilation system as it could cause an electric shock, fire or damage the unit. Do not use the appliance to dry clothes. Always use the device in an upright position. Unplug the unit whenever not in use. Do not pull the cord to unplug the appliance. Do not use the device if it is cracked or broken. Do not use the appliance in rooms with a surface less than 4m2. The appliance has a security system to be disconnected in case of accidental overheating. To keep the unit working again unplug the power for a few minutes, check that has no object obstructing the air inlet, let the device cool down and plug it back. Improper use of the product may involve danger and revoke the warranty and liability. Do not use, connect or disconnect the device to the network with wet hands and/or feet. Do not wrap the cord around the control button.

B&B TRENDS SL accepts no liability for any damage that may be caused to people, animals or objects owing to failure to observe this warning correctly.

INSTRUCTIONS FOR USE

The safety instructions marked at the beginning of this manual must be followed at all times when using this product. Follow the instructions below in order to switch on the appliance:

1. Remove the product from its original packaging taking special care not to damage any of its parts. Do not use excessive force to remove the product from the box.
2. Switch on the appliance by selecting from the three speed settings (C).
3. Adjust the temperature using the thermostat control (D) clockwise until it clicks, the power light will illuminate and the fan heater will begin working.
4. Turn the thermostat knob clockwise to increase the temperature or anti - clockwise to decrease the temperature.
5. When the desired room temperature has reached, slowly turn the thermostat knob anti-clockwise to the minimal direction until the appliance switches off.
6. This set temperature will be automatically maintained.
7. When you have finished using your heater, turn the thermostat knob anticlockwise all the way to the lowest position [ - ], turn the power setting switch off and unplug the unit.

Repair:

Only specialized personnel should perform repairs to this electrical appliance. Any incorrectly performed repair can lead to considerable hazards for the user. In the event of repair, please always contact our aftersales service. Failure to observe these instructions will lead to the total loss of the product warranty.

Power selector

0 - OFF

- Fan (for cool air)

[1] - Low heating

[II] – High heating

AUTO SATETY SHUT OFF

The heater has a built-in safety device, which will switch the heater OFF in case of accidental overheating. To reset the heater, follow the next steps:

• Turn the power settings knob to OFF.
• Unplug the heater and wait 5 - 10 minutes for it to cool down.
  • After the unit has cooled down, plug it in and operate it as normal.

- Never place objects on the heater, such as clothing or towels. Never use the heater in the bathroom or other wet areas. The air outlets of the heater can be very hot.

Information requirements for electric local space heaters

Polux
Item Symbol Value Unit Item Unit
Heat output				Type of heat input, for electric storage local space heaters only
Nominal heat output	P nom 1,8	-2,0 KW		Manual heat charge control, with integrated thermostat	No
Minimum heat output (indicative)	P min 0,9	KW		Manual heat charge control with room and/or outdoor temperature feedback	No
Maximum continuous heat output	P max,c	2,00 KW		Electronic heat charge control with room and/or outdoor temperature feedback	No
Auxiliary electricity consumption				Fan assisted heat output No
At nominal heat output	el max 0	000 KW		Type of heat output/room temperature control (select one)
At minimum heat output	el min	0.000 KW		Single stage heat output and no room temperature control	No
In standby mode	el SB	0.000 KW		Two or more manual stages, no room temperature control	No
				With mechanic thermostat room temperature control	Yes
				With electronic room temperature control	No
				Electronic room temperature control plus day timer	No
				Electronic room temperature control plus week timer	No
				Other control options (multiple selections possible)
				Room temperature control, with presence detection	No
				Room temperature control, with open window detection	No
				With distance control option No
				With adaptive start control No
				With working time limitation No
				With black bulb sensor No
Contact details				B&B TRENDS, S.L. - C. Cataluña, 24 P.I. Ca N'Oller 08130 Santa Perpètua de Mogoda (Barcelona) - España C.I.F. B-86880473

CLEANING AND MANTENANCE

Unplug the device when you do not intend to use the product for an extended period of time to prolong its shelflife. Let it cool down before storing it. This product can only be cleaned by hand, using a soft damp cloth and mild soap. The use of abrasive cleaning products or brushes, solvents, benzine, thinner or alcohol is completely prohibited. Never immerse the appliance or any of its parts in water or excessively moisten it in order to clean it. Do not reuse the appliance until it is completely dry. Make sure there are no obstructions or dirt build-up on the air inlet or outlet of the device.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection center closest to your home.

AVERTISSEMENT

VEUILLEZ LIRE ATTENTIVEMENT LE MODE D'EMPLOI AVANT D'UTILISER LE PRODUIT. VEUILLEZ CONSERVER CE DOCUMENT DANS UN ENDROIT SÛR POUR UN USAGE ULTÉRIEUR.

DESCRIPTION

B&B TRENDS, SL. guarantees compliance of this product, for the use for which it is, during the period established by the legislation in force in the country of sale. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfil or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void.

You must keep the purchase invoice, receipt or delivery docket in order to exercise your warranty rights.

For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BON DE GARANTIE

Check out your nearest service station at https://sat.ufesa.com/
