USER MANUAL Bellagio UFESA

White and black milk dispenser with clear glass control panel (no visible text or symbols)

Black and white photo of a coffee maker with a clear glass cup and black lid (no visible text or symbols)

Labeled diagram of a white portable water dispenser with numbered parts for identification and assembly reference.

Three black plastic coffee bins with labeled components (6, 4, 5), showing different interior designs and contents (no text or symbols on the bins themselves)

ESPAÑOL

AGRADECEMOS QUE HAYA DEPOSITADO SU CONFIANZA EN UFESA Y DESEAMOS QUE EL FUNCIONAMIENTO DEL PRODUCTO LE SATISFAGA PLENAMENTE.

ATENCIÓN

White and black electric shaver with water bubbles, shown from side to top (no text or symbols visible)

Hand inserting a black plug into an electrical outlet (no text or symbols visible)

Hand inserting a product into a black and white UFSA coffee maker (no text or symbols visible)

FUNCIÓN DE ESPERA

White and black compact coffee maker with black handle and side panel (no visible text or symbols)

Close-up of a black plastic container with a cylindrical port (no text or symbols visible)

White and black compact milk dispenser with side-mounted stand (no visible text or symbols)

Hand pointing at a black and white UFESA coffee maker device (no visible text or symbols on device body)

Product photo of a white and black self-service milk dispenser pouring liquid into a small container (no text or symbols visible)

White and black electric shaver with water bubbles, shown from side to front (no text or symbols visible)

Hand inserting a black plug into an electrical outlet (no text or symbols visible)

Hand inserting a black and white product into a white coffee machine labeled 'ufesa' and 'Belagio' (no additional text or symbols visible)

FUNÇÃO DE PAUSA

White and black compact coffee maker with a rotating knob (no text or symbols visible)

4) Insira a cápsula no porta-cápsulas (ou adicione café moído ao suporte de borras de café) e coloque-a novamente na máquina.

Close-up of a black plastic container with a cylindrical port and perforated base (no text or symbols visible)

White and black compact water dispenser with black handle and side legs (no visible text or symbols)

Hand pointing at a Ufesa coffee maker (no visible text or symbols on device body)

7) Quando a máquina parar de moer, abra a pega de bloqueio. Retire o porta-cápsulas e remova a cápsula usada. Descarte a cápsula adequadamente.

Product photo of a white and black self-service milk dispenser pouring liquid into a small container (no text or symbols visible)

WE WOULD LIKE TO THANKS YOUR FOR CHOOSING UFESA, WE WISH THE PRODUCT PERFORMS TO YOUR SATISFACTION AND PLEASURE.

WARNING

PLEASE READ THE INSTRUCTIONS FOR USE CAREFULLY PRIOR TO USING THE PRODUCT. STORE THESE IN A SAFE PLACE FOR FUTURE REFERENCE.

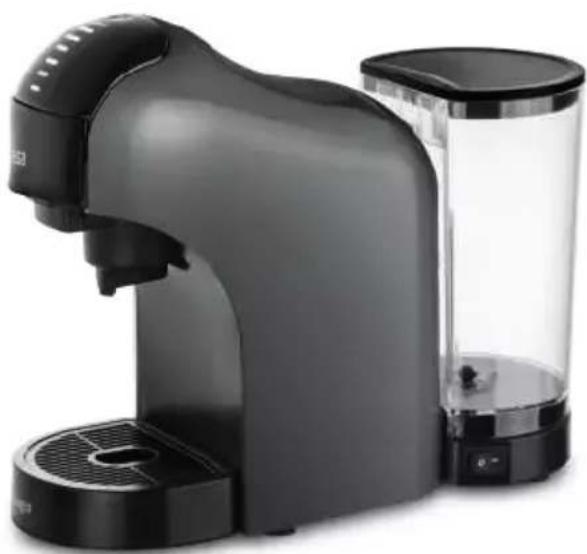

DESCRIPTION

1. Start/Stop Button
2. Volume selector
3. Locking handle

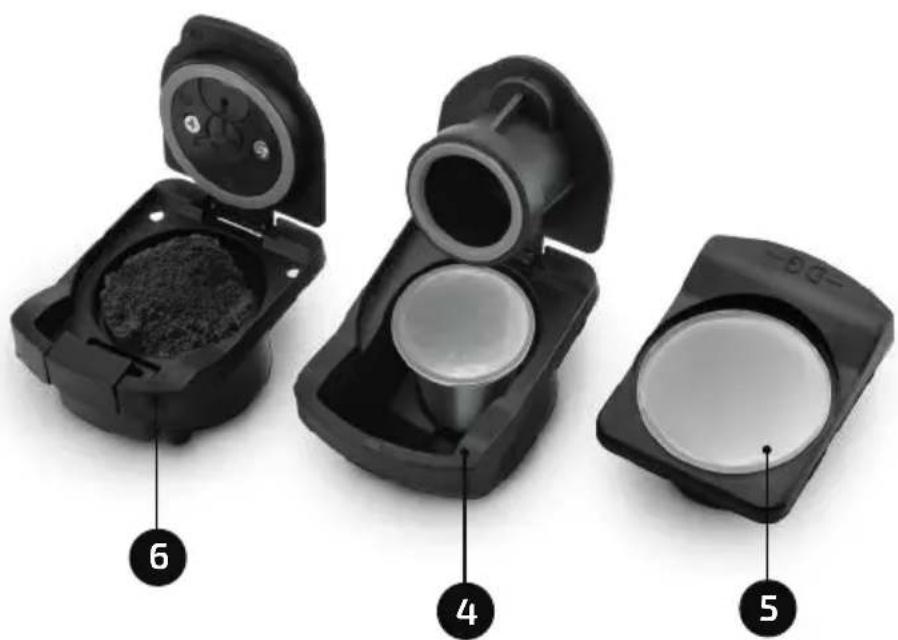

4. Nespresso ^® * capsule holder
5. Dolce Gusto®* capsule holder
6. Coffee ground holder
7. Drip grid (removable)
8. Drip tray (removable)
9. Water tank cover
10. Water tank
11. Power cord
12. Switch on/off

*Brand of a third party that is not affiliated with Ufesa

SAFETY INSTRUCTIONS

If the supply cord is damaged it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

This appliance can be used by children aged from 8 years and above if they have been given supervision or instruction concerning use of the appliance in a safe way and if they understand the hazards involved. Children shall not play with the appliance.

Cleaning and user maintenance shall not be made by children unless they are older than 8 and supervised. Keep the appliance and its cord out of reach of children aged less than 8 years. Appliances can be used by

persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

This appliance is intended to be used in household. It is not intended to be used in applications such as:

• Staff kitchen areas in shops, offices and other working environments.
• Farm houses.
• By clients in hotels, motels and other residential type environments.
• Bed and breakfast type environments.

Proceed according to maintenance and cleaning section of this manual for cleaning. Never immerse the appliance in water or any other liquid.

During brewing and after use due to residual heat some parts of the machine are hot.

Warning: potential injury from misuse!

This device is designed for use at a maximum altitude up to 2000m above sea level.

IMPORTANT WARNINGS

Any incorrect use or improper handling of the product shall render the warranty null and void. Prior to plugging in the product, check that your mains voltage is the same as the one indicated on the product label. The mains connection cable must not be tangled or wrapped around the product during use. Do not use the device, or connect and disconnect to the supply mains with the hands and / or feet wet. Do not pull on the connection cord in order to unplug it or use it as a handle. Never use your coffee machine without water in it. Unplug the product immediately from the mains in the event of any breakdown or damage and contact an official technical support service. In order to prevent any risk of danger, do not open the device. Only qualified technical personnel from the brand's Official technical support service may carry out repairs or procedures on the device.

B&B TRENDS SL. disclaims all liability for damages that may occur to people, animals or objects, for the non-observance of these warnings.

INSTRUCTIONS FOR USE

Starting the machine:

1. Place the coffee machine on a flat and stable surface, far from water and heat sources. Do not connect the machine to the mains supply.

2. Lift and remove the cover, then the water tank itself.

White and black electric shaver with water bubbles, shown from side to side (no text or symbols visible)

1. Rinse off the tank.

2. Fill the water tank up to the MAX level indicated, using only fresh drinking water. Fit the tank back into place, then close by using the cover.

3. Fit the supply plug into the power outlet

Hand inserting a black plug into an electrical outlet (no text or symbols visible)

1. Press switch ON-OFF button to switch the machine on.

2. The coffee machine starts the heating cycle. The brewing buttons start blinking to a light white.

3. The machine will be ready for use when the brewing button light up to a steady white light.

4. At first power-on, supply at least 0.5 litre of water without capsule placing a container under coffee spout.

Hand placing a black and white product into a Belago coffee maker (no visible text or symbols on device body)

STAND-BY FUNCTION

To ensure the energy conservation the machine automatic passes to the stand-by mode after 9 min use of not being used. The machine can be reactivated by pressing the buttons again.

COFFEE DISPENSING

Make sure that the brewing buttons lights to a steady white light. Never put fingers or object in the capsule holder. Only compatible capsules must be introduced in the capsule holders. Single-dose capsules are prepared to dispense one coffee/product. Do not use the capsules more than once. Inserting two or more capsules can cause the machine to malfunction. For coffee powder choice, please use the spoon to measure the quantity to add to the coffee ground holder. Maximum quantity is about 8gr.

Note: Please make sure there are no rest of coffee powder in the inner edge of the holder. This may don't allow to close the lid properly and may cause trouble to introduce it in the machine.

If power supply is interrupted during the coffee supply cycle, restore power supply and restart the coffee supply procedure. If during the supply cycle water lacks in the tank, please press button to stop the machine. Then proceed as follows:

Fill the water tank up to the Max level indicated. Press the brewing buttons.

HOW TO PREPARE AN ESPRESSO COFFEE

1) Place the cup under the coffee dispenser for a classic espresso
2) Remove the drip tray to use cups of different sizes for a long coffee
3) Open locking handle and pull out the capsule holder

White and black milk dispenser with a glass container, no visible text or symbols

4) Insert the capsule in the capsule holder (Or add coffee powder in the coffee ground holder) and insert it back in the machine.

Close-up of a black plastic mechanical component with a cylindrical port (no visible text or symbols)

5) Close the locking handle.

White and black compact coffee maker with handle and side legs (no visible text or symbols)

6) Indicator light starts blinking white while machine is heating up for approximately 50 seconds. Afterwards indicator lights steady white the machine is ready to be used. Use the volume selector to set the volume display in accordance with the number of bars shown on capsule or select amount of bars to your own taste. Pressing the brewing button, beverage preparation starts. Wait to stops. Extraction can be stopped at any time manually by pressing the brewing button.

Hand pointing at a Ufesa coffee maker (no visible text or symbols on device body)

7) When the machine stops brewing, open the locking handle. Pull out the capsule holder and remove used capsule. Dispose the capsule properly.

Product photo of a white and black self-service coffee maker with a bucket being inserted (no text or symbols visible)

8) Rinse both sides of the capsule holder with water and dry. Inset capsule holder into machine. Enjoy your beverage.

DESCALING

1. Remove and empty the water tank.
2. Refill the tank with a descaling solution and water as specified on the package of the descaling product. Refit the tank.
3. Power the machine On and place a suitable container under the spout.
4. Press brewing buttons and then supply two cups (aprox 150ml each) of water.
5. Allow the descaling solution to work for about 15-20 minutes.
6. Switch on the machine pressing brewing buttons, then proceed as described in steps.

7. Repeat the steps described in point until the water tank is completely empty.

8. Remove the tank and rinse it with fresh drinking water. Fill it completely.

9. Switch the machine on by pressing brewing buttons. Place a suitable container under the dispenser. Press brewing buttons, then supply the full content of the tank.
10. When the water is finished, refill the tank and repeat the steps described in point. When finished, the end of the descaling cycle is completed.

MAINTENANCE AND CLEANING

Do not forget to remove the plug from the socket before cleaning the appliance.

Wipe outside with soft dry cloth when coffee machine is wet, never use metal polish.

The removable items should be washed in hot soapy water. Rinse them before fixing.

Detach the metal funnel through turn it anticlockwise, get rid of coffee residue inside, then you can clean it with cleanser, but at last you must rinse with clear water.

Never use a dishwasher to clean any parts from the machine.

Put the coffee maker in a dry and not very hot place.

PRODUCT DISPOSAL

This product complies with European Directive 2012/19/EU on electrical and electronic devices, known as WEEE (Waste Electrical and Electronic Equipment), provides the legal framework applicable in the European Union for the disposal and reuse of waste electronic and electrical devices. Do not dispose of this product in the bin, instead going to the electrical and electronic waste collection centre closest to your home.

FRANÇAIS

NOUS VOUS REMERCIONS D'AVOIR CHOISI UFESA, NOUS SOUHAITONS QUE CE PRODUIT VOUS APPORTE SATISFACTION ET VOUS FASSE PLAISIR.

AVERTISSEMENT

VEUILLEZ LIRE ATTENTIVEMENT LE MODE D'EMPLOI AVANT D'UTILISER LE PRODUIT. VEUILLEZ CONSERVER CE DOCUMENT DANS UN ENDROIT SÛR POUR UN USAGE ULTÉRIEUR.

DESCRIPTION

White and black electric shaver with water bubbles, shown from side to top (no text or symbols visible)

Hand inserting a black plug into an open electrical outlet (no text or symbols visible)

Hand inserting a coffee machine into a white and black device, labeled 'ufesa' and 'Betagio' (no additional text or symbols visible)

FONCTION VEILLE

White and black compact coffee maker with rotating arm (no visible text or symbols)

Close-up of a black plastic container with a cylindrical port and textured interior (no text or symbols visible)

White and black compact milk dispenser with side-mounted buttons (no visible text or symbols)

Hand pointing at a Ufesa coffee maker (no visible text or symbols on device body)

Product photo of a white and black coffee maker with a bucket being inserted, no visible text or symbols

ÉLIMINATION DU PRODUIT

White and black digital water dispenser with water bubbles, shown from side to side (no text or symbols visible)

Hand inserting a black plug into an electrical outlet (no text or symbols visible)

Hand inserting a sample into a white and black UFSA coffee maker (no text or symbols visible)

FUNZIONE STAND-BY

White and black digital coffee maker with rotating control panel (no text or symbols visible)

Black plastic container with a cylindrical port and textured interior (no text or symbols visible)

White and black compact water dispenser with black handle (no visible text or symbols)

Hand pointing at a Ufesa coffee maker (no visible text or symbols on device body)

Product photo of a white and black coffee maker with a bucket being inserted, no visible text or symbols

White and black electric shaver with water inside, shown from side to side (no text or symbols visible)

Hand inserting a black plug into an open electrical outlet (no text or symbols visible)

Hand operating a Ufesa coffee maker with black and white casing (no visible text or symbols on device body)

STAND-BY FUNKTION

White and black milk dispenser with a side-mounted stand (no visible text or symbols)

Close-up of a black plastic container with a cylindrical port and mesh base (no text or symbols visible)

White and black compact milk dispenser with handles and control panel (no visible text or symbols)

Hand pointing at a Ufesa coffee maker (no visible text or symbols on device body)

White and black self-service milk dispenser pouring liquid into a small container (no text or symbols visible)

White and black electric shaver with water inside, shown from side to front (no text or symbols visible)

Hand inserting a black plug into an open electrical outlet (no text or symbols visible)

Hand inserting a small black and white product into a white coffee maker (no visible text or symbols)

РЕЖИМ НА ГОТОВНОСТ

White and black digital coffee maker with a side panel, no visible text or symbols

Close-up of a black plastic mechanical component with a cylindrical port and internal cavity (no visible text or symbols)

White and black milk dispenser with a side-mounted stand (no visible text or symbols)

Hand pointing at a black and white UFESA coffee maker (no visible text or symbols on device)

Product photo of a white and black self-service milk dispenser pouring liquid into a small container (no text or symbols visible)

Product photo of a white coffee maker with a bucket being inserted, showing its lid and handle (no text or symbols visible)

White and black milk dispenser with a side panel, no visible text or symbols

Close-up of a black plastic mechanical component with a cylindrical port and textured base (no visible text or symbols)

White and black compact water dispenser with handle and base mount (no visible text or symbols)

Hand pointing at a white and black UFESA coffee maker (no visible text or symbols on device body)

Hand inserting a black plug into an electrical outlet (no text or symbols visible)

Hand inserting a small into a white and black UFESO milk dispenser (no text or symbols visible on device body)

وظيفة الاستعداد

White and black electric shaver with water bubbles, shown from side to side (no text or symbols visible)

B&B TRENDS, SL. guarantees compliance of this product, for the use for which it is, during the period established by the legislation in force in the country of sale. In the case of breakdown during the term of this warranty, users are entitled to repair or else the replacement of the product at no charge if the former is unavailable, unless one of these options proves impossible to fulfil or is disproportionate. In this case, you can then opt for a reduction in price or cancellation of the sale, which must be dealt with directly with the sales vendor. This also covers replacement of spare parts provided that the product has been used according to the recommendations specified in this manual for both cases, and has not been tampered with by any third party that is not authorised by B & B TRENDS, SL. The warranty will not cover any parts subject to wear and tear. This warranty does not affect your rights as a consumer in accordance with the provisions in Directive 1999/44/EC for member states of the European Union.

USE OF WARRANTY

Customers must contact a B&B TRENDS, SL., authorised Technical Service for repair of the product. Since any tampering of the same by anyone not authorised by B&B TRENDS, SL., or the careless or improper use of the same shall render this warranty null and void.

You must keep the purchase invoice, receipt or delivery docket in order to exercise your warranty rights.

For technical service and after-sales care outside the Spanish territory, please submit your query to the point of sale where you purchased the item.

BON DE GARANTIE

Check out your nearest service station at https://sat.ufesa.com/
