USER MANUAL Elara LN07 TRIANGLE

MANUFACTURE ELECTROACQUSTIQUE

ELARA

Mode d'emploi & Garantie Owner's manual & Warranty

www.trianglehifi.com

support.trianglehifi.com

SUPPORT&FAQ

facebook.com/triangle.electroacoustique

twitter.com/trianglehifi

SOMMAIRE / SUMMARY

Garantie/Warranty 4

User Manual - English 13

• Unpacking 14
• Pedestal assembly for LN05 & LN07 14
• Connecting 15
• Choosing the amplifier 15
• Stereo & Home Cinema positioning 16

Informations techniques / Technicals informations 18

GARANTIE / WARRANTY

Thanks for buying a Triangle product.

We want you to enjoy your purchase to the fullest. The first step is an easy registration of your products. By doing this, you will benefit from helpful tips, products support, special offers and 5 years warranty.

1- Online registration

Register your product easily online at the following address :

http://register.trianglehifi.com/

2-Warranty card

You can also register your product and validate your warranty by filing the warranty card and sending it to :

TRIANGLE DISTRIBUTION FRANCE

41 Rue Borie

33300 Bordeaux FRANCE

Note on the warranty

Your TRIANGLE loudspeaker is warranted for 5 years. This warranty takes effect from the date of purchase and covers any manufacturing defect or damage your loudspeaker could suffer as a result of these same defects. This warranty is granted solely to the first owner of the product, and is not transmittable in the case of resale. To validate your warranty, you will need to register online or mail the warranty coupon to TRIANGLE. Please note, this warranty is voided if any fault arises from ill-treatment or careless handling of the product.

The following are not guaranteed :

• A burned voice-coil caused by overloading the driver
• Any fault occurring from professional usage (public sound systems, PA systems, etc.)
• Any fault resulting from storage in areas of high humidity
• A pierced or torn membrane
• A dented cone or dome
• A torn suspension
• Any fault resulting from a mechanical shock (ex if dropped or handley roughly)
• Any fault arising from servicing by anyone other than an authorized TRIANGLE service technician
• Damaged cabinets due to mishandling

Open the box and remove all staples, then carefully take the speaker out of the box. When unpacking, if you notice any defects on any of the drivers or the cabinet, you should contact your dealer.

Before disposing the packaging, check that nothing is left inside.

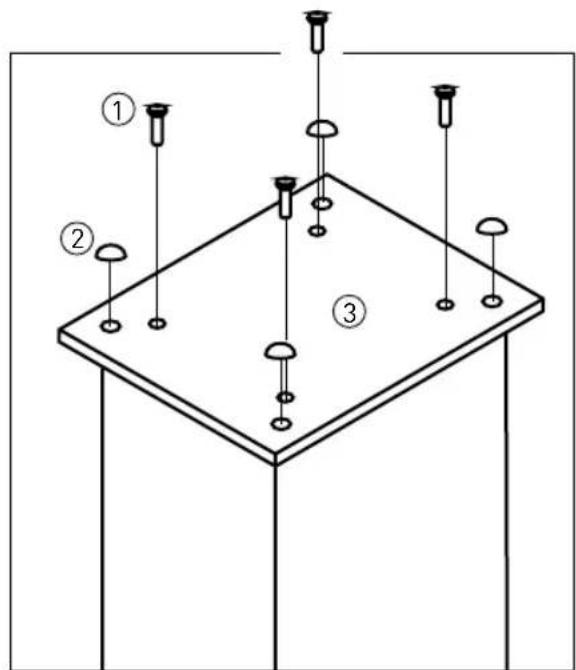

1 - Stand the speaker on the top on a non-abrasive surface)
2 - Secure the pedestal by using the screws supplied
3 - Attach the glue pads on the outer holes, if you do not want to make use the optional spikes

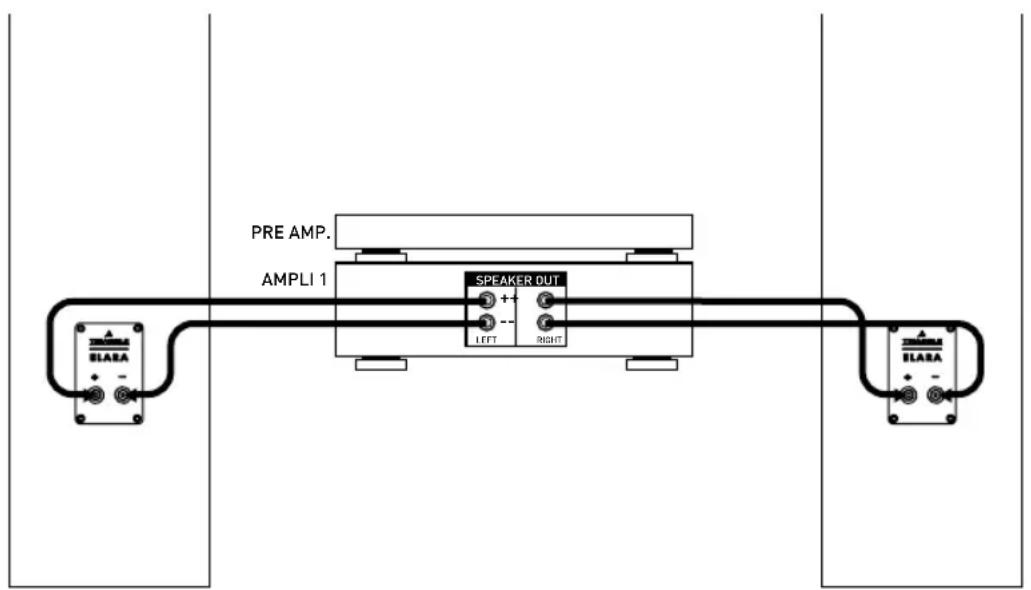

Connections

For optimal sound reproduction, we suggest that you choose a loudspeaker cable of high quality to connect your amplifier to your TRIANGLE loudspeakers. You should use cables of the same length for the left and right channels and take special care to respect the + and - polarity for each channel. Don't forget to strip the cables if it's necessary.

Choose the Amplifier

For optimal results, it is important to choose a good quality amplifier with sufficient power. It is preferable to use a powerful amplifier within reasonable limits, with less risk of distortion, than demanding too much from a less powerful amplifier, which will ultimately clip and seriously risk damaging your loudspeakers.

Finally, remember that a volume dial set at medium position does not mean that the amplifier is at «medium» power. It mainly depends on input sensitivity and output level of the source.

For further informations concerning your system, please consult our website :

http://trianglehifi.com/

EN

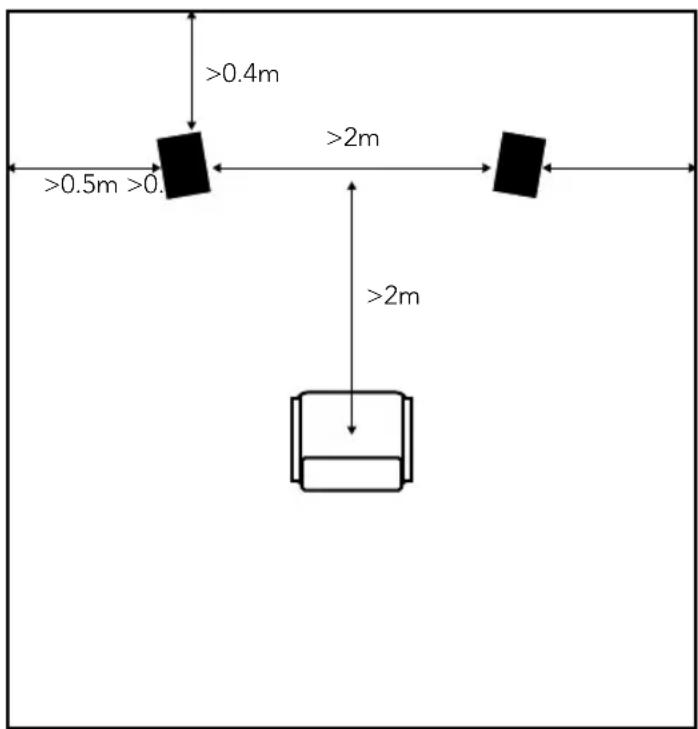

Positioning for stereo

When positioning your loudspeakers, apply the following rules :

• Avoid rooms with too much reverberation, such as tiled rooms without carpets or curtains.
• Your listening position should not be too close to the loudspeakers, leave a minimum of 2m
• The distance between the speakers should be a minimum of 2m for a good stereo effect.
• If possible, place the speakers so that sound is «diffused» lengthwise within the room.
• Avoid placing the speaker in corners; they should be at least at 40 cm away from the back wall and at least 50 cm from the sidewalls. Generally, a position close to the rear wall increases the response in the low frequencies (and reduce the imaging) and contrariwire, a position far from the back wall reproduces a wide and deep sound image. Carry out several test positions to find the best room set-up.

Positioning for home-cinema

A typical home cinema installation includes :

①- Two main speakers, left and right (LN05 or LN07)
② A centre speaker (LN02)
One or several subwoofoers (Thetis 280 or Tales 340)
④ Surround speakers (5.1 signal : 2 rear speakers, 6.1 signal : 3 rear speakers, 7.1 signal : 4 rear speakers) (LN01)

To place the main speakers in the best position, follow the same rules as for a stereo installation (see previous page on stereo positioning).

• The centre speaker should be placed along the line formed by the two main speakers.

• For home cinema setups a subwoofer is highly recommended in order to reproduce the special bass effects channel featured on supports such as DVD audio or video. The positioning of the subwoofer is not critical if you select a crossover frequency below 80Hz . Above this frequency, it is better to move the subwoofer closer to the main speakers. The best position being in between the two main speakers. Ensure that it is not placed in the corner of the room to avoid creating unpleasant resonances.

• We recommend that you place the rear speakers at between 1.5 and 2m of height. Their role is to reproduce surround sound. Ensure that you take into account the weigh of the speaker when fixing it onto the wall.

You will find further instructions for configuring your installation in your A/V amplifier owner's manual.

GAMME ELARA / ELARA RANGE

SpécificationsTechniquesTechnicalSpecifications	LN01 LN02 LN05 LN07
Type Bass reflex Bass reflex Bass reflex
Nombre de voiesWays	2 2 2.5 2.5
SensibilitéSensitivity (dB/m)	89 89 90 91
Bande passanteBandwidth(+/-3dB Hz-Khz)	56-22 65-22 47-22 42-22
Puisance admissiblePower handling (WRms)	50 60 90 110
Impédance minimumMinimal impedance(ohms)	4.5 4 4.5 4.1
Dimensions(mm; inch)	165x235x2916.49x9.25x11.46	485x260x16519.09x10.24x6.5	165x263x9006.49x10.35x35.43	198x313x10567.79x12.32x41.57
Dimensions avec piedDimensions withpedestal (mm; inch)	-	-	230x290x9509x11,4x37,4	280x350x108511x13,7x42,7
Poids de l'enceinte(Kg)Net Weight (lbs)	4.5510.03	7.115.65	1328.66	18.139.90
Poids avec packaging(Kg)Gross Weight (lbs)	9.9 (paire)21.82 (pair)	817.64	1533.07	20.545.19

LN01 LN02 LN05 LN07
