USER MANUAL Magellan Voce 40th TRIANGLE

MANUFACTURE ELECTROACOUSTIQUE

ÉDITION 40°EME ANNIVERSAIRE

FABRICATION FRANÇAISE

Mode d'emploi

User's Manual

[命题规律]

L

Register your product

Register your TRIANGLE product information on our website and benefit from a privileged support : www.TRIANGLEHIFI.COM

WARRANTY

Enjoy a 5-year warranty for your Magellan 40^TH speakers.

NEWS

Stay informed of the latest news, products and events.

• SUPPORT

Get advice and support from the TRIANGLE team and community.

ONLINE REGISTER

Go to the « Support » page of our website: www.TRIANGLEHIFI.FR and complete the form. An email will confirm your warranty extension.

FR

ÉDITO 7

MISE EN CEUVRE 8-15

RECOMMANDATIONS - GARANTIE 26-27

SPECIFICATIONS TECHNIQUES 28-29

Summary

EN

EDITO 31

INSTALLING 32-39

Unpacking/Content Cello&Quatuor 40

Unpacking/ContentDuetto40 34

Unpacking/ContentVoce40 36

Before placing the speaker 38

STEREO LISTENING 40-41

Stereo placement 40

Acoustic processing 41

Stereo amplifier 41

MAKING CONNECTIONS 42-47

Types of connections & cables 42

Bi-wiring & bi-amping 44

Setup 45

HOME THEATER 48-49

Positioning 48

Amplifier 49

RECOMMENDATIONS - WARRANTY 50-51

TECHNICAL SPECIFICATIONS 52-53

These puissances are in fact in the same sense.

MAGELLAN is the essence of TRIANGLE's know-how, a strive to obtain the highest possible results, an exclusive product in which every element has been carefully selected.

Made of the finest materials selected with maximum care, combining technology and elegance, this 40th anniversary edition is a passionate and thorough process in which an entire team of men and women has worked with a single ambition: to offer the future owner of this product a unique moment that never ends.

Hugo Decelle CEO

HDecelle

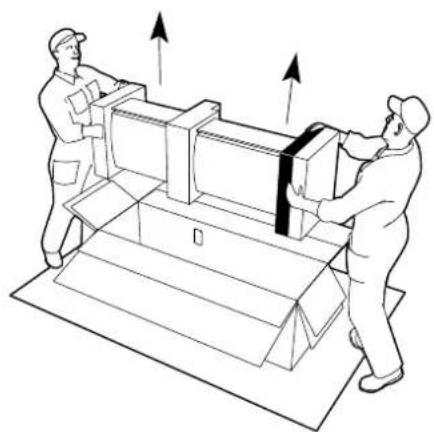

Unpacking Cello & Quatuor 40^TH

NOTE: Two people are needed to ensure safe unpacking.

1

Place your speaker as illustrated on a clean, dry surface or on a carpet.

2

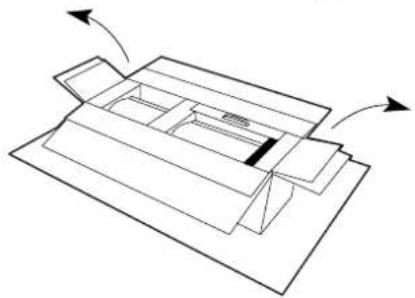

Successively open the two protective packages, then repeat steps 1 & 2 for the second speaker.

3

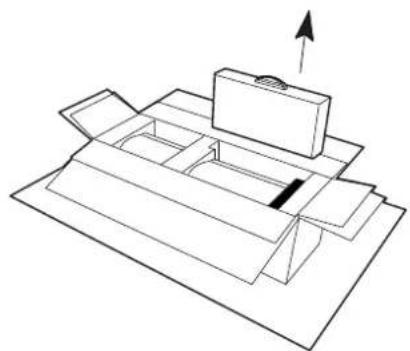

Take out the accessory case and keep it nearby. It will be needed for the installation of the stands.

Please note that only one of the two cases contains the welcome pack and the gloves needed to manipulate your speaker.

4

Take out the speaker while keeping the foams at the ends.

5

Place the speaker with the black foam down.

Put on the protective gloves for the next steps.

6

Remove the top foam and then remove the grille by sliding it up. Take the protective cover off the top of the speaker by about 10 cm.

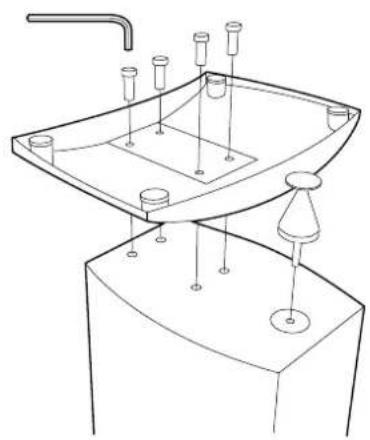

Take the stand, the SPEC spike, the 4 screws and the Allen key out of the accessory case.

Place the stand on the speaker and secure it with the 4 screws provided. Tighten the SPEC spike as much as possible; the final adjustment will be made after the speaker is installed.

WARNING: While assembling the base, it is necessary to first engage the 4 screws by hand before carrying on with the final screwing.

7

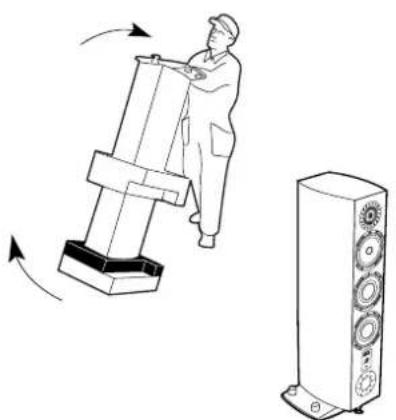

The speaker is ready to be placed on its base. To do this, make sure not to rest the speaker solely on the SPEC spike during handling.

Complete the installation by removing the top foam, middle foam, and protective cover.

NOTE: It is recommended to remove the magnetic grilles when listening.

HOW TO UNPACK YOUR SPEAKERS?

Discover the educational video on our website

http://www.trianglehifi.com

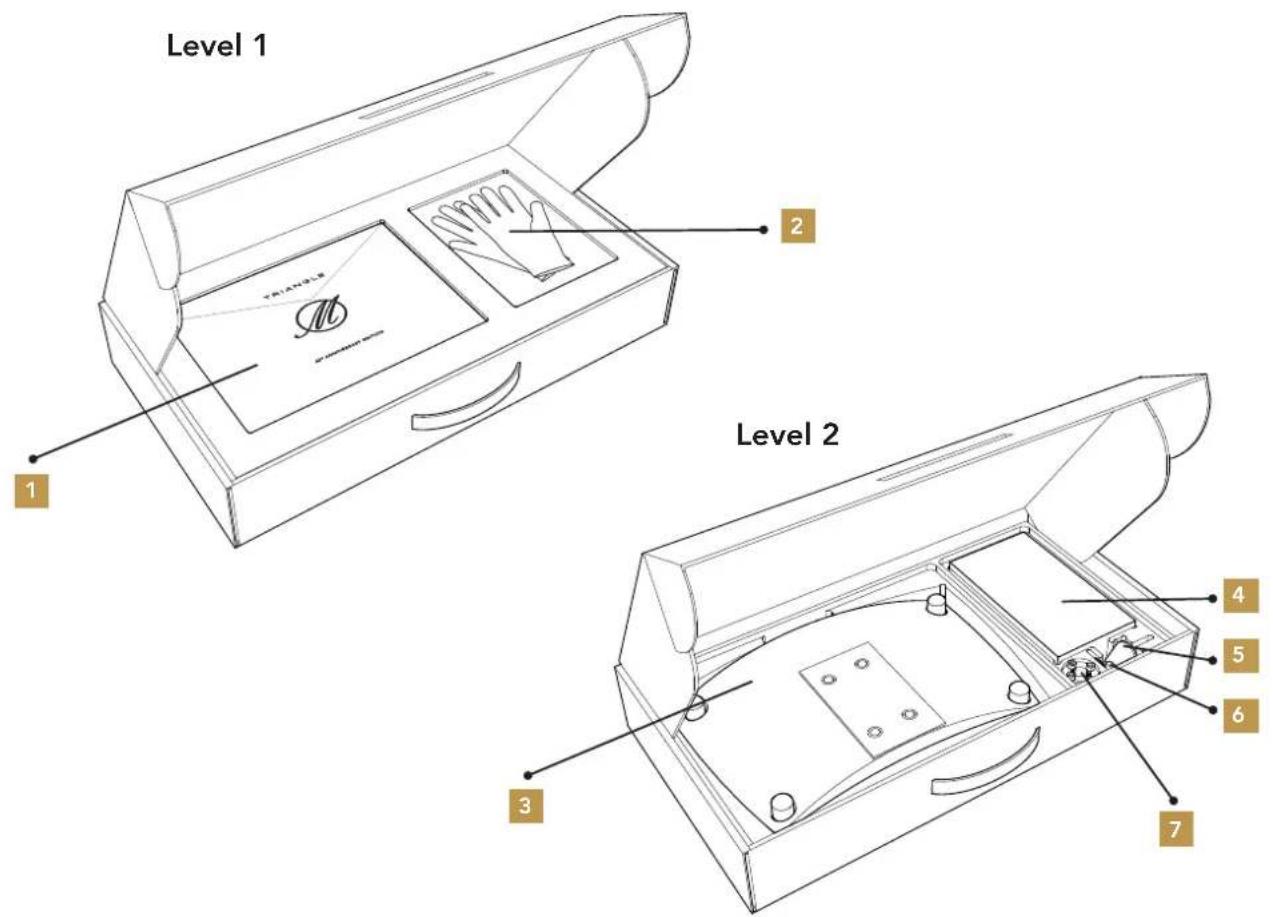

Content Cello & Quatuor 40^TH

Content Level 1*

1.5! Welcome envelope with:

-1xUsermanual
- 1 x Certificate of authenticity
- 1 x Microfiber cloth for maintenance

22x Pairs of handling gloves

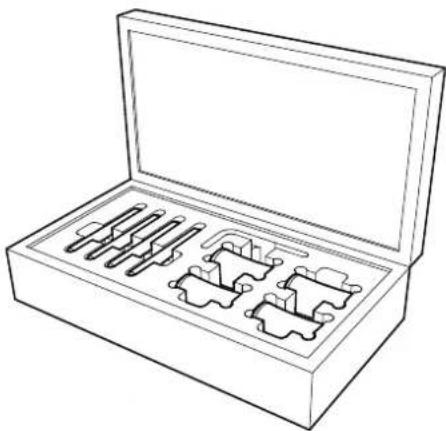

Content Level 2*

3 1× Stand
4 1 x Accessory box with adjustable spikes
5 1 x SPEC spike
6 4x Screws for the stand
7 1 x Wrench for the stand

*Accessory case Cello & Quatuor 40TM

You get two accessory cases with your pair of speakers, but only one of them includes the handling gloves and the welcome envelope.

We recommend that you keep the packing materials in case you need to move your speakers.

The original Quatuor 40^一 and Cello 40^一 come with a stand featuring 4 rubber feet to protect your floorings.

To increase the stability of your speakers and to avoid the transmission of sound waves, you can add decoupling spikes to your stand as follows:

Step 1

1 Remove the caps on the stand by unscrewing them.

2 Insert the spikes manually until you reach the stop.

3 Using the key provided, adjust the flatness while decoupling your speaker from the floor by a few millimeters.

4 Secure their adjustment with the nuts provided.

Step 2

• Once your speaker is properly positioned, you need to lock the position of the SPEC to maximize efficiency.

1 Unscrew the spike assembly until you reach the stop.

2 Make sure the spike is properly positioned on the floor.

3 Lock the position by tightening the top nut.

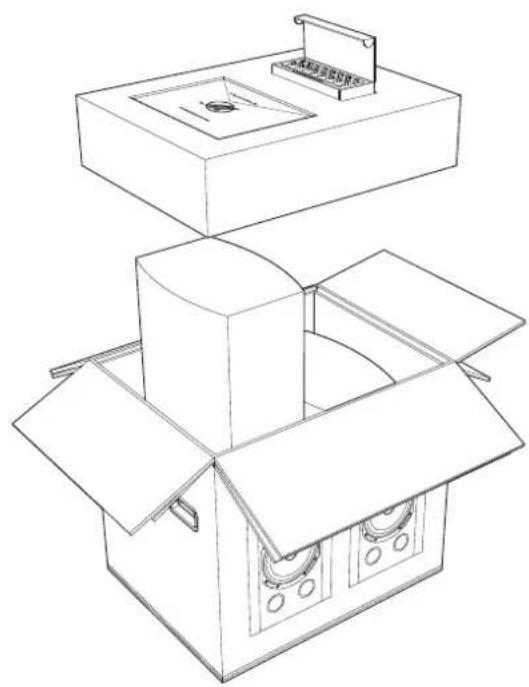

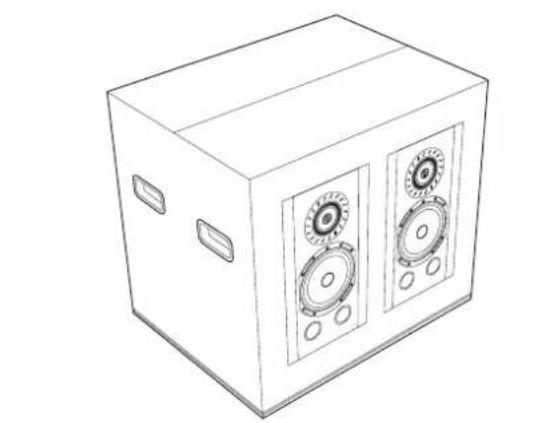

Unpackaging Duetto 40^TH

NOTE: Perform the operation on a clean, dry surface or on a carpet.

1

Place your speakers as shown in the figure.

2

Successively open the two protective packages.

3

Remove the top foam containing the accessory case and the Welcome envelope.

4

Remove the grilles from your speakers.

5

Then remove your speakers, one after the other.

6

Before installing the speakers, ensure that the appropriate decoupling spikes for your flooring are in place. (See page 37)

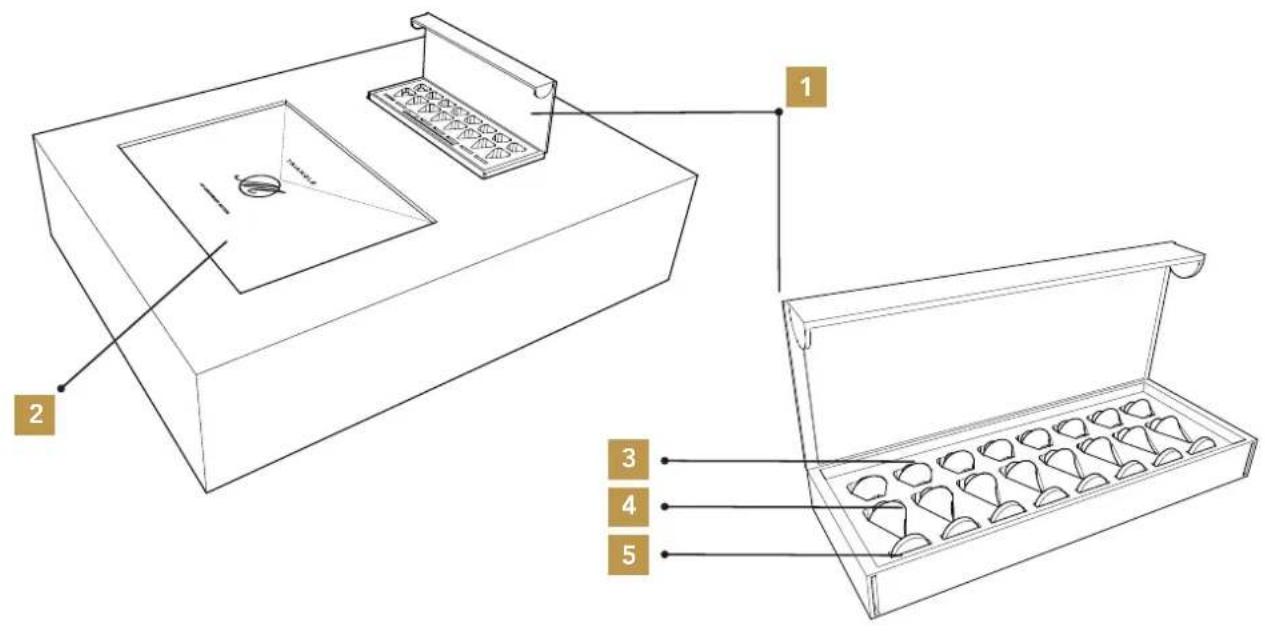

Content Duetto 40^TH

Contents

1 1 x Accessory box with adjustable spikes
2 1 x Welcome envelope with:

-1xUsermanual
- 1 x Certificate of authenticity
- 1 x Microfiber cloth for maintenance
- 1 x Pair of handling gloves

8x Rubber feet
8.4 Steel spikes
85 Counter spikes

To optimize your listening experience, the speakers include 2 sets of decoupling spikes:

• Rubber feet (3): To be used on furniture or stands, to reduce the transmission of low frequencies.
• Steel spikes (4): To be used on flooring such as wooden floors, tiles or carpet for a more dynamic and precise sound. Use the counter spikes (5) to protect your surface.

For bookshelf speakers, the TRIANGLE S08 stands have been specially designed for the Duetto 40^ . They enable you to mount your speakers directly on their stand.

We recommend that you keep the packing materials in case you need to move your speakers.

(1) It is recommended to remove the magnetic grilles when listening.

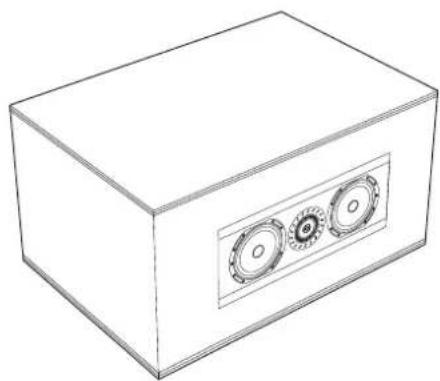

Unpacking Voce 40^TH

NOTE: Perform the operation on a clean surface or on a carpet.

1

Successively open the two protective packages.

2

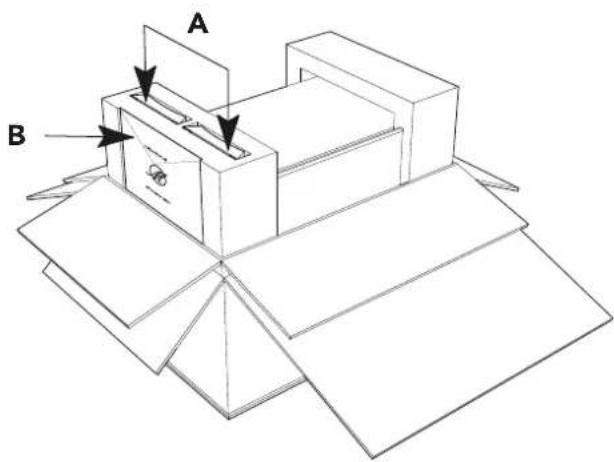

Remove the two stands (A) and the Welcome envelope (B).

3

Place the stands in the location of your choice. It is recommended to keep 25 to 35cm between the two stands for an optimal positioning

4

Remove the speaker from the packaging, then remove the foams, the grille⁽¹⁾ and the protective cover.

5

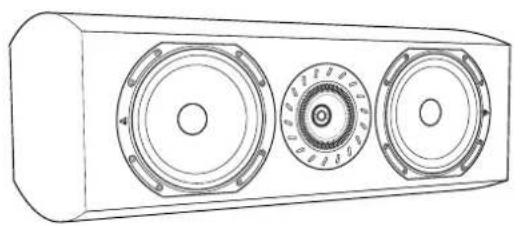

Place your center speaker on the supplied stands.

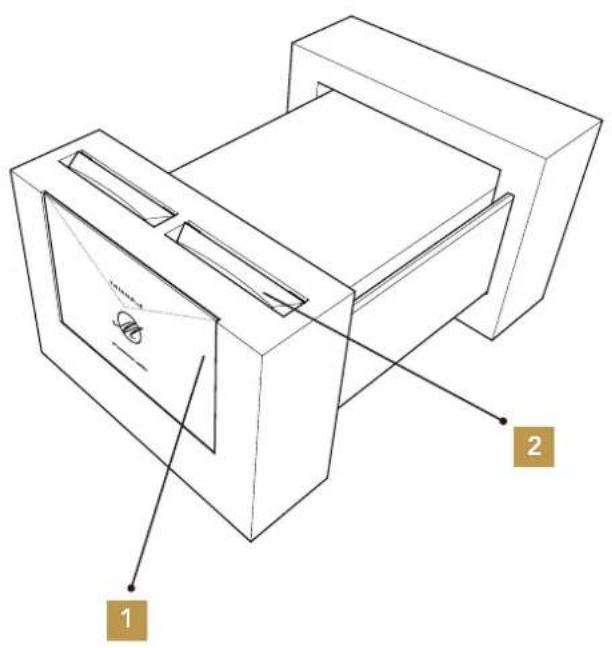

Content Voice 40^TH

Content

1 1 x Welcome envelope with:

-1xUserManual
- 1 x Certificate of authenticity
- 1 x Microfiber cloth for maintenance
- 1 x Pair of handling gloves

2 2xStands

The Voice 40^th speaker is delivered with two stands allowing you to safely position it on any type of support.

The TRIANGLE S08 C stand is available as an option and will fit perfectly in your home theater room.

It is recommended to remove the magnetic grilles when listening.

Before placing the speaker

If, despite all the care given to this product, a part or component is missing, please contact your dealer, we will do all we can to provide you with a solution as soon as possible.

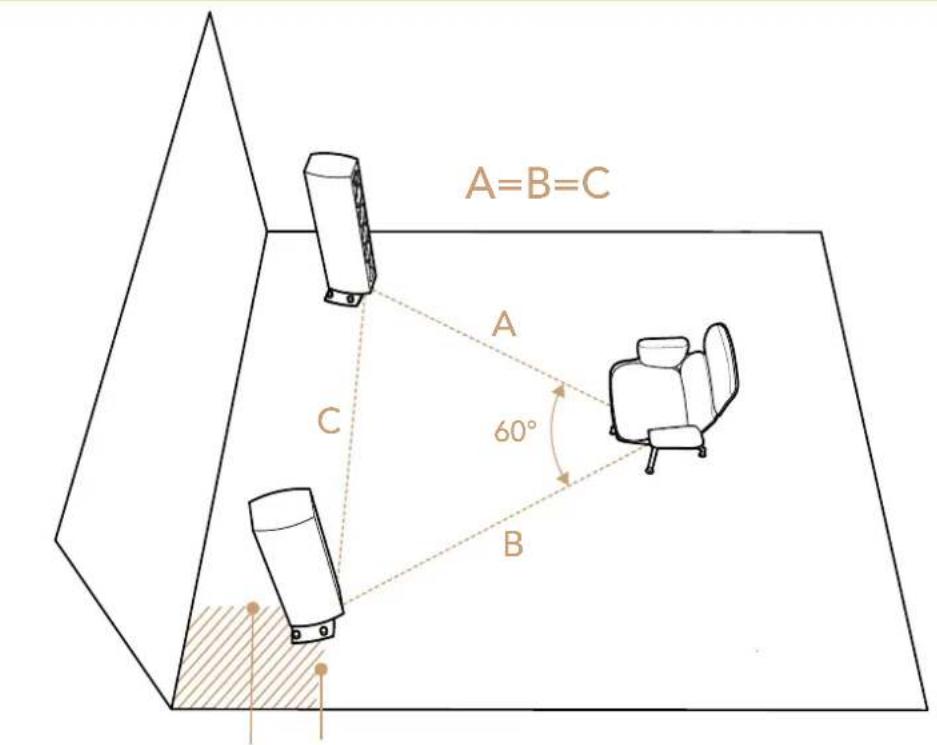

Stereo placement

Clearance to rear wall:
Minimum = 30 cm
Recommended = 50 cm
Clearance to side wall:
Minimum = 40 cm
Recommended = 80 cm

For optimal placement of your speakers, follow these guidelines:

• Avoid rooms with too much reverberation, such as a room with tiles and no carpet or windows without curtains.
• The listening area should not be too close to the speakers: a minimum distance of 2m should be respected.
• If possible, place the speakers so that the sound spreads across the length of the room.
• Avoid placement in the corners of the room, which enhances the room's own resonance.

• For a floorstander, leave a minimum of 40cm between the wall and the speaker. If necessary, adjust the placement of the speakers with respect to the rear wall. Generally, a placement close to the rear wall improves the low frequency response (at the expense of the image). On the contrary, a position far from the wall favors the reproduction of a wide and deep sound image (make some tests to find the best compromise in your listening room).

• The Quatuor 40 is equipped with a back tweeter to increase sound spatialization. Perform various tests to find the best compromise depending on your wall covering.

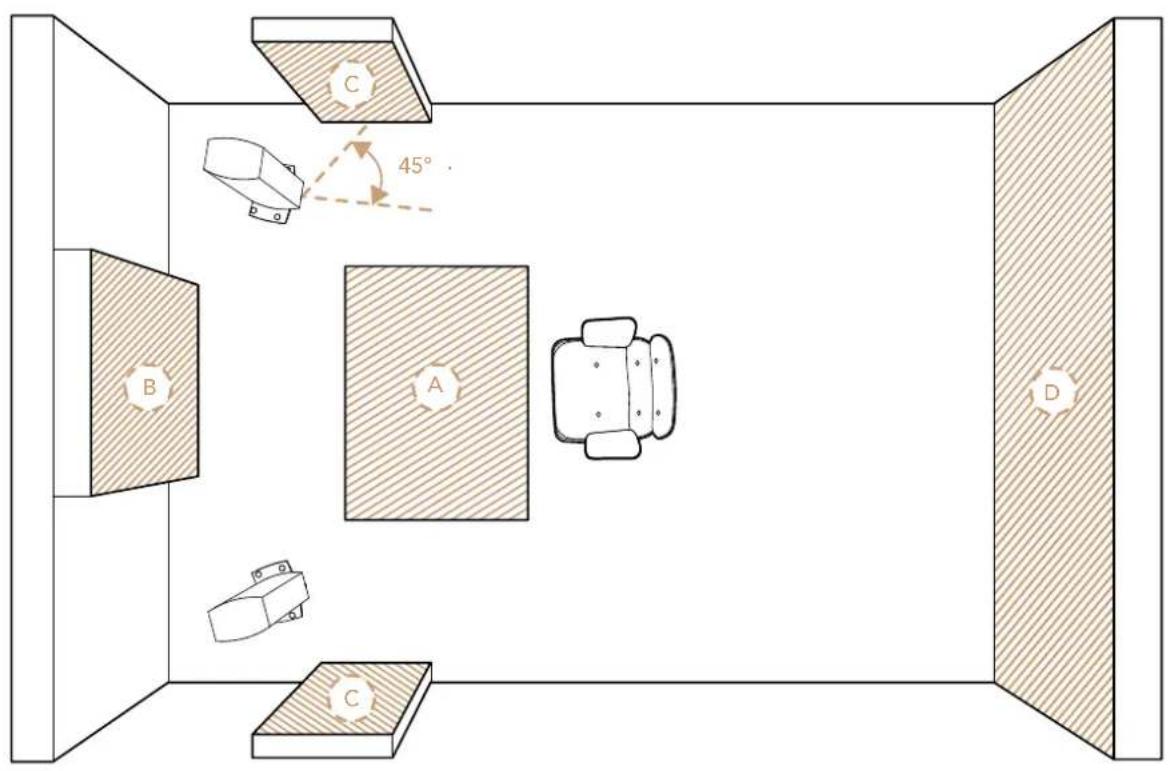

Acoustic processing

The acoustics of your room greatly impacts your listening experience. An acoustic processing as shown will significantly enhance your experience. (Please contact a professional for a personalized study).

The 4 main areas to be addressed are:

The area on the floor between your speakers and your listening position: use a thick carpet to break up the acoustic bounce in front of the speaker.
The area between your speakers and the wall in front of your listening position: to break up the static waves, you can put a shelf full of books or your vinyl collection there, or even acoustic diffusers.
The 45^ area in front of the speakers: with the same idea of limiting acoustic rebound, you can place shelves filled with books or your vinyl collection, or even acoustic diffusers, just like in the previous area.
D The area behind your listening position: to limit the effect of rear echo, try using a thick curtain.

This type of installation allows you to gain in precision and sharpness, do not hesitate to do different tests to adjust your installation as well as possible. These are basic guidelines, only tests in real conditions will be truly conclusive.

Stereo amplifier

Use a good quality amplifier with sufficient power. It is better to use a powerful amplifier, which is less likely to distort, than to «push» a low-powered amplifier that will clip and risk damaging your speakers.

If the amplifier has several impedance outputs, prefer the 8 Ohms output

We recommend you: :

A 50 to 400 watt amplifier for the Quatuor 40
A 40 to 300 watt amplifier for the Cello 40^-1
A 30 to 150 watt amplifier for the Duetto 40^-H

These capacities are indicative for rooms from 15 to 70m^2 to enjoy a comfortable sound power and a good low frequency handling.

It is possible to choose less powerful amplifiers that focus on tone accuracy and sound image quality.

Ask a Hi-Fi professional for personalized advice and select the equipment best suited to your needs and musical preferences.

Connections

Types of connections & cables

The Magellan 40^th terminals are designed to accommodate different types of connections:

• Connection with stripped speaker cables
• Connection with fork-mounted cables
• Connection with cables mounted on banana plugs

The choice of cable is important for your audio system and should not be overlooked. An OFC cable preferably in single stranded copper with a minimum section of 2.5mm^2 is recommended.

For the connections, make sure to comply with the following figure while respecting the polarities.

The Duetto 40^TH , Cello 40^TH and Quatuor 40^TH speakers have two sets of terminals, offering the possibility of bi-wiring as shown on page 44.

A - Connection with stripped speaker cables

Unscrew the terminals to make room for the cable. Insert the cable in this hole and screw the terminal until the cable is firmly attached.

Carefully check that the jumpers are in place and securely fastened with the locking nut.

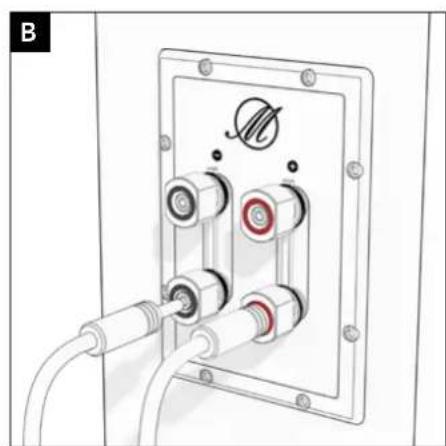

B - Connection with cables mounted on banana plugs

Place the banana plugs with the correct polarity on the dedicated terminals.

Carefully check that the jumpers are in place and securely fastened with the locking nut.

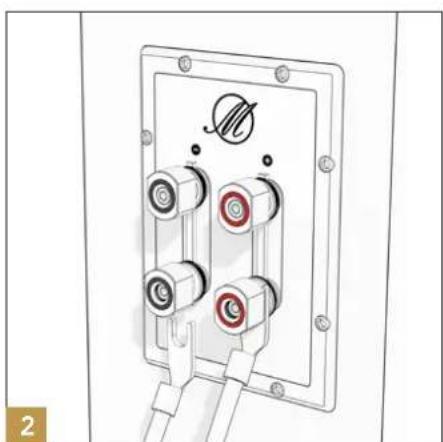

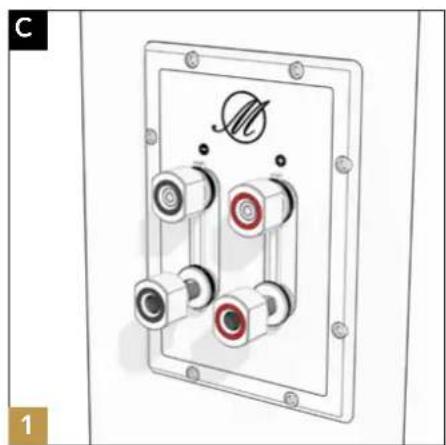

C - Connection with fork-mounted cables

Unscrew the lower terminals (1). Insert the forks and screw the terminals until the cable is firmly attached. (2)

Carefully check that the jumpers are in place and securely fastened with the locking nut.

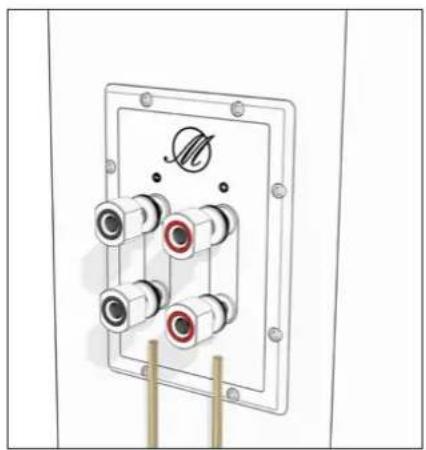

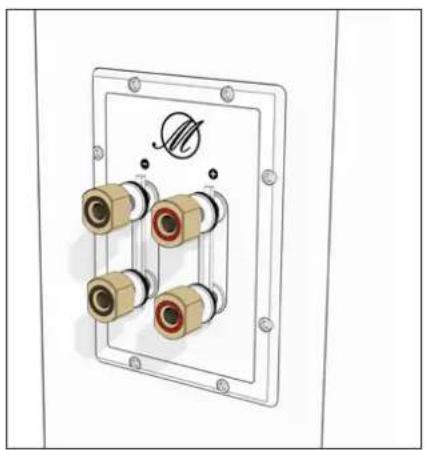

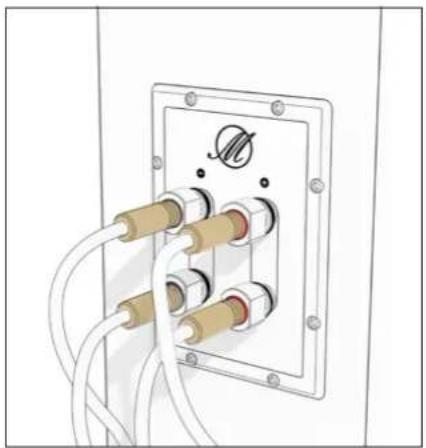

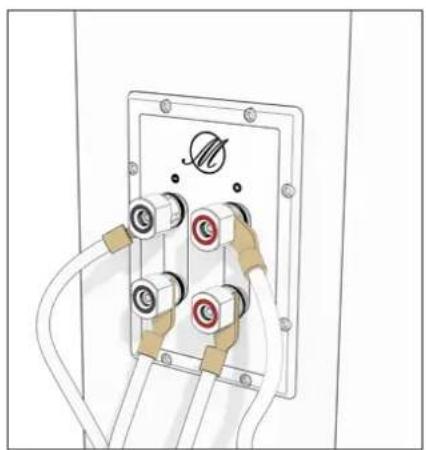

Bi-wiring & bi-amping

This type of connection requires a specific setup of your terminals.

The upper terminals feed the mid/high range, the lower ones the low range.

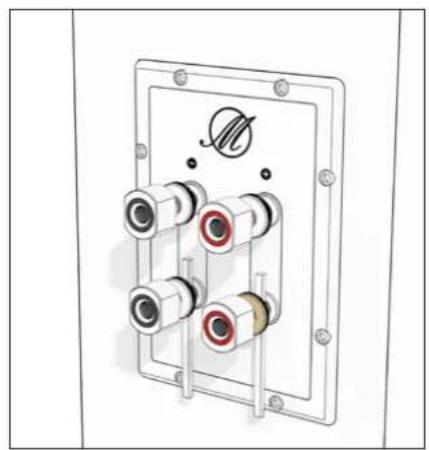

Remove the two jumpers as follows:

1 Unscrew the terminals by 1cm. Then unscrew the nuts holding the jumpers.

3 Remove the jumpers and tighten the nuts.

NOTE: Keep the jumpers in the accessory case

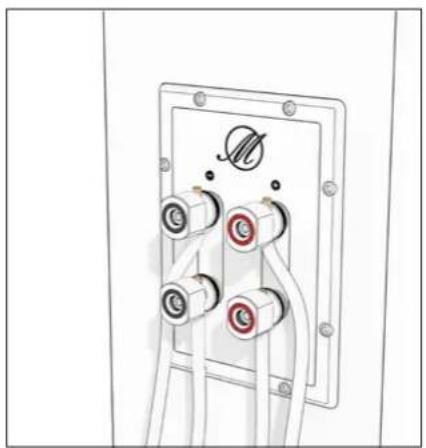

Then connect the cables to the appropriate connectors:

Connection with stripped speaker cables

Connection with cables mounted on banana plugs

Connection with fork-mounted cables

Setup

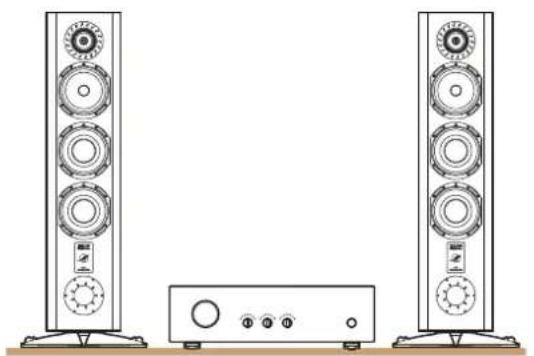

Integrated stereo amplifier

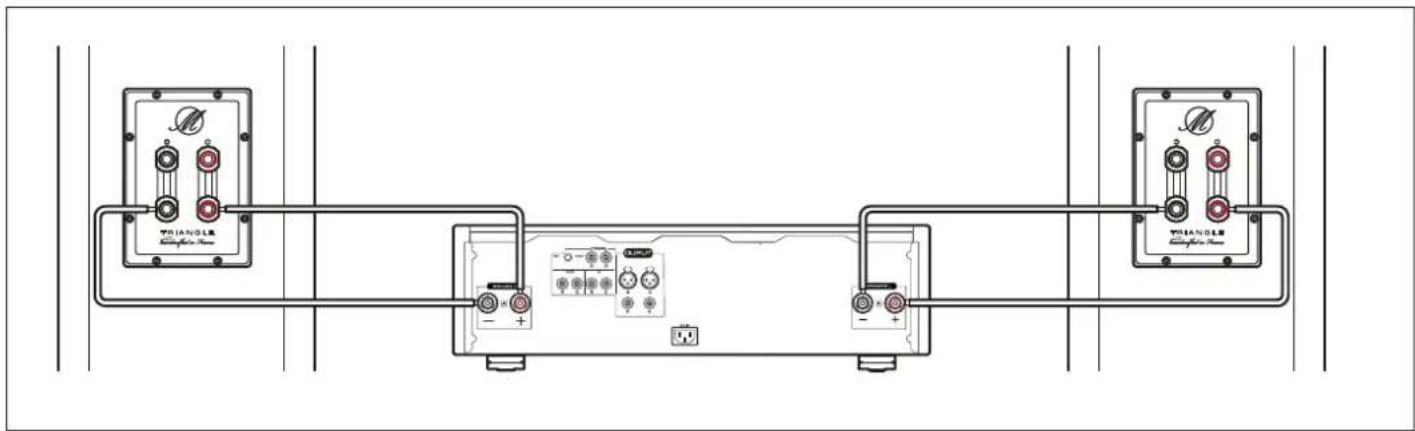

MONO-WIRING connections

If the amplifier has several impedance outputs, prefer the 8 Ohms output.

Stereo pre-amplifier and stereo power amplifier

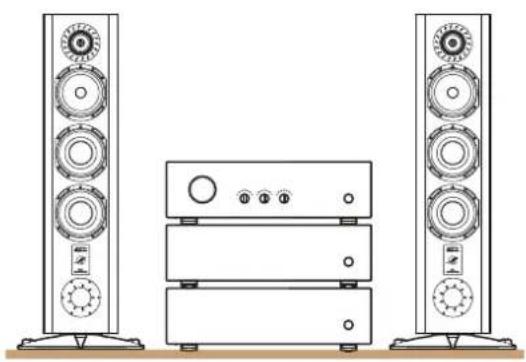

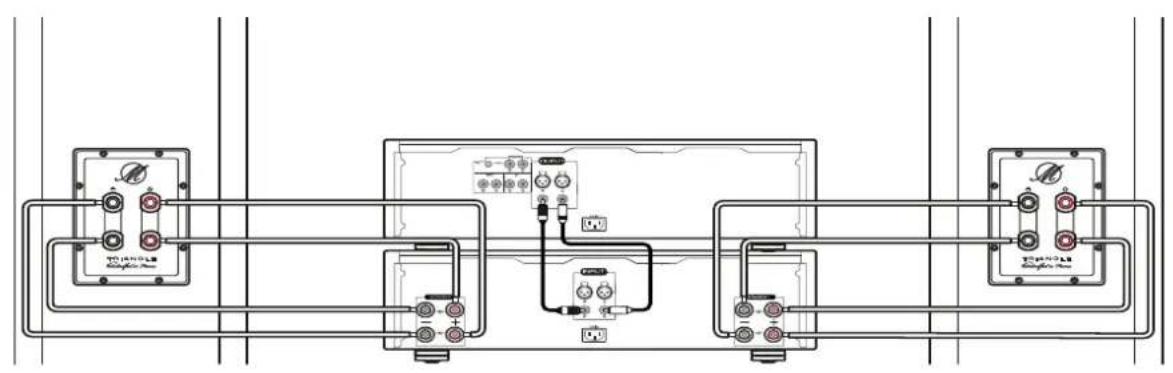

BI-WIRING connections

If your stereo power amplifier has 2 speaker outputs, you have the option of using bi-wiring, which consists in feeding the mid/high range and the low range of your speakers separately.

This approach improves the details of the sound image.

To do this, remember to remove the jumpers from the terminals as shown on the previous page. (See page 44)

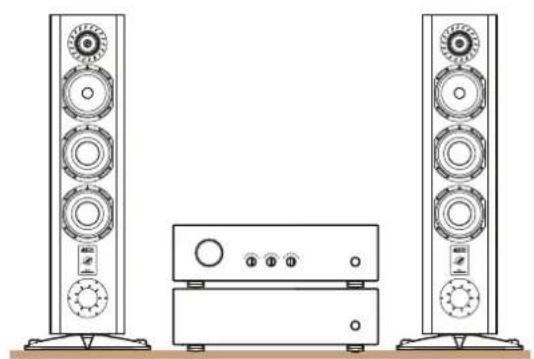

Stereo pre-amplifier and stereo power amplifier (continuation)

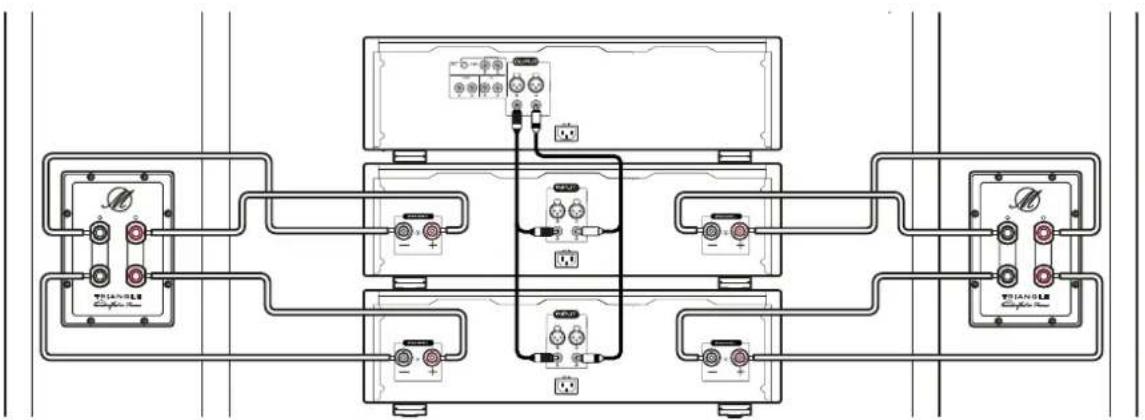

Stereo pre-amplifier and 2 stereo power amplifiers

BI-AMPING connections

Bi-amping consists in supplying the medium/high frequency and low frequency parts of the speakers with two stereo blocks of identical power. By physically separating the amplification like this, you can provide greater precision and clarity to your soundstage. Be sure to remove the jumpers from the terminals as described on page 44.

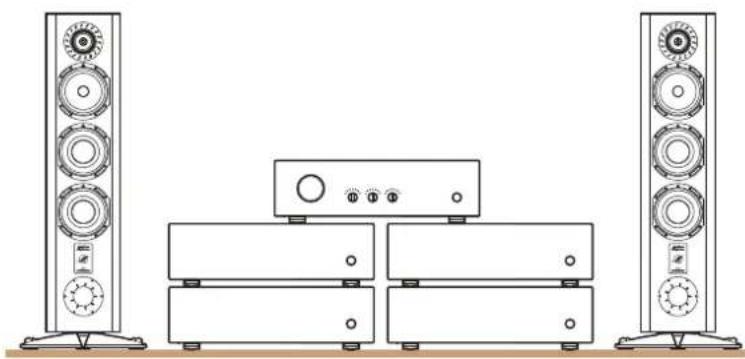

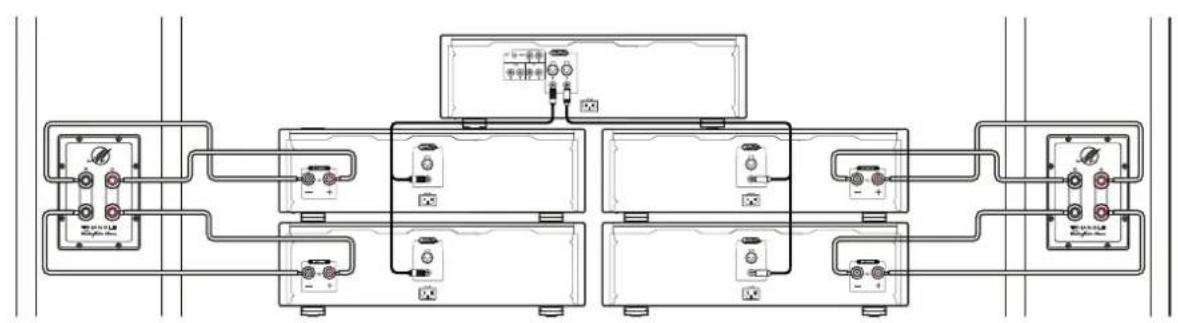

Stereo pre-amplifier and 4 mono power amplifiers

BI-AMPING connections

Attached is a figure of bi-amping connections using 4 mono power blocks. By physically separating the amplification like this, you can provide even greater precision and clarity to your soundstage. Be sure to remove the jumpers from the terminals as described on page 44.

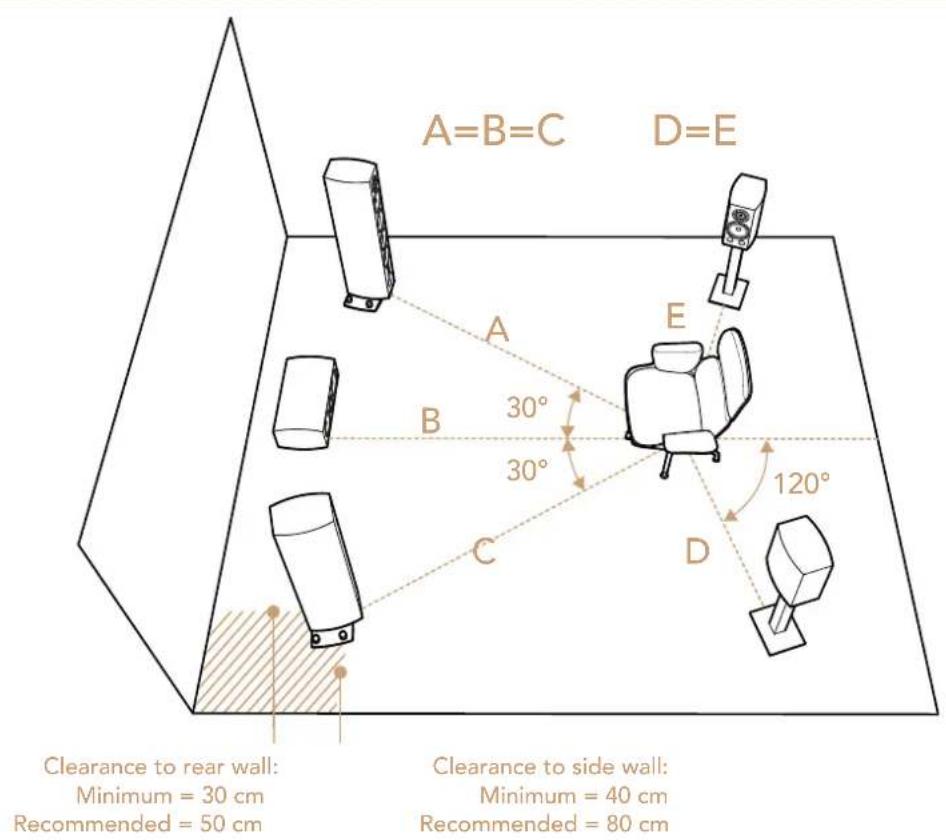

Positioning

The classic setup of a 5.0 system consists of several components:

• Two main speakers left and right (FRONT)
  -A central channel (CENTER)
• Two rear speakers (SURROUND)

It is possible to add a subwoofer to have a more spacious sound and create a 5.1 system. However, it is recommended to test the 5.0 configuration first, as the 40th floorstanders have been designed to reproduce a wide spectrum in the low frequencies that should be sufficient.

For optimal placement of the main speakers, make sure to follow the figure above.

It is recommended to place the rear channels at a height of 1.5 and 2 meters. These channels help to create an atmosphere. Be sure to use a mounting system suitable for the weight of the speakers.

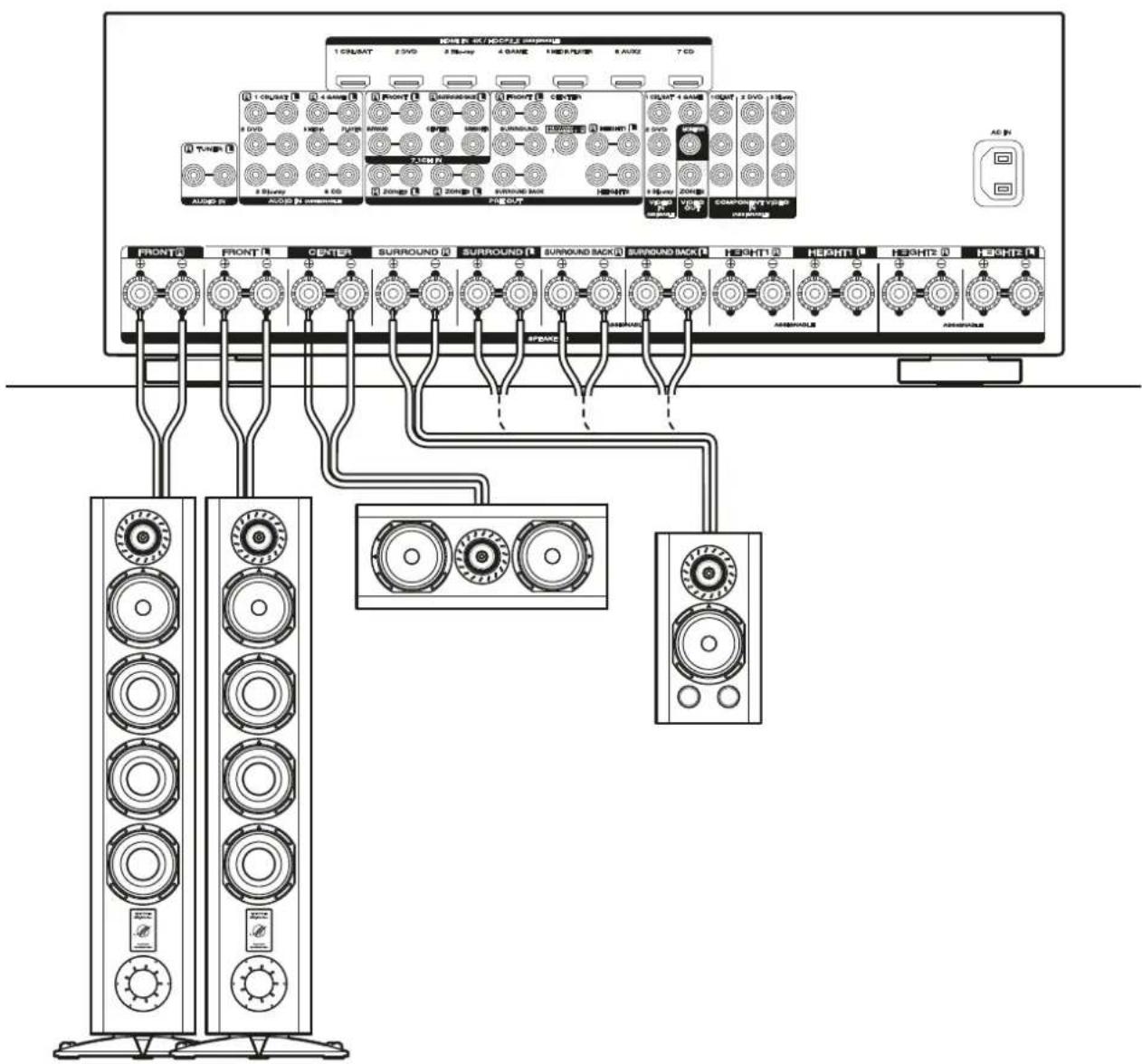

Home-theatre amplifier

We recommend a good quality amplifier with sufficient power. It is better to use a powerful amplifier, which is less likely to distort, than to push a low-powered amplifier that will clip and risk damaging your speakers.

You will find below a typical connection figure:

Speaker maintenance

The included microfiber cloth is all it takes to make your speakers shine again. However, if you wish to use a cleaning product, it is preferable to apply it beforehand on your microfiber cloth to avoid a direct application on the woodwork.
- Do not apply anything to the speaker membranes and use only the microfiber cloth to carefully remove any dust.
We recommend that you do not press on the membranes, as this may damage them.
- Do not hesitate to put the magnetic covers back on when you are not using your speakers to protect them from the sun or other everyday hazards.
- Choose an optimal location for your speakers (See page 40) and avoid direct and prolonged exposure of your speakers to sunlight, which can alter paint and lacquer.
- To preserve the lacquer of the speakers, install them away from heat sources such as radiators, stoves, or other heat-producing appliances.
- For an extended period, we recommend that you put the protective covers on your Magellan 40 "speakers to protect them from light or any other damage.

Burn-in

The drivers used in MAGELLAN 40^th speakers are mechanical elements that require a period of adjustment to work at their best and to adapt to the temperature and humidity conditions of your environment.

This running in period varies according to the conditions encountered. We recommend that you run your speakers for about 20 consecutive hours, either from a different music source or from a specially designed run in CD, to perform a complete scan of the sound frequencies.

After this prolonged and optimized listening, the speaker will be stabilized, and you will be able to fully enjoy its performance.

Contact

For any questions, additional information or problems encountered with your speakers, our TRIANGLE teams are at your disposal via the contact form available on our website:

HTTPS://WWW.TRIANGLEHIFI.COM/EN/CONTACT/

If you are in France, you can also directly contact your dealer who will make sure you get the best answer.
If you are abroad, you can contact the national representative or distributor of TRIANGLE. Their contact details are available on our website under Resellers by selecting the filter : « Distributors » :

HTTPS://WWW.TRIANGLEHIFI.COM/EN/BUY/

Warranty

Your TRIANGLE loudspeakers come with a 2-year warranty, which you can extend to 5 years by registering for free online on our website (See page 4). This warranty takes effect from the date of purchase and covers any manufacturing defect or damage your loudspeakers could suffer because of these same defects.

This warranty is granted solely to the first owner of the product. To validate your warranty, you will need to register online. It is not transmittable in the case of resale. Please note, this warranty is voided if any fault arises from ill-treatment or careless handling of the product.

The following are excluded from this warranty:

• A burned voice-coil caused by overloading the loudspeaker
• Any fault occurring from professional usage
• Any fault resulting from storage in areas of high humidity
• A pierced or torn membrane
  A torn suspension
• Any fault resulting from a mechanical shock (ex if dropped or handled roughly)
• Any fault arising from servicing by anyone other than an authorized TRIANGLE service technician
• Any inappropriate maintenance
  Damaged cabinets due to mishandling
• Any TRIANGLE product whose serial number label(s) are missing, unreadable, deteriorated, altered, removed, or damaged
• Any force majeure event, including, but not limited to, any unforeseen event, fire, lightning, typhoon, storm, earthquake, hurricane, natural disaster, tsunami, flood, war, riot, civil disturbance
  Any other cause beyond reasonable control of TRIANGLE or its authorized distributor

Without limiting the foregoing, the maximum liability of TRIANGLE and its authorized distributors under this warranty shall in no event exceed the actual purchase price paid for the TRIANGLE product(s).

As a requirement for eligible returns, all returned products must be in the condition in which they were received and ensure that the original packaging and all accessories are included and not damaged.

If you have a problem with your product, please contact your dealer as soon as possible.

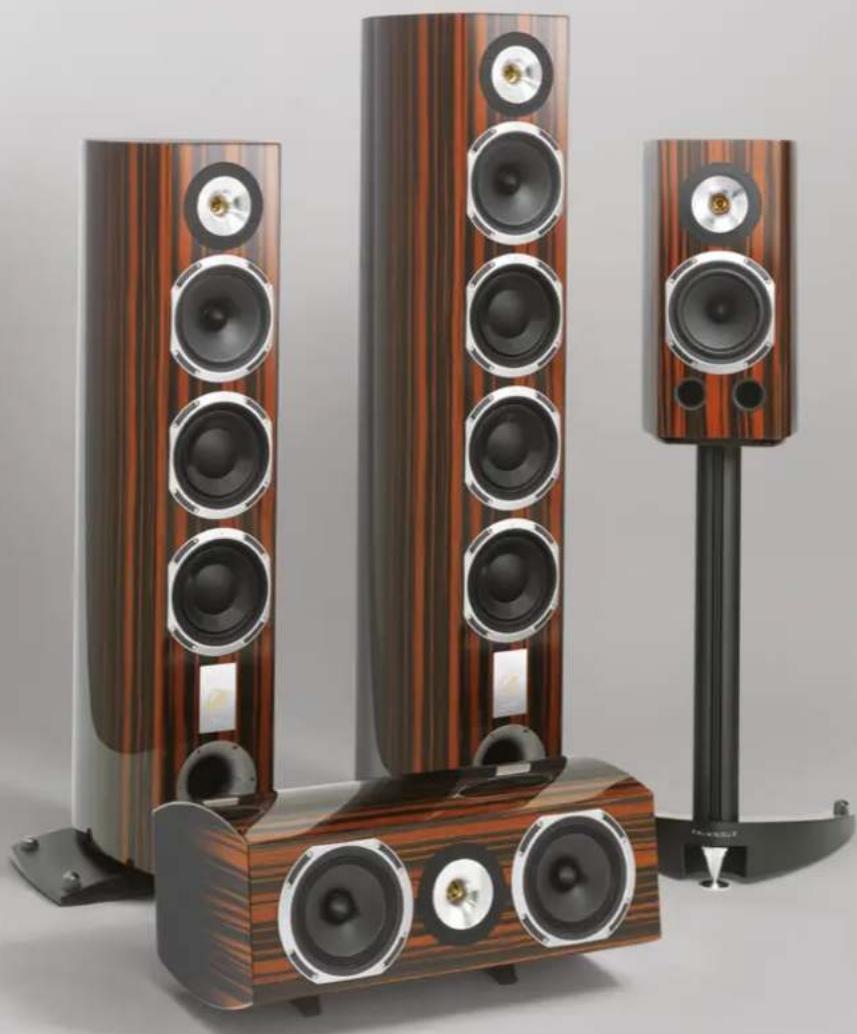

Quatuor 40^TH , Cello 40^TH , Duetto 40^TH , Voce 40^TH

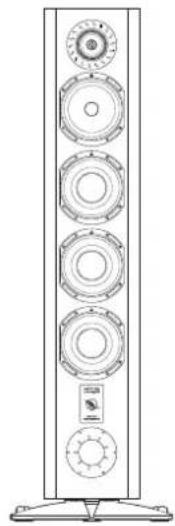

MAGELLAN QUATUOR 40^1

MAGELLAN CELLO 40^TH

MAGELLAN DUTTO 40^TH

MAGELLAN VOCE 40^TH

Type

Bass Reflex Bass Reflex Bass Reflex Charge close

Ways

3322

Drivers units

6423

Sensitivity (dB/W/m)

91908891

Bandwidth (+/-3dB Hz-Khz)

53-3035-3040-3050-30

Amplifier Power output (W)

50-40040-30030-15040-200

Low Cutoff Frequency

350 (12cB/Oct) 350 (12cB/Oct)

Treble Cutoff Frequency

2.5 (24dB/°C)

2.5 (24oB/Oct)

3.1 (24cB/Oct)

3.0 (24dB/Oct)

Nominal impedance (ohms)

8888

Minimal impedance (ohms)

3.4

3.4

4.6

3.6

Dimensions (inch) W x D x H

9.9×13.4×60.4

9.9×13.4×42.5

8.9×13.7×18.1

23.7×13.4×9.9

Dimensions with pedestal (inch) WxDxH

16.7×14.6×52.7

16.7× 14.6× 44.9

9.9x13.7x18.9 (spikes)

23.7 x 13.4 x 11

Unit Net Weight (Lbs)

103.6

85.5

37.0

40.8

Finishes

Golden Oak
Zebrano
Space Black

Golden Oak
Zebrano
Space Black

Golden Oak
Zeoreno
Space Black

Goden Oak
Zeorano
Space Black

Compatible stands

一

S08

S08C

S08, S08 C

S08 S08 C

Type

Bookshelf Speaker stand Center Speaker stand

Height (inches)

26.617.7

Base plate dimensions (inches)

W×D×H

17.7x16.517.7x16.5

Top plate dimensions (inches)

WxD

8.7×12.4 13.8×9.8

Cable management

Yes Yes

Spikes

Yes, adjustable spikes Yes, adjustable spikes

Ballasted stand

Yes, sand bag included Yes, sand bag included

Dimensions (inch) W x D x H

17.7x16.5x28.717.7x16.5x17.7

Unit Net Weight (Lbs)

20.3 20.9

TRIANGLE

MANUFACTURE ELECTROACQUSTIQUE

TRIANGLE HI-FL

475 Avenue Flandres Dunkerque ZI Les Etomelles

02200 Villeneuve-Saint-Germain - FRANCE

WWW.TRIANGLEHIFI.COM
