USER MANUAL ESPRIT Ez TRIANGLE

MANUFACTURE ELECTROACOUSTIQUE

ESPRIT Ez

Vertical speaker tower with concentric circular rings and a small circular component on top (no text or symbols)

Mode d'emploi & Garantie Owner's manual & Warranty

www.trianglehifi.com

support.trianglehifi.com

SUPPORT & FAQ

facebook.com/triangle.electroacoustique

twitter.com/trianglehifi

SOMMAIRE / SUMMARY

Garantie / Warranty 4

User Manual - English 19

• Unpacking 20
• Assembly 20
• Connecting 26
• Bi-amplification and bi-wiring 26
• Stereo & Home Cinema positioning 28

Informations techniques / Technicals informations 30

GARANTIE / WARRANTY

Thanks for buying a Triangle product.

We want you to enjoy your purchase to the fullest. The first step is an easy registration of your products. By doing this, you will benefit from helpful tips, products support, special offers and 5 years warranty.

1- Online registration

Register your product easily online at the following address :

http://register.trianglehifi.com/

2- Warranty card

You can also register your product and validate your warranty by filing the warranty card and sending it to :

TRIANGLE DISTRIBUTION FRANCE

41 Rue Borie - CS40099

33070 Bordeaux Cedex FRANCE

Note on the warranty

Your TRIANGLE loudspeaker is warranted for 5 years. This warranty takes effect from the date of purchase and covers any manufacturing defect or damage your loudspeaker could suffer as a result of these same defects. This warranty is granted solely to the first owner of the product, and is not transmittable in the case of resale. To validate your warranty, you will need to register online or mail the warranty coupon to TRIANGLE. Please note, this warranty is voided if any fault arises from ill-treatment or careless handling of the product.

The following are not guaranteed :

• A burned voice-coil caused by overloading the driver
• Any fault occurring from professional usage (public sound systems, PA systems, etc.)
• Any fault resulting from storage in areas of high humidity
• A pierced or torn membrane
• A dented cone or dome
• A torn suspension
• Any fault resulting from a mechanical shock (ex if dropped or handley roughly)
• Any fault arising from servicing by anyone other than an authorized TRIANGLE service technician
• Damaged cabinets due to mishandling

① x2 5mm 1 5mm ① ①

1 x3 5mm 5mm 1 1 1 25mm

Line drawing of a tall rectangular electronic device with multiple circular cutouts and a base plate (no text or symbols)

Technical line drawing of a mechanical assembly with mounting holes and a base plate (no text or symbols)

Diagram showing numbered components of a mechanical assembly with various parts and features, including washers, bolts, and a base plate.

x4 x4 x4 x4 x4 x4 x1 x1

Isometric line drawing of a tall rectangular device with circular cutouts and a base plate (no text or symbols)

Simple line drawing of a table with four circular components and numbered annotations (no text or symbols)

Simple line drawing of a table with six circular components and a numbered circle (no text or symbols)

Isometric line drawing of a tall cylindrical speaker tower with three circular cutouts, mounted on a flat base (no text or symbols)

Technical diagram of a mechanical assembly with numbered components and a close-up detail view

Simple line drawing of a rectangular table with circular components and a pointer, no text or symbols present

Simple line drawing of a table with four circular components and a numbered label (2), no text or symbols present.

Technical diagram showing a mechanical assembly with labeled parts and directional arrows, including a screw and a circular component.

FR

Branchements

>0.4m >0.5m >0.1 >2m >2m

Open the box and remove all staples, then carefully take the speaker out of the box.

When unpacking, if you notice any defects on any of the drivers or the cabinet, you should contact your dealer.

Before disposing the packaging, check that nothing is left inside.

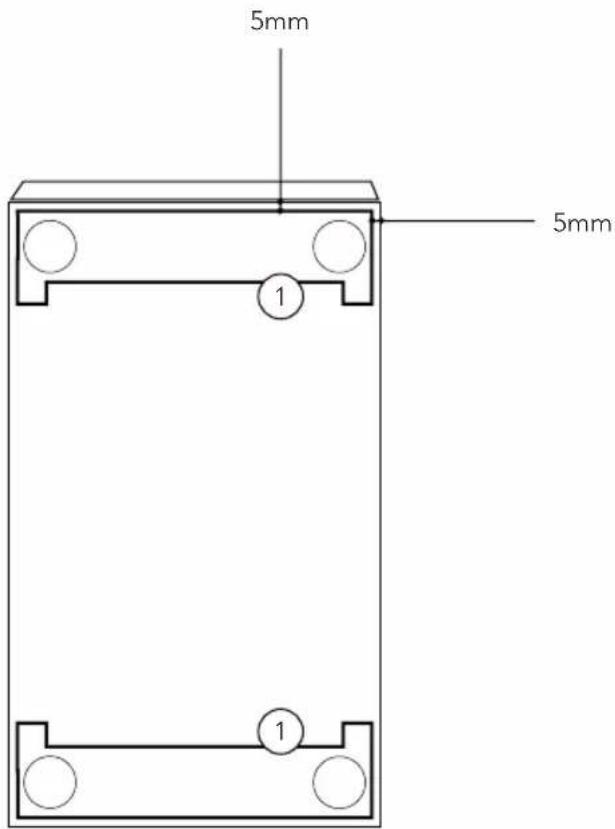

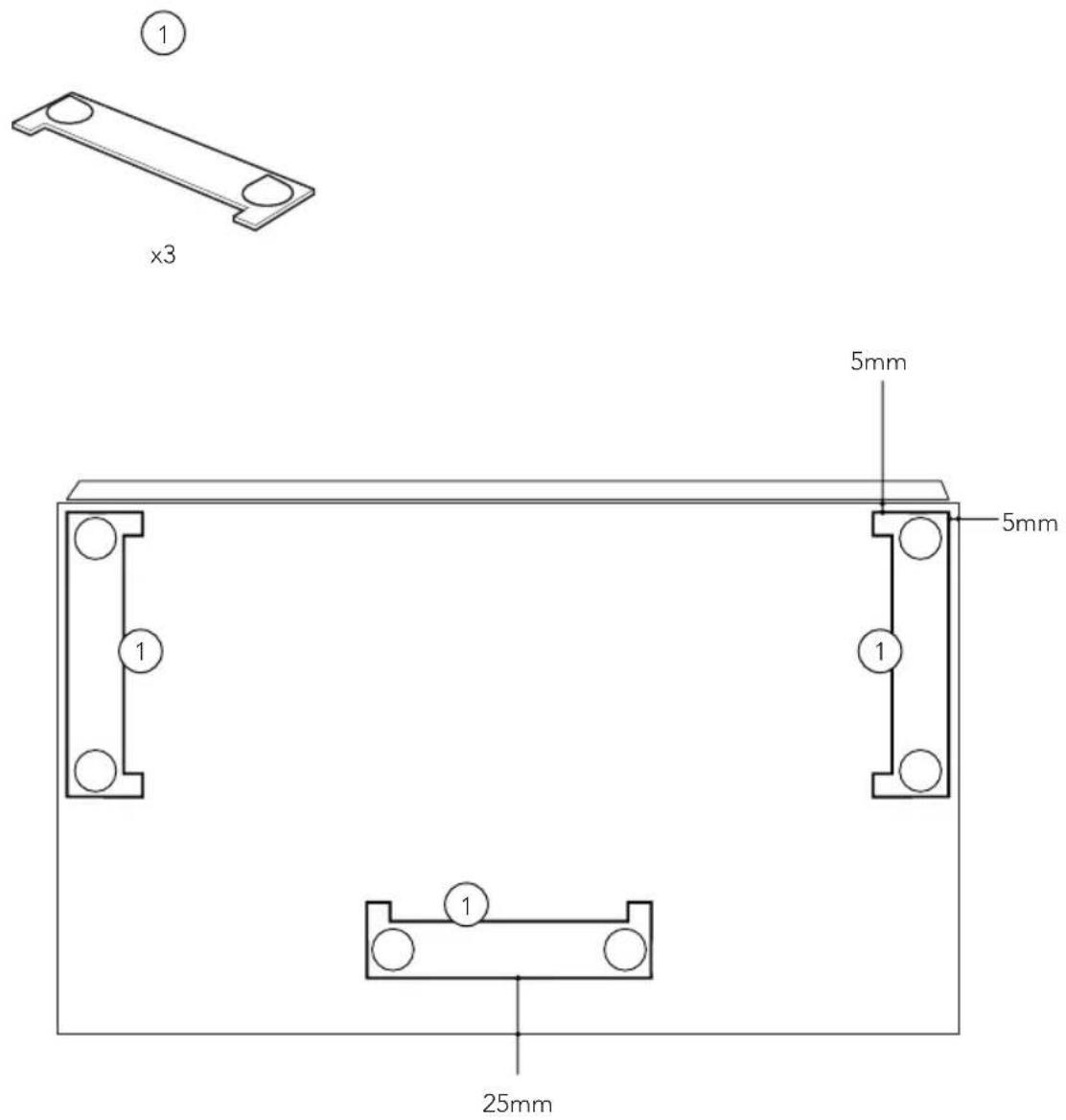

Titus & Comète Ez feet assembly

Isometric line drawing of a rectangular plate with two circular cutouts, labeled with circled number 1 and 'x2' (no text or symbols on the plate itself)

5mm 1 5mm 1

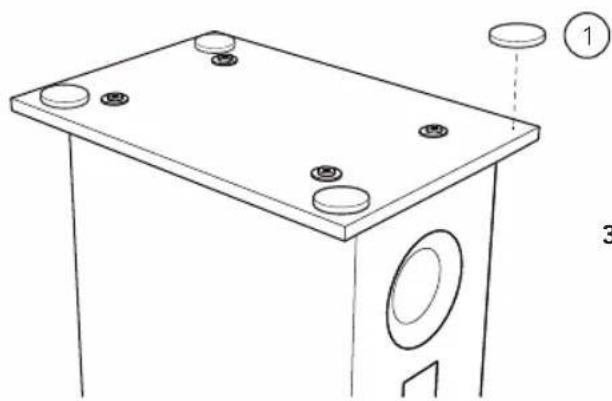

Stick the adhesive rubber pads

EN

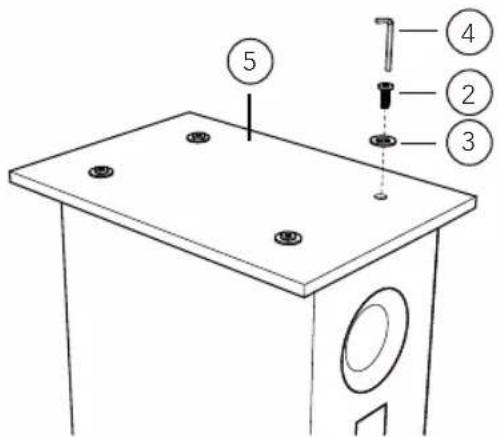

Voce Ez feet assembly

1 x3 5mm 5mm 1 1 1 25mm

Stick the adhesive rubber pads

EN

Gaïa Ez feet assembly

Isometric line drawing of a tall rectangular device with circular cutouts and a base plate (no text or symbols)

1- Stand the speaker on the top (be sure to place it on a non-abrasive surface)

⑤ ④ ② ③

2- Secure the pedestal by using the screws and key supplied

Technical line drawing of a mechanical assembly with mounting holes and a base plate (no text or symbols)

3- Stick the adhesive rubber pads

EN

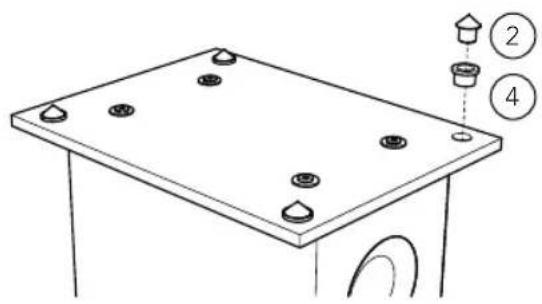

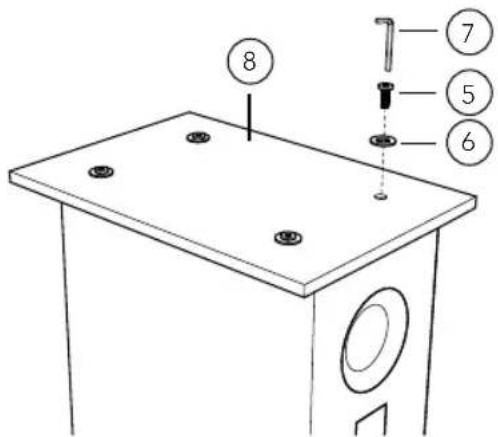

Antal Ez feet assembly

x4 x4 x4 x4 x4 x4 x1 x1

Isometric line drawing of a tall rectangular device with circular cutouts and a base plate (no text or symbols)

1- Stand the speaker on the top (be sure to place it on a non-abrasive surface)

8 7 5 6

2- Secure the pedestal by using the screws and key supplied

Simple line drawing of a table with four circular components and numbered annotations (no text or symbols)

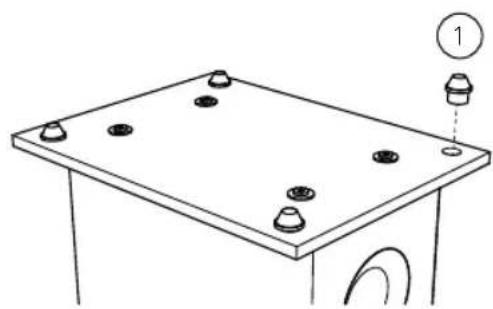

Metal spike - (for soft ground : carpet, rug...)

1- Place the rubber insert, then the metal spike in the pedestal
2- Place the counter spikes ③ to protect the surface

Simple line drawing of a table with six circular components and a numbered circle marker (no text or symbols)

Rubber spike - (for rigid surfaces : wood floor...)

1- Mount the rubber spikes ①

EN

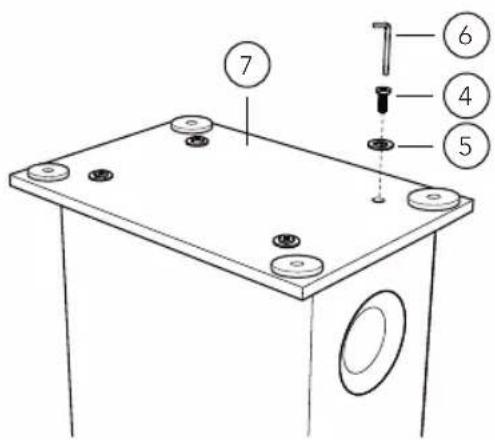

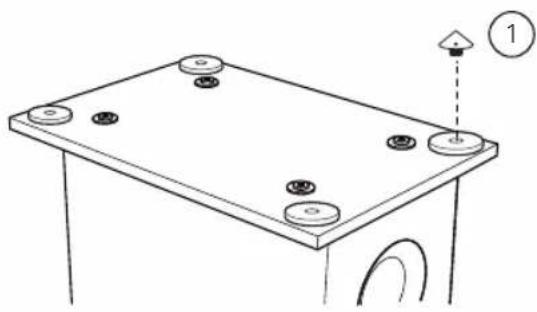

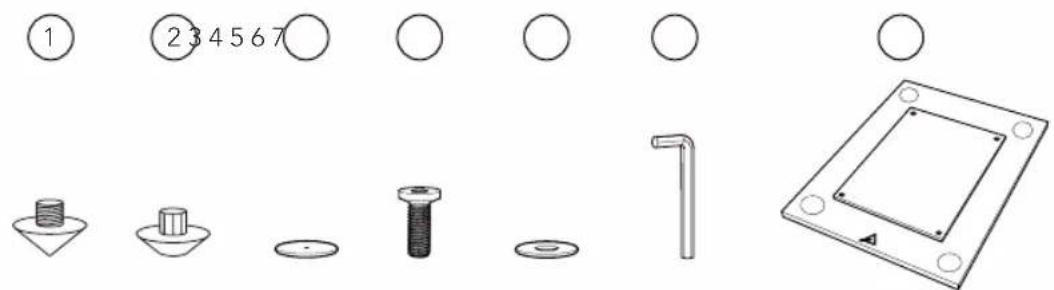

Australe Ez feet assembly

Isometric line drawing of a vertical cylindrical device with three circular cutouts, mounted on a flat base (no text or symbols)

1- Stand the speaker on the top (be sure to place it on a non-abrasive surface)

7 6 4 5

2- Secure the pedestal by using the screws and key supplied

Simple line drawing of a rectangular table with four circular components and a pointer, no text or symbols present.

Metal spike - (for soft ground : carpet, rug...)

1- Screw the spikes in the inserts
2- Place the counter spikes ③ to protect the surface
3- When unscrewing, a hole allows to insert a tool to facilitate handling

Technical line drawing of a mechanical assembly with mounting holes and a curved component (no text or symbols)

Rubber spike - (for rigid surfaces : wood floor...)
1- Mount the rubber spikes ②

EN

Heyda Ez feet assembly

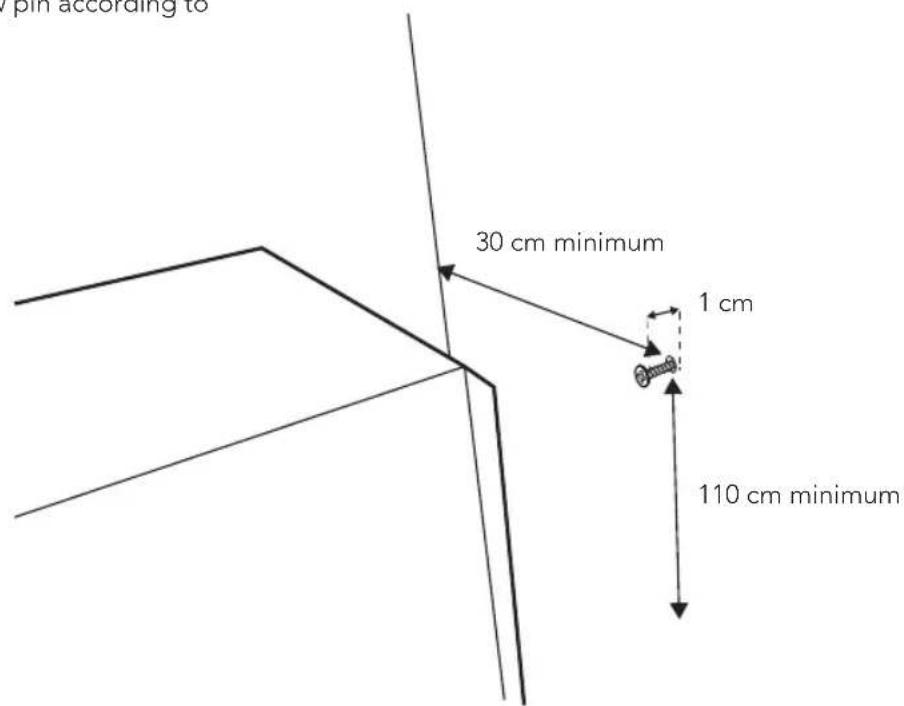

1- Choose the screw pin according to your wall

pin according to 30 cm minimum 1 cm 110 cm minimum

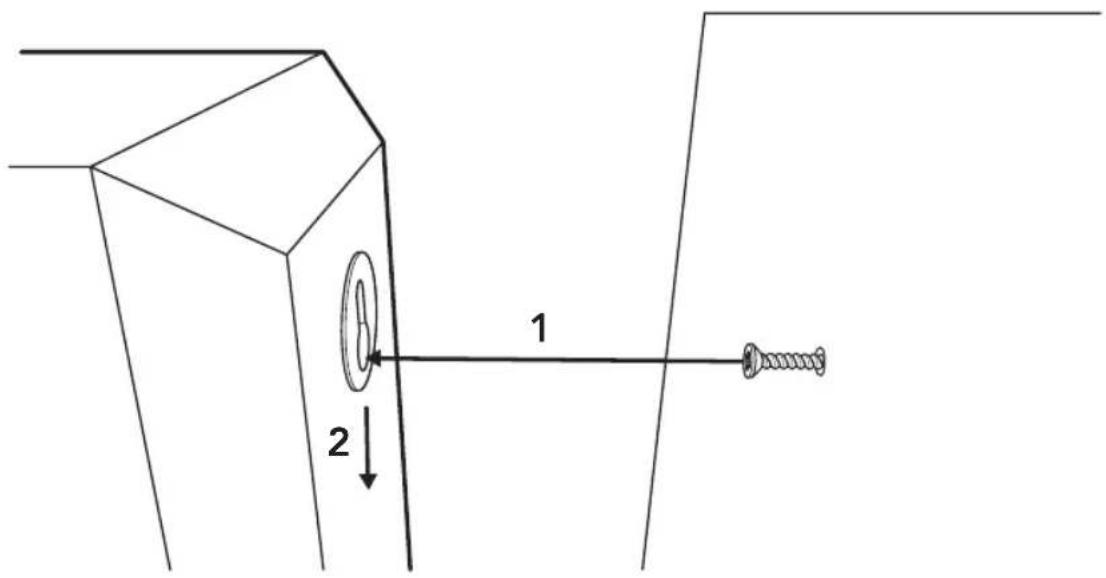

2- Rig up the speaker

Technical diagram showing a mechanical assembly with labeled parts and directional arrows, including a screw and a circular component.

EN

Connections

For optimal sound reproduction, we suggest that you choose a loudspeaker cable of high quality to connect your amplifier to your TRIANGLE loudspeakers. You should use cables of the same length for the left and right channels and take special care to respect the + and - polarity for each channel. Don't forget to strip the cables if it's necessary.

Bi-amplification and bi-wiring

For those wishing to iprove their listening system further, it is possible to use a bi-amplification or bi-wiring.

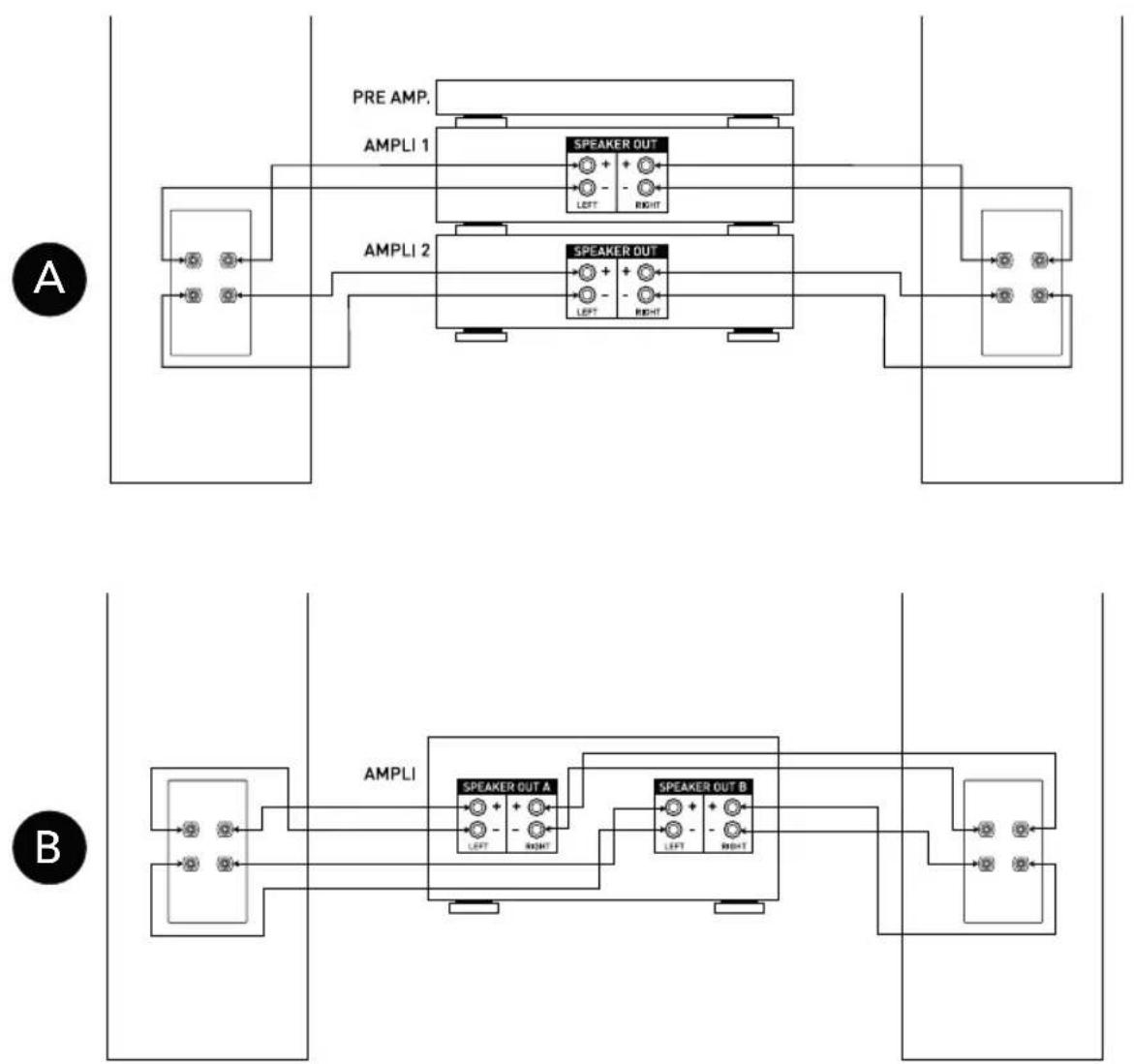

A

With bi-amplification, interference between the woofers and other drivers is totally eliminated, as each one is driven by its own amplifier. It is compulsory to use identical amplifiers to conserve the uniformity of the loudspeaker.

To do this, remove the terminal jumpers and use two stereo amplifiers. On the speakers, the upper terminals are the signal inputs for midrange and treble. The lower terminals are the signal inputs for bass. Use one amplifier to feed the bass, and the second for the midrange and treble (see the diagram below).

B

Instead of two amplifiers, you can use a single amplifier if it is equipped with two sets of speakers A and B. Both sets should be selected. This is bi-wiring and not bi-amplification.

For further informations concerning your system, please consult our website :

http://trianglehifi.com/

EN

EN

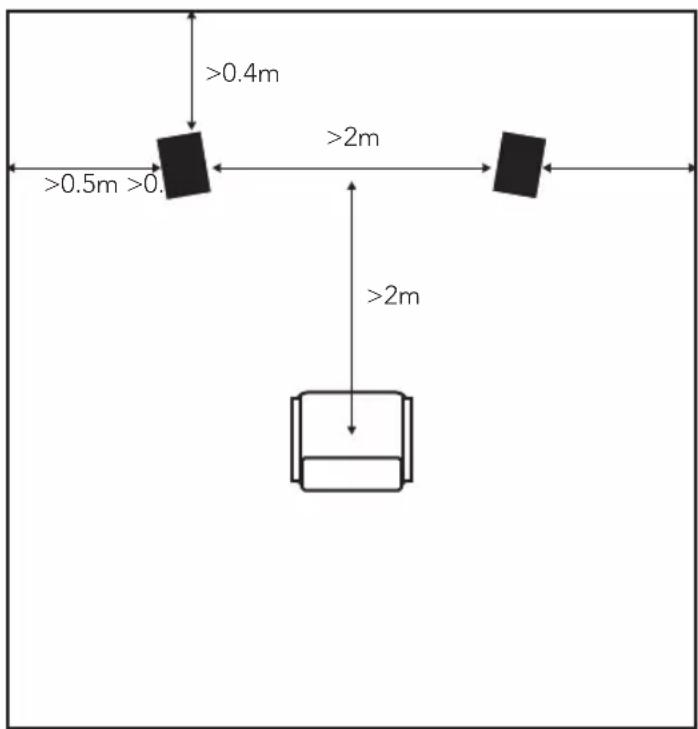

Positioning for stereo

When positioning your loudspeakers, apply the following rules:

• Avoid rooms with too much reverberation, such as tiled rooms without carpets or curtains.
• Your listening position should no be too close to the loudspeakers, leave a minimum of 2 m
• The distance between the speakers should be a minimum of 2 m for a good stereo effect.
• If possible, place the speakers so that sound is «diffused» lengthwise within the room.
• Avoid placing the speaker in corners; they should be at least at 40 cm away from the back wall and at least 50 cm from the sidewalls. Generally, a position close to the rear wall increase the response in the low frequencies (and reduce the imaging) and contrariwire, a position far from the back wall reproduces a wide and deep sound image. Carry out several test positions to find the best room set-up.

>0.4m >0.5m >0.1 >2m >2m

EN

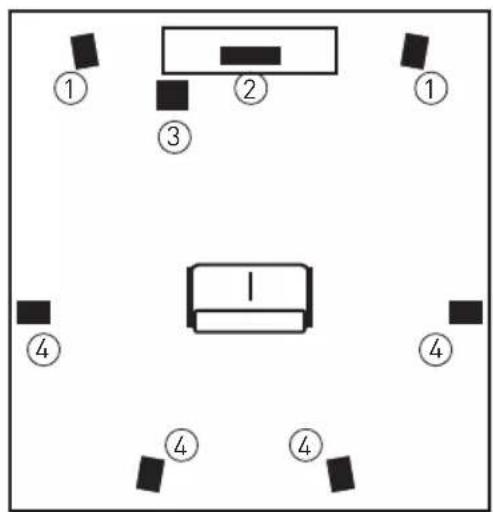

Positioning for home-cinema

A typical home cinema installation includes :

①- Two main speakers, left and right
②- A centre speaker
③- One or several subwoofers
④- Surround speakers (5.1 signal : 2 rear speakers, 6.1 signal : 3 rear speakers, 7.1 signal : 4 rear speakers)

To place the main speakers in the best position, follow the same rules as for a stereo installation (see previous page on stereo positioning).

- The centre speaker should be placed along the line formed by the two main speakers.

- For home cinema setups a subwoofer is highly recommended in order to reproduce the special bass effets channel featured on supports such as DVD audio or video. The positioning of the subwoofer is not critical if you select a crossover frequency below 80 Hz. Above this frequency, it is better to move the subwoofer closer to the main speakers. The best position being in between the two main speakers. Ensure that it is not placed in the corner of the room to avoid creating unpleasant resonances.

- We recommend that you place the rear speakers at between 1.5 and 2 m of height. Their role is to reproduce surround sound. Ensure that you take into account the weigh of the speaker when fixing it onto the wall.

You will find further instructions for configuring your installation in your A/V amplifier owner's manual.

① ② ③ ④ ④ ④ ④

GAMME ESPRIT Ez / ESPRIT Ez RANGE

Spécifications TechniquesTechnical Specifications	VOCE	HEYDA	TITUS
Type	Bass reflex	Clos / Sealed	Bass reflex
Nombre de voiesWays	2	2	2
SensibilitéSensitivity (dB/m)	91	90	90
Bande passanteBandwidth(+/-3dB Hz-Khz)	60-22	75-22	55-22
Puissance admissiblePower handling (W Rms)	80	60	80
Impédance minimumMinimal impedance (ohms)	5.3	3.8	3.8
Dimensions(mm; inch)	510x290x16820.08x11.42x6.21	168x161x3056.61x6.34x12	168x267x3056.21x10.51x12
Dimensions avec piedDimensions with pedestal (mm; inch)	510x290x17620.08x11.42x6.23	-	168x267x3136.21x10.51x12.32
Poids de l'enceinte (Kg)Net Weight (lbs)	9.120.06	4.59.92	5.712.56
Poids avec packaging (Kg)Gross Weight (lbs)	10.523.14	9.921.82	12.828.21

Line drawing of a multi-tiered speaker tower with visible speakers and control buttons (no text or symbols)

Line drawing of a multi-tiered speaker tower with multiple speakers and control knobs (no text or symbols)

Line drawing of a multi-tiered speaker tower with multiple speakers and circular tops (no text or symbols)

COMETE	GAÍA	ANTAL	AUSTRALE
Bass reflex	Bass reflex	Bass reflex	Bass reflex
2	3	3	3
90	89.5	92	92.5
49-22	47-22	40-22	35-22
80	90	120	150
4.2	3.3	3	3.3
200x324x4007.87x13.76x15.75	168x276x9626.61x10.87x37.58	200x345x10907.87x13.59x42.91	200x370x11307.87x14.56x44.48
200x324x4087.87x12.76x16.06	230x315x9809.06x12.4x38.58	300x400x111511.81x15.75x43.9	300x460x117011.81x18.11x46.06
8.919.92	17.739.01	28.462.59	33.373.39
19.943.86	20.545.18	3270.53	3883.75
