USER MANUAL E-HKS 1500-Laser Ergotools Pattfield

Please read these instructions carefully and pay particular attention to the safety regulations. Keep the instructions together with the circular saw.

2. Technical data

Voltage 230 V - 50 Hz

Power rating 1500 W

Idle speed 4500 rpm

Cutting depth at 0^66mm

Cutting depth at 45^47mm

Saw blade 190 mm dia.

Saw blade mount 20 mm dia.

Saw blade thickness 2.8 mm

Sound pressure level LPA 99 dB(A)

Sound power level LWA 112 dB(A)

Vibration a_ 2,5 m/s²

Weight 5,1 kg

Totally insulated II/

Laser class 2

Laser wave length 650 nm

Laser output ≤ 1mW

Laser module power supply

2x1,5Vbuttoncellbattery

3. Applications

The hand-held circular saw is designed for sawing straight cuts in wood, in materials similar to wood, and in plastics.

4. Safety regulations

The corresponding safety information can be found in the enclosed booklet.

Important!

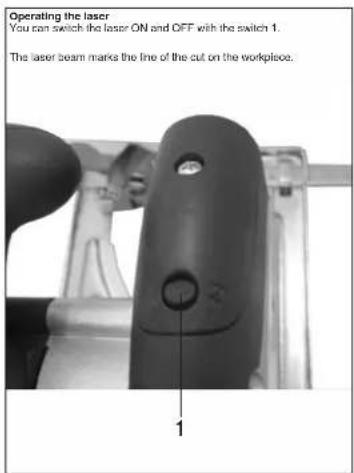

Laser radiation

Do not look into the beam

Laser class 2

Protect yourself and your environment from accidents by taking the appropriate precautionary measures.

• Do not look directly into the laser beam with the naked eye.
• Never look directly into the laser path.
• Never direct the laser beam at reflecting surfaces or persons or animals. Even a low output laser beam can inflict injury on the eye.
• Caution: It is vital to follow the work procedures described in these instructions. Using the tool in any other way may result in hazardous exposure to laser radiation.
• Never open the laser module.
• When the device is not going to be used for an extended period of time, the batteries should be removed.

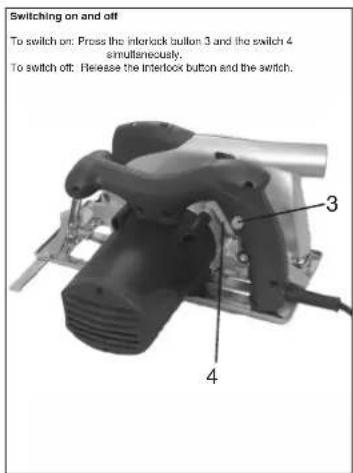

5. Working with the hand-held circular saw

Always hold the circular saw firmly.
- The hinged guard hood will be pushed back automatically by the workpiece.
- Never apply force! Advance the circular saw gently and steadily.
The off-cut piece should be to the right of the circular saw so that the wide part of the base plate is supported over its entire surface.

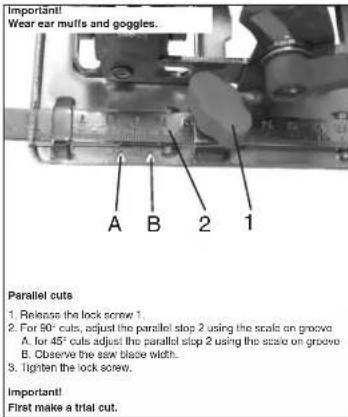

- When sawing along a marked line, guide the circular saw along the corresponding groove.
- Clamp small pieces of wood securely before sawing. Never hold them in your hand.
Always observe the safety regulations! Wear goggles!
- Do not use defective saw blades or blades with cracks of flaws.

• Do not use flanges or flange nuts with a hole which is larger or smaller than that of the saw blade used.
• Do not try to stop the saw blade with your hand or by applying pressure to the side of the blade.
• The hinged guard must not jam and must return to its original position once work is completed.
  Before plugging in the circular saw, check that the hinged guard is functioning properly.
  Before each use, always check that the safety devices - the hinged guard, splitter, flanges and adjustment devices - are functioning properly and have been adjusted and secured correctly.
• You can connect a suitable dust extractor to the guard hood. Check that the dust extractor is fitted securely and properly.
  The hinged guard hood is not to be wedged in the retracted guard hood when sawing.

6. Maintenance

• Keep the cooling vents on the motor housing clean and unobstructed at all times. Blow out any dust and dirt at regular intervals.
• Have a specialist workshop check the carbon brushes in the event of excessive sparking.
• Worn carbon brushes are to be replaced only by a specialist workshop or by our Customer Service Centre.
• Keep the machine clean at all times.
• Never use any caustic agents to clean the plastic parts.
  If ever you discover any damage, consult the exploded drawing and parts list to determine exactly which replacement parts you need to order from our Customer Service Centre.

7. Ordering replacement parts

Please provide the following information on all orders for replacement parts:

Model/type of device
Article number of the device
ID number of device
- Replacement part number of the required spare part

Replacement part

Replacement part no.:

44.720.50.01.001

Replacement carbon brushes 44.720.50.01.002

GB

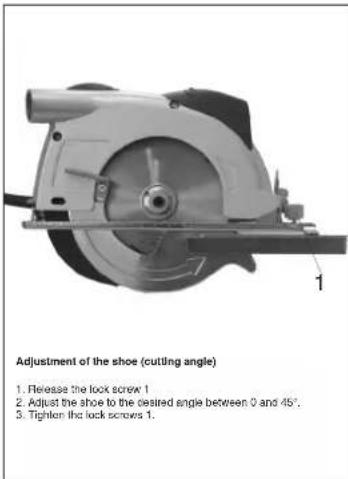

Adjustment of the cutting depth

1. Release the lock screw.
2. Swing the shoe downwards.
3. Adjust the cutting depth using the scale.
   The saw teeth must project approx. 2 mm out of the wood.
4. Tighten the lock screw

Important!

Pull out the plug before

making any change to the circular saw!

2. Use the form sequence 7 to stop the program from running.
   3.Under the scope with the breach
3. Remove the flame 4 and the saw blade by dropping down
   and out
4. Clean the flanges and insert a new biops. Note the direction
   of rotabor see snow on the guard hock.
5. Tighten the screw and check for concenrtnity.

GB

11

F

1.Description:

1. Poignée

2.Plaque 3.

Pulsance absorbee: 1500 watt

X 73/23/EWG_93/68/EEC

R&TTED 1999/5/EG

97/23/EG

2000/14/EG: garantierer Behalilsteungsaggel Lw= dB

2006/14/LG 8

X 89/336/EWG_93/68/EEC

95/54/EG:

□90/396/EWG

97/68/EG:

89/686/EWG

EN 60745-1; EN 60745-2-5; EN 55014-1; EN 55014-2; EN 61000-3-2; EN 61000-3-3

Subject to change without notice
