USER MANUAL Little Cow Chipolino
продуктов номер / item number / cikkszám/ número de artículo / codice articolo / artikelnummer / numéro d'article / broj proizvoda / αριθμός προϊόντος / numărul produsului / número de produto / productnummer / číslo produktu / 3ππππππππ ππππππ ππππππ ππππππ ππππππ ππππππ ππππππ ππππππ ππππππ ππππππ ππππππ ππππππ ππππππ ππππππ ππππππ ππππππ ππππππ ππππpi
PRLC0230xxx /831-E
ФИГУРИ / FIGURES / ÁBRÁK / CIFRAS / FIGURE / FIGUREN / LES FIGURES / FIGURE / ФІГОYPEΣ / FIGURILE / FIGURAS / FIGUREN / OBRÁZKY / gradesyn Dog
TO SECURE THE SAFE USE OF THIS PRODUCT AND PREVENT BABY FROM INJURIES, FOLLOW THE WARNINGS, GUIDELINES AND RECOMMENDATIONS IN THIS MANUAL!
WARNINGS!
✿ CAUTION! NEVER LEAVE THE CHILD IN BABY WALKER WITHOUT SUPERVISION!
CAUTION! BABY WALKER IS NOT FOR CHILDREN, WHO CAN WALK ALONE!
✿ CAUTION! BABY WALKER IS NOT FOR CHILDREN WEIGHING MORE THAN 12 kg!
CAUTION! BABY WALKER IS NOT FOR CHILDREN, WHO CANNOT SIT IN IT UNAIDED!
✿ CAUTION! THE CHILD IN BABY WALKER CAN REACH MORE OBJECTS, MOVE FASTER AND AT BIGGER DISTANCES. TO PROTECT THE CHILD FROM INJURY:
- DO NOT ALOW ACCESS TO STAIRS, STAIRCASES, UNEVEN SURFACES!
- KEEP AWAY FROM FIRE, SOURCES OF HEAT, COOKING APPLIANCES!
- KEEP AWAY FROM CHILDREN HOT LIQUIDS, ELECTRIC CORDS AND OTHER DANGEROUS OBJECTS!
- AVOID IMPACTS WITH DOOR GLASSES, WINDOWS AND FURNITURE.
✿ CAUTION! THE SET IN THIS PACKAGE CONTAINS SMALL PARTS! DO NOT ALLOW CHILDREN AGED LESS THAN 3 YEARS NEAR THE PRODUCT DURING ITS ASSEMBLY!
Do not use the baby walker if you find broken, wobbly or missing parts.
- Adult assembly of the walker and its accessories is required!
◆ Height of the seat must be according to child’s needs.
You should use this baby walker only for short periods. Recommended duration is 20 minutes!
When the child is in the walker, its feet must touch the floor.
Before usage the walker must be completely unfolded and all parts must be fixed. Make sure that all locking mechanisms are engaged!
Use the walker only at home, on even (not sloped) surface and only for its purpose!
Do not lift and do not move the walker while the child is in it!
❖ Stick or remove any loose stickers to avoid them being swallowed by small children!
Do not use spare parts or components different from the ones supplied by the producer! The producer is not liable in case you use parts other than the original or approved by him.
Do not make changes or modifications to the frame! If necessary, contact the retailer or an authorized service for advice and repair.
- Keep the nylon package away from children to avoid the risk of suffocation!
IMPORTANT! WARNINGS AND GUIDELINES FOR BATTERY USE
✿ After installation of batteries, always secure the battery compartment with the cover.
Do not allow children to access or play with the batteries!
Use only batteries of the designated type and power.
Do not use batteries of different types.
Do not short circuit the contact surfaces!
- Follow the designated polarity in the battery compartment.
❖ Remove damaged or worn out batteries.
❖ Remove the batteries when the product will not be used for long time.
Do not throw the batteries in open fire. Do not take the batteries to pieces.
CAUTION!
Waste from depleted or unusable batteries must be disposed of separately. It is forbidden to throw them out in containers for household waste. Dispose of the batteries only at the specified places.
MAIN FEATURES
Baby walker Little Cow encourages the child attempts to make and refine its first steps and helps the toddler to develop its balance and coordination. Bright colors and sounds of the tray with toys and musical panel stimulate the creativity of the child, develop hearing and vision.
INTENDED FOR CHILDREN UP TO 12 KG, WHO CANNOT WALK ALONE, BUT CAN SIT UNAIDED.
◆ Wide base or better stability;
◆ Colorful tray with toys and melodies;
✿ 3 height positions of the seat to match the height of the child;
❖ Stoppers to prevent tipping over or falling over stairs (6 pcs);
◆ 2 pcs front wheels (front wheels rotate to 360°
◆ 2 pcs rear wheels
✿ Batteries needed: 2 pcs size AA/1.5V for tray toy (not included).
MAIN PARTS
Please, make sure all described parts are available!
- Frame with base and upper tray
- Music panel
- Toys for music panel
- Toy bar
- Stoppers - 6 pcs.
- Front rotating wheels - 2 pcs.
- Rear wheels -2 pcs.
- screws for rear wheels -2 pcs.
ASSEMBLY INSTRUCTIONS
/IMPORTANT! FOLLOW EXACTLY THE GUIDELINES AND SEQUENCE OF ASSEMBLY AND USE WHICH YOU WILL FIND IN THE FIGURES IN THIS MANUAL.
CAUTION! CHECK THE SECURITY OF FIXING UPON COMPLETING EACH OPERATION!
CAUTION! KEEP YOUR HANDS FROM ENTRAPMENT DURING ASSEMBLY ESPECIALLY WHEN FOLDING AND UNFOLDING THE WALKER!
NOTE: Product is supplied partially assembled. To complete the assembly and disassembly you may need to use a screwdriver (it is not included in set).
The assembly actions are numbered from 1 to 5. Use the descriptions below in combination with the figure of the same number.

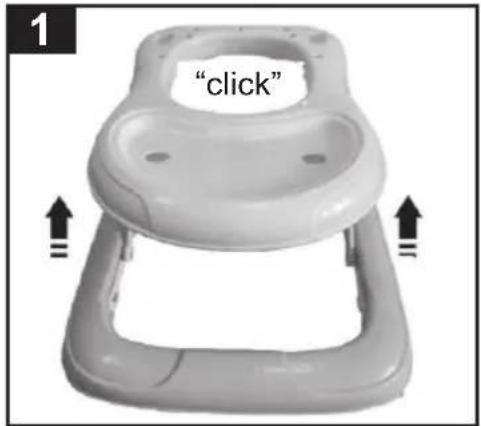

1 - OPEN THE FRAME WITH BASIS AND UPPER TRAY.
Pull upwards with both hands the tray until you hear a click sound and frame is fixed in uppest position.
2 - FRONT WHEELS, REAR WHEELS AND STOPPERS ASSEMBLY.
Install front wheels, rear wheels and stoppers by pressing them in the corresponding openings in the base.
WARNING! NEVER USE THE WALKER WIHTOUT WHEELS OR STOPPERS!

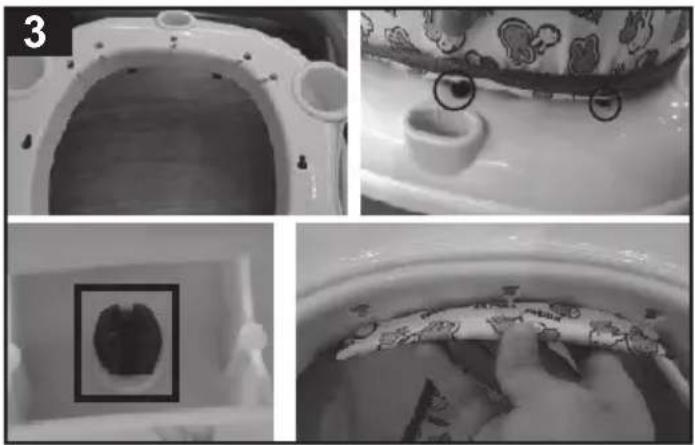

3 - ASSEMBLY OF SEAT AND HANDLE TO FRAME.
Insert the pins in the corresponding holes in the top tray, as shown.
IMPORTANT! Make sure the seat is well fixed by trying to pull it out of the frame.

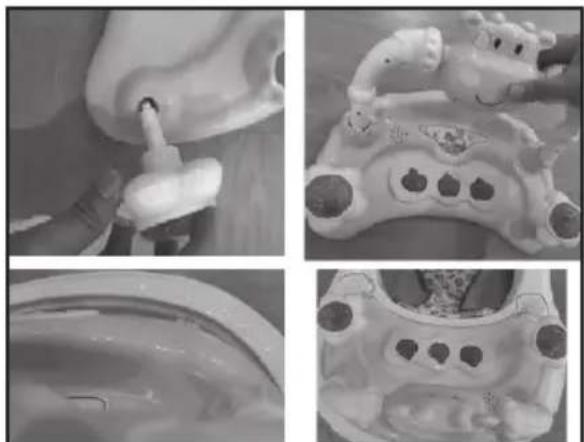

4 - ASSEMBLY OF MUSIC PANEL TO UPPER TRAY AND INSTALATION OF BATTERIES.
Place the music panel on the top tray as shown in the picture. Twist the plastic thighteners on bottom part of the tray in order to fix the music panel.
In order to use the function of the music panel, you must pur batteries. Batteries compartment is located under the tray with toys. Untighten the screw on the battery compartment cover with screwdriver. Remove the cover. Insert the batteries 2 pcs x 1,5V/AA. Place the cover of the batteries compartment and tighten the screw.
IMPORTANT! Follow the polarity of the baterries shoWn in the battery compartment!
Move the slider and press the desired button to hear melodies.

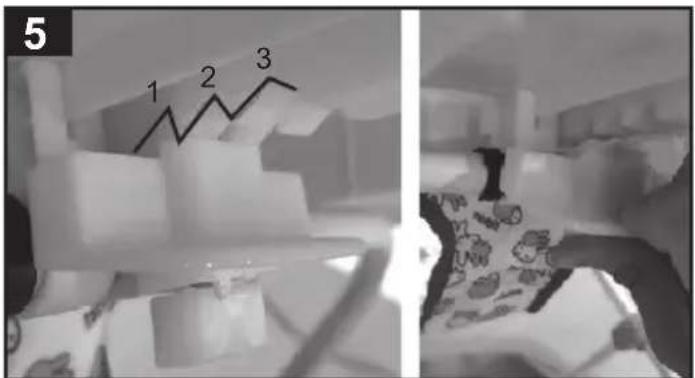

5 - HEIGHT ADJUSTMENT OF UPPER TRAY AND FOLDING OF BABY WALKER.
Baby walker can be fixed in 3 height positions.
Grab the top tray with your hands and pull up the walker in order to adjust it in a higher position – you will hear a click when the position is fixed.
IMPORTANT! The seat position is fixed automatically after you release the button!
Folding: Pull the button and move the tray in its lowest position.
FUNCTIONS
• Height adjustment of upper tray in 3 positions.
- Front rotating at 360^ wheels.
- Rear straight moving wheels.
• Music panel with music
CARE AND MAINTENANCE
Periodically check the good working order of all parts. Any broken or damaged parts must be immediately repaired or replaced.
Do not pour water over the walker. Clean with damp soft towel and a neutral liquid.
The fabric seat and feet mat must be hand washed at 30^ .
✿ Never use abrasive, bleach or spirit based detergents.
- Discontinue using the walker if you find damage or non-working function.
✿ After each cleaning, leave the walker to fully dry and only after that use it or store it.
Do not store in areas with hot air or close to heat sources to avoid deforming.
- Store the product in a clean and dry place. Do not leave it to environmental effects – sun, rain, moisture or harsh temperature fluctuations!
Do not put heavy items on the walker during transportation or storing.
In the event of problems with normal exploitation, contact an authorized service for advice or repair.
Fabric composition:
Outer: 100% polyester
Filling: 100% polyester
Materials used: plastic, metal, textile.
A TERMÉK BIZTONSÁGOS HASZNÁLATÁNAK BIZTOSÍTÁSA ÉRDEKÉBEN KÖVESSE A FELHASZNÁLÓI KÉZIKÖNYVBEN TALÁLHATÓ ÖSSZES FIGYELMEZTETÉST, UTASÍTÁST ÉS AJÁNLÁST!
FIGYELMEZTETÉSEK!
✿ FIGYELEM! SOHA NE HAGYJA FELÜGYELET NÉLKÜL A GYERMEKET A JÁRÓKÁBAN!
✿ FIGYELEM! A JÁRÓKA NEM ALKALMAS OLYAN GYERMEKEK SZÁMÁRA, AKIK MÁR TUDNAK JÁRNI!
✿ FIGYELEM! A JÁRÓKA NEM ALKALMAS 12 KG-NÁL NEHEZEBB GYERMEKEK SZÁMÁRA!
✿ FIGYELEM! A JÁRÓKA NEM ALKALMAS OLYAN GYERMEKEK SZÁMÁRA, AKIK NEM TUDNAK SEGÍTSÉG NÉLKÜL ÜLNI!
✿ FIGYELEM! A JÁRÓKÁBAN LÉVŐ GYERMEK GYORSABBAN MOZOGHAT, TÁVOLABBRA JUTHAT ÉS NAGYOBB TÁVOLSÁGOKAT TUD MEGTENNI, ELÉRVE TÁRGYAKAT!
✿ HOZZON LÉTRE BIZTONSÁGOS ZÓNÁT A GYERMEKNEK:
- TILTAKOZZON A HOZZÁFÉRÉST A LÉPCSÖKHÖZ, FOKOKHOZ VAGY EGYENETLEN FELÜLETEKHEZ!
• TARTSA A JÁRÓKÁT TÁVOL TÜZTÖL, NYÍLT LÁNGTÓL, HŐFORRÁSTÓL ÉS SÜTÖKTÖL! - HELYEZZEN EL FORRÓ FOLYADÉKOKAT, ELEKTROMOS KÁBELEKET ÉS MÁS VESZÉLYES TÁRGYAKAT A GYERMEK ELÉRHETŐSÉGÉN KÍVÜL!
- KERÜLJE AZ ÜTKÖZÉSEKET ÜVEGAJTÓKKAL, ABLAKOKKAL ÉS BÚTOROKKAL!
