USER MANUAL BT015 LEXIBOOK
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth SIG, Inc. and any use of such marks by Lexibook® is under license. Other trademarks and trade names are those of their respective owners.
© 2015 Bluetooth SIG, Inc.
BT015series
size_ 62 x 67mm
BT015seriesIM1465_V05_217YL.indb 2 10/11/15 12:11 pm
EMPLACEMENT DES TOUCHES
Notes :
Bande Lumineuse
DÉPANNAGE
EN 300 328 V1.8.1
EN 301 489-1 V1.9.2
EN 301 489-17 V2.2.1
EN 62479 : 2010
ENTRETIEN ET GARANTIE
When unpacking, ensure that the following elements are included:
1 x Mini Bluetooth® Speaker
1 x USB cable
WARNING: All packaging materials, such as tape, plastic sheets, wire ties and tags are not part of this product and should be discarded.

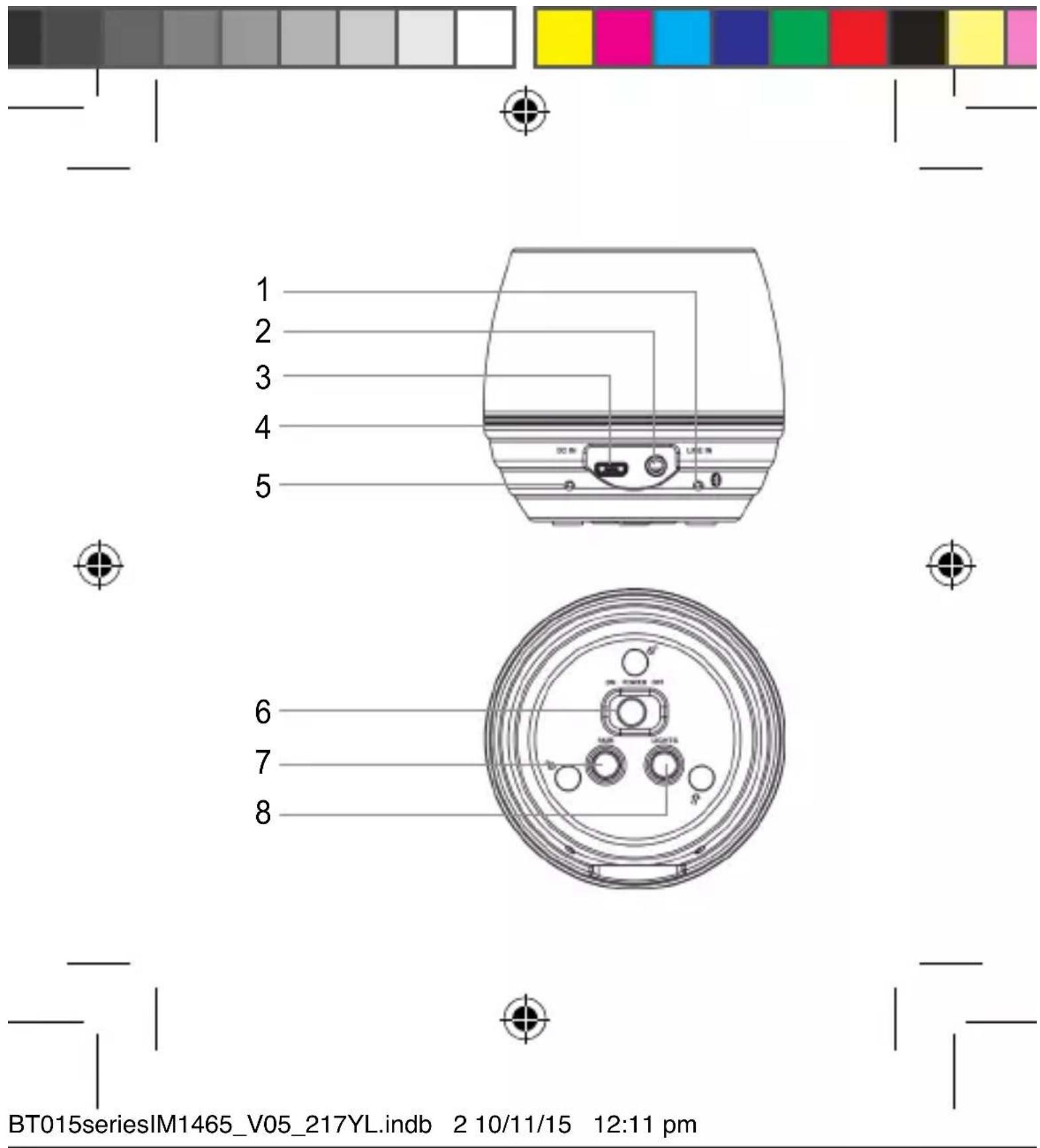

LOCATION OF CONTROLS
-
LED Pairing/Aux in indicator
-
ON/OFF switch
-
3.5mm audio in jack
-
Pair button
-
Micro USB port
-
Lights button
-
Light strip
-
LED charging indicator
TURNING THE DEVICE ON AND OFF
- To turn the Bluetooth® speaker on, slide the power switch (6) to the left.
- Slide the switch to the right to turn it off.
WARNING: Significant electromagnetic interference or electrostatic discharges may cause the device to malfunction or lose data. If the device is not functioning correctly, switch it off and then on again, or unplug the USB cable.
12
BT015seriesIM1465_V05_217YL.indb 12 10/11/15 12:11 pm
- Make sure the speaker is off.
- Connect the micro USB side of the cable (included) to the speaker and the cable's USB end to a computer.
- When the speaker is charging, the LED (5) lights up red.
- When the speaker is fully charged, the LED (5) turns off. Disconnect the cable.
Warning:
- Risk of explosion if battery is incorrectly replaced. Please only replace it with an identical or a similar battery.
- The battery should not be exposed to high temperatures, such as sunlight, fire or anything similar.
PAIRING
- Activate the Bluetooth® function on your personal device (smartphone, MP3 player, etc.). Please refer to your device's instruction manual on how to activate this function.
- Turn the speaker on; the LED (1) flashes in blue.
- Press and hold the Pair button (7) to start pairing; the LED flashes quickly.
- Select "BT015series" on your device to connect it to the speaker.
- When turned on, the speaker automatically searches for a device that it has previously synchronized with.
- If your Bluetooth device requires a password, the default password is 0000.
- You will hear a sound when pairing is successful; the LED (1) stops flashing and remains lit.
Notes:
- Use the controls on your device to listen to your desired audio file, change the volume etc...
- You can also listen to audio files from Internet. Open your internet browser and select an online player.
SPEAKER FUNCTIONS
LED Statuses
LED indicator (1)
- flashes in blue when the speaker is turned on and that no 3.5mm audio cable is connected.
- quickly flashes during searching and pairing.
• stops flashing and remains lit when pairing is successful. - lights up green when a 3.5mm audio cable is connected.
LED indicator (5)
• lights up red when the speaker is charging.
• flashes when battery is low.
Light strip
- Press the lights button (8) to turn on the lights. The light strip (4) will light up, fade away and automatically switch to another color.
- If you like a color, press again on the lights button to pause it. The light remains lit in the current color.
- Press and hold the lights button to turn it off.
Note: Turning off the lights does not power off the speaker. Turning off the speaker does not turn off the lights.
- Connect a 3.5mm audio cable to the speaker's audio in jack (2) and the other end of the cable to your personal device.
- Turn the speaker on. The LED (1) lights up green.
- Click on your device's play button to make the sounds come out of the speaker and listen to your desired audio file.
- You can also listen to audio files from the Internet. Open your internet browser and select an online player.
- To turn the speaker off, slide the ON/OFF switch (6) to the right. The LED (1) light turns off.
- Unplug the cable from the speaker and the player.
ENGLISH
15
BT015seriesIM1465_V05_217YL.indb 15 10/11/15 12:11 pm
| Problem | Solution |
| The unit does not work (indicator not illuminated) | Is the Bluetooth® speaker out of battery?Is the Bluetooth® speaker switched on? |
| No sound | Is the volume set too low or on mute?Is the song being paused?Is the Bluetooth® correctly paired? |
| The Bluetooth® does not work or cracks | Is the Bluetooth® correctly paired?Is the Bluetooth® device positioned over 10m away from the Bluetooth® speaker?Are there any solid objects between the Bluetooth® device and the Bluetooth® speaker?Is the battery too low? |
- Bluetooth® V2.1
- Speaker 3W, ∅ 52mm, impedance 2Ω
• Built-in rechargeable battery, 500mAh/3.7V, Li-ion Polymer - Charging current: DC 5V =500mA
• Charging time: around 2 hours - Playing time: around 3 hours
- Low battery indication
• Effective distance: 10m (straight line without obstacle)
ENGLISH
CONFORMITY DECLARATION
We, Lexibook® S.A.
Declare under our sole responsibility that the following product:
Kind of product: Mini Bluetooth® Speaker
Type designation: BT015series
17
BT015seriesIM1465_V05_217YL.indb 17 10/11/15 12:11 pm
ENGLISH
EN 60065: 2014
EN 55013: 2013
EN 55020: 2007 +A11 : 2011
EN 300 328 V1.8.1
EN 301 489-1 V1.9.2
EN 301 489-17 V2.2.1
EN 62479:2010
We hereby declare that the above mentioned product is in compliance with the EMC Directive (2004/108/EC), with the Low Voltage Directive (2006/95/EC) and with the R&TTE Directive (1999/5/EC) of the European Commission.
Yiu Wai Man
Product Development Manager
14/12/2015 (Hong Kong)
C€0700
18
BT015seriesIM1465_V05_217YL.indb 18 10/11/15 12:11 pm
Ensure that you switch off the device and unplug the power cable before cleaning. Wipe the device with a soft, dry cloth. If the surfaces are particularly dirty, clean them with a cloth that has been soaked in soapy water and then wrung out thoroughly. Wipe again with a dry cloth. Never use alcohol, petrol, solvents, cleaning products or other chemical products. And do not use compressed air to remove dust. At least charge the Bluetooth® speaker once every 3 months in order to maintain the battery life.
This product is covered by our 2-years warranty.
For any claim under the warranty or after sale service, please contact your distributor and present a valid proof of purchase. Our warranty covers any manufacturing material and workmanship defect, with the exception of any deterioration arising from the non-observance of the instruction manual or from any careless action implemented on this item (such as dismantling, exposition to heat and humidity, etc.). It is recommended to keep the packaging for any further reference.
NOTE: Please keep this instruction manual, it contains important information. In a bid to keep improving our services, we could implement modification on the colours and the details of the product shown on the packaging.
ENGLISH
Designed and developed in Europe – Made in China © LEXIBOOK®
United Kingdom & Ireland
For any further information, please call 0808 100 3015
www.lexibook.com
This product is not a toy.
Environmental Protection
Unwanted electrical appliances can be recycled and should not be discarded along with regular household waste! Please actively support the conservation of resources and help protect the environment by returning this appliance to a collection centre (if available).
