USER MANUAL Bolero Coolmarket TT Origin 45 CECOTEC

Product display of five cecòtec stainless steel cabinets in different colors and sizes, arranged in a row (no visible text or symbols on cabinets)

bolero

Safety instructions 7

1. Parts and components 44

2. Before use 44

3. Installation 44

4. Operation 45

5. Instructions on food storage 45

6. Cleaning and maintenance 46

7. Troubleshooting 47

8. Technical specifications 48

9. Disposal of old electrical and electronic appliances 49

10. Technical support and warranty 49

11. Copyright 50

SOMMAIRE

Read these instructions thoroughly before using the appliance. Keep this instruction manual for future reference or new users.

- This appliance can be used by children aged 8 years and above and persons with reduced physical, sensory, or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the

hazards involved. Children must not play with the appliance. Cleaning and user maintenance should not be carried out by unsupervised children.

• Do not store explosive substances such as aerosol cans with flammable propellant in this appliance.
• This appliance is designed for domestic use only and is not intended for bars, restaurants, farmhouses, hotels, motels, and offices.
• To avoid food contamination, please follow the below instructions:
  o The door openings for a long period of time may cause a significant increase in temperature in the appliance's compartments.
  o Clean regularly the surfaces that might be in contact with food and accessible evacuation systems.
  o Store raw meat and fish in appropriate refrigerator compartments so that they do not touch or drip on each other.
  o The two-star compartments are suitable for storing pre-frozen food, storing or making ice cream, and making ice cubes.
  o Compartments with one, two, or three stars are not suitable for freezing fresh food.
  o If the refrigerator appliance remains empty for a long period of time, unplug it by defrosting, cleaning, drying and leaving the door open to prevent the development of mould inside the appliance.
• WARNING: when positioning the appliance, make sure that the power cable is not trapped or damaged.
• WARNING: do not place multiple mobile sockets or mobile power supplies on the rear of the appliance.
• WARNING: keep the ventilation grilles of the enclosure of the

appliance or of the built-in cabinet clear.

- WARNING: do not use mechanical devices or similar to accelerate the defrosting process other than those recommended by the manufacturer.

- WARNING: do not use electrical devices inside the food-preservation compartment unless they're of a type recommended by the manufacturer.

- WARNING: do not damage the refrigeration circuit.

- Check the power cable regularly for visible damage. If the cable is damaged, it must be replaced by the manufacturer, the supplier, or qualified personnel to avoid hazards.

- WARNING! It is dangerous for anyone other than authorised personnel to carry out maintenance or repairs involving the removal of covers. To prevent the electric shock risk do not attempt to repair the appliance yourself.

- Do not remove items from the refrigerator with wet hands to avoid skin abrasions caused by freeze burns. Do not place bottles or cans in the storage compartment.

- See the storage times recommended by the manufacturer.

- Do not allow children to play with the controls or the refrigerator. The refrigerator is a heavy household appliance. Caution must be taken when moving the appliance. It is dangerous to alter specifications or attempt to modify this appliance in any way.

- This refrigeration appliance is not suitable for built-in installation.

- WARNING: if doors or lids are fitted with locks and keys, they must be kept out of reach of children and not in the vicinity of the refrigerating appliance, to prevent children from being locked inside.

- WARNING: the refrigerant used in your appliance and the insulation materials must be disposed of correctly.

- Remove doors and covers before disposing of the appliance to avoid possible entrapment.

Temperature range

- The temperature range information of the appliance can be found on its marking. Indicates the optimum room temperature (at which the appliance operates) for proper operation of the appliance.

Climate range Optimum room temperature
SN from 10 °C to 32 °C
N from 16 °C to 32 °C
ST from 16 °C to 38 °C
T from 16 °C to 43 °C

WARNING: if the refrigerator operates outside its rated climate class (SN/N/ST), it may not be able to maintain a satisfactory internal temperature.

Free of Freon

- This refrigerator uses freon-free refrigerant (R600a) and foaming insulation material (cyclopentane), which are environmentally friendly, do not cause damage to the ozone layer, and have a very low impact on global warming. R600a is flammable and does not leak during normal use when sealed in a refrigeration system. In the event of refrigerant leakage due to damage to the refrigerant circuit, be sure to keep the appliance away from open flames and open the windows to ventilate as soon as possible.

- This symbol means: Warning: Risk of fire/flammable materials

INSTRUCTIONS DE SÉCURITÉ

1. Make sure the adjustable feet are securely on the floor, and adjust the tilt of the appliance slightly backwards to keep the doors securely closed.

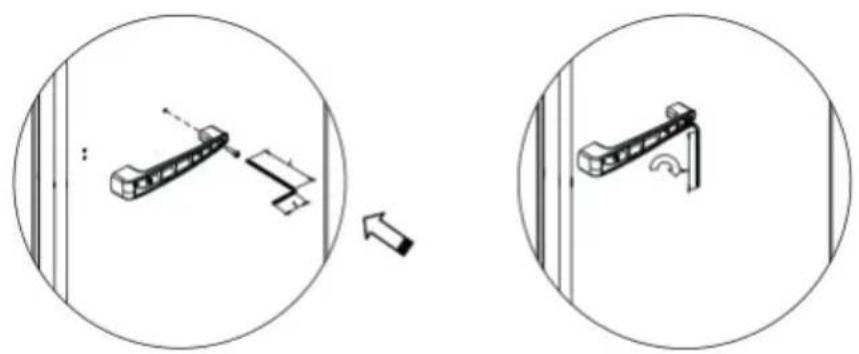

Installing the handle

Fig. 2 key:

1. Handle
2. Handle trim
3. Screws

4. Socket spanner

5. Remove the accessories from the packing bags: the handle, the handle trim, and the three screws.

6. Take a socket spanner.
7. Make sure the three screw holes of the handle screws are aligned with those of the door, then screw them in respectively.
8. Install the handle trim on the handle.

4. OPERATION

• The temperature of the refrigerator can be manually controlled via the knob. However, the number displayed on the knob isn't directly indicative of interior temperature.
• The higher the number, the lower the interior temperature.
• 0 means off.
• Turn the knob to 4 for normal use, turn it between 4-7 if you need a lower interior temperature, and between 4-1, if you need a higher interior temperature.

5. INSTRUCTIONS ON FOOD STORAGE

Use precautions

• The appliance may not operate consistently (there may be some defrosting of the contents or the temperature may become too hot) if placed in locations with a temperature outside of the temperature range for which the refrigerator is designed for a long period of time.
• Information on the climatic class of the appliance can be found in the Technical Specifications section and on the appliance marking.
• The internal temperature may be affected by factors such as the location of the appliance, room temperature, door opening frequency, etc., and you should take these factors into account if you decide to use any temperature-control devices.
• It is not recommended to store liquids in glass containers or soft drink cans in the storage compartment.

ENGLISH

Food location

• Due to the circulation of cold air in the refrigerator, the temperature in each zone is different, so food must be placed in different zones.
• The refrigerator is suitable to store food that does not need to be frozen, cooked food, beer, eggs, some seasonings that need to be kept cold, milk, fruit juice, etc.

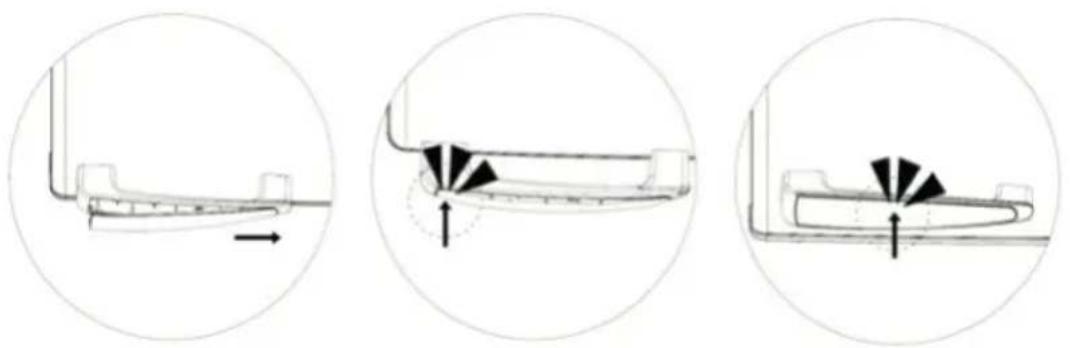

Shelves:

To remove the shelf, first lift it up and then pull it out; to refit it, put it back in position before lowering it. Keep the rear edge of the shelf facing upwards to prevent food from coming into contact with the wall.

Care for food storage

• Clean and dry food completely before storing it in the refrigerator. Before introducing food in the refrigerator, it is advisable to seal it to prevent water evaporation and thus keep fruit and vegetables fresh on the one hand, and to prevent odours on the other.
• Do not put too much or too heavy food in the refrigerator. Leave enough space between the food; if they are too close together, they will block the flow of cold air, which will affect the cooling effect. Do not store too much or too heavy food to prevent the shelves from bending. When storing food, leave a distance from the interior wall; do not place water-rich food too close to the inner wall of the refrigerator to prevent it from freezing on the interior wall.

Storing food by category

Place daily food items at the front of the shelf so as to reduce the door opening time and avoid food spoilage due to expiry.

Energy-saving tips:

Let hot food cool down to room temperature before putting it in the refrigerator.

Storing fruits and vegetables

Please note that some types of fresh vegetables and fruits are sensitive to cold and therefore not suitable for storage in the refrigerator.

6. CLEANING AND MAINTENANCE

Before cleaning, disconnect the power plug; do not connect or disconnect the power plug with your hands wet, as there is a risk of electric shock and injury. Do not spill water directly on the refrigerator to avoid rust, electrical leakage and accidents. Do not reach into the bottom of the refrigerator, as you may get scratched by the sharp metal corners.

Cleaning the interior and exterior

• Food residues in the refrigerator can cause undesired odours, so you should clean the refrigerator regularly. Clean the refrigerator compartment at least once a month.
• Remove all removable parts, etc., and clean them with a soft cloth or sponge dampened with lukewarm water or neutral detergent.
• Clean the dust that accumulates on the rear panel and side plates of the refrigerator regularly.
• After using neutral detergent, make sure you rinse it with clean water, and then dry it with a cloth.
• Do not use bristle brushes, steel wire brushes, detergent, soap powder, alkaline detergent, benzine, petrol, acid, hot water, or other corrosive elements to clean the refrigerator surface, door gasket, plastic decorative parts, etc. to avoid damage.
• Carefully dry the door gasket and clean the slot with a wooden stick wrapped with cotton. After cleaning, fix the four corners of the door gasket and then gradually push it into the slot in the door.
• If the refrigerator will not be used for a long period of time, unplug it from the mains, empty all food, and clean the appliance, leaving the door ajar to avoid unpleasant odours.

Power failure or cooling system fault

- Try to open the refrigerator door as little as possible, so that you can keep food in good condition for hours, even in summer.

- If you receive an early power failure warning:

1. Set the thermostat knob to the highest setting one hour in advance (do not store new food during this time!). Set the temperature back to the original setting when the power supply returns to normal.

2. You can also make ice in an airtight container and place it on the top chamber of the refrigerator to extend the shelf life of fresh food.

Note:

Once you start using the refrigerator, it is best to use it continuously to lengthen its service life.

7. TROUBLESHOOTING

For the following minor malfunctions, please try to solve the problem yourself before contacting the official Cecotec Technical Support Service.

ENGLISH

Fault Possible	causes Possible solutions
The appliance does not work.	The appliance is not connected to the mains.The switches in the electrical installation or the fuses are damaged.There is no power or the fuse trips.	Plug the appliance into the main socket.Power outage or line disconnection.
Abnormal noise.	The refrigerator is not stable.The refrigerator is too close to the wall.	Set the adjustable feet of the refrigerator.Separate the refrigerator from the wall.
Low cooling efficiency.	The food inside is hot or there is too much food.You open the door too often.The door gasket has objects that do not allow to close it completelyThe appliance receives direct sunlight or is close to a heat source.It is not well ventilated.The selected temperature is too high.	Store food in the refrigerator when at room temperature.Check and close the door.Remove the refrigerator from the heat source.Ventilate the room.Correct temperature settings.
Unpleasant smells in the refrigerator.	There is spoiled food inside.The refrigerator should be cleaned.Food with a strong odour stored inside the refrigerator.	Dispose of food which is spoiled.Clean the refrigerator.Pack the strong smelling foods.

Note:

If none of these situations match your problem, do not attempt to disassemble or repair the appliance by yourself. Repairs carried out by unqualified persons may result in injury or serious malfunctions. Contact the official Cecotec Technical Support Service. The repair must be carried out by an authorised technician and you must use only original spare parts.

8. TECHNICAL SPECIFICATIONS

You can find more information on this model by scanning the QR code (and the energy label as well).

Reference: 02405	02263 02129 02130 02131
Model	Bolero CoolMarket TT Origin 45 Red E	Bolero CoolMarket TT Origin 45 Blue E	Bolero CoolMarket TT Origin 45 Beige E	Bolero CoolMarket TT Origin 45 Black E	Bolero CoolMarket TT Origin 45 Green E
QR code
Voltage 220-240 V
Rated frequency 50 Hz
Rated current 0.45 A
Climate class SN/N/ST (*)
Refrigerant R600a / 18 g
Insulating foam Cyclopentane

(*) Refrigerating appliance intended for use at room temperatures between 10 °C and 38 °C. Technical specifications may change without prior notice to improve product quality. Made in China | Designed in Spain

9. DISPOSAL OF OLD ELECTRICAL AND ELECTRONIC APPLIANCES

This symbol indicates that, according to the applicable regulations, the product and/or batteries must be disposed of separately from household waste. When this product reaches the end of its shelf life, you should dispose of the cells/batteries/accumulators and take them to a collection point designated by the local authorities.

Consumers must contact their local authorities or retailer for information concerning the correct disposal of old appliances and/or their batteries.

Compliance with the above guidelines will help protecting the environment.

10. TECHNICAL SUPPORT AND WARRANTY

Cecotec shall be liable to the end user or consumer for any lack of conformity that exists at the time of delivery of the product under the terms, conditions, and deadlines established by the applicable regulations.

It is recommended that repairs are carried out by qualified personnel.

ENGLISH

If at any moment you detect any problem with your product or have any doubt, do not hesitate to contact the official Cecotec Technical Support Service at [phone].

11. COPYRIGHT

The intellectual property rights over the texts in this manual belong to CECOTEC INNOVACIONES, S.L. All rights reserved. The contents of this publication may not, in whole or in part, be reproduced, stored in a retrieval system, transmitted, or distributed by any means (electronic, mechanical, photocopying, recording or similar) without the prior authorization of CECOTEC INNOVACIONES, S.L.

1. PIÈCES ET COMPOSANTS

Img. 1

7. PROBLEEMOPLOSSING

Four technical line drawings of mechanical components, including a cylindrical component and a bent tool (no text or symbols)

Fig./Img./Abb./Rys./Obr. 2

Diagram showing a mechanical assembly before and after change, with no visible text or symbols

Fig./Img./Abb./Rys./Obr. 3

Three technical diagrams showing mechanical assembly steps with arrows indicating motion (no text or symbols)

Fig./Img./Abb./Rys./Obr.4
