USER MANUAL PARTYBTHPS2 BIGBEN

Black rectangular electronic device with a central button and a small screen (no visible text or symbols)

Blue and black portable heater with a vertical vent (no visible text or symbols)

Close-up of a portable electronic device with a black and purple gradient background (no visible text or symbols)

MODE D'EMPLOI

AVANT D'UTILISER CET APPAREIL, VEUILLEZ LIRE ATTENTIVEMENT CE MODE D'EMPLOI ET LE CONSERVER AFIN DE POUVOIR LE CONSULTER ULTÉRIEUREMENT.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Black rectangular electronic device with a central button and a small screen (no visible text or symbols)

Blue and black portable heater with a vertical vent (no visible text or symbols)

Close-up of a portable electronic device with a black and purple gradient background (no visible text or symbols)

USER INSTRUCTIONS

PLEASE READ THIS USER MANUAL CAREFULLY BEFORE OPERATING THE UNIT AND RETAIN FOR FUTURE REFERENCE.

Getting started 10		Pairing function	14
Safety warning and notice 10		Device technical specifications	14
Contents of the box 12		Environmental protection	15
Device introduction 12		Additional information	15
Charging	14	Declaration of conformity	15
Bluetooth connection 14		Warranty	15

Getting started

• Take the device out of the box.
- Remove all the packaging from the product.
- Place the packaging inside the box or dispose of it safely in compliance with the waste sorting instructions shown on the outside.

Safety warning and notice

You must read and understand all the instructions before using this device. The warranty will not apply if damage is caused by failure to follow the instructions.

1. Never remove the device casing.
2. Never place this device on top of other electrical equipment.
3. Protect the power cord from being stepped on or pinched, particularly at the plugs, sockets, and the point where it exits the device. Make sure that the power rating corresponds to the voltage shown on the rating plate at the rear of the device. Always pull the plug from the socket when disconnecting from the mains. Never pull on the cord. Ensure you have completed all the other connections before connecting the mains plug.
4. Only use attachments/accessories that are recommended by the manufacturer.

5. Entrust all device repairs to qualified repairers. Repair is needed when the issues been damaged in any fashion, and in particular:

6. if the power cord is damaged;

7. in the event of a liquid spill or objects being inserted into the device;
8. if the device is exposed to rain or dampness;
9. if the device does not operate normally;

10. or if the device has been dropped or impacted.

11. The series panel is located on the bottom of the device.

12. Never block the air vents.

13. Make sure you have enough space for ventilation. Place the product on a stable surface.

14. This device must be used in a moderate climate, away from direct sunlight, naked flames or sources of heat, heaters, cookers or any other devices (including amplifiers) that generate heat. Do not install near a heat source.

15. The batteries (battery pack or inserted batteries) must not be exposed to excessive heat, such as sunshine, fire, etc.

16. Always unplug the device before cleaning it. Never lubricate any part of this device. Clean

it with a soft cloth. Do not use abrasive products or harsh cleaners.

1. Ensure that you always have easy access to the power cord, plug or adapter to disconnect this device from the mains if necessary.

2. Do not use this device near water. It must not be dripped on or splashed. Do not use this device in a damp or wet environment.

3. Disconnect this device in the event of a storm, or if you intend not to use it for a long period of time.

4. This device can be used by children aged 8 and over, and by persons with a physical or sensory disability, learning difficulties or a lack of experience and knowledge, provided they are supervised or have received instructions on the safe use of the device, and they understand the risks involved. Children must not play with the device or the power cord (risk of strangulation). Children must not clean or maintain the device without supervision.

5. This device must only be supplied with very low safety voltage as indicated on the device.

6. The battery should be removed from the device before disposal. The device must be disconnected from the power supply when removing the battery.

7. When in operation, the device must be at a minimum distance of 20 cm from the human body.

8. This device is for household use only: do not use outdoors.

CAUTION RISK OF ELECTRIC SHOCK DO NOT OPEN ATTENTION RISQUE DE CHOC ELECTRIQUE NE PAS OUVRIR

The lightning bolt symbol within an equilateral triangle alerts users to the presence of dangerous uninsulated voltages, inside the device, that may present a risk of electric shock.

The exclamation mark inside a triangle indicates the presence of important operating and maintenance (repair) instructions in the literature accompanying the device.

Risk of fire or explosion if the battery is replaced by an incorrect type.

Disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery, that can result in an explosion;

Leaving a battery in an extremely high temperature surrounding environment that can result in an explosion or the leakage of flammable liquid or gas;

A battery subjected to extremely low air pressure that may result in an explosion or the leakage of flammable liquid or gas.

Maximum operating ambient temperature of the product is 25°C

Please refer the information on exterior bottom enclosure for electrical and safety information before installing or operating the apparatus.

Class II material
Direct current
Alternating current
For indoor use only

Contents of the box

• Speaker
  • USB-C charging cable x1

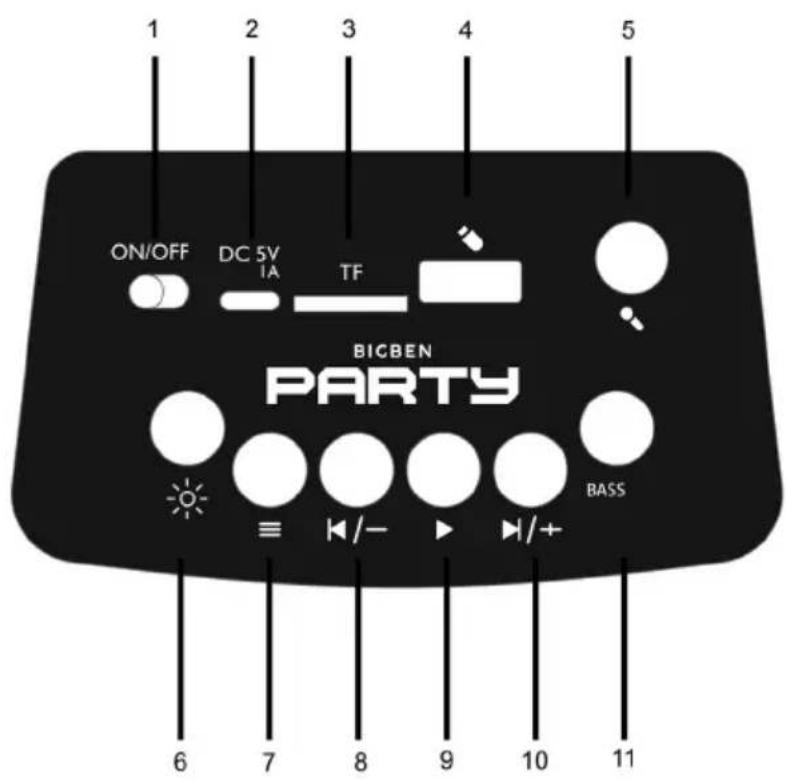

1 2 3 4 5 ON/OFF DC 5V IA TF BICBEN PARTY 6 7 8 9 10 11 ≡ K/- ▶ ▶/+ BASS

Device introduction

1. ON/OFF power button

The power button is located at the top of the speaker. Slide to ON position to turn on.

2. 5 V power supply

Charging port. Use a USB-C charging cable to connect your speaker to a 5 V-1 A power source (mains adapter, computer, etc.).

3. Memory card port

Lets you play music tracks stored on the memory card.

The speaker is compatible with the following file formats: MP3/WAV/APE/WMA.

The maximum size of the USB media for MP3 playback must not exceed 32 GB.

4. USB input

Lets you play music tracks stored on the USB card.

The speaker is compatible with the following file formats: MP3/WAV/APE/WMA.

The maximum size of the USB media for MP3 playback must not exceed 32 GB.

5. Microphone port

Connection for a 6.35 mm external microphone (not included).

6. Lighting button

Press briefly to scroll through the different lighting effects or turn them off.

7. Input mode button

Press briefly to change the input modes.

8. Decrease button

Press the < button to decrease the volume and return to the previous track via Bluetooth, SD and USB.

In Bluetooth / Micro-SD / USB mode, press briefly to go back to the previous track. Press and hold to decrease the volume.

9. Play/Pause button

Play/pause button for Bluetooth, Micro-SD and USB playback.

In Bluetooth / Micro-SD / USB mode, press briefly to play or pause the track.

10. Increase button

Press the > button to increase the volume and skip to the next track in Bluetooth, Micro-SD and USB mode.

In Bluetooth / Micro-SD / USB mode, press briefly to skip to the next track. Press and hold the button to increase the volume.

11. Bass button:

Press the BASS button to choose from 4 different EQ settings.

Charging:

When you hear the low battery warning beep, you should switch off the speaker and recharge it.

Connect the USB-C cable to the charging port on top of the speaker. During charging, the LED indicator turns red. The charging LED light switches off when charging is complete.

A full charge can take 5 to 6 hours depending on the USB power source.

Bluetooth connection:

When the speaker is turned on, the speaker automatically switches to Bluetooth search mode. Look for and select "PARTYBTHPS2" on your mobile device. Once found, a beep will sound to indicate that the speaker is connected to the device.

Pairing function

You can only do this if there are two PARTYBTHPS2.

1. Switch on the two speakers and put them into Bluetooth mode.
2. Hold down the Play/Pause button on one of the speakers for 3 seconds. Release the button when you hear a beep. Both speakers are now connected.
3. Then, switch on your phone's Bluetooth and look for PARTYBTHPS2, then pair with the speaker and connect to play your music through it.
4. In pairing mode, press and hold the Play/Pause button to disconnect the pairing.

Device technical specifications

Audio power 10 W Bu	It-in battery 3.7 V 1,800 mAh
Unit 3” X1 Frequency	response 80Hz - 18 kHz
Bluetooth version 5.3	Dimensions 145 x 138 x 190 mm
EIRP 0.9 dBm

N.B.: The maximum connection distance is approximately 10 metres. Place your Bluetooth speaker as close as possible to the device to avoid any interference with the connection.

The device may turn off in an environment with electrostatic discharge. The user must then recharge the battery and reset the device.

Your product has been designed and manufactured using high-quality materials and components that can be recycled and reused.

Attention should be drawn to the environmental aspects of battery disposal.

When the crossed-out wheelie bin symbol appears on a product, it means that the product is covered by European Directive 2002/96/EC. Please find out about the local sorting and collection system for electrical and electronic products. Please act according to local rules and do not dispose of your old products in your household waste. By ensuring this product is disposed of correctly, you are helping to prevent potentially negative consequences for the environment and human health.

Additional information

• The word Bluetooth ^® , the brand and logo are registered trademarks owned by Bluetooth SIG, Inc., and any use of such marks by Bigben Interactive is under licence. All other brands and trade names are the property of their respective owners.
• This product is manufactured and sold under the responsibility of Bigben Interactive.
• All other products, services, corporate names, trademarks, trade names, and logos referenced herein are the property of their respective owners.

Declaration of conformity

- Bigben Interactive declares that the PARTYBTHPS2 radio device is in compliance with Directive 2014/53/EU. The full text of the EU declaration of conformity is available at the following internet address: https://www.bigben-interactive.co.uk/support/

Warranty

This product is guaranteed by Bigben for a period of 2 years from the date of purchase, except in countries of the European Economic Area, which offer a longer warranty period. We recommend that you keep your receipt for any claims. The warranty covers breakdowns due to defective material, a missing element or manufacturing defect. In this case, contact our technical support. For any problem with a defective product, contact your point of purchase with your receipt. The warranty does not cover problems of improper use.

Made in China

Manufactured by BIGBEN INTERACTIVE SA

396, Rue de la Voyette

CRT2 - FRETIN

CS 90414

59814 LESQUIN Cedex - France

www.bigben.eu

Fabricant : Bigben Interactive FRANCE

1. Rue de la Voyette, C.R.T. 2, Fretin,

CS90414 - 59814 Lesquin Cedex, France

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Black industrial heater with a circular vent and control panel (no visible text or symbols)

Blue industrial heater with black ventilation grille (no visible text or symbols)

Close-up of a colorful portable electronic device with a black handle and purple-to-green gradient background (no visible text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

Black industrial heater with a circular vent and control panel (no visible text or symbols)

Blue industrial heater with black ventilation grille and white top (no visible text or symbols)

Colorful portable electronic device with a black ventilation grille and purple-to-green gradient background (no visible text or symbols)

ISTRUZIONI PER L'USO

LEGGERE IL PRESENTE MANUALE CON ATTENZIONE PRIMA DI METTERE IN FUNZIONE IL DISPOSITIVO E CONSERVARLO PER UNA CONSULTAZIONE FUTURA.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Black industrial heater with a circular vent and side ports (no visible text or symbols)

Blue industrial heater with black ventilation grille (no visible text or symbols)

Close-up of a colorful portable electronic device with a black handle and purple-to-green gradient background (no visible text or symbols)

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Black industrial heater with ventilation grille (no visible text or symbols)

Blue industrial heater with black ventilation grille and 'Rasad' branding (no text or symbols on body)

Colorful industrial fan with a black vent and purple-to-green gradient effect (no visible text or symbols)

BEDIENUNGSANLEITUNG

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

Black industrial heater with a circular vent and control panel (no visible text or symbols)

Blue industrial heater with black ventilation grille and white top (no visible text or symbols)

Close-up of a colorful portable electronic device with a black handle and purple-to-green gradient background (no visible text or symbols)

GEBRUIKSAANWIJZING

ALVORENS DIT APPARAAT TE GEBRUIKEN, LEES DEZE INSTRUCTIES AANDACHTIG DOOR EN BEWAAR DEZE VOOR TOEKOMSTIGE RAADPLEGING.

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]

Black industrial heater with a circular vent and side button (no visible text or symbols)

Blue industrial heater with black ventilation grille (no visible text or symbols)

Close-up of a colorful portable electronic device with a black handle and purple-to-green gradient background (no visible text or symbols)

INSTRUKCJA OBSŁUGI

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPAÑA, [e-mail]

Tel.: [phone]

Black industrial heater with a circular vent and control panel (no visible text or symbols)

Blue and black portable heater with a vertical orange stripe (no visible text or symbols)

Colorful portable electronic device with a black ventilation grille and purple-to-green gradient background (no visible text or symbols)

UPUTE ZA UPORABU

PRIJE UPORABE OVOG APARATA PAŽLJIVO PROČITAJTE OVE UPUTE I SAČUVAJTE IH ZA BUDUĆE UPORABE.

Pokretanje	66	Funkcija uparivanja	70
Upozorenja i sigurnosne upute 66		Tehničke specifikacije uređaja	70
Sadržaj pakiranja 68		Zaštita okoliša	71
Predstavljanje uređaja 68		Dodatne informacije	71
Punjenje	70	Izjava o sukladnosti	71
Povezivanje na Bluetooth	70	Jamstvo	71

Pokretanje

• Izvadite uređaj iz kutije.
• Uklonite sav materijal za pakiranje s proizvoda.
• Stavite materijale za pakiranje u kutiju ili ih odložite na siguran način prema uputama za recikliranje naznačenim na pakiranju uređaja.

Upozorenja i sigurnosne upute

BELGIQUE, [e-mail]

NEDERLAND, [e-mail]

ESPANA, [e-mail]

Tel.: [phone]
