GORA 22 - Boiler EDILKAMIN - Free user manual and instructions

Product type	Wood pellet boiler
Brand	Edilkamin
Model	GORA 22
Fuel type	Wood pellets category A1 (UNI EN ISO 17225-2)
Nominal power	21.5 kW
Useful power	20.1 kW
Efficiency at nominal power	93.5 %
Pellet tank capacity	60 kg
Autonomy at reduced power	80 h
Maximum heatable volume	50 m³
Power supply	230 V ~ 50 Hz
Standby power consumption	4 W
Ignition power consumption	400 W
Flue gas temperature at nominal power	88 °C
Water operating pressure	1.5 bar (recommended)
Maximum water temperature	85 °C (triggers shutdown)
Safety devices	Overheat thermostat, pressure switch, temperature probe
Crucible cleaning frequency	Every 2-3 days depending on use
Seasonal maintenance	By Edilkamin authorized center (general cleaning and flue)
Weight with packaging	302 kg

Frequently Asked Questions - GORA 22 EDILKAMIN

How to turn on the GORA 22 boiler?

After connecting the power, press and hold the ON/OFF button on the display. The product turns to ON state and starts automatically. Set the desired room temperature with the +/- buttons.

What type of pellets to use?

Use only wood pellets of category A1 according to standard UNI EN ISO 17225-2. Do not burn waste, plastics, or other fuels.

What to do in case of H01 alarm?

The H01 alarm indicates insufficient airflow. Check that the door is tightly closed, perform regular cleaning (crucible, ash drawer), and check the flue and air intake.

How to adjust the room temperature?

From the display in ON state, use the +/- buttons to adjust the temperature. The setpoint is shown at the bottom of the display. The product modulates or turns off automatically when the setpoint is reached.

Is a buffer tank required?

A buffer tank (inertial storage) is recommended but not mandatory. It relieves the boiler from sudden demands, reduces consumption, and facilitates integration with other heat sources. Edilkamin recommends at least 20 l/kW.

What hydraulic accessories are available?

Edilkamin offers four optional internal kits: KIT B-FX (without DHW), KIT R-FX (with separator), KIT R2-FX (without DHW with separator), and KIT RW-FX (for instantaneous DHW, recommended for 22 kW). Instructions are provided with each kit.

How to clean the crucible?

When the boiler is off and cold, open the flap, remove the crucible (2), and empty residues into the ash drawer. Remove crusts and blockages from the slots. Do not discharge residues into the pellet drawer. Vacuum the inside of the firebox.

What does the message 'Clean - exchg.' mean?

This message appears after approximately 2000 hours of operation. It indicates that maintenance by an authorized technician is required. The product continues to operate, but you should schedule seasonal maintenance.

Can the boiler be installed in a bedroom?

No, installation in a bedroom, bathroom, or room with fire risk is prohibited. The room must comply with local standards (in Italy, UNI 10683) and have an external air intake of at least 80 cm².

How to activate the timer programming (Chrono)?

Access the menu with the M button, select CHRONO, then ACTIVATE. Configure temperature levels T1, T2, T3 and time slots. The Timer symbol appears on the display when the function is active.

USER MANUAL GORA 22 EDILKAMIN

Stoking mode: Automatic: it is recommended that the boiler be operated with a hot water storage tank of a volume of at least 400 litres (**)
Condensing boiler: no
Solid fuel cogeneration boiler: no	Combination boiler: no

Fuel	Preferred fuel (only one):	Other suitable fuel(s):	\( {\eta }_{\mathrm{s}} \) [%]:	Seasonal space heating emissions
				PM	OGC	CO	NOx
				\( \mathrm{{mg}}/{\mathrm{m}}^{3} \) at \( {10}\% {\mathrm{O}}_{2} \)
Log wood, moisture content \( \leq {25}\% \)	no	no
Chipped wood, moisture content 15-35 %	no	no
Chipped wood, moisture content > 35 %	no	no
Compressed wood in the form of pellets or briquettes	yes	no	84	16	4	281	122
Sawdust, moisture content \( \leq {50}\% \)	no	no
Other woody biomass	no	no
Non-woody biomass	no	no
Bituminous coal	no	no
Brown coal (including briquettes)	no	no
Coke	no	no
Anthracite	no	no
Blended fossil fuel briquettes	no	no
Other fossil fuel	no	no
Blended biomass (30-70 %)/fossil fuel briquettes	no	no
Other blend of biomass and fossil fuel	no	no

(^**) Tank volume = 20 × P_r with P_r indicated in kW

Characteristics when operating with the preferred fuel only:

Seasonal space heating energy efficiency ηs [%]: 84
Energy efficiency index EEl: 124
Item	Symbol	Value	Unit		Item	Symbol	Value	Unit
Useful heat output				Useful efficiency (GCV as received)
At rated heat output	Pn	20	kW		At rated heat output	ηn	87.5	%
At [30%/50 %] of rated heat output, if applicable	Pp	6,0	kW		At [30%/50 %] of rated heat output, if applicable	ηp	88.2	%
For solid fuel cogeneration boilers: Electrical efficiency					Auxiliary electricity consumption
					At rated heat output	elmax	0,073	kW
At rated heat output	ηel,n	N.A.	%		At [30%/50 %] of rated heat output, if applicable	elmin	0,020	kW
					Of incorporated secondary emission abatement equipment, if applicable		N.A.	kW
					In standby mode	PSB	0,004	kW
Contact details	Name and address of the manufacturer or its authorized representative.
Tel. +39 02 [e-mail]	Manufacturer: EDILKAMIN SPAVia Mascagni 720020 Lainate (MI) - ITALY

ECODESIGN REQUIREMENTS FOR SOLID FUEL BOILERS ACCORDING TO COMMISSION REGULATION (EU) 2015/1189 AND ECOLABEL REQUIREMENTS FOR SOLID FUEL BOILERS ACCORDING TO COMMISSION REGULATION (EU) 2015/1187

EDILKAMIN - GORA 26
Stoking mode: Automatic: it is recommended that the boiler be operated with a hot water storage tank of a volume of at least 480 litres (**)
Condensing boiler: no
Solid fuel cogeneration boiler: no Combination boiler: no
Fuel	Preferred fuel (only one):	Other suitable fuel(s):	ηs[%]:	Seasonal space heating emissions
				PM	OGC	CO	NOx
				mg/m3at 10%O2
Log wood, moisture content ≤ 25 %	no	no
Chipped wood, moisture content 15-35 %	no	no
Chipped wood, moisture content > 35 %	no	no
Compressed wood in the form of pellets or briquettes	yes	no	84	16	4	288	121
Sawdust, moisture content ≤ 50 %	no	no
Other woody biomass	no	no
Non-woody biomass	no	no
Bituminous coal	no	no
Brown coal (including briquettes)	no	no
Coke	no	no
Anthracite	no	no
Blended fossil fuel briquettes	no	no
Other fossil fuel	no	no
Blended biomass (30-70 %)/fossil fuel briquettes	no	no
Other blend of biomass and fossil fuel	no	no

(^**) Tank volume = 20 × P_r with P_r indicated in kW

Characteristics when operating with the preferred fuel only:
Seasonal space heating energy efficiency n§ [%]: 84
Energy efficiency index EEl: 124
Item	Symbol	Value	Unit		Item	Symbol	Value	Unit
Useful heat output Useful efficiency (GCV as received)
At rated heat output	Pn	24,0	kW		At rated heat output	ηn	86,9	%
At [30%/50 %] of rated heat output, if applicable	Pp	6,0	kW		At [30%/50 %] of rated heat output, if applicable	ηp	88.2	%
For solid fuel cogeneration boilers: Electrical efficiency					Auxiliary electricity consumption
					At rated heat output	eImax	0,090	kW
At rated heat output	ηel,n	N.A.	%		At [30%/50 %] of rated heat output, if applicable	eimin	0,020	kW
					Of incorporated secondary emission abatement equipment, if applicable		N.A.	kW
					In standby mode	PSB	0,004	kW
Contact details	Name and address of the manufacturer or its authorized representative.
Tel. +39 02 [e-mail]	Manufacturer: EDILKAMIN SPAVia Mascagni 720020 Lainate (MI) - ITALY

ECODESIGN REQUIREMENTS FOR SOLID FUEL BOILERS ACCORDING TO COMMISSION REGULATION (EU) 2015/1189 AND ECOLABEL REQUIREMENTS FOR SOLID FUEL BOILERS ACCORDING TO COMMISSION REGULATION (EU) 2015/1187

EDILKAMIN - GORA 29
Stoking mode: Automatic: it is recommended that the boiler be operated with a hot water storage tank of a volume of at least 540 litres (**)
Condensing boiler: no
Solid fuel cogeneration boiler: no Combination boiler: no
Fuel	Preferred fuel (only one):	Other suitable fuel(s):	ηs[%]:	Seasonal space heating emissions
				PM	OGC	CO	NOx
				mg/m3at 10%O2
Log wood, moisture content ≤ 25 %	no	no
Chipped wood, moisture content 15-35 %	no	no
Chipped wood, moisture content > 35 %	no	no
Compressed wood in the form of pellets or briquettes	yes	no	84	16	4	293	120
Sawdust, moisture content ≤ 50 %	no	no
Other woody biomass	no	no
Non-woody biomass	no	no
Bituminous coal	no	no
Brown coal (including briquettes)	no	no
Coke	no	no
Anthracite	no	no
Blended fossil fuel briquettes	no	no
Other fossil fuel	no	no
Blended biomass (30-70 %)/fossil fuel briquettes	no	no
Other blend of biomass and fossil fuel	no	no

(^**) Tank volume = 20 × P_r with P_r indicated in kW

Characteristics when operating with the preferred fuel only:
Seasonal space heating energy efficiency ηs [%]: 84
Energy efficiency index EEI: 124
Item	Symbol	Value	Unit		Item	Symbol	Value	Unit
Useful heat output Useful efficiency (GCV as received)
At rated heat output	Pn	27.0	kW		At rated heat output	ηn	86,5	%
At [30%/50 %] of rated heat output, if applicable	Pp	6,0	kW		At [30%/50 %] of rated heat output, if applicable	ηp	88.2	%
For solid fuel cogeneration boilers: Electrical efficiency					Auxiliary electricity consumption
					At rated heat output	elmax	0,090	kW
At rated heat output	ηel,n	N.A.	%		At [30%/50 %] of rated heat output, if applicable	elmin	0,020	kW
					Of incorporated secondary emission abatement equipment, if applicable		N.A.	kW
					In standby mode	PSB	0,004	kW
Contact details	Name and address of the manufacturer or its authorized representative.
Tel. +39 02 [e-mail]	Manufacturer: EDILKAMIN SPAVia Mascagni 720020 Lainate (MI) - ITALY

KIT R-FX
KIT RW-FX
KIT R2-FX

Stoking mode: Automatic: it is recommended that the boiler be operated with a hot water storage tank of a volume of at least 400 litres (^**)

Condensing boiler: no

Solid fuel cogeneration boiler: no

Combination boiler: no

Fuel	Preferred fuel (only one):	Other suitable fuel(s):	\( {\eta }_{\mathrm{s}} \) [%]:	Seasonal space heating emissions
				PM	OGC	CO	NO
				\( \mathrm{{mg}}/{\mathrm{m}}^{3} \) at \( {10}\% {\mathrm{O}}_{2} \)
Log wood, moisture content \( \leq {25}\% \)	no	no
Chipped wood, moisture content 15-35 %	no	no
Chipped wood, moisture content \( > {35}\% \)	no	no
Compressed wood in the form of pellets or briquettes	yes	no	84	16	4	281	122
Sawdust, moisture content \( \leq {50}\% \)	no	no
Other woody biomass	no	no
Non-woody biomass	no	no
Bituminous coal	no	no
Brown coal (including briquettes)	no	no
Coke	no	no
Anthracite	no	no
Blended fossil fuel briquettes	no	no
Other fossil fuel	no	no
Blended biomass (30-70 %)/fossil fuel briquettes	no	no
Other blend of biomass and fossil fuel	no	no

(^**) Tank volume = 20 × P_r with P_r indicated in kW

Characteristics when operating with the preferred fuel only:

Seasonal space heating energy efficiency n§ [%]: 84
Energy efficiency index EEl: 124
Item	Symbol	Value	Unit		Item	Symbol	Value	Unit
Useful heat output Useful efficiency (GCV as received)
At rated heat output	Pn	20	kW		At rated heat output	ηn	87.5	%
At [30%/50 %] of rated heat output, if applicable	Pp	6,0	kW		At [30%/50 %] of rated heat output, if applicable	ηp	88.2	%
For solid fuel cogeneration boilers: Electrical efficiency					Auxiliary electricity consumption
					At rated heat output	elmax	0,073	kW
At rated heat output	ηel,n	N.A.	%		At [30%/50 %] of rated heat output, if applicable	elmin	0,020	kW
					Of incorporated secondary emission abatement equipment, if applicable		N.A.	kW
					In standby mode	PSB	0,004	kW
Contact details	Name and address of the manufacturer or its authorized representative.
Tel. [phone] www.edilkamin.it [e-mail]	Manufacturer: EDILKAMIN SPA Via Mascagni 7 20020 Lainate (MI) - ITALY

ECODESIGN REQUIREMENTS FOR SOLID FUEL BOILERS ACCORDING TO COMMISSION REGULATION (EU) 2015/1189 AND ECOLABEL REQUIREMENTS FOR SOLID FUEL BOILERS ACCORDING TO COMMISSION REGULATION (EU) 2015/1187

EDILKAMIN - GORA 26
Stoking mode: Automatic: it is recommended that the boiler be operated with a hot water storage tank of a volume of at least 480 litres (**)
Condensing boiler: no
Solid fuel cogeneration boiler: no Combination boiler: no
Fuel	Preferred fuel (only one):	Other suitable fuel(s):	ηs [%]:	Seasonal space heating emissions
				PM	OGC	CO	NOx
				mg/m3at 10%O2
Log wood, moisture content ≤ 25 %	no	no
Chipped wood, moisture content 15-35 %	no	no
Chipped wood, moisture content > 35 %	no	no
Compressed wood in the form of pellets or briquettes	yes	no	84	16	4	288	121
Sawdust, moisture content ≤ 50 %	no	no
Other woody biomass	no	no
Non-woody biomass	no	no
Bituminous coal	no	no
Brown coal (including briquettes)	no	no
Coke	no	no
Anthracite	no	no
Blended fossil fuel briquettes	no	no
Other fossil fuel	no	no
Blended biomass (30-70 %)/fossil fuel briquettes	no	no
Other blend of biomass and fossil fuel	no	no

(^**) Tank volume = 20 × P_r with P_r indicated in kW

Characteristics when operating with the preferred fuel only:

Seasonal space heating energy efficiency s [%]: 84

Energy efficiency index EEl: 124

Item	Symbol	Value	Unit		Item	Symbol	Value	Unit
Useful heat output				Useful efficiency (GCV as received)
At rated heat output	Pn	24,0	kW		At rated heat output	ηn	86,9	%
At [30%/50%] of rated heat output, if applicable	Pp	6,0	kW		At [30%/50%] of rated heat output, if applicable	ηp	88.2	%
For solid fuel cogeneration boilers: Electrical efficiency					Auxiliary electricity consumption
					At rated heat output	eImax	0,090	kW
At rated heat output	ηel,n	N.A.	%		At [30%/50%] of rated heat output, if applicable	eimin	0,020	kW
					Of incorporated secondary emission abatement equipment, if applicable		N.A.	kW
					In standby mode	PSB	0,004	kW

Contact details	Name and address of the manufacturer or its authorized representative.
Tel. +39 02 [e-mail]	Manufacturer: EDILKAMIN SPAVia Mascagni 720020 Lainate (MI) - ITALY

ECODESIGN REQUIREMENTS FOR SOLID FUEL BOILERS ACCORDING TO COMMISSION REGULATION (EU) 2015/1189 AND ECOLABEL REQUIREMENTS FOR SOLID FUEL BOILERS ACCORDING TO COMMISSION REGULATION (EU) 2015/1187

EDILKAMIN - GORA 29
Stoking mode: Automatic: it is recommended that the boiler be operated with a hot water storage tank of a volume of at least 540 litres (**)
Condensing boiler: no
Solid fuel cogeneration boiler: no Combination boiler: no
Fuel	Preferred fuel (only one):	Other suitable fuel(s):	ηs [%]:	Seasonal space heating emissions
				PM	OGC	CO	NOx
				mg/m3at 10%O2
Log wood, moisture content ≤ 25 %	no	no
Chipped wood, moisture content 15-35 %	no	no
Chipped wood, moisture content > 35 %	no	no
Compressed wood in the form of pellets or briquettes	yes	no	84	16	4	293	120
Sawdust, moisture content ≤ 50 %	no	no
Other woody biomass	no	no
Non-woody biomass	no	no
Bituminous coal	no	no
Brown coal (including briquettes)	no	no
Coke	no	no
Anthracite	no	no
Blended fossil fuel briquettes	no	no
Other fossil fuel	no	no
Blended biomass (30-70 %)/fossil fuel briquettes	no	no
Other blend of biomass and fossil fuel	no	no

(^**) Tank volume = 20 × P_r with P_r indicated in kW

Characteristics when operating with the preferred fuel only:

Seasonal space heating energy efficiency s [%]: 84

Energy efficiency index EEl: 124

Item	Symbol	Value	Unit		Item	Symbol	Value	Unit
Useful heat output				Useful efficiency (GCV as received)
At rated heat output	\(P_{n}\)	27.0	kW		At rated heat output	\(\eta_{n}\)	86,5	%
At [30%/50 %] of rated heat output, if applicable	\(P_{p}\)	6,0	kW		At [30%/50 %] of rated heat output, if applicable	\(\eta_{p}\)	88.2	%
For solid fuel cogeneration boilers: Electrical efficiency					Auxiliary electricity consumption
					At rated heat output	\(eI_{max}\)	0,090	kW
At rated heat output	\(\eta_{el,n}\)	N.A.	%		At [30%/50 %] of rated heat output, if applicable	\(eI_{min}\)	0,020	kW
					Of incorporated secondary emission abatement equipment, if applicable		N.A.	kW
					In standby mode	\(P_{SB}\)	0,004	kW

Contact details	Name and address of the manufacturer or its authorized representative.
Tel. +39 02 [e-mail]	Manufacturer: EDILKAMIN SPAVia Mascagni 720020 Lainate (MI) - ITALY

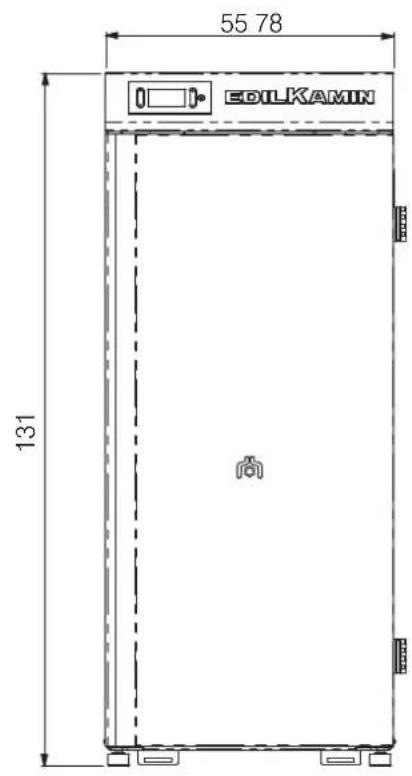

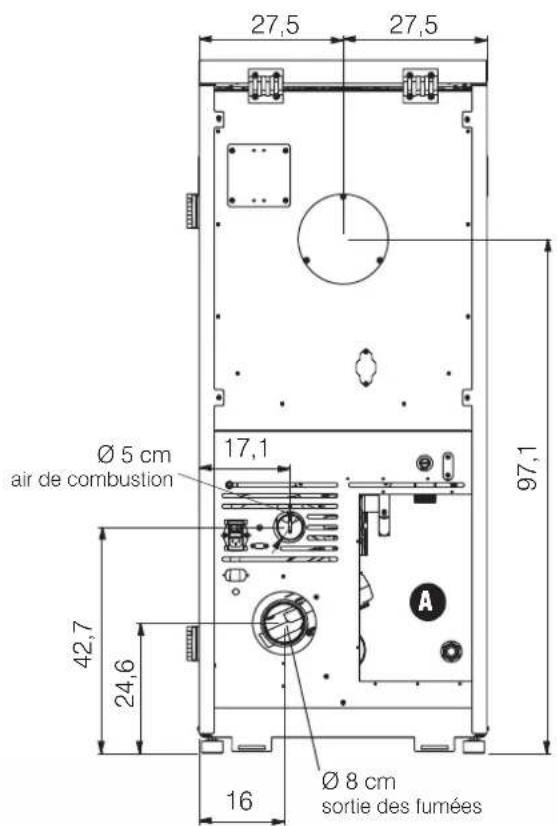

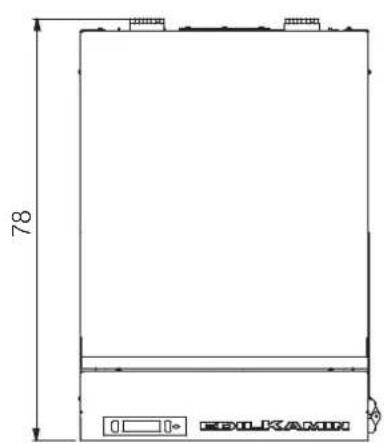

GORA 22 - 26 -29 (dimensions en cm)

KIT R-FX
KIT RW-FX
KIT R2-FX

Stand by (figure ci-contre)
