USER MANUAL FS5200 Xtorm
20.000 mAh Li-Polymer / 74Wh
2x USB-C PD 35W
1x USB-A 22.5W IQC 3.0 18W / SCP 22.5WI
USB-C PD 35W Input
143x77x28 mm
380 grams
1x USB-C PD cable
1x Manual
When using multiple outputs
When using 2 outputs
Share 15W
Share 15W
Share 15W
When using all outputs
Share 15W
Output
USB-C PD 35W
Output
USB-A 22.5W OC 3.0 18W / SCP 22.5W
Output
USB-C PD 35W
Input
USB-C PD 35W
Power Button
Digital Power Indicator
Official Xtorm Label
CHARGING YOUR DEVICE3 RECHARGING THE POWER BANK 4
COMPATIBLE DEVICES
3A Connect the USB-C end of the charging cable to the USB-C PD output of the Power Bank and the other end to the input of your device. The charging will start automatically.
3B Charging some devices requires a charging cable other than the one supplied.
E.g. an Apple Lightning ^® or a Micro USB cable.
4A Connect the USB-C end of the charging cable to output 3 of the Power Bank and the USB end to a wall charger.
4B For the fastest charging possible use a 35W charger. This will fully recharge the Power Bank within 3.3 hours.
LED POWER INDICATOR5 IN THE BOX 6
- single press to turn on/off the display
- double press to fully turn on/off the Power Bank
5B The display shows the remaining battery percentage between 0% (empty) and 100% (fully charged).
5C The fast charge indicator will light up when you are using the correct cable for fast charging your device. (35W USB-C PD and higher).


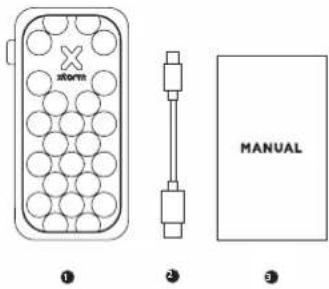

storm ① ② ③ MANUAL
1 SPECIFICATIONS
2 PRODUCT OVERVIEW
3 CHARGING YOUR DEVICE
3.A Connect the USB end of the charging cable to the USB-A output of the Power Bank and the other end to the input of your device. The charging will start automatically.
3.B Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning ^4 or a Micro USB cable.
4 RECHARGING THE POWER BANK
4.A Connect the USB-C end of the charging cable to output 3 of the Power Bank and the USB end to a wall charger.
4.B For the fastest charging possible use a 35W USB-C PD charger. This will fully recharge the Power Bank within 3.3 hours.
5 LED POWER INDICATOR
5A Press the Power Button once to display the battery level remaining in the Power Bank via the LED display. Improved Power Button function:
- single press to turn on/off the display
- double press to fully turn on/off the Power Bank
5B The display shows the remaining battery percentage between 0% (empty) and 100% (fully charged).
5C The fast charge indicator will light up when you are using the correct cable for fast charging your device. (35W USB-C PD and higher).
6 IN THE BOX
NL - NEDERLANDS
1 SPECIFICATIES
2 PRODUCT OVERZICHT
3 OPLADEN VAN JOUW APPARAAT
EN When recycling this product, please follow WEEE battery recycling procedures. Contact your local recycling organization for more information.
XTORM SAFETY CHECK WARNINGS
1. TEMPERATURE CONTROL
Provided with a temperature control chip that prevents overheating.
2. OVERLOAD PROTECTION
Protects both the internal battery as well as the battery of the attached device from overcharging.
3. SECURED POWER MANAGEMENT
Automatically picks the correct charging speed and efficiently devides power between attached devices.
4. SHORT CIRCUIT PROTECTION
Breaks the circuit automatically when an overcurrent is detected. This protects the Xtorm charger and your device from short circuit damage.
5. A-CLASS BATTERY CELLS
We only use the best battery cells that provide the fast charging you need and meet all safety requirements.
6. HIGH EFFICIENCY
Our power products are built to power your device as efficient as possible. This ensures the least possible loss of energy during the charging process.
EN Warnings
Don't crop, disseme or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don't expose to any heat source. Keep out of reach of children. Don't use in the presence of flamimabla gas. The warranty will lose in the event of limaroper use. Talco Accessories has tested the product in a test environment. All statements/declarations made by Talco Accessories about the operation of the product are based on the results obtained from such tests. These results/statements/declarations cannot be guaranteed, for example in cases of deviating or injudicious use and/or use in a different environment.
NL Waarschuwingen
The image is too blurry to recognize any text content.
BG Предупреждения
На из&SVPATÓ, je replasibaté ir na se cipitalára da resonirirato cami saradanéto urstevslo. Imžebalte na izpaltana na voda ili visona blesni uocić. He inaplatre na zvárdarstovce na izotnicycna i toplina. Sprevanaláte na lecta, kredostily na dude. He imgoisárate a príscušternote ne zapalava ra. Garancijeta ce Žtandne o cuujat na nepavlanha ulpebra. Télice Acssiosoges a testaia padukta a testosa creda. Boznicomilena dečiarazioni, napravati od Télice Acssiosoges os-losne įrabistala na produktva, ca osinavat na reçutatve. Télice Acssiosoges a testaia padukta a testosa, oblačenem na voda. Ochocodovskočnja ne mota da bezvi garantrenki, namniker na zvolnica veči neri nupazlava u utroba i niwi utroba e vrični na creda.
RS Упозореньа
EU DECLARATION OF CONFORMITY
