FS5271 - Power bank Xtorm - Free user manual and instructions

Brand	Xtorm
Model	FS5271
Product type	Portable battery (Power Bank)
Battery capacity	20000 mAh (estimated)
Charging input	USB-C Power Delivery (PD) 67W max
USB-A output	Standard (5V/2.4A or more depending on protocol)
USB-C output	Power Delivery (PD) up to 67W
Charging time	Approximately 4 hours with 67W PD charger
Battery level display	LED screen with percentage
Fast charging indicator	Specific LED lights up during fast charging
On/Off button	Single press: level display; double press: turn on/off
Material	ABS plastic, anti-slip shell
Dimensions (L x W x H)	Approximately 15 x 7 x 2.5 cm (estimated)
Weight	Approximately 420 g (estimated)
Box contents	Power Bank, USB-C cable, user manual
Compatibility	Smartphones, tablets, USB-C devices, etc.
Safety	Protection against overloads, short circuits, temperature
Maintenance	Clean with a dry cloth; avoid moisture
Recycling	Do not throw in trash; follow WEEE guidelines
Warranty	2 years (current estimate)

Frequently Asked Questions - FS5271 Xtorm

How to recharge the Xtorm FS5271 portable battery?

Plug the USB-C end of the supplied cable into the battery input (port 3) and the other end into a wall charger. Use a 67W PD charger for a full charge in 4 hours.

How to check the remaining battery level?

Press the On/Off button once: the LED screen displays the remaining battery percentage (0% to 100%).

Which devices can I charge with this power bank?

You can charge all USB-compatible devices, such as smartphones, tablets, headphones, etc. For devices requiring fast charging, use an appropriate cable (e.g., USB-C PD for MacBook).

Can I charge a laptop with the Xtorm FS5271?

Yes, thanks to the USB-C PD output up to 67W, it can charge most USB-C compatible laptops.

What does the fast charging indicator mean?

The indicator lights up when you use a cable and charger that support fast charging (67W USB-C PD or higher).

How to turn the battery completely on or off?

Double-click the On/Off button to turn the power bank on or off. A single press displays the battery level.

Is the battery waterproof?

No, avoid any exposure to water or high humidity. Do not use it in a humid environment.

What cables are included in the box?

The box contains a USB-C cable. For some devices (iPhone, Micro USB), you will need to use your own cable.

Can I use the battery while it is charging?

Yes, it is possible (pass-through function). However, charging will be slower.

How to recycle the battery at end of life?

Do not throw it in household waste. Drop it off at a WEEE collection point or contact your local recycling organization.

USER MANUAL FS5271 Xtorm

Line drawing of a mobile phone case with circular indentations and a 'X' logo on the cover (no text or symbols beyond branding)

SPECIFICATIONS PRODUCT OVERVIEW1 2

27.000 mAh Li-Polymer / 99.9Wh

1x USB-C PD 67W

1x USB-C PD 27W

1x USB-A 22.5W [QC 3.0 18W / SCP 22.5W]

USB-C PD 67W Input

168×83×33 mm

1. 2017年1月1日

1x USB-C PD cable

1x Manual

When using multiple outputs

When using 2 outputs

Share 15W

18W + 45W

27W + 40W

When using all outputs

Share 15W 43W

Output

USB-C PD 27W

Output

USB-A 22.5W

Output

USB-C PD 67W

Input

USB-C PD 67W

Power Button

Digital Power Indicator

Official Xtorm Label

CHARGING YOUR DEVICE3 RECHARGING THE POWER BANK 4

COMPATIBLE DEVICES

3A Connect the USB-C end of the charging cable to the USB-C PD output of the Power Bank and the other end to the input of your device. The charging will start automatically.
3B Charging some devices requires a charging cable other than the one supplied.
E.g. an Apple Lightning or a Micro USB cable.

4A Connect the USB-C end of the charging cable to output 3 of the Power Bank and the USB end to a wall charger.
4B For the fastest charging possible use a 67W charger. This will fully recharge the Power Bank within 4 hours.

LED POWER INDICATOR5 IN THE BOX 6

5A Press the Power Button once to display the battery level remaining in the Power Bank via the LED display. Improved Power Button function:

- single press to turn on/off the display

- double press to fully turn on/off the Power Bank

5B The display shows the remaining battery percentage between 0% (empty) and 100% (fully charged).

5C The fast charge indicator will light up when you are using the correct cable for fast charging your device. (67W USB-C PD and higher).

EN - ENGLISH

1 SPECIFICATIONS

2 PRODUCT OVERVIEW

3 CHARGING YOUR DEVICE

3.A Connect the USB end of the charging cable to the USB-A output of the Power Bank and the other end to the input of your device. The charging will start automatically.

3.B Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning ^4 or a Micro USB cable.

4 RECHARGING THE POWER BANK

4.A Connect the USB-C end of the charging cable to output 3 of the Power Bank and the USB end to a wall charger.

4.B For the fastest charging possible use a 67W USB-C PD charger. This will fully recharge the Power Bank within 4 hours.

5 LED POWER INDICATOR

5A Press the Power Button once to display the battery level remaining in the Power Bank via the LED display. Improved Power Button function:

- single press to turn on/off the display

- double press to fully turn on/off the Power Bank

5B The display shows the remaining battery percentage between 0% (empty) and 100% (fully charged).

5C The fast charge indicator will light up when you are using the correct cable for fast charging your device. (67W USB-C PD and higher).

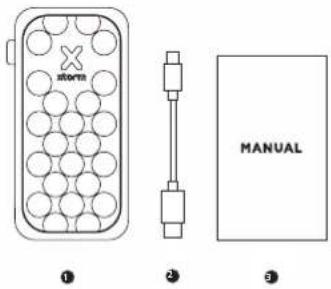

6 IN THE BOX

NL - NEDERLANDS

1 SPECIFICATIES

2 PRODUCT OVERZICHT

3 OPLADEN VAN JOUW APPARAAT

EN When recycling this product, please follow WEEE battery recycling procedures. Contact your local recycling organization for more information.

XTORM SAFETY CHECK WARNINGS

1. TEMPERATURE CONTROL

Provided with a temperature control chip that prevents overheating.

2. OVERLOAD PROTECTION

Protects both the internal battery as well as the battery of the attached device from overcharging.

3. SECURED POWER MANAGEMENT

Automatically picks the correct charging speed and efficiently devides power between attached devices.

4. SHORT CIRCUIT PROTECTION

Breaks the circuit automatically when an overcurrent is detected. This protects the Xtorm charger and your device from short circuit damage.

5. A-CLASS BATTERY CELLS

We only use the best battery cells that provide the fast charging you need and meet all safety requirements.

6. HIGH EFFICIENCY

Our power products are built to power your device as efficient as possible. This ensures the least possible loss of energy during the charging process.

EN Warnings

Don't crop, dissemble or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don't expose to any heat source. Keep out of reach of children. Don't use in the presence of flammibia gas. The warranty will lapse in the event of limproper use. Telco Accessories has tested the product in a test environment. All statements/declarations made by Telco Accessories about the operation of the product are based on the results obtained from such tests. These results/statements/declarations cannot be guaranteed, for example in cases of deviating or injudicious use and/or use in a different environment.

NL Waarschuwingen

EU DECLARATION OF CONFORMITY
