Product type	Portable battery
Brand	Xtorm
Model	FS5102
Power source	Rechargeable lithium-ion battery
Output ports	1 USB-A, 1 USB-C (Power Delivery)
Input port	USB-C (charging)
Fast charging	USB-C PD 20 W and above
Battery charging time	3.4 hours with 18W USB-C PD charger
Level indicator	LED screen with percentage (0–100%)
Control button	On/Off with single/double press function
Compatibility	Smartphones, tablets, USB devices
Safety	Overcharge, short circuit, and overheat protection
Material	ABS plastic, durable shell
Box contents	Portable battery, USB-C cable, user manual
Recommended use	Charging your mobile devices on the go
Recycling	Follow WEEE procedures; contact your local recycling center
Warnings	Do not expose to water, heat source, do not disassemble
Warranty	Manufacturer's warranty (see manual)

Frequently Asked Questions - FS5102 Xtorm

How can I recharge the Xtorm FS5102 portable battery?

Connect the provided USB-C cable to the battery's USB-C input and the other end to a wall charger. Use an 18W USB-C PD charger for fast charging in 3.4 hours.

How do I view the remaining battery level?

Press the On/Off button once to turn on the LED screen which displays the remaining battery percentage, from 0% (empty) to 100% (full).

Can I use the battery while it is charging?

Yes, you can use the portable battery to charge your devices even while it is being charged. This may slow down the charging speed.

What type of cable should I use to charge my smartphone?

Use a USB-A cable to your device's connector (micro USB, USB-C, Lightning). Some devices require a specific cable not included, such as a Lightning cable.

How do I know if fast charging is activated?

The fast charging indicator lights up on the screen when you use a compatible cable and your device supports fast charging of at least 20W USB-C PD.

What if the portable battery does not charge?

Check that the USB-C cable is properly connected and the wall charger works. Try another charger or cable. If the problem persists, contact Xtorm customer service.

Is the Xtorm FS5102 portable battery suitable for air travel?

Most airlines allow portable batteries under 100 Wh. Check the capacity of your model on the label. If it is below 100 Wh, you can carry it in cabin baggage.

How to completely turn off the portable battery?

Press the On/Off button twice quickly to completely turn off the power bank. A single press turns the display on or off only.

What devices can I charge with this battery?

You can charge all USB-compatible devices: smartphones, tablets, headphones, cameras, etc. The USB-C output power is 20W, ideal for recent smartphones.

How to maintain my Xtorm portable battery?

Avoid drops, exposure to water, and extreme temperatures. Do not disassemble. To recycle, follow WEEE instructions and take it to an approved collection point.

USER MANUAL FS5102 Xtorm

Line drawing of a smartphone with 'xtorm' branding and circular design, no readable text or symbols beyond branding

SPECIFICATIONS PRODUCT OVERVIEW1 2

10.000 mAh Li-Polymer / 37Wh

1x USB-C PD 20W

1x USB-C 18W

1x USB-A 22.5W [QC 3.0 18W / SCP 22.5W]

USB-C PD 18W Input

136x71x15 mm

218 grams

1x USB-C PD cable

1x Manual

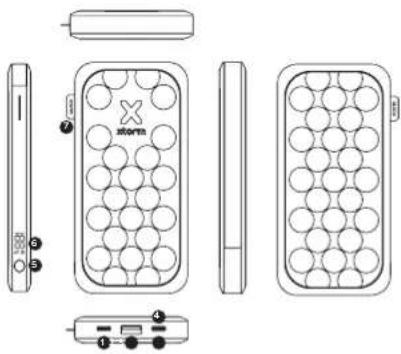

When using multiple outputs

When using 2 outputs

Share 15W

Share 15W

Share 15W

When using all outputs

Share 15W

Output

USB-C PD 18W

Output

USB-A 22.5W

Output

USB-C 20W

Input

USB-C PD 18W

Power Button

Digital Power Indicator

Official Xtorm Label

CHARGING YOUR DEVICE3 RECHARGING THE POWER BANK 4

Diagram showing three electronic devices: a smartphone, a connected connector, and a separate device with ports (no text or symbols)

COMPATIBLE DEVICES

3A Connect the USB-C end of the charging cable to the USB-C PD output of the Power Bank and the other end to the input of your device. The charging will start automatically.
3B Charging some devices requires a charging cable other than the one supplied.
E.g. an Apple Lightning or a Micro USB cable.

Three technical line drawings of electronic components: a three-pin plug, a connector, and a multi-pin connector (no text or symbols present)

4A Connect the USB-C end of the charging cable to output 3 of the Power Bank and the USB end to a wall charger.
4B For the fastest charging possible use a 18W USB-C PD charger. This will fully recharge the Power Bank within 3.4 hours.

LED POWER INDICATOR5 IN THE BOX 6

5A Press the Power Button once to display the battery level remaining in the Power Bank via the LED display. Improved Power Button function:

- single press to turn on/off the display

- double press to fully turn on/off the Power Bank

5B The display shows the remaining battery percentage between 0% (empty) and 100% (fully charged).

5C The fast charge indicator will light up when you are using the correct cable for fast charging your device. (20W USB-C PD and higher).

EN - ENGLISH

1 SPECIFICATIONS

2 PRODUCT OVERVIEW

3 CHARGING YOUR DEVICE

3.A Connect the USB end of the charging cable to the USB-A output of the Power Bank and the other end to the input of your device. The charging will start automatically.

3.B Charging some devices requires a charging cable other than the one supplied. E.g. an Apple Lightning ^4 or a Micro USB cable.

4 RECHARGING THE POWER BANK

4.A Connect the USB-C end of the charging cable to output 3 of the Power Bank and the USB end to a wall charger.

4.B For the fastest charging possible use a 18W USB-C PD charger. This will fully recharge the Power Bank within 3.4 hours.

5 LED POWER INDICATOR

5A Press the Power Button once to display the battery level remaining in the Power Bank via the LED display. Improved Power Button function:

- single press to turn on/off the display

- double press to fully turn on/off the Power Bank

5B The display shows the remaining battery percentage between 0% (empty) and 100% (fully charged).

5C The fast charge indicator will light up when you are using the correct cable for fast charging your device. (20W USB-C PD and higher).

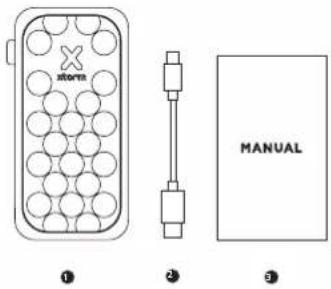

6 IN THE BOX

NL - NEDERLANDS

1 SPECIFICATIES

2 PRODUCT OVERZICHT

3 OPLADEN VAN JOUW APPARAAT

EN When recycling this product, please follow WEEE battery recycling procedures. Contact your local recycling organization for more information.

XTORM SAFETY CHECK WARNINGS

1. TEMPERATURE CONTROL

Provided with a temperature control chip that prevents overheating.

2. OVERLOAD PROTECTION

Protects both the internal battery as well as the battery of the attached device from overcharging.

3. SECURED POWER MANAGEMENT

Automatically picks the correct charging speed and efficiently devides power between attached devices.

4. SHORT CIRCUIT PROTECTION

Breaks the circuit automatically when an overcurrent is detected. This protects the Xtorm charger and your device from short circuit damage.

5. A-CLASS BATTERY CELLS

We only use the best battery cells that provide the fast charging you need and meet all safety requirements.

6. HIGH EFFICIENCY

Our power products are built to power your device as efficient as possible. This ensures the least possible loss of energy during the charging process.

EN Warnings

Don't crop, disseme or attempt to repair the charger by yourself. Avoid exposure to water or high humidity. Don't expose to any heat source. Keep out of reach of children. Don't use in the presence of flamimabla gas. The warranty will lose in the event of limaroper use. Talco Accessories has tested the product in a test environment. All statements/declarations made by Talco Accessories about the operation of the product are based on the results obtained from such tests. These results/statements/declarations cannot be guaranteed, for example in cases of deviating or injudicious use and/or use in a different environment.
