RIG 500 Pro Esports - Headphones Nacon - Free user manual and instructions

Product type	Audio headset
Brand	NACON
Model	RIG 500 Pro Esports
Category	Gaming headset
Connection	Wired (adapter for Xbox One/PS4 controller or PC)
Microphone	Flip-to-mute (auto mute when raised)
Volume control	Integrated volume wheel on cable
Size adjustment	Adjustable headband (3 positions: small, medium, large)
Ear cups	Detachable and removable, with removable ear cushions
Included adapters	Adapter for Xbox One controller and adapter for PS4 controller (depending on variant)
Compatibility	PC, Xbox One, PS4
Weight	Approximately 280 g
Cable length	1.5 m
Main material	Plastic and memory foam
Maintenance	Clean with a soft, dry cloth
Safety	Do not force the microphone boom in the up or down position
Spare parts	Removable ear cushions and ear cups (available separately)
Product code	213538-11
Manufacturer	NACON, 396 466 Rue de la Voyette, CRT2 59273 Fretin, France

Frequently Asked Questions - RIG 500 Pro Esports Nacon

How to assemble the RIG 500 Pro Esports headset?

The ear cups attach to the headband by snapping onto the notches. Follow the diagram in the manual for correct assembly.

How to adjust the headset size?

Move the ear cups to the 3 notches on the headband to choose small, medium, or large size.

How to clean the ear cushions?

Gently pull the cushions off, clean them with a soft, dry cloth, then realign the notches to put them back.

How to connect the headset to an Xbox One controller?

Use the included Xbox One adapter. Align the adapter's notches with the volume wheel, then attach it to the controller.

How to connect the headset to a PS4 controller?

Use the included PS4 adapter (in a bag or already attached depending on the version). Align the notches and attach it to the volume wheel, then plug into the controller.

How to adjust the headset volume?

Turn the volume wheel on the cable. For maximum system volume, turn the wheel fully to the right.

How to mute the microphone?

Flip the microphone boom up to mute. Do not force it in the up or down position.

Is the headset compatible with PC?

Yes, simply plug the headset cable into your PC's audio jack (3.5 mm). Use the adapter if necessary.

What to do if there is no sound?

Check the connection, the volume wheel (turn it to the right), and make sure the microphone is not in the up (mute) position. Check your console or PC audio settings.

Where to find additional help?

Visit www.nacongaming.com or contact NACON customer service at ([phone].

USER MANUAL RIG 500 Pro Esports Nacon

Fit 1 The headband adjusts to three sizes (small, medium, large) by moving the earcups. To remove an earcup, press the earcup to detach it from the headband.

Diagram showing cable connector insertion and disassembly process with labeled connectors

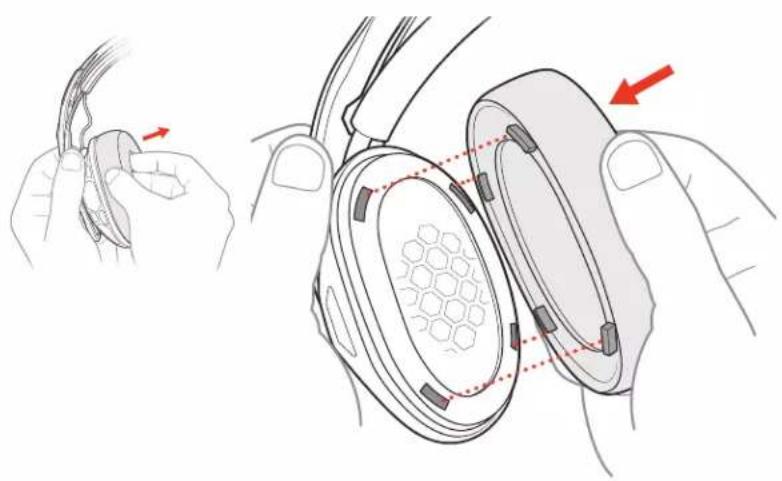

2 To change your ear cushions, gently pull the ear cushion off. To replace it, align the notches.

Illustration of a hand holding a small electronic device with a hexagonal pattern inside, showing a close-up and a red arrow indicating the process (no text or symbols present)

Set up your headset

Your headset components easily snap into the headset frame to configure the best fit and sound.

Follow the diagram to put your headset together.

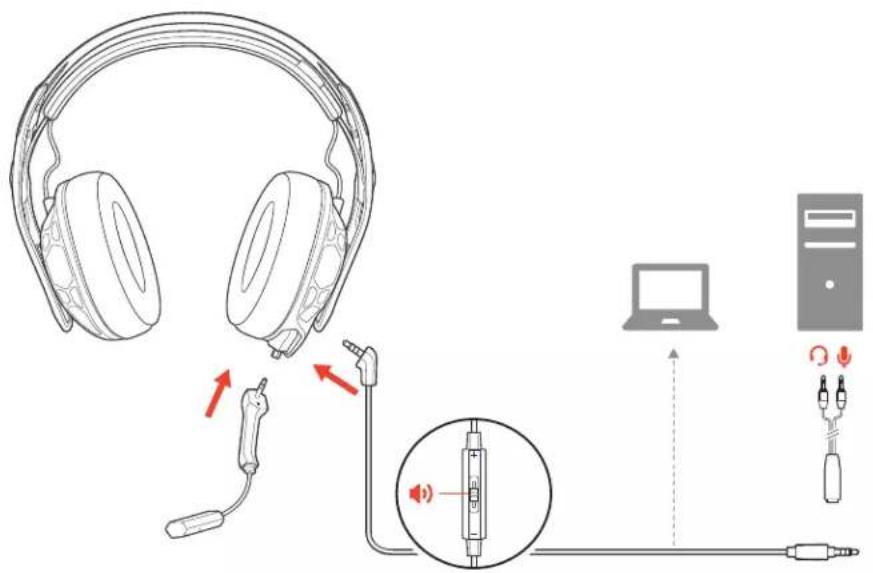

Connect to PC RIG 500 PRO, RIG 500 PRO ESPORTS

Diagram illustrating audio headset connections to a computer, showing earplifier, microphone, and audio jack components.

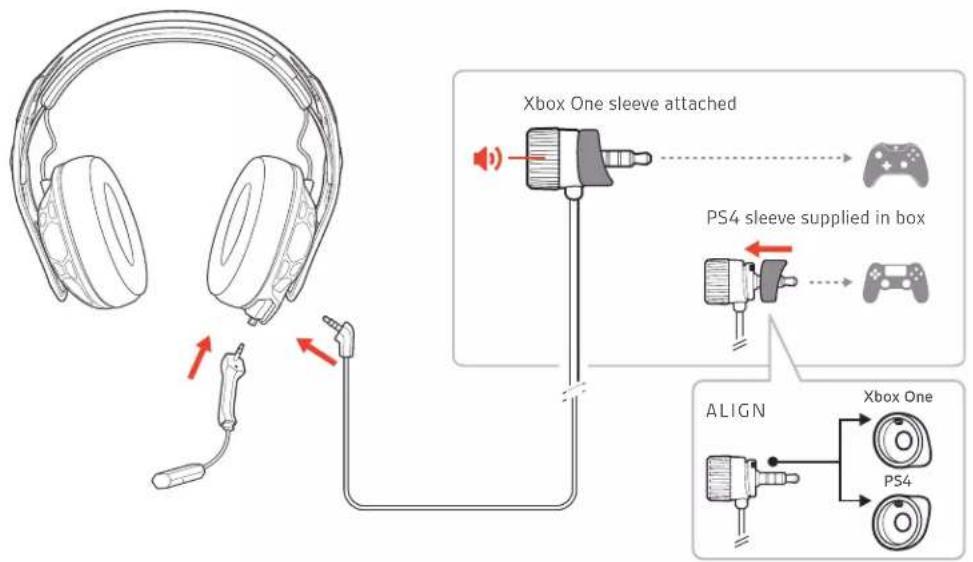

Connect to console RIG 500 PRO ESPORTS, RIG 500 PRO HC, RIG 500 PRO HX/HX SE

Out of the box, the volume wheel has the Xbox One sleeve attached and the PS4 sleeve is supplied (the RIG 500 PRO HS/HS SE models have the PS4 sleeve attached and the Xbox One sleeve is supplied). Align notches on the appropriate sleeve and volume wheel before attaching to your controller.

Xbox One sleeve attached PS4 sleeve supplied in box ALIGN Xbox One PS4

Adjust the volume

To adjust your headset volume, turn the volume wheel.

NOTE If your controller has a volume feature, you can lock the volume wheel at maximum by turning it fully to the right.

Illustration of a hand holding a cylindrical object with an arrow indicating rotation (no text or symbols)

System volume

To adjust system volume, check your console's user guide.

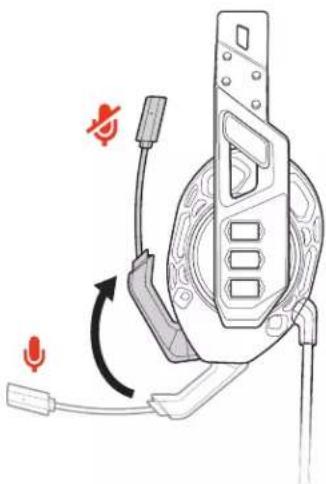

Mute

Lift the boom to a full stop to mute the microphone.

Diagram of a device with attached cable and connector, showing no text or symbols

CAUTION Do not force the boom past its upper or lower limits.

Support

NEED MORE HELP?

www.nacongaming.com

nacon

NACONG GAMING, Inc

10400 NE 4 ^th Street, Suite 500,

Bellevue, WA 98004 USA

([phone]

Headquarter

NACON

©2020 NACON. NACON and RIG are trademarks of NACON, registered in the US and other countries. «PlayStation» and «DUALSHOCK» are registered trademarks of Sony Interactive Entertainment Inc. All rights reserved. All other trademarks are the property of their respective owners.

Patents pending.

213538-06 (06.20)
