USER MANUAL RIG 500 Pro HS Nacon

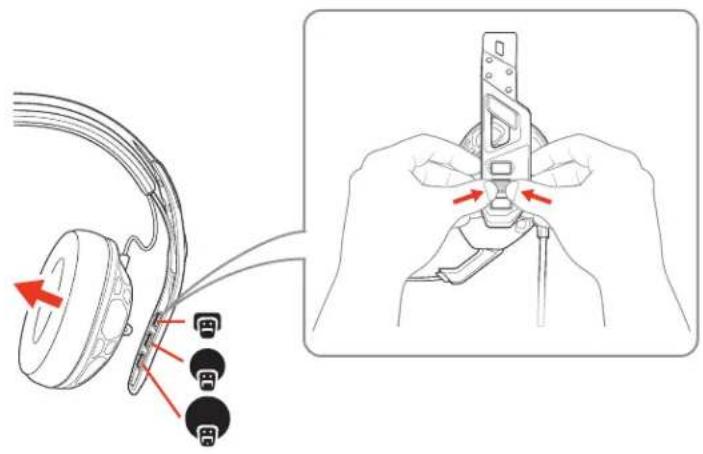

Fit 1 The headband adjusts to three sizes (small, medium, large) by moving the earcups. To remove an earcup, press the earcup to detach it from the headband.

Diagram showing cable connector insertion and disassembly process with labeled connectors and red directional arrows indicating movement.

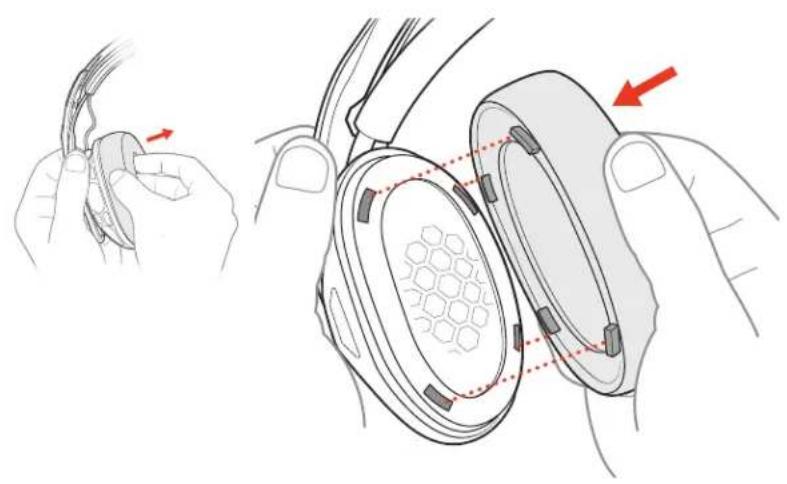

2 To change your ear cushions, gently pull the ear cushion off. To replace it, align the notches.

Illustration showing a hand holding a cable and a close-up of a device with a grid pattern, no text or symbols present.

Set up your headset

Your headset components easily snap into the headset frame to configure the best fit and sound.

Follow the diagram to put your headset together.

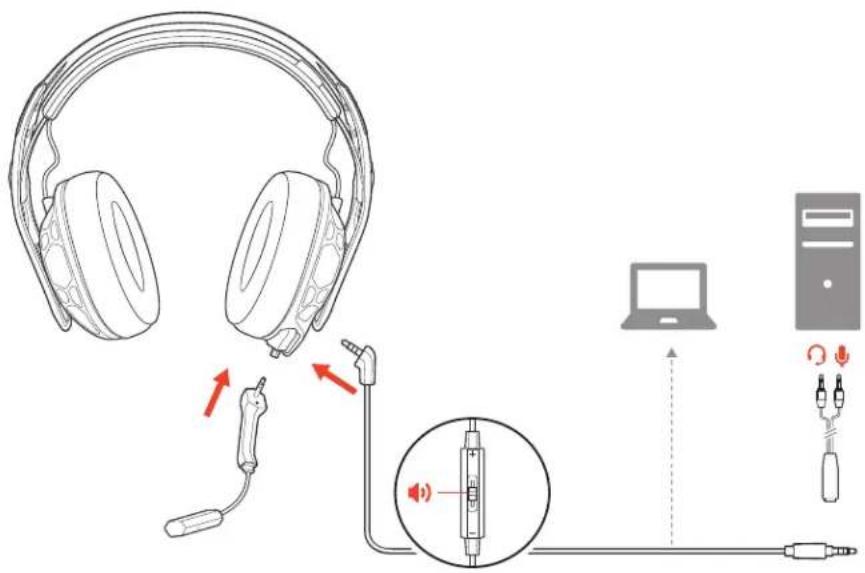

Connect to PC RIG 500 PRO, RIG 500 PRO ESPORTS

Diagram showing audio headset connections to a computer, with audio jack and audio cable details

Connect to console RIG 500 PRO ESPORTS, RIG 500 PRO HC, RIG 500 PRO HX/HX SE

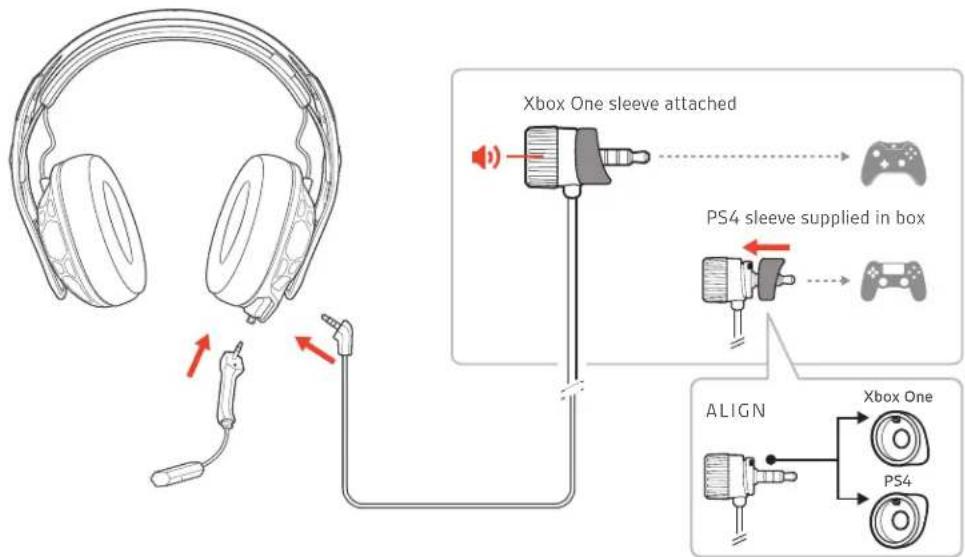

Out of the box, the volume wheel has the Xbox One sleeve attached and the PS4 sleeve is supplied (the RIG 500 PRO HS/HS SE models have the PS4 sleeve attached and the Xbox One sleeve is supplied). Align notches on the appropriate sleeve and volume wheel before attaching to your controller.

Xbox One sleeve attached PS4 sleeve supplied in box ALIGN Xbox One PS4

Adjust the volume

To adjust your headset volume, turn the volume wheel.

NOTE If your controller has a volume feature, you can lock the volume wheel at maximum by turning it fully to the right.

Illustration of a hand holding a cylindrical object with an arrow indicating rotation (no text or symbols)

System volume

To adjust system volume, check your console's user guide.

Mute

Lift the boom to a full stop to mute the microphone.

Diagram of a device with attached cable and connector, showing no text or symbols

CAUTION Do not force the boom past its upper or lower limits.

Support

NEED MORE HELP?

www.nacongaming.com
