MPE-13 - Oven MPM - Free user manual and instructions

Product Type	Electric Countertop Oven
Brand	MPM
Model	MPE-13
Capacity	10 liters
Power	800 W
Power Supply	220-240 V ~ 50/60 Hz
Temperature Range	90 °C to 230 °C (MAX)
Timer	0 to 30 minutes with auto shut-off
Indicator Light	Yes (indicates operation)
Door	Double safety glass
Included Accessories	Metal grill and baking tray
Control	Rotary knobs (temperature and time)
Standby Consumption (off)	0.36 W
Power Cord Length	0.9 m
Usage	Domestic use only
Functions	Baking, grilling, reheating
Preheating	Recommended 8 to 10 minutes
Cleaning	Damp cloth, no abrasive cleaners
Safety	Regulation thermostat, auto shut-off
Net Weight	Approximately 3.5 kg

Frequently Asked Questions - MPE-13 MPM

How to set the temperature and timer of the MPM MPE-13 oven?

To set the temperature, turn the knob (2b) from 90°C to over 230°C (MAX). To set the cooking time, turn the knob (2a) from 0 to 30 minutes. The oven will automatically turn off when the time is up. You can also turn the knob to "OFF" to stop manually.

What is the capacity of the MPE-13 oven?

The oven has a capacity of 10 liters, ideal for medium-sized dishes.

Can I use plastic or cardboard containers in the oven?

No, it is forbidden to place plastic, cardboard, or any other flammable items inside the oven. Use only heat-resistant dishes.

How to clean the oven after use?

Unplug the oven and let it cool completely. Clean the interior and exterior surfaces with a damp cloth. Wash the tray and grill in hot water with a mild detergent, then dry them. Do not use abrasive cleaners or a dishwasher.

Does the oven make noise during operation?

The oven may emit a slight thermostat noise when the heating elements turn on and off to maintain temperature. This is normal. If abnormal noises persist, contact an authorized service center.

Do I need to preheat the oven before cooking?

Preheating is recommended for 8 to 10 minutes if required by the dish. However, the oven is ideal for baking delicate dishes without preheating.

What to do if the oven does not heat up?

Check that the oven is plugged into a grounded outlet and that the temperature and time knobs are set. If the indicator light does not turn on, contact an authorized service center.

How to use the supplied grill and tray?

Place food on the grill (for airier cooking) or on the tray (for fatty or juicy foods). Both accessories fit into the oven guides. Use oven mitts to remove them.

What is the power consumption in standby mode?

When turned off, the oven consumes 0.36 W. In network standby mode (if applicable), consumption is not specified.

Is the oven suitable for use by children?

Children under 8 years old must not use the oven without supervision. Children aged 8 and above may use it under supervision, provided they have received instructions on risks and safety. Hot surfaces present a burn hazard.

USER MANUAL MPE-13 MPM

EN We wish you satisfaction from using the product and invite you to check a wide range of other MPM appliances

Black MPM oven with open lid and control knobs (no visible text or symbols)

cz NAVOD K OBSLUZE 3

Oven capacity: 10 l Timer (0-30 min.) with sound alarm

Temperature adjustment (90-230°C)

Accessories: oven rack, bake tray

Top and bottom heating element

Operating status indicator

BEZPEČNOSTNÍ POKYNY PŘI POUŽÍVÁNÍ

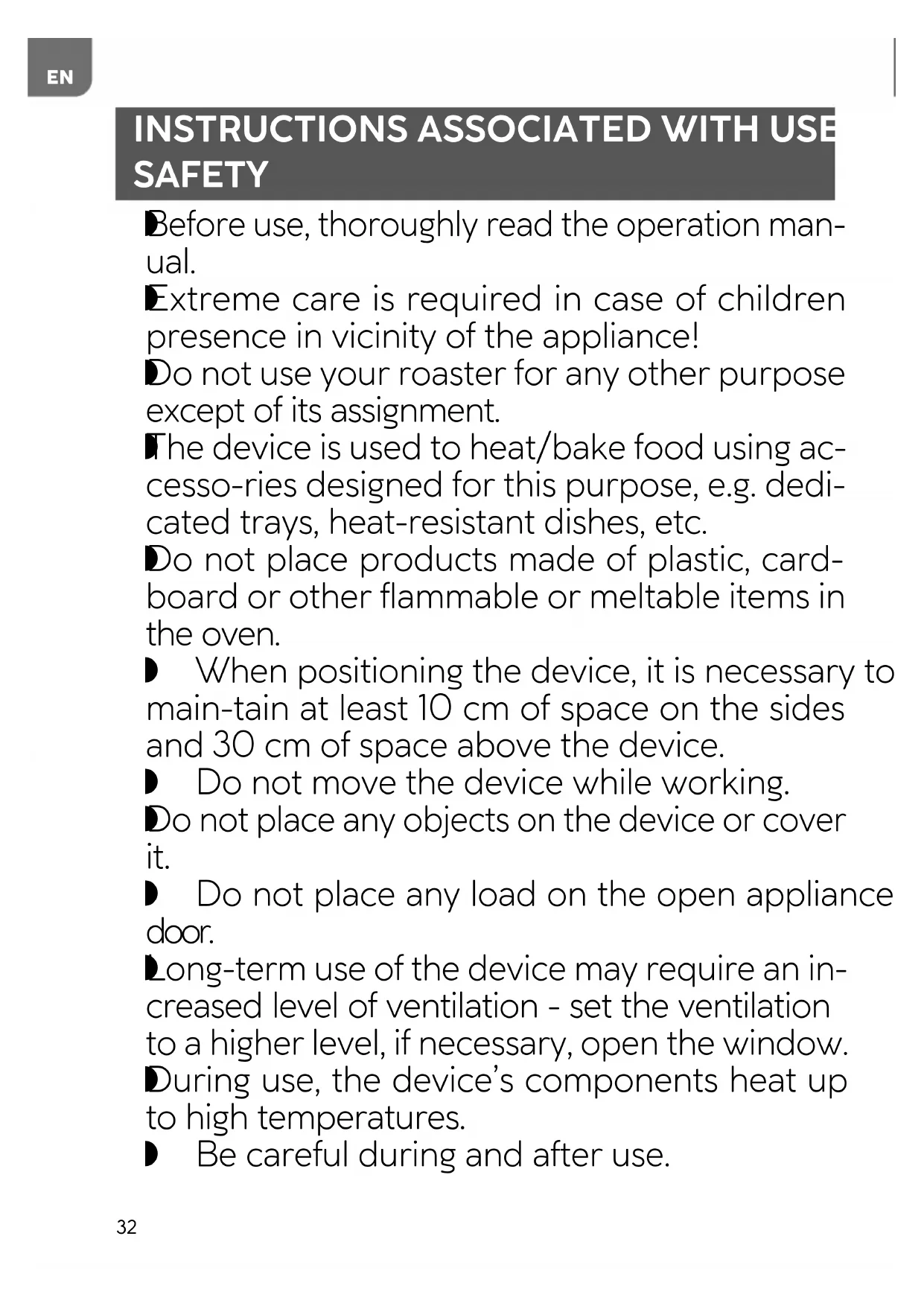

INSTRUCTIONS ASSOCIATED WITH USE SAFETY

Before use, thoroughly read the operation manual.

Extreme care is required in case of children presence in vicinity of the appliance!

Do not use your roaster for any other purpose except of its assignment.

The device is used to heat/bake food using accesso-ries designed for this purpose, e.g. dedicated trays, heat-resistant dishes, etc.

Do not place products made of plastic, cardboard or other flammable or meltable items in the oven.

When positioning the device, it is necessary to main-tain at least 10 cm of space on the sides and 30 cm of space above the device.

Do not move the device while working.

Do not place any objects on the device or cover it.

Do not place any load on the open appliance door.

Long-term use of the device may require an increased level of ventilation - set the ventilation to a higher level, if necessary, open the window.

During use, the device's components heat up to high temperatures.

Be careful during and after use.

Direct contact with the heating elements of the de-vice is particularly dangerous.

When using the device while it is in operation, touch only the parts of the device intended for this purpose, e.g. the door handle, buttons, knobs, etc.

When heating, accessories and food (especially fats) heat up to high temperatures - be careful when re-moving them, use oven gloves, etc.

Risk of burns, avoid direct contact - beware of hot steam that may be ejected when opening the device, covered containers, etc.

Do not immerse the appliance, its cord and plug in water or any other fluids!

Do not leave the roaster without supervision in course of its operation.

Always pull out the plug from the socket unless the appliance is used or before its cleaning.

Do not use the roaster in case of its damage, also if its cord or plug is damaged – in such case the appliance should be handed over to an authorized service shop for repair.

The use of any accessories not recommended by the manufacturer may result in damage of the appliance, fire or injuries.

Do not use the roaster outdoors.

Do not hang the cord on any sharp edges and prevent any contact with hot surfaces.

Do not stand the roaster in vicinity of electric and gas cookers, burners, ovens etc.

Prior to commencing the cleaning, pull out the plug from the plug socket and allow the roaster to cool completely.

The roaster should be connected into the socket with grounding pin!

This equipment may be used by children of at least 8 years of age and by persons of diminished physical, mental capacity and lack of experience and knowledge of the equipment if supervision or instruction is provided regarding the safe use of the equipment so that the hazards involved are understood. Cleaning and maintenance must not be performed by children, unless they are over 8 years old and supervised by an adult. Unsupervised children can not perform cleaning and maintenance of the product.

Store the appliance and its cord out of reach of children under 8 years of age.

- Children shall not play with the appliance - Use on a flat, stable surface.

The equipment is not designed to work with external schedulers or a separate control system.

Clean the device, in particular parts being in direct contact with food, before first use, immediately after finishing work and if the device has not been used for a long time. The procedure

is described in details in the “CLEANING AND MAINTENANCE” section.

Do not use aggressive cleaning agents or sharp metal scrapers to clean the oven door glass, as they may scratch the surface, which may result in cracking of the glass.

Do not use steam cleaners to clean the device.

Warning! Hot surface! The symbol on the device indicates that its components may heat up to high temperatures during operation.

Do not pull the plug by holding the power cord.

Do not connect the power plug with wet hands.

The temperature of surfaces may be higher when the appliance is in use.

This appliance is intended for household use only.

To avoid the risk of fire, do not place the appliance near flammable objects, such as curtains, tablecloths, etc.

Keep your children safe: do not leave any parts of the packaging readily accessible (i.e. plastic bags, cardboard boxes, polystyrene inserts, etc.).

WARNING! Never let children play with plastic film or bags. Choking/ asphyxiation hazard!

WARNING! Oils and fats may burn when over heated. Please be careful!

DESCRIPTION OF THE APPLIANCE

1. Oven casing
2. Control panel

a. working time adjustment knob (timer)
b. baking temperature control knob (thermostat)
c. Oven indicator light

1. Glass door with double glass
2. Door handle
3. The interior of the oven with a capacity of 10 liters
4. Rack
5. Tray

DESCRIPTION OF THE CONTROL PANEL

BAKING TIME CONTROL

The (2a) knob can be used to set the baking time in the oven between 0 and 30 minutes. As baking progresses the knob will be moving to the "OFF" position. At any moment you can turn the knob to the "O" position forcing the oven to switch off.

The setting of the knob to the "OFF" position causes the oven to switch off without counting the time.

TEMPERATURE REGULATION

With the knob (2b) you can set the baking temperature in the oven between 90^ to over 230^ (MAX). After reaching the set temperature the oven's thermostat turns the heats on and off in order to maintain the set temperature.

BEFORE FIRST USE

1. Take out the oven from the box and remove all fillers, transport assisting materials and labels. Check the oven for any damages that might have occurred during transport. If you have any doubts contact the seller.
2. The oven must be placed on a level, flat, stable and dry surface that is resistant to high temperature. Keep appropriate distance around the oven Do not put and do not start the oven inside cabinets, shelves or other pieces of furniture.
3. Connect the oven to a grounded supply network and start it for 15 minutes on the highest temperature. This will help heat the oven and rid it of any factory smell. This heating process might generate slight smoke which will subside in further use.
4. Disconnect the oven, wait until it cools off and clean it and its accessories using guidelines provided in the "CLEANING AND MAINTENANCE" section.

USING THE OVEN

1. Place the dish on the tray (7) or on the rack (6) and slide them into the oven. When opening and closing the door (3) use the handle (4).

NOTE! Do not place in the oven any plastic or paper packaging, containers etc.

1. Connect the device to the mains (grounded).

2. Declare the appropriate baking time (2a) and temperature (2b). The control lamp (2c) will light up which means that the oven is heating up.

3. Preheating of the oven is not needed. This will be useful when baking delicate dishes such as cakes or rare and medium-rare meats.

4. It is recommended to use the baking tray in the case of smaller food product such as those which will cause grease and water to fall down during baking.
5. After finishing the baking the countdown timer will give a sound signal. Disconnect the oven from the power source.

NOTE! To take out the product use kitchen gloves to avoid burns.

1. After the oven cools off clean it immediately according to the guidelines in the chapter "CLEANING AND MAINTENANCE".

PRACTICAL AND CULINARY ADVICE

1. Initial heating of the oven should last from 8 to 10 minutes if the dish requires it.
2. The time of baking can be changed depending on the ingredients of a given product, temperature, mass and the size of the portion.

CLEANING AND MAINTENANCE

NOTE! Before starting the cleaning and maintenance disconnect the heater from the power network and wait until it cools off completely. Do not dip it in water or other liquids.

NOTE! Do not use abrasive substances or sharp tools to clean the oven, do not use aggressive detergents and solvents.

1. External and internal surfaces of the oven should be cleaned with a moist wipe and then wiped dry.
2. The tray should be cleaned in warm water with a delicate detergent, rinsed and left to dry. Do not clean the oven accessories in dishwashers.

TECHNICAL DATA

MODEL MPE-13
Power supply 220-240V ~ 50/60HZ
Power 800W
Off and standby mode available available
Power consumption in standby mode -
Power consumption in off mode 0,36W
Power consumption in network standby mode	-
It automatically goes into standby mode after -
Automatically goes into shutdown mode after -
Network standby mode, if the device has a connection function with the appli cation	-
Length of mains cable	0,9 M.

CE

CAUTION! MPM agd S.A. reserves the right to technical changes.

Proper disposal of the product (waste electrical and electronic equipment)

Marking on the product indicates that after the service-life of the product expires, it should not be disposed with other type of municipal waste. Used equipment may have a negative impact on the environment and health of people due to potentially containing hazardous substances, mixtures and components. Mixing electric waste with other types of waste or disassembling those in an unprofessional manner may cause a release of substances that are hazardous to the environment and health.

Used equipment should be handed-over to a point for collection of electric waste. In order to obtain detailed information regarding the electric waste collection points, the user should contact the municipal point of electric waste collection or used equipment processing department.
