USER MANUAL KT102 ADE

22143 Hamburg, Germany

You have chosen to purchase a high-quality product, which combines intelligent functions with an exceptional design.

This timer ideally meets the requirements of the baking industry.

We wish you much pleasure!

General information

About this operating manual

This operating manual describes how to operate and maintain your product safely.

Keep this operating manual in a safe place for future reference. If you pass this product on to someone else, pass on this operating manual as well. Failure to observe this operating manual may result in injuries or damage to your product.

If necessary, pull the protective film off the display.

Explanation of symbols

This symbol combined with the word DANGER warns of serious injuries.

This symbol combined with the word WARNING warns of moderate and mild injuries.

This symbol combined with the word NOTE warns of material damage.

This symbol indicates additional information and general notes.

Table of Contents

General information 27
Safety 30
Intended use 33
Scope of delivery. 33
At a glance 34
Inserting/changing batteries 36
Setting the time 37
Setting up/attaching the timer............39
Using the timer 40
Other functions 42
Cleaning. 43
Fault and remedy 43
Technical data 44
Declaration of conformity 45
Warranty 45
Disposal 46

Safety

• This product may be used by children aged 8 and above, as well as by persons with reduced physical, sensory, or mental capacities or lacking experience and knowledge if they are supervised or have been instructed in the safe use of the product and understand the risks that may arise.
  Children must not play with the product.
• Cleaning and user maintenance must not be carried out by children, unless they are 8 years of age or older and are being supervised.
• Batteries, when swallowed, can be life-threatening. You should therefore keep the timer and batteries out of reach of small children. If a battery has been swallowed, medical assistance must be sought

30

immediately.

DANGER for children

• Keep children away from packaging material. There is a risk of choking if swallowed.

RISK of fire/burning and/or explosion

• There is a risk of explosion if the batteries are replaced improperly. Replace the batteries only with the same or an equivalent battery type. Observe the "Technical data".

• Batteries must not be recharged, reactivated by other means, dismantled, thrown into fire, or short-circuited. Otherwise, there is an increased risk of explosion and leakage; furthermore, gases may escape!

• Avoid contact of the battery fluid with skin, eyes, and mucosa. In case of contact, immediately rinse the affected areas with plenty of clean water and consult a doctor.

BEWARE of material damage

• Protect the timer from strong shocks, vibrations, and moisture.
• Always remove the batteries when they are empty or when the timer is not to be used for a long time. This prevents damage that may be caused by leakage.
• When inserting and changing batteries, pay attention to the correct polarity (+/-) .
• Do not expose the batteries to extreme conditions, for example, by storing them on radiators or under direct sunlight. Increased risk of leakage!

• Clean the battery and device contacts, as needed, before inserting the battery.

• Do not make any changes to the product. Only allow repairs to be carried out by a specialist workshop. Repairs carried out improperly can considerably endanger the user.

Intended use

This baking timer is intended for use in bakehouses, bakeries, and kitchens.

Scope of delivery

Baking timer
- 2x R03 (AAA) batteries, 1.5 V
- Operating Manual

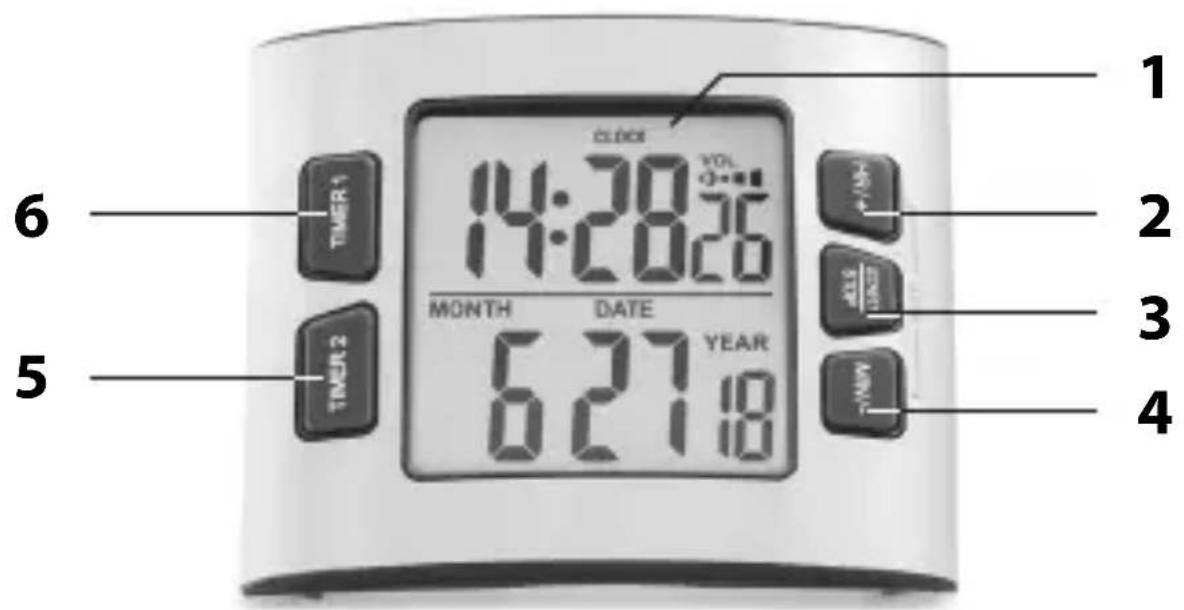

At a glance

1 Display
2 HR/+ button
3 START/STOP button
4 MIN/- button
5 TIMER2 button
6 TIMER 1 button

Z

7 Speaker
8 Magnets for wall mounting
9 Fold out support foot
10 Battery compartment for 2x R03 (AAA)
11 Volume adjustment button
12 CLOCKSET/TIMER/CLOCK mode switch

Inserting/changing batteries

For use, you will need two R03 (AAA), 1.5V batteries.

1. Push in the locking tab and remove the battery compartment cover.
2. Insert the batteries as shown on the bottom of the battery compartment. Pay attention to the correct polarity (+ / -) .
3. Replace the battery compartment cover and press it down. The locking tab must audibly engage.

Notes on changing the battery:

• The batteries must be changed when nothing is shown on the display.
  Always replace all batteries.

• Only use the battery type specified in the "Technical Data".

• Dispose of old batteries in an environmentally friendly manner, see "Disposal".

Setting the time

When you turn on the timer, two beeps are emitted and "12:00" appears on the display.

1. Slide the mode switch to CLOCKSET.
2. Press START/STOP.

"12" (or "24") flashes on the display.

1. Use HR/+ or MIN/- to select the desired hour format.

For the 12-hour time format, morning hours are indicated as "AM" and afternoon hours as "PM" on the display.

1. Press START/STOP to confirm your selection.

The hour digit flashes on the display.

1. Proceed as described:

2. Press the HR/+ or MIN/- button to set the desired value.

3. Press START/STOP each time to save a setting.

If you keep HR/+ or MIN/- pressed, the displayed values will change faster.

A confirmation tone sounds by default each time you press the button.

1. Perform the following settings one after the other:

-Hours
-Minutes
-Year
-Month
-Day

1. Press START/STOP to finish the setup.
2. Slide the mode switch to CLOCK.

The set time and date are shown on the display.

Setting up/attaching the timer

NOTE on material damage

Do not push the timer over the surface when it is attached using the magnets. This can scratch the surface.

-Fold the support foot out and place the timer on a level and vibration-free surface.
-You can also attach the timer to a metal surface.

Using the timer

When timing, you start a countdown. Two measurements can be taken at the same time.

1. Slide the mode switch to TIMER.
2. Press the TIMER 1 or TIMER 2 button. The corresponding display indicator starts to flash.
3. Use HR/+ or MIN/- to set the desired period. Max. adjustable time: 23 hours and 59 minutes.

If you keep HR/+ or MIN/- pressed, the displayed values will change faster.

1. Press START/STOP to start the timer.

Once the set time has elapsed, the timer will beep for approx. 1 minute.

The corresponding display indicator flashes and "TIME'S UP" is shown on the display.

1. Press START/STOP to mute the timer or wait approx. 1 minute until the timer mutes automatically.
2. Press the HR/+ and MIN/- buttons simultaneously to zero the display so that it stops flashing.
3. Sliding the mode switch back to CLOCK returns to the time/date display.

Pay attention to the following:

• Via START/STOP you can interrupt the countdown at any time and then start it running again.
• With the timer running, you can still use the mode switch to return to the time display (set to CLOCK). The countdown continues to run in the background.
• The display must be reset to zero (press the HR/+ and MIN/- buttons simultaneously) before you can enter the period.

Other functions

Adjusting the volume

1. Slide the mode switch to TIMER.
2. You can adjust the volume (soft - medium - loud - mute) by repeatedly pressing the volume adjustment button on the back of the device. Watch the display.

Resetting the timer

Reset the timer to factory defaults if abnormal or incorrect values are displayed.

1. Remove the batteries from the battery compartment and wait a moment.
2. Reinsert the batteries. Observe the correct polarity of the batteries (+ / -) .
3. Proceed as described in the section "Setting the time".

Cleaning

NOTE on material damage

Do not immerse the timer in water or other liquids. Do not use rough, scratching or abrasive cleaning agents.

-If necessary, remove dust with a soft, dry cloth, or wipe with a slightly damp cloth.

Fault and remedy

No function.

• Are the batteries empty or inserted the wrong way around?

The timer does not respond to button presses.

• Is the mode switch on the back set correctly? For example, the switch must be set to TIMER if you'd like to use the timer function.

No beeps are emitted when the timer has elapsed.

• The timer has been muted, see "Adjusting the volume".

Technical data

Model: KT102 digital baking timer

Battery:

2x R03 (AAA), 1.5 V

Rated current: 30~ A

Distributor (no service address):

ADE Germany GmbH

Neuer Höltigbaum 15

22143 Hamburg, Germany

Our products are constantly being developed

and improved. For this reason, design and

technical modifications are possible at any time.

Declaration of conformity

ADE Germany GmbH hereby declares that the digital baking timer complies with Directives 2014/30/EU and 2011/65/EU.

The declaration will lose its validity if any modification is made to the device without our consent.

Hamburg, February 2022
ADE Germany GmbH

Warranty

ADE Germany GmbH warrants for 2 years from the date of purchase that it will remedy any defects due to faulty material or workmanship free of charge by repair or replacement. In the event of a warranty claim, please return the product with the proof of purchase (specifying the reason for claim) to your dealer.

Disposing of the packaging

Dispose of the packaging according to type. Dispose of cardboard with waste paper and of films with recyclable materials.

Disposing of the product

Dispose of the product in accordance with the regulations that apply in your country.

Devices must not be disposed of in normal household waste.

At the end of its life, the product must be disposed of in an appropriate way.

In this way, valuable materials contained in the device will be recycled and the burden on the environment avoided.

Bring the old device to a collection point for electronic waste or to a recycling depot.

For more information, contact your local waste disposal firm or your local administrative body.

Standard and rechargeable batteries should not be disposed of along with household waste

All batteries and rechargeable batteries must be brought to a local or district collection point or to the retailer. Such batteries and rechargeable batteries can thus be disposed of in an environmentally friendly way.
