Product Type	Buffer tank with heating coil (solar)
Brand	Kospel
Model	SVW-300.1
Storage Capacity	300 liters
Maximum Operating Pressure (Storage)	0.6 MPa (6 bar)
Maximum Operating Pressure (Coil)	1 MPa (10 bar)
Maximum Operating Temperature (Storage)	80°C
Coil Surface Area	1.5 m²
Coil Capacity	9.1 dm³
Coil Power (at 80/10/45°C, flow 2.5 m³/h)	45 kW
Empty Weight	101 kg
Material	Black steel sheet, anticorrosive paint outside, raw steel inside
Mounting	Vertical only (screw feet)
Main Connections	6/4" stubs, 1/2" temperature sensor, 3/4" drain (for 200-300L), 1/2" air vent, 1" coil connectors
Functions	Water storage, hydraulic separator, solar coil integration
Operating Limits	Do not install where temperature may drop below 0°C
Installation	Must be performed by a qualified installer; comply with local regulations
Maintenance	Check for water leaks; inspect safety valve per manufacturer's instructions
Disposal	Do not dispose with household waste; recycle properly
Variants	Available in insulated or non-insulated versions

Frequently Asked Questions - SVW-300.1 KOSPEL

What is the maximum operating pressure of the SVW-300.1 buffer tank?

The maximum operating pressure of the storage tank is 0.6 MPa (6 bar) for the 300-liter model. The heating coil can withstand up to 1 MPa (10 bar).

Can the SVW-300.1 be used with a heat pump?

Yes, the buffer tank is suitable for co-operation with boilers and heat pumps. It can also function as a hydraulic separator or divider.

What are the dimensions of the Kospel SVW-300.1?

Exact dimensions are specified in the manual. The tank has a vertical design and weighs approximately 101 kg empty.

Is the SVW-300.1 buffer tank insulated?

The tank is available in both insulated and non-insulated versions. Check the specific model variant for your unit.

What is the purpose of the heating coil in the SVW-300.1?

The heating coil is designed for connection to a solar collector system. It allows the stored water to be heated using solar energy, with a coil capacity of 9.1 dm³ and a maximum power output of 45 kW (at 80/10/45°C, flow 2.5 m³/h).

How should the SVW-300.1 be installed?

The tank must be installed vertically using the screw feet. All hydraulic work and initial start-up should be performed by a qualified installer. Ensure the room temperature never drops below 0°C to prevent freezing.

What maintenance is required for the buffer tank?

Regularly check for water leaks and test the safety valve according to the valve manufacturer's instructions. If a leak is detected, close the shut-off valves and contact a service technician.

What should I do if the pressure in the tank increases excessively?

If pressure exceeds safe limits, immediately turn off the central heating cut-off valves and contact a qualified service professional to inspect the system.

Can the SVW-300.1 be disposed of with household waste?

No, the product must not be disposed of as household waste. Follow local regulations for recycling and waste disposal to avoid environmental harm.

What type of water quality is required for the buffer tank?

The heating water must comply with all relevant local water quality standards. Ensure the water is treated appropriately to prevent corrosion and scaling.

USER MANUAL SVW-300.1 KOSPEL

Diagram of a cylindrical container with circular holes and concentric rings (no text or symbols)

The manufacturer reserves the right to make changes to the product which are not present in this manual instruction.

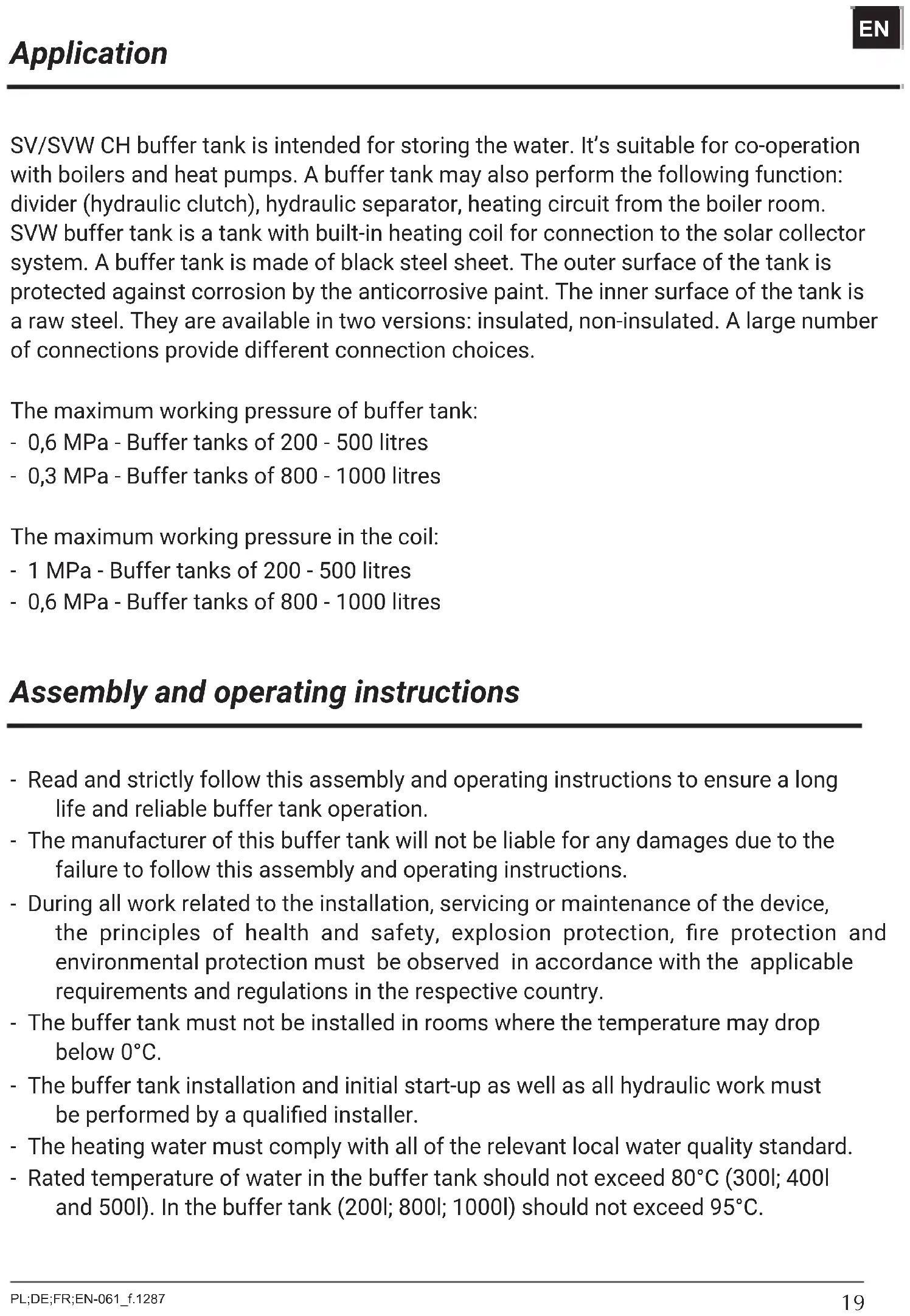

SV/SVW CH buffer tank is intended for storing the water. It's suitable for co-operation with boilers and heat pumps. A buffer tank may also perform the following function: divider (hydraulic clutch), hydraulic separator, heating circuit from the boiler room. SVW buffer tank is a tank with built-in heating coil for connection to the solar collector system. A buffer tank is made of black steel sheet. The outer surface of the tank is protected against corrosion by the anticorrosive paint. The inner surface of the tank is a raw steel. They are available in two versions: insulated, non-insulated. A large number of connections provide different connection choices.

The maximum working pressure of buffer tank:

• 0,6 MPa - Buffer tanks of 200 - 500 litres
• 0,3 MPa - Buffer tanks of 800 - 1000 litres

The maximum working pressure in the coil:

• 1 MPa - Buffer tanks of 200 - 500 litres
• 0,6 MPa - Buffer tanks of 800 - 1000 litres

Assembly and operating instructions

• Read and strictly follow this assembly and operating instructions to ensure a long life and reliable buffer tank operation.
• The manufacturer of this buffer tank will not be liable for any damages due to the failure to follow this assembly and operating instructions.
• During all work related to the installation, servicing or maintenance of the device, the principles of health and safety, explosion protection, fire protection and environmental protection must be observed in accordance with the applicable requirements and regulations in the respective country.
• The buffer tank must not be installed in rooms where the temperature may drop below 0^ C.
• The buffer tank installation and initial start-up as well as all hydraulic work must be performed by a qualified installer.
• The heating water must comply with all of the relevant local water quality standard.
• Rated temperature of water in the buffer tank should not exceed 80^ C (300l; 400l and 500l). In the buffer tank (200l; 800l; 1000l) should not exceed 95^ C.

45° 45° D d ④ ① ② J I G F ⑤ ③ A B C E H

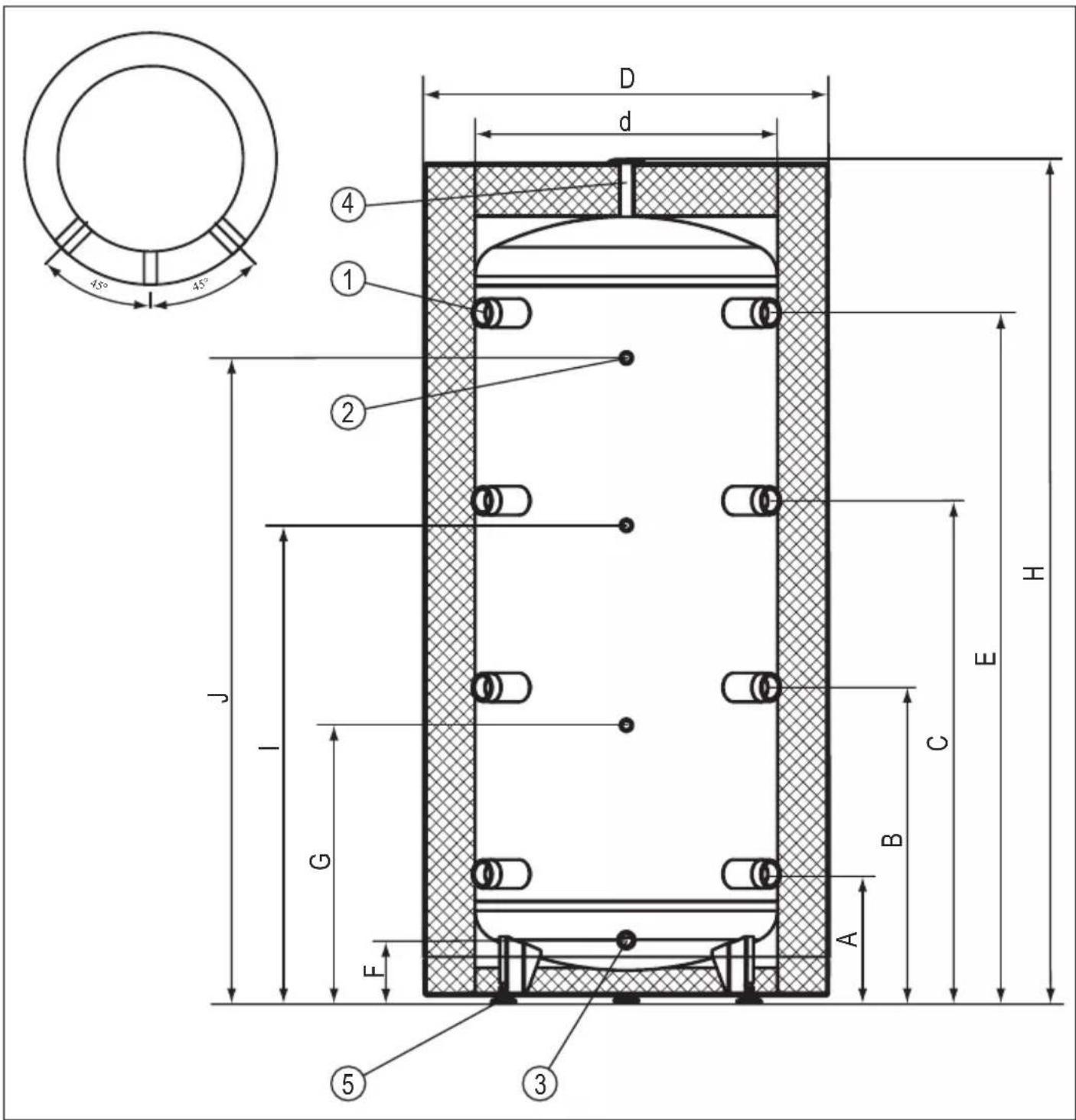

Buffer tank SV (200, 300, 400, 500l)
[1] - connection stub (6/4")
[2] - temperature sensor connector (1/2")
[3] - drain connector (3/4"-200, 300l), (1"-400l, 500l)
[4] - air vent connector (1/2")
[5] - feet

45° 45° D d ④ ① ② ⑥ J L G K F ⑤ ③ H E C B A

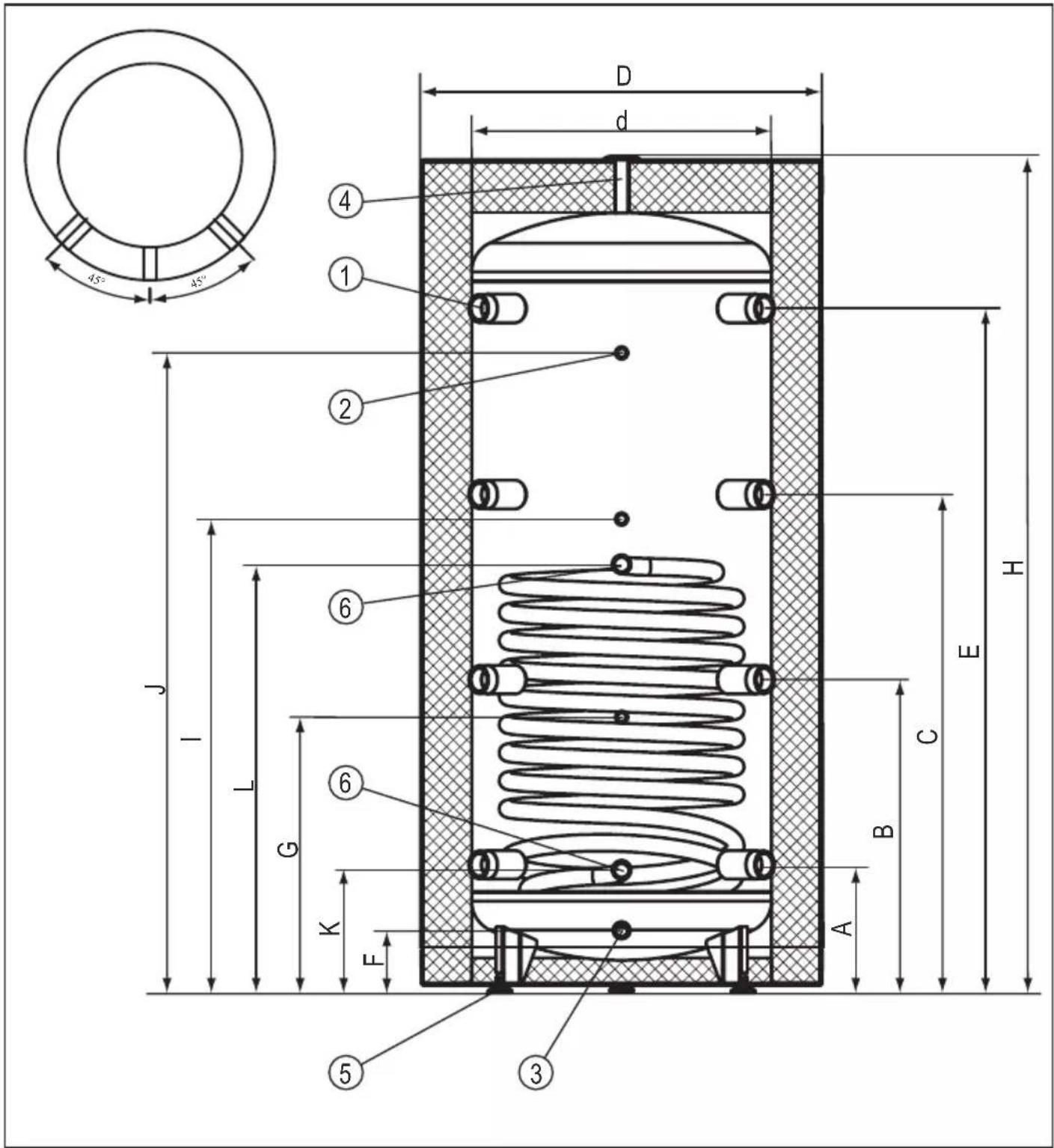

Buffer tank with heating coil SVW (200, 300, 400, 500l)

[1] - connection stub (6/4")
[2] - temperature sensor connector (1/2")
[3] - drain connector (3/4"- 200, 300l), (1" - 400l, 500l)
[4] - air vent connector (1/2")
[5] - feet
[6] - heating coil connector 1"

45° 22,5° 90° D d ④ ① ② J I G A C E H B ⑤

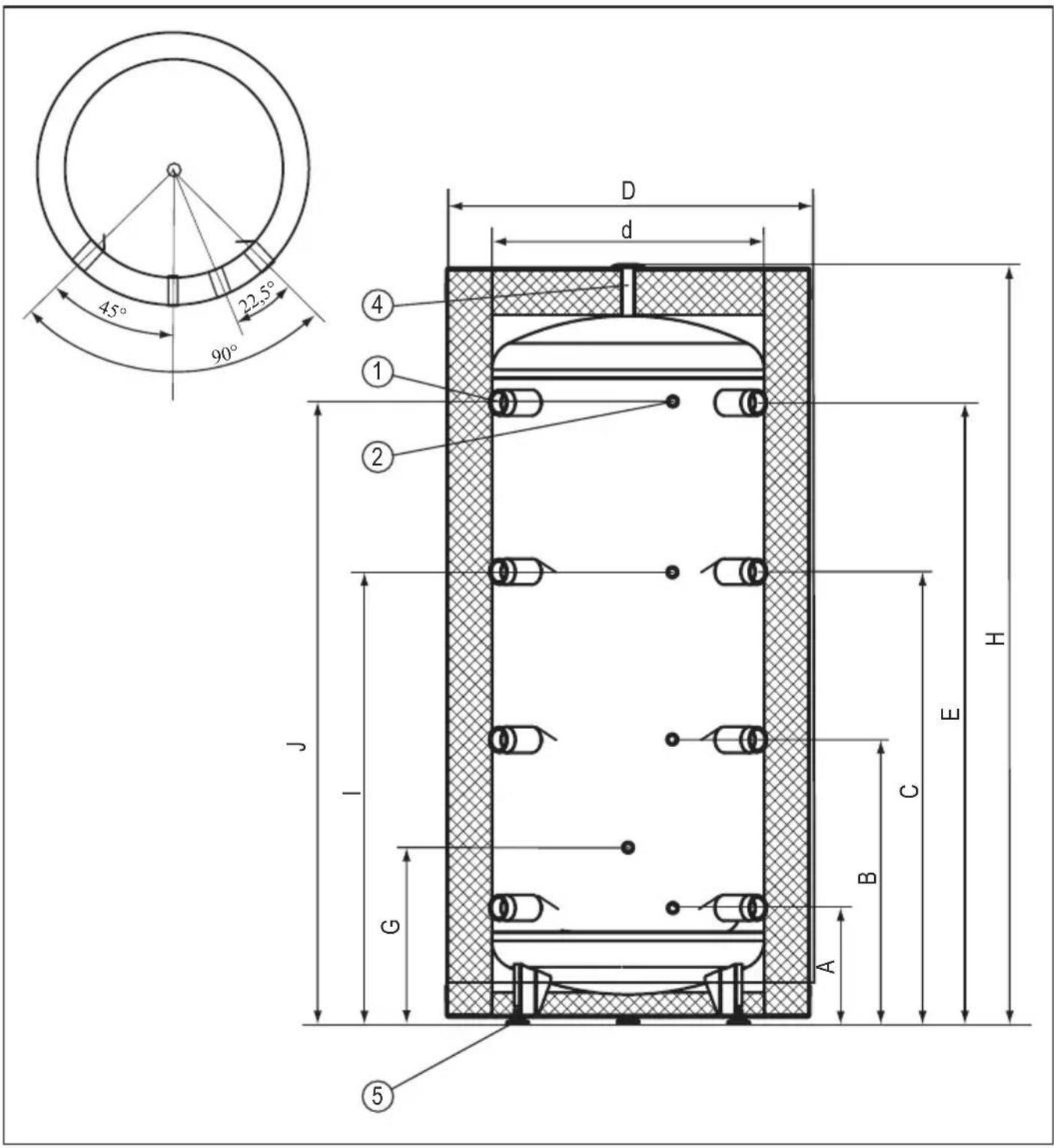

Buffer tank SV (800, 1000l)

[1] - connection stub (6/4")
[2] - temperature sensor connector (1/2")
[4] - air vent connector (6/4")
[5] - feet

45° 22.5° 90° D d ④ ① ② ⑥ J L G K A E C B H ⑤

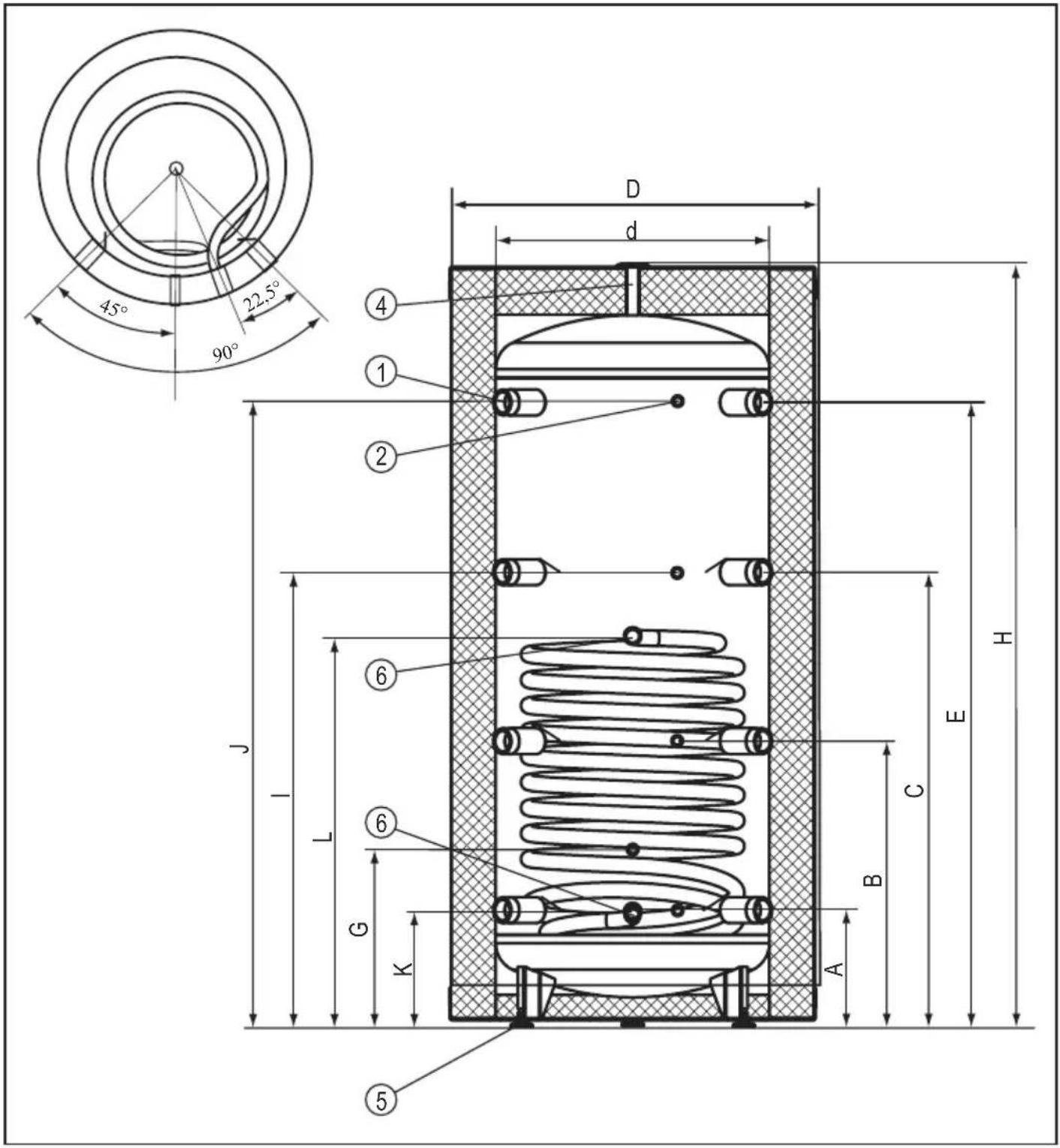

Buffer tank with heating coil SVW (800, 1000l)

[1] - connection stub (6/4")
[2] - temperature sensor connector (1/2")
[4] - air vent connector (6/4")
[5] - feet
[6] - heating coil connector (6/4")

Dimensions

Model		SV200	SVW200	SV300	SVW300	SV400	SVW400	SV500	SVW500	SV800	SVW800	SV1000	SVW1000
D	75506249mm	5956927		755854950
d45		600650790
H16		9616431761		19472132
A26		2562613603		40360
B61		6266567408		15832
C97		9961051112		01280 1303
E		13221338		8136814461		5001774
F		1251261		24130		-
G		5545445		50629581581
I		9119409		4710641120		1303
J		12391249		9127813791		5001774
K		-	256	-	239	-	246	-	251	-	360	-	360
L		-	811	-	850	-	856	-	974	-	1021	-	1186

Installation

• buffer tank is designed for vertical mounting only (screw feet),
• buffer tank can be installed in the following central heating systems:
- open system, in accordance with legally binding requirements,
- closed system, in accordance with legally binding requirements,
- buffer tank must be mounted in the place and in such a way to avoid room flooding caused be leaking tank or connectors.

Start -up

Check out the pipe connections and make sure that you observe the connection diagrams before start-up.

Check out for water leaks. Check out the safety valve performance in accordance to valve manufacturer's instruction.

CH buffer tank		SV200	SVW200	SV300	SVW300	SV400	SVW400	SV500	SVW500	SV800	SVW800	SV1000	SVW1000
Storage capacity I2003004005008001000
Rated pressure storage MPa 0,60,3
Rated pressure coil MPa -1-1-1-1-0,6-0,6
Rated temperature °C9580				95
Surface area of coil	m^2	-	0,75	-	1,5	-	1,7	-	2,25	-	2,89	-	3,45
Coil capacity	dm^3	-	4,5	-	9,1	-	10	-	13,7	-	26,2	-	31,3
Power of coil	kW -		22*	-	45*	-	50*	-	65*	-	72*		89*
			7**		14**		16**		21**		23**		28**
Weight (empty)	kg	60	82	72	101	86	118	128	163	115	169	145	198

*80/10/45°C } - heating water temp./ supply water temp./ domestic water temperature; flow rate of heating water through the coil **55/10/45°C } - 2,5 m³/h.

How to deal with damage or irregularities

Irregularity Instructions for conduct
Leakage of water from the tank	turn off the CH cut-off valves and contact the service
Excessive pressure increase in the tank

Recycling and waste disposal

Removal of product and equipment:

Do not dispose of the product or equipment with household waste. Make sure that the product and all equipment is disposed of properly. Observe all applicable regulations.

Decomissioning

Used product must not be treated as a household waste. By disposing of this product correctly you will help to prevent potential negative consequences for the environment that could otherwise arise through inappropriate waste handling. For more detailed information about recycling of this product, please contact your local authority waste management service.
