USER MANUAL SWP-201 KOSPEL

Simple line drawing of a cylindrical container with three circular indentations on its side (no text or symbols)

The manufacturer reserves the right to make changes to the product which are not present in this manual instruction.

CW ZG1 C PG1 ZB NW

1. Read and strictly follow this installation and operating instructions to ensure a long life and reliable cylinder operation.
2. The manufacturer reserves the right to make changes to the product which are not present in this manual instruction.
3. The manufacturer of this cylinder will not be liable for any damages due to the failure to follow the installation and operation instructions.
4. The cylinder must not be installed in rooms where the temperature may drop below 0^ C.
5. The cylinder installation and the initial start-up, as well as all electrical and hydraulic work must be performed by a qualified professional installer.
6. The cylinder is designed for vertical installation only (screw on feet).
7. The device must be installed in such a place and in such a way in order not to flood the room in case of the emergency water leak.
8. Connections to water supply system, central heating system, and solar collectors must be made in accordance with the diagram in this installation instruction. Failure to follow the installation instruction invalidate the warranty and may cause cylinder's damage.
9. A connection to water supply system must be made in accordance with legally binding norms.
10. The cylinder is a pressure appliance designed for connection to the water supply system where the water pressure doesn't exceed 0,6 MPa. If the water pressure exceeds 0,6 MPa, the pressure reducing valve before cylinder must be fitted.
11. A small leak from the safety valve through the outlet pipe may occur- it's a normal operating state of the appliance. The outlet pipe has to remain open. Do not clog it, as a clogged outlet may lead to the breakdown of the cylinder.
12. Do not use the cylinder if you suspect that the safety valve may be faulty.
13. The tank is equipped with magnesium anode- an additional protection against corrosion. The anode is an operating part, therefore, it is exposed to wear. The condition of the magnesium anode should be controlled every 12 months. The anode must be replaced once every 18 months.
14. Rated temperature of water in the cylinder should not exceed 95^ C.

The cylinder is suitable for fitting an immersion heater with thermostat (GRW-1,4/230; GRW-2,0/230; GRW-3,0/230 or GRW-4,5/400). The immersion heater must be fitted in lieu of cork 1½".

A maximum length of immersion heater is 450mm.

Cylinder must be fitted to the central heating system by pipe unions 1¼". A cut-off valves must be installed before the pipe unions. A flow rate of heating water must be high enough to maximise cylinder efficiency (see ,Technical data table). It concerns the forced circulation installation (with a central heating water pump).

Model SWPC is equipped in double heating coil.

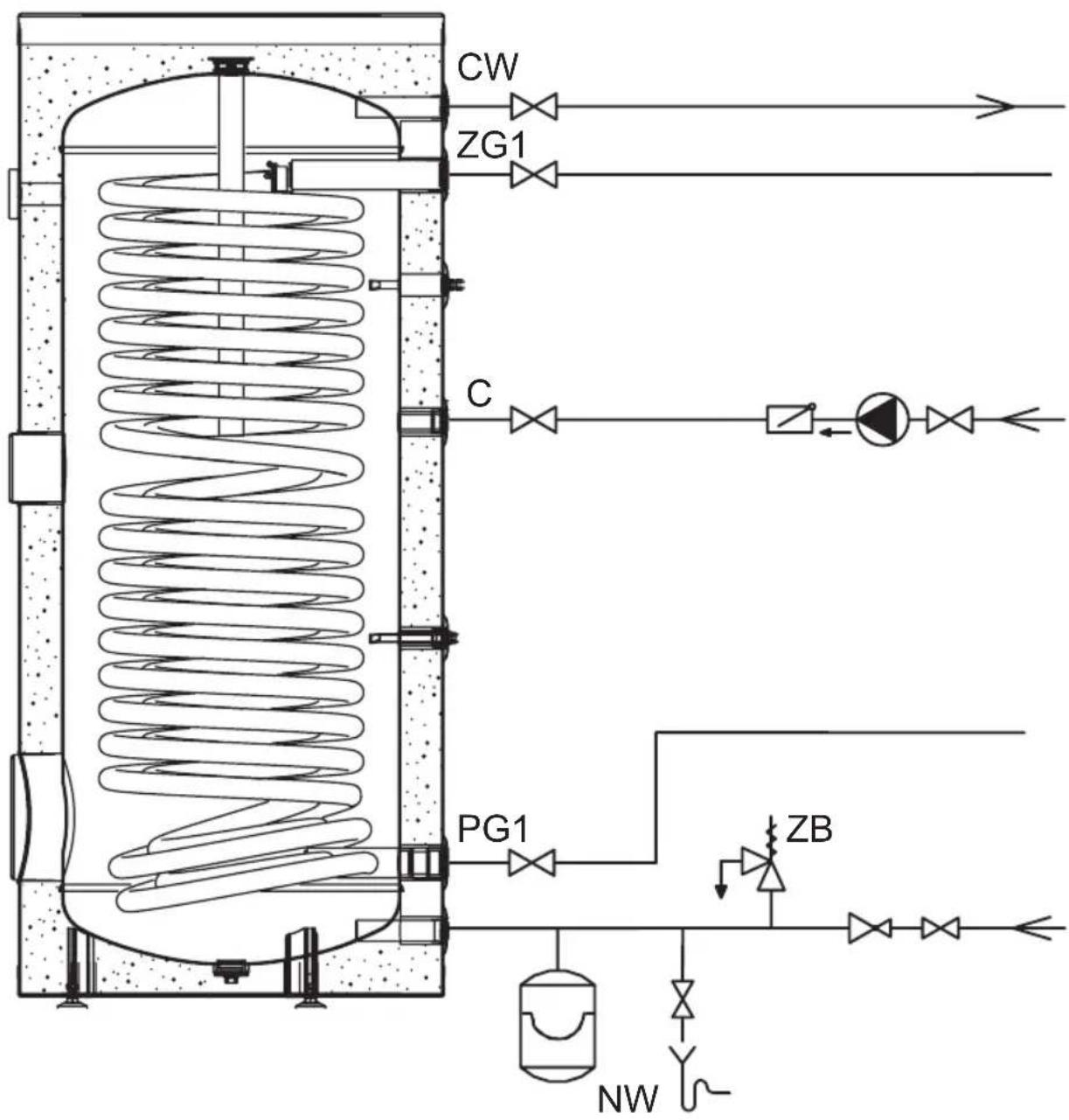

CW ZG1 C PG1 ZB NW

Connection with water installation must be performed according to binding norms of hydraulic installation. The cylinder is a pressure appliance designed for connection with water installation where the water pressure doesn't exceed 0,6 MPa. If the water pressure exceeds 0,6 MPa, the pressure reducing valve before cylinder must be fitted.

Please follow the water connection instructions below:

• install the T-connection with 6 bar* safety valve to the fitting of cold water inlet [ZW]. It's forbidden to install a cut-off valve (or any flow reducer) between storage and the safety valve and on its outlet. The safety valve must be installed in such a place as to quickly let you notice the outgoing water,
• install the cylinder equipped with the safety valve with water installation,
• install the cut-off valve on cold water supply pipe.

Hot water outlet should be led to the connection in the upper part of the cylinder. Every cylinder is equipped with connection intended for its installation to the DHW circulation.

*Please note: use the safety valve matched to the heat's source. Installing a safety valve with inadequate capacity can result for excessive pressure increase in the cylinder and as a result a leakage. In this case, warranty does not cover damage caused.

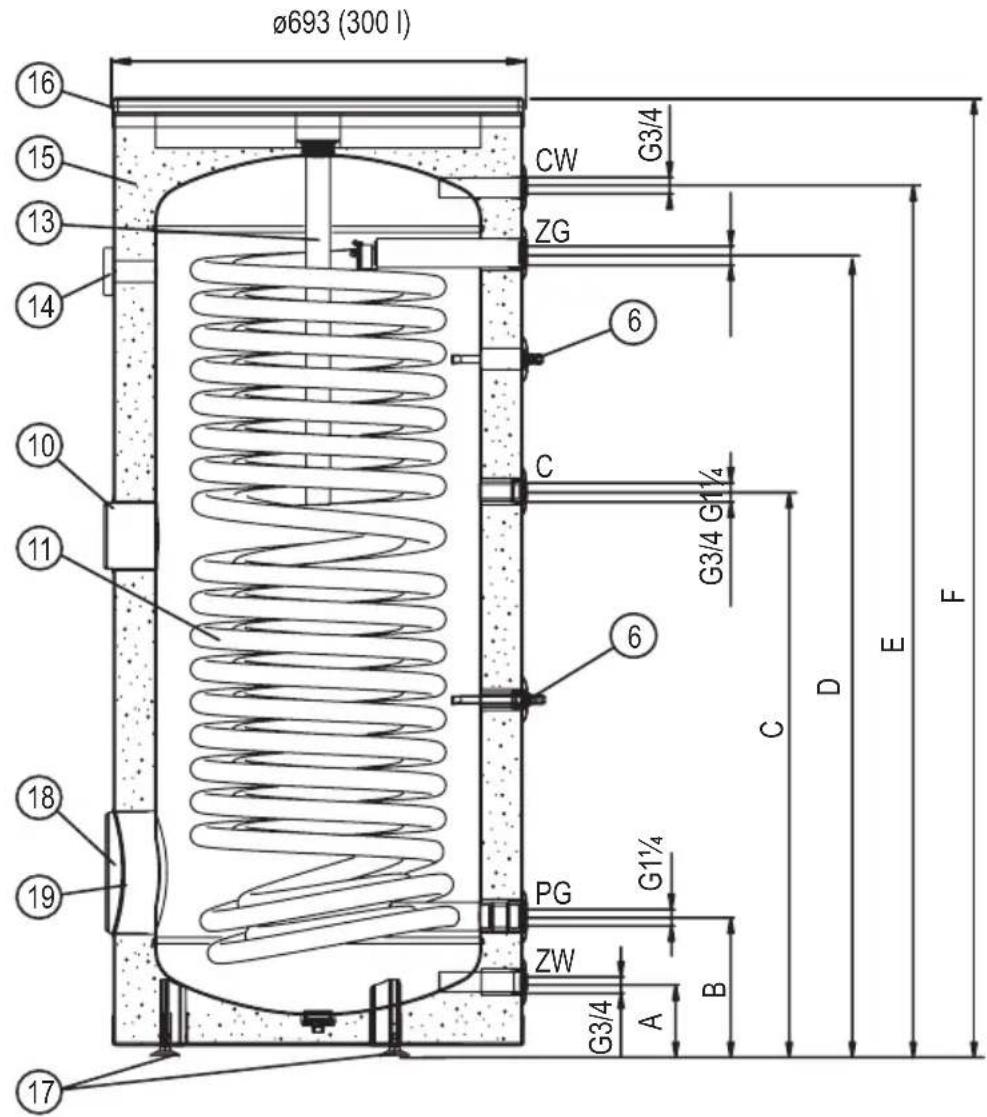

Construction of SWPC cylinders (300l)

Ø693 (300 l) 16 15 13 14 10 11 18 19 17 CW G3/4 ZG 6 C G3/4 G1¼ 6 PG G1¼ ZW A B D E F

[6] - sensor pipe

[10] - immersion heater connection (cork 1½")

[11] - heating coil

[13] - magnesium anode

[14] - thermometer

[15] - thermal insulation

[16] - upper lid

[17] - feet

[18] - access hole

[19] - access hole cover

ZW - cold water

CW - hot water

C - circulation

ZG - heating medium supply of coil

PG - heating medium return of coil

A-F - dimensions specified in the diagram

Dimensions SWPC
	300
A 127
B 237
C 953
D 1354
E 1464
F 1615

Before the start-up close the draining connection e.g. by screwing the valve in and make sure that the installation procedures have been carried out in accordance with the regulations included in this manual. All connections, including those that were factory-assembled (the sleeve of the electric water heater, the magnesium anode, the inspection opening cover), must be checked for leaks at the time of commissioning and, if leaks are detected, must be resealed. Cylinder must be filled with water:

• turn on the valve on cold water supply pipe,
• turn on the hot water outlet valve (water outflow without the air bubbles indicates that the storage is full),
• turn off the outlet valves.

Turn on the valves connecting cylinder with the central and the solar collector heating system. Check for water and heating medium leaks. Check out the safety valve performance in accordance with valve manufacturer's instruction.

Operation

Follow the guidelines below for safety and trouble-free cylinder operation:

• Check out the safety valve performance once every 14 days. Do not use the cylinder if the water does not come out (it indicates that the valve is broken).
• Clean inside of the cylinder periodically. The frequency of cleaning depends on the degree of water hardness. The cleaning should be done by a qualified person.

Tightening torque value of access hole cover [19] screws must be 18-22Nm.

• The wear condition of the anode must be inspected annually.
• The anode must be replaced once every 18 months.
• anode rod replacement [13]: take off the upper lid [16], take out an insulation ring, turn off the cut-off valve on cold water supply pipe, turn on the hot water valve (mixer tap), turn the drain valve on, drain as much water as you can easily screw out the anode rod (avoiding room flooding), screw off the cork and screw out the anode rod,
• Heat up the water above 70^ periodically for hygiene reasons.
• Failures or malfunctions notify to the seller.
• Insulate the outlet pipe and heating coil connection pipes to minimise the heat loss (recommended).

Above activities are beyond of the scope of warranty service (should be done by the user).

In order to empty the cylinder:

• turn off the valves which connect cylinder with central heating system,
• turn off the valve on the cold water inlet,
  • turn on the drain valve.

Technical data

Domestic Hot Water Cylinder			SWPC
Storage capacity		1300
Rated pressure	Cylinder	MPa	0,6
	Coil		1
Rated temperature		°C 95
Performance factor NL according to DIN 4708 when supplied with heating water at 80°C)		N_L	16,7
Surface area of coil		m^2	4,22
Capacity of coil		dm^3	~27
Rated power of coil		kW 120* / 36**
Efficiency of coil		l/h 3000* / 900**
Weight (without water)		kg 146
Magnesium anode M8 ø40		mm 590

*80/10/45°C } - heating water temp./ supply water temp./ domestic water temperature; flowrate **55/10/45°C } of heating water through the coil - 2,5m³/h.

How to deal with damage or irregularities

Irregularity Instructions for conduct
Water leakage from the tank	turn off the cold water supply valve and the CH system cut-off valves and contact the service
Excessive pressure build-up in the tank
Pressure increase in the CH system
Dirty water in the device	The tank should be cleaned of accumulated sediments - for this purpose, contact a specialized service company

Recycling and waste disposal

Removal of product and equipment:

Do not dispose of the product or equipment with household waste. Make sure that the product and all equipment is disposed of properly. Observe all applicable regulations.

Decomissioning

Used product must not be treated as a household waste. By disposing of this product correctly you will help to prevent potential negative consequences for the environment that could otherwise arise through inappropriate waste handling. For more detailed information about recycling of this product, please contact your local authority waste management service.
