RIG 100HX - Headphones Nacon - Free user manual and instructions

Product type	Gaming audio headset
Brand	NACON
Model	RIG 100HX
Compatibility	PlayStation 4, Xbox One, PC, Mac, devices with 3.5mm jack
Connection type	Wired (3.5mm jack)
Cable length	1.2 m
Weight	200 g
Earphone diameter	40 mm
Impedance	32 ohms
Sensitivity	111 dB
Frequency response	20 Hz - 20 kHz
Microphone	Unidirectional, removable
Volume control	Integrated wheel
Secret mode (mute)	Slide activation, red LED indicator
Adjustable headband	3 positions (small, medium, large)
Warranty	2 years
Included accessories	Safety guide, manual
Maintenance and cleaning	Soft dry cloth
Spare parts and repairability	Contact NACON support
General information	Marks and patents: US D666993, D667388, etc.

Frequently Asked Questions - RIG 100HX Nacon

How to assemble the RIG 100HX headset?

Attach the ear cups to the headband notches according to your size (small, medium, large). To remove an ear cup, press it to detach.

How to set up the headset on PS4?

Go to Settings > Sound and Screen > Audio Output Settings > Headphone Output > select All Sounds. Then, Settings > Devices > Audio Devices > Headset and adjust the volume.

How to set up the headset on Xbox One?

Go to Display & sound > Kinect & devices > Select device and adjust settings.

How to adjust the volume?

Use the volume wheel integrated into the cable to increase or decrease the sound.

How to activate secret mode (mute)?

Slide the secret switch on the cable: the LED turns red, which mutes the microphone.

How to position the microphone?

Rotate the microphone boom downwards and pass it over to position it on the left or right.

Is the headset compatible with PC?

Yes, it connects via the 3.5mm jack. Make sure your PC has a combined headphone/microphone input or use an adapter.

How to clean the headset?

Use a soft dry cloth. Do not use chemical or abrasive products.

What is the warranty for the RIG 100HX?

The warranty is 2 years. For any claims, contact NACON customer service.

What to do in case of sound issues?

Check the connections, the headset and device volume. Consult the audio settings of your console/PC. If the problem persists, contact NACON support.

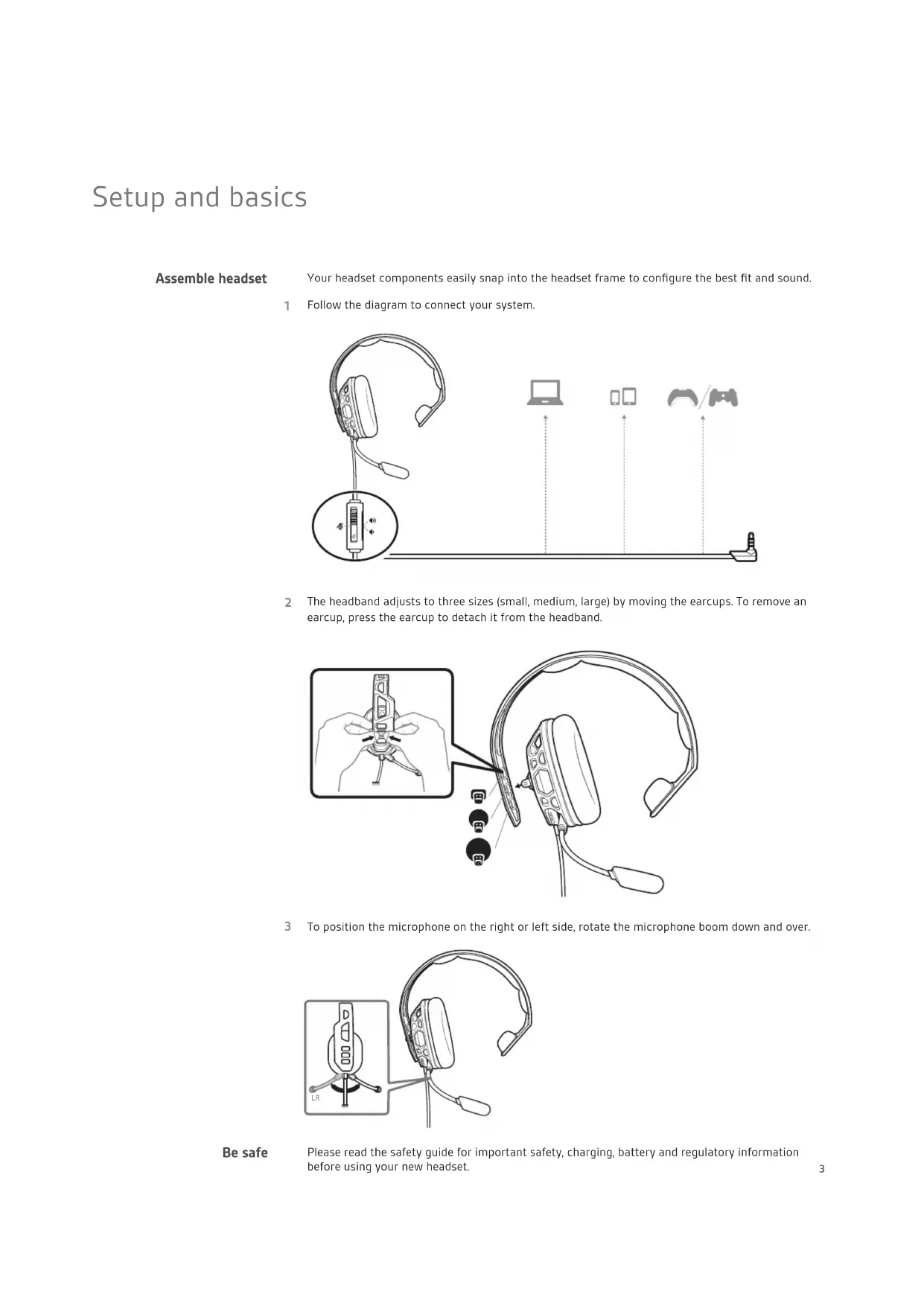

USER MANUAL RIG 100HX Nacon

Your headset components easily snap into the headset frame to configure the best fit and sound.

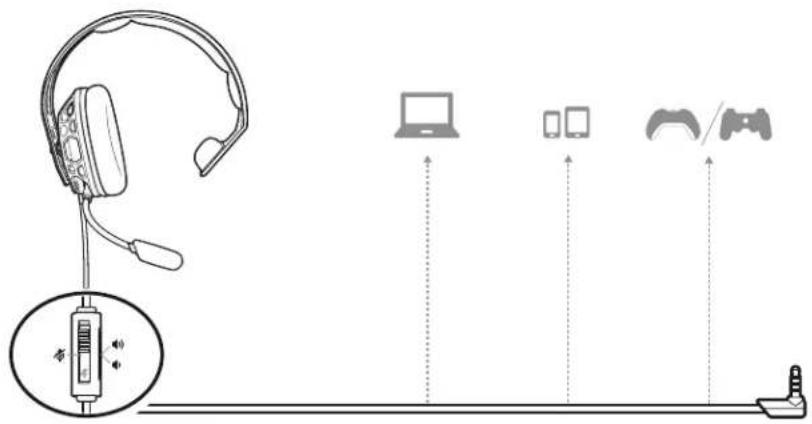

1 Follow the diagram to connect your system.

Diagram illustrating the connection between headphones, devices, and a device via wireless communication.

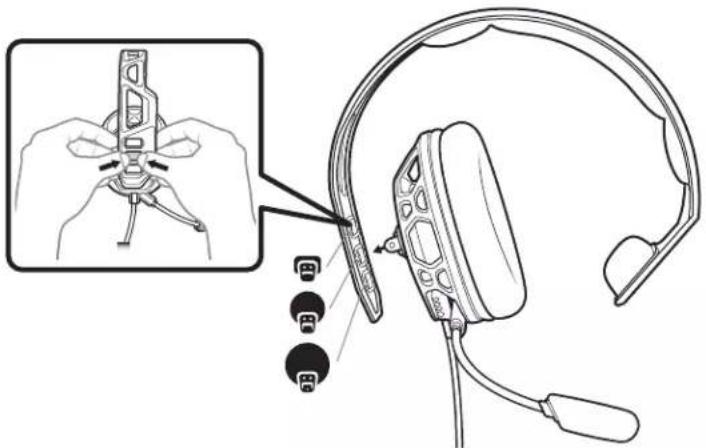

2 The headband adjusts to three sizes (small, medium, large) by moving the earcups. To remove an earcup, press the earcup to detach it from the headband.

Line drawing of a headset with a close-up inset showing the head assembly and connector details (no text or symbols)

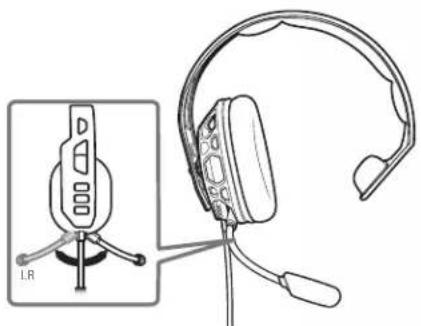

3 To position the microphone on the right or left side, rotate the microphone boom down and over.

Technical line drawing of a headset with front-mounted head and rear-mounted ear, shown from two views (no text or symbols)

Be safe

Please read the safety guide for important safety, charging, battery and regulatory information before using your new headset.

Setup PS4

1 To setup your headset for PS4, first go to Settings > Sound and Screen > Audio Output Settings > Output to Headphones > Select All Audio
2 Then go to Settings > Devices > Audio Devices > Headsets and Headphones > Volume Control (Headphones) >

Setup Xbox One

To setup your headset for Xbox One, go to Display and sound > Kinect and devices > Select device and adjust settings

Volume

To adjust the volume, slide the volume control.

Simple line drawing of a vertical cylindrical device with internal structure and bidirectional arrow (no text or symbols)

Mute

To mute your headset, slide the mute switch to reveal the red color.

Diagram of a syringe with internal components and an upward arrow, enclosed in an oval frame

Support

NEED MORE HELP?

www.nacongaming.com

nacon

NACONG GAMING, Inc

10400 NE 4 ^th Street, Suite 500,

Bellevue, WA 98004 USA

([phone]

Headquarter

NACON

©2020 NACON. NACON and RIG are trademarks of NACON, registered in the US and other countries. "PlayStation" and "DUALSHOCK" are registered trademarks of Sony Interactive Entertainment Inc. All rights reserved. All other trademarks are the property of their respective owners.

Patents: US 8,504,115; 8,983,081; 9,008,319; D666,993; D667,388; D747,293; IN 245078; 245079; 268129; TW D154413; D154414; D171922. 211816-06 (06.20)
