RIG 500 Pro Gold - Headphones Nacon - Free user manual and instructions

Product type	Gaming audio headset
Brand	NACON
Model	RIG 500 Pro Gold
Color	Gold
Compatibility	PC, Xbox One, PlayStation 4
Connectivity type	Wired with controller adapters
Adjustable size	Yes, 3 notches on the headband
Ear cushions	Removable and replaceable
Volume control	Dial on the cable
Microphone	Boom microphone, mute when raised
Key features	Adjustable headset, removable ear cushions, volume control, microphone with mute function
Included accessories	Adapters for Xbox One and PS4 controllers
Care and cleaning	Clean with a soft, dry cloth. Do not use chemical products.
Safety	Do not force the microphone boom when it is in the up or down position.
Spare parts and repairability	The ear cushions and adapters are replaceable. Contact customer service for other parts.
General information	Manufactured by NACON. ©2020 NACON. Patents pending.

Frequently Asked Questions - RIG 500 Pro Gold Nacon

How to adjust the size of the RIG 500 Pro Gold headset?

Move the ear cups to the 3 notches on the headband to choose the size (small, medium, large). To remove an ear cup, press it to detach it.

How to connect the headset to a PC?

Use the provided cable with the appropriate adapter. Plug the audio jack into the headphone output of your PC. Make sure the volume is adjusted via the headset dial or the system.

How to connect the headset to a Xbox One or PS4?

Attach the provided adapter (Xbox One or PS4) to the volume control dial, then plug it into the controller. For specific models, the adapter may be pre-installed or provided in a bag.

How to mute the headset microphone?

Raise the microphone boom fully upward to activate mute. Do not force when the boom is in the extreme position.

How to adjust the headset volume?

Turn the volume control dial located on the cable. If your controller has a volume adjustment, you can lock the dial by turning it fully to the right to use the system volume.

Are the ear cushions removable?

Yes, gently pull on the ear cushions to remove them. To install new ones, align the notches and push them in.

Can I use the headset with other devices?

The headset is compatible with PCs and Xbox One/PS4 consoles via the provided adapters. For other devices, check the 3.5 mm jack connectivity.

How to clean the RIG 500 Pro Gold headset?

Use a soft, dry cloth to wipe the surfaces. Do not use chemical or abrasive products.

Where to find spare parts?

Contact NACON customer service to get replacement ear cushions or adapters. Visit www.nacongaming.com for more information.

What to do if the microphone does not work?

Check that the boom is not in the raised position (mute). Make sure the connector is fully inserted into the controller or PC. Test with another device if possible.

USER MANUAL RIG 500 Pro Gold Nacon

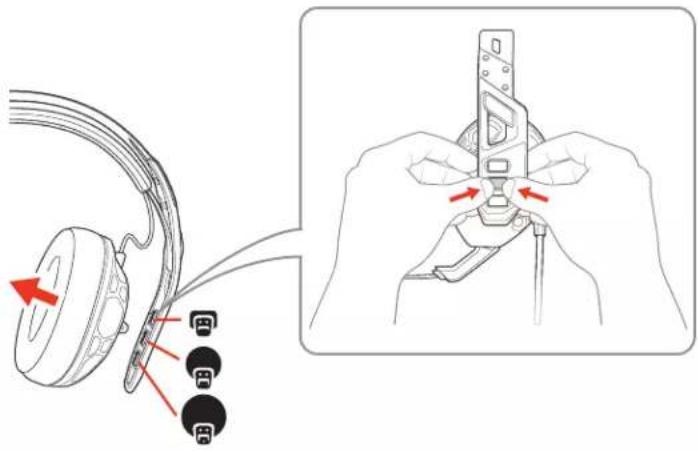

Fit 1 The headband adjusts to three sizes (small, medium, large) by moving the earcups. To remove an earcup, press the earcup to detach it from the headband.

Diagram showing cable connector insertion and disassembly process with labeled connectors

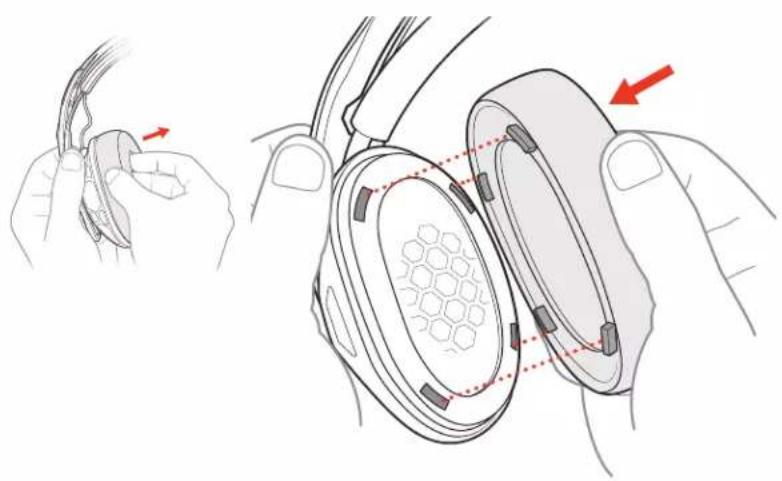

2 To change your ear cushions, gently pull the ear cushion off. To replace it, align the notches.

Illustration of a hand holding a small electronic device with a hexagonal pattern inside, showing a close-up and a red arrow indicating the process (no text or symbols present)

Set up your headset

Your headset components easily snap into the headset frame to configure the best fit and sound.

Follow the diagram to put your headset together.

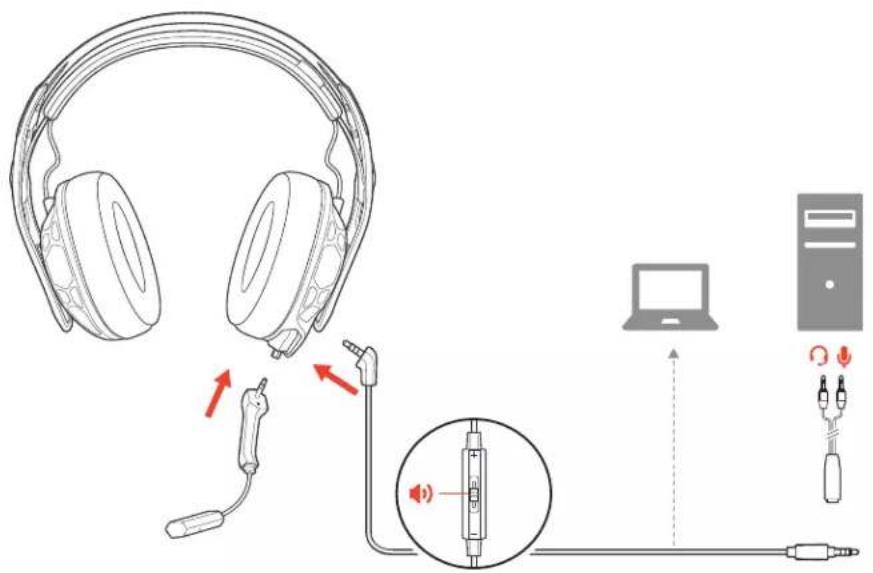

Connect to PC RIG 500 PRO, RIG 500 PRO ESPORTS

Diagram illustrating audio headset connections with labeled components including headphones, audio jack, microphone, and computer interface

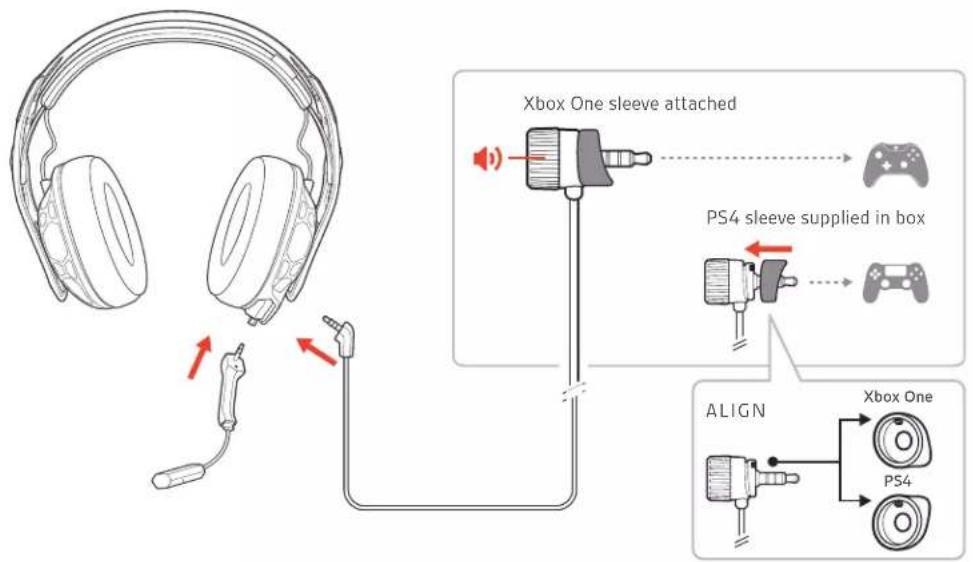

Connect to console RIG 500 PRO ESPORTS, RIG 500 PRO HC, RIG 500 PRO HX/HX SE

Out of the box, the volume wheel has the Xbox One sleeve attached and the PS4 sleeve is supplied (the RIG 500 PRO HS/HS SE models have the PS4 sleeve attached and the Xbox One sleeve is supplied). Align notches on the appropriate sleeve and volume wheel before attaching to your controller.

Xbox One sleeve attached PS4 sleeve supplied in box ALIGN Xbox One PS4

Adjust the volume

To adjust your headset volume, turn the volume wheel.

NOTE If your controller has a volume feature, you can lock the volume wheel at maximum by turning it fully to the right.

Illustration of a hand holding a cylindrical object with an arrow indicating rotation (no text or symbols)

System volume

To adjust system volume, check your console's user guide.

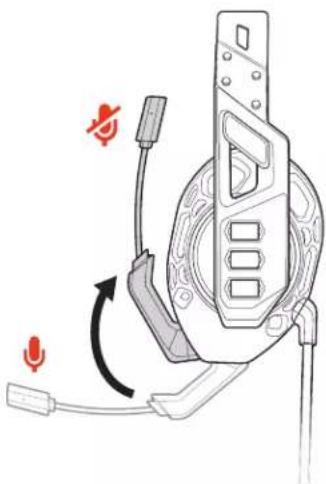

Mute

Lift the boom to a full stop to mute the microphone.

Diagram of a device with attached cable and connector, showing no text or symbols

CAUTION Do not force the boom past its upper or lower limits.

Support

NEED MORE HELP?

www.nacongaming.com

nacon

NACONG GAMING, Inc

10400 NE 4 ^th Street, Suite 500,

Bellevue, WA 98004 USA

([phone]

Headquarter

NACON

©2020 NACON. NACON and RIG are trademarks of NACON, registered in the US and other countries. «PlayStation» and «DUALSHOCK» are registered trademarks of Sony Interactive Entertainment Inc. All rights reserved. All other trademarks are the property of their respective owners.

Patents pending.

213538-06 (06.20)
