Pro 1000 BA5605 - Hand blender SOLAC - Free user manual and instructions

USER MANUAL Pro 1000 BA5605 SOLAC

Product photo of a Solac brand blender with a clear stand, serving a small cup and a black lever (no text or symbols visible)

BATIDORA - PICADORA

INSTRUCCIONES DE USO

BLENDER - MINCER

INSTRUCTIONS FOR USE

ROBOT - HACHOIR

MODE D'EMPLOI

MIXER - ZERKLEINERER

GEBRAUCHSANLEITUNG

Diagram of a laboratory flask with labeled parts E, F1, F, and F2, showing internal structure.

Diagram showing a droplet being poured into a jar with liquid, illustrating the process of liquid transfer or extraction.

Fig. 2.4

4

ESPAÑOL ES

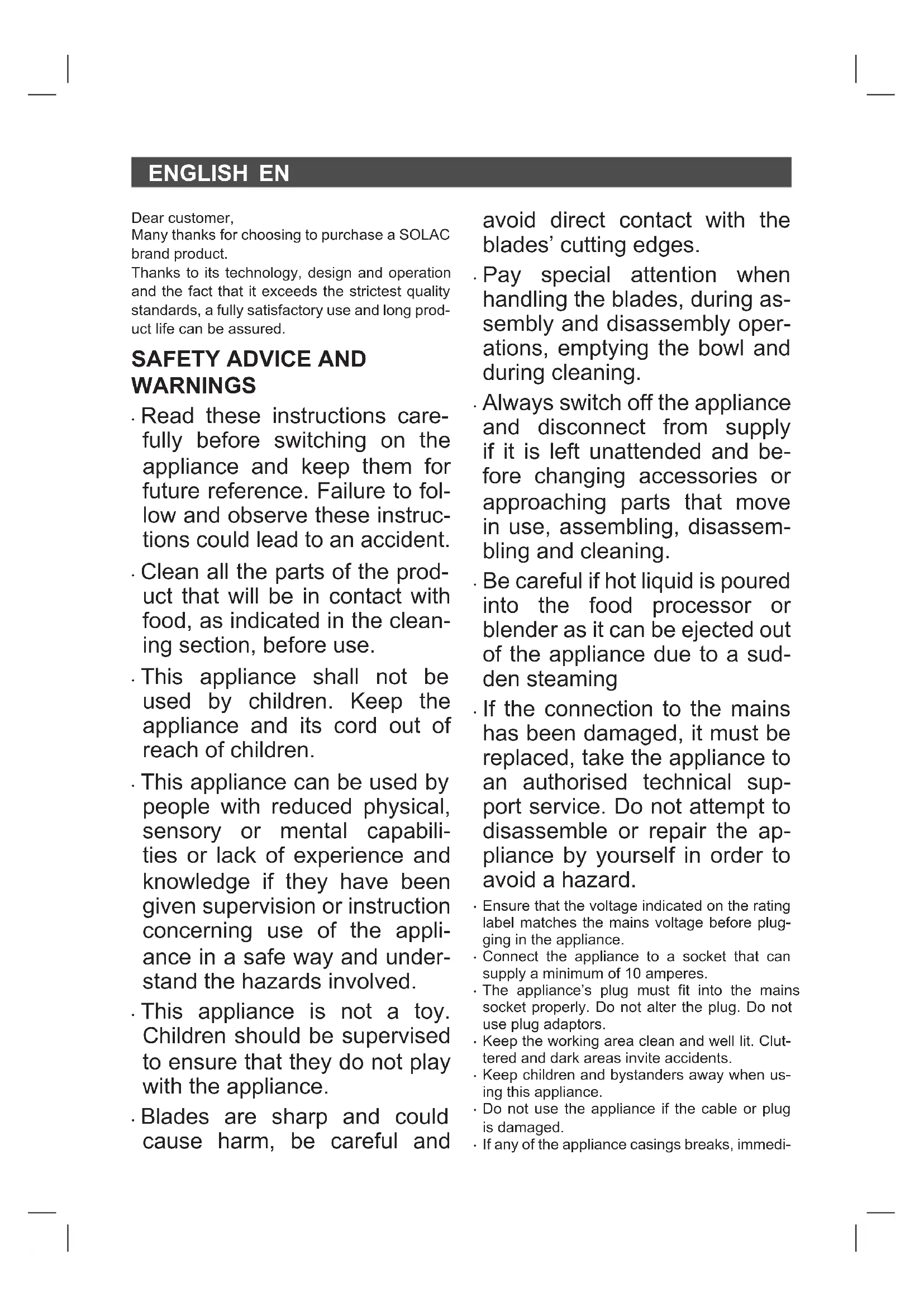

Many thanks for choosing to purchase a SOLAC brand product.

Thanks to its technology, design and operation and the fact that it exceeds the strictest quality standards, a fully satisfactory use and long product life can be assured.

SAFETY ADVICE AND WARNINGS

• Read these instructions carefully before switching on the appliance and keep them for future reference. Failure to follow and observe these instructions could lead to an accident.
  · Clean all the parts of the product that will be in contact with food, as indicated in the cleaning section, before use.

This appliance shall not be used by children. Keep the appliance and its cord out of reach of children.

This appliance can be used by people with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

- This appliance is not a toy. Children should be supervised to ensure that they do not play with the appliance.

- Blades are sharp and could cause harm, be careful and

avoid direct contact with the blades' cutting edges.

- Pay special attention when handling the blades, during assembly and disassembly operations, emptying the bowl and during cleaning.

· Always switch off the appliance and disconnect from supply if it is left unattended and before changing accessories or approaching parts that move in use, assembling, disassembling and cleaning.

- Be careful if hot liquid is poured into the food processor or blender as it can be ejected out of the appliance due to a sudden steaming

- If the connection to the mains has been damaged, it must be replaced, take the appliance to an authorised technical support service. Do not attempt to disassemble or repair the appliance by yourself in order to avoid a hazard.

• Ensure that the voltage indicated on the rating label matches the mains voltage before plugging in the appliance.
• Connect the appliance to a socket that can supply a minimum of 10 amperes.
• The appliance's plug must fit into the mains socket properly. Do not alter the plug. Do not use plug adaptors.
• Keep the working area clean and well lit. Cluttered and dark areas invite accidents.
• Keep children and bystanders away when using this appliance.
• Do not use the appliance if the cable or plug is damaged.
• If any of the appliance casings breaks, immedi-

EN

ately disconnect the appliance from the mains to prevent the possibility of an electric shock.

• Do not use the appliance if it has fallen on the floor, if there are visible signs of damage or if it has a leak.
• Do not use the appliance with damp hands or feet, or when barefooted.
• Do not force the power cord. Never use the power cord to lift up, carry or unplug the appliance.
• Do not wrap the power cord around the appliance.
• Do not clip or crease the power cord.
• Check the state of the power cord. Damaged or tangled cables increase the risk of electric shock.
• Do not use or store the appliance outdoors.
• Do not touch the plug with wet hands.
• Take the necessary measures to avoid starting the appliance involuntarily.
• Do not touch any of the appliance's moving parts while it is operating

USE AND CARE

• Do not use the appliance if its accessories are not properly fitted.
• Do not use the appliance if the accessories attached to it are defective. Replace them immediately.
• Do not use the appliance if it is empty.
• Do not use the appliance if the on/off switch does not work.
• Respect the MAX level indicator.
• When using hot liquids do not fill the jug more than half way. At all times, when mixing hot liquids in the jug, select the slowest speed on the speed selector.
• This appliance is for household use only, not professional, industrial use.
• Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.
• Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.
• Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.
• Never use boiling liquids.
• Do not use the appliance on any part of the

body of a person or animal.

• Do not use the appliance with frozen goods or those containing bones.
• Do not use the device with the stick-blender more than 50 seconds at a time, pausing 2 minutes.
• Do not use the device with the chopper more than 30 seconds at a time, pausing 2 minutes.
• As a reference in the annexed table appears several recipes, that include the amount of food to process, and the operating time of the apparatus.

SERVICE

- Any misuse or failure to follow the instructions for use renders the guarantee and the manufacturer's liability null and void.

DESCRIPTION

A Speed control regulator
B Buttons
B1 ON/OFF
B2 Turbo
C Motor body
D Stick-blender accessory
E Measuring cup
F Chopper
F1 Globet adapter fitting
F2 Blades chopper set
(*) Only available in the model BA5605 PRO 1000 CHEF.
- If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

INSTRUCTIONS FOR USE

BEFORE USE:

• Make sure that all products' packaging has been removed.
• Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.
• Prepare the appliance according to the function you wish to use

USE:

• Unroll the cable completely before plugging it in.
• Connect the appliance to the mains.
• Turn the appliance on, by using the on/off button.
• Select the desired speed.
• Work with the food you want to process.

ELECTRONIC SPEED CONTROL:

- The speed of the appliance can be regulated

EN

by using the speed regulator control (A). This function is very useful, as it makes it possible to adapt the speed of the appliance to the type of work that needs to be done.

TURBO FUNCTION:

- The appliance has a Turbo function. By activating the Turbo function (B2) all the power of the motor becomes available, thus obtaining a finer finish in the final texture of the product.

ONCE YOU HAVE FINISHED USING THE AP- PLIANCE:

• Stop the appliance by releasing the pressure on the on/off button.
• Unplug the appliance from the mains.
• Clean the appliance.

ACCESSORIES:

STICK BLENDER ACCESSORY (FIG.1):

• This accessory is used for making sauces, soups, mayonnaise, milkshakes, baby food ...
• Attach the stick to motor body by pressing until you hear a click (Fig.1.1).
• Put the food to be prepared in the jar and switch the appliance on.
• Detach the stick to motor body by pressing until you hear a click (Fig.1.2).

CHOPPING ACCESSORY (FIG.2):

• This accessory is used to chop vegetables or meat...
• Put blades set and the food to be prepared in the chopping container. (Fig.2.1 / 2.2).
• Put the globet adapter fitting in the chopper until it clicks into place. (Fig.2.3).
• Attach the unit to the cover pressing until you hear the click and switch the appliance on (be careful: do not switch the appliance on if the whole unit is not properly fitted and connected together). (Fig.2.4).
• Stop the appliance when the food reaches the desired texture.
• Detach the unit from the cover and press the accessory release buttons to free the adapter fitting.
• NOTE 1: not to exceed half of the chopper cup when working with solid foods.
• NOTE 2: In the case of working with liquid foods, do not exceed 300 ml.

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

• Never submerge the appliance in water or any other liquid or place it under running water.
• During the cleaning process, take special care with the blades, as they are very sharp.
• It is advisable to clean the appliance regularly and remove any food remains.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• The following pieces may be washed in a dishwasher (using a soft cleaning program):

- Measuring cup

- Chopper cup

• The draining/drying position of the articles washable in the dishwasher or in the sink must allow the water to drain away easily.
• Then dry all parts before its assembly and storage.

ANOMALIES AND REPAIR

• Take the appliance to an authorised technical support service if problems arise. Do not try to dismantle or repair without assistance, as this may be dangerous.

FOR EU PRODUCT VERSIONS AND/OR IN THE CASE THAT IT IS REQUESTED IN YOUR COUNTRY:

ECOLOGY AND RECYCLABILITY OF THE PRODUCT

• The materials of which the packaging of this appliance consists are included in a collection, classification and recycling system. Should you wish to dispose of them, use the appropriate public containers for each type of material.
• The product does not contain concentrations of substances that could be considered harmful to the environment

This symbol means that in case you wish to dispose of the product once its working life has ended, take it to an authorised agent for the selective collection of waste rical and electronic equipment (WEEE)

This appliance complies with Directive 2014/35/EU on Low Voltage, Directive 2014/30/EU on Electromagnetic Compatibility, Directive 2011/65/EU on the restrictions of the use of certain hazardous substances in electrical and electronic equipment and Directive 2009/125/EC on the ecodesign requirements for energy-related products

EN

Recipe Recommended accessory	Speed Quantity Preparation Time
Mayonnaise	Stick blender 4 250 ml Put 1 egg in the jug with a pinch of salt and some drops of vinegar or lemon.Add oil until the indicated level. Turn the appliance on without moving until the oil binds.	30 s
Béchamel sauce	Stick blender 3 600 ml Melt 30 gr. of butter in a pan on a slow heat. Add 100 gr. of flour and 30 gr. of fried onions (already cut up with the slicer). Slowly add 500 ml of milk.	20 s
Mashed potato	Stick blender MAX 400 g The potatoes can be sliced by activating the blender directly in the saucepan directly.	30 s
Baby food: fruit and biscuit mush	Stick blender MAX 300 g Cut up and place 100 gr. of apple, 100 gr. of banana, 50 gr. of biscuits and the juice of one orange in the jug	25 s
Minced meat	Stick blender TURBO 40 g Chop the meat to the desired texture.	10 s
Bread-crumbs	Chopper MAX 80 g (1~2 cm)	Cut up the stale bread before putting it in the jug. Blend until the desired texture is obtained.	50 s
Grated cheese	Chopper MAX 100 g (1~2 cm)	Dice the cheese into 1 cm chunks and blend until the desired texture is obtained.	30 s
Ground nuts	Chopper MAX 100 g Remove the shells and grind until the desired texture is obtained	20 s
Minced meat	Chopper MAX 250 g (1~2 cm)	Previously chop into 1 cm chunks Mince until the desired texture is obtained	10 s
