Pro Chef 1200 BA5609 - Hand blender SOLAC - Free user manual and instructions

Product type	Immersion blender
Brand	Solac
Model	Pro Chef 1200 BA5609
Power	1200 W
Supply	220-240 V ~ 50/60 Hz
Cable length	approx. 1.2 m
Weight	approx. 1.5 kg
Body material	Plastic
Shaft material	Stainless steel
Measuring cup capacity	600 ml
Chopper bowl capacity	300 ml (liquids) / half of the bowl (solids)
Included accessories	Whisk, chopper, beater, measuring cup
Speeds	Electronic speed control + Turbo function
Turbo function	Yes, full power
Max operating time (shaft)	50 seconds, then pause 2 minutes
Max operating time (chopper)	30 seconds, then pause 2 minutes
Dishwasher safe	Measuring cup and chopper bowl (delicate cycle)
Maintenance	Damp cloth, do not immerse the body
Safety	Automatic shut-off in case of overload (not specified)
Warranty	In accordance with applicable legislation

Frequently Asked Questions - Pro Chef 1200 BA5609 SOLAC

How to assemble the whisk?

Attach the whisk accessory to the motor body by turning it in the direction of the arrow (Fig.1.1) until it clicks into place.

What is the power of the appliance?

The Solac Pro Chef 1200 BA5609 has a power of 1200 W.

Can I chop meat with bones?

No, remove all bones, nerves and cartilage before chopping the meat to avoid damaging the appliance.

What is the maximum continuous operating time?

With the shaft: 50 seconds maximum, then pause of 2 minutes. With the chopper: 30 seconds, then pause of 2 minutes.

How to clean the immersion blender?

Unplug the appliance. Clean the motor body with a damp cloth. The measuring cup and chopper bowl are dishwasher safe (delicate cycle). Beware of sharp blades.

Can I blend frozen foods?

No, do not use the appliance with frozen foods or bones. Thaw the food before.

How to use the Turbo function?

Press the Turbo (B2) button to operate the motor at full power, ideal for achieving a finer texture.

What accessories are included with the BA5609?

The BA5609 model includes: whisk, chopper (with blades and gear unit), beater and measuring cup of 600 ml.

Can I use an accessory not supplied?

Additional accessories can be purchased separately from the Solac technical support service.

How to whip egg whites?

Use the beater accessory at speed 2. Pour the egg whites into a large container and blend in vertical movements for 1 to 2 minutes.

USER MANUAL Pro Chef 1200 BA5609 SOLAC

Product photo of a solar-powered blender with a whisk, serving clear liquid in a glass container (no text or symbols visible)

BATIDORA DE VARILLA

INSTRUCCIONES DE USO

HAND BLENDER

INSTRUCTIONS FOR USE

MIXEUR PLONGEANT

MODE D'EMPLOI

HANDRÜHRGERÄT

GEBRAUCHSANLEITUNG

VARINHA MÁGICA

INSTRUÇÕES DE USO

FRULLATORE A IMMERSIONE

ISTRUZIONI PER L'USO

STAAFMIXER

GEBRUIKSAANWIJZING

RUČNÍ MIXÉR

NÁVOD K POUZITÍ

MIKSER

INSTRUKCJA OBSŁUGI

RUČNÝ MIXÉR

NÁVOD NA POUŽITIE

KÉZI TURMIXGÉP

HASZNÁLATI UTASÍTÁS

Diagram showing a transformation of a container with seeds into a bottle, indicating a change in the composition or usage.

Fig. 2.4

4 solar

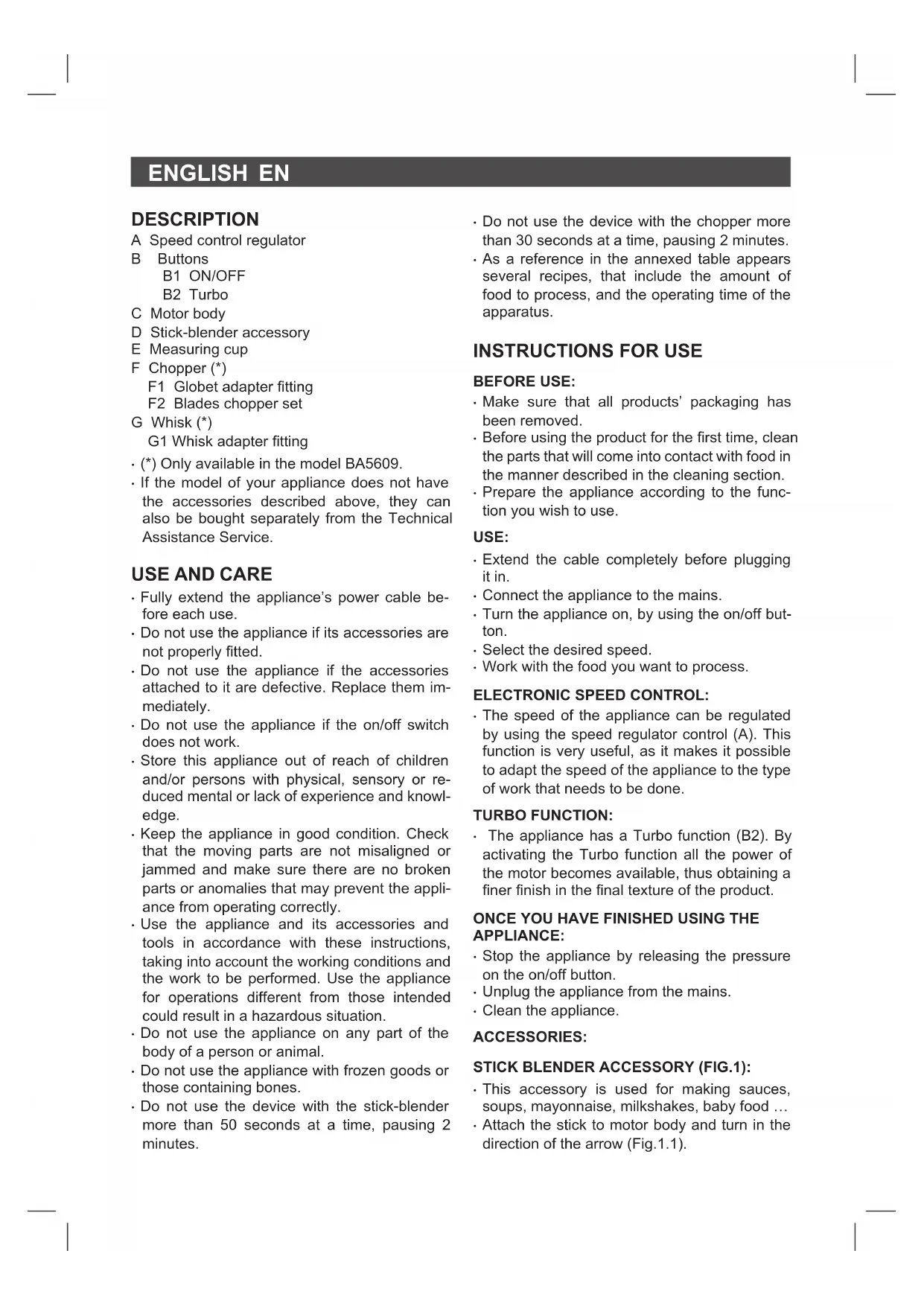

ESPAÑOL ES

DESCRIPCIÓN

A Speed control regulator

B Buttons

B1 ON/OFF

B2 Turbo

C Motor body

D Stick-blender accessory

E Measuring cup

F Chopper (*)

F1 Globet adapter fitting

F2 Blades chopper set

G Whisk (*)

G1 Whisk adapter fitting

- (*) Only available in the model BA5609.

- If the model of your appliance does not have the accessories described above, they can also be bought separately from the Technical Assistance Service.

USE AND CARE

- Fully extend the appliance's power cable before each use.

- Do not use the appliance if its accessories are not properly fitted.

- Do not use the appliance if the accessories attached to it are defective. Replace them immediately.

- Do not use the appliance if the on/off switch does not work.

- Store this appliance out of reach of children and/or persons with physical, sensory or reduced mental or lack of experience and knowledge.

- Keep the appliance in good condition. Check that the moving parts are not misaligned or jammed and make sure there are no broken parts or anomalies that may prevent the appliance from operating correctly.

- Use the appliance and its accessories and tools in accordance with these instructions, taking into account the working conditions and the work to be performed. Use the appliance for operations different from those intended could result in a hazardous situation.

- Do not use the appliance on any part of the body of a person or animal.

- Do not use the appliance with frozen goods or those containing bones.

- Do not use the device with the stick-blender more than 50 seconds at a time, pausing 2 minutes.

- Do not use the device with the chopper more than 30 seconds at a time, pausing 2 minutes.

- As a reference in the annexed table appears several recipes, that include the amount of food to process, and the operating time of the apparatus.

INSTRUCTIONS FOR USE

BEFORE USE:

- Make sure that all products' packaging has been removed.

- Before using the product for the first time, clean the parts that will come into contact with food in the manner described in the cleaning section.

- Prepare the appliance according to the function you wish to use.

USE:

• Extend the cable completely before plugging it in.
• Connect the appliance to the mains.
• Turn the appliance on, by using the on/off button.
• Select the desired speed.
• Work with the food you want to process.

ELECTRONIC SPEED CONTROL:

- The speed of the appliance can be regulated by using the speed regulator control (A). This function is very useful, as it makes it possible to adapt the speed of the appliance to the type of work that needs to be done.

TURBO FUNCTION:

- The appliance has a Turbo function (B2). By activating the Turbo function all the power of the motor becomes available, thus obtaining a finer finish in the final texture of the product.

ONCE YOU HAVE FINISHED USING THE APPLIANCE:

• Stop the appliance by releasing the pressure on the on/off button.
• Unplug the appliance from the mains.
• Clean the appliance.

ACCESSORIES:

STICK BLENDER ACCESSORY (FIG.1):

• This accessory is used for making sauces, soups, mayonnaise, milkshakes, baby food ...
• Attach the stick to motor body and turn in the direction of the arrow (Fig.1.1).

EN

• Put the food to be prepared in the jar and switch the appliance on.
• For further cleaning, detach and remove the stick by turning in the opposite direction of the arrow.

CHOPPING ACCESSORY (FIG.2):

• This accessory is used to chop vegetables or meat...
• To avoid damage to the appliance, remove bones, nerves, cartilage, etc. from the meat.
• Put blades set and the food to be prepared in the chopping container. (Fig.2.1 / 2.2).
• Put the globet adapter fitting in the chopper until it fits into place. (Fig.2.3).
• Attach the unit to the cover pressing turn in the direction of the arrow and switch the appliance on (be careful: do not switch the appliance on if the whole unit is not properly fitted and connected together). (Fig.2.4).
• Stop the appliance when the food reaches the desired texture.
• Detach the unit from the cover and release the the adapter fitting.
• NOTE 1: not to exceed half of the chopper cup when working with solid foods.
• NOTE 2: In the case of working with liquid foods, do not exceed 300 ml.

WHISK ACCESSORY (FIG.3):

• This accessory is used to whip cream, beat egg whites...
• Insert the whisk into the adapter fitting (Fig.3.1). Attach the unit to the motor body and turn in the direction of the arrow (Fig.3.2).
• Put the food into a large receptacle and switch the appliance on. For best results, turn the whisk clockwise.
• Remove the whisk accessory and release the adapter fitting.
• Note 1: Do not work at high speeds with this accessory attached, as this would cause defects in the whisk (spinning its wires).

CLEANING

• Disconnect the appliance from the mains and allow it to cool before undertaking any cleaning task.

• Clean the equipment with a damp cloth with a few drops of washing-up liquid and then dry.

• Do not use solvents, or products with an acid or base pH such as bleach, or abrasive products, for cleaning the appliance.

• Never submerge the appliance in water or any other liquid or place it under running water.
• During the cleaning process, take special care with the blades, as they are very sharp.
• It is advisable to clean the appliance regularly and remove any food remains.
• If the appliance is not in good condition of cleanliness, its surface may degrade and inexorably affect the duration of the appliance's useful life and could become unsafe to use.
• The following pieces may be washed in a dishwasher (using a soft cleaning program):
• Measuring cup.
• Chopper.
• The draining/drying position of the articles washable in the dishwasher or in the sink must allow the water to drain away easily.
• Then dry all parts before its assembly and storage.

EN

Recipe Recommended accessory		Speed	Quantity Preparation Time
Mayonnaise	Stick blender 4 250	ml Put 1	egg in the jug with a pinch of salt and some drops of vinegar or lemon. Add oil until the indicated level. Turn the appliance on without moving until the oil binds.		30 s
Béchamel sauce	Stick blender 3 60	0 ml Melt	30 gr. of butter in a pan on a slow heat. Add 100 gr. of flour and 30 gr. of fried onions (already cut up with the slicer). Slowly add 500 ml of milk.		20 s
Whipped cream	Whisk 2 250 ml P	our the very cold cream (0°C to 5°C) into a recipient and operate the blender by moving it clockwise. We recommend using minimum speed and when starts to take on consistency, going to the 2nd. Be careful, as if the time is exceeded the cream will turn into butter			1-2 min
Stiff egg whites	Whisk 2 5 egg		whites	Pour the egg whites into a jug and activate the blender. Mix in a vertical motion until the egg whites become stiff.	1-2 min
Mashed potato	Stick blender MAX	300 g	The potatoes	can be sliced by activating the blender directly in the saucepan directly.	30 s
Baby food: fruit and biscuit mush	Stick blender MAX	300 g	Cut up and place 100 gr. of apple, 100 gr. of banana, 50 gr. of biscuits and the juice of one orange in the jug		25 s
Bread-crumbs	Stick blender MAX	80 g (1-2 cm)		Cut up the stale bread before putting it in the jug. Blend until the desired texture is obtained.	50 s
Grated cheese	Chopper MAX 10	0 g Dice	the cheese	into 1 cm chunks and blend until the desired texture is obtained.	40 s
Ground nuts	Chopper MAX 100	g Remove the shells		and grind until the desired texture is obtained	30 s
Minced meat	Chopper MAX 40	g Previously chop into 1 cm chunks		Mince until the desired texture is obtained	10 s

FRANÇAIS FR

DESCRIPTION

HACKZUBEHÖR (FIG.2):

ELEKTRISCHE SNELHEIDSCONTROLE:

B1 ON/OFF (PORNIT/OPRIT)

B2 Turbo

This product enjoys the recognition and protection of the legal guarantee in accordance with current legislation. To enforce your rights or interests you must go to any of our official technical assistance services.

You can find the closest one by accessing the following web link: http://solac.com

You can also request related information by contacting us by phone.

You can download this instruction manual and its updates at http://solac.com
