LQS05 - Sensor EtiamPro - Free user manual and instructions

Product type	Touch sensor / Touch switch
Brand	EtiamPro
Model	LQS05
Supply voltage	12 - 24 V DC
Maximum nominal current	3 A
Detection range	32 mm
Cable length	100 cm
Protection rating	IP20
Operating temperature	-20 °C to 45 °C
Compatibility	12V and 24V LED strips
Operation mode	On/off by brief touch (0.5 s)
Installation material	Under wood panels, marble or other insulating material
Maximum material thickness	32 mm (depending on material type)
Installation	Gluing the sensor under the insulating material
Maintenance	Clean with a soft, dry cloth. Avoid moisture and abrasive products.
Safety	Do not expose to rain or moisture. Do not disassemble. Use only with original accessories.
Spare parts	No detachable parts. The device is not user-repairable.
Warranty	Velleman manufacturer warranty (see conditions in manual)
General information	Manual available for free download on notice-facile.com and Velleman website.

Frequently Asked Questions - LQS05 EtiamPro

How to install the LQS05 touch sensor?

Determine the mounting location, then glue the sensor (logo side) under the insulating material (wood, marble, etc.) with a maximum thickness of 32 mm. First test with temporary adhesive tape. Connect the module wiring to the LED strip and a 12-24 V DC power supply.

What is the detection range of the LQS05?

The detection range is a maximum of 32 mm through an insulating material. This distance may vary depending on the material type.

Is the LQS05 compatible with 12V LED strips?

Yes, the LQS05 is designed for 12V and 24V LED strips. Verify that your LED strip voltage matches your power supply.

What is the maximum material thickness the sensor can detect through?

The maximum recommended thickness is 32 mm. To improve detection, you can mill the material to reduce thickness.

What to do if the sensor does not respond to touch?

First check the insulating material thickness (max 32 mm). Ensure the sensor is properly glued and the wiring is well connected. Test with temporary adhesive tape before final fixing.

Is the LQS05 waterproof?

No, the protection rating is IP20, meaning it is not protected against water. Install it indoors, away from rain and moisture.

How to clean the touch sensor?

Clean the sensor surface with a soft, dry cloth. Do not use abrasive products or solvents. Avoid any contact with water.

What is the warranty of the LQS05?

The LQS05 is covered by the service and quality warranty of Velleman Group NV (see the last pages of the manual for conditions).

Can I use the LQS05 outdoors?

No, the IP20 rating does not allow outdoor use. Use it only in a dry indoor environment.

How to connect the LQS05 module to my installation?

Connect the module output to your LED strip and the input to a 12-24 V DC power supply. Follow the connection diagram provided in the manual (page 2).

USER MANUAL LQS05 EtiamPro

Coiled black cable with connectors and a white circular object nearby (no text or symbols visible)

USER MANUAL 4 GEBRUIKERSHANDLEIDING 7 MODE D'EMPLOI 10 MANUAL DEL USUARIO 14 BEDIENUNGSANLEITUNG 18 MANUAL DO UTILIZADOR 22

CE

LQS05

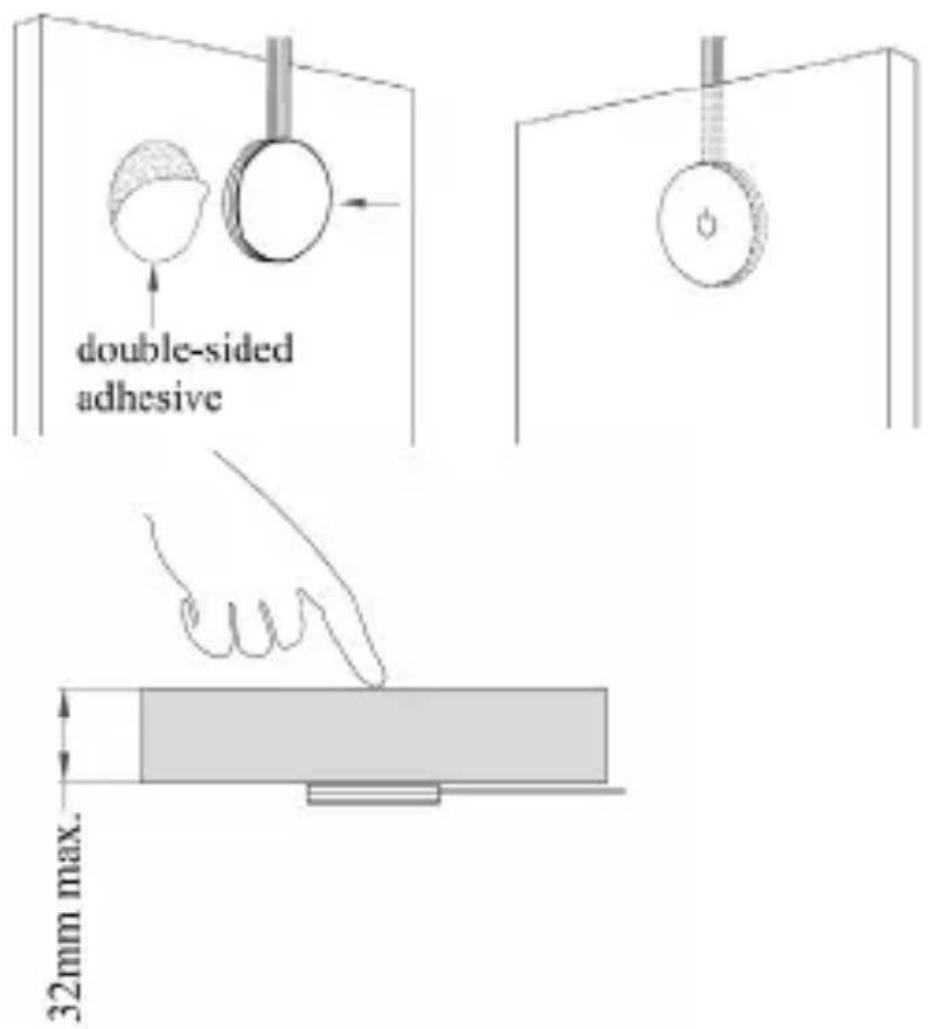

Mount

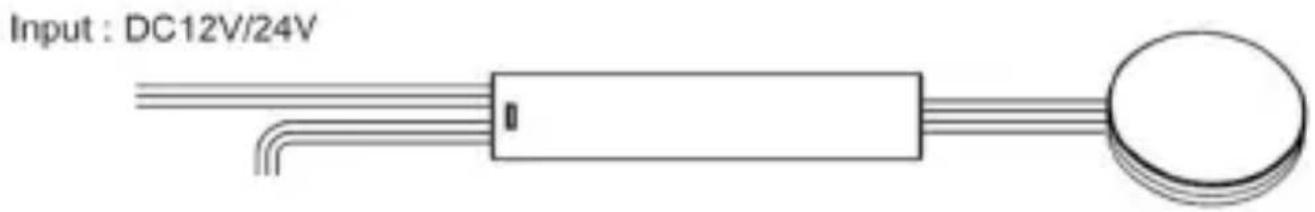

Connection

Input : DC12V/24V

Output: DC12V/24V 3A max.

LQS05

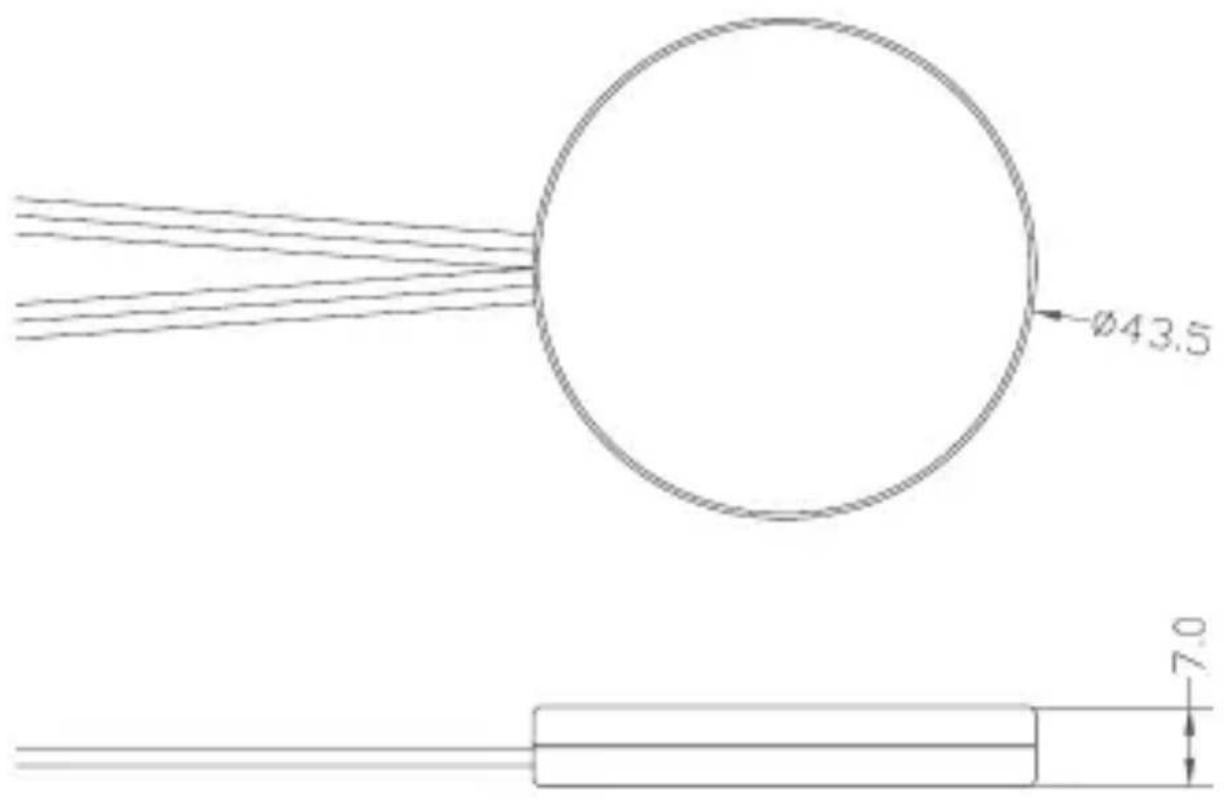

Product dimensions

Ø43.5 7.0

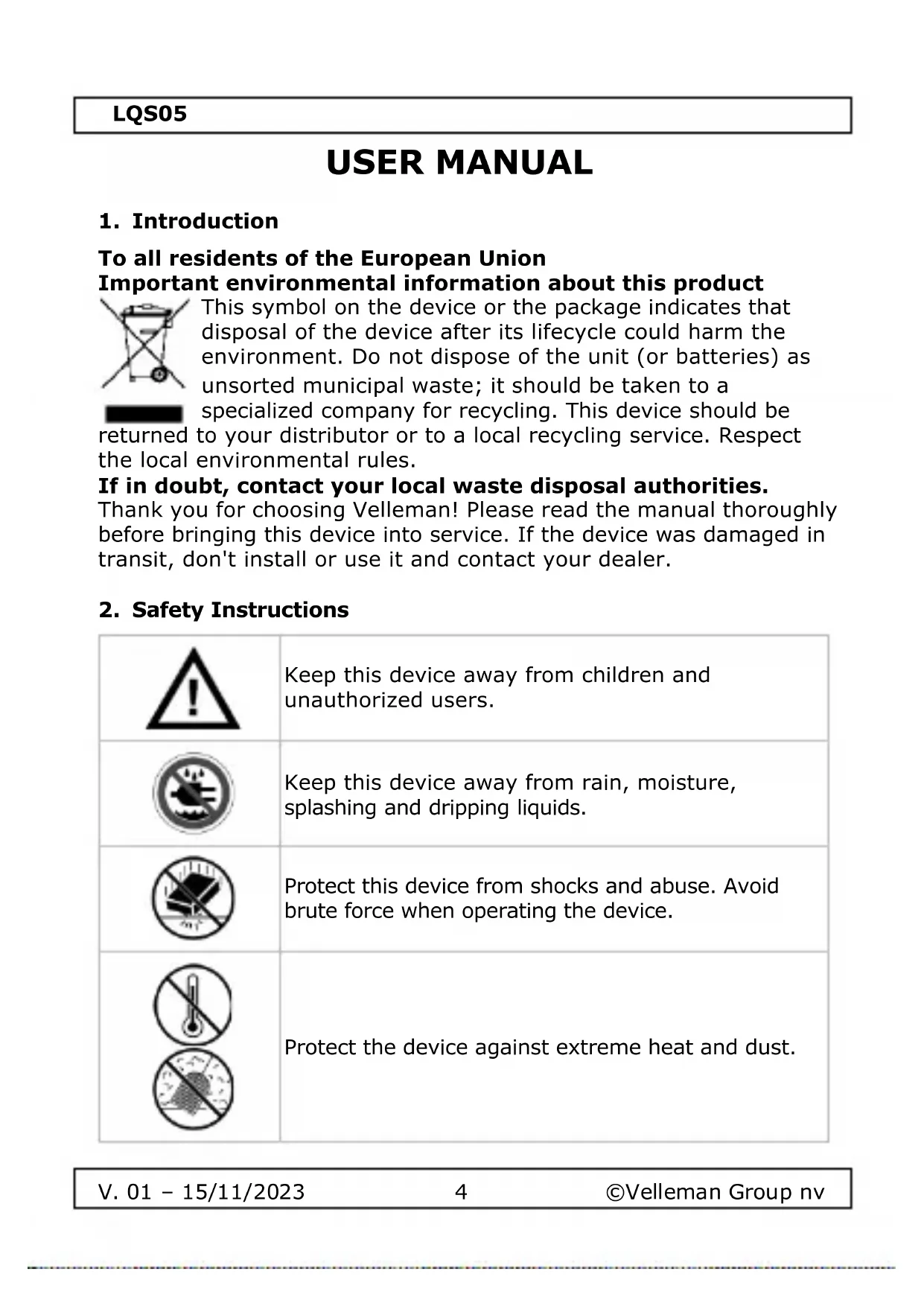

USER MANUAL

1. Introduction

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

	Keep this device away from children and unauthorized users.
	Keep this device away from rain, moisture, splashing and dripping liquids.
	Protect this device from shocks and abuse. Avoid brute force when operating the device.
	Protect the device against extreme heat and dust.

LQS05

3. General Guidelines

Refer to the Velleman Group NV® Service and Quality Warranty on the last pages of this manual.

• Familiarise yourself with the functions of the device before actually using it.
  • All modifications of the device are forbidden.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

4. Features and specifications

• This product is a unique design for Class III insulation appliance based on human touch application while touch switch installed inside/beneath wood board or other insulation materials.
• Function description: Install the touch dimmer inside or beneath the wood board (or other insulation material like marble), switch on/off the light by short touch within 0.5 seconds on the surface of wood board.
  See image on page 2.
• suitable for: 12 and 24V LED strips

5. Installation

Determine the mounting location:

Determine where to place the touch switch. Choose a location for the touch switch where the probability of unintended movement is minimal.

Glue the sensor with the power logo under the insulation material with a maximum thickness of 32 mm (depending on the type of material).

Important!

First attach the switch with temporary tape to the back of the material and test the operation. Try to reduce the thickness of the plate by a milling into the material to improve operation.

Mount the LED Strip:

Mount the LED Strip in an aluminum profile.

V. 01 - 15/11/2023

5

©Velleman Group nv

LQS05

Connect the wiring from the switch module of the PIR motion sensor to the LED Strip and connect the input of the switch module to an LED power supply. Connection diagram see page 2.

1. Technical Specifications

Physical properties
Cable length	100 cm
Maximum current rating	3 A
Input voltage rating VDC range	12-24 V
Detection range	32 mm
IP rating	IP20
Operating temperature range	-20-45 °C

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

Two circular signs with prohibition symbols: one indicating a thermometer and another showing a sandbag, both crossed out.

Monteer de LED Strip:

Two circular signs with prohibition symbols: one indicating a thermometer, the other indicating a sand or dust barrier.

Two circular signs with prohibition symbols: one indicating a thermometer, the other indicating a sand or dust hazard.

Two circular signs with prohibition symbols: one indicating a thermometer, the other indicating a sand or dust hazard.

Two circular signs with prohibition symbols: one indicating a thermometer, the other indicating a sandbag or dust.

Proteja o dispositivo contra calor extremo e poeira.

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
• flaws caused deliberately, negligently or resulting from improper handling, negligent

maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
• Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).
