LQS06 - Dimmer EtiamPro - Free user manual and instructions

Product type	Recessed LED dimmer
Brand	EtiamPro
Model	LQS06
Input voltage	12-24 VDC
Maximum rated current	3 A
Sensor type	Touch dimmer (touch sensitive)
Mounting diameter	12 mm
Protection rating	IP20
Cable length	100 cm
Operating temperature range	-20 to 45 °C
Power supply	12-24 VDC, 3 A max
Main functions	Turn on, off, dim by long press
LED compatibility	12V and 24V LED strips
Installation	Recessed in a 12 mm hole
Maintenance and cleaning	Clean with a dry cloth, avoid moisture
Safety	Keep out of reach of children, protect from shocks and moisture
Spare parts and repairability	Contact a professional for any repair
General information	Compliant with European standards, mandatory recycling

Frequently Asked Questions - LQS06 EtiamPro

How to install the LQS06 touch dimmer?

Drill a 12 mm hole in the panel, insert the dimmer, and connect the cables to the LED strip and power supply according to the diagram in the manual.

What type of LED strips can I use?

The LQS06 is compatible with 12V and 24V LED strips. Ensure the total power does not exceed 3A (72W at 24V, 36W at 12V).

How to adjust the brightness?

A short press turns on or off. Press and hold the button to vary the intensity to the desired level.

What to do if the dimmer does not work?

Check the connections and power supply. Ensure the LED strip is compatible and the polarity is correct. If the problem persists, contact your dealer.

Can this dimmer be used with LED bulbs?

No, this dimmer is specifically designed for 12-24V LED strips. For bulbs, use a suitable dimmer.

What is the maximum supported power?

The maximum current is 3A, which corresponds to 36W at 12V and 72W at 24V. Do not exceed this limit.

Is the dimmer waterproof?

No, the IP20 rating indicates it is not protected against water. Use it only indoors, away from moisture.

How to clean the dimmer?

Disconnect the power and clean the surface with a dry, soft cloth. Do not use chemicals or water.

Is the dimmer under warranty?

Yes, it comes with a warranty from Velleman Group NV. Consult the manual for detailed conditions.

Where to find the full manual?

The manual is available for free download at notice-facile.com or on the manufacturer's website.

USER MANUAL LQS06 EtiamPro

LED dimmer - recessed installation - 12V/24V

LED-dimmer - inbouw - 12V/24V

Coiled black cable with connector and label (no readable text or symbols)

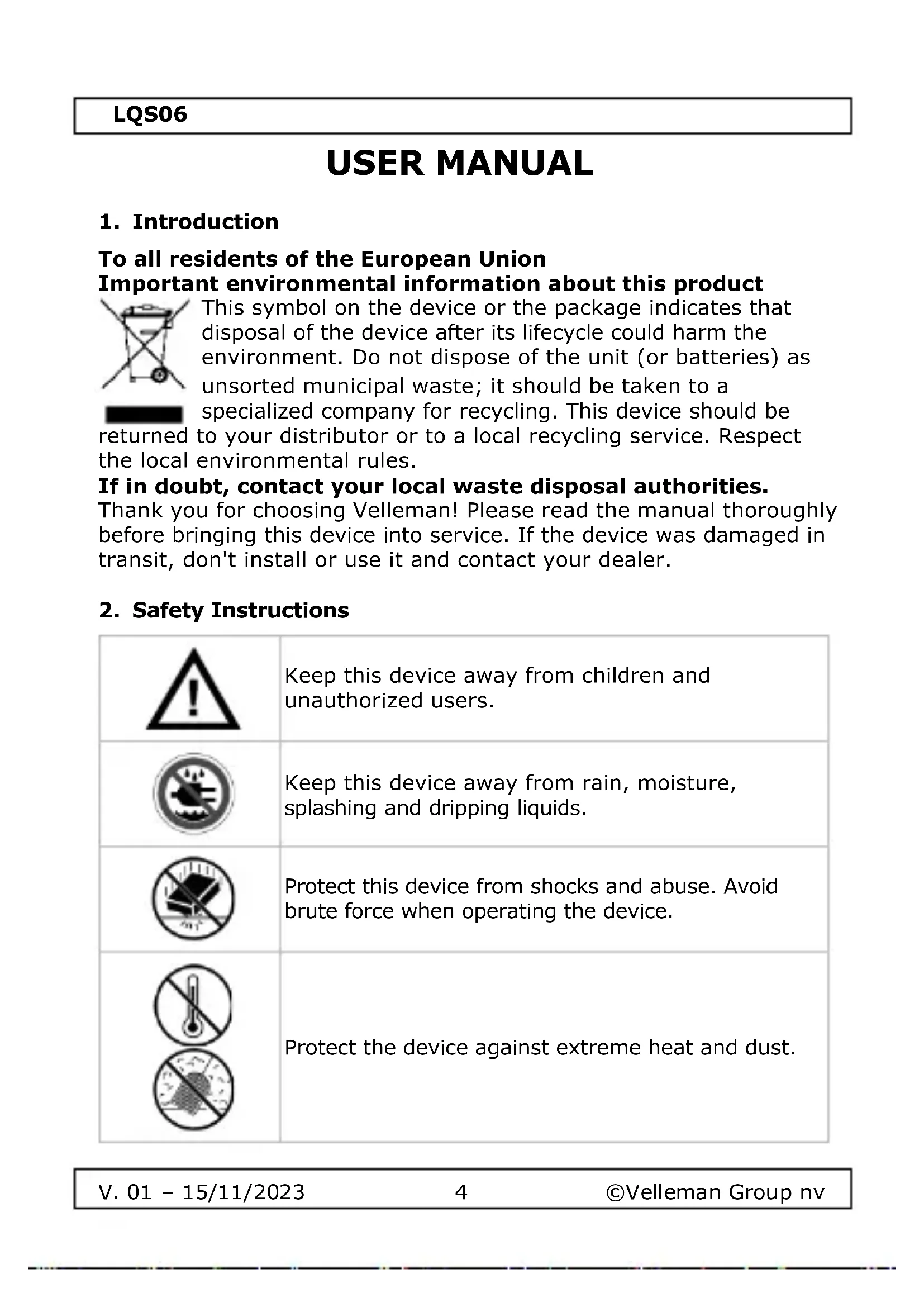

USER MANUAL 4

GEBRUIKERSHANDLEIDING 7

MODE D'EMPLOI 10

MANUAL DEL USUARIO 13

To all residents of the European Union Important environmental information about this product

This symbol on the device or the package indicates that disposal of the device after its lifecycle could harm the environment. Do not dispose of the unit (or batteries) as unsorted municipal waste; it should be taken to a specialized company for recycling. This device should be returned to your distributor or to a local recycling service. Respect the local environmental rules.

If in doubt, contact your local waste disposal authorities.

Thank you for choosing Velleman! Please read the manual thoroughly before bringing this device into service. If the device was damaged in transit, don't install or use it and contact your dealer.

2. Safety Instructions

	Keep this device away from children and unauthorized users.
	Keep this device away from rain, moisture, splashing and dripping liquids.
	Protect this device from shocks and abuse. Avoid brute force when operating the device.
	Protect the device against extreme heat and dust.

LQS06

3. General Guidelines

Refer to the Velleman Group NV® Service and Quality Warranty on the last pages of this manual.

• Familiarise yourself with the functions of the device before actually using it.
  • All modifications of the device are forbidden.
• Only use the device for its intended purpose. Using the device in an unauthorised way will void the warranty.

4. Features and specifications

• Discover our innovative recessed dimmer, the perfect solution for controlling LED strips. This compact dimmer is specially designed for flush mounting in cabinets or furniture panels, with only a 12mm drill hole.
• Control your lighting simply and stylishly: a short press turns the LED strip on, a second short press turns it off. For the ultimate atmosphere, hold down the button to set the desired dimming value.
• suitable for: 12 and 24V LED strips

5. Installation

Determine the mounting location:

Determine where to place the recessed LED dimmer. Choose a location for the touch sensor where the chance of accidental touching is minimal.

Drill a hole in the wood or stone furniture panel. Make sure there is enough space behind the panel to install the cables. Mount the dimmer in the drilled hole. Mount diagram see page 2.

Mount the LED Strip:

Mount the LED Strip in an aluminum profile.

Connect the wiring from the touch dimmer to the LED Strip and connect the input of the Led dimmer a LED power supply. Connection diagram see page 2.

LQS06

1. Technical Specifications

Physical properties
Cable length	100 cm
Maximum current rating	3 A
Input voltage rating VDC range	12-24 V
Sensor type	Touch dimmer
Diameter mounting hole (mm)	12 mm
IP rating	IP20
Operating temperature range	-20-45 °C

Use this device with original accessories only. Velleman Group nv cannot be held responsible in the event of damage or injury resulting from (incorrect) use of this device. For more info concerning this product and the latest version of this manual, please visit our website www.velleman.eu. The information in this manual is subject to change without prior notice.

© COPYRIGHT NOTICE

The copyright to this manual is owned by Velleman Group nv. All worldwide rights reserved. No part of this manual may be copied, reproduced, translated or reduced to any electronic medium or otherwise without the prior written consent of the copyright holder.

GEBRUIKERSHANDLEIDING

1. Inleiding

Two circular signs with prohibition symbols: one with thermometer and another with a shaded area, indicating environmental protection or hazard.

Monteer de LED Strip:

Two circular signs with prohibition symbols: one with thermometer and another with sandstone, indicating environmental protection or hazardous zones.

Two circular signs with prohibition symbols: one with thermometer and another with a shaded area, indicating environmental protection or hazard.

Two circular signs with a thermometer and a crossed-out diagram showing pollution or environmental hazard.

Two circular signs with prohibition symbols: one indicating a thermometer, the other indicating a sand or dust hazard.

Proteja o dispositivo contra calor extremo e poeira.

Velleman® Service and Quality Warranty

Since its foundation in 1972, Velleman® acquired extensive experience in the electronics world and currently distributes its products in over 85 countries.

All our products fulfil strict quality requirements and legal stipulations in the EU. In order to ensure the quality, our products regularly go through an extra quality check, both by an internal quality department and by specialized external organisations. If, all precautionary measures notwithstanding, problems should occur, please make appeal to our warranty (see guarantee conditions).

General Warranty Conditions Concerning Consumer Products (for EU):

• All consumer products are subject to a 24-month warranty on production flaws and defective material as from the original date of purchase.
• Velleman® can decide to replace an article with an equivalent article, or to refund the retail value totally or partially when the complaint is valid and a free repair or replacement of the article is impossible, or if the expenses are out of proportion.

You will be delivered a replacing article or a refund at the value of 100% of the purchase price in case of a flaw occurred in the first year after the date of purchase and delivery, or a replacing article at 50% of the purchase price or a refund at the value of 50% of the retail value in case of a flaw occurred in the second year after the date of purchase and delivery.

- Not covered by warranty:

• all direct or indirect damage caused after delivery to the article (e.g. by oxidation, shocks, falls, dust, dirt, humidity...), and by the article, as well as its contents (e.g. data loss), compensation for loss of profits;
• consumable goods, parts or accessories that are subject to an aging process during normal use, such as batteries (rechargeable, non-rechargeable, built-in or replaceable), lamps, rubber parts, drive belts... (unlimited list);
• flaws resulting from fire, water damage, lightning, accident, natural disaster, etc....;
• flaws caused deliberately, negligently or resulting from improper handling, negligent

maintenance, abusive use or use contrary to the manufacturer's instructions;

• damage caused by a commercial, professional or collective use of the article (the warranty validity will be reduced to six (6) months when the article is used professionally);
• damage resulting from an inappropriate packing and shipping of the article;
• all damage caused by modification, repair or alteration performed by a third party without written permission by Velleman®.
• Articles to be repaired must be delivered to your Velleman® dealer, solidly packed (preferably in the original packaging), and be completed with the original receipt of purchase and a clear flaw description.
• Hint: In order to save on cost and time, please reread the manual and check if the flaw is caused by obvious causes prior to presenting the article for repair. Note that returning a non-defective article can also involve handling costs.
  • Repairs occurring after warranty expiration are subject to shipping costs.
• The above conditions are without prejudice to all commercial warranties.

The above enumeration is subject to modification according to the article (see article's manual).

ES
