USER MANUAL 18310001 Gastronoma

Technical diagram of a mechanical device with numbered parts labeled 1 to 5

1 0 2 2

EGNET R∅GSMULD

Three-step diagram showing a mechanical assembly with a downward arrow and internal components (no text or symbols)

BRUG

Technical line drawing of a mechanical device with two cylindrical components and a schematic sketch (no text or labels)

DK

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical diagram of a mechanical device with numbered parts and an inset magnified view showing internal components.

NO

Three technical line drawings of a mechanical device with internal components and a downward arrow indicating a process (no text or symbols present)

BRUK

Technical line drawing of a mechanical device with two cylindrical components and a schematic sketch (no text or labels)

NO

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Technical diagram of a mechanical device with numbered parts and a magnified inset showing internal components.

SE

Three technical line drawings of a mechanical device with internal components and a downward arrow indicating a process (no text or symbols present)

ANVÄNDNING

Two identical cylindrical containers, one with two lids and the other with a dark cap (no text or symbols)

Technical line drawing of a mechanical device with no visible text or symbols

SE

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

Labeled diagram of a medical device with numbered parts for identification

FI

Three-step diagram showing a mechanical assembly with a downward arrow and plastic components (no text or symbols)

FI

KÄYTTÖ

Technical line drawing of a mechanical device with two cylindrical components and a schematic sketch below (no text or labels)

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

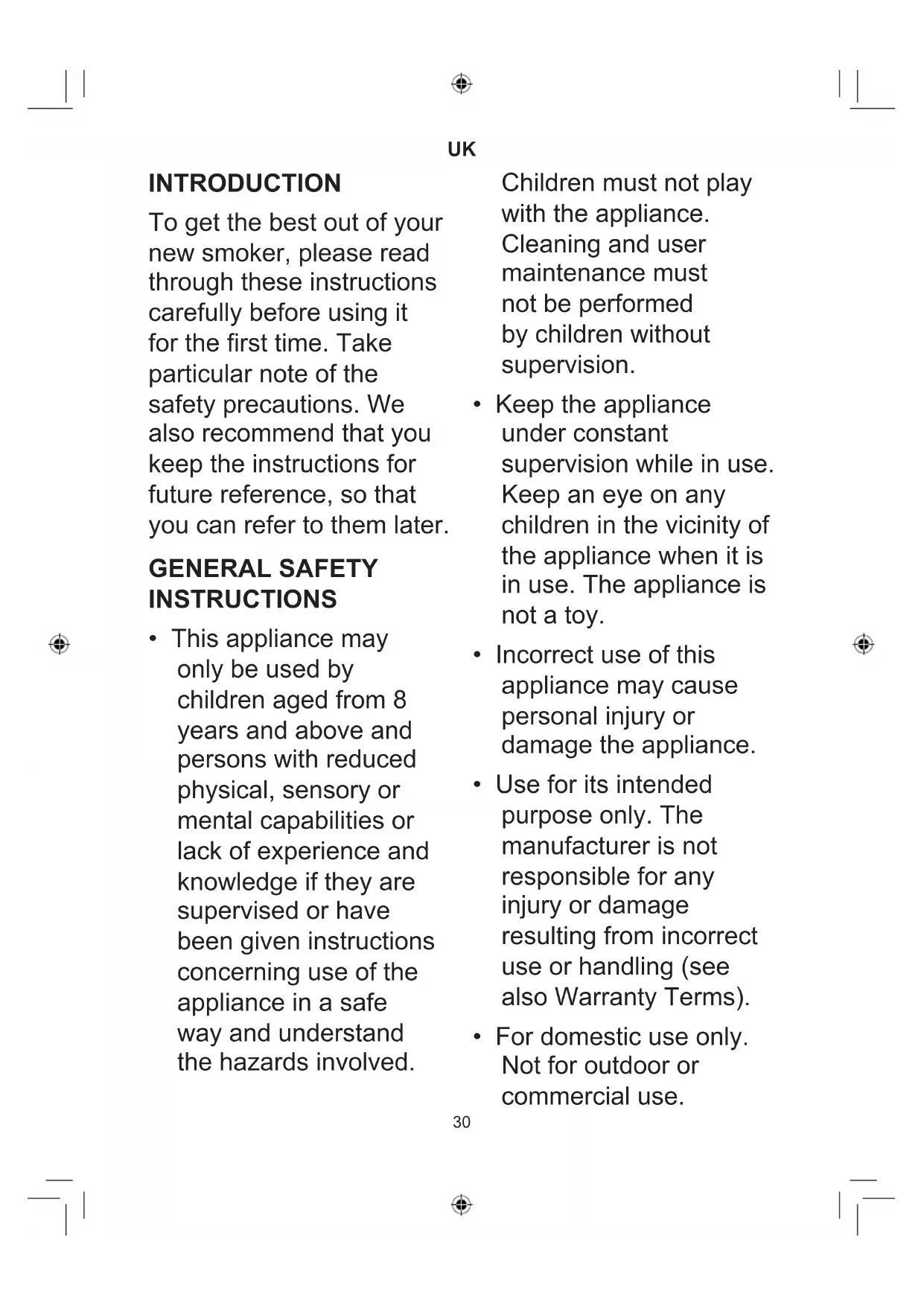

To get the best out of your new smoker, please read through these instructions carefully before using it for the first time. Take particular note of the safety precautions. We also recommend that you keep the instructions for future reference, so that you can refer to them later.

GENERAL SAFETY INSTRUCTIONS

- This appliance may only be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they are supervised or have been given instructions concerning use of the appliance in a safe way and understand the hazards involved.

Children must not play with the appliance. Cleaning and user maintenance must not be performed by children without supervision.

- Keep the appliance under constant supervision while in use. Keep an eye on any children in the vicinity of the appliance when it is in use. The appliance is not a toy.

- Incorrect use of this appliance may cause personal injury or damage the appliance.

- Use for its intended purpose only. The manufacturer is not responsible for any injury or damage resulting from incorrect use or handling (see also Warranty Terms).

- For domestic use only. Not for outdoor or commercial use.

UK

• Remove all packaging and transport materials from the inside and outside of the appliance.
• Check that the appliance has no visible damage and that no parts are missing.
• Never try to repair the appliance yourself. Please contact the store where you bought the appliance for repairs under warranty.
• Unauthorised repairs or modifications will invalidate the warranty.
• Caution! Some parts of this appliance can become very hot and cause burns. Particular attention should be paid where children and vulnerable people are present.
• Keep the appliance and its cord out of reach of children aged less than 8 years.

SPECIAL SAFETY INSTRUCTIONS

• The appliance works using fire and embers. Take all the precautions you would take for any other use of a naked flame!
• The metal filter must always be fitted in the appliance, as embers may be blown out along with the smoke.
• The wood chips must only be alight in the appliance for 30 seconds at a time, otherwise the appliance may be damaged.
  • Used or still glowing wood chips must be disposed of in a fireproof container.
• The opening in the chamber for wood chips must be facing upwards during use.

UK

- Be aware that smoke can be harmful to inhale. Use the apparatus in a location with good ventilation.

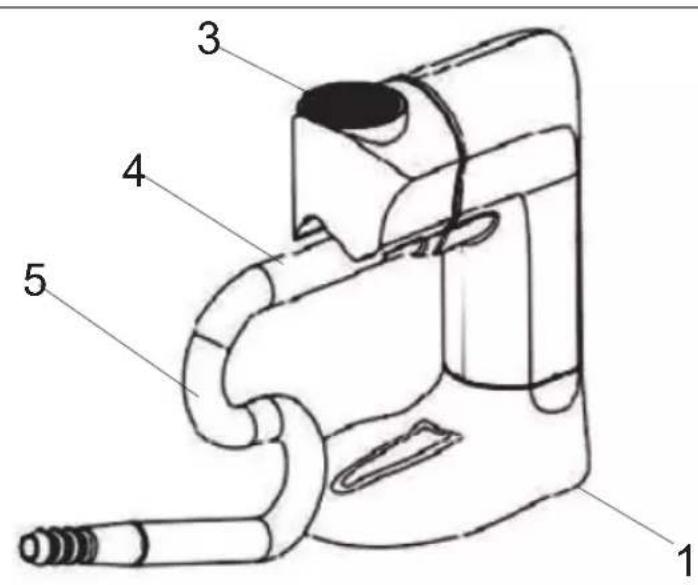

KEY

1. Battery cover
2. On/Off button
3. Smoking chamber
4. Smoking pipe
5. Removable smoke attachment

USES

The smoker gun can be used to give foods a light smoky taste. The smoke from the smoker gun is cold, so it is possible to smoke foods that cannot normally be smoked, e.g. butter, raw oysters, vegetables or desserts.

Most foods absorb the smoky flavour within 2-3 minutes in a smoke-filled package. The smoker gun should therefore not run constantly, but simply fill the package with smoke.

Technical diagram of a mechanical device with numbered parts labeled 1 to 5

UK

SUITABLE WOOD CHIPS

You can use wood chips or very fine wood shavings of various types of wood in the appliance. See examples below.

Hickory: bacon-like smoky flavour, which is particularly suitable for pork, such as ham, ribs and chops.

Mesquite: spicy and strong smoky flavour, which is suitable for most types of meat, especially beef, and vegetables.

Apple or cherry wood: slightly sweet and dense smoky flavour, which is particularly suitable for poultry, game birds and pork.

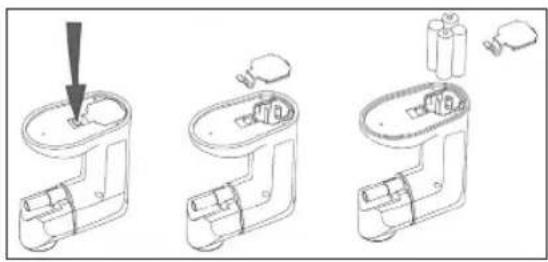

INSERTING THE BAT- TERIES

• Remove the battery cover (1).
• Insert 4 x 1.5 V AA batteries.

• Make sure that they are fitted the right way round. Replace the battery cover.

Three-step diagram showing a mechanical assembly with a downward arrow and component outlines (no text or symbols)

USE

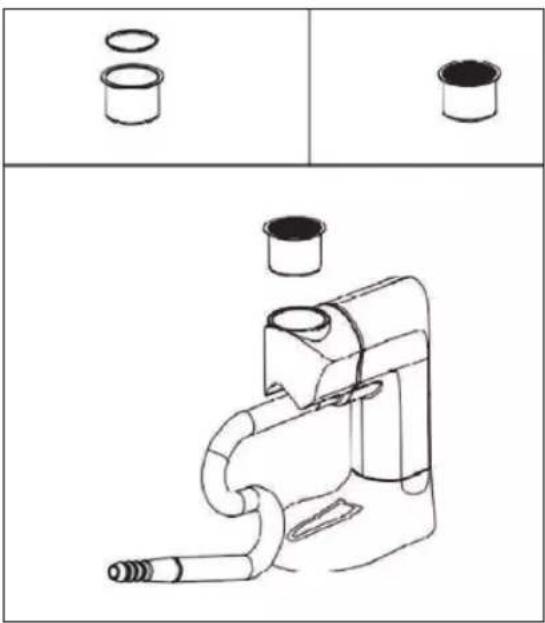

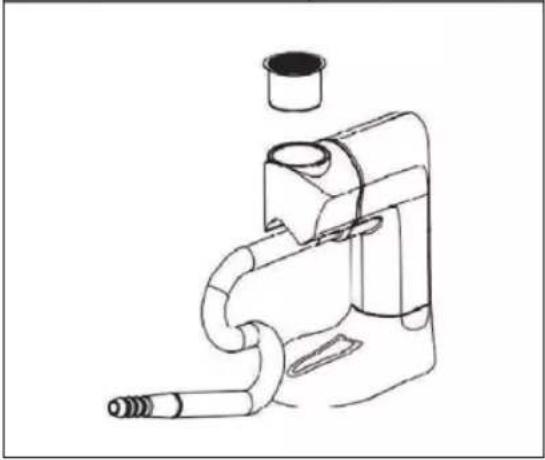

- Fill the appliance's smoking chamber (3) with the required wood chips. The smoking chamber must not be filled above the edge.

Technical line drawing of a mechanical device with two cylindrical components and a schematic sketch below (no text or labels)

UK

• Insert the smoking pipe (4) into the package of food, and close the package as tightly as possible around the pipe.

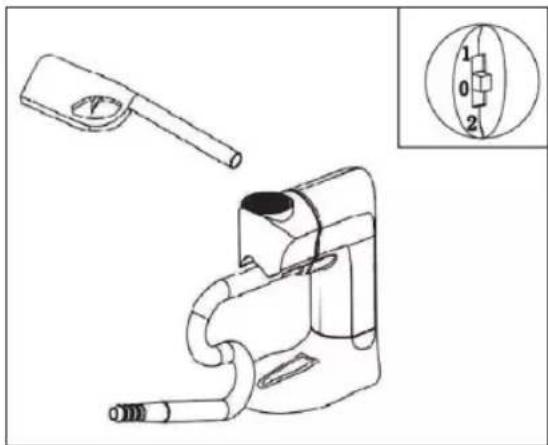

• Switch it on by pushing the on/off button to position I (low speed) or II (high speed).

Technical line drawing of a mechanical device with a magnified inset showing internal components (no text or symbols)

- Ignite the smoking agent in the smoking chamber using a match or a lighter. Do not use a gas burner or similar, as they burn at very high temperatures. The air flow ensures that the wood chips will quickly catch fire.

• Fill the package with smoke. Then turn the appliance off using the on/off button and shake the used or glowing wood chips out into a fireproof container.
• Open the package after 2-3 minutes, so that the rest of the smoke can dissipate. If necessary repeat the smoking process if you want the food to have a stronger smoky flavour.
• Before cleaning and storing the appliance, make sure it has cooled completely.

CLEANING

Brush any residue of wood chips from the smoking chamber with a fine soft brush or similar.

Remove the batteries if the appliance is not to be used for a prolonged period.

UK

INFORMATION ON DISPOSAL AND RECYCLING OF THIS PRODUCT

Please note that this Adexi product is marked with this symbol:

This means that this product must not be disposed of along with ordinary household waste, as electrical and electronic waste must be disposed of separately.

According to the WEEE directive, every member state must ensure correct collection, recovery, handling and recycling of electrical and electronic waste. Private households in the EU can take used equipment to special recycling stations free of charge.

In some member states you can in certain cases return used equipment to the retailer from whom you purchased it, if you are purchasing new equipment. Contact your retailer, distributor or the municipal authorities for further information on what to do with electrical and electronic waste.

WARRANTY TERMS

The warranty does not apply:

• if the above instructions have not been followed
• if the appliance has been interfered with
• if the appliance has been mishandled, subjected to rough treatment, or has suffered any other form of damage
• if the appliance is faulty due to faults in the electricity supply.

UK

Due to the constant development of our products in terms of function and design, we reserve the right to make changes to the product without prior warning.

FREQUENTLY ASKED QUESTIONS

If you have any questions regarding the use of the appliance and cannot find the answer in this user guide, please try our website at www.adexi.eu.

You can also see contact details on our website if you need to contact us for technical questions, repairs, accessories or spare parts.

MANUFACTURED BY

Adexi A/S

Lægårdsvej 9C

DK-8520 Lystrup

Denmark

www.adexi.eu

We cannot be held

responsible for any printing errors
