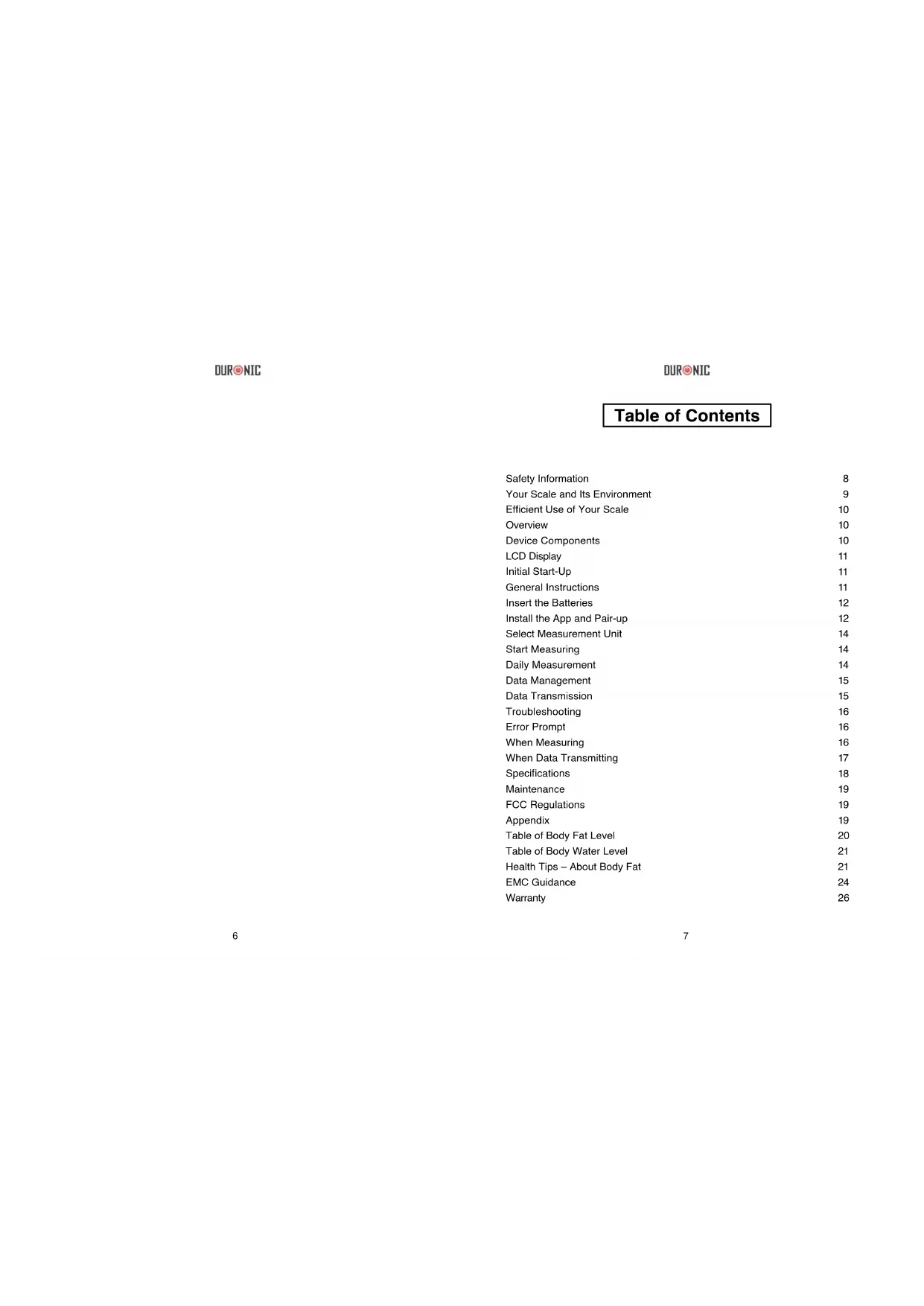

Contents4 5 English Manual6 7 Table of Contents Safety Information Your Scale and Its Environment Efcient Use of Your Scale Overview Device Components LCD Display Initial Start-Up General Instructions Insert the Batteries Install the App and Pair-up Select Measurement Unit Start Measuring Daily Measurement Data Management Data Transmission Troubleshooting Error Prompt When Measuring When Data Transmitting Specications Maintenance FCC Regulations Appendix Table of Body Fat Level Table of Body Water Level Health Tips – About Body Fat EMC Guidance Warranty

Safety and Usage Information The warning signs and symbols are essential to ensure a correct and safe use of this product and protect you and others from injury. Please nd the meanings of the warning signs and symbols, which you may encounter in the label and user manual, as follows: CAUTION Our Glass Body Fat Analyzer BS901 offers you a seamless way to manage your health. Please be aware that this device is designed for adults’ self- measuring and self-monitoring body fat level. Any information provided by this device is in no way meant to treat, cure or prevent any disease or illness from happening. This device should not be used by anyone who is acutely or chronically ill, suffering from a disease or taking medications that affect your water levels. The accuracy of readings for these patients This operation guide must be read Manufacturer Manufacturer date Complies with MDD 93/42 ECC Requirements Type of applied parts Serial number Direct current Indoor use only Bluetooth ENVIRONMENT PROTECTION

Waste electrical products should not be disposed of with household waste. Please recycle where facilities exist. Check with your local authority or retailer for recycling advice

- Our Glass Body Fat Analyzer measures weight and uses bio-electrical impedance analysis (BIA) technology to estimate body fat, total body water percentage, bone mass, and muscle mass in generally healthy adults 18 years of age or older. - It is intended for domestic use only. CONTRAINDICATIONS

1. This device is contraindicated for any female subject who may be suspected

of, or is pregnant. Besides providing inaccurate readings, the affects of this device on the fetus are unknown.

2. This device is contraindicated for any person who is connected to a

wearable or implantable electronic device or instrument such as a pacemaker or defibrillator.

YOUR SCALE AND ITS ENVIRONMENT

To ensure your safety as well as the service life of your scale, please avoid using the scale under the following circumstances: - With any other medical devices. - On slippery oors such as a tile oor - Jumping onto the platform immediately after bath or with wet hands - Near a cell phone or microwave oven has not been veried. Specic medical advice should be obtained from a physician. BS901 is equipped with automatic data transmission function. It may emit electromagnetic energy so as to perform its intended function. Nearby portable and mobile RF communications equipment can affect the performance of BS901. Kindly note that the use of accessories, transducers or cables other than those specied, with the exception of transducers and cables sold by the manufacturer as replacement parts for internal components, may result in increased EMISSIONS or decreased IMMUNITY of BS901. Be aware that misuse of electrical equipments can cause electric shock, burns, re and other hazards.10 11 Avoid storage in the following locations: - Near to water - Where the device may be exposed to extreme temperatures, humidity, moisture, direct sunlight, dust, or salt air - An unstable surface - In the reach of children Efcient Use of Your Scale - Place the scale on a at, hard surface. Soft surfaces such as carpet will affect the performance of the scale. - Step onto the scale with bare feet. Stand still and keep full contact with the electrodes until the measurement is complete. - Start measurement at least two hours after getting up or eating. - Avoid measurement immediately after strenuous exercise, a sauna or bath, drinking and eating. - Always start the measurement at approximately the same time and on the same scale, on the same at, hard surface. LCD Display Electrode Electrode UNIT Button Battery Compartment Device Components List

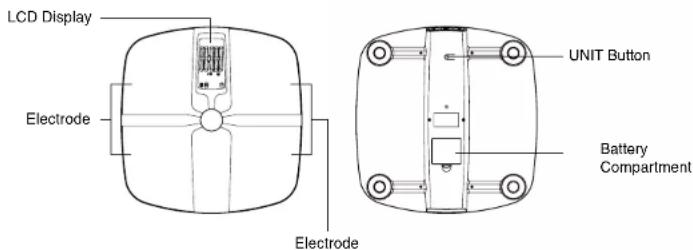

LCD Display General Instructions - Our Glass Body Fat Analyzer BS901 applies BIA (Bio-impedance Analysis) technology. A small amount of weak current ows through the human body so as to detect the bio-impedance and estimate body fat. The electrical current is small and may not be felt. - This BIA technology is cheap, safe, non-invasive, toxic-free and harmless. It also simple to use and provides a lot of information. - The current mentioned above is less than 1mA. However, please be aware that anyone with an wearable or implantable medical electronic instrument, such as a pacemaker, must avoid using this device. - The intended use of this device is for adult and indoor use only. Stone Pound Kilogram Successful Bluetooth Connection Low Battery Data transmitting/pending to transmit to wireless device12 13 Insert the Batteries - Open the battery compartment in the back of the scale. - Insert the batteries (4 x 1.5V AAA) into the battery compartment according to the polarity indications marked inside the compartment.

• The digits “8888” will be shown on the LCD. - Close the battery door and wait until the digits “0.0kg” are shown on the LCD. CAUTION When the symbol appears, the device will turn off in four seconds. You should then replace the batteries. Please replace all four batteries at the same time. Do NOT mix the old batteries with the new ones. Worn batteries are hazardous waste. Do NOT dispose of them together with the household garbage. Please refer to the local ordinances and recycling instructions regarding disposal of the worn batteries. Install the App and Pair-Up With the advanced Bluetooth 4.0 technology, mobile or portable devices which are equipped with Bluetooth function in line with BLE Technical Specications as well as BLP Protocol established by global organization Bluetooth SIG, are capable to receive your personal health data. Just simply install the specially-designed app and pair up your scale with your mobile or portable equipments. The free App “TransHealth” is now available on the App Store. Simply search for the app, then download and install the app in your iPhone. Turn on Bluetooth and the App. Make sure both are ON when pair-up is proceeding. Press and hold “UNIT” button in the back of the scale to start pair-up. Symbol and symbol will be shown on the LCD alternatively, indicating pair-up is proceeding. If the connection is succesful, the symbol will be shown on the LCD. If unsuccessful, the symbol “E1” will be shown on the LCD. Bluetooth Module No. : nRF8001 Frequency Range Output Power Range 0 dB Max.

2.402 - 2.480 GHz Supply Voltage 3.3V

20 MetresTransmitting Distance14 15 Selecting the measurement Unit With batteries correctly installed, press “UNIT” button in the back of the scale to select measurement unit. The default measurement unit is “kilogram”. You may press the “UNIT” button to choose between kilogram, stone and pound. Daily Measurement With original SENSE ON patent technology, the BS901 will automatically switch on as you step on the platform barefooted. Stand still and keep full contact with the electrodes until the LCD stops displaying moving “o”. When your scale is successfully paired with your Bluetooth device and the Bluetooth is ON, BS901 will process data transmission automatically. (Please refer to Data Transmission for more details.) CAUTION Interference may occur in the vicinity of equipment marked with the following symbol The scale may interfere with electrical equipment in its vincinity. To enable the data transmission function, this product should be paired to a Bluetooth device at 2.4 GHz. How to mitigate possible interference?

1. The range between the scale and the Bluetooth device should be

reasonably close, from 1 to 10 meters. Please ensure there are no obstacles between the scale and the Bluetooth device so as to obtain quality connection.

2. To avoid interference, other electronic devices (particularly those with

Bluetooth transmission / Transmitter) should be kept at least 1 meter away from the scale. Data Transmission When the connection is successful, the measurement data will be automatically transmitted to your device via Bluetooth. The symbol will disappear after successful data transmission and you may check your personal health data stored in your Bluetooth device. If the data transmission fails, the symbol will remain. The pending measurement data will be temporarily kept in the scale and transmitted to your Bluetooth device when next measurement is complete. Successful Bluetooth Connection Data transmitting to wireless wellness system: - If SUCCESSFUL, the symbol disappears; - If UNSUCCESSFUL, the symbol remains.16 17 Error Prompt When Measuring Problem Abnormal measuring results: - Too high; OR - Too low; OR - Huge difference between two recent measurement. Incorrect posture The device is located on a soft surface such as a carpet or rug. Cold body that may results in bad blood circulation. Please place the device on a at, hard surface. Warm up your hands and feet to resume blood circulation and then measure again. Please step on the platform barefooted and stand still. Root Cause Solution Error Overload. The device will power off in four seconds. Low battery. The device will power off in four seconds. Failed to pair up your scale with your bluetooth device Please check the items below: - Bluetooth is ON. - App Collector is ON. - Both devices are within the transmission distance of Bluetooth. Replace all four batteries at the same time. Please purchase the authorized batteries for replacement. Stop using this scale for measurement. Description Solution When Data Transmitting Problem Abnormal measuring results: - Too high; OR - Too low; OR - Huge difference between two recent measurement. No display on LCD when the device powers on. CANNOT proceed to analyze body fat, total body water, muscle mass and bone mass. The device powers off automatically. Data transmission failed. Problem Root Cause Solution Cold electrodes Place the device in a warm room for a while and then measure again Either your hands or your feet are too dry Batteries not yet installed Install the batteries. (Please refer to Insert the Batteries) Replace all four batteries in the same time. Please purchase the authorised batteries for replacement. Worn batteries Step onto the platform wearing socks or shoes. Low battery Bluetooth is OFF Turn ON the Bluetooth via “Setting >> General >> Bluetooth”. Press the icon to turn ON your app. Place your Bluetooth device closer to the scale. The App is OFF Out of range of Bluetooth transmission Replace all four batteries in the same time. Please purchase the authorised batteries for replacement. Please use barefooted and keep full contact with the electrodes during the measurement. Wipe your feet with a damp cloth, keeping them slightly damp when starting measurement. Root Cause Solution18 19 Specications About the Accuracy of This Product This product passes strict inspection before delivery and therefore its accuracy is guaranteed by the manufacturer. Please refer to the above table for the descriptions on accuracy. This product is specially designed for body fat analysis as well as weight measurement. It should NOT be used by anyone during the process of transaction for verication of goods’ weight. Product Name Dimension Net Weight Display Measurement Unit Measurement Range Division Accuracy Working Environment Storage Environment Power Source Auto-ON SENSE ON technology 8 to 12 seconds after clearing Otherwise, 13-17 seconds after last operation

Continuous Operation IPX0

Accessories Mode of Operation Protection Against Ingress of Water Software Version Auto-OFF 6V (Four AAA-size Batteries) Temperature: 0℃ to 40℃ Humidity: ≤90% RH Temperature: -20℃ to 60℃ Humidity: 10%RH to 93% RH Approximately 1.75kg ( Excluding the dry cells) Digital LCD with White Backlight V.A.=94mm(L) x 52mm(W) Kilogram / Stone/ Pound 5kg to 180kg / 0st: 11lb to 28: 5lb / 11lb to 396lb 0.1kg / 0.2lb 0-50kg: ±0.3kg; 100-150kg: ±0.5kg; 50-100kg: ±0.4kg; 150-180kg: ±0.7kg Glass Body Fat Analyzer (BS901) Scale: 320x330x27.5mm Panel: 320x330x6mm Maintenance Please follow the following steps for correct mainenance of your scale: DO use a dry soft cloth to wipe the dust. DO use a dry soft cloth to dry the device. DO NOT wash the device with water or immerse it in water. DO NOT use propellant, abrasive or other chemicals. DO NOT disassemble this device. If you have any problems please contact our customer support. (Please refer to Warranty for contact information) FCC Regulations FCC User Guide Information Radio Frequency Interface Requirements - FCC Note: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna; Increase the separation between the equipment and receiver; Connect the equipment into an outlet on a circuit different from that to which the receiver is connected; Consult the dealer or an experienced radio / TV technician for help.20 21 Radio Transmitters (Part 15) This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Changes or modications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. FCC RF Exposure Guidelines Safety Information Reducing RF Exposure - Use Properly Only operate the device in accordance with the instructions supplied. This device complies with FCC radiation exposure limits set forth for an uncontrolled environment. In order to avoid the possiblity of exceeding the FCC radio frequency exposure limits, human proximity to the antenna shall not be less than 20 cm (8 inches) during normal operation. Table of Body Fat Level (Unit: %) Man / Sportsman Age 20-29 30-39 40-49 <13 13.1-20 20.1-23 >23 <19 19.1-28 28.1-31 >31 14.1-21 21.1-24 >24 <20 20.1-29 29.1-32 >32 16.1-23 23.1-26 >26 <22 22.1-30 30.1-33 >33 <14 <16 50-59 17.1-24 24.1-27 >27 <23 23.1-31 31.1-34 >34<17 60+ 18.1-25 25.1-28 >28 <24 24.1-32 32.1-35 >35<18 Low Normal High V. High Low Normal High V. High Woman / Sportswoman Fat is essential for the human body. It can not only store energy and protect viscera, but also regulate body temperature and maintain the normal physiological function of human body. However, too much body fat is harmful to human body. It can be accompanied by Fatty Liver, diabetes, coronary heart disease, etc. Therefore self-measuring and self-monitoring body fat level are benecial to your health. Since we cannot judge body fat level simply by our weight, this body fat analyzer BS901, with BIA (Bio-impedance Analysis) technology applied, is an accurate device that offers a quick and comfortable way to obtain your body fat level. Table of Body Water Level (Unit: %) Source: Derived fr. Wang & Deurenberg: “Hydration of fat-free body mass”. American Journal Clin Nutr 1999, 69833-841 Health Tips - About Body Fat R&TTE Declaration of Conformity (DoC) Hereby, Guangdong Transtek Medical Electronics Co., Ltd, declares that this BS901 is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC. The declaration of conformity may be consulted at http://www.transtek.cn/DoC.pdf. Gender Men Women Body Fat Percentage Range Optimal Total Body Water Percentage Range 4-14 70-63 15-21 63-57 22-24 57-55 ≥25 55-37 4-20 70-58 21-29 58-52 30-32 52-49 ≥33 49-3722 23 EMC Guidance Table 1 – Guidance and MANUFACTURER’S declaration – ELECTROMAGNETIC EMISSIONS – for all ME EQUIPMENT and ME SYSTEMS Table 2 – Guidance and MANUFACTURER’S declaration – electromagnetic IMMUNITY – for all ME EQUIPMENT and ME SYSTEMS

Guidance and manufacturer’s declaration – electromagnetic emissionsThe BS901 is intended for use in the electromagnetic environment specied below. The customer or the user of the BS901 should assure that it is used in such an environment.Emission test ComplianceGroup 1Class BNot ApplicableNot ApplicableRF EmissionCISPR 11RF EmissionCISPR 11Harmonic emissions IEC 61000-3-2Voltage uctuations/ icker emissions IEC 61000-3-3 Electromagnetic environment – guidanceThe BS901 uses RF energy only for its internal function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment. The BS901 is intended for use in the electromagnetic environment specified below. The customer or the user of the BS901 should assure that it is used in such an environment . Guidance and manufacture’s declaration – electromagnetic immunity Immunity test ±6 kV contact±8 kV air ±6 kV contact±8 kV air ±2 kV for power supply lines Not applicableNot applicableNot applicable±1 kV line(s) to line(s)<5% U (>95% dip in U

for 0.5 cycle40% U (60% dip in U

for 5 cycles70% U (30% dip in U

for 25 cycles<5% U (>95% dip in U

for 5 sec 3A/m NOTE U is the a.c. mains voltage prior to application of the test level. IEC 60601test levelCompliancelevel Electrostatic discharge (ESD)

Electromagnetic environment - guidance Floors should be wood, concrete or ceramic tile. If floor are covered with synthetic material, the relative humidity should be at least 30%. Power frequency magnetic fields should be at levels characteristic of a typical location in a typical commercial or hospital environment. 3A/m Power frequency (50Hz) magnetic field IEC 61000-4-8 Voltage dips, short interrup- tions and voltage variations on power supply input lines IEC 61000-4-11 Electrical fast transient/burst

Surge IEC 61000-4-524 25 Table 4 Guidance and manufacture’s declaration – electromagnetic immunity –for ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reection from structures, objects and people. a Field strengths from xed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile radios, amateur radio, AM Guidance and manufacture’s declaration – electromagnetic immunityImmunity TestIEC 60601Test LevelConducted RFIEC 61000-4-63 Vrms 150 kHz to 80 MHz3 Vrms3 V/m 80 MHz to 800 MHz 800 MHz to 2.5 GHzPortable and mobile RF communications equipment should be used no closer to any part of the BS901, including cables, than the recommended separation distance calculated from the equation applicable to the frequency of the transmitter.Recommended separation distance d = 1.167d = 1.167d = 2.333where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer and d is the recommended separation distance in metres (m). Field strengths from xed RF transmitters, as determined by an electromagnetic site survey,a should be less than the compliance level in each frequency range. Interference may occur in the vicinity of equipment marked with the following symbol:3 V/m 80MHz to 2.5 GHzRadiated RFIEC 61000-4-3Compliance LevelElectromagnetic environment - guidanceThe BS901 is intended for use in the electromagnetic environment specied below. The customer or the user of the BS901 should assure that it is used in such an environment. and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To assess the electromagnetic environment due to xed RF transmitters, an electromagnetic site survey should be considered. If the measured eld strength in the location in which the BS901 is used exceeds the applicable RF compliance level above, the BS901 should be observed to verify normal operation. If abnormal performance is observed, additional measures may be necessary, such as reorienting or relocating the BS901. b Over the frequency range 150 kHz to 80 MHz, eld strengths should be less than 3 V/m. Table 6 – Recommended separation distances between portable and mobile RF communications equipment and the ME EQUIPMENT or ME SYSTEM – for ME EQUIPMENT and ME SYSTEMS that are not LIFE-SUPPORTING

150 kHz to 80 MHz d = 1.167 80 MHz to 800 MHz d = 1.167 800 MHz to 2.5 GHz d = 2.333 Recommended separation distances betweenportable and mobile RF communications equipment at the BS901 The BS901 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The customer or the user of the BS901 can help prevent electromagnetic interference by maintaining a minimum distance between portable and mobile RF communications equipment (transmitters) and the BS901 as recommended below, according to the maximum output power of the communications equipment. Rated maximum output power of transmitter (W) Separation distance according to frequency of transmitter (m)

For transmitters rated at a maximum output power not listed above, the recommended separation distance d in meters (m) can be estimated using the equation applicable to the frequency of the transmitter, where P is the maximum output power rating of the transmitter in watts (W) according to the transmitter manufacturer. NOTE 1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and reflection from structures, objects and people.26 27 1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are oered with a 1 year guarantee under the following conditions:

1. The product must be returned to the retailer with original proof of purchase.

2. The product must be installed and used in accordance with the instructions contained in this

3. It must be used only for domestic purposes.

4. It does not cover wear and tear, malicious damage, misuse, neglect, inexpert repairs or con-

5. Shine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.

6. Shine-Mart Ltd are not liable to carry out any type of servicing work, under the guarantee

7. Valid in the UK only

150 kHz to 80 MHz d = 1.167 80 MHz to 800 MHz d = 1.167 800 MHz to 2.5 GHz d = 2.333

150 kHz to 80 MHz d = 1.167 80 MHz to 800 MHz d = 1.167 800 MHz to 2.5 GHz d = 2.333

150 kHz to 80 MHz d = 1.167 80 MHz to 800 MHz d = 1.167 800 MHz to 2.5 GHz d = 2.333
