USER MANUAL FS87 Duronic

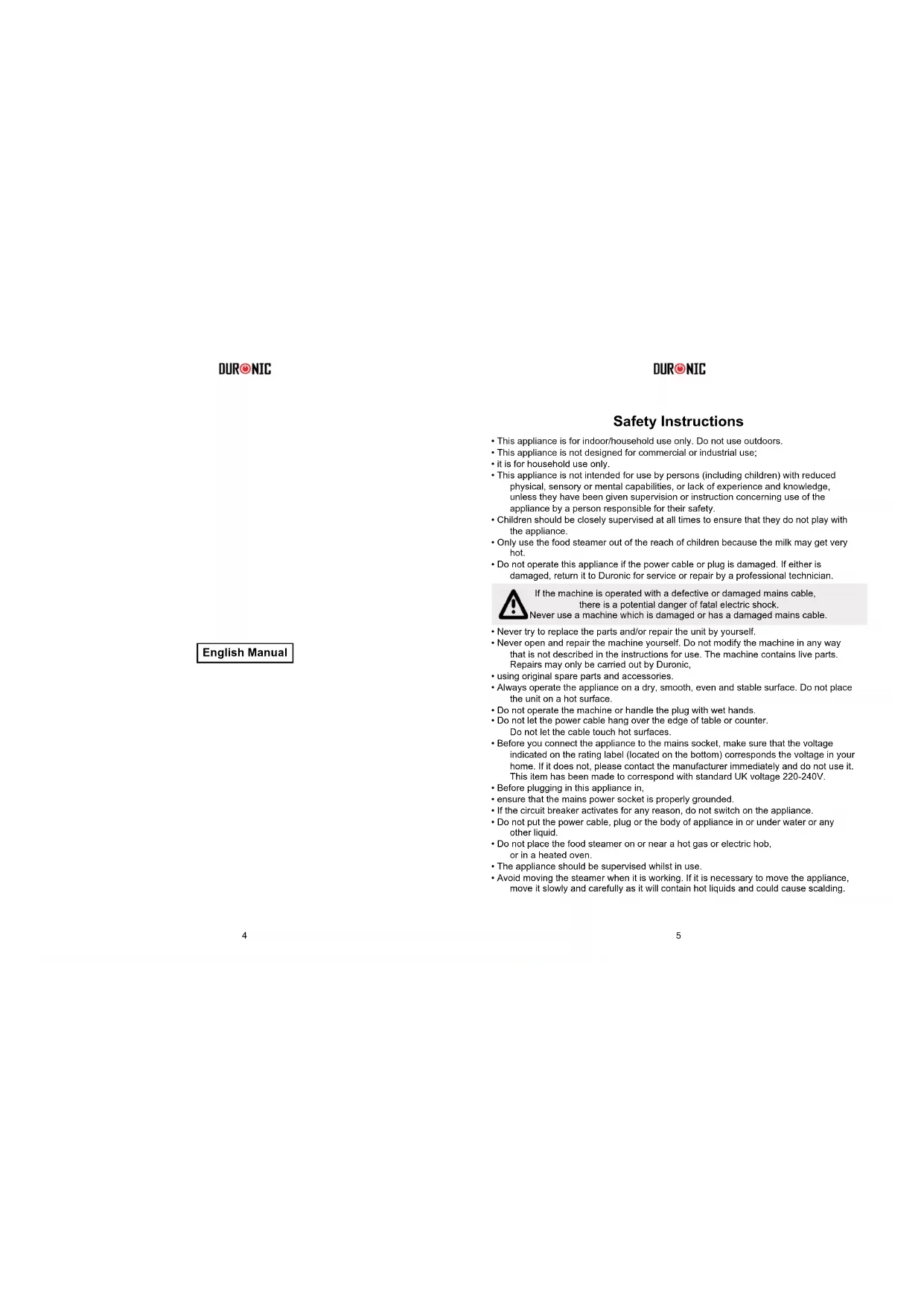

• This appliance is for indoor/household use only. Do not use outdoors.

• This appliance is not designed for commercial or industrial use;

• it is for household use only.

• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.

• Children should be closely supervised at all times to ensure that they do not play with the appliance.

• Only use the food steamer out of the reach of children because the milk may get very hot.

• Do not operate this appliance if the power cable or plug is damaged. If either is damaged, return it to Duronic for service or repair by a professional technician.

• Never try to replace the parts and/or repair the unit by yourself.

• Never open and repair the machine yourself. Do not modify the machine in any way that is not described in the instructions for use. The machine contains live parts. Repairs may only be carried out by Duronic,

• using original spare parts and accessories.

• Always operate the appliance on a dry, smooth, even and stable surface. Do not place the unit on a hot surface.

• Do not operate the machine or handle the plug with wet hands.

• Do not let the power cable hang over the edge of table or counter. Do not let the cable touch hot surfaces.

• Before you connect the appliance to the mains socket, make sure that the voltage indicated on the rating label (located on the bottom) corresponds the voltage in your home. If it does not, please contact the manufacturer immediately and do not use it. This item has been made to correspond with standard UK voltage 220-240V.

• Before plugging in this appliance in,

• ensure that the mains power socket is properly grounded.

• If the circuit breaker activates for any reason, do not switch on the appliance.

• Do not put the power cable, plug or the body of appliance in or under water or any other liquid.

• Do not place the food steamer on or near a hot gas or electric hob, or in a heated oven.

• The appliance should be supervised whilst in use.

• Avoid moving the steamer when it is working. If it is necessary to move the appliance, move it slowly and carefully as it will contain hot liquids and could cause scalding. If the machine is operated with a defective or damaged mains cable, there is a potential danger of fatal electric shock. Never use a machine which is damaged or has a damaged mains cable.6 7

• To avoid any risk of burning, please wear heatproof oven gloves or pot holders when removing the hot lid and food baskets.

• Do not operate the food steamer without water in the container of the body. If it starts to heat up without water , or with not enough water, turn the machine off immediately by turning the dial anticlockwise. Add the correct amount of water before switching back on again.

• Do not ll up the appliance with cold water while it is still hot.

The sudden change in temperature might damage it.

• When the steamer is in use, or just after use, allow it to cool before opening the lid.

ake care as a large amount of steam may escape.

Please be aware, when some parts of the steamer body cool down and feel safe to touch, the water in the body may still be hot.

Do not touch the sides of the baskets and trays after the machine has been on as they will be hot to touch. Use the handles on the sides and the handle on the lid to remove the parts you need.

• When using the steamer, please keep it far away from children. It is especially important as the steamer is a tower of stacked trays, which get hot and full of boiling steam whilst in use. If it is pulled or knocked over it could cause injury, scalding or even electric shock. Proper Use Specications This machine is designed and intended for private domestic use. Instructions It is used to steam and cook food in the containers provided. Use for any other purpose will be deemed improper and will invalidate the warranty. Duronic cannot accept any responsibility for the consequences of improper use. People, including children, who do not have the physical, sensory or mental capabilities to use the machine safely or are inexperienced or lack knowledge in how to use the machine safely must be supervised by a responsible person when using it, or must be instructed in how to use it correctly. Make sure you read and are familiar with the guidance in this booklet which outlines how to use your appliance correctly and safely. Model Name Voltage Frequency Wattage FS87 220-240V 50-60Hz 730-870W Before First Use

• Carefully remove all parts of the FS87 steamer from the packaging. Lay out the parts so that you can see clearly if any parts are missing or damaged.

• Use a damp cloth to wipe clean the water tank/body, then wipe dry with a dry cloth.

ake care to never immerse the body, power cable or plug in water or any other liquid.

• To avoid risk of electric shock, do not let moisture come into contact with the plug or power cable at any time.

Wash all the baskets, food trays, drip tray and the lid in warm soapy water. Dry thoroughly before use. How to Use

Place the body of the steamer onto a at, stable surface near an easily accessible plug socket.

Carefully ll the water tank up to the required level using a jug. Using the water level window to guide you, do not overll the tank past the MAX mark, or underll it below the MIN mark.

Place the steam cap into the centre of the steamer, and then place the drip tray on top.

Next, add the baskets you need. The baskets are numbered on the handles to make it easy to assemble correctly. Place basket 1 onto the drip tray ensuring it is sitting in place properly.

If you only have enough food to ll one basket, place the lid on top. If you need to add more food, use basket on top of basket

6. According to how much food you want to cook, stack the baskets as shown above and

Plug in the steamer and turn the machine on. Rotate the timer dial clockwise to your desired time. If you are unsure how long to put the timer for, skip ahead to the section titled ‘Cooking Guide’.

8. Once the timer has been set the steamer will start cooking.

9. If you need to stir the food halfway through cooking, lift the lid carefully to avoid any

steam that will billow out of the baskets.

10. If the water level gets too low during cooking, use a jug to slowly add warm/hot water

through the grooves/ the two handles on both sides of the body. If you add cold water it will lower the temperature inside the steamer and so the food will take longer to cook.8 9

11. When the timer nishes the machine will sound an alarm to let you know it has

nished. It will automatically switch off and stop cooking.

12. Switch off the power and unplug the steamer.

13. Allow the hot machine to cool for a few seconds before opening.

14. Wearing oven gloves, carefully remove the lid by holding the handle, taking care to

avoid the hot steam escaping. Allow the steam to clear before removing the baskets.

15. Remove each basket one-by-one, ensuring you hold them by the handles and place

them down onto a heatproof surface. Allow the steam to clear, then remove the baskets and serve the food.

16. After you have emptied the steamer, leave it to cool down thoroughly.

Once cooled, empty the water tank by pouring the remaining water and uids into the sink. Wipe clean the inside of the tank, then wind the power cable around inside the base for storage. Useful Tips

• Steaming times stated in the Cooking Guide are only a guide. Cooking times may vary depending on size of the food pieces, spacing of the food in the steamer baskets, quantity of food, freshness of food and personal preference to how well done you want something. As you become familiar with the steamer and the way it works, simply adjust the cooking times as necessary.

• A single tray of food steams faster than with 2 or 3 bowls used at the same time. Therefore, the more food you cook the longer you will need to cook it for.

• The smaller you cut the food, the quicker it will cook. Larger pieces of food will take longer, so try to make sure all the different foods are made to be similar in size.

• Do not over-ll or crowd the food baskets or rice bowl. Try to arrange food so that it is spread out and has space between the pieces to allow for the maximum steam to reach the food.

• Fat will naturally drain away from meat and poultry whilst cooking. However, for best results use small portions and trimming excess fat off beforehand.

• Always check food is piping hot and cooked through before serving. If the food seems uncooked or needs more time, simply put it back into the steamer and set the timer dial again to cook it for longer. Cooking Guide The cooking times below are to be used as a guide and should be adjusted according to the size you have cut the food, the basket/tier they are on and your personal preference on how you prefer your food to be. Rice Tray For cooking rice and other grains Basket 3 Ideal for vegetables and other foods Basket 2 Ideal for vegetables and other foods Basket 1 Ideal for meats and sh - any foods that may drip juices Drip Tray Collection juices and fat from food Food Weight Time Chicken 2cm pieces 500g 20 min Drumsticks Whole 600g 40 min Ribs 2cm Thickness 500g 20 min Fish Whole 500g 20 min Slices of sh meat 2cm Thickness 300g 8 min Broccoli Small pieces 300g 13 min Cabbage Small pieces 300g 12 min Potatoes 2cm thickness 300g 25 min Sweet corn Whole cobs 800g 45 min Rice Placed in rice tray Rice 250g + water 300ml 30 min10 11 Warranty 1 Year Guarantee from Shine-Mart Ltd, Trademark owners of Duronic Products. NOTE: THESE STATEMENTS DO NOT AFFECT YOUR STATUTORY RIGHTS AS A CONSUMER This product has been manufactured under the strictest or quality control procedures, and using the highest quality of materials, to ensure excellent performance and reliability. It will give very good and long lasting service, provided it is properly used and maintained. The product is guaranteed for 1 years from the date of original purchase. If any defect arises due to a faulty materials or poor workmanship, the faulty product must be returned to the original place of purchase. Refund or replacement is at the discretion of that company. Duronic Products are offered with a 1 year guarantee under the following conditions:

. The product must be returned to the retailer with original proof of purchase.

. T he product must be installed and used in accordance with the instruction

ontained in this operating manual.

. I t must be used only for domestic purposes.

. I t does not cover wear and tear, malicious damage, misuse, neglect

inexpert repairs or consumable parts.

. S hine-Mart Ltd has no responsibilities for accidental or consequential loss or damage.

. S hine-Mart Ltd are not liable to carry out any type of servicing work

7. Valid in the UK only

Imported by Shine-Mart Ltd, RM3 8SB Information on waste Disposal for Consumers of Electrical & Electronic Equipment. This mark on a product and/or accompanying documents indicates that when it is to be disposed of, it must be treated as Waste Electrical & Electronic Equipment, (WEEE). Any WEEE marked products must not be mixed with general household waste, but kept separate for the treatment, recovery and recycling of the materials used. For proper treatment, recovery and recycling; please take all WEEE marked waste to your Local Authority Civic waste site, where it will be accepted free of charge. If customers dispose of Waste Electrical & Electronic Equipment correctly, they will be helping to save valuable resources and preventing any potential negative effects upon human health and the environment, of any hazardous materials that the waste may contain. Giving the baskets a deep clean The stainless-steel bases of the 3 baskets can be removed for cleaning. To do this, simply push the tabs on the outside of the base inwards and push the base out of the basket.

ash with warm soapy water and dry thoroughly. To re-t the base, slot back into the basket and align the studs and holes on the base and basket. Gently push down on the base until the tabs fasten over the sides of the basket. Cleaning and Maintenance

• Before cleaning, always ensure that the steamer has been switched off and unplugged from the mains socket.

Disassemble the unit by removing each basket, the drip tray, the steam cap and lid.

• W ash all the baskets, food trays, drip tray and the lid in warm soapy water. Dry thoroughly before storing away.

To clean the electric base, use a well-wrung damp cloth to carefully wipe over the surface and inside the water tank. Ensure you dry it thoroughly immediately afterwards. NEVER IMMERSE THE BODY, POWER CABLE OR PLUG IN WATER.

Do not use abrasive cleaning materials like scourers or scrubbing brushes on the FS87 steamer or its parts.

Do not use abrasive chemical cleaners on the exterior or interior of the machine. Only wash the tray , lid and baskets with washing-up liquid and water.

Always store the machine and its parts in a safe place out of reach of children.
