12x27.5x26 - Sewing machine Hema - Free user manual and instructions

Brand	Hema
Model	12x27.5x26
Product type	Sewing machine
Power supply	Mains adapter 100-240 V AC, 50/60 Hz, 0.35 A max, output 6 V DC, 1200 mA, 7.2 W; or 4 AA batteries (LR6 or HR6 rechargeable)
Number of stitches	12
Stitch types	Straight, zigzag, manual buttonhole, etc. (12 patterns)
Reverse sewing	Yes, via reverse sewing button (stitches 1 to 4)

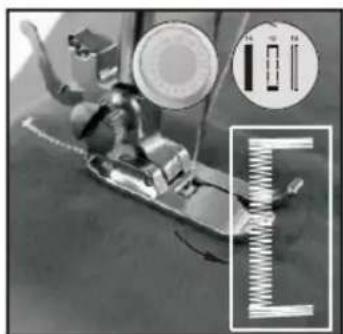

Buttonhole	Manual, with stitches 7 and 8
Sewing speed	2 speeds (L/H) via switch, or pedal
Work light	Yes, dedicated switch (not user-replaceable)
Thread cutter	Integrated

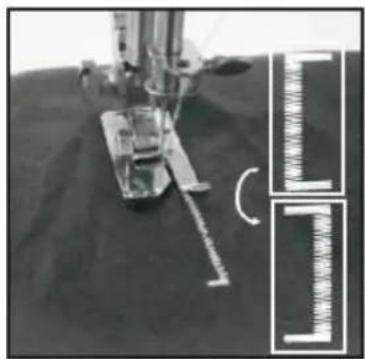

Free arm	Yes, for sleeve sewing
Storage drawer	Yes, for accessories
Needle type	Universal 90/14
Bobbin type	Metal (required for magnetic holder)
Presser foot	Removable, lever lock
Safety	Turn off and unplug before maintenance; do not use if damaged; do not leave unattended
Maintenance	Regular cleaning, change needle as needed
Warranty	2 years from date of purchase
Repairability	At HEMA store only; do not repair yourself
Recycling	Compliant with WEEE (Waste Electrical and Electronic Equipment)

Frequently Asked Questions - 12x27.5x26 Hema

How to thread the upper thread?

Turn the handwheel to raise the needle to its highest position. Place a spool on the spool pin. Pull the thread through the tension disk of the winder, then into the groove towards the chrome thread take-up lever. Pass the thread through the hole in the lever, then through the needle clamp hole and finally through the eye of the needle from front to back. Pull about 10 cm of thread to the rear.

How to replace the bobbin?

Turn off the machine and unplug the adapter. Slide the bobbin cover button to the right and remove the cover. Place a new metal bobbin with the thread winding clockwise, leaving 10 cm of thread hanging. Make a loop and pass it under the needle. Turn the handwheel to bring up the bobbin thread. Replace the cover and pull both threads to the rear about 15 cm.

How to change the needle?

Turn off the machine and unplug. Turn the handwheel to raise the needle to its highest position. Loosen the needle clamp screw, remove the old needle. Insert the new universal needle 90/14 with the flat side to the back, push it all the way up and tighten the screw.

How to adjust the upper thread tension?

If the bobbin thread forms a straight line, the upper thread is too loose: turn the tension selector to a higher number. If the upper thread forms a straight line, the upper thread is too tight: turn to a lower number. Normal stitching should show a balanced interlocking of the threads.

How to use reverse stitching?

Sew forward normally, then press the reverse sewing button (on the front of the machine) and hold it to sew backwards. Release to sew forward again. This function is available for stitches 1 to 4.

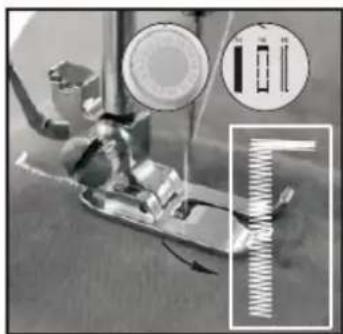

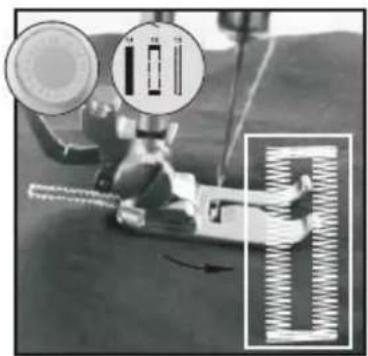

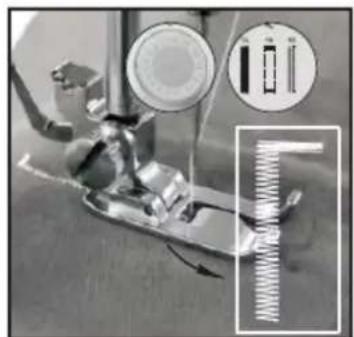

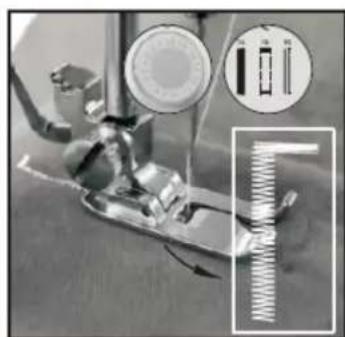

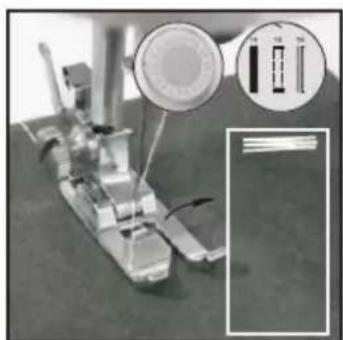

How to make a manual buttonhole?

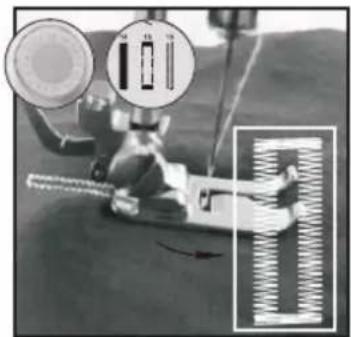

Place the fabric under the presser foot. Select stitch 8, sew 5-6 stitches at low speed, then turn off. Switch to stitch 7, sew the desired length, turn off. Return to stitch 8, sew 5-6 stitches, then raise the foot and rotate the fabric 180°. Choose stitch 7 again and sew until completely closed.

How to choose the sewing speed?

Slide the power switch to 'L' for low speed or 'H' for high speed. You can also use the pedal, but not simultaneously with the switch. Low speed is recommended for beginners.

What to do if the thread tangles or jams?

Turn off the machine. Gently turn the handwheel while lightly pulling the thread to release it. Do not push or pull the bobbin case mechanism with a finger or tool, as it is fragile. If the problem persists, check the threading.

How to clean the sewing machine?

Turn off the machine and unplug the adapter. Remove the pedal. Use a soft cloth to clean the exterior. Do not open the housing. Internal cleaning should be done by a HEMA professional.

What type of batteries to use?

Use 4 AA batteries (LR6 alkaline or HR6 rechargeable). Insert them into the compartment under the machine. Remove the batteries if using the mains adapter. Ensure the switch is off when inserting or removing.

USER MANUAL 12x27.5x26 Hema

Instructions for use

Sewing Machine DC 6V 1200mA

Gebrauchsanleitung

Nähmaschine DC 6V 1200mA

Instruction manual – English ...... - 27 -

Labeled diagram of a sewing machine with numbered parts for identification

DE VOETPEDAAL (A) EN ADAPTER (B) GEBRUIKEN

White sewing machine with attached black electrical plug and labeled parts A and B (no text or symbols on the device itself)

DE BATTERIJEN INSTALLEREN

White electronic device with a black battery pack and two side ports (no visible text or symbols)

DE NAALD VERVANGEN

Close-up of a sewing machine needle being adjusted, no visible text or symbols

Fig.1

Close-up of a sewing machine needle being adjusted, with a 90-degree angle indicator (no text or symbols on the device itself)

Fig.2

DE NAAIVOET VERVANGEN

Close-up of a hand holding a small metallic object with a curved tool, next to a small mechanical component (no visible text or symbols)

Fig.3

Close-up of a sewing machine needle stitching fabric, no visible text or symbols

Fig.4

Close-up of a sewing machine needle and base mechanism with a hand adjusting the hook (no visible text or symbols)

Fig.5

Close-up of a sewing machine needle stitching metal components (no visible text or symbols)

Fig.6

DE NAAIMACHINE VAN DRAAD VOORZIEN

Diagram of a sewing machine with numbered parts and close-up insets showing fabric cutting steps

Close-up of a hand operating a small mechanical device with a handle and base (no visible text or symbols)

Fig.7

Close-up of a hand holding a mechanical component with a black base and circular holes, labeled Fig.8 (no text or symbols on the object itself)

Close-up of a sewing machine needle and base with a magnified inset showing a close-up of the needle (no visible text or symbols)

Fig.9

Close-up of a sewing machine needle and clasp mechanism (no visible text or symbols)

Fig.10

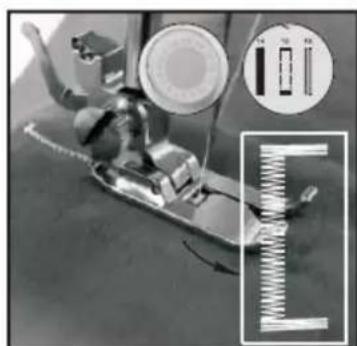

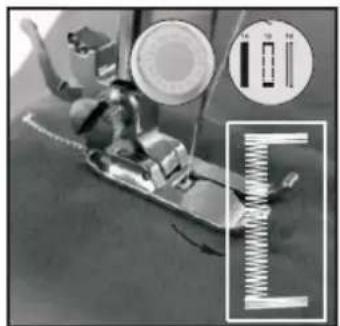

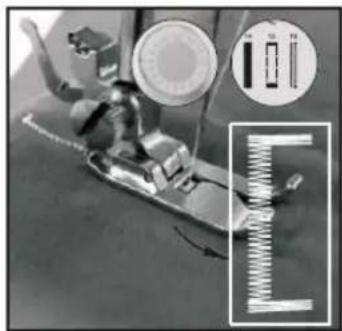

NAAIEN

Close-up of a sewing machine needle stitching fabric (no visible text or symbols)

Fig.11

Close-up of a sewing machine needle stitching fabric, labeled Fig.12 (no other text or symbols visible)

OFF L H

Fig.13

Fig.14

EIGENSCHAPPEN

Mechanical device with circular components and a magnified inset showing internal measurement scales (no visible text or symbols)

Fig.15

Close-up of a sewing machine with mechanical components and a close-up inset showing a spring mechanism (no visible text or symbols)

Fig.16

Mechanical device with attached circular component and magnified inset showing internal components (no visible text or symbols)

Fig.17

Close-up of a sewing machine needle stitching on fabric, with two side-view diagrams showing measurement markings (no text or symbols present)

Fig.18

Mechanical assembly with a spring scale and circular components, no visible text or symbols

Fig.19

White plastic container with cylindrical objects inside, no visible text or symbols

DE SPOEL OPWINDEN

Close-up of a black cylindrical object with two circular insets showing hand positioning (no text or symbols visible)

Fig.20

Pure mechanical assembly diagram without any text, numbers, or symbols

Fig.21

Close-up of a white electronic device with a circular component and an arrow pointing to it (no visible text or symbols)

Fig.22

Close-up of a sewing machine needle stitching a small circular component (no visible text or symbols)

Fig.23

Close-up of a kitchen sink with a hand presser and a magnified inset showing the button (no text or symbols visible)

Fig.24

Close-up of a hand holding a small mechanical component with an arrow pointing to it (no visible text or symbols)

Fig.25

STEKEN AANPASSEN

Simple line drawing of a train or container with five wheels (no text or symbols)

Fig.B

Simple line drawing of a rectangular object with rounded ends and horizontal lines, resembling a stylized battery or container (no text or symbols)

Fig.C

GEPASTE KLEDING OM TE NAAIEN

Labeled diagram of a sewing machine with numbered parts for identification

UTILISATION DE LA PÉDALE (A) ET DE L'ADAPTATEUR SECTEUR (B)

White sewing machine with labeled components A and B, shown in a photo without any text or symbols on the device itself.

INSTALLATION DES PILES

White electronic device casing with internal battery pack (no visible text or symbols)

REMPLACEMENT DE L'AIGUILLE

Close-up of a hand using a sewing machine to adjust or install a mechanical component (no visible text or symbols)

Schéma 1 Schéma

Close-up of a sewing machine needle being sewn, with a magnified inset showing 90-degree angle (no text or symbols on the main subject)

REMPLACEMENT DU PIED PRESSEUR

Close-up of a hand holding a small metallic tool with a pointed tip, next to a mechanical component (no visible text or symbols)

Schéma 3

Close-up of a sewing machine needle stitching fabric, no visible text or symbols on the device itself

Close-up of a sewing machine needle stitching metal components, with a hand adjusting the hook (no visible text or symbols)

Schéma 5

Close-up of a sewing machine needle stitching fabric, no visible text or symbols on the device itself

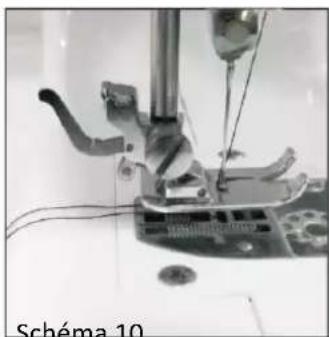

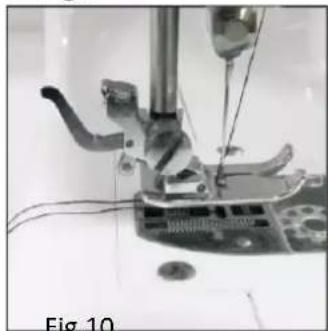

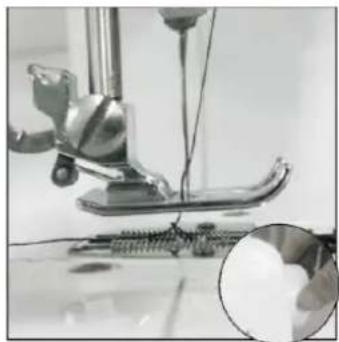

ENFILAGE DE LA MACHINE À COUDRE

Diagram of a sewing machine with numbered parts and close-up insets showing fabric cutting steps

Close-up of a mechanical device with a finger pressing a button (no visible text or symbols)

Schéma 7

Close-up of a hand adjusting a mechanical component with a flange, labeled 'Schéma 8' (no other text or symbols visible)

Close-up of a sewing machine needle stitching metal components, with a magnified inset showing the needle detail (no text or symbols visible)

Schéma 9

Close-up of a sewing machine needle and base mechanism (no visible text or symbols)

COUTURE

Close-up of a sewing machine needle stitching fabric (no visible text or symbols)

Schéma 11

Close-up of a sewing machine needle stitching fabric, labeled 'Schéma 12' at bottom (no other text or symbols visible)

OFF L H

Schéma 13

Schéma 14

CARACTÉRISTIQUES

Mechanical device with circular components and a magnified inset showing internal measurement scales (no visible text or symbols)

Schéma 15

Mechanical assembly with a motor and gear, showing internal components and a magnified inset of a spring mechanism (no text or symbols)

Schéma 16

Close-up of a sewing machine with a circular component and a magnified inset showing internal thread details (no visible text or symbols)

Schéma 17

Close-up of a sewing machine needle stitching on fabric, with measurement tools visible (no text or symbols)

Schéma 18

Mechanical assembly with spring-loaded tool and circular component (no visible text or symbols)

Schéma 19

Close-up of a hand holding a small object with arrows pointing to it, next to a black cylindrical object (no text or symbols visible)

Schéma 20

Close-up of a mechanical component with a cylindrical part and attached bracket (no visible text or symbols)

Schéma 21

Close-up of a white mechanical component with a circular feature and an arrow pointing to it (no visible text or symbols)

Schéma 22

Close-up of a sewing machine needle stitching a circular component (no visible text or symbols)

Schéma 23

Close-up of a kitchen sink with a small white object on top and a magnified inset showing a finger pointing to a surface (no text or symbols visible)

Schéma 24

Close-up of a kitchen sink with a hand operating the button and an arrow pointing to the drain (no text or symbols visible)

Schéma 25

AJUSTEMENT DES POINTS

Simple line drawing of a rectangular object with rounded ends and a horizontal base (no text or symbols)

Schéma B

Simple line drawing of a rectangular object with rounded ends and horizontal lines above it (no text or symbols)

Schéma C
TISSUS APPROPRIÉS À LA COUTURE

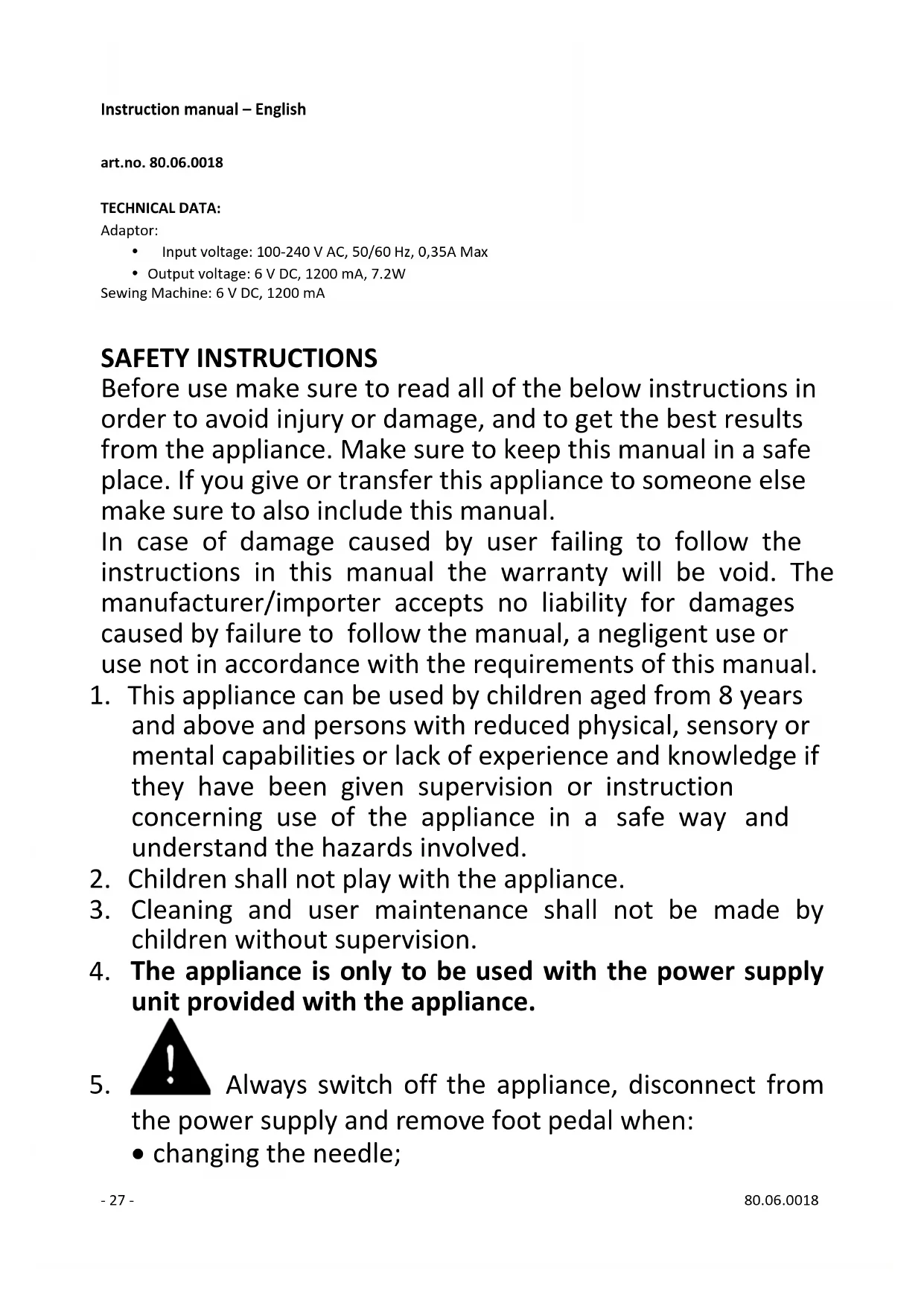

Before use make sure to read all of the below instructions in order to avoid injury or damage, and to get the best results from the appliance. Make sure to keep this manual in a safe place. If you give or transfer this appliance to someone else make sure to also include this manual.

In case of damage caused by user failing to follow the instructions in this manual the warranty will be void. The manufacturer/importer accepts no liability for damages caused by failure to follow the manual, a negligent use or use not in accordance with the requirements of this manual.

1. This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved.

2. Children shall not play with the appliance.

3. Cleaning and user maintenance shall not be made by children without supervision.

4. The appliance is only to be used with the power supply unit provided with the appliance.

5. Always switch off the appliance, disconnect from the power supply and remove foot pedal when:

- changing the needle;

• threading the needle;
• changing bottom bobbin;
• changing any parts;
• inserting or removing batteries;
• cleaning the machine;

• after each use.

• Never run the machine when there's thread in the needle, but no fabric on the machine. This could damage the machine.

• Always keep your hands away from the needle, hand wheel, upper thread tension dial and pattern selection dial when the appliance is running.
• Never attempt to open the housing of the appliance, or to repair the appliance yourself. This could cause electric shock.
• Never leave the appliance unattended during use.
• Switch off or unplug the appliance when leaving it unattended.
• Unplug the appliance before carrying out maintenance.
• This appliance is not designed for commercial use.
• Do not use the appliance outdoors.
• Do not use the appliance for other than intended use.
• Never use the appliance if damaged in anyway.
• Whenever the sewing machine is not in use make sure it is switched off and unplugged from the power supply and remove the foot pedal.
• Keep the machine in a dry and ventilated place.

PARTS IDENTIFICATION

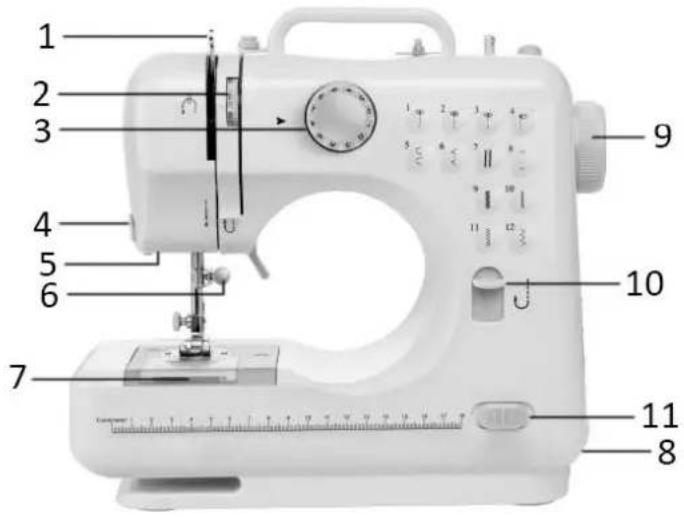

Front view

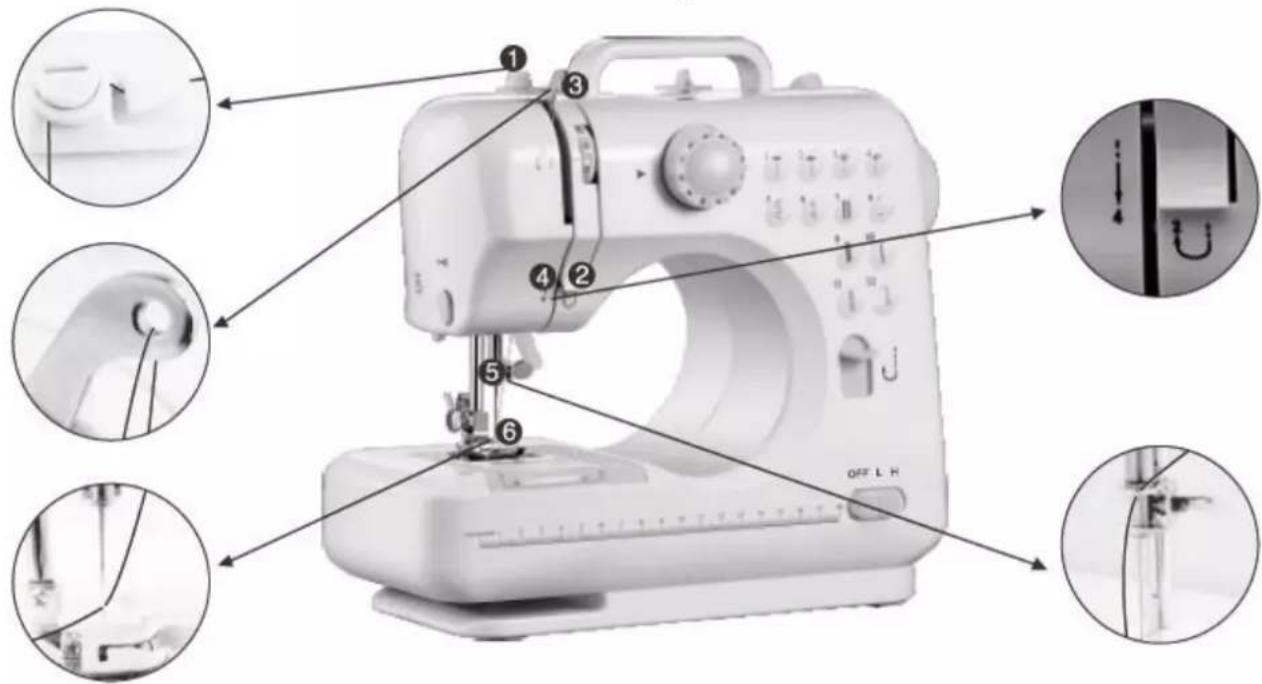

1. Take-up lever
2. Upper thread tension dial
3. Pattern selection dial
4. Thread cuter
5. Light
6. Needle clamp screw
7. Bottom bobbin
8. Drawer
9. Hand wheel
10. Reverse button
11. Power & speed switch

1 2 3 4 5 6 7 8 9 10 11

Labeled diagram of a sewing machine with numbered parts for identification

Back view

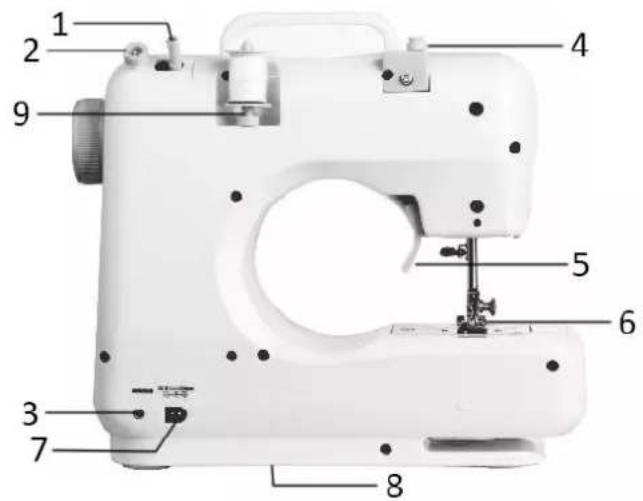

1. Bobbin winder pin
2. Bobbin winder stop
3. Foot pedal input
4. Bobbin winder tension disk
5. Presser foot lifter
6. Presser foot
7. DC input
8. Battery compartment
9. Spindle

USING THE FOOT PEDAL (A) AND ADAPTOR (B)

1. Connect the foot pedal by inserting the jack into the foot pedal input socket. Then you can use the foot pedal to turn on the machine instead of using the hand switch (Power & speed switch).
2. Connect the adaptor's jack to the DC input socket on the back of the machine, and connect the plug to the main power supply.

Caution:

• Make sure the foot pedal is unplugged from the machine when you are not using it, so the sewing machine won't accidentally start up.
• The foot pedal cannot be used together with the power & speed switch. Make sure the switch is placed at the position "OFF".
• There is no speed selection when using foot pedal to control the machine.

White sewing machine with attached power cord and labeled parts A and B (no visible text or symbols on device body)

INSTALLING THE BATTERIES

1. Make sure the "Power & speed switch" is on the position "OFF".
2. Turn the sewing machine over on a flat surface and remove the battery compartment cover.
3. Insert 4xAA batteries (LR6 or recharable HR6) into the compartment and replace the battery cover.

Caution:

• To prevent the accidental start-up of the sewing machine, always make sure that the "Power & speed switch" is on the position "OFF" when inserting or removing the batteries.
• When using the adapter, remember to remove all batteries from the machine.

White electronic device casing with internal components and mounting holes (no visible text or symbols)

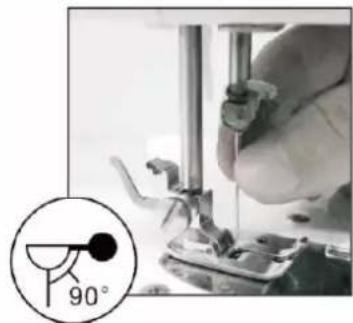

NEEDLE REPLACEMENT

If the needle breaks, or you need a different needle to sew a different kind of fabric, just follow these steps. If you need replacement needles please use universal needles of type 90/14.

Caution:

- To prevent injury from accidentally starting up the machine, make sure to turn off the switch, remove the foot pedal and the adaptor plug first.

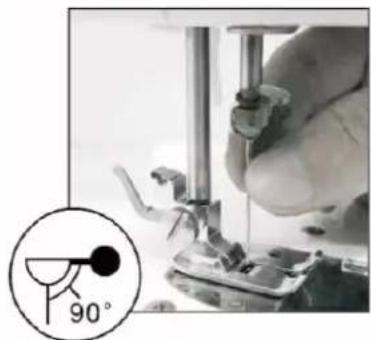

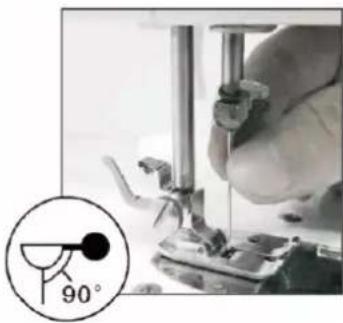

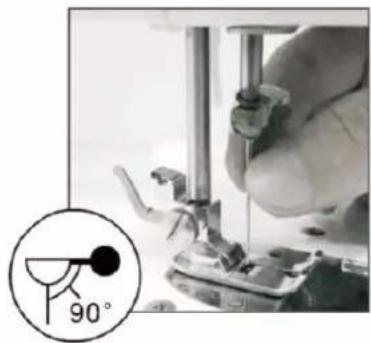

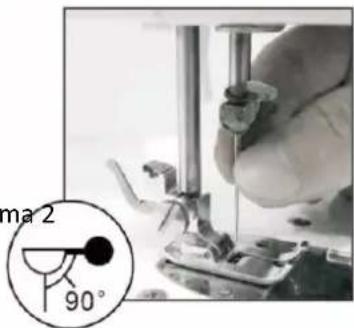

1. Turn the hand wheel to raise the needle to its highest position. Hold the old needle and loosen the needle clamp screw. Remove the old needle and discard it properly. (Fig.1)

2. Insert the new needle into the clamp with the flat side toward the correct direction (to the back). Be sure to push the needle completely into the clamp before tightening the needle clamp screw.

3. Tighten the needle clamp screw.

Caution:

- Needle direction must be correct, and be sure to tighten the thimble screw, to avoid needle falling by accident.

Close-up of a hand using a sewing machine to adjust or install a mechanical component (no visible text or symbols)

Fig.1

Close-up of a sewing machine needle being sewn, with a close-up inset showing a 90-degree angle (no text or symbols on the main subject)

Fig.2

PRESSER FOOT REPLACEMENT

1. Removing the presser foot

Turn the hand wheel counterclockwise to raise the needle to its highest position. Raise the presser foot lifter, and press the presser foot locking lever. The presser foot will drop off automatically from the locking device. (Fig.3; Fig.4)

2. Installing the presser foot

Put the presser foot under the presser foot locking device, lower the presser foot lifter, press the presser foot locking device to reset the foot, and lift the presser foot lifter. (Fig.5; Fig.6)

Caution:

• Always switch off the appliance, disconnect it from the power supply and remove the foot pedal when replacing the presser foot.

- When replacing the presser foot, please place the machine on a stable platform.

- When putting down the presser foot, please do not put your hand or finger under it to avoid injuring fingers.

Close-up of a sewing machine needle being adjusted with a tool, showing mechanical components and a hand holding the tool (no text or symbols visible)

Fig.3

Close-up of a sewing machine needle stitching fabric, no visible text or symbols

Close-up of a sewing machine needle and base mechanism with a hand adjusting the hook (no visible text or symbols)

Fig.5

Close-up of a sewing machine needle stitching fabric, no visible text or symbols

THREADING THE SEWING MACHINE

1. Threading upper thread

Caution:

- Always switch off the appliance, disconnect the appliance from the power supply and remove the foot pedal when threading the machine.

1) Turn the hand wheel to raise the needle to its highest position.
2) Put a spool on the thread spindle, put on the thread spindle cover and then pull out the thread.
3) Pull the thread and let it pass through the bobbin winder tension disk. (mark ① in the pic. below)
4) Guide the thread through the groove and pull it up towards the chromed take-up lever. (marks ② & ③ in the pic. below)
5) Feed the thread through the hole in the chromed lever and pull it straight down towards the needle. (marks ④ & ⑤ in the pic. below)
6) Turn on the working light for better visibility.
7) Feed the thread through the hole in the needle holder, then through the eye of the needle from the front side to the back and pull out 10cm to the back. (mark ⑥ in the pic. below)

Diagram of a sewing machine with numbered parts and close-up insets showing fabric application steps

2. Replacing the bottom bobbin

1) Slide the bobbin cover button to the right and remove the bobbin cover (Fig.7).
2) Put the new bobbin in the holder, with the thread going clockwise. Leave 10cm of thread hanging out (Fig.8).
3) Make a loop and put it in the hole under the needle.
4) Hold the end of the upper thread with one hand, and turn the hand wheel counterclockwise with the other hand, the needle thread will pick up the bobbin thread and pull it up through the hole under the needle (Fig.9).
5) Replace the bobbin cover and separate the two threads and pull them to the back of the machine under the presser foot, leaving about 15cm hanging there. (Fig. 10)

Caution:

• Always switch off the appliance, disconnect it from the power supply and remove the foot pedal when replacing the bottom bobbin.
- Please use metal bobbins, otherwise the magnetic holder cannot tense the bobbin thread and work rightly.

Close-up of a mechanical device with a finger pointing at it, no visible text or symbols

Fig.7

Close-up of a hand holding a mechanical component with a flanged circular feature, labeled 'Fig. 8' (no readable text or symbols on the object itself)

Fig.8

Close-up of a sewing machine needle stitching fabric, with a magnified inset showing the needle detail (no text or symbols visible)

Fig.9

Close-up of a sewing machine needle and foot assembly (no visible text or symbols)

Fig.10

SEWING

1. Turn the hand wheel counterclockwise to raise the needle to its highest position.
2. Raise the presser foot lifter and place the fabric you want to sew under the presser foot (Fig.11).
3. Lower the presser foot. (Fig.12).
4. Rotate the pattern selection dial to select the stitch pattern you wanted.

Caution:

• Before you change the stitch pattern, please turn off the switch and turn the hand wheel to raise the needle all the way up so it doesn't get stuck and bent.

• Changing the stitch pattern is not allowed when the machine is running, otherwise the needle and/or machine may damage.

• Turn the hand wheel several times to make sure there is no jamming in the stitches.

• Slide the power switch to the position "L" (meaning low speed) or "H" (meaning high speed), and the machine will automatically start sewing. We recommend the low speed for beginners (Fig.13).
• When you finish the sewing, turn off the switch, unplug the adapter, turn the hand wheel to raise the needle all the way up, lift the presser foot, and then gently remove the fabric from the sewing machine, and cut the thread with the thread cutter (Fig.14).

Tips:

• Please turn the hand wheel if it is difficult to remove the fabric, and then pull out the fabric gently.

- If the thread had tangled or jammed, please turn the hand wheel and simultaneously pull the thread slightly to release the thread. Bottom bobbin mechanism is a more precise part, inappropriate actions may damage it. Please to not push or pull it by finger or any tools.

Close-up of a sewing machine needle stitching fabric (no visible text or symbols)

Fig.11

Close-up of a sewing machine needle stitching fabric (no visible text or symbols)

OFF L H

Fig.13

Fig.14

FEATURES

1. Selection of stitch pattern

Rotate the pattern selection dial to select one pattern you want from the 12 stitch patterns. There are pattern illustrations on the surface of machine body for your reference.

Caution:

• Before you change the stitch pattern, please turn off the switch and turn the hand wheel to raise the needle all the way up so it doesn't get stuck and bent.
• Changing the stitch pattern is not allowed when the machine is running, otherwise the needle and/or machine may damage.

2. Reverse sewing

Reverse sewing (back stitching) is useful for reinforcing the beginning and end of seams. To use this function proceed as follows:

1) Sew forwards as normal, and then press and hold down the reverse stitch button on the front of the sewing machine to sew backwards.
2) To sew forwards again simply release the reverse stitch button.

Note: Reverse sewing is applicable only to stitch patterns 1 to 4.

3. Setting the sewing speed

Slide the power switch to "L" or "H" position. ("L" = low speed; "H" = High speed)

4. Working lamp

If additional light is needed, press the light switch to turn the light on. Press the switch again to turn it off. The working lamp cannot be replaced yourself.

5. Thread cutter

The machine has a thread cutter on the central left side of the machine, it can cut off the thread after sewing

or winding thread.

Close-up of a sewing machine needle stitching fabric (no visible text or symbols)

6. Sewing sleeves

This sewing machine has been designed to sew sleeves or any narrow openings in garment. Lift the presser foot. Position the garment over the sewing arm. Lower the presser foot and follow the regular sewing instructions.

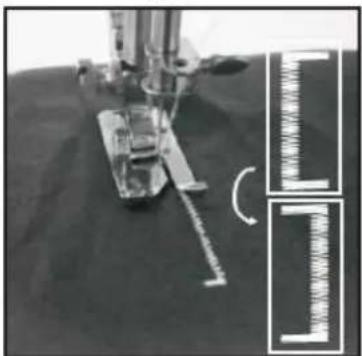

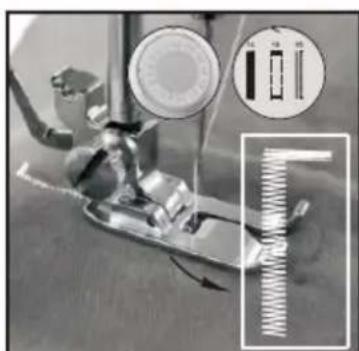

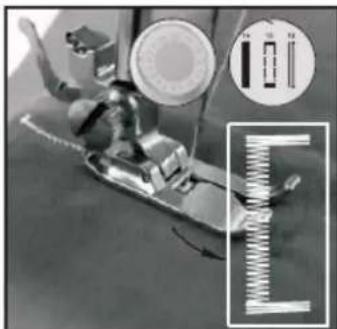

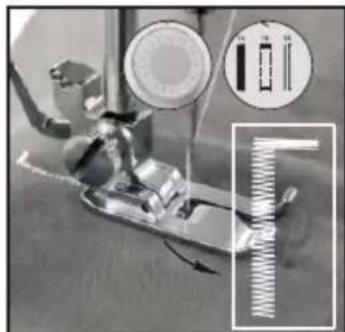

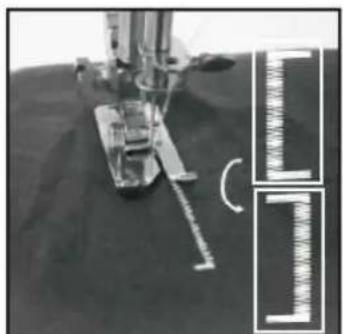

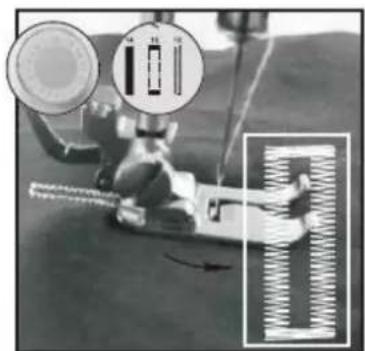

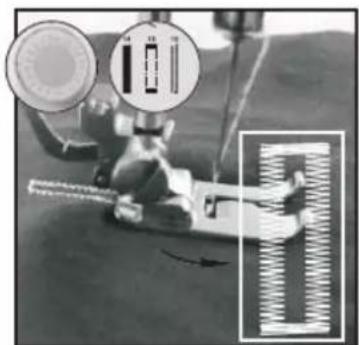

7. Manual buttonhole

1) Pull the cloth under the presser foot and lower the presser foot on the cloth where you need to sew buttonhole, then choose the 8 ^th stitch.
2) Turn on the switch and sew 5-6 stitches in low speed, then turn off the switch (Fig.15).
3) Choose the 7^th stitch, turn on switch and sew on the cloth in suitable length, then turn off switch. Note that try to keep sewed stitches in straight line (Fig.16).
4) Choose the 8^th stitch, then turn on switch and sew 5-6 stitches in low speed, then turn off switch (Fig.17).
5) Raise the presser foot, rotating the cloth for 180° (Fig.18).
6) Choose the 7^th stitch, then turn on switch and sew till buttonhole is fully sewed (Fig.19).

Mechanical device with circular component and magnified inset showing internal components (no visible text or symbols)

Fig.15

Close-up of a sewing machine component with a magnified inset showing internal components (no visible text or symbols)

Fig.16

Mechanical device with circular components and a magnified inset showing internal components (no visible text or symbols)

Fig.17

Close-up of a sewing machine needle stitching fabric, with measurement annotations (no readable text or symbols)

Fig.18

Close-up of a mechanical device with circular components and a magnified inset showing internal structure (no visible text or symbols)

Fig.19

Note: The presser foot shown as below can facilitate the buttonhole sewing.

8. Drawer

This drawer is an accessory storage compartment, which can be slid out and you can store spare bobbins, needles, etc. in it. It is located at the bottom side below the hand wheel.

White plastic container with a small cylindrical object inside, possibly a food item or item (no visible text or symbols)

WINDING THE BOBBIN

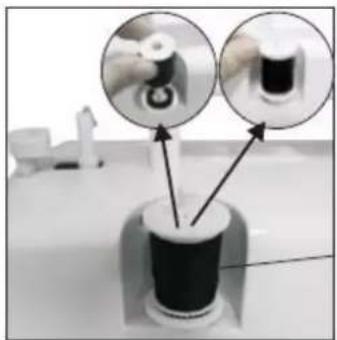

1. Put a spool of thread on spool pin. (Fig.20)
2. Guide the thread through the bobbin winder tension disk on the upper side of the machine. (Fig.21)
3. Put the bobbin on the bobbin winder pin, wind thread clockwise around bobbin several times. (Fig.22)
4. Push bobbin to the left. (Fig.23)
5. Switch on the machine to start winding. (Fig.24)
6. Switch off the machine to stop winding after appropriate volume of thread you had been winded on bobbin.
7. Push bobbin away from bobbin winder stop, take bobbin off the pin and cut the thread. (Fig.25)

Caution:

• Before winding the bobbin, raise the presser foot, take out the bottom bobbin and the upper thread.

Close-up of a small black object with two circular insets showing hand positioning (no text or symbols visible)

Fig.20

Pure mechanical diagram showing a pulley and linkage without any text, numbers, or symbols

Fig.21

Close-up of a white mechanical component with a circular component and an arrow pointing to it (no visible text or symbols)

Fig.22

Close-up of a sewing machine needle stitching a white plastic component (no visible text or symbols)

Fig.23

Close-up of a kitchen sink with a small white object and a magnified inset showing a hand near the mouth (no visible text or symbols)

Fig.24

Close-up of a mechanical component with a black arrow pointing to a small hole on a white surface (no text or symbols visible)

Fig.25

ADJUSTING STITCHING

1. As shown in the Fig.A, normal stitching shall have top and bottom threading evenly, neither over tight nor loose. (① = Top thread; ② = Cloth; ③ = Bottom thread)

① ② ③

Fig.A

1. If the bottom threading looks like a straight line (Fig.B), which indicates the top thread is too loose. Please turn upper thread tension dial to direction with bigger number to increase pressure until the stitching returns to normal.

Simple line drawing of a rectangular object with evenly spaced circular indentations on both sides (no text or symbols)

Fig.B

1. If the top thread looks like a straight line (Fig.C), which indicates an over-tight top thread. Please turn the upper thread tension dial to the direction with smaller number to reduce pressure until the stitching back to normal.

Simple line drawing of a rectangular object with rounded ends, resembling a mechanical or electronic component (no text or symbols)

Fig.C

APPLICABLE CLOTH FOR SEWING

Sewing Cloth PresentationFabric specification	Cotton/Linen	Silk/Wool	Polyester	Elastic
Regular	√	×	√	△
Thick	√	×	√	△
Thin	√	×	×	×
Hard	√	√	√	△
Soft	×	×	×	×

Sewing effective:

v: means easy to sew

×: means difficult to sew

△: means not smooth to sew

Note:

1. The definition of the fabric thickness:

Thin (fabric): two layers of the fabric thickness < 0.35mm;

Thick (fabric): two layers of the fabric thickness > 0.8mm;

Regular (fabric): two layers of the fabric thickness ≥ 0.35mm and ≤ 0.8mm.

1. The definition of elastic cloth:

If the cloth, which size is "100mm x 30mm", is extending to over 106mm under 0.5KG tension force, then the cloth is defined elastic, otherwise it is inelastic.

1. Hard fabric: such as Jeans, fine canvas, etc.

2. Soft fabric: such as towel, duster, etc.

MORE TIPS

1. Make sure there is fabric under the needle when the machine is working and needle is moving, otherwise the machine will get stuck and the thread will be jammed.
2. Turn the hand wheel for 2 to 3 circles by hand to test if it goes smoothly or not before starting the machine. Direction to turn the hand wheel should be the same as the arrow's direction on the hand wheel.
3. Make sure the machine was threaded correctly (do not forget any step or have wrong threading).
4. Do not sew the cloth with too much elasticity, neither too thin (like silk) nor too thick cloth, please follow the IM for the applicable cloth.
5. If the machine gets stuck or jammed due to wrong operation, turn off the power & speed switch immediately.
6. Before winding the bobbin, please take out the bottom bobbin and the upper thread.

RECYCLING

This product bears the selective sorting symbol for waste electrical and electronic equipment (WEEE).

This means that this product must be handled pursuant to European Directive 2012/19/EU in order to be recycled or dismantled to minimize its impact on the environment.

For further information, please contact your local or regional authorities.

Electronic products not included in the selective sorting process are potentially dangerous for the environment and human heath due to the presence of hazardous substances.

BATTERY MUST BE RECYCLED OR DISPOSED OF PROPERLY. DO NOT OPEN. DO NOT DISPOSE

OR IN FIRE OR SHORT CIRCUIT.

QUALITY

Safety and quality is very important to HEMA. We have our own laboratory, which assesses all equipment in terms of electrical safety and ease of use, before it is included in our range. HEMA also monitors the product quality in collaboration with the manufacturer.

SECURITY

This HEMA item may be fitted with a plastic anti-theft strip. You will find the strip on the bottom of the product. This strip does not influence the quality or the operation of the product and can be removed without a problem.

FAULTS AND REPAIRS

If this device needs to be repaired, you can hand it in at a HEMA branch after packing the product securely. Do not try to repair this product yourself. For repairs that fall within the warranty period, you will need to show a proof of purchase and the warranty document. Regularly check the power cord for damage. If there is any damage to the cord set, please return the item to a HEMA branch for repair. Do not try to replace it yourself. For safety reasons we recommend that you do not carry out any repairs to an electrical device yourself.

WARRANTY

The warranty period is 2 years from the date of purchase.

WARRANTY CONDITIONS

HEMA quality guarantee

HEMA guarantees that the product you have purchased meets the standards our customers are entitled to expect in terms of quality and product properties. These warranty conditions do not affect your statutory or

consumer rights and apply in all countries where there are HEMA branches.

Warranty claims

If you wish to make a warranty claim, please return the product with proof of purchase to one of our stores. The store will determine whether to replace the product (with an identical or equivalent product), accept the product for repair within a reasonable period of time or refund the price of the product.

Invalidation of warranty

The warranty on this article is invalidated if the fault or defect is caused by:

a) normal wear and tear
b) external damage (for example, damage caused by exposure to sand or moisture or due to falling of the product, etc.)
c) improper or inappropriate use
d) overdue or incorrect maintenance, including repairs that were not authorised by HEMA

The above list does not exclude other possible reasons for defects not being covered by the warranty.

Added confidence when choosing a HEMA product

You may swap or return the product within 30 days after purchase (provided it is undamaged and you have proof of purchase).

1 November 2019

HEMA BV

PO Box 37110

1030 AC Amsterdam

The Netherlands

These warranty conditions apply without prejudice to the customer's statutory rights or any other claims by the customer.

Labeled diagram of a sewing machine with numbered parts for identification

BENUTZUNG DES FUSSPEDALS (A) UND ADAPTERS (B)

White sewing machine with labeled parts A and B, shown with wiring and a power plug (no text or symbols on the device itself)

Achtung:

Back view of a white electronic device with two side buttons and a central battery pack (no visible text or symbols)

AUSWECHSELN DER NADEL

Close-up of a hand using a sewing machine to adjust or install a mechanical component (no visible text or symbols)

Abb.1

Close-up of a sewing machine needle being adjusted, with a 90-degree angle indicator (no text or symbols on the diagram itself)

Abb. 2

AUSWECHSELN DES NÄHFUSSES

Close-up of a hand holding a small metallic tool over a white surface, with no visible text or symbols.

Abb. 3

Close-up of a sewing machine needle stitching fabric, no visible text or symbols

Close-up of a sewing machine needle and base mechanism with a hand adjusting the hook (no visible text or symbols)

Abb. 5

Close-up of a sewing machine needle stitching fabric, no visible text or symbols

EINFÄDELN DER NÄHMASCHINE

Diagram of a sewing machine with numbered parts and close-up insets showing fabric cutting steps

Close-up of a mechanical device with a hand adjusting it, no visible text or symbols

Abb. 7

Close-up of a hand adjusting a mechanical component with a circular base and mounting holes (no visible text or symbols)

Close-up of a mechanical device with a magnified inset showing a close-up of a component (no visible text or symbols)

Abb. 9

Close-up of a sewing machine needle and foot assembly (no visible text or symbols)

NÄHEN

Close-up of a sewing machine needle stitching fabric (no visible text or symbols)

Abb. 11

Close-up of a sewing machine needle stitching fabric, labeled 'Abb. 12' at bottom (no other text or symbols visible)

OFF L H

Abb. 13

Close-up of a white lab container with test tubes, held by gloved hands (no visible text or symbols)

EIGENSCHAFTEN

Close-up of a sewing machine needle stitching fabric (no visible text or symbols)

6. Ärmel nähen

Mechanical device with circular components and a magnified inset showing internal components (no visible text or symbols)

Abb. 15

Close-up of a sewing machine with attached mechanical components and a close-up of a coiled spring (no visible text or symbols)

Abb. 16

Mechanical device with attached components and a magnified inset showing internal components (no visible text or symbols)

Abb. 17

Close-up of a sewing machine needle stitching on fabric, with two side-view insets showing measurement markings (no text or symbols visible)

Abb. 18

Close-up of a mechanical device with circular components and a magnified inset showing internal structure (no visible text or symbols)

Abb. 19

Close-up of a small container with two circular insets showing hand positioning and a magnified view of the lid (no text or symbols visible)

Abb. 20

Pure mechanical diagram showing a tool and component without any text, numbers, or symbols

Abb. 21

Close-up of a white electronic device with a circular component and an arrow pointing to it (no visible text or symbols)

Abb. 22

Close-up of a mechanical device with a circular component and wires, no visible text or symbols

Abb. 23

Close-up of a kitchen sink with a black lid and a hand pressing a button, showing a magnified inset of the button (no text or symbols visible)

Abb. 24

Close-up of a kitchen sink with a black arrow pointing to a small white object on the surface (no text or symbols visible)

Abb. 25

ANPASSEN DER NAHT

Pure diagram of a rectangular object with evenly spaced circular elements, no text or symbols present.

Abb. B

Simple line drawing of a rectangular object with evenly spaced circular indentations along its top edge (no text or symbols)

Abb. C

GEEIGNETE STOFFE

Labeled diagram of a sewing machine with numbered parts for identification

CÓ MO USAR EL PEDAL (A) Y EL ADAPTADOR (B)

White sewing machine with attached power cord and labeled parts A and B (no text or symbols on device body)

White electronic device rear panel with battery pack and two side buttons (no visible text or symbols)

CAMBIO DE LA AGUJA

Close-up of a hand using a sewing machine to adjust or install a mechanical component (no visible text or symbols)

(Imagen 1)

Close-up of a sewing machine needle being adjusted, with a close-up inset showing a 90-degree angle (no text or symbols on the diagram itself)

(Imagen 2)

CAMBIO DEL PRENSATELAS

Close-up of a sewing machine needle stitching fabric, with no visible text or symbols

(Imagen 3)

Close-up of a sewing machine needle stitching fabric (no visible text or symbols)

(Imagen 4)

Close-up of a sewing machine needle and base with a hand adjusting the needle (no visible text or symbols)

(Imagen 5)

Close-up of a sewing machine needle stitching metal components (no visible text or symbols)

(Imagen 6)

CÓ MO ENHEBRAR LA MÁQUINA DE COSER

Diagram of a sewing machine with numbered parts and close-up insets showing fabric application steps

Close-up of a hand operating a sewing machine on a flat surface (no visible text or symbols)

(Imagen 7)

Close-up of a hand turning a mechanical component with a metal flange (no visible text or symbols)

(Imagen 8)

Close-up of a sewing machine needle stitching fabric, with a magnified inset showing the seam detail (no text or symbols visible)

(Imagen 9)

Close-up of a sewing machine needle stitching fabric (no visible text or symbols)

(Imagen 10)

COSER

Close-up of a sewing machine needle stitching fabric (no visible text or symbols)

(Imagen 11)

Close-up of a sewing machine needle stitching fabric (no visible text or symbols)

(Imagen 12)

OFF L H

(Imagen 13)

Mechanical device with circular component and magnified inset showing internal components (no visible text or symbols)

(Imagen 15)

Mechanical device with attached components and a magnified inset showing internal components (no visible text or symbols)

(Imagen 16)

Mechanical device with circular components and a magnified inset showing internal components (no visible text or symbols)

(Imagen 17)

Close-up of a sewing machine needle stitching fabric, with measurement markings visible (no readable text or symbols)

(Imagen 18)

Mechanical device with circular components and a magnified inset showing internal components (no visible text or symbols)

(Imagen 19)

White plastic cup holding a small object, possibly a dog or mouse, with no visible text or symbols.

CÓ MO DEVANAR LA CANILLA

Close-up of a black plastic component being handled with two circular insets showing the same parts (no text or symbols visible)

(Imagen 20)

Close-up of a mechanical component with wires and a cylindrical part (no visible text or symbols)

(Imagen 21)

Close-up of a white mechanical device with a circular component and an arrow pointing to it (no visible text or symbols)

(Imagen 22)

Close-up of a sewing machine needle stitching a small circular component (no visible text or symbols)

(Imagen 23)

Close-up of a kitchen sink with a small appliance and a magnified inset showing a finger pointing to a button (no text or symbols visible)

(Imagen 24)

Close-up of a hand holding a small mechanical component with an arrow pointing to it, on a white surface (no text or symbols visible)

(Imagen 25)

CÓ MO AJUSTAR LA PUNTADA

Simple line drawing of a rectangular object with rounded ends and horizontal lines, resembling a mechanical or electronic component (no text or symbols)

Imagen B

Simple line drawing of a rectangular object with rounded ends and horizontal lines, no text or symbols present.

Imagen C

TELAS APROPIADAS PARA COSER
