80.30.1514 - Scale Hema - Free user manual and instructions

Product Type	Digital Scale
Brand	Hema
Model	80.30.1514
Maximum capacity	152 kg
Units of measurement	kg, lb, st (selectable)
Power supply	2 AAA batteries (not included)
Display	LCD screen
Auto-off	8 seconds after stepping off
Overload indicator	Yes
Low battery indicator	Yes
Platform material	Glass
Cleaning	Damp cloth, no abrasive products
Warranty	2 years
Use	Domestic
Safety recommendations	Flat and firm surface, dry feet, do not jump
Return possible	30 days with receipt

Frequently Asked Questions - 80.30.1514 Hema

How to change the weight unit (kg, lb, st)?

Use the button on the back of the scale to switch between kg, lb and st units.

What to do if the scale displays an error code?

An error code indicates overload (over 152 kg) or low batteries. Step off the scale, replace batteries if necessary, and use it on a flat surface.

How to clean the scale?

Clean it with a damp cloth and avoid any water entering the device. Do not use chemical or abrasive products.

Which batteries to use and how to replace them?

Use 2 AAA batteries (standard, alkaline or rechargeable). Open the compartment under the scale, push the tab and insert batteries respecting polarities.

Why doesn't the scale turn on?

Check that batteries are correctly installed and sufficiently charged. Replace them if necessary. Step on the scale to activate it automatically.

Can I use the scale on carpet?

No, place the scale on a firm and flat surface (tile, wood) as carpet may affect measurements.

What does the overload code mean?

The overload code appears if weight exceeds 152 kg. Step off immediately to avoid damaging the device.

Does the scale turn off automatically?

Yes, it turns off automatically about 8 seconds after you step off.

What is the warranty period?

The warranty is 2 years from the date of purchase, subject to conditions described in the manual.

Can I return the scale if I am not satisfied?

Yes, you can return it within 30 days of purchase, intact and in its original packaging, with the receipt.

USER MANUAL 80.30.1514 Hema

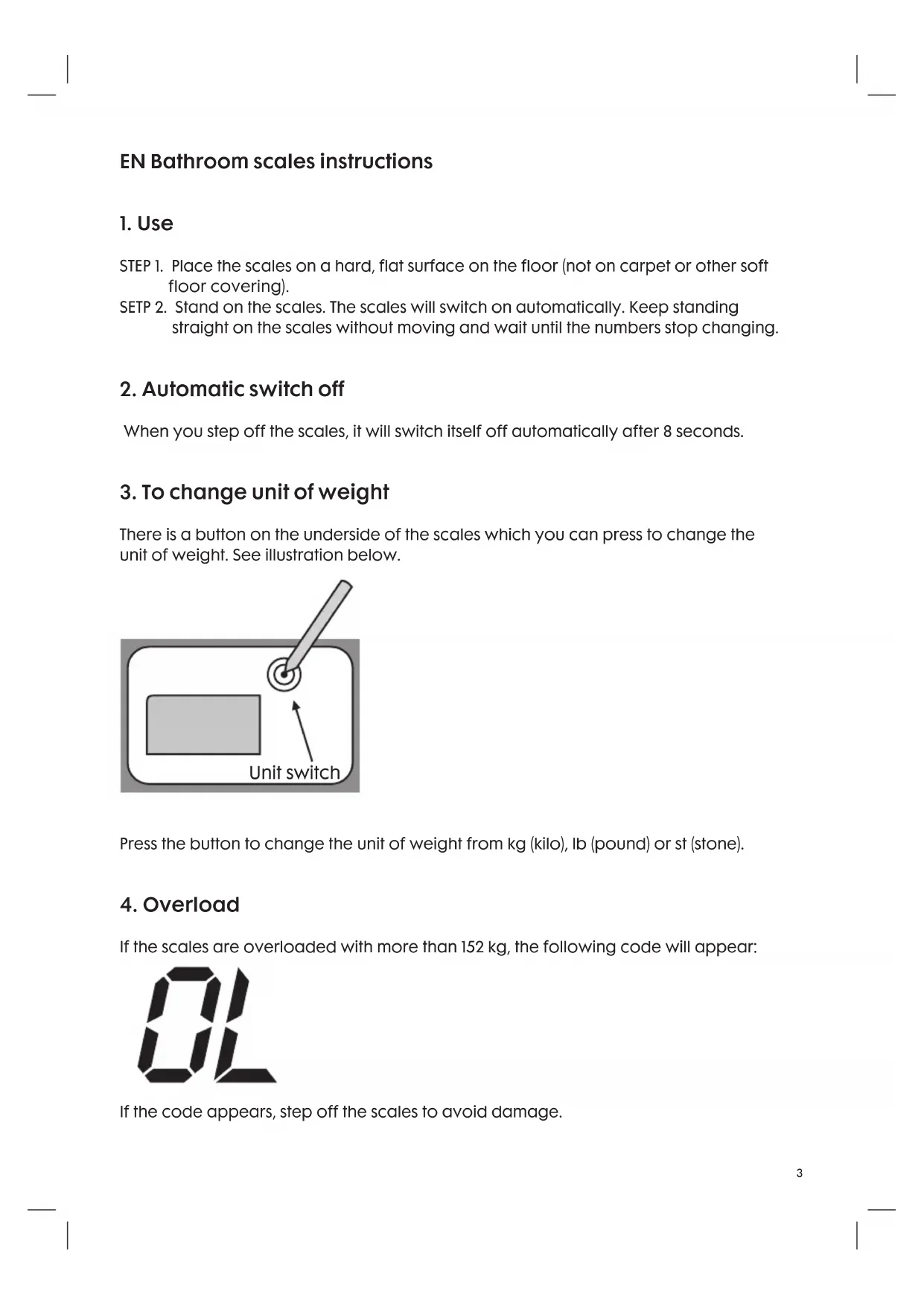

Instructions for use

Bathroom scales

Gebruiksaanwijzing

Personenweegschaal

Mode d'emploi

Pese-personne

Gebrauchsanleitung

Personenwaage

STEP 1. Place the scales on a hard, flat surface on the floor (not on carpet or other soft floor covering).

SETP 2. Stand on the scales. The scales will switch on automatically. Keep standing straight on the scales without moving and wait until the numbers stop changing.

2. Automatic switch off

When you step off the scales, it will switch itself off automatically after 8 seconds.

3. To change unit of weight

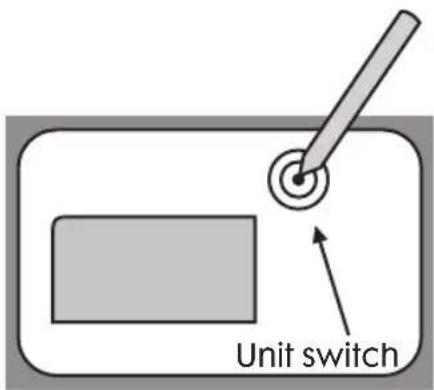

There is a button on the underside of the scales which you can press to change the unit of weight. See illustration below.

Press the button to change the unit of weight from kg (kilo), lb (pound) or st (stone).

4. Overload

If the scales are overloaded with more than 152kg the following code will appear:

If the code appears, step off the scales to avoid damage.

5. Battery low

If the batteries are low, the following code will appear:

If the code appears, replace the batteries.

6. Replacing batteries

The battery compartment is on the underside of the scales. Press the tab down and fit 2 batteries (AAA). Make sure that you place the + of the battery next to the + of the battery compartment.

TIP Batteries last longer if you avoid using old and new batteries together. It is also better to use just one type of battery: normal, alkaline or rechargeable.

7. Advice and maintenance

These bathroom scales are a precision instrument. It will keep working well if you treat it with care.

1. Do not stand on the scales with wet feet. The glass on the scales is slippery when wet.
2. Keep still whilst weighing yourself.
3. The scales may break if you: hit it, bang against it too hard or drop it.
4. Dry the scales with a damp cloth and do not allow water to get into it. Do not use chemical or abrasive cleaning agents.
5. Store the scales in a cool place with dry air.
6. If the scales do not automatically activate, check the batteries. Replace if necessary.
7. These scales are for domestic use only.

8. Warranty conditions

We guarantee quality

HEMA B.V. fully guarantees the product named on the warranty receipt against all defects caused by material and manufacturing errors.

All HEMA domestic electrical appliances, electric tools, electric garden tools, watches, alarm clocks and ICT equipment is guaranteed for 2 years from date of purchase (or longer if stated on the packaging or instructions).

The warranty on this article is invalidated if

a. the defect occurs through incorrect or improper use, neglect, connection to the wrong power voltage, or if dropped or knocked;
b. you have attempted to repair the article yourself, or have had it repaired by a repair service other than HEMA during the warranty period.

If you wish to make a claim under the warranty terms

You will need to take the article to one of our branches together with the warranty receipt.

Extra certainty for the right choice

If, after purchasing this article, you are in any way dissatisfied (because it is not exactly what you expected or you already have this article), you can return it within 30 days of purchase, on condition that it is undamaged and in the original packaging.

Remember that you must always bring your sales receipt with you.

You can either exchange the article or request a refund.

The warranty conditions apply in all countries where there are HEMA branches.

October 2009

Hema B.V.

PO Box 37710

1030 AC Amsterdam

The Netherlands

These warranty conditions do not affect the your statutory rights.

Hema B.V. PO Box 37710 1030 AC Amsterdam NL 020 3114800 B 0800 73595 D 0180 5770770 www.hema.nl
