Brand	EAS Electric
Model	EMF1761
Product Type	Fridge-freezer
Climate Class	SN, N, ST, T
Shelves	Glass, height-adjustable
Vegetable Drawer	Yes, for fruits and vegetables
Door Balconies	Yes, door bins
Interior Lighting	Lamp (bulb or LED depending on model)
Reversible Door Orientation	Yes, procedure described in the manual
Adjustable Feet	Yes, with leveling by rotation
Temperature Control	Rotary knob: from MIN to MAX
Defrosting	Manual (stop and clean)
Refrigerant Gas	Flammable (type not specified, probably R600a)
Power Supply	220-240 V ~50 Hz (standard)
Warranty	3 years (parts and labor)
Spare Parts Availability	7 years for most (10 years for door gaskets)
Usage	Domestic only
Recommended Cleaning	Interior: diluted baking soda; exterior: soapy water
Energy Saving Tips	Place away from heat, let hot food cool down, limit door opening
Child Safety	Lockable doors (not specified), caution against trapping

Frequently Asked Questions - EMF1761 EAS Electric

How to reverse the door opening direction?

Unplug the appliance, remove the food. Follow the steps in the manual: remove the hinges, caps, stops and rings, then reinstall them on the other side. Use the tools provided (screwdriver, wrench). See section 2.3 of the manual for details.

How to clean the interior of the refrigerator?

Unplug the appliance and remove the food. Mix two tablespoons of baking soda in one liter of warm water. Use a soft cloth to clean the surfaces. Rinse with clean water and dry. Do not use soap, detergent or harsh solvents. Clean the door gaskets and hard-to-reach areas regularly.

What to do in case of a power outage?

In case of outage, food can be preserved for several hours. Avoid opening the door to maintain temperature. Do not add extra food. If the outage lasts longer, check the condition of the food before consumption.

How to adjust the temperature?

Turn the adjustment knob towards MAX for more cooling or towards MIN for a higher temperature. The middle position is suitable for normal use. Adjust according to the season and amount of food.

Why does the compressor run continuously?

This can be normal in summer or if the room is hot. Check that the appliance is not overloaded, hot food has cooled before being placed, and doors are not open for too long. Also ensure ventilation around the appliance is sufficient.

How to replace the interior lighting?

Unplug the refrigerator. Lift the bulb cover. Unscrew the old bulb counterclockwise and replace with an identical bulb. Replace the cover and plug back in. For LED lamps, contact after-sales service.

What are the climate classes of this appliance?

The appliance is designed for classes SN (+10 to +32 °C), N (+16 to +32 °C), ST (+16 to +38 °C) and T (+16 to +43 °C). Use it in the range suitable for your environment.

How to defrost the refrigerator?

Unplug the appliance and remove the food. Leave the door open so that the ice melts at room temperature. Use a plastic or wooden scraper to remove ice. Do not use metal objects. Dry the interior before restarting.

What does the 3-year warranty cover?

The warranty covers manufacturing defects for 3 years from the date of purchase, including parts and labor. Not covered: cosmetic damage, wear parts, improper use, unauthorized intervention. Keep the invoice to prove the purchase date.

How to save energy with this refrigerator?

Place the appliance in a cool place, away from sunlight and heat sources. Let hot food cool down before storing. Pack food and dry containers. Open the door only when necessary. Clean dust from behind the appliance regularly.

USER MANUAL EMF1761 EAS Electric

Abstract arrangement of gray and white triangular shapes arranged in a row (no text or symbols)

FRIGORÍFICO

FRIDGE

RÉFRIGÉRATEUR

FRIGORIFICO

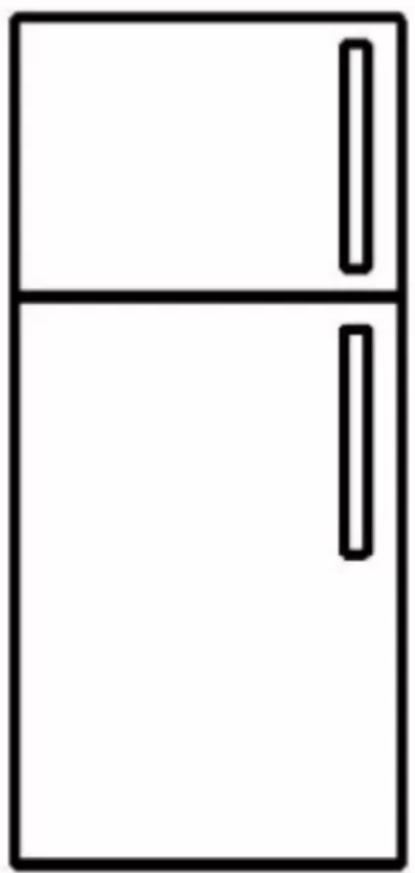

Simple line drawing of a refrigerator with two vertical bars on top (no text or symbols)

EMF1761

QR code with embedded logo and text 'EAS' and Chinese characters below

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Contenido

Warning sign depicting a flame symbol in yellow and black on white background

Diagram showing hand gesture, checkmark, and cartoon character with speech bubble

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and equipment, no text or symbols present

Simple line drawing of a refrigerator with a mounted appliance on top (no text or symbols)

Symbol of a trash bin crossed with diagonal lines, no text or labels present

Simple line drawing of a person carrying a large box next to an open refrigerator (no text or symbols)

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

10mm 30mm 10mm

Technical line drawing of a refrigerator with three circular insets showing internal components (no text or symbols)

Simple line drawing of a refrigerator with a smiling face and a small electrical outlet (no text or symbols)

58.5mm 470mm 975mm 391mm

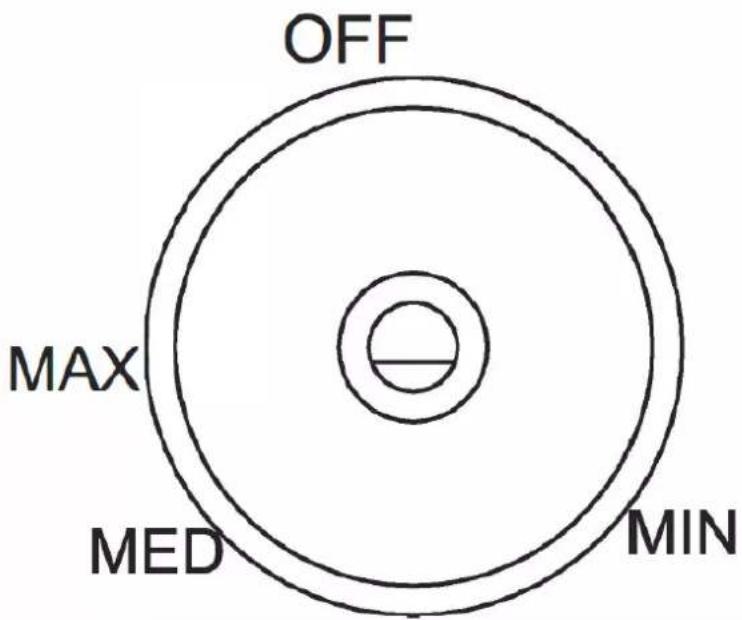

OFF MAX MED MIN

Illustration showing various alcohol and gas products including a kettle, bottle, spray bottle, and a container with 'Alcohol' label.

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

4.3 Descongelación

3 Warning
3 Meanings of safety warning symbols
6 Electricity related warnings
7 Warnings for using
7 Warnings for placement
8 Warnings for energy
8 Warnings for disposal

9 PROPER USE OF THE REFRIGERATOR
9 Placement
10 Levelling the fee
12 Door right-left change
15 Changing the light
15 Starting to use
15 Energy saving tips

16 STRUCTURE AND FUNCTIONS
16 Key components
17 Functions

17 MAINTENANCE AND CARE
17 Overall cleaning
18 Defrosting
18 Out of operation

19 TROUBLE SHOOTING
20 COMMERCIAL GUARANTEE

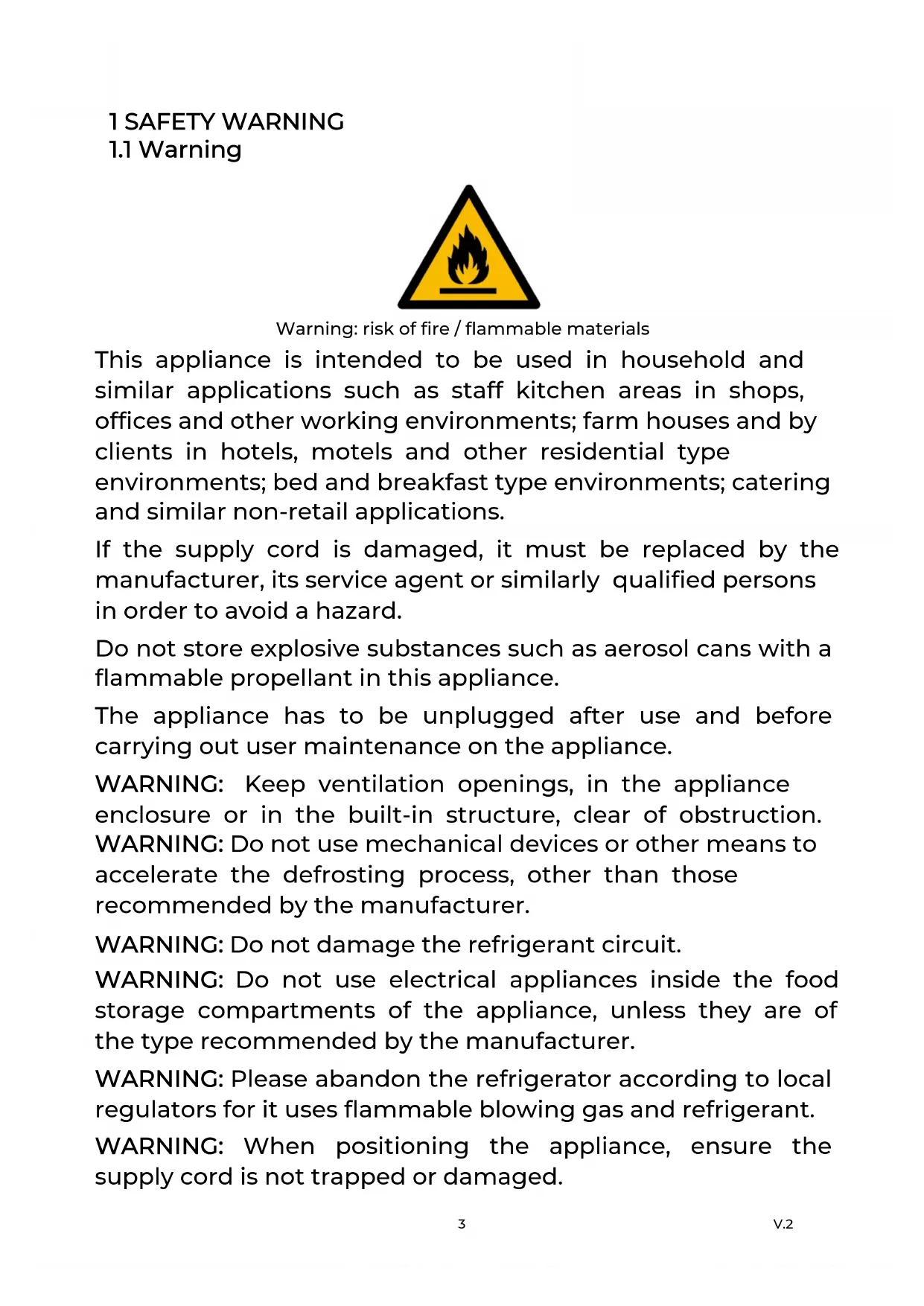

1 SAFETY WARNING

1.1 Warning

Warning sign depicting a flame symbol in yellow and black on white background

Warning: risk of fire / flammable materials

This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farm houses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance.

The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.

WARNING: Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not damage the refrigerant circuit.

WARNING: Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.

WARNING: Please abandon the refrigerator according to local regulators for it uses flammable blowing gas and refrigerant.

WARNING: When positioning the appliance, ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable socket-outlets or portable power supplies at the rear of the appliance. Do not use extension cords or ungrounded (two prong) adapters.

DANGER: Risk of child entrapment. Before you throw away your old refrigerator or freezer:

-Take off the doors.

-Leave the shelves in place so that children may not easily climb inside.

The refrigerator must be disconnected from the source of electrical supply before attempting the installation of accessory.

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scrapped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

For EN standard: This appliance can be used by children aged from 8 years and above and persons with reduce physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision. Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances.

For IEC standard: This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.)

Children should be supervised to ensure that they do not play with the appliance.

To avoid contamination of food, please respect the following instructions:

- Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

- Clean regularly surfaces that can come in contact with food and accessible drainage systems.

- Clean water tanks if they have not been used for 48 h; flush the water system connected to a water supply if water has not been drawn for 5 days. (note 1)

- Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.

■ Two-star frozen-food compartments are suitable for storing pre-frozen food, storing and making ice-cream and making ice cubes. (note 2)

■ One, two and three-star compartments are not suitable for the freezing of fresh food. (note 3)

- Appliances without a 4-star compartment are not suitable for freezing foodstuffs (note 4).

- If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance.

Note 1, 2, 3, 4: Please confirm whether it is applicable according to your product compartment type.

Any replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

1.2 Meaning of safety warning symbols

Prohibition symbol	This is a prohibition symbol.Any incompliance with instructions marked with this symbol may result in damage to the product or endanger the personal safety of the user.
Warning symbol	This is a warning symbol.It is required to operate in strict observance of instructions marked with this symbol; or otherwise damage to the product or personal injury may be caused.
Note symbol	This is a cautioning symbol.Instructions marked with this symbol require special caution. Insufficient caution may result in slight or moderate injury, or damage to the product.

This manual contains lots of important safety information which shall be observed by the users.

1.3 Electricity related warnings

Diagram showing hand gesture, checkmark, and smiley face next to a doorbell with a smiling face

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a computer monitor with an exclamation mark (no text or symbols on the device itself)

Simple line drawing of a kitchen appliance with a front-mounted refrigerator and chimney (no text or symbols)

Do not pull the power cord when pulling the power plug of the refrigerator. Please firmly grasp the plug and pull out it from the socket directly.

To ensure safe use, do not damage the power cord or use the power cord when it is damaged or worn.

Please use a dedicated power socket and the power socket shall not be shared with other electrical appliances. The power plug should be firmly contacted with the socket or else fires might be caused.

Please ensure that the grounding electrode of the power socket is equipped with a reliable grounding line.

Please turn off the valve of the leaking gas and then open the doors and windows in case of leakage of gas and other flammable gases. Do not unplug the refrigerator and other electrical appliances considering that spark may cause a fire.

Do not use electrical appliances on the top of the appliance, unless they are of the type recommended by the manufacturer.

1.4 Warnings for using

Simple line drawing of a refrigerator, wrench, and other items (no text or symbols)

Illustration of a hand holding a book with a starburst effect, no text or symbols present

Line drawing of a child hanging from an open refrigerator with shelves, no text or symbols present

Simple line drawing of a trash can with a sad face and warning symbols (no text or labels)

Do not arbitrarily disassemble or reconstruct the refrigerator, nor damage the refrigerant circuit; maintenance of the appliance must be conducted by a specialist.

Damaged power cord must be replaced by the manufacturer, its maintenance department or related professionals in order to avoid danger.

The gaps between refrigerator doors and between doors and refrigerator body are small, be noted not to put your hand in these areas to prevent from squeezing the finger. Please be gentle when closing the refrigerator door to avoid falling articles.

Do not pick foods or containers with wet hands in the freezing chamber when the refrigerator is running, especially metal containers in order to avoid frostbite.

Do not allow any child to get into or climb the refrigerator; otherwise suffocation or falling injury of the child may be caused.

Do not place heavy objects on the top of the refrigerator considering that objectives may fall when you close or open the door, and accidental injuries might be caused.

Please pull out the plug in case of power failure or cleaning. Do not connect the freezer to power supply within five minutes to prevent damages to the compressor due to successive starts.

1.5 Warnings for placement

Influenza Bilirgatone

Blood Dysporesis Biological process

Do not put flammable, explosive, volatile and highly corrosive items in the refrigerator to prevent damages to the product or fire accidents.

Do not place flammable items near the refrigerator to avoid fires.

The refrigerator is intended for household use, such as storage of foods; it shall not be used for other purposes, such as storage of blood, drugs or biological products, etc.

Freezing chamber 2-year

Do not store beer, beverage or other fluid contained in bottles or enclosed containers in the freezing chamber of the refrigerator; otherwise the bottles or enclosed containers may crack due to freezing to cause damages.

1.6 Warnings for energy

1. Refrigerating appliances might not operate consistently (possibility of defrosting of contents or temperature becoming too warm in the frozen food compartment) when sited for an extended period of time below the cold end of the range of temperatures for which the refrigerating appliance is designed.
2. The fact that effervescent drinks should not be stored in food freezer compartments or cabinets or in low-temperature compartments or cabinets, and that some products such as water ices should not be consumed too cold;
3. The need to not exceed the storage time(s) recommended by the food manufacturers for any kind of food and particularly for commercially quick-frozen food in food-freezer and frozen-food storage compartments or cabinets;
4. The precautions necessary to prevent an undue rise in the temperature of the frozen food while defrosting the refrigerating appliance, such as wrapping the frozen food in several layers of newspaper.
5. The fact that a rise in temperature of the frozen food during manual defrosting, maintenance or cleaning could shorten the storage life.

1.7 Warnings for disposal

Refrigerant and cyclopentane foaming material used for the refrigerator are flammable. Therefore, when the refrigerator is scraped, it shall be kept away from any fire source and be recovered by a special recovering company with corresponding qualification other than be disposed by combustion, so as to prevent damage to the environment or any other harm.

When the refrigerator is scrapped, disassemble the doors, and remove gasket of door and shelves; put the doors and shelves in a proper place, so as to prevent trapping of any child.

Symbol of a trash bin crossed with diagonal lines, no text or labels present

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out "wheeled bin" symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

2. Proper use of refrigerators

2.1 Placement

Simple line drawing of a person pushing a cardboard box next to a refrigerator (no text or symbols)

Before use, remove all packing materials, including bottom cushions, foam pads and tapes inside of the refrigerator; tear off the protective film on the doors and the refrigerator body.

Simple line drawing of a refrigerator with a potted plant and sun symbols (no text or labels)

Keep away from heat and avoid direct sunlight. Do not place the freezer in moist or watery places to prevent rust or reduction of insulating effect.

Do not spray or wash the refrigerator; do not put the refrigerator in moist places easy to be splashed with water so as not to affect the electrical insulation properties of the refrigerator.

Simple line drawing of a refrigerator and a door (no text or symbols)

The refrigerator is placed in a well-ventilated indoor place; the ground shall be flat and sturdy.

10mm 30mm 10mm

The top space of the refrigerator shall be greater than 30cm, the refrigerator should be placed against a wall with a free distance more than 10cm on the both side to facilitate heat dissipation, and the back of appliances is intended to be placed against a wall with a free distance not exceeding 7.5cm.

Precautions before installation:

Information in the Instruction Manual is only for reference. The physical product may differ. Before installation and adjusting of accessories, it shall be ensured that the refrigerator is disconnected from power.

2.2 Levelling feet

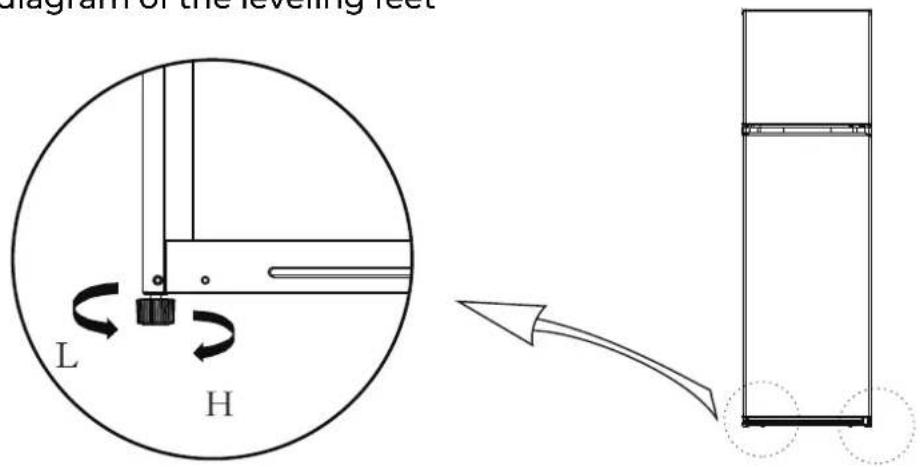

Schematic diagram of the leveling feet

Diagram of the leveling feet L H

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Adjusting procedures:

a. Turn the feet clockwise to raise the refrigerator;
b. Turn the feet counterclockwise to lower the refrigerator;
c. Adjust the right and left feet based on the procedures above to a horizontal level.

2.3 Door Right-Left Change

List of tools to be provided by the user
	Cross screwdriver		Putty knife and thin blade screwdriver
	5/16" Socket and ratchet		Masking tape

1) Power off the refrigerator, and remove all objects from the door trays.
2) Remove the upper hinge and hole caps of refrigerator door.

1. Please power off the appliance before conducting this operation. Remove all food from door shelves.

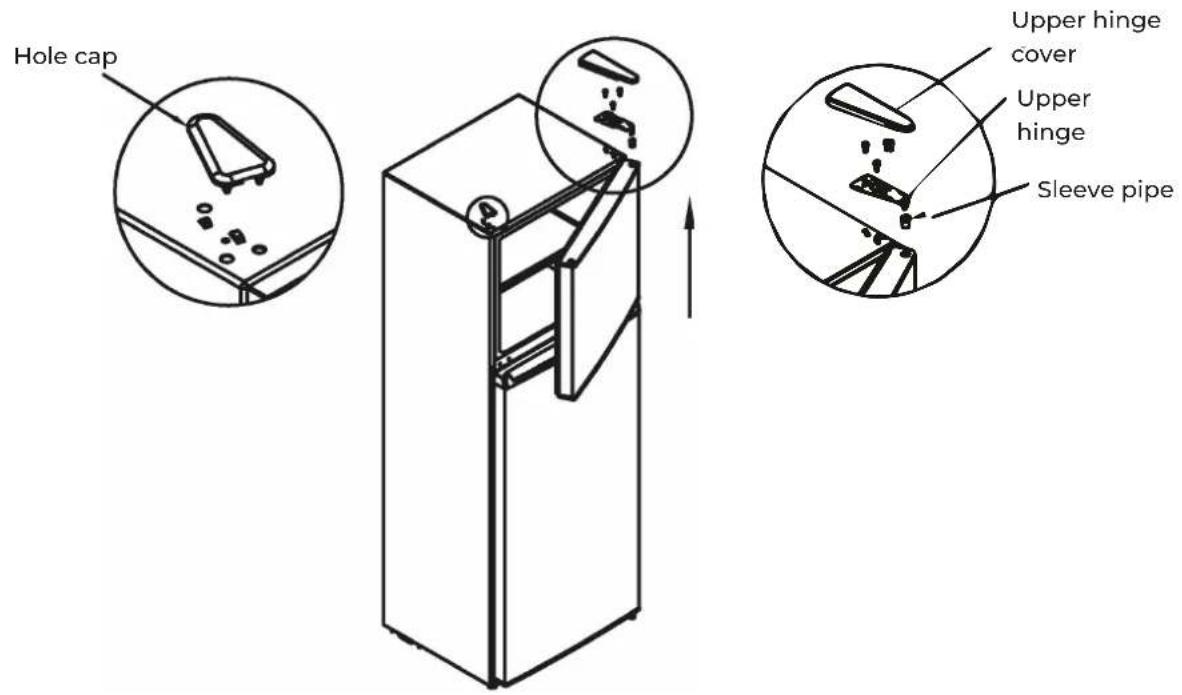

2. Remove hole cap, upper hinge cover, fitting screws of upper hinge, upper hinge and sleeve pipe, then uplift the freezer door until it is separated from cabinet completely.

Hole cap Upper hinge cover Upper hinge Sleeve pipe

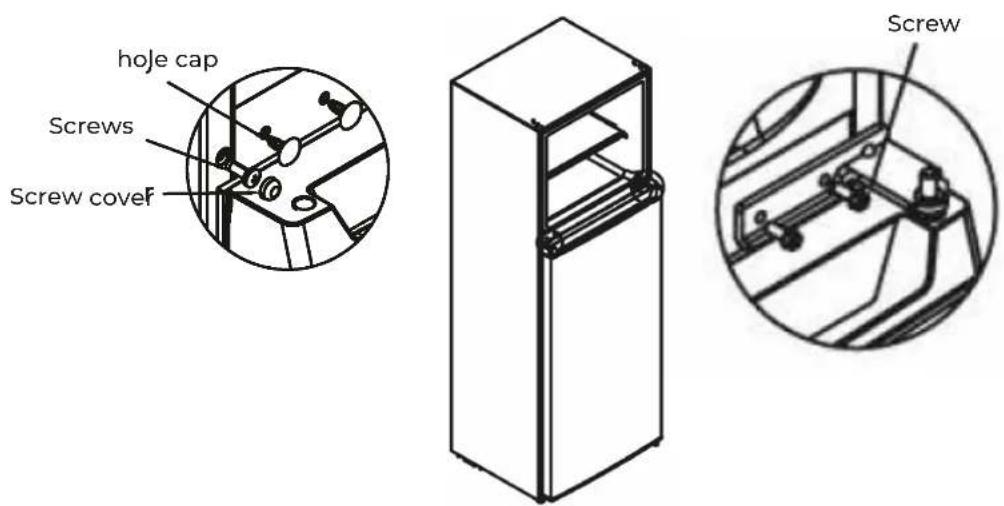

1. Remove the hole caps, fitting screws of middle hinge and middle hinge, and remove the screws and screw caps on the other side then uplift the refrigerator door until it is separated from cabinet completely.

hole cap Screws Screw cover Screw

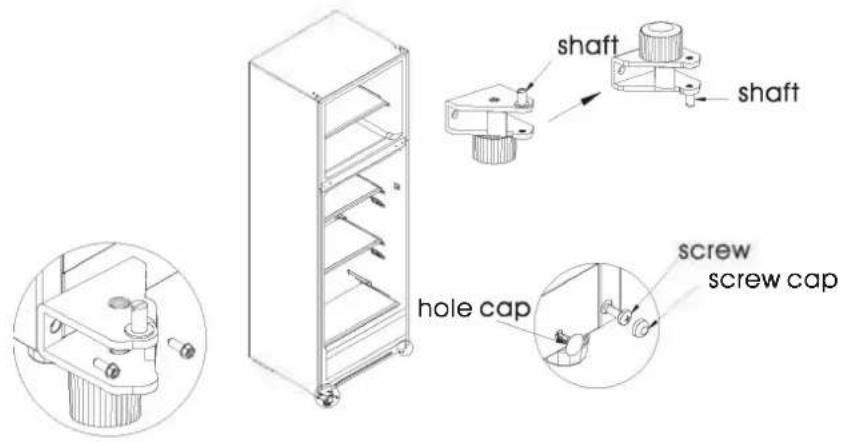

1. Remove the lower hinge assembly from lower right corner and remove the hole cap, screw cap from lower left corner. Dismantle the hinge shaft and adjustable foot and install them on the other side of lower hinge. Then install the lower hinge assembly on lower left corner by fitting screws, and install the hole cap and screw cap on lower right corner.

shaft shaft hole cap screw screw cap

1. Dismantle the stoppers, sleeve pipes of both refrigerator and freezer door, install them on the other side of both doors. Exchange the installation position of sleeve pipe and hole cap on upper end cap of refrigerator door. Remove the left decorative cover of freezer door, and move the sleeve pipe.

sleeve pipe stopper support screw

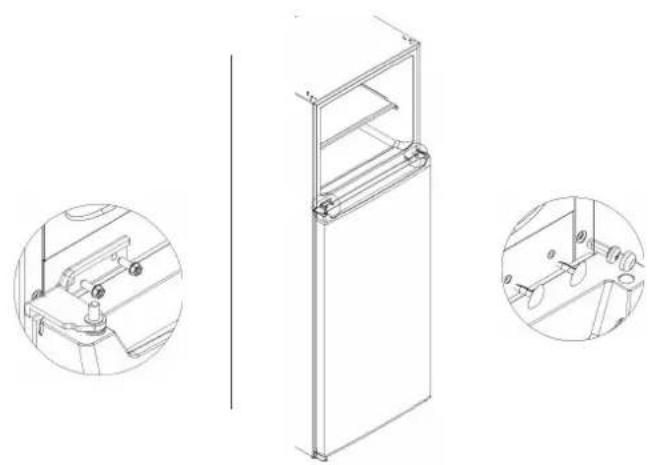

1. Install the refrigerator compartment door on the lower hinge and then install the middle hinge, screws and caps.

Technical line drawing of a vertical metal cabinet with two circular inset views showing internal components (no text or symbols)

1. Take out the left upper hinge, left upper hinge cover, and right decorative cover from the accessory bag. Install the freezer door on the middle hinge, and install the left upper hinge, left hinge cover and hole cap. Finally, install the right decorative cover on right side of the end cap of freezer door.

hinge cover hinge hole cap

The pictures above are only for reference. The actual configuration will depend on the physical product or statement by the distributor.

2.4 Changing the Light

Disconnect the mains supply before carrying out the bulb replacement. Hold and lift up the light bulb cover. Remove the old bulb by unscrewing it in an anti-clockwise direction. Replace with a new bulb by screwing it in a clockwise direction making sure that it is secure in the bulb holder. Refit the light cover and re-connect your Fridge to the mains supply. (The content above is only for reference. The actual configuration will depend on the physi cal product or statement by the distributor)

2.5 Starting

Diagram showing a cartoon refrigerator with dimensions and electrical connections, alongside its 3D layout with measurements in mm.

Before initial start, keep the refrigerator still for half an hour before connecting it to power supply.

Before putting any fresh or frozen foods, the refrigerator shall have run for 2-3 hours, or for above 4 hours in summer when the ambient temperature is high.

Spare enough space for convenient opening of the doors and drawers or statement by the distributor.

2.6 Energy saving tips

- The appliance should be located in the coolest area of the room, away from heat producing appliances or heating ducts, and out of the direct sunlight.

- Let hot foods cool to room temperature before placing in the appliance. Overloading the appliance forces the compressor to run longer. Foods that freeze too slowly may lose quality, or spoil.

- Be sure to wrap foods properly, and wipe containers dry before placing them in the appliance. This cuts down on frost build-up inside the appliance.

- Appliance storage bin should not be lined with aluminum foil, wax paper, or paper toweling. Liners interfere with cold air circulation, making the appliance less efficient.

- Organize and label food to reduce door openings and extended searches. Remove as many items as needed at one time, and close the door as soon as possible.

3. STRUCTURE AND FUNCTIONS

3.1 Key components

Shelf Fruit and vegetable box Door tray

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

Refrigerating chamber

• The Refrigerating Chamber is suitable for storage of a variety of fruits, vegetables, beverages and other food consumed in the short term.
• Cooking foods shall not be put in the refrigerating chamber until cooled to room temperature.
• Foods are recommended to be sealed up before putting into the refrigerator.
• The glass shelves can be adjusted up or down for a reasonable amount of storage space and easy use.

Freezing chamber

• The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf time.

3.2 FUNCTIONS

OFF MAX MED MIN

(The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor)

• Turn the temperature control knob to MAX, the internal temperature of the refrigerator becomes lower.
• Turn the temperature control knob to MIN, the internal temperature of the refrigerator becomes higher.
• Please adjust the temperature between "MAX" and "MIN".

4. Maintenance and care of the appliance

4.1 Overall cleaning

Dusts behind the refrigerator and on the ground shall be timely cleaned to improve the cooling effect and energy saving.

Check the door gasket regularly to make sure there are no debris. Clean the door gasket with a soft cloth dampened with soapy water or diluted detergent.

The interior of the refrigerator should be cleaned regularly to avoid odor.

Please turn off the power before cleaning interior, remove all foods, drinks, shelves, drawers, etc.

Use a soft cloth or sponge to clean the inside of the refrigerator, with two tablespoons of baking soda and a quart of warm water. Then rinse with water and wipe clean. After cleaning, open the door and let it dry naturally before turning on the power.

For areas that are difficult to clean in the refrigerator (such as narrow sandwiches, gaps or corners), it is recommended to wipe them regularly with a soft rag, soft brush, etc. and when necessary, combined with some auxiliary tools (such as thin sticks) to ensure no contaminants or bacterial accumulation in these areas.

Do not use soap, detergent, scrub powder, spray cleaner, etc., as these may cause odors in the interior of the refrigerator or contaminated food.

Clean the bottle frame, shelves and drawers with a soft cloth dampened with soapy water or diluted detergent. Dry with a soft cloth or dry naturally.

Wipe the outer surface of the refrigerator with a soft cloth dampened with soapy water, detergent, etc., and then wipe dry.

Do not use hard brushes, clean steel balls, wire brushes, abrasives (such as toothpastes), organic solvents (such as alcohol, acetone, banana oil, etc.), boiling water, acid or alkaline items, which may damage the fridge surface and interior. Boiling water and organic solvents such as benzene may deform or damage plastic parts.

Do not rinse directly with water or other liquids during cleaning to avoid short circuits or affect electrical insulation after immersion.

Glass Alcohol Bottle Gas Bottle

( ⚠️ Please unplug the refrigerator for defrost and cleaning.)

4.2 Cleaning the glass shelves

Pull the glass shelf outward at a level of about 50mm, then lift the right side of the glass shelf about 30 degrees and pull it out of the fridge.

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

4.2 Defrosting

■ Power off the refrigerator.
- Remove the food from the refrigerator and place it properly to prevent food from melting.
- Clear the drain pipe (to use soft materials to prevent damage to the liner), Prepare the water containers for defrosting.(pay attention to clean the compressor compartment water draining tray, avoiding overflow to the ground).
- You can use the natural temperature for the natural defrost, you can also use the ice shovel to eliminate the frost (use plastic or wooden ice shovel, for avoiding damage to the liner or pipe)
- You can also use the appropriate amount of hot water to speed up the defrost, with a dry towel to dry the water after defrosting.
■ After defrosting, put back the foods in cabinet, and power on the refrigerator.

4.3 Out of operation

Power failure: In case of power failure, even if it is in summer, foods inside the appliance can be kept for several hours; during the power failure, the times of door opening shall be reduced, and no more fresh food shall be put into the appliance.

Long-time nonuse: The appliance shall be unplugged and then cleaned; then the doors are left open to prevent odor.

Moving: Before the refrigerator is moved, take all objects inside out, fix the glass partitions, vegetable holder, freezing chamber drawers and etc. with tape, and tighten the leveling feet; close the doors and seal them with tape. During moving, the appliance shall not be laid upside down or horizontally, or be vibrated; the inclination during movement shall be no more than 45^ .

The appliance shall run continuously once it is started. Generally, the operation of the appliance shall not be interrupted, otherwise the service life may be impaired.

5. Trouble shooting

You may try to solve the following simple problems by yourself. If they cannot be solved, please contact the after-sales department.

Failed operation	Check whether the appliance is connected to power or whether the plug is in well contactCheck whether the voltage is too lowCheck whether there is a power failure or partial circuits have tripped
Smell	Odorous foods shall be tightly wrappedCheck whether there is any rotten foodClean the inside of the refrigerator
Long-time operation of the compressor	Long operation of the refrigerator is normal in summer when the ambient temperature is highIt is not suggestible having too much food in the appliance at the same timeFood shall get cool before being put into the applianceThe doors are opened too frequently
Light fails to get lit	Check whether the refrigerator is connected to power supply and whether the illuminating light is damagedHave the light replaced by a specialist
Doors cannot be properly closed	The door is stuck by food packagesThe refrigerator is tilted
Loud noise	Check whether the floor is level and whether the refrigerator is placed stably. Check whether accessories are placed at proper locations
Door seal fails to be tight	Remove foreign matters on the door sealHeat the door seal and then cool it for restoration (or blow it with an electrical drier or use a hot towel for heating)
Water pan overflows	There is too much food in the chamber or food stored contains too much water, resulting in heavy defrosting.The doors are not closed properly, resulting in frosting due to entry of air and increased water due to defrosting
Hot housing	Heat dissipation of the built-in condenser via the housing, which is normal. When housing becomes hot due to high ambient temperature and storage of too much food, it is recommended to provide sound ventilation to facilitate heat dissipation.
Surface condensation	Condensation on the exterior surface and door seals of the refrigerator is normal when the ambient humidity is too high. Just wipe the condensate with a clean towel.
Abnormal noise	Buzz: The compressor may produce buzzes during operation, and the buzzes are loud particularly upon start or stop. This is normal.Creak: Refrigerant flowing inside of the appliance may produce creak, which is normal.

Table 1 Climate classes

Class Symbol		Ambient temperature range (°C)
Extended temperate	SN	+10 to +32
Temperate	N	+16 to +32
Subtropical	ST	+16 to +38
Tropical	T	+16 to +43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Special for new European standard:

The ordered parts in the following table can be acquired from our after sales service:

Ordered Part	Provided by	Minimum Time Required for Provision
thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

Dear customer

1. If you want to return or replace the product, please contact the store where you buy. (Remember to bring the purchase invoice)
2. If your product breaks down which needs to repair, please contact after-sales service provider.

WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.
2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.
3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.
4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.

10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of ground-ing in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.

Contenu

AVERTISSEMENTS DESÉCURITÉ

16 STRUCTURE ET FONCTIONS

Warning sign depicting a flame symbol in yellow and black on white background

Diagram showing hand gesture, checkmark, and cartoon character with speech bubble

Simple line drawing of a plug with a circular socket and a warning symbol (no text or labels)

Simple line drawing of a room with a monitor and equipment, no text or symbols present

Simple line drawing of a refrigerator with a mounted appliance on top (no text or symbols)

Blood Drugs Biological process

Freezing chamber

Simple line drawing of a person carrying a cardboard box next to an open refrigerator (no text or symbols)

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

10mm 30mm 10mm

Line drawing of a refrigerator with three circular insets showing internal components (no text or symbols)

Simple line drawing of a refrigerator with a smiling face and a small electrical outlet (no text or symbols)

595mm 470mm 360mm 39.2mm

OFF MAX MED MIN

Illustration of various cooking and beverage items including a bottle, container, and kettle (no text or symbols)

Line drawing of an open refrigerator with doors open and one closed (no text or symbols)

4.2 Dégivrage

CONDITIONS DE LA GARANTIE

EXCLUSIONS DE LA GARANTIE

Warning sign depicting a flame symbol in yellow and black on white background

Diagram showing hand gesture, checkmark, and cartoon character with face on right

Simple line drawing of a plug with a circular socket and cable, next to an exclamation mark (no text or symbols on the diagram itself)

Simple line drawing of a room with a monitor and equipment, no text or symbols present

Simple line drawing of a refrigerator with a mounted appliance and steam rising (no text or symbols)

Branded Drugs Biological products

Freezing chamber

Symbol of a trash bin crossed with diagonal lines, no text or numbers present

Simple line drawing of a person carrying a cardboard box next to an open refrigerator (no text or symbols)

Antes de usar, remova todas as embalagens, incluindo rolhas e fitas adesivas, de dentro do frigorífico e remova a película protetora das portas e paredes.

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a door (no text or symbols)

Simple line drawing of a refrigerator with arms and legs, no text or symbols present

Plugues Parafuso Tapas Parafuso

Line drawing of a refrigerator with open lid and side views showing internal components (no text or symbols)

Line drawing of a two-tier refrigerator with handle and lid (no text or symbols)

Simple line drawing of a smiling refrigerator with a small electrical outlet connected to its side (no text or symbols)

59.5mm 470mm 975mm 390mm

OFF MAX MED MIN

Illustration of various alcohol and beverage items including a glass, water bottles, and a kettle (no text or symbols)

Line drawing of an open refrigerator with shelves and doors (no text or symbols)

4.2 Descongelação

Scan for manual in other languages and further updates:
