USER MANUAL EMR851 EAS Electric

Abstract arrangement of gray and white triangular shapes pointing right (no text or symbols)

Simple line drawing of a rectangular frame with a small corner and a top edge (no text or symbols)

Solid black right-pointing triangle shape on white background (no text or symbols)

2.1 Main configuration....14
2.2 Unpacking your refrigerator 15
2.3 Cleaning before use 15
2.4 Space requirements ...... 15
2.5 Electrical Requirement .... 15
2.6 Leveling 16
2.7 Position of the door....17

3. USE OF THE APPLIANCE 20

3.1 Use of the appliance....20
3.2 Temperature Control....20
3.3 Fresh food storage....21
3.4 Cleaning your refrigerator 21
3.5 Prolonged off periods ...... 21

4. TROUBLESHOOTING 22

1. COMERCIAL WARRANTY.... 24

2. INFORMATIONS DE SÉCURITÉ 26

3. INDICATIONS GÉNÉRALES ...... 27

Labeled diagram of a refrigerator interior showing numbered components for identification

3D line drawing of a rectangular box with a lid on top, no text or symbols present

3D technical illustration of a mechanical assembly with internal components and directional arrows (no text or symbols)

Simple line drawing of a rectangular frame with a curved arrow below indicating rotation or direction (no text or symbols)

Diagram of a battery cell with internal structure and curved arrows indicating flow or movement (no text or symbols)

Simple line drawing of a rectangular frame with a grid top and bottom edge, no text or symbols present.

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

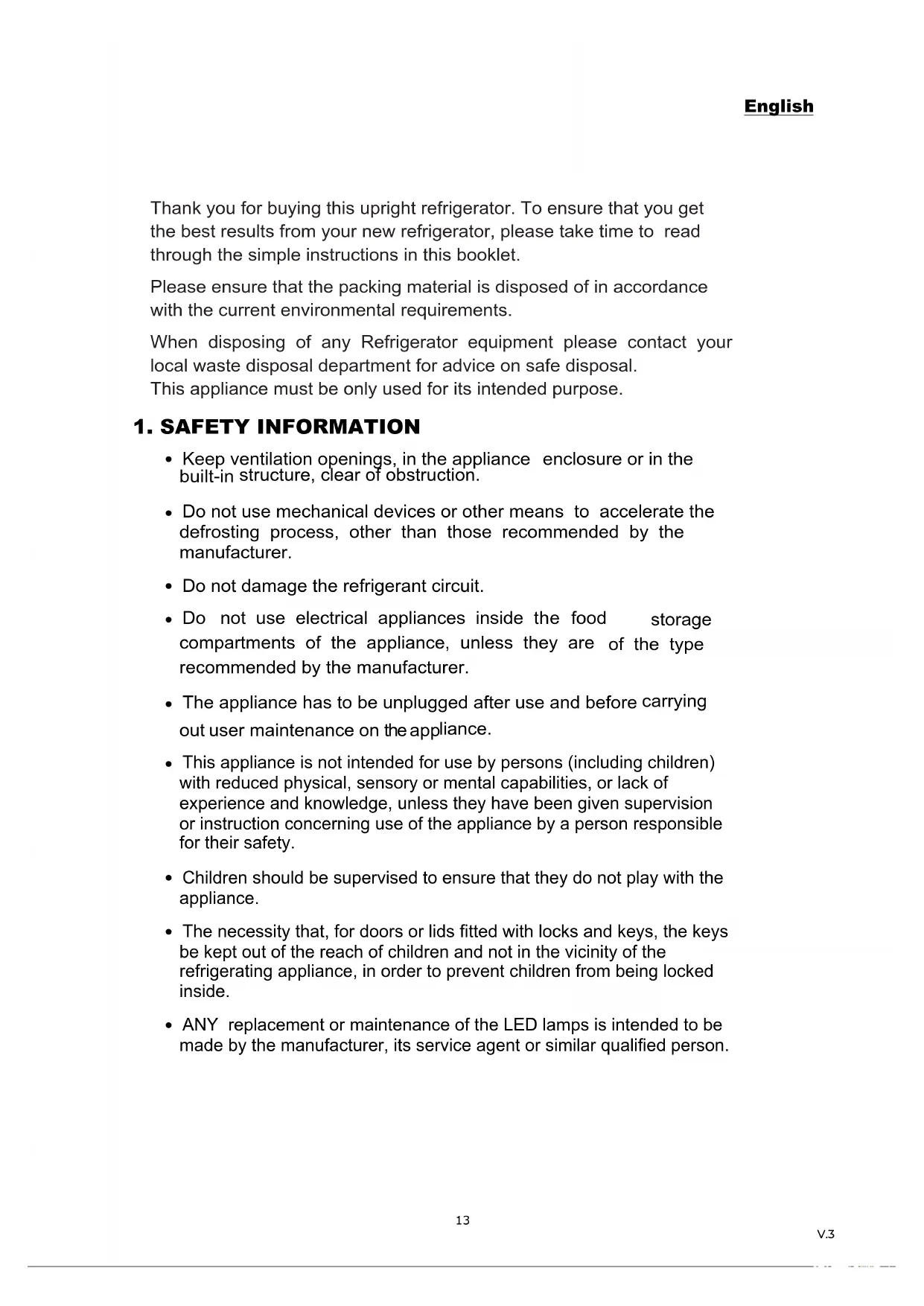

Thank you for buying this upright refrigerator. To ensure that you get the best results from your new refrigerator, please take time to read through the simple instructions in this booklet.

Please ensure that the packing material is disposed of in accordance with the current environmental requirements.

When disposing of any Refrigerator equipment please contact your local waste disposal department for advice on safe disposal.

This appliance must be only used for its intended purpose.

1. SAFETY INFORMATION

• Keep ventilation openings, in the appliance enclosure or in the built-in structure, clear of obstruction.
• Do not use mechanical devices or other means to accelerate the defrosting process, other than those recommended by the manufacturer.
• Do not damage the refrigerant circuit.
• Do not use electrical appliances inside the food storage compartments of the appliance, unless they are of the type recommended by the manufacturer.
• The appliance has to be unplugged after use and before carrying out user maintenance on the appliance.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play with the appliance.
• The necessity that, for doors or lids fitted with locks and keys, the keys be kept out of the reach of children and not in the vicinity of the refrigerating appliance, in order to prevent children from being locked inside.
• ANY replacement or maintenance of the LED lamps is intended to be made by the manufacturer, its service agent or similar qualified person.

- If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

- Please abandon the refrigerator according to local regulators for it use flammable blowing gas and refrigerant.

- Please according to local regulations regarding disposal of the appliance for its flammable refrigerant and blowing gas. Before you scrap the appliance, please take off the doors to prevent children trapped.

2. GENERAL INFORMATION

This type of refrigerator is widely used in places such as hotels, offices, student dormitories and houses. It is mostly suitable for preserving foods such as fruits and beverage. It enjoys the advantages of small size, lightweight, low electric consumption and easy use.

2.1 Main configuration

Labeled diagram of a refrigerator interior showing numbered components for identification

1. Thermostat
2. Glass shelf
3. Plastic pallet
4. Crisper
5. Leveler leg

2.2 Unpacking your refrigerator

Remove tape and any labels from your refrigerator before using (except the rating label).

To remove any remaining tape or glue, rub the area briskly with your thumb.

Tape or glue residue can also be easily removed by rubbing a small amount of liquid dish soap over the adhesive with your fingers. Wipe with warm water and dry.

Do not use sharp instruments, rubbing alcohol, flammable fluids, or abrasive cleaners to remove tape or glue. These products can damage the surface of your refrigerator.

When moving the refrigerator, do not tilt the refrigerator beyond 45^ from upright position.

2.3 Cleaning before use

After you remove all of the packaging materials, (especially the foam between outside condenser and cabinet should be removed) clean the inside of your refrigerator before using it.

2.4 Space requirements

WARNING! Keep flammable materials and vapors, such a s gasoline, away form refrigerator. Failure to do so can result in death, explosion, fine or burns.

- To ensure proper ventilation for your refrigerator, allow for 200mm space on each side between walls, 200mm space between back of your refrigerator and the wall, and 300mm space between counter top and the roof or ceiling.

- If you are installing your refrigerator next to a fixed wall, leave sufficient space on the hinge side to allow for the door to wing open.

- Never install your refrigerator near heat source and direct sun shine.

2.5 Electrical Requirement

!WARNING!:

Do not remove ground prong.

Do not use an adaptor.

Do not use extension cord.

• Failure to follow these instructions can result in death, fire or electrical shock.
• Before you move your refrigerator into its final location, it is important to make sure you have the proper electrical connection.

- Recommended Earthing Method

A 220\~240 Volt /50 Hz AC only 10 Ampere fused and properly earthed electrical supply is required. It is recommended that a separate circuit serving only this appliance be provided. Use a receptacle which cannot be turned off with a switch or pull chain. Do not use an extension cord.

- Before performing any type of installation, disconnect the refrigerator from the electrical source. When you are finished, connect the refrigerator to the electrical source and reset the control to the desired setting.

2.6 Leveling

If the refrigerator is not leveled during installation. The doors may not close or seal properly, causing cooling, frost, or moisture problems. It is very important of the refrigerator to be level in order to function properly.

To level your refrigerator you may either turn the level leg clockwise to raise that side to the refrigerator or turn counter – clockwise to lower that side.

NOTE: Having someone push against the top of the refrigerator take some weight off the leveling leg. This makes it easier to adjust the leveling leg.

2.7 Position of the door

1) Disassemble the screws behind the fixed roof with cross-slot screwdriver and remove the cover from the refrigerator.

Technical line drawing of a rectangular box with a square top and side frame (no text or symbols)

2) Remove the screws fixed the top-hinge with cross-slot screwdriver.

The screws fixed the top-hinge

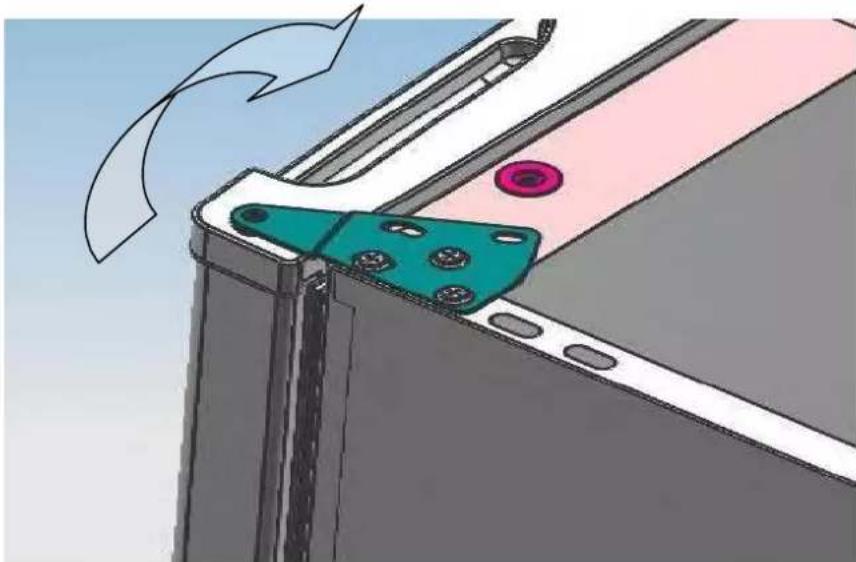

3) Replace the top-hinge and the door limit block and the door bearing bush to the other side

Replace the top-hinge.

Technical illustration of a mechanical component with colored parts and a pink circular feature, showing motion direction (no text or symbols)

Replace the door bearing bush and the limit block.

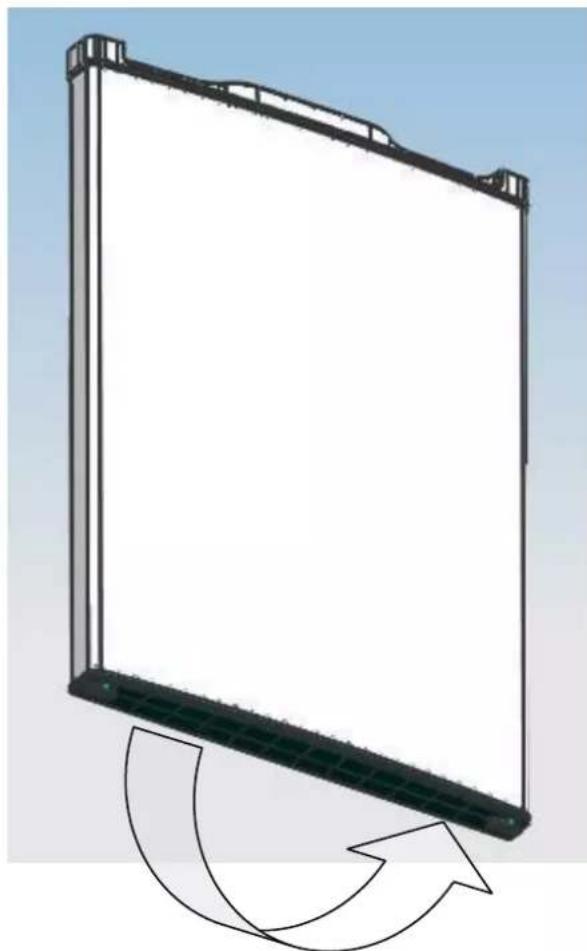

Diagram of a rectangular panel with a curved arrow indicating rotation or movement (no text or symbols)

4) Disassemble the screws fixed the bottom-hinge with cross-slot screwdriver and replace the hinge to the other side then fix it with screws.

Note: the refrigerator incline angle less 45^ .

The screws fixed the bottom-hinge

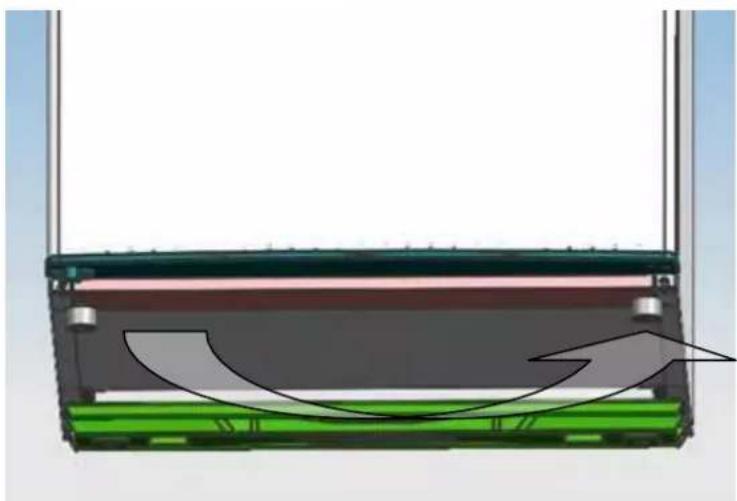

5) Replace the leveler to the other side and adjust it to make sure the cabinet level.

Diagram of a battery cell with internal structure and curved arrow indicating motion (no text or symbols)

6) Set the door right position, fix the top-hinge and then the roof cover.

Simple line drawing of a rectangular frame with a grid top and bottom border (no text or symbols)

Ensure the Appliance is unplugged and empty.

Adjust the two leveling feet to their highest position.

3. USE OF THE APPLIANCE

3.1 Use of the appliance

To obtain the best possible results for your refrigerator, it is important that you operate it properly.

3.2 Temperature Control

Controls for the refrigerator is located at the top shelf of the refrigerating compartment. When you first install your refrigerator, set the Thermostat knob at 3. Give your refrigerator time to cool down completely before adding food. It is best to wait 24 hours before adding food.

The thermostat knob controls the temperature. The higher number setting, the longer the compressor will run to keep the temperature colder.

When the thermostat control knob is set to OFF, the refrigerator is not running,

3.3 Fresh food storage

Wrap or store food in the refrigerator in airtight and moisture – proof material.

This prevents food odor and taste transfer throughout refrigerator.

• Fruit: wash, let dry and store in refrigerator in plastic bags or crisper.
• Leafy vegetables: Remove wrapping and trim or tear off bruised and discolored areas, wash in cold water and drain. Place in plastic bag or plastic container and store in crisper.
• Fish: Use fresh fish the same day as purchased.
• Meat: Store most meat in original wrapping as long as it is airtight and moisture – proof. Re wrap if necessary.

3.4 Cleaning your refrigerator

Before you start to clean your refrigerator remove the mains plug from the power supply.

Use a clean sponge or soft and a mild detergent in warm water. Do not use abrasive or harsh cleaners.

Hand wash, rinse and dry all surfaces thoroughly.

Do not use cleaning waxes, concentrated detergents, bleaches or cleaners containing petroleum on plastics and rubber parts.

Never use paper towels, window sprays, scouring cleansers or flammable fluids on plastic parts as these can scratch or damage material.

Clean with a cloth soaked in this solution and then dry with a soft cloth.

3.5 Prolonged off periods

If the refrigerator is not in use for a long period of time, proceed as follows:

Disconnect the refrigerator from the main supply by removing the plug from the wall socket.

Clean and dry the inside as instructed under the heading of cleaning the refrigerator.

Leave the door open to prevent any unpleasant smells from building up while the refrigerator is not in use.

4. TROUBLESHOOTING

In case of malfunction, you can solve many common problems easily.

Your Refrigerator will not operate: Check if

• The power supply cord is unplugged.
• The thermostat knob is set to OFF position.

The light so not work: Check if

• The power supply cord is unplugged.
• A household fuse or circuit breaker has tripped.
• A light bulb is loose in the socket.
• A light bulb has burned out.

Food in the refrigerator compartment freezing: Check if

• The thermostat knob is set too cold.
• The position of food stored touches the refrigerant power of refrigerator back wall.

Food in the refrigerator compartment is not cold: Check if

• The air vents are blocked in the compartment. This prevents the movement of cold air.
• The door(s) are opened too often of not close properly.
• A large amount of food has just been added to the refrigerator or refrigerator compartment.
• The position of thermostat knob is adjusted too low.

Melted frost Leak over compartment inside or on floor: Check if

• The drain – off mouth entrance is blocked.
• Evaporator pan is in place.

The refrigerator seems to make unusual noise: Check if

• The refrigerator is leveled on the floor.
• The body of the refrigerator touches the wall.
• The drip tray is not placed properly.

There is interior moisture build up: Check if

• The air vents are blocked in the refrigerator.
• The door is opened often.
• The room is humid.
• The food is not packaged correctly.
• The control is not set correctly of the surrounding conditions.

The doors will not close completely: Check if

• The shelves are out of position.
• The gaskets are dirty.
  • The fridge is not level.

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

Table 1 Climate classes

Class Symbol		Ambient temperature range (°C)
Extended temperate	SN	+10 to +32
Temperate	N	+16 to +32
Subtropical	ST	+16 to +38
Tropical	T	+16 to +43

Extended temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C';

temperate: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C';

Subtropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C';

Tropical: 'this refrigerating appliance is intended to be used at ambient temperatures ranging from 16 °C to 43 °C';

Special for new European standard:

The ordered parts in the following table can be acquired from our after sales service:

Ordered Part	Provided by	Minimum Time Required for Provision
thermostats	Professional maintenance personnel	At least 7 years after the last model is launched on the market
temperature sensors	Professional maintenance personnel	At least 7 years after the last model is launched on the market
printed circuit boards	Professional maintenance personnel	At least 7 years after the last model is launched on the market
light sources	Professional maintenance personnel	At least 7 years after the last model is launched on the market
door handles	Professional repairers and final users	At least 7 years after the last model is launched on the market
door hinges	Professional repairers and final users	At least 7 years after the last model is launched on the market
trays	Professional repairers and final users	At least 7 years after the last model is launched on the market
baskets	Professional repairers and final users	At least 7 years after the last model is launched on the market
door gaskets	Professional repairers and final users	At least 10 years after the last model is launched on the market

Labeled diagram of a refrigerator interior showing numbered components for identification

3D line drawing of a rectangular box with a lid on top, no text or symbols present

3D technical illustration of a device interior with internal components and directional arrows indicating flow or movement (no text or symbols)

Simple line drawing of a rectangular frame with a curved arrow indicating rotation or motion (no text or symbols)

Diagram of a battery cell with internal structure and curved arrows indicating flow or movement (no text or symbols)

Simple line drawing of a rectangular frame with a grid top and bottom edge, no text or symbols present.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

CONDITIONS DE LA GARANTIE

Labeled diagram of an open refrigerator interior showing numbered compartments and internal compartments with water levels.

3D line drawing of a rectangular box with a lid on top, no text or symbols present

3D technical illustration of a mechanical assembly with internal components and directional arrows (no text or symbols)

Diagram of a rectangular frame with a curved arrow indicating rotation or movement (no text or symbols)

Diagram of a battery cell with internal structure and curved arrows indicating flow or movement (no text or symbols)

Simple line drawing of a rectangular frame with a grid top and bottom edge, no text or symbols present.

Symbol of a trash bin crossed with a diagonal line and a horizontal bar below (no text or labels)

Scan for manual in other languages and further updates:

Complete documents about the product
