USER MANUAL EMR177ASI EAS Electric

• Para refrigerar fast food.

Dangerous voltage risk FIRE Warning; Risk of fire / flammable materials CAUTION Injury or property damage risk IMPORTANT Operating the system correctly V.2EN - 45 Contents

SAFETY INSTRUCTIONS General Safety Warnings Installation warnings During Usage

CLEANING AND MAINTENANCE

SHIPMENT AND REPOSITIONING

Transportation and Changing Positioning

Display and Control Panel Operating your Fridge Temperature Set Button Alarm symbol (LED) Super Cooling Mode Temperature Settings Temperature Adjustment Warnings Accessories Fresh Dial FOOD STORAGE

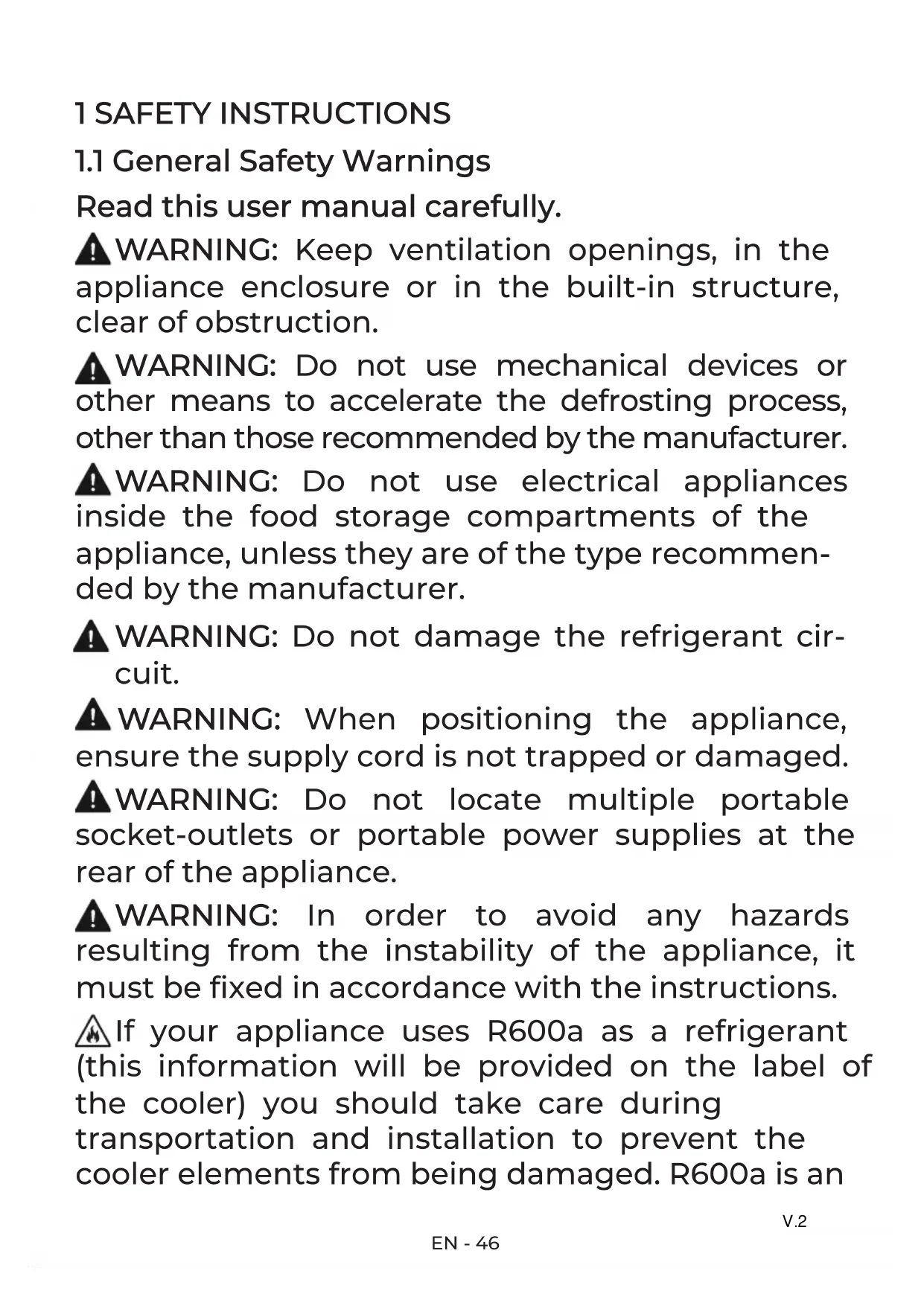

1.1 General Safety Warnings

Read this user manual carefully.

WARNING: Keep ventilation openings, in the

appliance enclosure or in the built-in structure, clear of obstruction.

WARNING: Do not use mechanical devices or

other means to accelerate the defrosting process, other than those recommended by the manufacturer.

WARNING: Do not use electrical appliances

inside the food storage compartments of the appliance, unless they are of the type recommen- ded by the manufacturer.

WARNING: Do not damage the refrigerant cir-

WARNING: When positioning the appliance,

ensure the supply cord is not trapped or damaged.

WARNING: Do not locate multiple portable

socket-outlets or portable power supplies at the rear of the appliance.

WARNING: In order to avoid any hazards

resulting from the instability of the appliance, it must be fixed in accordance with the instructions. If your appliance uses R600a as a refrigerant (this information will be provided on the label of the cooler) you should take care during transportation and installation to prevent the cooler elements from being damaged. R600a is an V.2EN - 47 environmentally friendly and natural gas, but it is explosive. In the event of a leak due to dama- ge of the cooler elements, move your fridge away from open flames or heat sources and ventilate the room where the appliance is located for a few minutes. While carrying and positioning the fridge, do not damage the cooler gas circuit.

• Do not store explosive substances such as aerosol cans with a flammable propellant in this appliance. This appliance is intended to be used in household and domestic applications such as: – staff kitchen areas in shops, offices and other working environments. – farm houses and by clients in hotels, motels and other residential type environ- ments. – bed and breakfast type environments; – catering and similar non-retail applications.

• If the socket does not match the refrigerator plug, it must be replaced by the manufacturer, a service agent or similarly qualified persons in order to avoid a hazard.

• A specially grounded plug has been connected to the power cable of your refrigerator. This plug should be used with a specially grounded socket of 16 amperes. If there is no such socket in your house, please have one installed by an authorised electrician. V.2EN - 48

• This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children aged from 3 to 8 years are allowed to load and unload refrigerating appliances. Children are not expected to perform cleaning or user maintenance of the appliance, very young children (0-3 years old) are not expected to use appliances, young children (3-8 years old) are not expected to use appliances safely unless continuous supervision is given, older children (8-14 years old) and vulnerable people can use appliances safely after they have been given appropriate supervision or instruction concerning use of the appliance. Very vulne- rable people are not expected to use appliances safely unless continuous supervision is given.

• If the supply cord is damaged, it must be replaced by the manufacturer, an authorised service agent or similar qualified persons, in order to avoid a hazard.

• This appliance is not intended for use at altitudes exceeding 2000 m. V.2EN - 49 To avoid contamination of food, please respect the following instructions:

• Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance.

• Clean regularly surfaces that can come in contact with food and accessible drainage systems

• Store raw meat and fish in suitable contai- ners in the refrigerator, so that it is not in contact with or drip onto other food.

• Two-star frozen-food compartments are sui- table for storing pre-frozen food, storing or making ice cream and making ice cubes.

• One-, two- and three-star compartments are not suitable for the freezing of fresh food.

• If the refrigerating appliance is left empty for long periods, switch off, defrost, clean, dry, and leave the door open to prevent mould developing within the appliance. V.2EN - 50

allation warnings Before using your fridge for the first time, please pay attention to the following points:

• The operat ing voltage for your fridge is 240 V at 50Hz.

• The plug must be accessible after installation.

• Your fridge may have an odour when it is operated for the first time. This is normal and the odour will fade when your fridge starts to cool.

Befor e connecting your fridge, ensure that the information on the data plate (voltage and connected load) matches that of the mains electricity supply. If in doubt, consult a qualified electrician. Insert the plug into a socket with an efficient ground connection. If the socket has no ground contact or the plug does not match, we recommend you consult a qualified electrician for assistance.

• The appliance must be connected with a properly installed fused socket. The power supply (AC) and voltage at the operating point must match with the details on the name plate of the appliance (the name plate is located on the inside left of the appliance).

• We do not accept responsibility for any damages that occur due to ungrounded usage.

• Place your fridge where it will not be exposed to direct sunlight.

• Your fridge must never be used out- doors or exposed to rain.

• Your appliance must be at least 50 cm away from stoves, gas ovens and heater cores, and at least 5 cm away from electrical ovens.

• If your fridge is placed next to a deep freezer, there must be at least 2 cm between them to prevent humidity forming on the outer surface.

• Do not cover the body or top of fridge with lace. This will affect the perfor- mance of your fridge.

• Clea rance of at least 150 mm is requi- red at the top of your appliance. Do not place anything on top of your appliance.

• Do not place heavy items on the appliance.

• Clean the appliance thoroughly before use (see Cleaning and Maintenance).

• Before using your fridge, wipe all parts with a solution of warm water and a teaspoon of sodium bicarbonate. Then, rinse with clean water and dry. Return all parts to the fridge after cleaning.

• The installation procedure into a kit- chen unit is given in the installation manual. This product is intended to be used in proper kitchen units only.

• Do not connect your fridge to the mains electricity supply using an extension lead.

• Do not use damaged, torn or old plugs.

• Do not pull, bend or damage the cord.

• Do not use plug adapter.

• This appliance is designed for use by adults. Do not allow children to play with the appliance or hang off the door.

• Never touch the power cord/plug with wet hands. This may cause a short circuit or electric shock.

• Do not place explosive or flammable material in your fridge. Place drinks with high alcohol content vertically in the fridge compartment and make sure their tops are tightly closed.

and Out-of-order Frid ges

• If your old fr idge or freezer has a lock, break or remove the lock before discarding it, because children may get trapped inside it and may cause an accident.

• Old fridges and freezers contain iso- lation material and refrigerant with CFC. Therefore, take care not to harm environment when you are discarding your old fridges. V.2EN - 51 CE Declaration of conformity We declare that our products meet the applicable European Directives, Decisions and Regulations and the requirements listed in the standards referenced. DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessa- ry. The european directive 2012/19 /UE on wasted electrical and electronic equip- ments (WEEE), requires that house- hold electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment. The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance. Packaging and the Environment Packaging materials protect your machine from damage that may occur during transportation. The packaging materials are environ- mentally friendly as they are recycla- ble. The use of recycled material reduces raw material consumption and therefore decreases waste production. Notes:

• Please read the instruction manual carefully before installing and using your appliance. We are not respon- sible for the damage occurred due to misuse.

• Follow all instructions on your appliance and instruction manual, and keep this manual in a safe place to resolve the problems that may occur in the future.

• This appliance is produced to be used in homes and it can only be used in domestic environments and for the specified purposes. It is not suitable for commercial or common use. Such use will cause the guarantee of the appliance to be cancelled and our company will not be responsible for any losses incurred.

• This appliance is produced to be used in houses and it is only suitable for cooling / storing foods. It is not suitable for commercial or common use and/or for storing substances except for food. Our company is not responsible for any losses incurred by inappropriate usage of the appliance. V.2EN - 52

This presentation is only for information about the parts of the appliance. Parts may vary according to the appliance model.

5) Upper crisper cover *

• In some models General notes: Fresh Food Compartment (Fridge): Most efficient use of energy is ensured in the configuration with the drawers in the bottom part of the appliance, and shelves evenly distributed, position of door bins does not affect energy consumption. V.2EN - 53

3 USING THE APPLIANCE

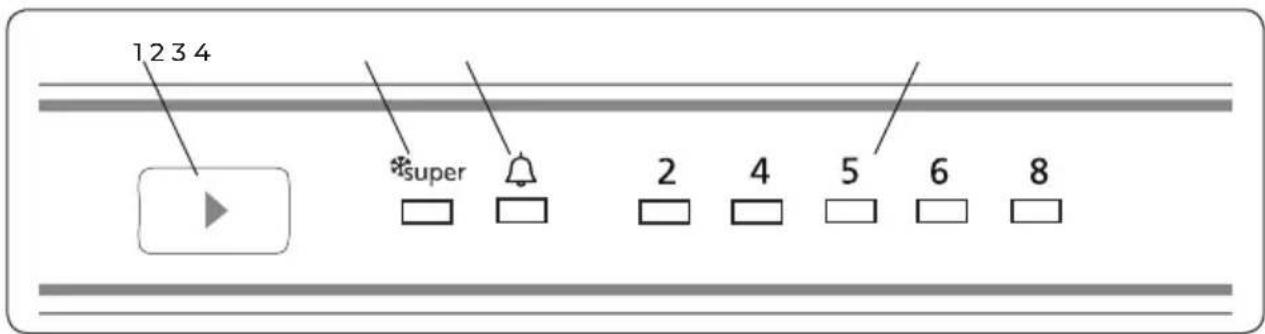

3.1 Display and Control Panel

Using the Control Panel

1. Fridge temperature set button

2. Super cooling symbol (Super

4. Fridge adjusted temperature

5. 3.2 Operating your Fridge

If your product has lighting When the product is plugged in for the first time, the interior lights may turn on 1 minute late due to opening tests.

3.2.1 Fridge Temperature Set Button

This button allows setting tempera- ture of the fridge. In order to set values for fridge partition, press this button. Use this button also to activate super cooling mode.

3.2.2 Alarm symbol (Alarm LED)

In case of a problem within the fridge, the alarm led will release red light.

3.2.3 Super Cooling Mode

When would it be used?

• To cooling huge quan tities of food.

• To cooling fast food.

• To cooling food quickly.

• To store seasonal food for a long time. How to use?

• Press temperature set button until super cooling light comes on.

• Super cooling led will light during this mode.

• For optimal appliance performance in maximum cooling capacity, set the appliance to active super cooling mode 6 hours before you put the fresh food into the fridge. During this mode: If you press temperature set button, the mode will be cancelled and the setting will be restored from 2. The super cooling mode will be cancel automatically after 6 hours or when cooling sensor tempera- ture falls below 2°C.

3.2.4 Fridge Temperature Settings

• The initial temperature of the set- ting display is 5 °C.

• Press fridge setting button once.

• Settings display and you do not press any button within the follo- wing 3 seconds.

• Super cooling will blink.

• If you keep on pressing, it will restart from last value. V.2EN - 55

3.3 Temperature Settings Warnings

• It is not recom mended that you operate your fridge in environments colder than 10°C in terms of its efficiency.

• Do not start another adjustment before completing one adjustment.

• Temperature adjustments should be made according to the frequency of door openings and the quantity of food kept inside the fridge.

• When you first switch on the appliance, allow it to operate for 24 hours in order to reach normal operating temperature. During this time, do not open the door or place a lot of food inside the appliance.

• If the appliance is switched off or unplu- gged, wait at least 5 minutes before plugging the appliance in or restarting it in order to prevent damage to the compressor.

• Your fridge is designed to operate within specific ambient temperature ranges, according to the climate class stated on the information label. We do not recommend operating your fridge out- side the stated temperatures value limits.

• Your appliance is designed to operate in the ambient temperature (T/SN = 10°C - 43°C) intervals stated in the standards, according to the climate class displayed on the information label. We do not recommend operating your appliance out of the stated temperature limits in terms of cooling effectiveness. Climate class and meaning:

• T (tropical): This refrigerating appliance is intended to be used at ambient tempe- ratures ranging from 16 °C to 43 °C.

• ST (subtropical): This refrigerating app- liance is intended to be used at ambient temperatures ranging from 16 °C to 38 °C.

• N (temperate): This refrigerating app- liance is intended to be used at ambient temperatures ranging from 16 °C to 32 °C.

• SN (extended temperate): This refrige- rating appliance is intended to be used at ambient temperatures ranging from 10 °C to 32 °C. The Turbo Fan Do not block the air inlet and outlet openings when storing food, other- wise air circulation provided by the turbo fan will be impaired. Turbo fan

Visual and text descriptions in the accessories section may vary according to the model of your appliance.

3.4.1 The Fresh Dial

Fresh dial If the crisper is full, the fresh dial located in front of the crisper should be opened. This allows the air in the crisper and the humidity rate to be controlled, to increase the life of food within. The dial, located behind the shelf, must be opened if any condensation is seen on the glass shelf. V.2EN - 56 4 FOOD STORAGE

• To redu ce humidity and avoid the con- sequent formation of frost, always store liquids in sealed containers in the refrigerator. Frost tends to concentrate in the coldest parts of the evaporating liquid and, in time, your appliance will require more frequent defrosting.

• Never place warm food in the refri- gerator. Warm food should be allowed to cool at room temperature and should be arranged to ensure adequate air circulation in the refrigerator compart- ment.

• Make sure no items are in direct contact with the rear wall of the appliance as frost will develop and packaging will stick to it. Do not open the refrigerator door frequently.

• We recommend that meat and clean fish are loosely wrapped and stored on the glass shelf just above the vegetable bin where the air is cooler, as this provides the best storage conditions.

• Store loose fruit and vegetable items in the crisper containers.

• Store loose fruit and vegetables in the crisper.

• Storing fruit and vegetables separately helps prevent ethylene-sensitive vege- tables (green leaves, broccoli, carrot, etc.) being affected by ethylene-releaser fruits (banana, peach, apricot, fig etc.).

• Do not put wet vegetables into the refrigerator.

• Storage time for all food products depends on the initial quality of the food and an uninterrupted refrigeration cycle before refrigerator storage.

• To avoid cross-contamination do not store meat products with fruit and vegetables. Water leaking from meat may contaminate other products in the refrigerator. You should package meat products and clean any leakages on the shelves.

• Do not put food in front of the air flow passage.

• Consume packaged foods before the recommended expiry date. NOTE: Potatoes, onions and garlic should not be stored in the refrigerator.

• For normal working conditions, it will be sufficient to adjust the temperature setting of your refri- gerator to +4 °C.

• The temperature of the fridge com- partment should be in the range of 0-8 °C, fresh foods below 0°C are iced and rotted, bacterial load increases above 8 °C, and spoils.

• Do not put hot food in the refri- gerator immediately, wait for the temperature to pass outside. Hot foods increase the degree of your refrigerator and cause food poisoning and unnecessary spoiling of the food.

• Meat, fish, etc. should be store in the chiller compartment of the food, and the vegetable compartment is preferred for vegetables. (if avai- lable)

• To prevent cross contamination, meat products and fruit vegetables are not stored together.

• Foods should be placed in the refrigerator in closed containers or covered to prevent moisture and odors. V.2EN - 57 The table below is a quick guide to show you the most efficient way to store the major food groups in your refrigerator compartment. Food Maximum storage time How and where to store Vegetables and fruits 1 week Vegetable bin Meat and fish

Wrap in plastic foil, bags, or in a meat container and store on the glass shelf Fresh cheese

On the designated door shelf Butter and margarine 1 week On the designated door shelf Bottled products e.g. milk and yoghurt Until the expiry date recommended by the producer On the designated door shelf Eggs 1 month On the designated egg shelf Cooked food 2 days All shelves 5 CLEANING AND MAINTENANCE Disconnect the unit from the power supply before cleaning. Do not wash your appliance by pouring water on it. Do not use abrasive products, detergents or soaps for clea- ning the appliance. After washing, rinse with clean water and dry carefully. When you have finished cleaning, reconnect the plug to the mains supply with dry hands.

• Make sure that no water enters the lamp housing and other electrical components.

• The appliance should be cleaned regularly using a solution of bicar- bonate of soda and lukewarm water.

Clean the accessories separately by hand with soap and water. Do not wash accessories in a dish washer. Clean the condenser with a brush at least twice a year. This will help you to save on energy costs and increase productivity. The power supply must be disconnected during cleaning. V.2EN - 58

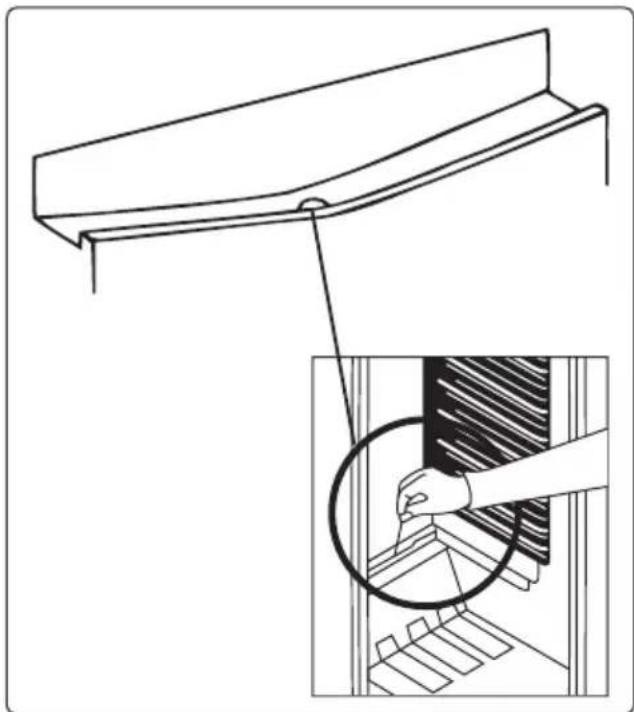

Defrosting the Refrigerator Compartment

• Defrosting occurs automatically in the refrigerator compartment during operation. The water is collected by the evaporation tray and evaporates automatically.

• The evaporation tray and the water drain hole should be cleaned periodically with the defrost drain plug to prevent the water from collecting at the bottom of the refrigerator instead of flowing out.

• You can also clean the drain hole by pouring half a glass of water down it. Replacing LED Lighting To replace any of the LEDs, please contact the nearest Authorised Service Centre. Note: The numbers and location of the LED strips may change according to the model. 6 SHIPMENT AND REPOSITIONING

6.1 Transportation and Changing

• The original packaging and foam may be kept for re-transportation (optional).

• Fasten your appliance with thick packaging, bands or strong cords and follow the instructions for transportation on the packaging.

• Remove all movable parts (shelves, accessories, vegetable bins, and so on) or fix them into the appliance against shocks using bands when re-positioning or transporting. Always carry your appliance in the upright position. V.2EN - 59

7 BEFORE CALLING AFTER-SALES SERVICE

Errors Your fridge will warn you if the temperatures for the fridge is at improper levels or if a problem occurs with the appliance. In case of a problem within the fridge, the alarm led will release red light. Alarm indicator LED is turning on

MEANING WHY WHAT TO DO

"Failure" Warning There is /are some part(s) out of order or there is a failure in the cooling process. The product is plugged for the first time or a long-time power interruption for 1 hour. Check the door is open or not and check if the product working 1 hour. If the door is not open and the product had worked 1 hour, call service for assistance as soon as possible. If your frid ge is not working properly, it may be a minor problem, therefore check the following, before calling an electrician to save time and money. Your fridge is not operating Check if:

• Th e plug is correctly connected to the socket

• The plug or mains fuse has blown

• The socket is faulty. Examine this by plugging your fridge into a working socket. What t o do if your appliance performs poorly; Check that;

• You h ave not overloaded the appliance,

• The fridge temperature set to 2.

• The door is closed perfectly,

• There is no dust o n the condenser,

• There is enough place at the rear and side walls. Your fridge is operating noisily Cracking (ice cracking) noise occurs:

• During automatic defrost ing.

• When the appliance is cooled or warmed (due to expansion of appliance material). Motor noise: Indicates the compres- sor is operating normally. The com- pressor may cause more noise for a short time when it is first activated. Bubbling nois e and splash: Due to the flow of the refrigerant in the tubes of the system. Air blowing noise: Indicates normal operation of the system due to the circulation of air. Ther e is a build-up of humidity inside the cooler Check if:

All fo od is packed properly. Containers must be dry before being placed in the fridge. The fridge door is opened frequently. Humidity of the room enters the fridge when the doors are opened. Humidity increases faster when the doors are opened more frequently, especially if the humidity of the room is high. The doo r is not opening and closing properly Check if:

• There i s food or packaging preventing the door from closing

• The door compartments, shelves and drawers are placed properly

• The door joints are broken or torn

• Your fridge is level. Recommendations To stop the appliance completely, unplug from main socket (for cleaning and when the door is left open). V.2EN - 60

8 TIPS FOR SAVING ENERGY

1. Install the appliance in a cool, well-

ventilated room, but not in direct sunlight and not near a heat source (such as a radiator or oven) other- wise an insulating plate should be used.

2. Allow warm food and drinks to cool

before placing them inside the appliance.

3. Drinks or other liquids should be

covered when inside the appliance. If left uncovered, the humidity inside the appliance will increase, therefore the appliance uses more energy. Keeping drinks and other liquids covered helps preserve their smell and taste.

4. Avoid keeping the doors open for

long periods and opening the doors too frequently as warm air will enter the appliance and cause the compressor to switch on unnecessarily often.

5. Keep the covers of the different

temperature compartments ( such as the crisper and chiller) closed.

6. The door gasket must be clean and

pliable. In case of wear, replace the gasket. 9 TECHNICAL DATA The technical information is situated in the rating plate on the internal side of the appliance and on the energy label. The QR code on the energy label supplied with the appliance provides a web link to the information related to the performance of the appliance in the EU EPREL database. Keep the energy label for reference together with the user manual and all other documents provided with this appliance. It is also possible to find the same information in EPREL using the link https://eprel.ec.europa.eu and the model name and product number that you find on the rating plate of the appliance. See the link www.theenergylabel.eu for detailed information about the energy label. V.2EN - 61

10 INFORMATION FOR TEST

INSTITUTES Appliance for any EcoDesign verifi- cation shall be compliant with EN 62552. Ventilation requirements, recess dimensions and minimum rear clearances shall be as stated in this User Manual at Chapter 2. Please contact the manufacturer for any other further information, including loading plans.

11 CUSTOMER CARE AND

SERVICE Always use original spare parts. When contacting our Authorised Service Centre, ensure that you have the following data available: Model, Serial Number and Service Index. The information can be found on the rating plate. Subject to change without notice. The original spare parts for some specific components are available for a minimum of 7 or 10 years, based on the type of component, from the placing on the market of the last unit of the model. Visit our website to: https://asistencia.easelectric.es/ V.2EN - 62 12 WARRANTY CONDITIONS This appliance is guaranteed for three years from the date of sale against all manufactu- ring defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

EXCLUSIONS FROM THE WARRANTY

1. Remote controls, drain intake rubbers,

dockings and door seals, weather strip- ping.

2. Damage to enamels, paints, nickel plating,

chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.

3. Damage to wear parts due to use, cor-

rosion or oxidation, whether caused by normal use of the appliance or accele- rated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.

4. Damage to fragile pieces of glass, glass

ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes

or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as

long as it has not been caused by an internal malfunction.

8. Maintenance or upkeep of the appliance:

periodic reviews, adjustments and greases.

9. Faults that accessories and comple-ments,

adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufac- turer, may suffer.

10. Faults caused by incorrect or illegal ins-

tallation, inadequate ventilation, lack of grounding in the home, power disturban- ces, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applicatio-ns

or for commercial purposes.

12. Appliances with illegible or altered se-

13. Defects or breakdowns produced as a

result of fixes, repairs, modifications, or disassembly of the installation of the devi- ce by the user or by a technician not au- thorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential

to keep all manuals together with the equipment. If the equipment is sold, dona- ted or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct

or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or
