EMSS178EW - Fridge EAS Electric - Free user manual and instructions

Brand	EAS Electric
Model	EMSS178EW
Product type	Refrigerator with freezer compartment
Power supply	220-240 V ~ 50 Hz
Control type	Electronic with LED digital display
Special modes	InstantCool, InstantFreeze, Holiday
Refrigerator temperature range	2 °C to 8 °C
Freezer temperature range	-24 °C to -16 °C
Defrost	Automatic
Open door alarm	Yes (after 120 seconds)
Memory in case of power failure	Yes
Key lock	Yes (long press 3 seconds)
Interior lighting	LED (energy efficiency class G)
Shelves	Glass, height adjustable
Vegetable drawer	Yes
Leveling feet	Yes, height adjustable
Warranty	3 years (Spain and Portugal)
Availability of spare parts	Yes, up to 10 years after launch
Climate class	SN, N, ST, T (depending on model)

Frequently Asked Questions - EMSS178EW EAS Electric

How do I adjust the temperature of the refrigerator and freezer?

Press the TEMP. SELECT key to choose the compartment, then use the ∧ (increase) or ∨ (decrease) keys to adjust the temperature. The refrigerator range is 2°C to 8°C, the freezer range is -24°C to -16°C.

What to do in case of a power failure?

In case of a power failure, the refrigerator maintains the temperature for several hours. Reduce door openings and do not add food. When power returns, the appliance resumes its previous operation thanks to the power failure memory.

How to activate holiday mode?

Press the MODE key until Holiday mode is displayed. The refrigerator maintains a stable temperature (freezer at -18°C) to save energy during your absence.

What do the error codes on the display mean?

Codes like Probe error or Communication error indicate a malfunction. Refer to the manual for the exact meaning and contact a professional for repair.

How to clean the interior of the refrigerator?

Unplug the appliance and remove all food. Use a soft cloth with a solution of baking soda (2 tablespoons per 1 liter of warm water). Rinse and dry before restarting.

Why is the refrigerator making noise?

A humming noise from the compressor at start/stop is normal. A cracking sound comes from the refrigerant flow. If the noise is loud, check that the appliance is level and that the accessories are properly secured.

How to change the LED bulb?

Replacement of LED lamps must be carried out by the manufacturer, its after-sales service, or a qualified person. Do not attempt to do it yourself.

What to do in case of unpleasant odor?

Check for spoiled food, wrap odorous food tightly, and clean the interior. Regular cleaning with baking soda removes odors.

How to save energy?

Place the appliance in a cool location, away from heat sources. Let food cool down before storing. Open the door as little as possible and use holiday mode if necessary.

What to do if the door does not close properly?

Check that nothing is blocking the door (food). Make sure the refrigerator is level by adjusting the feet. If the gasket is deformed, gently heat it with a hairdryer and then let it cool so it regains its shape.

USER MANUAL EMSS178EW EAS Electric

Abstract arrangement of gray and white triangular shapes arranged in a row (no text or symbols)

EAS ELECTRIC

SMART TECHNOLOGY

Pure electrical circuit lines without any symbols

EMSS178EW

QR code with embedded logo and text 'TEAS' and 'TOMATO TECHNOLOGY'

Solid black right-pointing triangle shape on white background (no text or symbols)

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Warning sign with three symbols: no stop, warning symbol, and alert symbol, all blank in a rectangular frame.

Simple horizontal line with rounded ends, no text or symbols present

Four-panel comic strip showing hand holding a plug, a wall-mounted socket, a computer monitor with warning symbols, and a refrigerator with a 'No' sign.

Simple line drawing of a refrigerator with tools and a crossed-out bulb (no text or symbols)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child climbing a ladder inside a storage cabinet, with no text or symbols present.

Simple line drawing of a cabinet with boxes and a face, accompanied by an 'X' symbol and a warning sign (no text or labels)

Illustration showing a hand holding a tray with labeled items including a bottle, a jar, and a box, alongside a crossed-out 'X' symbol and an exclamation mark.

Blood Drugs Natural products

Beer !

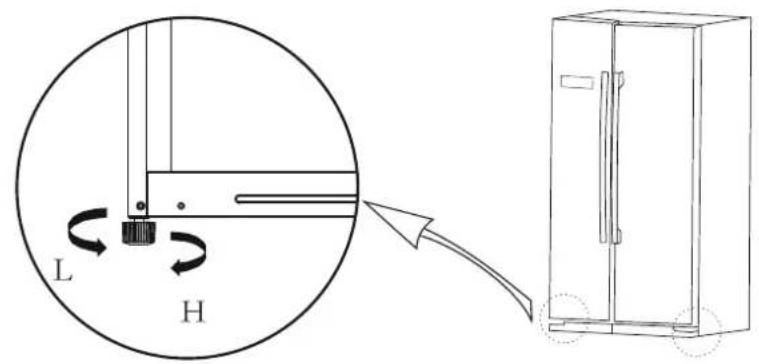

L H

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

3

Simple line drawing of a cabinet with eyes closed, connected to a power outlet (no text or symbols)

890mm 740mm 125° 1045mm 1440mm

Technical diagram of a refrigerator internal structure with labeled compartments and doorways

REF. FRZ. -88°C SUPER SUPER COOL FRZ. VACATION TEMP. SELECT MODE Hold 3sec. Unlock InstantCool InstantFreeze → → →

Simple horizontal line with a triangular warning symbol at the top-left corner (no text or labels)

Line drawing of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a multi-level refrigerator with an arrow indicating a component (no text or symbols present)

Technical line drawing of a mechanical lever or fulcrum with a force arrow indicating upward motion (no text or symbols present)

Solid black right-pointing triangle shape on white background (no text or symbols)

Warning sign depicting a flame symbol in yellow and black on a white background

Warning sign with three symbols: no stop, warning symbol, and alert symbol, all blank in a rectangular frame.

Simple curved line drawing with no text, numbers, or symbols

Four-panel comic strip showing a hand holding a plug, a wall-mounted socket, a computer monitor with warning symbols, and a refrigerator with a 'No' sign.

Simple line drawing of a refrigerator with tools and a crossed-out bulb (no text or symbols)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child climbing a ladder inside a storage cabinet, with no text or symbols present.

Simple line drawing of a cabinet with boxes and a face, accompanied by an 'X' symbol and a warning sign (no text or labels)

Illustration showing a hand holding a tray with labeled items including a bottle, a jar, and a box, alongside a crossed-out 'X' symbol and an exclamation mark.

Blood Drugs Natural products

Beer !

L H

Technical diagram illustrating mechanical assembly steps with labeled components and directional arrows

Simple line drawing of a cabinet with eyes closed, connected to an electrical outlet (no text or symbols)

890mm 740mm 125° 1045mm 1440mm

1. STRUCTURE AND FUNCTIONS

3.1 Key components

LED lighting Door tray Glass shelf Drawer LED lighting Glass shelf Fruits and vegetables box Door tray

The picture above is only for reference. The actual configuration will depend on the physical product or statement by the distributor.

Refrigerating chamber

Freezing chamber

• The low temperature freezing chamber may keep food fresh for a long time and it is mainly used to store frozen foods and making ice.
• The freezing chamber is suitable for storage of meat, fish, rice balls and other foods not to be consumed in short term.
• Chunks of meat are preferably to be divided into small pieces for easy access. Please be noted food shall be consumed within the shelf time.
• The temperature should be set to "Quick Freeze" (InstantFreeze) if you want to refrigerate food quickly.

Drawers, food boxes, etc. placed according to the position in the picture above are the most energy efficient.

Note: Storage of too much food during operation after the initial connection to power may adversely affect the freezing effect of the refrigerator. Foods stored shall not block the air outlet; or otherwise the freezing effect will also be adversely affected.

3.2 FUNCTIONS

REF. FRZ. -88°C SUPER SUPER VACATION COOL FRZ. TEMP. SELECT MODE Hold 3sec. Unlock

Lock/Unlock

At non-lock state, press key E for 3 seconds. The refrigerator will go into the Locked state and icon 4 📋 will show. To release the locked state, press key E for 3 seconds while in locked state until icon 4 displays ⏻, then the unit will be unlocked.

Note: power on after power failure, and operate the freezer at -18^ C and the refrigerator at 5^ C after quick cooling and quick freezing exit.

Note: The quick-freezing function is designed to maintain the nutritional value of the food in the freezer. It can freeze the food in the shortest time. If a large amount of food is frozen at one time, it is recommended that the user turn on the quick-freezing function and put the food in. At this time, the freezing speed of the freezer compartment is increased, which can quickly freeze the food, effectively lock the nutrition of the food, and facilitate storage.

Illustration of various household items including a gas container, alcohol spray bottle, and a kettle with a flame (no text or symbols)

Simple horizontal line with a triangular warning symbol at the top-left corner (no text or labels)

Line drawing of two hands holding a rectangular object with arrows indicating upward and downward motion (no text or symbols)

Technical line drawing of a multi-level refrigerator with an arrow indicating the front panel detail (no text or symbols present)

Special for new European standard:

Contenu

AVERTISSEMENTS DE SÉCURITÉ

Avertissement

STRUCTURE ET FONCTIONS

Composants

Fonctions

Nettoyage général

Dégivrage

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

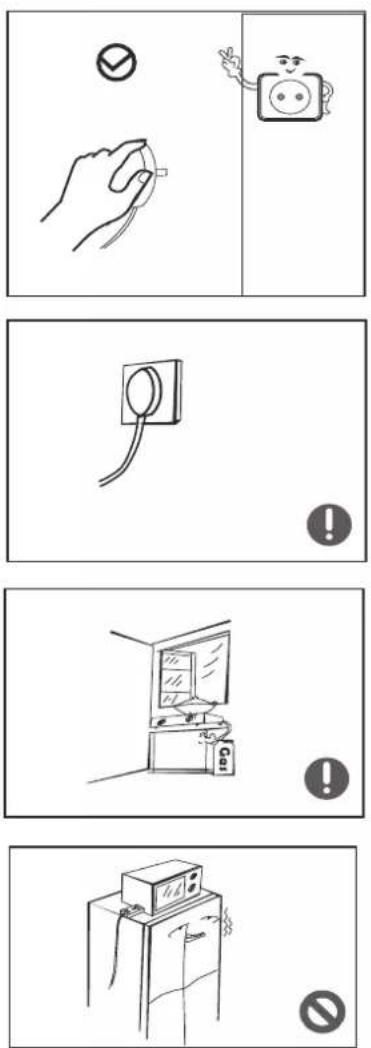

Diagram showing hand holding a pen and checkmark next to a cartoon character waving, with a checkmark symbol above the left.

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a computer monitor mounted on a wall, with an exclamation mark in the corner (no text or symbols on the device itself)

Simple line drawing of a refrigerator with a mounted appliance and a 'no' symbol (no text or labels)

Simple line drawing of a refrigerator with tools and a crossed-out bulb (no text or symbols)

Simple line drawing of a hand holding a book with a starburst effect and an exclamation mark (no text or symbols)

Simple line drawing of a child inside a refrigerator with no text or symbols

Simple line drawing of a distressed, anthropomorphic object with a cross and warning symbol (no text or labels)

Zyzygma Light's candy Bench

Blood Drugs Natural product

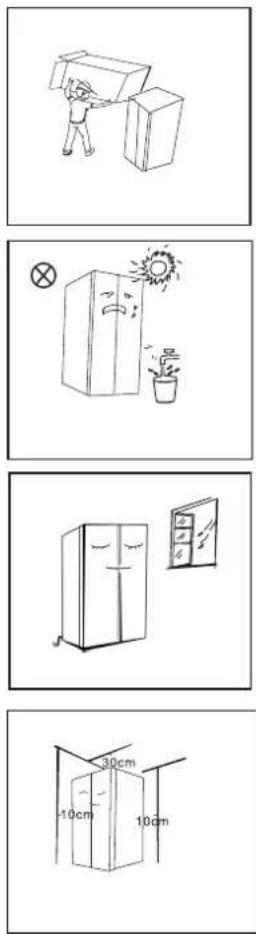

Simple line drawing of a person pushing a large box (no text or symbols)

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

30cm -10cm 10cm

Simple line drawing of a cabinet with eyes closed, connected to a power outlet (no text or symbols)

890mm 740mm 1045mm 125° 1440mm

Illustration of various household items including a gas container, alcohol spray bottle, and cooking pot (no text or symbols)

Line drawing of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a multi-level refrigerator with no visible text or symbols

CONDITIONS DE LA GARANTIE

Warning sign depicting a flame symbol in yellow and black, indicating hazard or hazard status.

Diagram showing hand holding a checkmark next to a hand holding a pencil, and a cartoon character waving from the side.

Simple line drawing of a plug with a cable, no text or symbols present

Simple line drawing of a room with a monitor and wall-mounted device, no text or symbols present

Simple line drawing of a refrigerator with a mounted appliance and a prohibition symbol (no text or labels)

Simple line drawing of a refrigerator with tools and a crossed-out circle symbol (no text or labels)

Simple line drawing of a hand holding a book with a starburst effect, no text or symbols present

Simple line drawing of a child sitting inside a bookshelf, with no text or symbols present.

Simple line drawing of a tower with boxes and a bird, no text or symbols present

Illustration showing a hand holding a tray with labeled items including a bottle, a box, and a warning symbol

Blood Dried Natural product

Beer !

Simple line drawing of a person pushing a large box (no text or symbols)

Simple line drawing of a refrigerator with a sun and a potted plant nearby (no text or symbols)

Simple line drawing of a refrigerator and a cabinet (no text or symbols)

30cm -10cm 10cm

Simple line drawing of a smiling refrigerator with closed eyes and a small electrical outlet (no text or symbols)

890mm 740mm 1045mm 125° 1440mm

Line drawing of two hands holding a rectangular object with arrows indicating direction (no text or symbols)

Technical line drawing of a multi-level refrigerator with no visible text or symbols

Scan for manual in other languages and further updates:
