Product Type	Washing Machine
Brand	EAS Electric
Model	EMWI82401
Washing Capacity	8.0 kg
Dimensions (W x D x H)	60 x 54 x 83 cm
Net Weight	63 kg
Power Supply	220-240 V / 1950 W / 10 A
Water Pressure	0.05 - 1 MPa (0.5 - 10 bar)
Energy Class	B
Maximum Spin Speed	1400 rpm
Programs	16 programs: Cotton, Eco 40-60, Synthetics, Delicates, Wool, Quick 45 min, Express 15 min, Jeans, Sport, etc.
Special Functions	Delay Start (0-24h), Pre-wash, Extra Rinse, Child Lock, Temperature and Spin Speed Control, Program Memory (Mi Ciclo)
Wash System	Drum with silver ion release
Installation Type	Freestanding or built-in
Noise Level (Spin)	76 dB(A)
Warranty	3 years
Maintenance	Regular cleaning of pump filter, detergent drawer, drum, and door seal
Safety	Child lock, leak protection, door safety

Frequently Asked Questions - EMWI82401 EAS Electric

How to install the washing machine and remove the transport bolts?

Before first use, remove the 4 transport bolts at the back using a wrench, then plug the holes with the provided caps. The appliance must be installed on a solid, dry, and level surface, away from frost and heat sources. Connect the water inlet hose to the tap and the drain hose to a suitable drain.

What detergent to use and how to fill the dispenser?

Use a detergent suitable for machine washing. The dispenser has three compartments: I for pre-wash, II for main wash, and the central compartment for fabric softener. Respect the indicated levels and dilute thick products to avoid blockages.

What to do if the washing machine does not start (error code E30)?

Code E30 indicates the door is not properly closed. Check that no clothing is blocking the door and close it correctly. If the problem persists, unplug the appliance for a few minutes and then plug it back in.

How to clean the drain pump filter?

Unplug the appliance and wait for the water to cool. Remove the drainage tray, unscrew the filter by turning it counterclockwise, clean it under running water, then put it back in place. Ensure the cover is tightly closed to prevent leaks.

How to activate the child lock?

Press the [Temp.] and [Centrifug.] buttons simultaneously for 3 seconds until you hear a beep. An indicator lights up. To deactivate, repeat the same operation. This function locks all buttons except [On/Off].

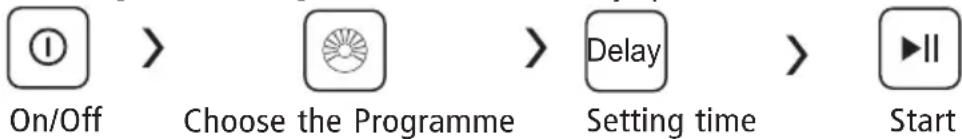

How to use the delay start function?

Select a program, then press [Inicio diferido] to set the start time (from 0 to 24 hours). Then press [Inicio/Pausa] to confirm. To cancel, set to 0H before the program starts.

What is the maximum laundry capacity?

The maximum capacity is 8.0 kg for normal programs (e.g., Cotton). For quick programs like Express 15 min, the load is limited to 2.0 kg. Do not exceed the indicated load to avoid imbalance.

How to choose the right program for my laundry?

Refer to the clothing care labels. Use Eco 40-60 for standard wash, Cotton for resistant cotton, Delicate for silk or wool, and Express 15 min for lightly soiled small loads.

What to do in case of a water leak?

Check the connections of the inlet and drain hoses. Tighten them if necessary. Clean the drain filter if it is clogged. Ensure the detergent drawer is not overfilled. If the leak persists, turn off the water supply and contact a technician.

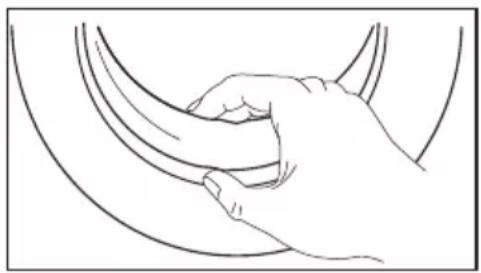

How to maintain the door seal and drum?

After each wash, wipe the rubber seal and the glass with a damp cloth to remove lint and residues. Clean the drum periodically with a chlorine-free detergent. Leave the door ajar to prevent mold.

USER MANUAL EMWI82401 EAS Electric

Abstract arrangement of gray and white triangular shapes (no text or symbols)

EAS ELECTRIC

SMART TECHNOLOGY

LAVADORA

WASHING MACHINE

LAVE - LINGE

MÁQUINA DE LAVAR

Simple diagram with a circled number 5 inside, containing two curved lines inside the circle, enclosed in a rectangular border.

QR code with embedded logo and text 'EAST ELECTRICE' in the center

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Symbol of a trash bin crossed with two diagonal lines, no text or numbers present

Simple line drawing of a box with a circular center and two X-shaped lines crossing the top (no text or symbols)

Illustration of a box with an arrow pointing upward, showing a magnified view of a mechanical component (no text or symbols present)

Diagram of a hand using a tool to switch or adjust a component into a washing machine (no text or symbols present)

Pure diagram of a pipe fitting with tubing, no text or symbols present

Diagram of a mechanical or electrical component with a coiled tube and directional arrow (no text or symbols)

Conexión finalizada

Diagram showing a faucet being adjusted to its base, with no text or symbols present

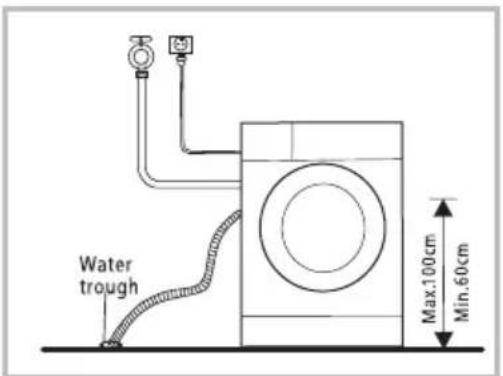

Max.100cm Min.60cm

Nota

Line drawing of a kitchen sink with faucet and chain handle (no text or symbols)

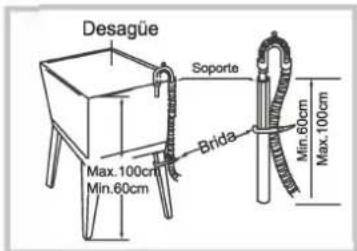

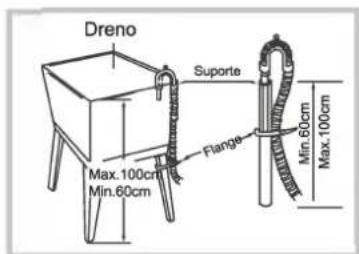

Desagüe Soporte Brida Max.100cm Min.60cm Min.60cm Max.100cm

Advertencia

Simple line drawing of a sweater with a tag and tie, no text or symbols present

Diagram illustrating clothing turnover with labeled parts and directional arrows indicating movement

Line drawing of two bags with circular patterns and straps (no text or symbols)

Simple line drawing of a bag with a small animal inside, no text or symbols present

Illustration of a T-shirt with patterned fabric and side connectors (no text or symbols)

Simple line drawing of a box with an arrow indicating rotation or movement, no text or symbols present.

Technical diagram of a mechanical component with labeled parts and symbol indicators

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Nota

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a faucet with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a handheld device with a textured bulb (no text or symbols)

Hand holding a device with a magnified inset showing a rotary switch (no text or symbols visible)

Line drawing of a hand holding a microphone inside a mirror (no text or symbols)

Nota

Line drawing of a mechanical component with internal compartments and a central fastener (no text or symbols)

Line drawing of a mechanical lever mechanism with no text or symbols

Line drawing of a hand using a tool to clean or store contents inside a container (no text or symbols)

Line drawing of a mechanical component with no visible text or symbols

Illustration of a hand holding a light bulb above a plate with a small inset showing food items (no text or symbols)

Diagram of a mechanical assembly with rotating components and directional arrows (no text or symbols)

825mm 500mm 580mm 540mm 595mm 825mm 152.5mm

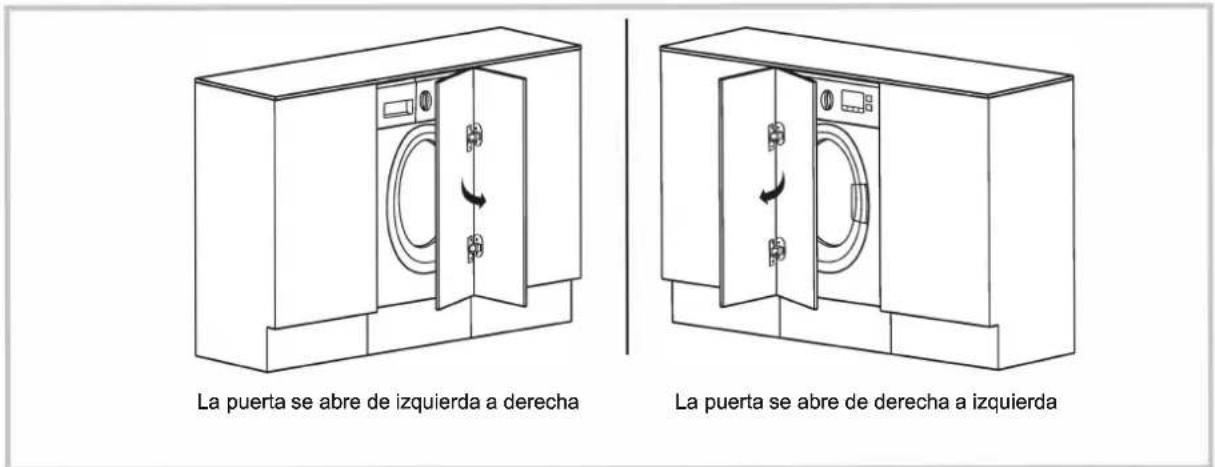

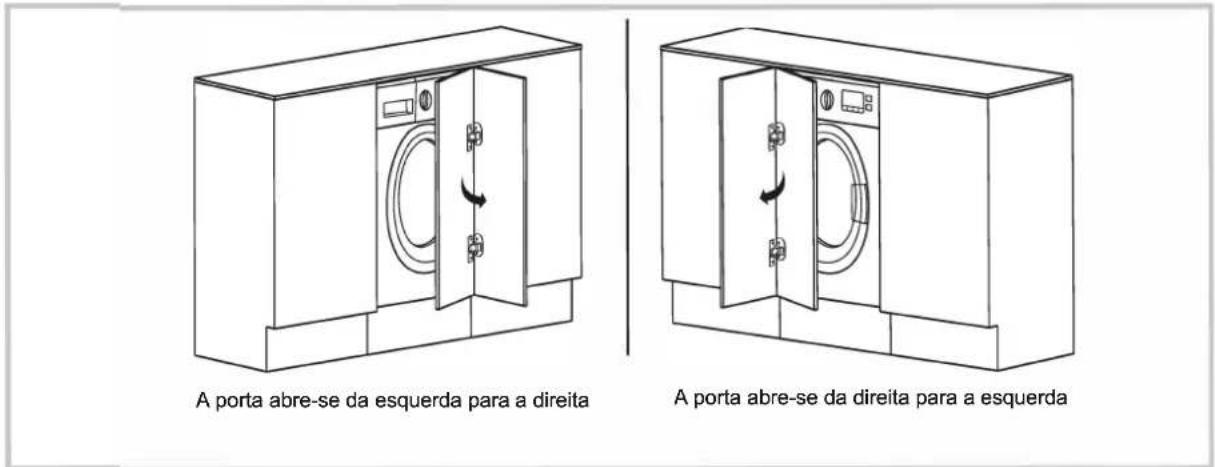

Esquema

Technical diagram showing two precision tools operating on a workbench with magnified detail views highlighting their measurement.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force directions.

Line drawing of a washing machine with attached electrical connector (no text or symbols)

Instale los contraimanes

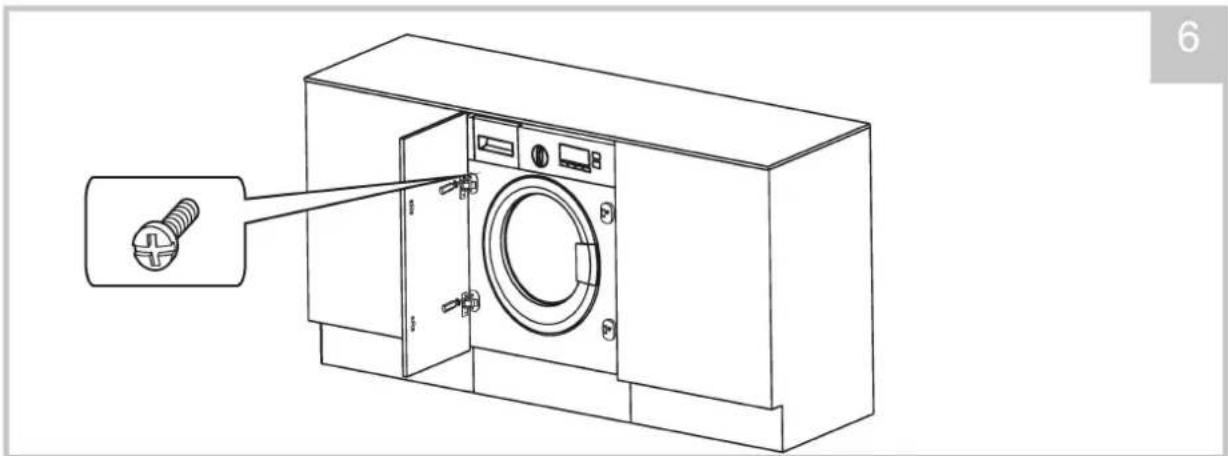

Line drawing of a washing machine with a screw inserted, showing internal components and no text or symbols

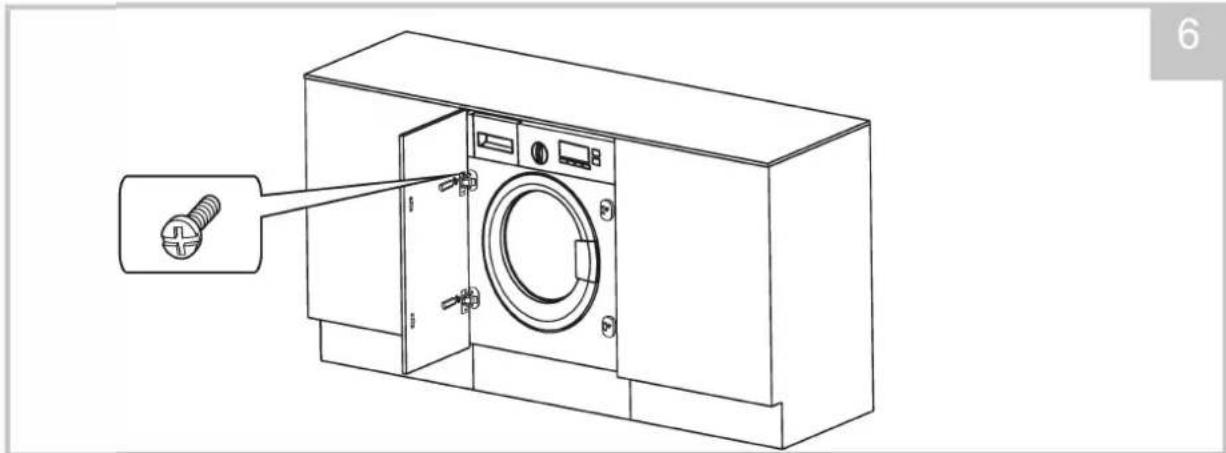

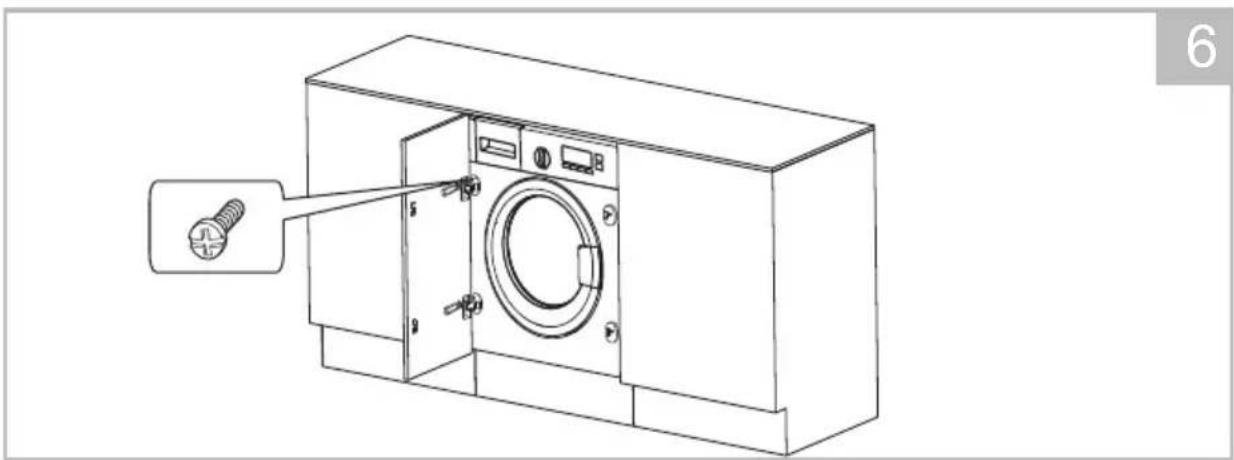

Instale la puerta

Advertencia

■ Cleaning and Care 26

■ Trouble Shooting 29

■ Technical Specifications .... 30

■ Product Fiche 31

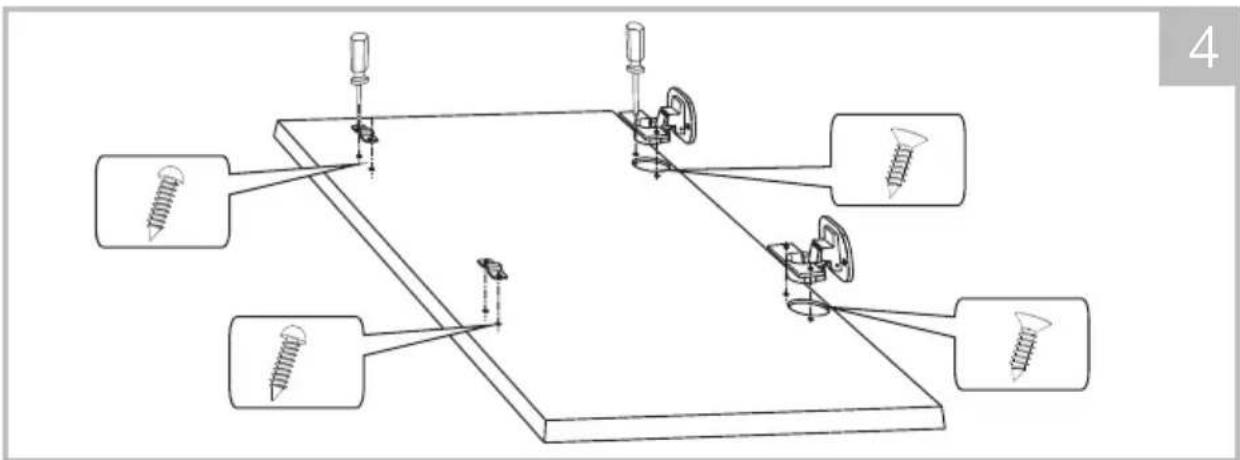

■ Built-in installation 33

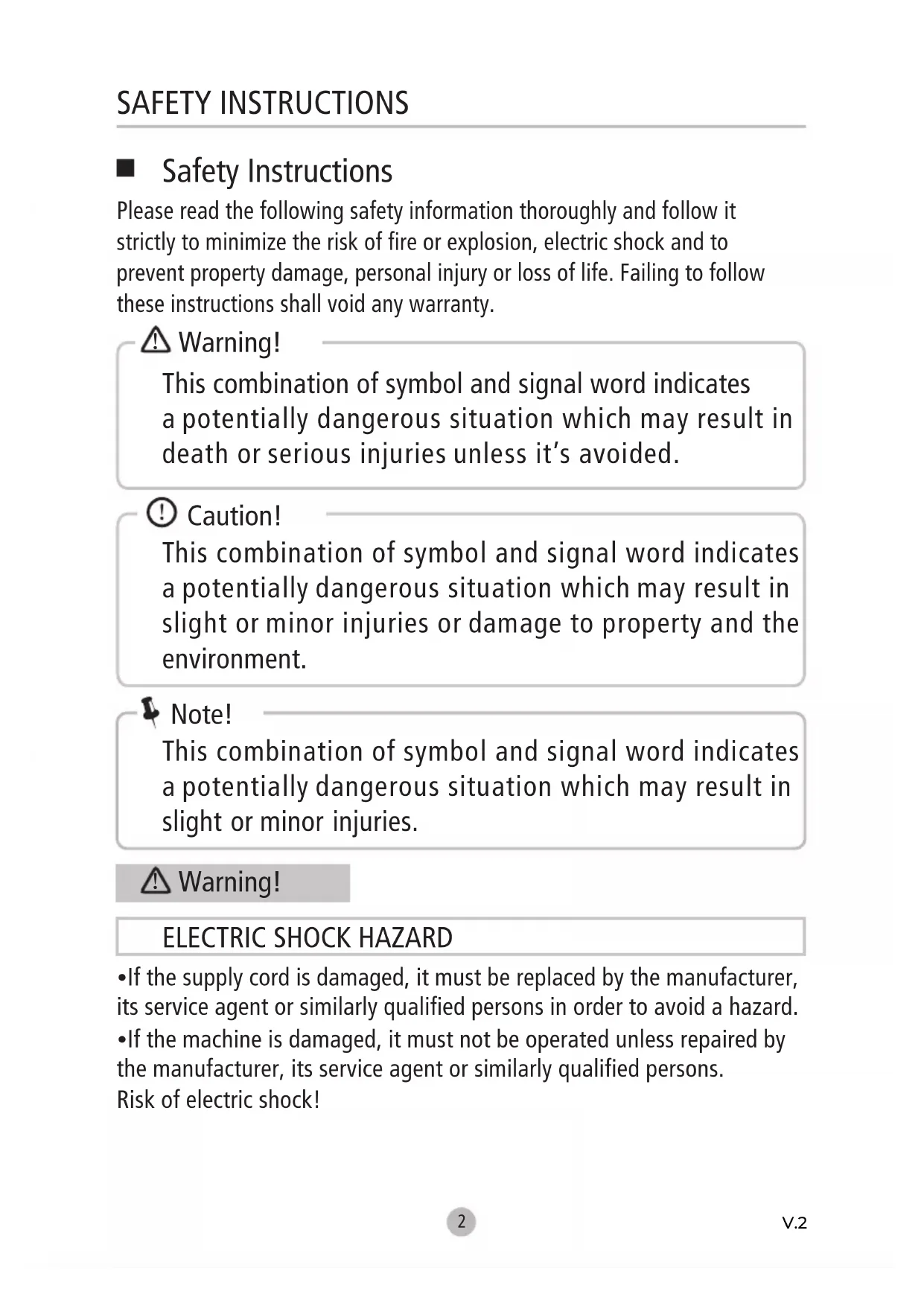

■ Safety Instructions

Please read the following safety information thoroughly and follow it strictly to minimize the risk of fire or explosion, electric shock and to prevent property damage, personal injury or loss of life. Failing to follow these instructions shall void any warranty.

Warning!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in death or serious injuries unless it's avoided.

! Caution!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries or damage to property and the environment.

Note!

This combination of symbol and signal word indicates a potentially dangerous situation which may result in slight or minor injuries.

Warning!

ELECTRIC SHOCK HAZARD

• If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.
• If the machine is damaged, it must not be operated unless repaired by the manufacturer, its service agent or similarly qualified persons.
  Risk of electric shock!

• The appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

• Children should be supervised that they do not play with the appliance.
• Children 3 years and under shall be kept away from the appliance or continuously supervised.
• Animals and children may climb into the machine. Check the machine before every operation.
• Do not climb or sit on the appliance.

• All washing and additional substances are to be kept in a safe place out of the reach of children.
• Do not install the machine on a carpet floor. The obstruction of the openings by a carpet can damage the machine.
• Keep the appliance clear from heating sources and direct sunlight to avoid plastic and rubber parts to corrode.
• Do not use the appliance in humid environments or rooms containing explosive or caustic gas. In case of water leakage or water splashes let the appliance dry in the open air.

• The appliance must not be installed behind a lockable door, a sliding door or a door with a hinge on the opposite side to that of the washing machine.

• Do not operate the machine in rooms with a temperature of below 5^ . This can cause damages to parts of it. If it is unavoidable, make sure to drain the water completely from the appliance after every use (see „Maintenance - Cleaning of drain pump filter“) to avoid damages caused by frost.

• Never use flammable sprays or substances in the immediate proximity of the appliance.

INSTALLATION

• Remove all packaging material and transport bolts before using the appliance. Otherwise, serious damage may result.
• This appliance is equipped with a single inlet valve and can be connected to the cold water supply only.
• Mains plug must be accessible after installation.
• Before washing clothes for the first time, the product shall be operated once throughout all the procedures without any clothes inside.
• Before using the washing machine, the product shall be calibrated.
• Do not put any excessively heavy objects on the appliance, like water containers or heating devices.
• The new hose-sets supplied with the appliance are to be used and that old hose-sets should not be reused.
• Max. Inlet water pressure 1 MPa. Min. inlet water pressure 0.05 MPa.

ELECTRICAL CONNECTION

• Make sure the supply cable is not trapped by the machine, it can get damaged.
• Connect the product to a grounded outlet protected by a fuse complying with the values in the “Technical specifications” table. The grounding installation has to be made by a qualified electrician. Ensure that the machine is installed in accordance with the local regulations.

- Water and electrical connections must be carried out by a qualified technician in accordance with the manufacturer's instructions and local safety regulations.

Warning!

• Don't use multiple plugs or extension cords.
• The appliance must not have an external switching device such as a timer or connected to a circuit that is regularly switched on and off.
• Do not pull the plug out of the mains outlet if there is flammable gas around.
• Never pull out power plug with wet hands.
• Always pull at the plug, not at the cable.
  •Always unplug the appliance if it is not being used.

WATER CONNECTIONS

• Check the connections of the water inlet tubes, the water tap and the outlet hose for possible problems due to changes of water pressure. If the connections loosen or leak close the water tap and get it repaired. Do not use the appliance before the pipes and hoses are installed properly by qualified persons.
• Glass door may become very hot during the operation. Keep children and pets far away from the machine while it is operating.
• The water inlet and outlet hoses have to be safely installed and remain undamaged. Otherwise, water leakage can occur.
• Do not remove the drain pump filter while there is still water in the appliance. Big quantities of water can leak out, and there is a risk of scalding due to hot water.

• Never use any flammable, explosive or toxic solvents. Do not use gasoline and alcohol etc. as detergents. Only select detergents that are suitable for machine washing.
• Make sure that all pockets are emptied. Sharp and rigid items such as coins, brooches, nails, screws, stones etc. may cause serious damages to this machine.
• Remove all objects from pockets such as lighters and matches before use the appliance.
  • Thoroughly rinse items that have been washed by hand.
• Items that have been soiled with substances such as cooking oil, acetone, alcohol, petrol, kerosene, spot removers, turpentine, wax and wax removers should be washed in hot with an extra amount of detergent before being dried in the appliance.
• Items containing foam rubber (latex foam), shower caps, water proof textiles, rubber backed articles and clothes or pillows fitted with foam rubber pads should not be dried in the machine
• Fabric softeners or similar products should be used as recommended in their instructions.
• Never try to open the door forcefully. The door will unlock shortly after the end of a cycle.
• Please do not close the door with excessive force. If it is found difficult to close the door, please check if the clothes are properly inserted and distributed.

• Always unplug the appliance and close the water tap before cleaning and maintenance and after each use.
- Never pour water over the appliance for cleaning purpose. Risk of electric shock!
- Repairs shall only be carried out by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard. The producer will not be responsible for damages caused by the intervention of not authorized persons.

TRANSPORT

• Before Transport:
  -Bolts shall be reinstalled to the machine by a specialized person
  -Accumulated water shall be drained out of the machine
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

INTENDED USE

The product is intended only for home use and for textiles in household amounts suitable for machine washing and drying. This appliance is for indoor use only and not intended for built in use.

Only use according to these instructions. The appliance is not intended for commercial use.

Any other use is considered as improper use. The producer is not responsible for any damage or injuries that may result of it.

• This appliance is intended to be used in household and similar applications such as:
  -Staff kitchen areas in shops, offices and other working environments;
  -Farm houses;
  -By clients in hotels, motels and other residential type environments;
  -Bed and breakfast type environments;
  -Areas for communal use in blocks of flats or in launderettes.

Packaging/Old appliance

This marking indicates that this product should not be disposed with other household wastes throughout the EU. To prevent possible harm to the environment or human health from uncontrolled waste disposal, recycle it responsibly to promote the sustainable reuse of material resources. To return your used device, please use the collection systems or contact the retailer where the product was purchased. They return and can take this product for environmental safe recycling.

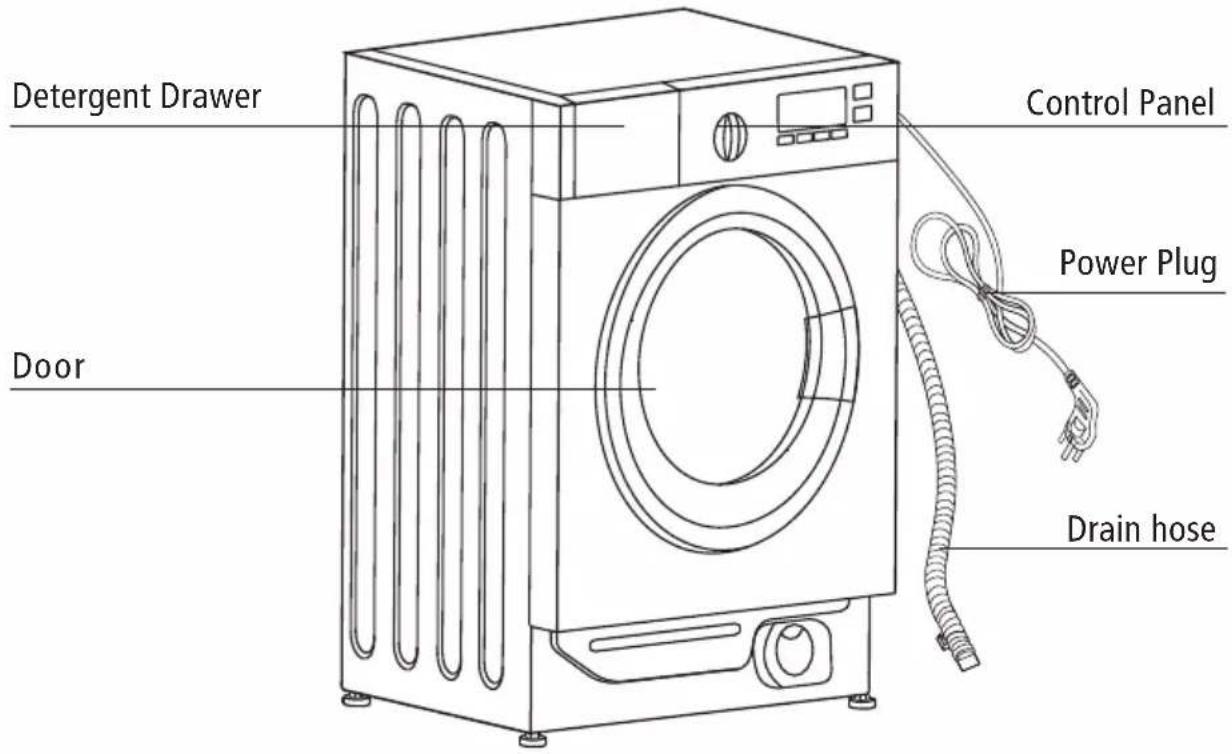

■ Product Description

Detergent Drawer Control Panel Power Plug Door Drain hose

Note!

- The product line chart is for reference only, please refer to real product as standard.

Accessories

Transport plughole

■ Installation

Installation area

Warning!

• Stability is important to prevent the product from wandering! Make sure the machine is standing leveled and stable.
• Make sure that the product does not stand onto the power cord.
• Make sure to maintain the minimum distances from the walls as shown in the picture

W ≥ 20mm

Before installing the machine, the location characterized as follows shall be selected:

1. Rigid, dry, and level surface
2. Avoid direct sunlight

3. Sufficient ventilation
   4.Room temperature is above 0°C

4. Keep far away from the heat sources such as coal or gas burning appliances.

Simple line drawing of a rectangular box with a circular center and diagonal X mark (no text or symbols)

Unpacking the washing machine

Warning!

• Packaging material (e.g. Films, Styrofoam) can be dangerous for children.
• There is a risk of suffocation! Keep all packaging well away from children.

Diagram of a box with an arrow pointing upward, and a magnified inset showing a small 3D structure labeled 'a' (no text or symbols present)

1. Remove the cardboard box and styrofoam packing.
2. Lift the washing machine and remove the base packaging. Make sure the small triangle foam (a) is removed with the bottom packaging together. If not, lay the unit down on the side surface and remove it manually.
3. Remove the tape securing the power supply cord and drain hose.
4. Remove the inlet hose from the drum.

Remove transport bolts

⚠ Warning!

- You must remove the transport bolts from the backside before using the product.

Close-up of a mechanical component with a wrench and circular head, no visible text or symbols

Loosen the 4 transport bolts with a spanner.

Close-up of a mechanical component with a blue arrow pointing to a metallic part (no visible text or symbols)

Remove the bolts including the rubber parts and keep them for future use.

Close-up of a white object with a dark circular hole and a blue arrow pointing to it, no visible text or symbols.

Close the holes using the cover caps.

Levelling the washing machine

Warning!

- The lock nuts on all four feet must be screwed tightly against the housing.

Close-up of a white mechanical component with a blue circular arrow indicating rotation (no text or symbols)

1. Loosen the lock nut.
2. Turn the foot until it reaches the floor.
3. Adjust the legs and lock the nuts with a spanner. Make sure the machine is level and steady.

Connect the water supply hose

Warning!

To prevent leakage or water damage, follow the instructions in this chapter

- Do not kink, crush or modify water inlet hose.

Close-up of a white object with blue arrows indicating motion or rotation, no visible text or symbols

Connect the water supply hose to the water inlet valve and a water tap with cold water as indicated.

Close-up of a faucet with blue arrows indicating clockwise motion (no text or symbols)

Note!

- Connect manually, do not use tools. Check if the connections are tight.

Drain Hose

Warning!

• Do not kink or protract the drain hose.
• Position drain hose properly, otherwise damage might result of water leakage.

There are two ways to place the end of drain hose:

1. Put it into the water trough. 2. Connect it to the branch drain pipe of the trough.

Water trough Max.100cm Min.60cm

Max.100cm Max.100cm Min.60cm

Quick Start

! Caution!

• Before washing, please make sure the washing machine is installed properly.
• Your appliance was thoroughly checked before it left the factory. To remove any residual water and to neutralize potential odors, it's recommended to clean your appliance before first use. For this reason, start the Cotton program at 90°C without laundry and detergent.

Calibration

It's recommended to calibrate the washing machine, so that provide the best performance.

The appliance is able to detect the amount of laundry loaded. This function is optimizing the product performance by minimizing energy and water consumption, saving you money and time. For this reason it's recommended to calibrate the appliance for best use.

1- Remove all accessories from the drum and close the door;
2- Insert the mains plug to the socket;
3- Switch on the washing machine and press "Speed" and "Delay" simultaneously for 10 seconds until "t19" is displayed;
4- Press [ ▷II] to start the appliance and wait till “****” is displayed.
5- The machine MFG60-S1210/C20E-EU(NE) does not needcalibrate, so step 1 to step 4 can be skipped.

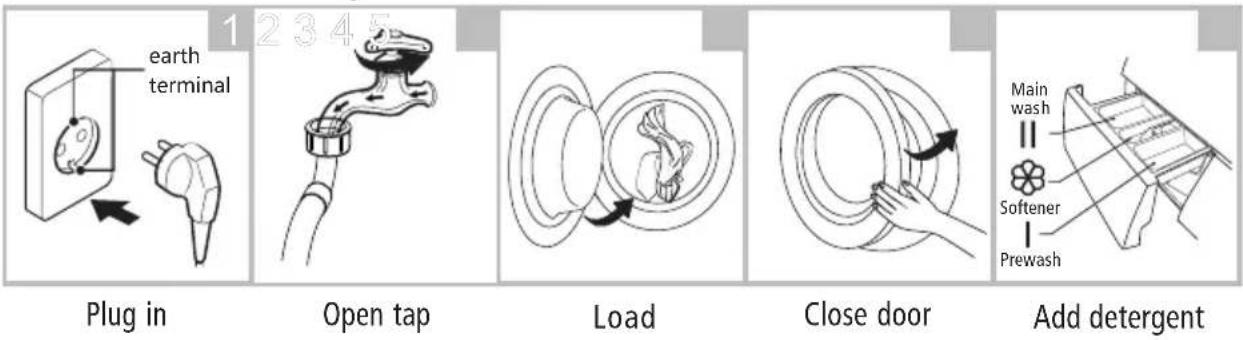

1. Before Washing

Note!

- Detergent need to be added in compartment I if the pre-wash function is selected.

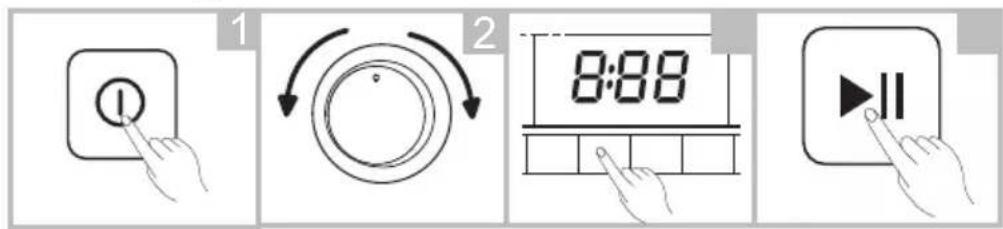

2. Washing

Power On
Select programme
Select function or remain default settings
Press Start/Pause to start the program

3. After Washing

Buzzer beep and "End" on display.

■ Before Each Washing

• The ambient temperature of the washing machine should be 5-40°C. If used under 0°C, the inlet valve and draining system may be damaged. If the machine is installed under freezing conditions, it should be transferred to normal ambient temperature to ensure the water supply hose and drain hose can unfreeze before use.
• Please check your laundry care labels and the detergent use instructions before wash. Use non-foaming or less-foaming detergent suitable for machine washing properly.

Simple line drawing of a sweater with a tag and patterned tie (no text or symbols)

Check the care label

Simple line drawing of a bag being folded into a basket (no text or symbols)

Sort laundry according to color and textile type

Diagram illustrating a garment pattern with labeled parts and directional arrows indicating movement or processing steps.

Take all items out of the pockets

Two handbags with bow designs, one wrapped in a blanket and the other folded (no text or symbols)

Tie together long textile strips and belts, close zips and button

Simple line drawing of a bag with a grid pattern and a small grid pattern inside (no text or symbols)

Put small items into a laundry bag

Line drawing of a knitted sweater with pleated sleeves and shoulder-length sleeves (no text or symbols)

Turn easy-pilling and long-pile fabric inside out

⚠ Warning!

• Do not wash or dry articles that have been cleaned in, washed in, soaked in, or dabbed with combustible or explosive substances like wax, oil, paint, gasoline, alcohol, kerosene, and other flammable materials.
• Washing single clothes items may easily create big eccentricity and cause alarm due to unbalance. Therefore it is suggested to add one or two more laundry items to the wash so that spin can be done smoothly.

■ Detergent Dispenser

I Pre wash

II Main wash

Softener

Release button to pull out the dispenser

Technical diagram of a mechanical component with labeled parts and symbols

! Caution!

- Detergent only need to be added in "compartment I" after selecting pre-wash function.

Programme	I	II
Quick 15		●	○
Rapid 45	○	●	○
20°C		●	○
Jeans	○	●	○
Eco 40-60		●	○
Intensive		●	○
Rinse&Spin			○
Spin Only

● Means must

○ Means optional

Programme	I	II
Baby Care	○	●	○
Wool		●	○
Delicate		●	○
Mixed	○	●	○
Synthetic	○	●	○
Sports	○	●	○
Cotton	○	●	○

Detergent Recommendation

Recommended washing detergent	Wash cycles	Washing temp.	Type of laundry and textile
Heavy-duty detergent with bleaching agents and optical brighteners	Cotton, ECO 40-60, Intensive	40 60/	White laundry made from boil-proof cotton or linen
Colour detergent without bleaching agent and optical brighteners	Intensive, Cotton,ECO 40-60, Mixed,20°C	20/30/40/60	Coloured laundry made from cotton or linen
Color or mild detergent without optical brighteners	20°C,Synthetic	Cold/20/30/40	Coloured laundry made from easy care fibres or synthetic materials
Mild washing detergent	Synthetic	20/30	Delicate textiles, silk, viscose
Special wool detergent	Wool	20 30/40/	Wool

Note!

• Agglomerating or ropy detergent or additive can be diluted in some water before pouring it into the detergent dispenser, to avoid its inlet to get blocked and thus cause a water overflow.
• Please choose the suitable type of detergent to get a maximum of washing performance and a minimum of water and energy consumption
• To achieve the best cleaning result a proper detergent dosing is important.
• Use a reduced detergent amount if the drum is not filled completely.
• Always adjust the amount of detergent to the water hardness, if your tap water is soft, use less detergent.
• Dose according to how dirty your laundry is, less dirty clothes require less detergent.
• Highly concentrated (compact detergent) requires particularly accurate dosing.

Following symptoms are a sign of detergent overdosing:

• heavy foam formation
• poor washing and rinsing result

Following symptoms are a sign of detergent underdosing:

• laundry turns grey
• built-up of limescale deposits on the drum, the heating element and/or the laundry

■ Control Panel

My Cycle Cotton Quick 15' Sport Rapid 45' Synthetic 20°C Mix Jeans Delicate ECO 40-60 Wool Intensive Baby Care Spin Only Rinse & Spin Delay Temp Speed Function On/Off Start/Pause 3 4 5 3 2 1

Note!

The chart is for reference only, Please refer to real product as standard.

1 Power

Product is on/off.

3 Option

This allows you to select an additional function and will light when selected.

5 Display

The display shows the settings, estimated time remaining, options, and status messages for your washer. The display will remain on through the cycle.

2 Start/Pause

Press the button to start or pause the washing cycle.

4 Programmes

Available according to the laundry type.

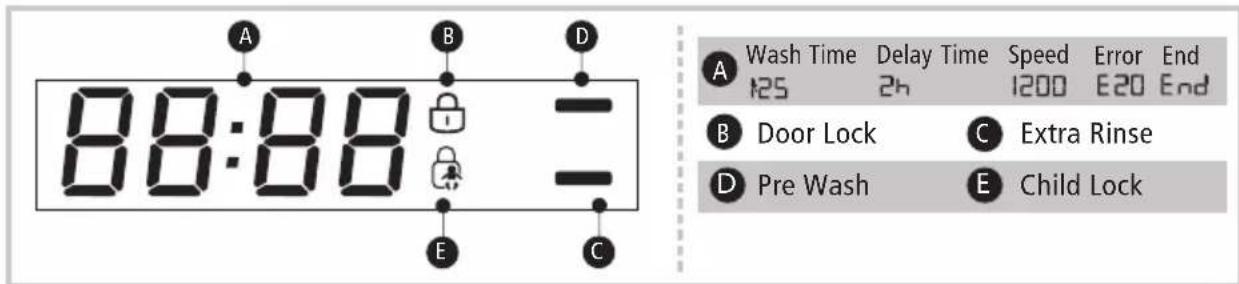

A Wash Time Delay Time Speed Error End 125 2h 1200 E20 End B Door Lock C Extra Rinse D Pre Wash E Child Lock

Programmes

Programme	Washing/Drying Load (kg)	Display Time (H)
	8.0	8.0
		1400
Quick 15	2.0	0:15
Rapid 45	2.0	0:45
20°C	4.0	1:01
Jeans	8.0	1:45
Eco 40-60	8.0	3:35
Intensive	8.0	3:48
Rinse&Spin	8.0	0:20
Spin Only	8.0	0:12
Baby Care	8.0	1:43
Wool	2.0	1:07
Delicate	2.5	0:50
Mixed	8.0	1:20
Synthetic	4.0	3:18
Sports	4.0	1:11
Cotton	8.0	3:49

Note!

- The parameters in this table are only for user's reference. The actual parameters maybe different with the parameters in above mentioned table.

Programmes

Cycle	Nominal capacity in kg	Temperature setting	Cycle duration in hours and minutes	Energy consumption in kWh/operalling cycle	Water consumption in liter//operalling cycle	Highest temperature ature ^^1)	residual moitsure in %/spin speed ^2)
Quick 15	2.0	Cold	0:15	0.030	31.0	Cold	75%/800
20°C	4.0	20	1:01	0.183	44.0	20	65%/1000
Intensive	8.0	40	3:48	1.013	71.0	40	70%/800
Mixed	8.0	40	1:20	0.754	71.0	40	70%/800
Cotton	8.0	60	3:54	1.515	71.0	60	53%/1400
ECO 40-60 ^3)	8.0	-	3:38	0.852	61.0	37	53%/1400
	4.0	-	2:48	0.542	45.0	33	53%/1400
	2.0	-	2:48	0.216	36.0	23	53%/1400

• The above data is for reference only, and the data may change due to different actual use conditions.
• The valves given for programmes other than the ECO 40-60 programme are indicative only.
• Concerning to EN 60456:2016 With (EU)No.1061/2010,
  The EU energy efficiency class is: A+++
  Energy test program: Intensive; T speed: The highest speed; 60°C/40°C; Other half-iron de 80kg machine: 4.0kg.
• Concerning to EN 60456:2016/prA2019 With (EU)2019/2014, (EU)2019/2023, The EU energy efficiency class is: B
  Energy test program: ECO 40-60. Other as the default. Other as the default.
  Half load for 8.0kg machine:4.0kg.
  Quarter load for 8.0kg machine:2.0kg.

1) The highest temperature reached by the laundry in the wash cycle for at least 5 minutes.
2) Residual moisture after the wash cycle in water content percent and the spin speed at which this was achieved.
3) The ECO 40-60 programme is able to clean normally soiled cotton laundry declared to be washable at 40^ C or 60^ C, together in the same cycle. This programme is used to assess the compliance with the regulation (EU) 2019/2023.

The most efficient programmes in terms of energy consumption are generally those that perform at lower temperatures and longer duration.

Loading the household washing machine up to the capacity indicated for the respective programmes will contribute to energy and water savings.

Noise and remaining moisture content are influenced by the spinning speed: the higher the spinning speed in the spinning phase, the higher the noise and the lower the remaining moisture content.

Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme. The machine will continue the programme when the power supply is re-established.

Programmes

Programmes are available according to the laundry type.

Programmes
Cotton	Hard-wearing textiles, heat-resistant textiles made of cotton or linen.
Rapid 45'	Washing few and not very dirty clothes quickly.
Synthetic	Wash synthetic articles, for example: shirts, coats, blending. While washing the knitting textiles, detergent quantity shall be reduced due to its loose string construction and easily forming bubbles.
Baby Care	Washing the baby's clothes, it can make the baby's wear cleaner. and make the rinse performance better to protect the baby skin.
Jeans	Specially for jeans.
Mixed	Mixed load consisting of textiles made of cotton and synthetics.
20°C	Washing brightly colored clothes, it can protect the colors better .
Sports	Washing the activewear.
Quick 15'	Extra short programme approx, suitable for lightly soiled washing as a small amounts of laundry.
Delicate	For delicate, washable textiles, e.g. made of silk, satin, synthetic fibres or blended fabrics.
Wool	Hand or machine-washable wool or richwool textiles.Especially gentle wash programme to prevent shrinkage, longer programme pauses (textiles rest in wash liquor).
Spin Only	Extra spin with selectable spin speed.
Rinse&Spin	Extra rinse with spin.
	Eco Washing brightly colored clothes, it can protect the colors better. Default 40°C,not selectable,suitabale for laundry washing at about 40°C-60°C.
Intensive	To increase the washing effects, washing time is increased.

Option

Cycle	Default Temp.(°C)	Default spin speed in rpm		Additional functions
Wash cycles	1200 1400
Quick 15	Cold	800	800	Delay ,
Rapid 45	40	800	800	Delay , Pre Wash , Extra Rinse .
20°C	20	1000	1000	Delay , Extra Rinse .
Jeans	60	1000	1000	Delay , Pre Wash , Extra Rinse .
Eco 40-60	--	1200	1400	Delay ,
Intensive	40	800	800	Delay ,
Rinse&Spin	--	1000	1000	Delay , Extra Rinse .
Spin Only	--	1000	1000	Delay ,
Baby Care	60	800	800	Delay , Pre Wash , Extra Rinse .
Wool	40	600	600	Delay , Extra Rinse .
Delicate	30	600	600	Delay , Extra Rinse .
Mixed	40	800	800	Delay , Pre Wash , Extra Rinse .
Synthetic	40	800	1200	Delay , Pre Wash , Extra Rinse .
Sports	40	800	800	Delay , Pre Wash , Extra Rinse .
Cotton	40	800	1400	Delay , Pre Wash , Extra Rinse .

Note!

• For the maximum spin speed, program time, and other details of the ECO 40-60 program, please refer to the content on the Product Fiche page.
• The table shows which cycle offers which options for adjustment. If an adjustment is not possible for a cycle.

Delay

Set the Delay function:

1. Select a programme
2. Press the Delay button to choose the time (the delaying time is 0-24 H.)
3. Press [Start/Pause] to commence the delay operation

Cancel the Delay function:

Press the [Delay] button until the display be 0H. It should be pressed before starting the programme. If the programme already started, should press the [On/Off] button to reset the programme.

Caution!

- If there is any break in the power supply while the machine is operating, a special memory stores the selected programme and when the power is restarted, press the [ ] button the program will continue.

Pre Wash

The Prewash function can get an extra wash before main wash.

Extra Rinse

The laundry will undergo extra rinse once after you select it.

Speed

Press the button to change the spin speed.

Temp.

When needed, the washing temperature can be adjusted by pressing the temperature button in the following steps: Cold - 20°C - 30°C - 40°C - 60°C - 90°C.

My Cycle

Memory the frequently used programmes

Press [❤️]3sec. to memory the running programme. The default is cotton.

Child Lock

To avoid mis operation by children.

On/Off

Start/Pause

Press [Temp.] and [Speed]

3 sec. till buzzer beep.

Caution!

• Press the two button 3sec. also to be released the function.
• The "Child Lock" will lock all buttons except [On/Off].
• Cut off the power supply, the kid's protection is to be released.
• The child lock will remain effective when the power is resumed for some models.

Mute the buzzer

① > ▶|| > Temp.

On/Off

Start/Pause

Press the [Temp.]button for 3sec.the buzzer is mute.

To act the buzzer function, press the button again for 3 seconds. The setting will be kept until the next reset.

! Caution!

- MuAfter ting the buzzer function, the sounds will not be activated any more.

■ Cleaning and Care

⚠ Warning!

- Always unplug the appliance and close the water tap before cleaning and maintenance.

Cleaning the Cabinet

Proper maintenance on the washing machine can extend its working life. The surface can be cleaned with diluted non-abrasive neutral detergents when necessary. If there is any water overflow, use a cloth to wipe it off immediately. Never use sharp items to clean the appliance.

Line drawing of a hand washing a washing machine (no text or symbols)

Caution!

- Never use abrasive or caustic agents. formic acids or its diluted solvents or similar substances, like alcohol or chemical products.

Cleaning the Drum

Any rust stains left inside the drum by metal articles must be removed immediately using chlorine-free detergents. Never use steel wool for cleaning the drum!

Note!

- Keep any laundry away from the machine while cleaning the drum.

Cleaning the Door Seal and Glass

Wipe the glass and seal after each wash to remove lint and stains. If lint builds up it can cause leakages.

Remove any coins, buttons and other objects from the seal after each wash.

Clean the Door Seal and Glass every month to ensure the normal operation of the appliance.

Line drawing of a hand gripping a curved object (no text or symbols)

Cleaning the Inlet Filter

Note!

- Diminishing water flow is a sign that the filter need to be cleaned.

1. Close the tap and remove the water supply hose from it.
2. Clean the filter with a brush.
3. Unscrew the water supply hose from the backside of the machine. Pull out the filter with long nose pliers.
4. Use a brush to clean the filter.
5. Reinstall the filter to the water inlet and reconnect the water supply hose.
6. Clean the Inlet filter every 3 months to ensure the normal operation of the appliance.

Diagram showing a mechanical assembly with rotating components and directional arrows (no text or symbols)

Line drawing of a hand holding a connector with a tool, no text or symbols present

Illustration of a hand using a tool to adjust or install a component, with a magnified inset showing the internal mechanism (no text or symbols present)

Line drawing of a tennis racket with a handle and socket, no text or symbols present

Clean The Detergent Dispenser

1. Press down the arrow location on softener cover inside the dispenser drawer.
2. Lift the clip up and take out softener cover and wash all grooves with water.
   3.Restore the softener cover and push the drawer into position.

Technical line drawing of a mechanical component with labeled section A (no text or symbols beyond label)

Pull out the dispenser drawer with press the A

Line drawing of a mechanical device with a handle and internal components (no text or symbols)

Clean the dispenser drawer under water

Line drawing of a hand inserting a small object into a container (no text or symbols)

Clean inside the recess with an old toothbrush

Technical line drawing of a mechanical component with an arrow indicating direction (no text or symbols)

Insert the dispenser drawer

Note!

• Do not use abrasive or caustic agents to clean plastic parts.
• Clean the detergent dispenser every 3 months to ensure the normal operation of the appliance.

Cleaning the Drain Pump Filter

Warning!

• Be careful of the hot water!
• Allow detergent solution to cool down.
• Unplug the machine to avoid electrical shock before washing.
• Drain pump filter can filter the yarns and small foreign matters from the washing.
• Clean the filter periodically to ensure the normal operation of washing machine.
• Clean the filter periodically every 3 months to ensure the normal operation of the appliance.

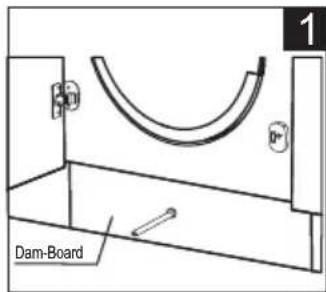

1 Dam-Board

After the power is dis-connected, pull out the Dam-Board.

Illustration of a hand holding a bulb above a plate with food, no text or symbols present

Turn the filter down as shown with the figure and take out sundries matters.

Diagram of a pipe fitting with directional arrows indicating flow or movement (no text or symbols)

Reinstall each part back after sundries matters are removed.

Caution!

- Make sure emergency drain hose cap and the emergency drain hose are reinstalled properly, otherwise water may leak.

■ Trouble Shooting

Whenever there is a problem with the appliance, check if you can solve it following the tables below. If the problem persists, please contact the customer service.

Description	Possible cause	Solution
Appliance does not start	Door is not closed properly. Clothes are stuck.	Close the door properly and restart.Check the laundry.
Door can’t be opened	Safety protection is activated.	Disconnect the power and restart.
Water leakage	Connections are not tight enough.	Check and fasten the water inlet pipe.Check and clean the outlet hose.
Detergent residues in the detergent dispenser	Detergent is damp and/or clotted.	Clean and wipe the detergent dispenser dry.
Indicator or display does not work	PC board or harness have connection problems.	Switch off the power and check if the mains plug is connected properly.
Abnormal noise	Fixing bolts still in place. Floor is not solid or level.	Check if the fixing bolts have been removedMake sure the appliance is installed on a solid and level floor.

Error Codes

Description	Possible cause	Solution
E30	Door is not closed properly	Close the door properly and restart.
E10	Water injecting problem during wash cycle.	Check if the water pressure is high enough.Straighten the water pipe.Clean the inlet valve filter.
E21	Overtime water draining	Check the drain hose for blockage.
E12	Water overflow	Restart the appliance.
EXX	Others	Restart the appliance. If problem persists, please contact the customer service.

- Customer service

Spare part for your appliance are available for a minimum of 10 years.

In case of questions please contact our customer service at:

⚠ Warning!

Risk of electric shock

• Never try repair an appliance which is defective of presumed to be defective.
  You may put your own and future users' lives in danger. Only authorised specialists are allowed to carry out this repair work.
• Improper repair will void the warranty and subsequent damages can't be recognized!

Transport

IMPORTANT STEPS WHEN MOVING THE APPLIANCE

• Unplug the appliance and close the water inlet tap.
• Check, if the door and the detergent dispenser are closed properly.
• Remove the water inlet pipe and the outlet hose from the house installations.
• Let the water drain completely from the appliance (see "Maintenance Cleaning the drain pump filter")
• Important: Re-install the 4 transport bolts in the back of the appliance.
• This appliance is heavy. Transport with care. Never hold any protruding part of the machine when lifting. The machine door cannot be used as a handle.

■ Technical Specifications

Power Supply	220-240V~,50Hz
MAX.Current	10A
Standard Water Pressure	0.05MPa~1MPa

H W D

Model	Washing Capacity	Dimension (W*D*Hmm)	Net Weight	Rated Power
EMWI82401	8.0kg	595*540*825	63kg 1950W

Product Information Sheet acc. regulation (EU) 2019/2023

Supplier's name or trade mark:

Supplier's address (b):

P.I San Carlos, Camino de la Sierra S/N, Parcela 11 03370 Redován (Alicante) SPAIN

Model identifier: EMWI82401

General product parameters:

Parameter	Value		Parameter	Value
Rated capacity (°) (kg)	8.0		Dimensions in cm	Height	83
				Width	60
				Depth	54
EEI_w (°)	60.0		Energy efficiency class (°)	B
Washing efficiency index (°)	1.031		Rinsing effectiveness (g/kg) (°)	5.0
Energy consumption in kWh per cycle, based on the eco 40-60 programme. Actual energy consumption will depend on how the appliance is used.	0.545 48		Water consumption in litre per cycle, based on the eco 40-60 programme. Actual water con-sumption will depend on how the appliance is used and on the hardness of the water.
Maximum temperature inside the treated textile (°) (°C)	Rated capacity	37	Remaining moisture content (°) (%)	Rated capacity	53.9
	Half	33		Half	53.9
	Quarter	23		Quarter	53.9
Spin speed (°) (rpm)	Rated capacity	1400	Spin-drying efficiency class (°)	B
	Half	1400
	Quarter	1400
Programme duration (°) (h:min)	Rated capacity	3 38 :	Type	built-in
	Half	2 48 :
	Quarter	2 : 48
Airborne acoustical noise emissions in the spinning phase (°) (dB(A) re 1 pW)	76		Airborne acoustical noise emission class (°) (spinning phase)	B
Off-mode (W)	0.50		Standby mode (W)	1.00
Delay start (W) (if applicable)	4.00		Networked standby (W) (ifapplicable)	N/A

Minimum duration of the guarantee offered by the supplier (b):

This product has been designed to release silver ions during the washing cycle

NO

Additional information:

Weblink to the supplier's website, where the information in point 9 of Annex II to Commission Regulation (EU) 2019/2023 (1) (b) is found:

(°) for the eco 40-60 programme.
(*) changes to these items shall not be considered relevant for the purposes of paragraph 4 of Article 4 of Regulation (EU) 2017/1369.
(*) if the product database automatically generates the definitive content of this cell the supplier shall not enter these data.

1) The actual energy consumption will depend on how the appliance is used.
2) The actual water consumption will depend on how the appliance is used and on the hardness of the water.
3) Delivery of the spare parts within 15 working days after having received the order.

Product Data Sheet concerning (EU) 2019/2014

The product data sheet for your appliance can be found online.

Go to https://eprel.ec.europe.eu and enter the model identifier for your appliance to download the data sheet.

The model identifier for your appliance can be found in the technical specifications section.

■ Built-in installation

Appendix

Self-tapping screws x4 x6 x4 (ST4*12) (M5*12) (ST4.8*15) Hinges Counter magnet Spacer Fixed position paper

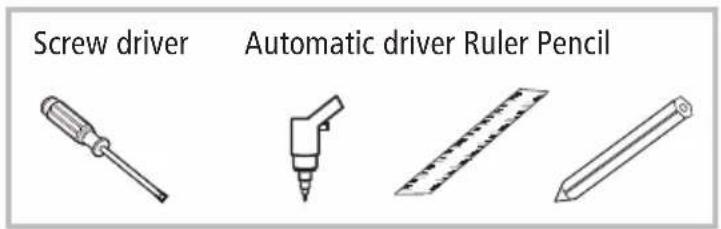

Tool

Screw driver Automatic driver Ruler Pencil

Install Steps

600mm 580mm 540mm 595mm 825mm 152.5mm

Overview

The door is open from right to leftThe door is open

Preparation and assembly of the door

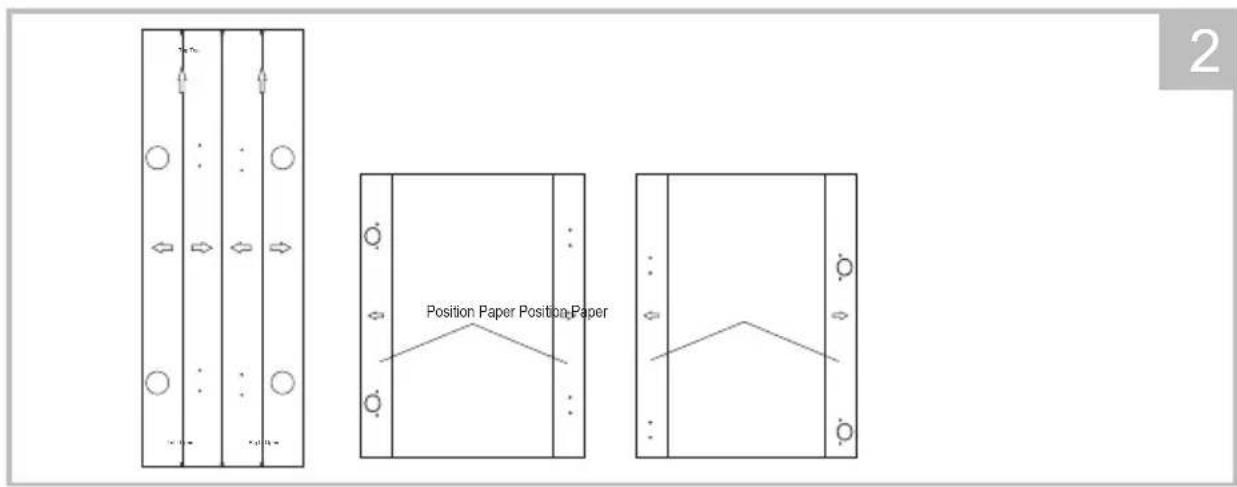

Position Paper

Make the mark on the door

Position Paper Position Paper 2

Fixed position paper on the door.

3

Drill hole on the door

Technical diagram showing mechanical assembly with screws and spring components, labeled with number 4

Installation the hinges and spacer

Line drawing of a washing machine with two switches inserted into it, showing internal components (no text or symbols)

Installation the counter magnet

Line drawing of a washing machine with a screw inserted, showing internal components and no text or symbols

Installation the door

Warning!

- When installing the appliance into the kitchen ensure furniture, if possible, the hoses are placed in either of the two recesses on the back of the appliance. This will help to prevent the hoses from becoming kinked or trapped.

WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.

2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.

3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.

4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.

5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.

6. Civil liabilities of any nature.

7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.

8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.

9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.

10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of grounding in the home, power disturbances, inappropriate modifications or use of non-original spare parts.

11. Appliances used in industrial applications or for commercial purposes.

12. Appliances with illegible or altered serial number.

13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.

14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.

15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.

16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.

EAS ELECTRIC

SMART TECHNOLOGY

www.easelectric.es

INSTRUCTIONS DE SÉCURITÉ

Symbol of a trash bin crossed with no text or numbers, representing waste sorting or disposal (no text present)

Simple line drawing of a rectangular box with a cross mark on the front face, no text or symbols present.

Illustration of a box with an upward arrow and a magnified inset showing a mechanical component (no text or symbols)

Illustration of a hand using a tool to switch a component into a speaker chamber (no text or symbols present)

INSTALLATION

Diagram illustrating the step-by-step installation of a faucet with anneau valve, showing change from valve to valve assembly.

Max.100cm Min.60cm

Remarque

Line drawing of a kitchen sink with faucet and chain handle (no text or symbols)

Drainage Support Lien Max.100cm Min.60cm Min.60cm Max.100cm

Avertissement

Simple line drawing of a sweater with a tag and patterned jacket (no text or symbols)

Diagram illustrating the process of clothing turnover with labeled parts and directional arrows indicating movement.

Line drawing of two bags with circular designs and straps (no text or symbols)

Simple line drawing of a bag with a small animal inside, no text or symbols present

Line drawing of a T-shirt with patterned fabric (no text or symbols)

Simple line drawing of a box with an arrow indicating rotation or movement, no text or symbols present.

Technical diagram of a mechanical component with labeled parts and symbol indicators

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Remarque

Line drawing of a hand gripping a curved object (no text or symbols)

Diagram of a valve mechanism with rotating arrows indicating flow direction (no text or symbols)

Line drawing of a hand holding a handheld device with a textured bulb (no text or symbols)

Hand holding a small device with a magnified inset showing a rotary switch (no text or symbols visible)

Line drawing of a hand holding a circular object with a mesh inside, mounted on a stand (no text or symbols)

Remarque

Line drawing of a mechanical or architectural component with internal compartments and a central arrow (no text or symbols)

Line drawing of a mechanical lever mechanism inside a boat (no text or symbols)

Line drawing of a hand using a tool to clean or inspect a small object inside a container (no text or symbols)

Line drawing of a mechanical component with internal parts and an arrow indicating direction (no text or symbols)

Remettez le bac

Remarque

Illustration of a hand holding a light bulb above a plate with a small inset showing food items (no text or symbols)

Diagram of a pipe fitting with directional arrows indicating movement (no text or symbols)

600mm 580mm 540mm 595mm 825mm 152.5mm 825mm

Schème

Technical diagram showing two precision tools operating on a workbench with magnified detail views highlighting their measurement.

Technical diagram of a mechanical assembly with labeled components and directional arrows indicating motion or force directions.

Line drawing of a washing machine with two screws inserted, showing internal components and mounting points (no text or symbols)

Line drawing of a washing machine with a screw inserted, showing internal components and no text or symbols

Installez la porte

Avertissement

CONDITIONS DE LA GARANTIE

EXCLUSIONS DE LA GARANTIE

Symbol of a trash bin crossed out by two diagonal lines (no text or numbers present)

Simple line drawing of a box with a cross mark on the front panel (no text or symbols)

Desempacotar a máquina de lavar

Atenção

Illustration of a box with an open lid and a magnified inset showing a mechanical component (no text or symbols)

Diagram showing hand operating a switch to switch inside a washing machine, with labeled parts and directional arrow

Equilibre a máquina de lavar

Atenção

Diagram illustrating the step-by-step installation of a faucet with anel, showing valve positioning and adjustment.

Toque com roscas e tubo de entrada

INSTALAÇÃO

Max.100cm Min.60cR

Nota

Line drawing of a kitchen sink with faucet and chain (no text or symbols)

Dreno Suporte Flange Max.100cm Min.60cm Min.60cm Max.100cm

Atenção

Simple line drawing of a sweater with a tag and patterned jacket (no text or symbols)

Verifique a etiqueta

Diagram illustrating garment turnover process with labeled parts and directional arrows indicating movement

Line drawing of two bags with circular designs and straps (no text or symbols)

Simple line drawing of a bag with a small animal inside, no text or symbols present

Illustration of a T-shirt with patterned fabric and side connectors (no text or symbols)

Simple line drawing of a container with an arrow indicating rotation or movement (no text or symbols)

Technical diagram of a mechanical component with labeled parts and symbol indicators

Line drawing of a hand washing a washing machine with a cloth (no text or symbols)

Nota

Line drawing of a hand gripping a curved object (no text or symbols)

Limpando o filtro de entrada

Nota

Diagram of a faucet with a valve and rotating arrow indicating clockwise motion (no text or symbols)

Line drawing of a hand holding a microphone with a tool inserted (no text or symbols)

Hand holding a tool with a magnified inset showing a mechanical component (no text or symbols visible)

Line drawing of a hand holding a magnifying glass over a screen, mounted on a table (no text or symbols)

Nota

Line drawing of a mechanical component with internal parts and a central fastener (no text or symbols)

Remova a gaveta pressionando A

Line drawing of a mechanical device with a lever and numbered parts (no text or symbols)

Line drawing of a hand using a tool to clean or inspect a dark object inside a container (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

Coloque a gaveta de volta

Nota

Illustration of a hand holding a light bulb above a plate with a small inset showing food (no text or symbols)

Diagram of a mechanical component with directional arrows indicating motion (no text or symbols)

800mm 580mm 540mm 595mm 125mm 825mm 162.8mm

Esquema

Technical diagram showing two precision tools operating on a workbench with magnified insets highlighting their respective work areas.

Technical diagram showing mechanical assembly with labeled components and directional arrows indicating motion or force

Line drawing of a washing machine with two switches attached to the door (no text or symbols)

Instalar os contra-ímanes

Line drawing of a washing machine with a screw inserted, showing internal components and no text or symbols

Instale a porta

Atenção

Scan for manual in other languages and further updates:
