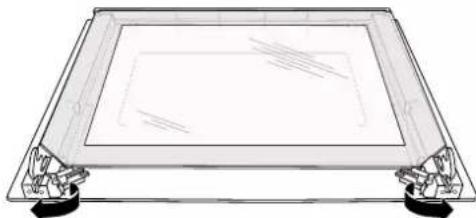

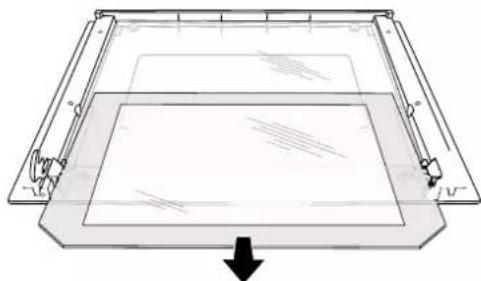

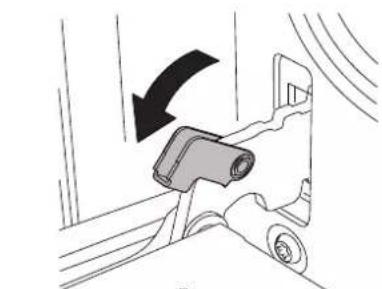

Unplug the oven, open the door and remove it following the manual instructions. Clean the glass with a damp cloth and mild detergent. Never use abrasive cleaners or metal scrapers.

How to change the oven bulb?

Unplug the oven. Unscrew the glass cover counterclockwise. Replace the bulb with a halogen bulb 25-40W/220-240V, T300°C. Screw the cover back on.

What is the ECO mode for?

ECO mode allows energy-efficient cooking by using heat only from top and bottom. It is ideal for slow-cooking dishes and reduces power consumption.

How to correctly position the racks?

Racks should always be placed between the side rails of the oven for stability and to prevent food from slipping. This ensures safe removal.

Can a steam cleaner be used to clean the oven?

No, do not use a steam cleaner. This could damage electrical components. Use a damp cloth and non-abrasive detergent.

What to do if the oven does not turn on?

Check that the oven is properly plugged in and that the time is set. If the clock is flashing, set it. If the problem persists, contact after-sales service.

What accessories are supplied with the oven?

The oven comes with racks, a universal tray, and a removable support (depending on model). Telescopic guides may be available depending on the model purchased.

USER MANUAL EMV70DGW EAS Electric

Abstract arrangement of gray and white triangular shapes arranged in rows (no text or symbols)

HORNO

OVEN

FOUR

FORNO

Simple diagram with two circles above a horizontal line, likely indicating a division or partitioning step.

EMV70DGN

EMV70DGW

QR code with embedded logo and text 'EAST ELECTRON' in the center

Escanee para ver este manual en otros idiomas y actualizaciones Scan for manual in other languages and further updates Manuel dans d'autres langues et mis à jour Manual em outras línguas e actualizações

Pure geometric diagram of a rectangular plate with vertical slats, no text or symbols present

Pure diagram of a container with horizontal lines and a wavy top section, no text or symbols present.

Pure geometric diagram of a rectangular frame with internal hexagonal divisions (no text or symbols)

Technical line drawing of a multi-tiered grid structure with mounting brackets (no text or symbols)

Simple line drawing of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Diagram showing a square component with arrows indicating direction and a close-up of a screw with a circular end (no text or symbols)

Technical diagram of an electronic device with labeled ports and components, including a zoomed-in inset showing a component labeled 'N' and 'L'.

INSTALACIÓN

C560 A595 B595 C575

F570 min. 80 100 250 H560 E600 D606

Nota:

Symbol of a trash bin crossed with no visible text or labels

Technical diagram showing a mechanical assembly with a highlighted inset view of a gear mechanism (no text or symbols present)

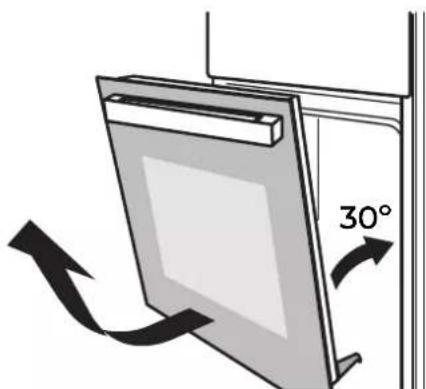

Diagram of a door frame with 30-degree angle标注 and directional arrows indicating rotation (no text or symbols beyond the angle marker)

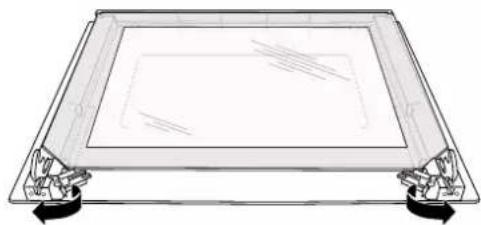

Technical line drawing of a rectangular frame with corner supports and a central screen (no text or symbols)

Technical line drawing of a rectangular frame with internal components and an arrow indicating downward motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

V.4

CONDICIONES DE LA GARANTÍA

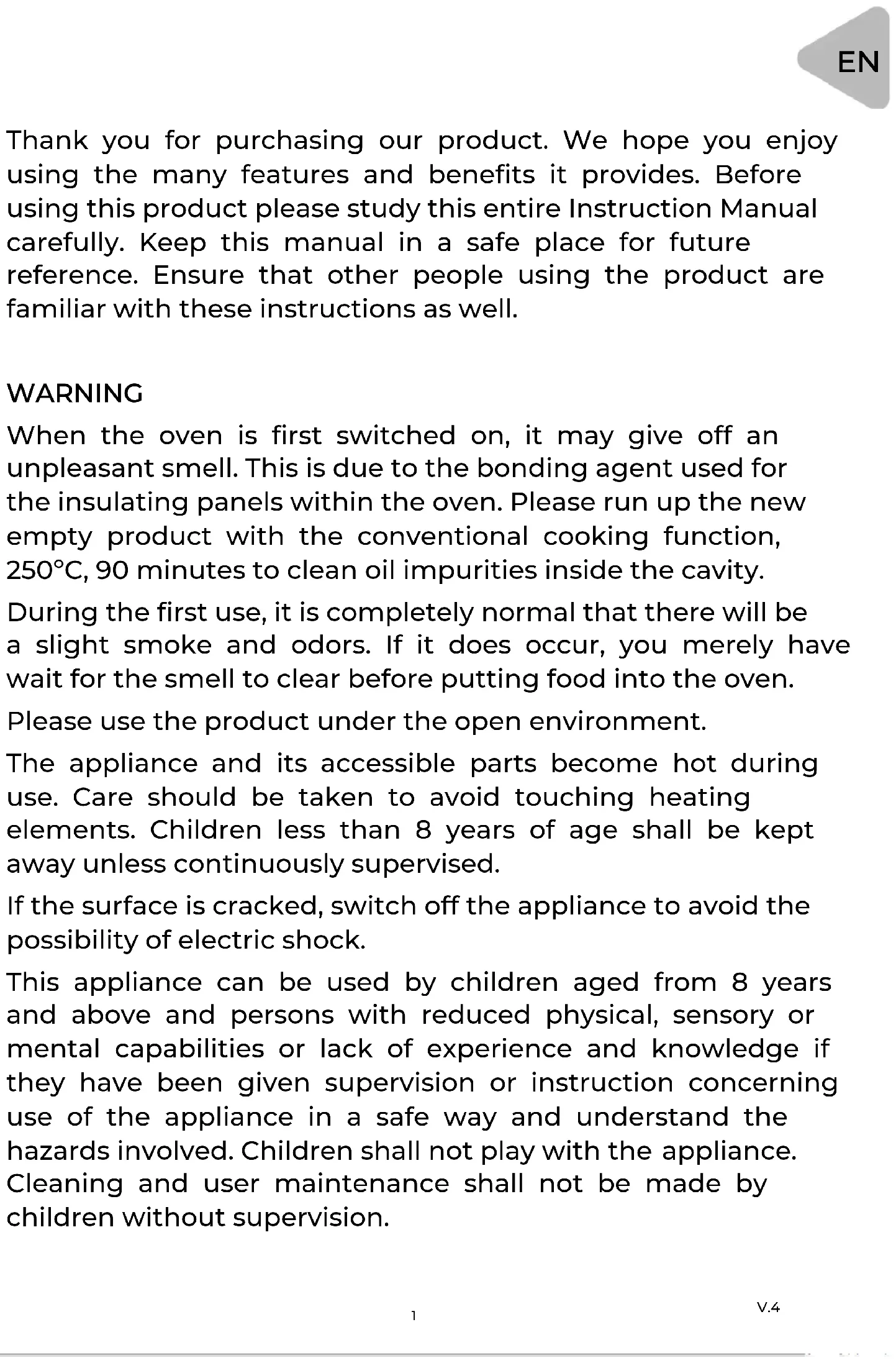

Thank you for purchasing our product. We hope you enjoy using the many features and benefits it provides. Before using this product please study this entire Instruction Manual carefully. Keep this manual in a safe place for future reference. Ensure that other people using the product are familiar with these instructions as well.

WARNING

When the oven is first switched on, it may give off an unpleasant smell. This is due to the bonding agent used for the insulating panels within the oven. Please run up the new empty product with the conventional cooking function, 250°C, 90 minutes to clean oil impurities inside the cavity.

During the first use, it is completely normal that there will be a slight smoke and odors. If it does occur, you merely have wait for the smell to clear before putting food into the oven.

Please use the product under the open environment.

The appliance and its accessible parts become hot during use. Care should be taken to avoid touching heating elements. Children less than 8 years of age shall be kept away unless continuously supervised.

If the surface is cracked, switch off the appliance to avoid the possibility of electric shock.

This appliance can be used by children aged from 8 years and above and persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved. Children shall not play with the appliance. Cleaning and user maintenance shall not be made by children without supervision.

Do not allow children to go near the oven when it is operating, especially when the grill is on.

Ensure that the appliance is switched off before replacing the oven lamp to avoid the possibility of electric shock.

An all-pole disconnection means must be incorporated in the fixed wiring in accordance with the wiring rules.

If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Do not use harsh abrasive cleaners or sharp metal scrapers to clean the oven door glass since they can scratch the surface, which may result in shattering of the glass.

A steam cleaner is not to be used.

The appliances are not intended to be operated by means of an external timer or separate remote-control system.

The instructions for ovens that have shelves shall include details indicating the correct installations of the shelves.

This oven is designed for indoor domestic use. If it is used for other purposes, or if it is misused, the warranty will be void.

SAFETY HINTS

• Do not use the oven unless you are wearing something on your feet. Do not touch the oven with wet or damp hands or feet.
• For oven: Oven door should not be opened often during the cooking period.
• The appliance must be installed by an authorized technician and put into use. The producer is not responsible for any damage that might be caused by defective placement, and installation by unauthorized personnel.
• When the door or drawer of oven is open do not leave anything on it, you may unbalance your appliance or break the door.
• Some parts of appliance may keep its heat for a long time; it is required to wait for it to cool down before touching onto the points that are exposed to the heat directly.
• If you will not use the appliance for a long time, it is advised to plug it off.
• Remove excessive dirt before cleaning; refer to the products that can be used inside the oven during cleaning.
• Use only the temperature probe recommended for this oven.

FITTING THE OVEN INTO THE KITCHEN UNIT

Fit the oven into the space provided in the kitchen unit; it may be fitted underneath a work top or into an upright cupboard. Fix the oven in position by screwing into place, using the two fixing holes in the frame. To locate the fixing holes, open the oven door and look inside. To allow adequate ventilation, the measurements and distances adhered to when fixing the oven.

IMPORTANT

If the oven is to work properly, the kitchen housing must be suitable. The panels of the kitchen unit that are next to the oven must be made of a heat resistant material. Ensure that the glues of units that are made of veneered wood can withstand temperatures of at least 120 °C. Plastics or glues that cannot withstand such temperatures will melt and deform the unit, once the oven has been lodged inside the units, electrical parts must be completely insulated. This is a legal safety requirement.

All guards must be firmly fixed into place so that it is impossible to remove them without using special tools. Remove the back of the kitchen unit to ensure an adequate current of air circulates around the oven. The hob must have a rear gap of at least 45 mm.

DECLARATION OF COMPLIANCE

When you have unpacked the oven, make sure that it has not been damaged in any way. If you have any doubts at all, do not use it: contact a professionally qualified person.

Keep packing materials such as plastic bags, polystyrene, or nails out of the reach of children because these are dangerous to children.

CE

PRODUCT DESCRIPTION

Cooking function Increasing control Temperature knob Decreasing control Time function/Confirm

Symbol Function description
	Oven Lamp: Which enables the user to observe the progress of cooking without opening the door. Oven lamp will light for all cooking functions except ECO function.
	Defrost: The circulation of air at room temperature enables quicker thawing of frozen food (without the use of any heat). It's a gentle but quick way to speed up the defrosting time and thawing of ready-made dishes and cream filled produce etc.
	Bottom heater: Heat is applied only by the bottom side of the oven. Use this option for browning the bottom side of the food. This function is suitable for slow cooking recipes or for warming up meals.
	Conventional cooking: Heaters from the upper and the lower side uniformly heat the exposed food. Baking and roasting is possible only at single level.
	Convention with fan: The top heating element and the bottom heating element are working with fan. The appliance to be cooked is evenly and quickly cooked all around.
	Grill-small: This cooking method is normal grilling, utilizing the inner part only of the top heating element, which directs heat downwards onto the food.
	Double grilling: The inner heating element and the outer heating element in the top of the oven are working. Suitable for grilling larger quantities.
	Double grilling with fan (at the rear panel): The inner heating element and the outer heating element in the top of the oven are working with fan. It is suitable for grilling large amount of meat.
	For energy-saved cooking. Cooking the selected ingredients in a gentle manner, and the heat comes from the top and the bottom.

OPERATION INSTRUCTIONS

When the oven is first connected to the electrical supply, wait for the display automatically show "12.30", a beep sound once and the "12" and "." flash.

Ensure the correct time of the day is set before using the oven. Please note: that is 24 hour clock, for example 2PM shown as 14.00.

To set the correct time of day

1> If the display isn't flashing, press the "+" and "-" buttons at the same time to set the time.
2>Press the "☐" button to confirm the time setting.
3>Press the "+" and "-" buttons at the same time to set the minutes.
4> Press the "☐" button to confirm the minute setting and return to standby status.

Note: if the display does not flash when you turn it on for the first time, you can follow these steps to set the clock.

Oven On and Off

If the timer is in standby mode; press "☐" for more than 3 seconds, the timer will enter manual mode and the symbol "☐" will light up continuously.

1) Set the desired cooking function and temperature settings.
2) Set the timer and the oven will switch on.

If you set Dur or End, after cooking, the oven will automatically turn off.

If you set manual or minute minder, after cooking, bring the cooking function and oven temperature knob to "0" position. Press "☐" and "+" buttons for more than 3 seconds to return to standby mode.

Time function setting

In manual mode, pressing "☐" can enter the time function setting. The sequence of the function setting is Manual mode - Minute minder-Dur-End-Manual mode. Then select the cooking function and adjust the cooking temperature if required.

Manual mode

In manual mode, only the current time is displayed and the symbol is illuminated. It is up to the user to control the cooking time.

In this mode, to ensure that the oven is not left on by accident, when 5 hours elapse without any button being pressed, the timer will flash as a warning that the oven is about to enter standby mode. After a total of 10 hours, it will enter standby mode.

When the timer is flashing in manual mode, press any button to reset it if you intend to continue using the oven, or press ☑ and "+" at the same time for at least 3 seconds to enter standby mode if you are not going to use it any more.

Setting the timer as an alarm

This function can be used to receive audible warning at the completion of the adjusted time period.

1> Press the "☐" button to select the minute minder function. The relevant "☐" "." symbol will flash.

2> Use the + and - buttons to set the alarm time, following the same steps as for changing the oven time. Press the ☑ button to confirm, and when the ☑ symbol is fixed, the alarm setting is complete.

3> At the end of the set time, the oven will sound an audible alarm and the symbol will start flashing. Press any button to stop the alarm, and the symbol will disappear from the display. This function only serves as a reminder, and does not automatically switch off the oven. Press the and "+" buttons at the same time to return to standby mode and switch off the oven if you do not wish to continue using it.

Semi automatic programming according to cooking period:

This function is used to cook for a set period of time. The food must be placed in the oven and the desired cooking function and temperature must be set. The maximum duration setting is 10 hours.

1> Press the ☑ button until "Dur" appears on the display (before setting the cooking duration).

2> Use the "+" and "-" buttons to set the cooking period for the food you have entered, following the same steps as for setting the oven time. Press the ☐ button to confirm, and the display will show the current time and the "A" and symbols will light up. At the same time, the oven will start.

3> When the set duration is completed, the timer will switch off the oven and beep, and the A symbol will flash. After turning the function and cooking temperature selection knobs to 0, press any button to stop the alarm. Press the button ☑ again for more than 3 seconds to return the oven to Manual mode.

Semi automatic programming according to finishing time:

This function is used to cook based on a desired end time. You must enter the food you want to cook in the oven, and set the desired cooking function and temperature.

1> Press the " ☐" button until you see " End " on the timer screen. (Before setting finished time).

2> Use the "+" and "-" button to adjust finishing time. (Refer to the instructions for setting the correct time of day.)

3> Press the "☐" button to confirm, the day's time will appear on the screen and the symbols "A" and 🔊 will light on the screen. While doing this, the oven will also start to operate.

4> At the end of the set duration, the timer will switch off the oven and emit an audible signal and the A symbol will flash. After turning the function and cooking temperature selection wheels to 0, press any button to stop the alarm. Press again the ☑ button for more than 3 seconds to return the oven to Manual mode.

Full automatic programming

This function is used to start cooking with delayed start, and to cook for a set period of time. You must place the food to be cooked in the oven and set it to the desired cooking function and the required temperature depending on the type of food to be cooked.

First: Press the "☐" button until you see "Dur" on the timer screen. Use the "+" and "-" button to adjust cooking period for the food you wish to cook. Press "☐" button to confirm, the day's time will appear on the screen and the symbols "A" will begin to continuously light on the screen.

Second: keep pressing on "☐" button until you see "End" on the timer screen. When you see "End" on the time screen, use "+" or "-" button to adjust finishing time. Press "☐" button to confirm, the day's time will appear on the screen and the symbol "A" will begin to continuously light on the screen. The symbol " " disappears until the time cooking starts.

You can set a time which can be up 23.59 hours after the time obtained by adding the cooking period to the day's time.

The oven will start to operate at the time calculated by subtracting the cooking period from the set end time, and will switch off when the set end time is reached. The oven will sound an audible alarm and the "A" symbol will flash. After turning the function and cooking temperature selection wheels to 0, press any button for less than 3 seconds to stop the alarm. Press the button for more than 3 seconds to return the oven to manual mode.

Please note that once the automatic mode is set, the set times cannot be changed. Changing these times involves cancelling the automatic mode and activating the corresponding mode. If you need to make changes to the automatic mode, you will have to stop all settings and follow the above steps again.

Specifications

1> When setting the time for each function, press and hold "+" or "-" for more than 3 seconds to make the values increase or decrease faster.

2> During time setting of these functions, if no button is pressed for 5 minutes, the oven will return to manual mode.

3> During the time setting of these functions, you can press for more than 3 seconds to cancel the current setting and activate the manual mode.

4> During timer setting, press + and for more than 3 seconds. A beep will sound and the current timer will be cancelled to return to standby mode.

5> We suggest that you run the oven for 15 minutes at 200^ C to remove any residue left on the oven surfaces.

ACCESSORIES

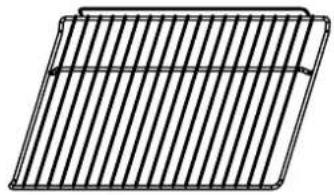

Grates: For grilling dishes or placing containers for roasting or baking food.

Pure geometric diagram of a rectangular plate with vertical slats, no text or symbols present

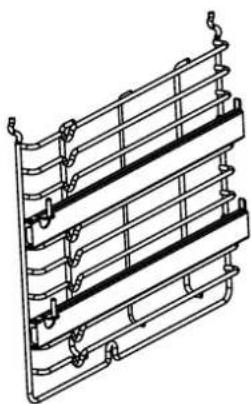

Removable rack: This rack is placed on the right and left side of the oven, and can be removed to clean the oven walls (depending on model).

Pure diagram of a container with horizontal lines and a wavy top section, no text or symbols present.

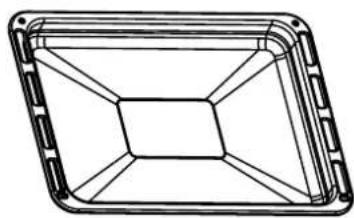

Universal tray: For cooking large quantities of food such as cakes, pastries, frozen food, etc... or for collecting grease or spillages from cooking meat.

Pure geometric diagram of a rectangular frame with internal hexagonal divisions (no text or symbols)

Telescopic guides: Some of the models contain telescopic guides to facilitate the use of the oven. These telescopic guides can be removed for cleaning by unscrewing the screws used to fix them. (depending on the model).

Technical line drawing of a multi-tiered grid structure with mounting brackets (no text or symbols)

Recipes for ECO mode

Recipes	Temperature °C	Level	Time (min)	Preheat
Potato and cheese gratin	180 1		90-100	No
Cheese cake	160	1	100-150	No
Meatloaf	190	1	110-130	No

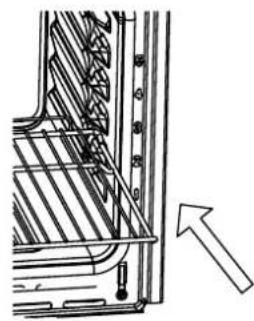

SHELF PLACEMENT WARNING:

To ensure the oven shelves operate safely, correct placement of the shelves between the side rail is imperative. Shelves and the pan only can be used between the first and fifth layers. The shelves should be used with the right direction, it will ensure that during careful removal of the shelf or tray, hot food items should not slide out.

BULB REPLACEMENT

The oven light bulb is a special bulb that is resistant to high temperatures. To replace it, proceed as follows:

• Disconnect power from the mains outlet or switch off the circuit breaker of the unit's mains outlet.
• Unscrew the glass lamp cover by turning it counter-clockwise (note, it may be stiff) and replace the bulb with a new one of the same type.
• Screw the glass lamp cover back in place.

Simple line drawing of a mechanical component with a rotating arrow (no text or symbols)

Note: Only use 25-40W/220V-240V, T300°C halogen lamps.

SECURING THE OVEN TO THE CABINET

1. Fit oven into the cabinet recess.
2. Open the oven door and determine the location of the mounting screw holes.
3. Fix the oven to the cabinet with two screws.

Diagram showing a door frame with arrows indicating direction and a screw inserted into a circular hole, enclosed in a dashed circle (no text or symbols)

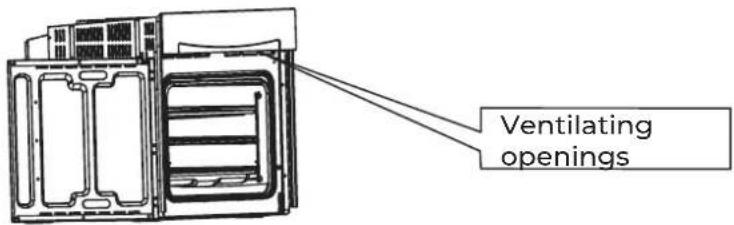

VENTILATING OPENINGS

When cooking is finished or in pause state or in waiting state, if the oven's center temperature is over 75 degree, the cooling fan will continue working for 15 minutes. Or when the oven's center temperature becomes lower than 75 degree, the cooling fan will stop in advance.

Ventilating openings

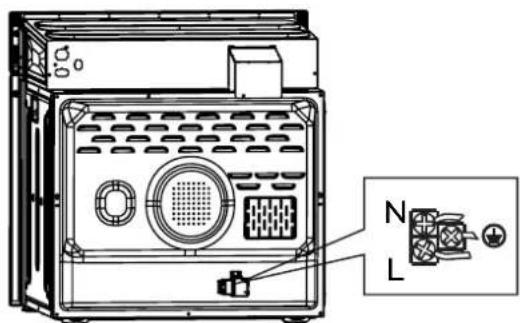

CONNECTION OF THE OVEN

Technical diagram of an electronic device with labeled ports and components, including a zoomed-in inset showing a component labeled 'N' and 'L'.

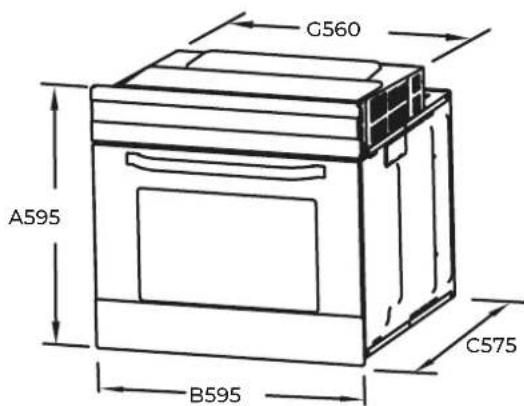

INSTALLATION

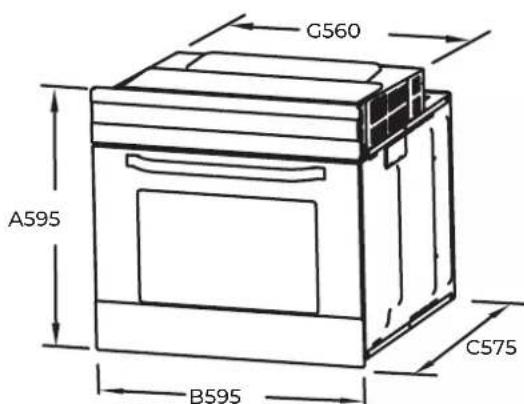

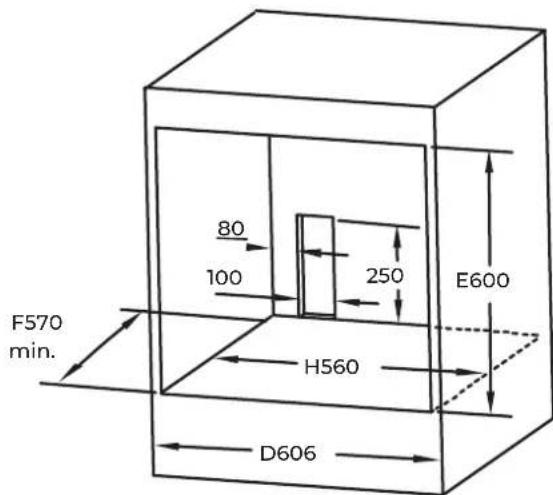

C560 A595 B595 C575

F570 min. 80 100 250 H560 E600 D606

Remark:

1. Only plus deviations are admissible for all dimension.
2. The cabinet is not include the power switch or socket.
3. The cabinet dimension is in mm.

NOTE: The number of accessories included depends on the particular appliance purchased.

CLEANING AND MAINTENANCE

For the sake of a good appearance and reliability, keep the unit clean. The modern design of the unit facilitates maintenance to a minimum. The parts of the unit which come into contact with food have to be cleaned regularly.

■ Before any maintenance and cleaning, disconnect the power.
- Set all controls in the OFF position.
- Wait until the inside of the unit is not hot but only slightly warm-cleaning is easier than when warm.
- Clean the surface of the unit with a damp cloth, soft brush or fine sponge and then wipe dry. In case of heavy soiling, use hot water with non-abrasive cleaning product.
- For cleaning the glass of the oven door, do not use abrasive cleaners or sharp metal scrapers, these can scratch the surface or lead to the glass being damaged.
- Never leave acidic substances (lemon juice, vinegar) on stainless steel parts.
- Do not use a high pressure cleaner for cleaning the unit. The baking pans may be washed in mild detergent.

Symbol of a trash bin crossed out by two diagonal lines (no text or labels)

DISPOSAL: Do not dispose this product as unsorted municipal waste. Collection of such waste separately for special treatment is necessary.

The european directive 2012/19 /UE on wasted electrical and electronic equipments (WEEE), requires that household electrical appliances must not be disposed of in the normal unsorted municipal waste stream. appliances must be collected separately in order to optimize the recovery and recycling of the materials they contain, and reduce the impact on human health and the environment.

The crossed out “wheeled bin” symbol on the product reminds you of your obligation, that when you disposed of the appliances, it must be separately collected. Consumers should contact their local authority or retailer for information concerning the correct disposal of their old appliance.

REMOVING THE DOOR FROM OVEN (OPTIONAL)

Removable doors allow full access to entire interior of the oven for easier and quicker maintenance. Handle parts and glass with great care, as breakage due to improper handling is not covered by the warranty.

1. To remove the door, open the door to the maximum angle. Then pull the buckle at the door hinge backward. (Figure 1)

2. Close the door to an angle approximately 15^ . Lift up and slowly pull the door out from the oven. (Figure 2)

3. Place the door flatwise with door top cover towards yourself, put your hands on the glass and pull it towards the oven. (Figure 3)

4. Separate the glass carefully by lifting it approximately 25^ .(Figure 4)

5. Push the glass into the position indicated by the arrow in Figure 5. Gently pull the glass out of the socket.

6. After pulling out the inner glass, please take out the middle layer glass as shown in Figure 6.

7. When cleaning is completed, reverse the above procedures to return the door to its original position.

Diagram of a car seatbelt mechanism with a black arrow indicating clockwise motion (no text or symbols)

Diagram of a door frame with 15° angle and directional arrows indicating rotation (no text or symbols)

Illustration of hands placing a paper into a tray with arrows indicating direction (no text or symbols)

3

25°

4

Abstract 3D diagram of a layered structure with an arrow pointing upward (no text or symbols)

Glass Rubber 5

6

REMOVING THE DOOR FROM OVEN (OPTIONAL) TYPE-2

Disassembly of oven door components

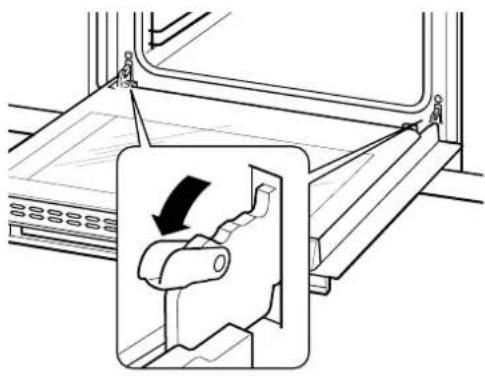

1. To remove the door, open the door to the maximum angle. Then pull the buckle at the door hinge backward.

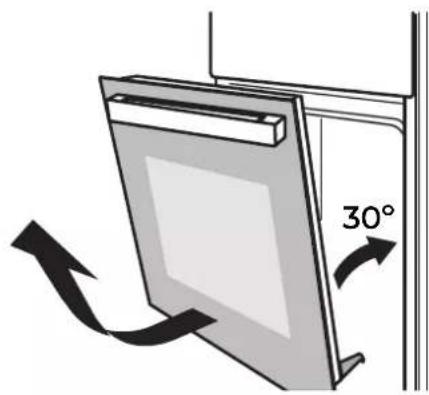

2. Close the door to an angle approximately 30^ . Hold the door with one hand on each side. Lift up and slowly pull the door out from the oven.

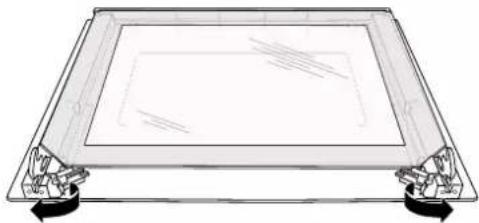

3. Open the door rotation bracket assembly, refer the action in the following picture.

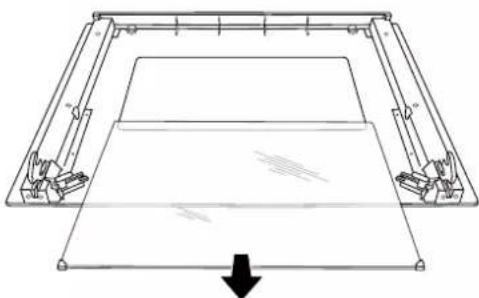

4. Lift up the door outer glass and pull it out, then take the door middle glass out in the same way.

WARNING:

Don't pull the door forcibly and prevent the glass breakage during the dismantling process.

WARNING:

Note that the hinge springs could loose and cause personal injury.

WARNING:

Do not lift or carry the oven door by the door handle.

Technical diagram showing a mechanical assembly with a highlighted inset view of a gear mechanism (no text or symbols present)

Diagram of a door frame with 30-degree angle标注 and directional arrows indicating rotation (no text or symbols beyond the angle marker)

Technical line drawing of a rectangular frame with corner supports and a central screen (no text or symbols)

Technical line drawing of a rectangular frame with internal components and a downward arrow indicating motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

V.4

WARRANTY CONDITIONS

This appliance is guaranteed for three years from the date of sale against all manufacturing defects, including labour and spare parts. In order to justify the date of purchase, it will be compulsory to present the invoice or purchase receipt. The conditions of this warranty apply only to Spain and Portugal. If you have purchased this product in another country, please consult your distributor for the applicable conditions.

WARRANTY EXCLUSIONS

1. Remote controls, drain intake rubbers, dockings and door seals, weather stripping.
2. Damage to enamels, paints, nickel plating, chrome plating, oxidation or other types of aesthetic parts or components that do not affect the internal functioning of the appliance.
3. Damage to wear parts due to use, corrosion or oxidation, whether caused by normal use of the appliance or accelerated deterioration due to unfavorable environmental or climatic circumstances. Not suitable for outdoor use.
4. Damage to fragile pieces of glass, glass ceramic, plastics, handles, baskets, doors or light bulbs when their failure or breakage is not attributable to a manufacturing defect.
5. Faults produced by fortuitous causes or accidents of force majeure, or as a consequence of abnormal, negligent or inappropriate use of the device.
6. Civil liabilities of any nature.
7. Consequential damage to the appliance as long as it has not been caused by an internal malfunction.
8. Maintenance or upkeep of the appliance: periodic reviews, adjustments and greases.
9. Faults that accessories and complements, adapters, external cables, bags, spare parts of all kinds, lamps, as well as any part considered consumable by the manufacturer, may suffer.
10. Faults caused by incorrect or illegal installation, inadequate ventilation, lack of ground-ing in the home, power disturbances, inappropriate modifications or use of non-original spare parts.
11. Appliances used in industrial applications or for commercial purposes.
12. Appliances with illegible or altered serial number.
13. Defects or breakdowns produced as a result of fixes, repairs, modifications, or disassembly of the installation of the device by the user or by a technician not authorized by the manufacturer, or as a result of manifest non-compliance with the manufacturer's instructions for use and maintenance.
14. During the warranty period it is essential to keep all manuals together with the equipment. If the equipment is sold, donated or given away, the manual and all related documents must be given to the new user. If any of these are lost, their replacement cannot be claimed.
15. Faults that have their origin or are a direct or indirect consequence of: contact with liquids, chemicals and other substances, as well as conditions derived from the climate or the environment: earthquakes, fires, floods, excessive heat or any other external force, such as insects, rodents and other animals that may have access to the interior of the machine or its connection points.
16. Damages derived from terrorism, riot or popular tumult, legal or illegal demonstrations and strikes; facts of actions of the Armed Forces or the State Security Forces in times of peace; armed conflicts and acts of war (declared or not); nuclear reaction or radiation or radioactive contamination; vice or defect of the goods; facts classified by the Government of the Nation as "national catastrophe or calamity".

Design and specifications are subject to change without notice for product improvement. Any changes to the manual will be updated on our website, you can check the latest version.

EAS ELECTRIC

SMART TECHNOLOGY

www.easelectric.es

DÉCLARATION DE CONFORMITÉ

Simple line drawing of a rectangular plate with vertical slats (no text or symbols)

Pure diagram of a container with horizontal lines and a small U-shaped object at the bottom (no text or symbols)

Pure geometric diagram of a rectangular frame with internal diagonal lines (no text or symbols)

Technical line drawing of a multi-panel rack structure with no text or symbols

Technical line drawing of an oven with internal structure and ventilation duct (no text or symbols)

OU

Technical line drawing of a multi-tiered oven or storage unit with internal shelves and vent slots (no text or symbols)

Technical line drawing of a mechanical assembly with an arrow indicating direction (no text or symbols present)

REEMPLACEMENT DES AMPOULES

Simple line drawing of a container with a rotating arrow indicating rotation (no text or symbols)

Diagram showing a square window with arrows indicating direction and a screw head with a circular detail (no text or symbols)

OUVERTURES DE VENTILATION

RACCORDEMENT DU FOUR

Technical diagram of an electronic device with labeled ports and internal components, including a zoomed-in inset showing connection details.

INSTALLATION

C560 A595 B595 C575

F570 min. 80 100 250 E600 H560 D606

Note :

Symbol of a trash bin crossed with no visible text or labels

RETIRER LA PORTE DU FOUR (OPTION) TYPE 2

Technical diagram showing a mechanical assembly with a magnified inset highlighting a component (no text or symbols present)

Diagram of a door frame with an 30-degree angle indicator and directional arrows (no text or symbols)

Line drawing of a rectangular frame with two corner supports at both ends (no text or symbols)

Technical line drawing of a rectangular frame with internal structure and a downward arrow indicating compression or dislocation (no text or symbols)

Pure technical line drawing of a mechanical component or frame structure without any text, numbers, or symbols

V.4

CONDITIONS DE LA GARANTIE

EXCLUSIONS DE LA GARANTIE

Pure geometric diagram of a rectangular plate with vertical lines, no text or symbols present

Pure diagram of a container with horizontal lines and a wavy top section, no text or symbols present.

Pure geometric diagram of a rectangular frame with internal hexagonal divisions (no text or symbols)

Technical line drawing of a multi-tiered grid structure with mounting brackets (no text or symbols)

Simple line drawing of a mechanical component with a rotating arrow indicating rotation (no text or symbols)

Nota: Utilizar apenas lâmpadas de halogéneo 25-40W/220-240V, T300°C.

Technical diagram showing a mechanical assembly with labeled components A and B, including directional arrows indicating movement or force.

Symbol of a trash bin crossed with no visible text or labels

Technical diagram showing a mechanical assembly with a highlighted inset view of a gear mechanism (no text or symbols present)

Diagram of a door frame with 30-degree angle标注 and directional arrows indicating rotation (no text or symbols beyond the angle marker)

ADVERTÊNCIA:

Technical line drawing of a rectangular frame with corner supports and a central screen (no text or symbols)

Technical line drawing of a rectangular frame with internal components and a downward arrow indicating force or motion (no text or symbols)

Technical line drawing of a mechanical component with no visible text or symbols

V.4

CONDIÇÕES DA GARANTIA

Scan for manual in other languages and further updates:
